OWNER’S MANUAL
Model : MXN-7DM
7” Digital LCD monitor
for allround vision
Design and Specifications are subject to change without notice.
MXN-7DM

MXN-7DM
Model : MXN-7DM
Safety Instructions
Package Contents
Operation
System Setting
Camera setting
Trigger setting
Auto Scan setting
Day/Night setting
Advanced menu
Installation
Connection
Specifications
.......... 03
.......... 04
.......... 05
.... 07~12
.......... 07
.......... 08
.......... 10
.......... 10
.......... 11
.......... 13
.......... 14
.......... 15
INDEX

Safety Instructions
- 3 -
WARNING
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use only DC 12V~DC 30V.
In case that dust or liquid was soaked into the housing, please turn off power and consult an
experienced technician before using.
Do not install the unit in an extremely hot or humid place(radiator, air duct, etc.) or in a place
subject to direct sunlight, excessive dust, mechanical vibration or shock
If your vehicle has been parked in direct sun light resulting in a considerable rise in temperature
inside the vehicle, allow the unit to cool off before operating
Clean the unit with a slightly damp soft cloth
Use a mild household cleaner
Never use strong solvents such as thinner or benzine as they might damage the
finish of the unit.
This symbol is intended to alert
the user to the presence of
uninsulated "dangerous voltage"
within the product's enclosure
that may be of sufficient magnit-
ude to constitute risk of electric
shock to persons.
This symbol is intended to alert
the user to the presence of imp-
ortant operating and maintena-
nce (servicing)
instructions in the literature
accompanying the appliance.
To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only.

Package Contents
- 4 -

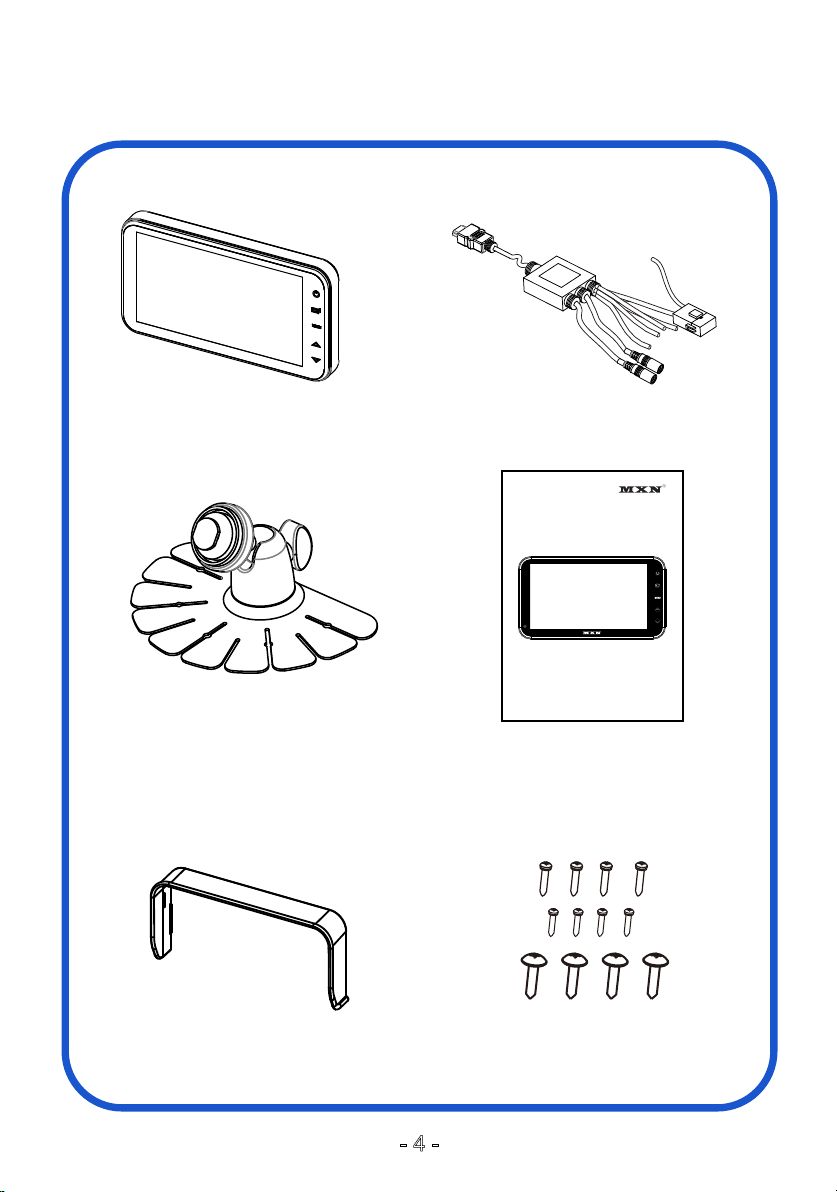

MONITOR CAMERA INPUT CABLE
(RAIL TYPE)
FIXING BRACKET USERS MANUAL
SUNVISOR SCREW KIT
OWNER’S MANUAL
Model : MXN-7DM
7” Digital LCD monitor
for allround vision
Design and Specifications are subject to chage without notice.
MXN-7DM

Operation
- 5 -

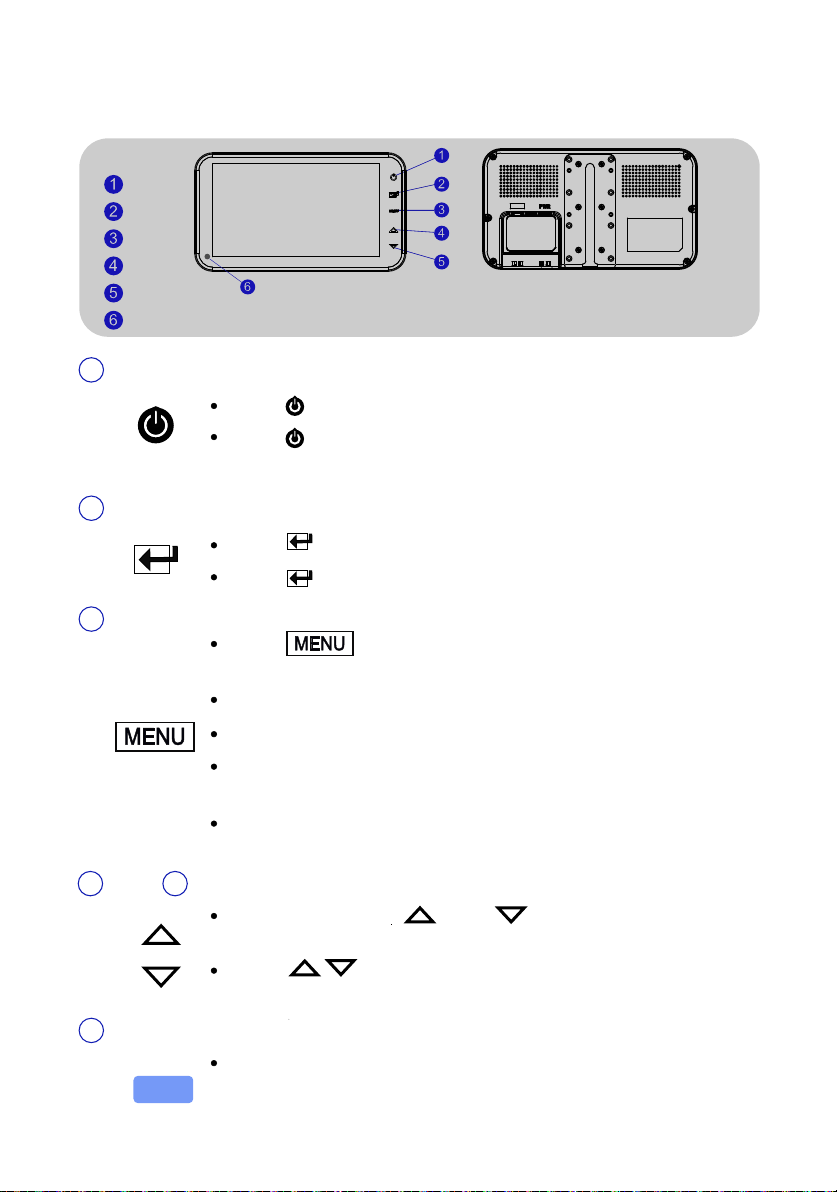

POWER
SELECT
MENU
UP
DOWN
DAY/NIGHT SENSOR
DAY/NIGHT SENSOR (Photo T.R)6
Automatic Brightness Control
The brightness of the monitor is adjusted automatically
by the Photo T.R accordingly to the circumstance.
Touch icon to select CAMERA.
Touch icon to select the option in SET UP MENU.
* NOTE - Monitor start mode will follow “AUTO POWER ” setting.
POWER1
SELECT2
MENU3
Touch icon to turn the monitor on.
Touch icon to turn the monitor off.
Touch icon to enter Display Menu(Short key) and
Main Menu(Long key).
Touch once to enter menu mode.
Touch again to exit from menu mode.
Selectable OSD Menu Disappears within 10 sec if there`s
no new button (icon) pressed.
Touch menu button over 2 sec to go back to main menu
from display menu.
UP DOWN4 5
While in Menu mode and navigate through the available
menu options.
Touch to adjust Bright, Contrast, Color, Sharpness,
Tint Volume and other setting values.

Operation
- 6 -
DISPLAY MENU
MENU UP/DN SELECT UP/DN MENU
Short Key
(more than Touch 1 sec)
* "TINT" menu is displayed in NTSC only.
BRIGHT
SHARPNESS
CONTRAST
COLOR
TINT
NTSC MODE
-DISPLAY MENU-
1. BRIGHT
2. CONTRAST
3. COLOR
4. SHARPNESS [30]
5. TINT
[30]
[30]
[30]
MENU MENU
Shortkey Menu can control Bright, Contrast, Color and Sharpness, Tint for
individual channel ( CAM1, CAM2 )
How to adjust : Select camera ( CAM1, CAM2 ) and press the “Menu” icon with short
time.
Now you can adjust.

System Setting
- 7 -
1. CAMERA SETTING
CAM1
UP/DOWN [UP ]
SORT: [SHUTTER ]
CAMERA NAME: CAM1
NOR/MIR [MIRROR ]
Touch MENU icon for a while (over 2 sec) to enter MAIN MENU.
Selectable OSD MENU disappears within 10 sec if there is no new icon touched.
1. CAMERA SETTING
SUBDIVISION MENU
NOR/MIR
MENU
MENU UP/DN SELECT
long key
(more than 2 sec)
up / down shifting
option setting
shifting option setting shifting option setting shifting exit
UP/DOWN: [UP, DOWN] SORT: [NORMAL, SHUTTER]
CAMERA NAME: [CAM1or2, FRONT, REAR, LEFT, RIGHT, SIDE, CENTER, ROOM]

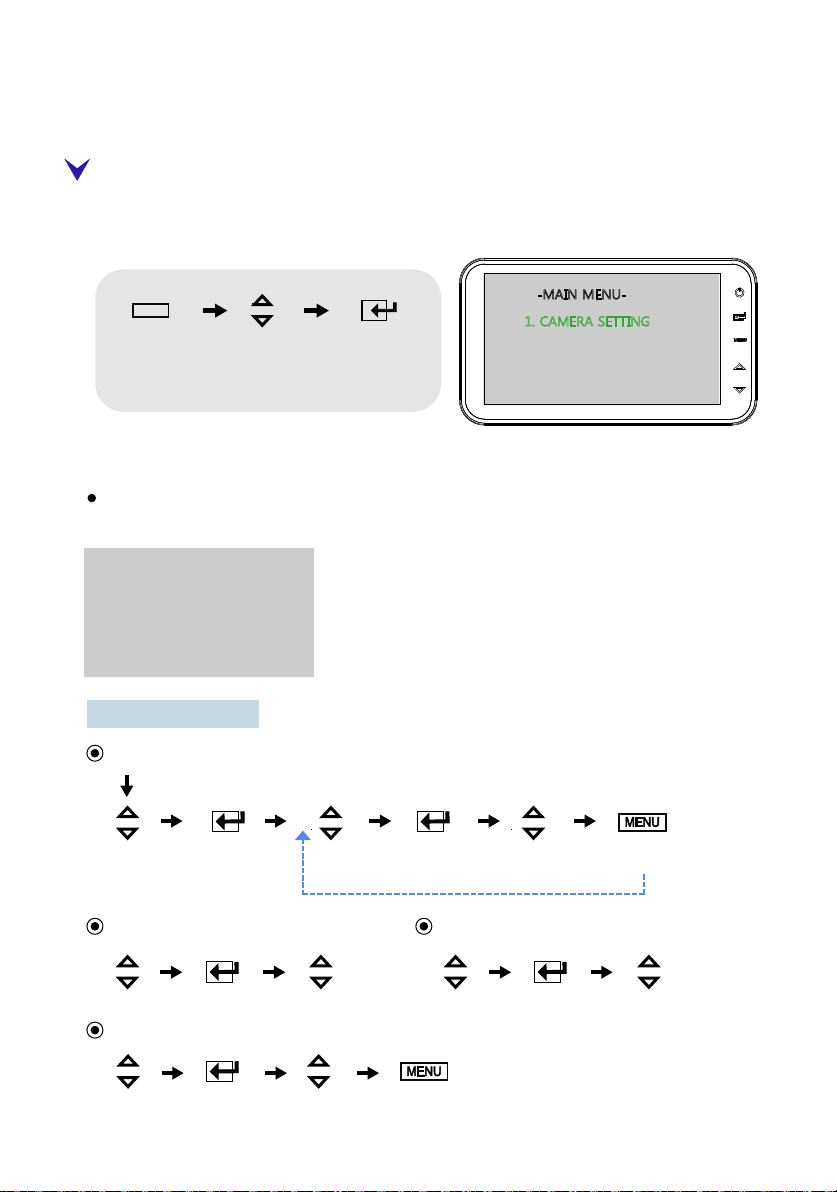

-MAIN MENU-
1. CAMERA SETTING
2. TRIGGER SETTING
3. AUTO SCAN SETTING
4. DAY/NIGHT SETTING
5. ADVANCED MENU
Camera setting menu can control “MIR/NOR”, “UP/DOWN”, “CAMERA NAME,” “SORT”
for individual camera (CA1,CA2)
SETUP MENU

System Setting
- 8 -
2. TRIGGER SETTING
* NOTE
2. TRIGGER SETTING
TRIGGER1
SOURCE
SOURCE: [CAM1 => CAM2 => SKIP]
DELAY:[0~20SEC]
Trigger1,2
UP/DN
User can use 2 triggers and each trigger source (CAM1,2) can be selected.
When the trigger is activated, the selected source's image is displayed.
Each trigger's delay time is adjustable from 0 sec to 20 sec.
selecting option setting exit
2
Trigger1,2
UP/DN
DELAY UP/DOWN SOURCE
selecting shifting option srtting
2
- Source select, Delay time setting and MARKER ON/OFF are only available
with (SELECT) key.
- If one trigger is actviated by an intermittent signal (e.g. from an indicator
light) the delay must be activated to prevent the picture from flickering.
- Trigger1 has higher priority than Trigger2.
So, in case Trigger1 and Trigger2 are activated by DC Voltage signal at the
same time, then picture via Trigger1 will be displayed.
[CAM 1 ]
[02sec ]DELAY
MARKER [A;B;OFF]
MARKER SETTING

System Setting
- 9 -

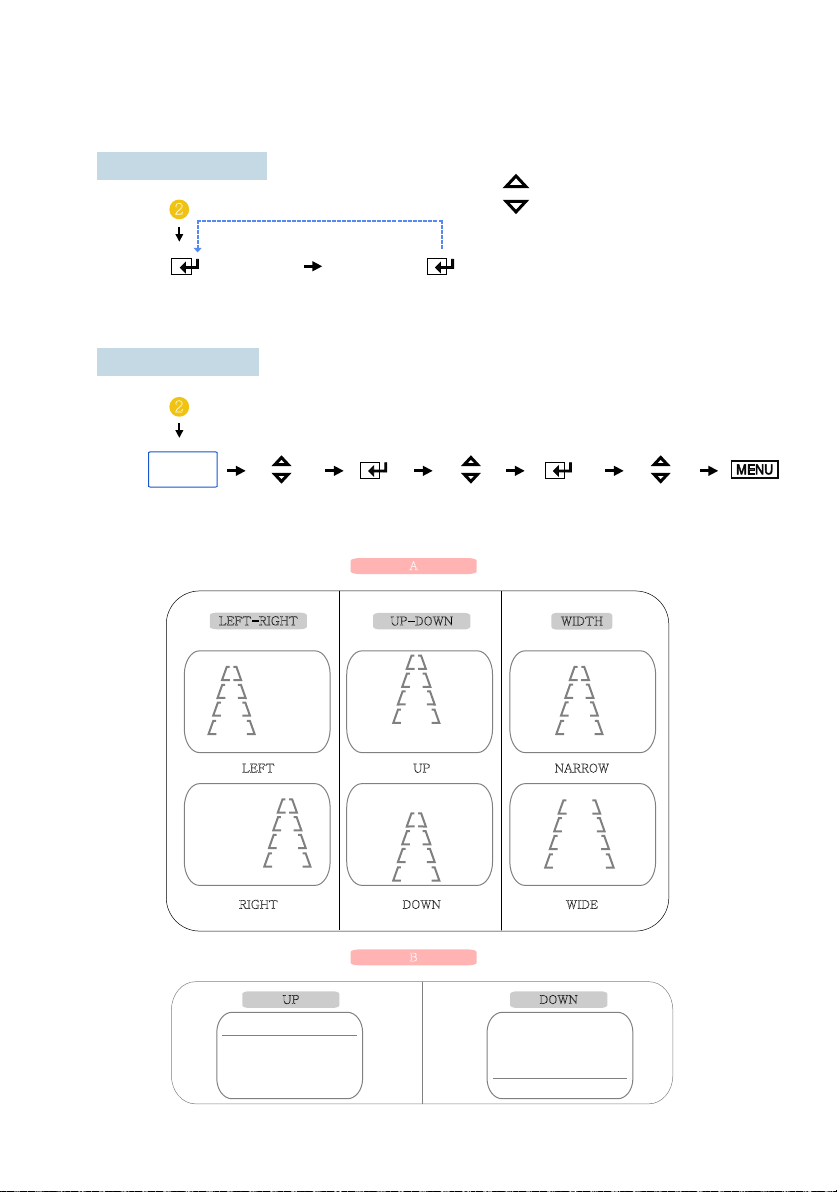

MARKER:[A;B;OFF]
A
B
MARKER SETTING
MARKER
SETTING
UP / DN SELECT UP / DN SELECT UP / DN
shifting selecting shifting option setting selecting exit
LEFT-RIGHT
UP DOWN
LEFT
RIGHT
UP-DOWN
UP
DOWN
WIDTH
NARROW
WIDE
Trigger1,2
UP/DN
MARKER
selecting
SELECT
option selecting
2
2

System Setting
- 10 -

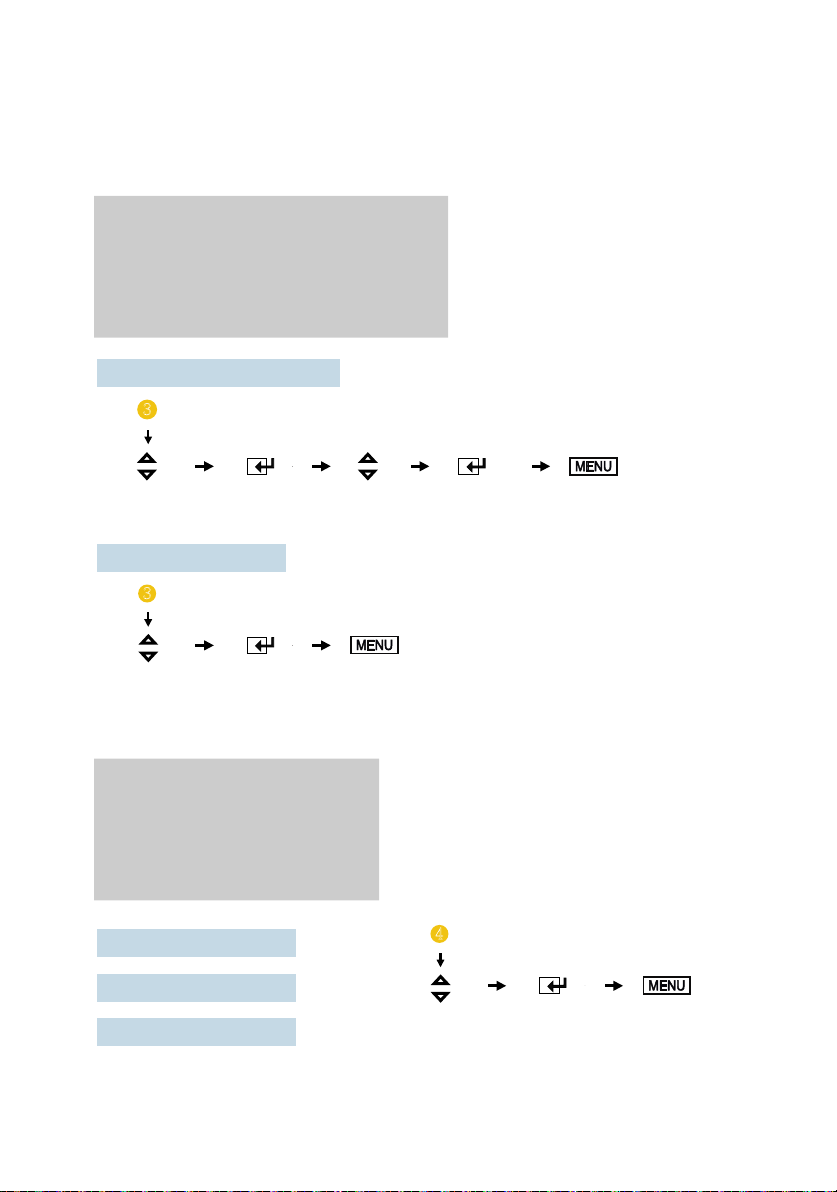

AUTO SCAN:[ON;OFF]
4. DAY/NIGHT SETTING
3. AUTO SCAN SETTING
AUTO SCAN TIME SETTING
SENSOR: [ON;OFF]
SENSITIVITY: [0~60]
NIGHT BRIGHT: [0~60]
UP / DN SELECT UP / DN SELECT MENU
shifting option setting shifting option setting exit
UP / DN SELECT MENU
shifting option setting exit
3
3
3. AUTO SCAN SETTING
AUTO SCAN
CAM1 SCAN TIME
CAM2 SCAN TIME
[ ON;OFF ]
[0~20sec ]
[0~20sec ]
3. DAY/NIGHT SETTING
SENSOR
SENSITIVITY
NIGHT BRIGHT
[ ON:OFF ]
[0~60 ]
[0~60 ]
UP / DN SELECT MENU
shifting option setting exit
4

System Setting
- 11 -
5. ADCANCED MENU
UP / DN SELECT MENU
shifting option setting exit
6
SPEED SWITCH
AUTO POWER:[ON;AUTO;OFF]
5. ADVANCED MENU
AUTO POWER [ON;AUTO;OFF]
FACTORY RESET
SPEED SWITCH
SPEED SWITCH
SPEED SWITCH : [ON;OFF]
UNDER FREQ CH
OVER FREQ DISPLAY
OVER FREQ CH : [CAM1;CAM2]
: [ON;OFF]
: [CAM1;CAM2]
FREQUENCY : [10~1000] - Select “ON” for enter into
the function.
- Select “OFF” for get out the
function.
* NOTE
SPEED SWITCH: [ON;OFF]
- Select activated frequency 10~1000Hz.
- Press “SELECT” button short for 1Hz frequency steps change.
- Press “SELECT” button long for 10Hz frequency steps change.
* NOTE
FREQUENCY: [10~1000]
- Activates selected channel when input is lower frequency than frequency setting.
* NOTE
UNDER FREQ CH: [CAM1;CAM2]
- Select :ON” for displaying image when input is higher frequency
than frequency setting.
* NOTE
OVER FREQ DISPLAY: [ON;OFF]
UP / DN SELECT MENU
shifting option setting exit
5
- Activates channel image when
input is higher frequency than
frequency setting.
* NOTE
OVER FREQ CH: [CAM1;CAM2]
- Auto Setting Monitor keeps the last setting in memory: Monitor will start up "Power-on" mode or
"Stand- by" mode according to its last mode before the ignition key off.
- Off Setting Monitor keeps "Stand- by" setting regardless of the last mode before the ignition key off.
- On setting: Monitor will be turned on automatically when ignition key on regardless of the last mode
of the monitor before the ignition key off.
* NOTE

System Setting
- 12 -
FACTORY RESET
UP / DN SELECT
shifting option setting
5
* The orange wire needs to be connected with the vehicle’s tacho signal and via
MENU the SPEED SWITCH needs to be selected ON.
* Adjust FREQUENCY into 67Hz. At this setting (and most common used tacho
signal), the selected camera will be displayed during a speed of 0~33km/h.
* Select the concerning camera via “UNDER FREQUENCY CH;” (At different type
tacho signals, the FREQUENCY needs to be adjusted into higher or lower value
than this example)
* Over 33km/h (72Hz), the selected camera will be switched OFF automatically.
When the speed slows down, then the selected camera will be switched ON
automatically again at 30km/h. Instead of automatic switch OFF at a speed over
33km/h it is also possible to activate another video source, such as the image of a second
camera or a navigation picture from an optional navigation computer. In this case,
user needs to select “OVER FREQUENCY DISPLAY: ON” and user needs to select
“OVER FREQUENCY CH”
* In case of TRIGGER activation during “SPEED SWITCH ON” mode, than
TRIGGER 1,2 will overrule “SPEED SWITCH” function.
EXAMPLE OF SPEED SWITCH FUNCTION:
LOCK ON/FF FUNCTION
LOCK ON/FF FUNCTION
The set up menu can be prevention against unauthorized users.
LOCK ON mode
At Power-ON mode, hold icon pressed for 10 seconds to set up LOCK ON Function.
When [ LOCKED ] is displayed on the screen, user can use [ POWER, SELECT, VOLUME ]
buttons only and use can do setting for PICTURE menu.(Short key)
LOCK OFF mode
At Power-ON mode, hold icon pressed for 10 seconds to set up LOCK OFF Function.
When [ UNLOCKED ] is displayed on the screen, user can use all functions of the set up menu.
When [ LOCKED ] or [ UNLOCKED ] is displayed on the screen, user can select [ LOCKED ] or
After selection [ LOCKED ] or [ UNLOCKED ] , press POWER button.
Then, press POWER button again to activate the proper LOCK ON/OFF function.
[UNLOCKED] by pressing icon.

Installation
- 13 -

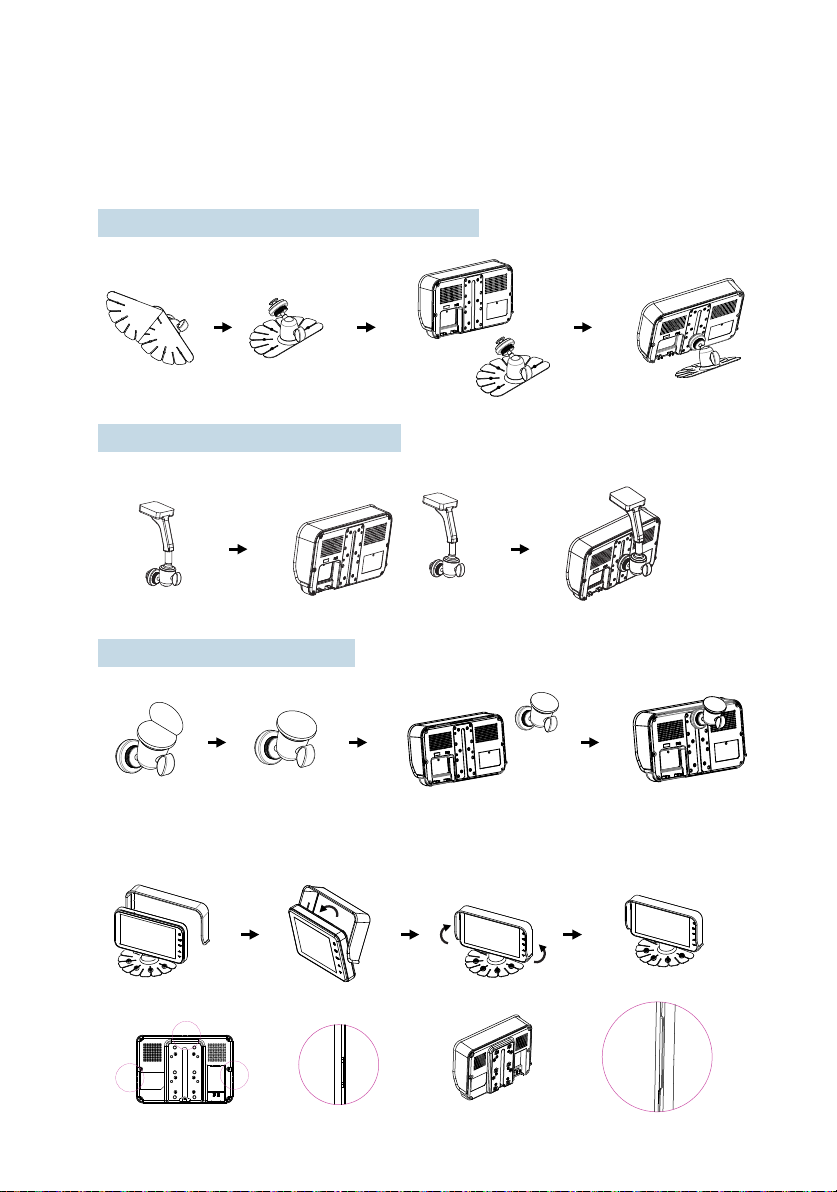

1. Monitor Fixing Method
2. Sunvisor Mounting Method
1) STAND BRACKET ,RAILS TYPE(INCLUDED)
2) ROOF MOUNT BRACKET : OPTION
3) WINDOW BRACKET: OPTION

Connection
- 14 -
FUSE (3A)
CAM1 CAM2
camera (option)
camera (option)
POWER/TRIGGER WIRE FUNCTIONS
REF# WIRE COLOR DESCRIPTION
1 RED POWER IN DC (12 TO 30V)
2 WHITE TRIGGER2 (12 TO 30V)
3 GREEN TRIGGER1 (12 TO 30V highest priority)
4 ORANGE SPEED SWITCH (TACHO SIGNAL)
5 BLACK GROUND
WHITE (TRIGGER 2: 12 TO 30V)
ORANGE (SPEED SWITCH;TACHO SIGANL)
BLACK (GROUND)
RED (POWER 12 TO 30V, via ignition)
GREEN (TRIGGER 1 : 12 TO 30V, highest priority)
CAMERA INPUT
AUDIO INPUT
+12V DC OUTPUT
POWER
+12V DC OUTPUT
HEATER & SHUTTER
GROUND
VIDEO INPUT

Specifications
- 15 -
MXN-7DM
Power Input
Power Consumption
Video System
Panel
Resolution
Format
Camera input(2CH)
Operating Temp.
Storage Temp.
Vibration
OSD Control
Dimension
Weight
Supplied acc`y
DC 12V~30V
Max. 12Watt
NTSC / PAL compatible
7" Digital
800 (H) x 480 (V) x 3 (RGB)
16:9 wide
Mini DIN 4P, 1Vp-p 75Ω (MXN configuration)
-30℃ ~ +80℃
-40℃ ~ +90℃
6G
Day & Night Sensor & Sharpness
Bright, Contrast, Color, Tint
Mirror/ Normal, Day/ Night Mode/ Scale
*Individual Control per Channel available
195 (W) x 109 (D) x 22( H) mm
Approx. 410g
Camera Input Cable
Screw Kit
Stand Bracket
Sun Visor
Instruction Manual
: (1)
: (1)
: (1)
: (1)
: (1)

THIS SYMBOL MEANS DO NOT DISPOSE OF
AS MUNICIPAL WASTE.
RE-USE OR RECYCLE WHEREVER POSSIBLE.
ELECTRICAL / ELECTRONIC COMPONENTS MAY
CONTAIN SUBSTANCES WHICH ARE HARMFUL TO
THE ENVIRONMENT.
FOR ENVIRONMENTALLY SOUND METHODS OF
DISPOSAL, PLEASE CONTACT YOUR LOCAL
GOVERNMENT AUTHORITY. printed in korea
