MXN MXN71A User manual

7” DIGITAL TFT LCD
ALL ROUND VISION MONITOR
MXN71A
OWNER’S MANUAL
MXN71A.indd 1 2015-11-18 오후 5:06:00

SPECIFICATION
LCD Screen Size 7” Wide Diagonal
Dimensions 190(W) × 142(H) × 42.85(D)mm
Display dimensions 152.4 × 91.44mm
Power Input DC 12 to 30 Volt Free Input
Power Consumption 12 Watt Max.
Video System NTSC / PAL Auto Detection
Sync. System Internal
Brightness 400 cd/m2
Display Resolution 800 × 480 pixel
Viewing Angle Top: 50°. Bottom: 60°. Left: 65°. Right: 65°.
Color Configuration RGB Stripe
Dimmer Automatic / Manual
Speaker Impedance 8 ohm, 0.3 Watt Max.
Operating Temp. -25°C ~ +75°C
Storage Temp. -30˚C to + 85˚C
Impact Rating 4G
Camera Connector 4-pin mini DIN
Housing Soft black / Pearl gray(ABS)
ON-Screen Display Control Functions
Volume · Brightness · Color · Contrast · Tint · CAM Trigger 1 · Auto Power · Distance marker ·
Auto Picture Scan · Dimmer · Language · Direction · Reset.
Supplied Accessory Die-Cast Mounting Bracket / 1 pce, Screw Kit / 1set, Manual, Power cable / 1 set
Weight ±330g
SPECIFICATION
ITEM
MXN71A.indd 2 2015-11-18 오후 5:06:00

3
SPECIFICATION
LCD Screen Size 7” Wide Diagonal
Dimensions 190(W) × 142(H) × 42.85(D)mm
Display dimensions 152.4 × 91.44mm
Power Input DC 12 to 30 Volt Free Input
Power Consumption 12 Watt Max.
Video System NTSC / PAL Auto Detection
Sync. System Internal
Brightness 400 cd/m2
Display Resolution 800 × 480 pixel
Viewing Angle Top: 50°. Bottom: 60°. Left: 65°. Right: 65°.
Color Configuration RGB Stripe
Dimmer Automatic / Manual
Speaker Impedance 8 ohm, 0.3 Watt Max.
Operating Temp. -25°C ~ +75°C
Storage Temp. -30˚C to + 85˚C
Impact Rating 4G
Camera Connector 4-pin mini DIN
Housing Soft black / Pearl gray(ABS)
ON-Screen Display Control Functions
Volume · Brightness · Color · Contrast · Tint · CAM Trigger 1 · Auto Power · Distance marker ·
Auto Picture Scan · Dimmer · Language · Direction · Reset.
Supplied Accessory Die-Cast Mounting Bracket / 1 pce, Screw Kit / 1set, Manual, Power cable / 1 set
Weight ±330g

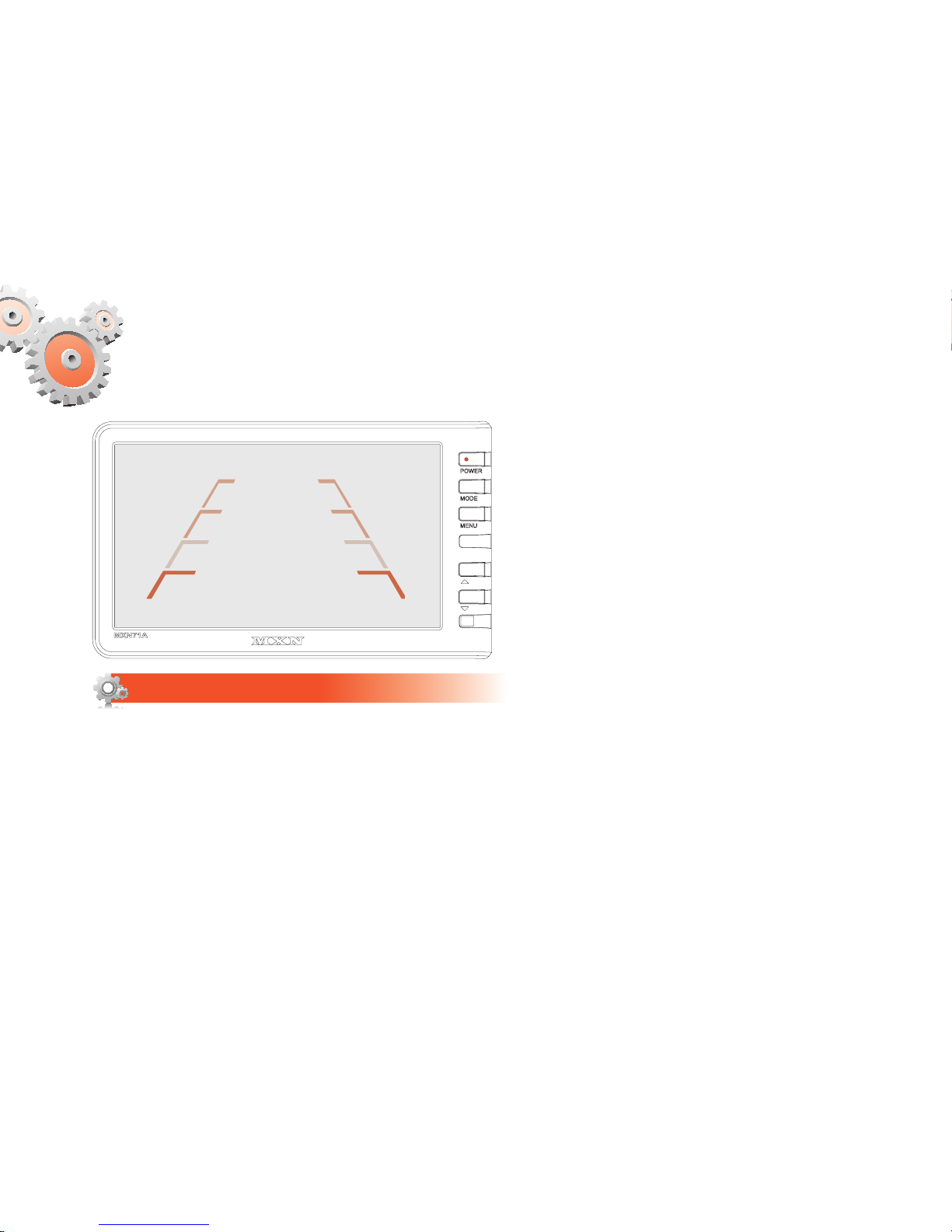

OPERATION
A
C
D
F
G
E
B
7” DIGITAL TFT LCD ALL ROUND VISION MONITOR MXN71A OWNER’S MANUAL
APOWER Press [POWER] button to turn on/off the monitor.
BMODE After pressing [MENU], press [MODE] to navigate downwards through the [MENU] options.
CMENU
•Press [MENU] once to open the FUNCTION MENU.
•Press [MENU] twice to open the PICTURE MENU.
•Press [MENU] 3 times to open the CAMERA MENU.
•Press [MENU] 4 times to open the DISTANCE MARKER ADJUST MENU.
D▲Press [ ▲] button to adjust monitor volume.
Use [ ▲] button to change OSD setting during system setting.
E▼Press [ ▼] button to adjust monitor volume.
Use [ ▼] button to change OSD setting during system setting.
FDIMMER DAY/NIGHT SENSOR(CDS) Automatic brightness control sensor.
GVIEW AREA
MXN71A.indd 3 2015-11-18 오후 5:06:00

SYSTEM SETTING
FUNCTION
DIMMER AUTO/OFF
LANGUAGE ENGLISH/SWEDISH/DANISH/NORWEGIAN/DUTCH/SUOMI
DIRECTION 0°
SCALE 16:9
AUTO POWER AUTO/OFF/ON
RESET ▶
FUNCTION
>>>DIMMER (Automatic Brightness Control)
Select AUTO or OFF to have Automatic or Manual brightness of the monitor.
REMARK: By activating DIMMER AUTO function, the monitor adjusts the brightness
according to the environment.
MXN71A.indd 4 2015-11-18 오후 5:06:00

5
>>>LANGUAGE
Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, SUOMI].
Select the preferred LANGUAGE.
>>>DIRECTION
It has the function of Rotation for the Monitor Image. Select 0° or 180°.
>>>SCALE
This menu item control the aspect ratio of the picture. Select 4:3 to display the
picture 4:3 ratio or select 16:9 to display the picture 16:9 ratio.
>>>AUTO POWER
Select monitor activation function as below.
[AUTO]Monitor keeps the last setting in memory.
[OFF]Monitor starts up『STAND-BY』mode automatically.
[ON] Monitor starts up『POWER-ON』mode automatically.
>>>RESET
Press『▲』button to go the factory default setting.
7” DIGITAL TFT LCD ALL ROUND VISION MONITOR MXN71A OWNER’S MANUAL
MXN71A.indd 5 2015-11-18 오후 5:06:00

CONTRAST 50 (0-100)
BRIGHTNESS 50 (0-100)
COLOR 50 (0-100)
TINT 50 (0-100)
Press [ ▲/▼] button to adjust preferred PICTURE of the monitor.
SYSTEM SETTING
MXN71A.indd 6 2015-11-18 오후 5:06:00

7
CAMERA
CA1 N/M NOR/MIR
CA1 TRIG 0-9
CA1 DIST ON/OFF
CAMERA
>>>NORMAL/MIRROR (N/M)
Each camera picture (CAM1) can be switchable as NORMAL/MIRROR image.
>>>TRIGGER
When a trigger wire is connected to a pulse DC power signal (e.g. direction indicator
lights) then the [TRIGGER DELAY] function avoids repeating ON/OFF monitor.
>>>DIST
ON/OFF
7” DIGITAL TFT LCD ALL ROUND VISION MONITOR MXN71A OWNER’S MANUAL
MXN71A.indd 7 2015-11-18 오후 5:06:00

DISTANCE MARKER ADJUST
User can adjust location of distance marker.
At Power ON mode, select distance marker by pressing [ ▲/▼] buttons.
When color of distance markers is seen as RED color, user can adjust the lines UP/DOWN or LEFT/RIGHT.
When both distance markers are seen as RED color, both lines can be adjusted LEFT/RIGHT.
When left distance marker is seen as RED color, left line of distance marker can be adjusted LEFT/RIGHT.
When right distance marker is seen as RED color, right line of distance marker can be adjusted LEFT/RIGHT.
SYSTEM SETTING
MXN71A.indd 8 2015-11-18 오후 5:06:01

9
7” DIGITAL TFT LCD ALL ROUND VISION MONITOR MXN71A OWNER’S MANUAL
LOCK ON/OFF FUNCTION
>>>LOCK ON/OFF FUNCTION
The set up menu can be locked as prevention against unauthorized users.
>>>LOCK ON mode
At POWER-ON mode, hold [MODE]button pressed for 10 seconds to set up LOCK ON function.
When [LOCKED]is displayed on the screen, user can use [POWER, SELECT, VOLUME] buttons only
and use can do setting for PICTURE menu.
>>>LOCK OFF mode
At POWER-ON mode, hold [MODE]button pressed for 10 seconds to set up LOCK OFF function.
When [UNLOCKED]is displayed on the screen, user can use all functions of the set up menu.
LOCKED
UNLOCKED
MXN71A.indd 9 2015-11-18 오후 5:06:01

CONNECTION
MAIN POWER 12V/30V DC (Red)
Ground (Black)
Trigger 1 (Green)
CAM 1
AUDIO INPUT
+12V DC OUTPUT, HEATER &
SHUTTER
+12V DC OUTPUT,
POWER VIDEO INPUT
GROUND
CAMERA INPUT
MXN71A.indd 10 2015-11-18 오후 5:06:01

MEMO
7” DIGITAL TFT LCD ALL ROUND VISION MONITOR MXN71A OWNER’S MANUAL
CONNECTION
MAIN POWER 12V/30V DC (Red)
Ground (Black)
Trigger 1 (Green)
CAM 1
AUDIO INPUT
+12V DC OUTPUT, HEATER &
SHUTTER
+12V DC OUTPUT,
POWER VIDEO INPUT
GROUND
CAMERA INPUT
MXN71A.indd 11 2015-11-18 오후 5:06:01

7” DIGITAL TFT LCD
ALL ROUND VISION MONITOR
MXN71A
OWNER’S MANUAL
