MXN MXN-P7D User manual

7” DIGITAL TFT LCD
ALL ROUND VISION MONITOR
Model: MXN-P7D
Design and specications are subject to change without notice.
OWNER’S MANUAL
PLEASE READ CAREFULLY BEFORE
USING THIS PRODUCT.

·I·N·D·E·X·
Package Contents
Connection
Operation
System Setting
Function
Camera Set up
Normal/Mirror
Auto Picture Scan
Camera Trigger
Distance Marker Adjust
Scan ON/OFF Function
Lock ON/OFF Function
Installation
MONITOR installation with Stand bracket & Sunvisor
Installation of heavy duty mounting brackets
Specication
03
11
04
05
05
06
06
07
07
08
09
10
10
12
12
13
14

MXN-P7D Owner’s Manual 3
▣PACKAGE CONTENTS
MONITOR SUNVISOR STAND BRACKET
MANUAL
BRACKET SCREWS
CABLE CLIP
ITEM Q’TY
MONITOR 1
SUNVISOR 1
STAND BRACKET 1
BRACKET SCREW 3
CABLE CLIP 2
CAMERA INPUT CABLE 1
MANUAL 1
CAMERA INPUT CABLE

7" TFT DIGITAL LCD Monitor
4
▣OPERATION
RIGHT
POWER
SELECT
DOWN
MENU
HEATER LAMP
DAY/NIGHT SENSOR (CDS)
LEFT
UP
Press [RIGHT] button to adjust monitor volume.
Use [RIGHT] button to change OSD setting during
system setting.
Press [POWER] button to turn on/off the monitor.
Press [SELECT] button to select the respective camera channel.
(CAM1-CAM2-CAM3-CAM1..)
Press [DOWN] button to navigate the menu for system setting.
Press [MENU] button for system setting.
Orange color will be illuminated in case heater function is activated.
Automatic brightness control sensor.
Press [LEFT] button to adjust monitor volume.
Use [LEFT] button to change OSD setting during
system setting.
Press [UP] button to navigate the menu for system setting.

MXN-P7D Owner’s Manual 5
▣SYSTEM SETTING
DIMMER (Automatic Brightness Control)
Select AUTO or OFF to have Automatic or Manual brightness of the monitor.
REMARK: By activating DIMMER AUTO function, the monitor adjusts the brightness according to
the environment.
NIGHT BRIGHT
Select the DIMMER to
『AUTO』
, set the value of backlight on NIGHT mode.
LANGUAGE
Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, FINNISH].
Select the preferred LANGUAGE.
AUTO POWER
Select monitor activation function as below.
[AUTO] Monitor keeps the last setting in memory.
[ON] Monitor starts up『Power-ON』mode automatically.
[OFF] Monitor starts up『Stand-By』mode automatically.
MONITOR HEATER
Select MONITOR HEATER『ON』to have automatic heating function in order to enable fast
picture start during extreme cold weather condition.
RESET
Press >> button to go the factory default setting.
SYSTEM INFO.
Refers to system information of the monitor.
FUNCTION
FUNCTION
DIMMER AUTO/OFF
NIGHT BRIGHT 50
LANGUAGE ENGLISH/…
AUTO POWER AUTO/ON/OFF
MONITOR HEATER ON/OFF
RESET >
SYSTEM INFO. VER 1.0
Remark: During MONITOR HEATER ON mode,
Heating activates automatically when the temperature of inside monitor is below 0
degree Celcius.
When the temperature of inside monitor is over 0 degree Celcius, heating stops
automatically.

7" TFT DIGITAL LCD Monitor
6
▣SYSTEM SETTING
Press [LEFT/RIGHT] button to adjust preferred PICTURE of the monitor.
TRIG. DELAY
When a TRIGGER wire is connected to a pulse DC power signal (e.g. direction indicator lights)
then the [TRIGGER DELAY] function avoids repeating ON/OFF of the monitor.
CAMERA NAME
CAMERA NAME can be selected as CAM1, 2, 3/REAR/LEFT/RIGHT/FRONT.
CAMERA SET UP
CONTRAST 50 (0-100)
BRIGHTNESS 50 (0-100)
COLOR 50 (0-100)
TINT 50 (0-100)
CAMERA SET UP
CAM1 TRIG. DELAY 2 SEC (0-9)
CAM2 TRIG. DELAY 2 SEC (0-9)
CAM3 TRIG. DELAY 2 SEC (0-9)
CAM1 NAME CAM1/REAR/LEFT/RIGHT/FRONT
CAM2 NAME CAM2/REAR/LEFT/RIGHT/FRONT
CAM3 NAME CAM3/REAR/LEFT/RIGHT/FRONT

MXN-P7D Owner’s Manual 7
NORMAL/MIRROR
Each camera picture (CAM1/CAM2/CAM3) can be switchable as NORMAL/MIRROR image.
UP/DOWN
Camera pictures can be switchable as UP/DOWN image.
Each scanning time of CAM1/CAM2/CAM3 can be selected.
REMARK: If the SCAN TIME is set as『0』, monitor skips its channel during the scanning.
Press [UP] button for 4 seconds to ACTIVATE/INACTIVATE auto scanning function.
NORMAL/MIRROR
AUTO PICTURE SCAN
NORMAL/MIRROR
CAM1 NORMAL/MIRROR
CAM2 NORMAL/MIRROR
CAM3 NORMAL/MIRROR
UP/UPSIDE DOWN UP/UPSIDE DOWN
AUTO PICTURE SCAN
AUTO SCAN ON/OFF
CAM1 SCAN TIME 2 SEC (0~9)
CAM2 SCAN TIME 2 SEC (0~9)
CAM3 SCAN TIME 2 SEC (0~9)

7" TFT DIGITAL LCD Monitor
8
TRIGGER 1/2/3 (Trigger source selection)
Select the required trigger source at CAM1/CAM2/CAM3.
REMARK
TRIGGER PRIORITY: TRIGGER 1 > TRIGGER 2 > TRIGGER 3
CAM1 DIST. MARKER
Select ON to have distance marker (parking line) for CAM1.
Distance marker is displayed as soon as TRIGGER 1 signal is activated.
SPEED SWITCH
The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the SPEED
SWITCH needs to be selected ON.
At FREQUENCY 67Hz setting(and most common used tacho signal) the selected camera will be
displayed during a speed of 0~33km/h. Select the concerning camera via『UNDER FREQUENCY
CH:』(At different type tacho signals the FREQUENCY needs to be adjusted into higher or lower
value than this example)
Over 33km/h (72Hz) the selected camera will be switched OFF automatically. When the speed
slows down, then the selected camera will be switched ON automatically again at 30km/h.
Instead of automatic switch OFF at a speed over 33km/h it is also possible to activate another
video source, such as a navigation picture from an optional navigation computer. In this case
user needs to select『OVER FREQUENCY DISPLAY: ON』and user needs to select『OVER
FREQUENCY CH:』
In case of TRIGGER activation during『SPEED SWITCH ON』mode, then TRIGGERS 1~ 3 will
overrule『SPEED SWITCH』function.
CAMERA TRIGGER
CAMERA TRIGGER
TRIGGER 1 CAM1/CAM2/CAM3
TRIGGER 2 CAM2/CAM3/CAM1
TRIGGER 3 CAM3/CAM1/CAM2
CAM1 DIST. MARKER MARKER ON/OFF
SPEED SWITCH ON/OFF
FREQUENCY 67 Hz
UNDER FREQ. CAM CAM3/CAM1/CAM2
OVER FREQUENCY DISPLAY ON/OFF
OVER FREQ. CAM CAM1/CAM2/CAM3
▣SYSTEM SETTING

MXN-P7D Owner’s Manual 9

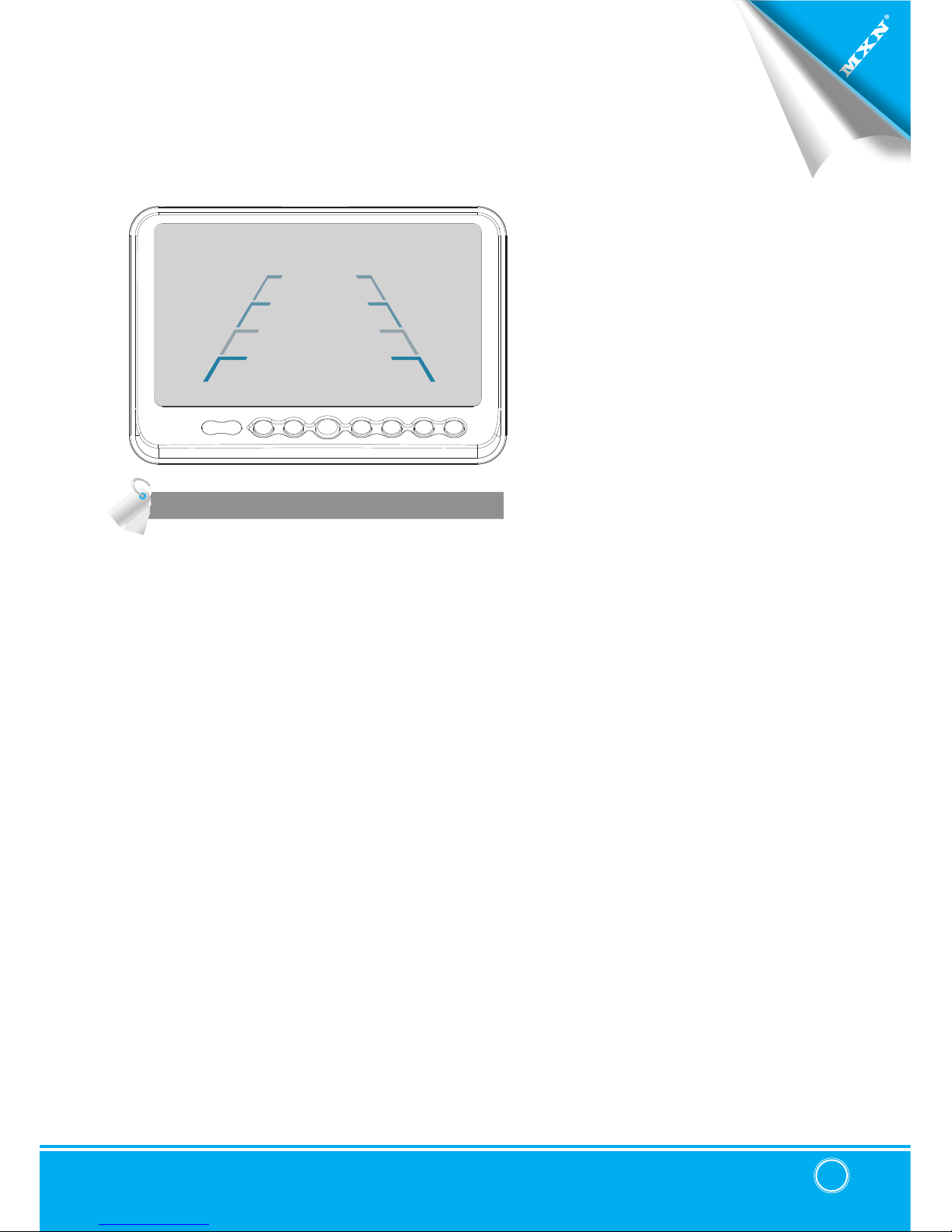

User can adjust location of distance marker.
At Power ON mode, select distance marker by pressing [UP/DOWN] buttons.
When color of distance markers is seen as RED color, user can adjust the lines UP/DOWN or
LEFT/RIGHT.
When both color of distance markers are seen as RED color, both lines can be adjusted LEFT/
RIGHT.
When left color of distance marker is seen as RED color, left line of distance marker can be
adjusted LEFT/RIGHT.
When right color of distance marker is seen as RED color, right line of distance marker can be
adjusted LEFT/RIGHT.
DISTANCE MARKER ADJUST

7" TFT DIGITAL LCD Monitor
10

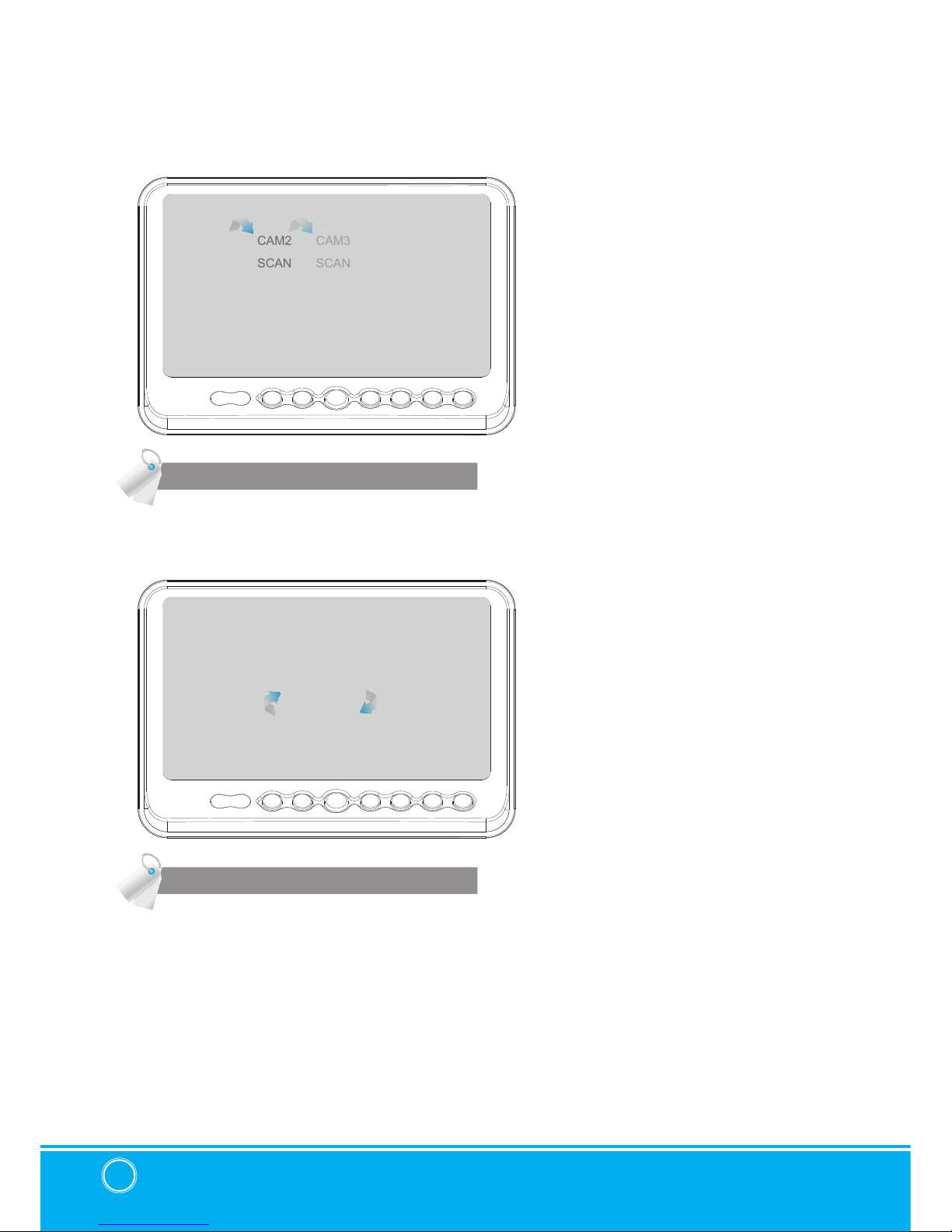

At Power-ON mode, hold [UP] buttons pressed for 4 seconds to activate Auto Scan Picture
function. During the auto scanning mode, press [UP] button for 4 seconds to inactivate Auto Scan
Picture function.
LOCK ON/OFF FUNCTION
The set up menu can be locked as prevention against unauthorized users.
LOCK ON mode
At Power-ON mode, hold [DOWN] button pressed for 10 seconds to set up LOCK ON function.
When [LOCKED] is displayed on the screen, user can use [POWER, SELECT, VOLUME] buttons
only and use can do setting for PICTURE menu.
LOCK OFF mode
At Power-ON mode, hold [DOWN] button pressed for 10 seconds to set up LOCK OFF function.
When [UNLOCKED] is displayed on the screen, user can use all functions of the set up menu.
SCAN ON/OFF FUNCTION
LOCK ON/OFF FUNCTION
CAM1
SCAN
CAM2
SCAN
CAM3
SCAN
LOCKED
UNLOCKED
▣SYSTEM SETTING

MXN-P7D Owner’s Manual 11
▣CONNECTION
Camera 1(Option)
Camera 2(Option)
Camera 3(Option)
Speed Switch(TACHO SIGNAL)- Orange
TRIGGER 3- Blue
TRIGGER 2- White
TRIGGER 1- Green
7” TFT DIGITAL LCD Monitor
Main power 12V/24V DC via ignition (+15)- Red
Ground- Black
AUDIO INPUT
+12V DC OUTPUT,
HEATER & SHUTTER
+12V DC OUTPUT,
POWER VIDEO INPUT
GROUND
CAMERA INPUT

7" TFT DIGITAL LCD Monitor
12
▣INSTALLATION
MONITOR installation with STAND BRACKET &SUNVISOR
Remove a protection tape and attach STAND BRACKET into stand place, then x it with the supplied screws.
Connect STAND BRACKET with monitor and adjust height/angle.
Connect SUNVISOR to the MONITOR.
Connect CAMERA INPUT CABLE to the MONITOR.
A
B
C
D
A
ⓐ
ⓑ
B
C
D

MXN-P7D Owner’s Manual 13
TYPE A(Option)
TYPE B(Option)
Installation of HEAVY DUTY MOUNTING BRACKETS
MONITOR can be connected with different type of HEAVY DUTY MOUNTING BRACKETS.
Please check the compatibility in advance, then please follow installation as described below.
FMBK 5×10mm
FMs 3.5×10mm
38mm
40mm
30mm
38mm
38mm

7" TFT DIGITAL LCD Monitor
14

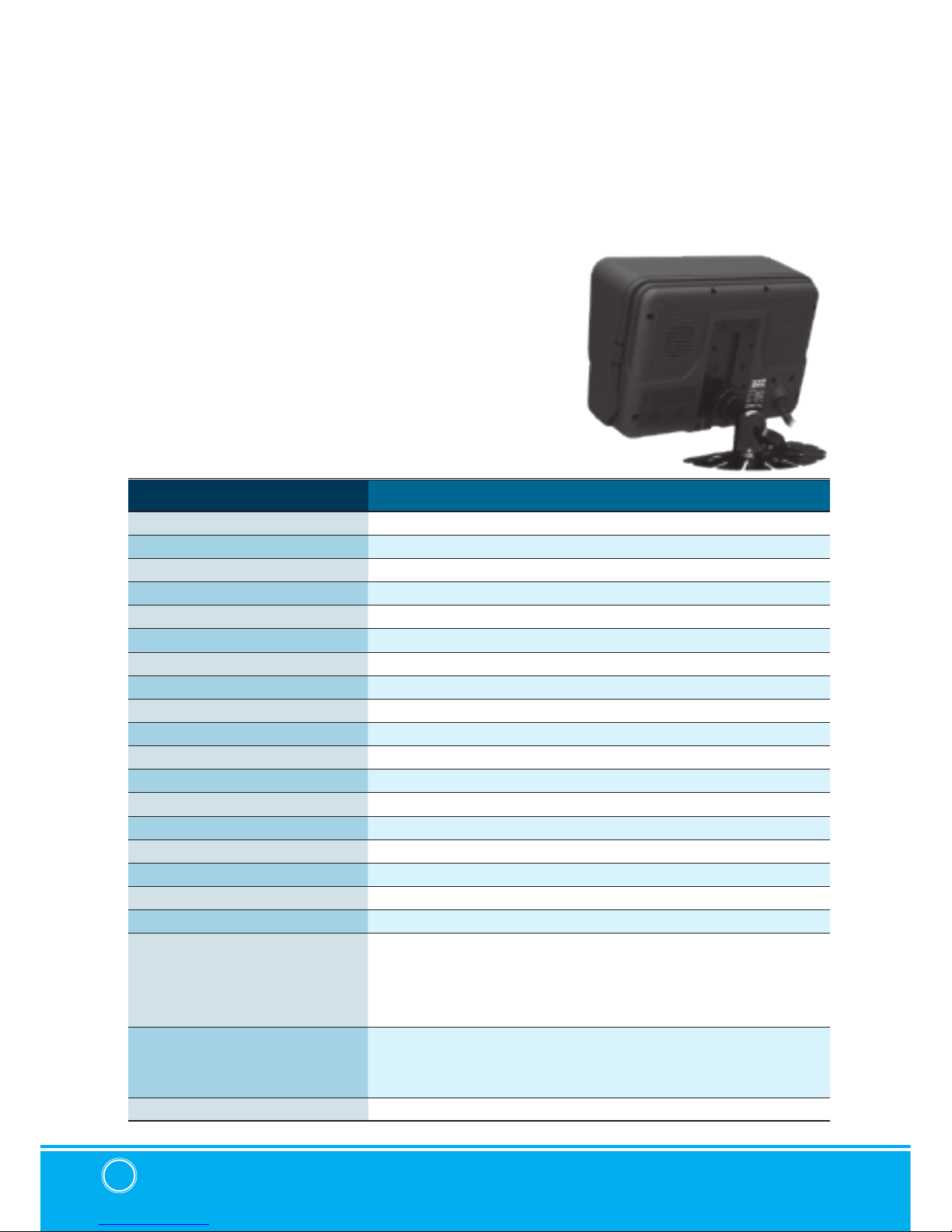

▣SPECIFICATION
ITEM SPECIFICATION
LCD SCREEN SIZE 7” Wide Diagonal
DIMENSIONS 193(W) × 132(H)× 50.5(D)mm
DISPLAY DIMENSIONS 154.08 × 85.92mm
POWER INPUT DC 12 to 30 Free Input
POWER CONSUMPTION 12 Watt Max.
VIDEO SYSTEM NTSC / PAL / SECAM Auto Detection
SYNC. SYSTEM Internal
BRIGHTNESS 400 cd/m2
DISPLAY RESOLUTION 800 × 480 pixel
VIEWING ANGLE Top: 50. Bottom: 70. Left: 70. Right: 70.
COLOR CONFIGURATION RGB Stripe
DIMMER Automatic / Manual
SPEAKER IMPEDANCE 8Ω. 0.3 Watt Max.
OPERATING TEMP. -25°C to + 75°C
STORAGE TEMP. -30˚C to + 85˚C
IMPACT RATING 4G
CAMERA CONNECTOR 4-Pin mini DIN (MXN conguration)
HOUSING Light Black(ABS)
ON-SCREEN DISPLAY
CONTROL FUNCTIONS
Volume · Brightness · Color · Contrast · Tint · CAM Screen 1/2/3 ·
CAM Trigger 1/2/3 · Heater · Speedswitch · Auto Power · Distance
marker · Auto Picture Scan · Dimmer · Language · Direction ·
Reset.
SUPPLIED ACCESSORY Die-Case Mounting Bracket 1 pcs / Screw Kit 1 set / Operating
Manual / Sun Shield 1 pcs / Power Cable 1 set
WEIGHT ±620g

MXN-P7D Owner’s Manual 15
▣MEMO
