Provided By
http://www.MyBinding.com
http://www.MyBindingBlog.com
MBM Auto Booklet
Maker
Instruction Manual
Instruction Manual
Introduction
Safety Precautions
Usage Precautions
Specifications
Part Names
Control Panel
Operation
Contents
P.1
Safety Precautions
Accessories
Installation
P.2
P.3
P.4
P.5
P.6
P.7
P.7
P.8
P.9
P.10-19
P.10
P.11
P.12
P.13
P.14-15
P.16
P.17
P.18
P.19
P.19
P.20

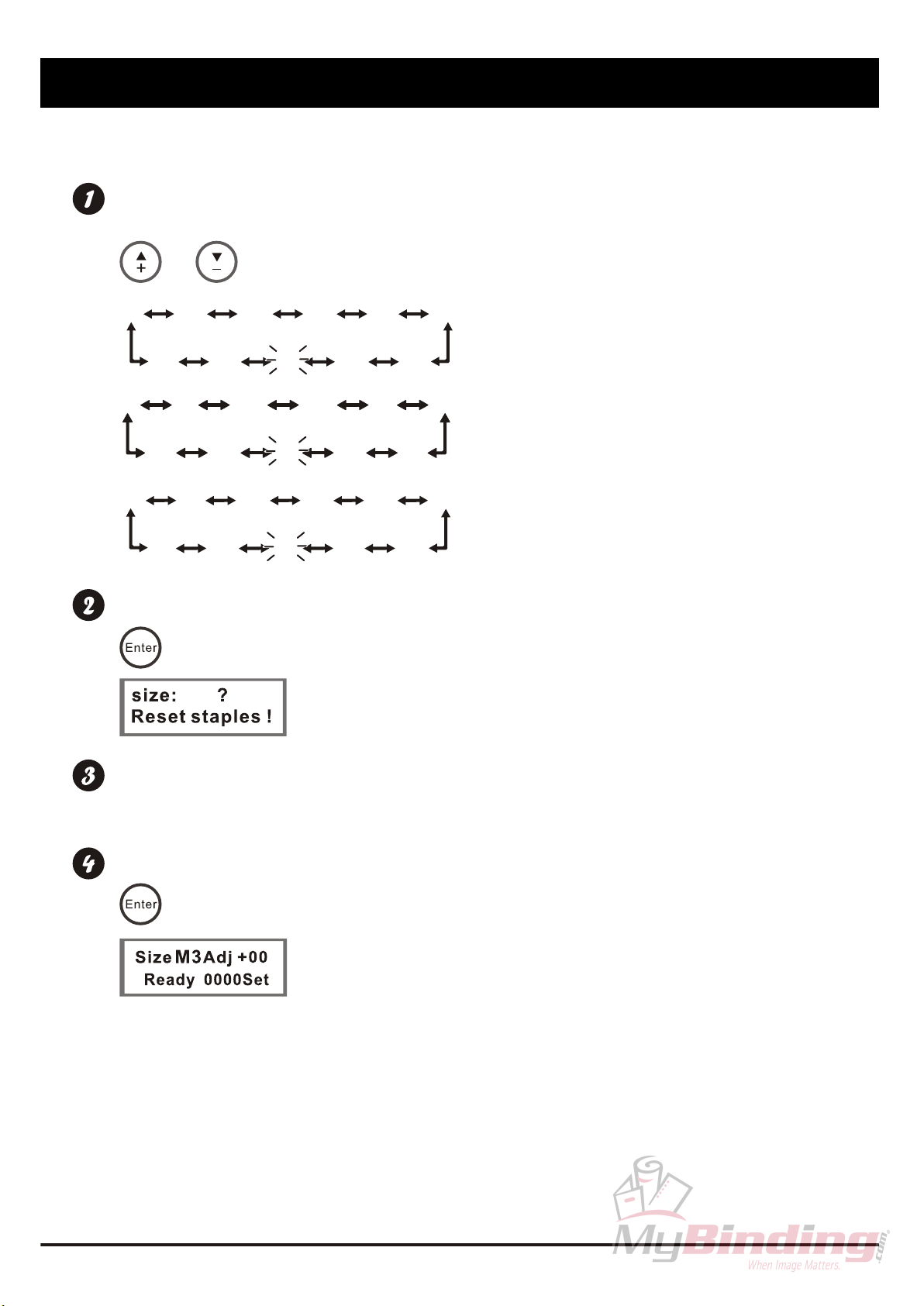

Standard Paper Size Selection.
Non Standard Paper Size Data Input.

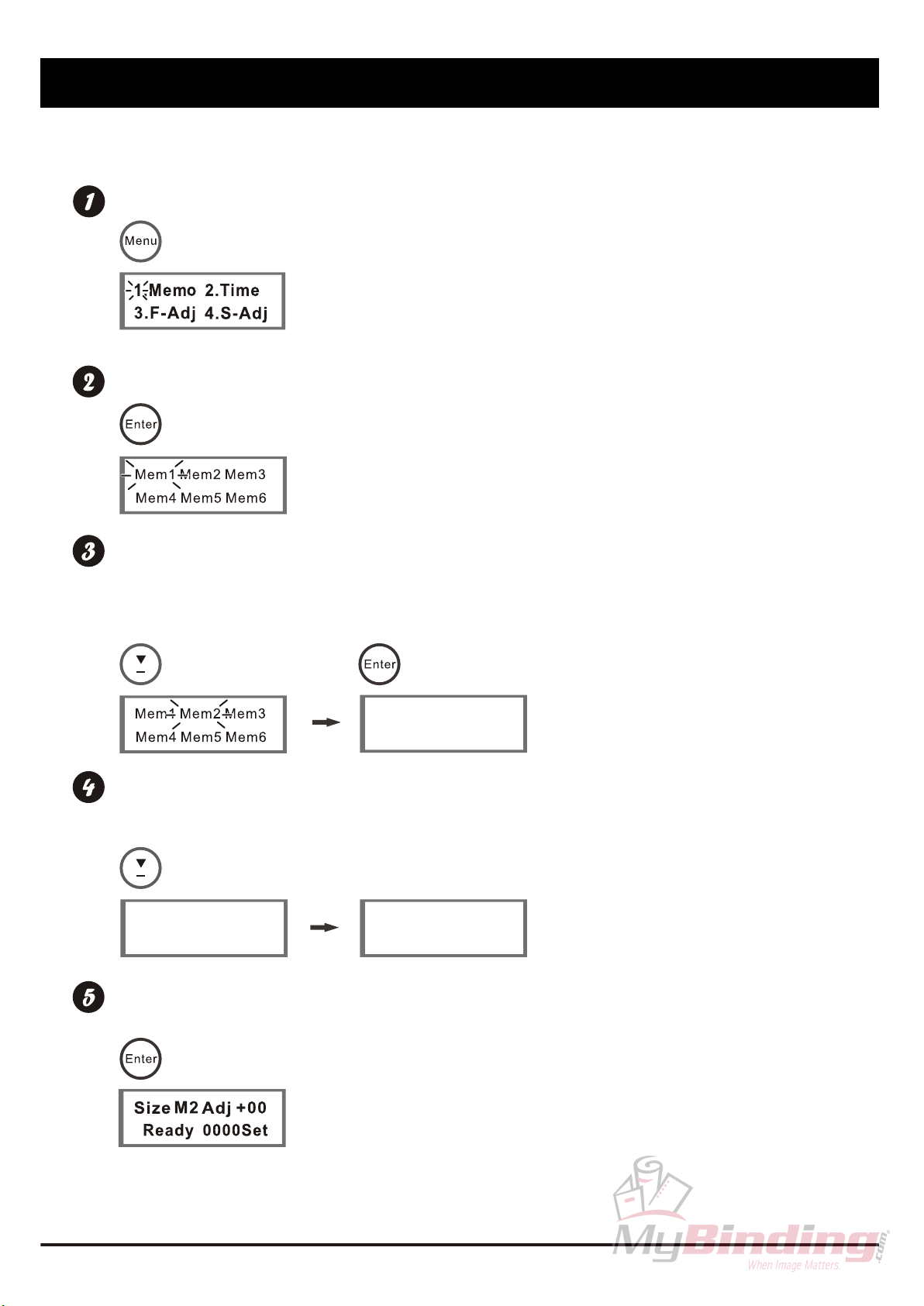

Memory Call Out.
Trigger Timer Setting.
Correcting Folding or Stapling Misalignment.
Factory Default Setting.
Serial Number indication.
Booklet Making.
Counter Reset.
Emergency Stop.
Error Message
Daily Care
P.19
P.20
Remove Jammed Staple From Stapler Head.
Thank you for your purchase of this Booklet Maker.
To ensure correct usage, please read this instruction manual thoroughly, especially the
section Safety Precautions. After reading, please keep this instruction manual handy
for future reference.
Introduction
P.2
The following graphic symbols indicate the various types of action to be performed or
avoided.
This graphic symbol indicates a forbidden action.
means "Do not disassemble."
means "Do not touch."
This graphic symbol indicates actions that must be performed.
means "Disconnect the power plug."
Always observe the cautions and warnings given below to prevent personal injury or property
damage.
The degree of danger and damage that could occur is indicated on two levels by the
following marks.
WARNING : Ignoring this mark could result in the possibility of serious injury or
even death.
CAUTION : Ignoring this mark could result in the possibility of injury or physical
damage.
!
!
WARNING:
!
Do not place metal objects or vessels containing liquids on top of the unit. The entry of any
metal object or liquid could result in fire or electrical shock.
Do not insert any metal or easily-combustible object inside this unit. This could result in fire
or electrical shock.
Do not touch or insert foreign objects into any rotating part during operation. This could
result in injury.
Do not remove the cover or back panel. This unit contains high-voltage components that
could cause electrical shock.
Do not disassemble, modify or repair this unit. There is a danger of fire, electrical shock or
injury. Contact your dealer when repairs are necessary.
Use only the power supply voltage specified on the main nameplate. Using other voltages
could result in fire or electrical shock.
Keep this unit and the power cord away from heaters and heater vents. Excessive heat could
melt the cover or power cord covering, and result in fire or electrical shock.
(Continued on the next page)
Safety Precautions
P.3
Make sure that the combined power consumption of the appliances to be connected does not
exceed the capacity rating of the power outlets or plug receptacles. Exceeding the capacity
rating could cause the power outlets, plug receptacles, or power extension cords to overheat
and catch fire.
Remove any dust that accumulates on the power plug prongs and the surface of the plug from
which the prongs extend. Accumulated dust could result in fire.
If any foreign object such as metal or liquid should enter this unit, immediately turn the unit
off at the power switch and disconnect the power plug from the power outlet. Failure to do
so could result in fire or electrical shock. Contact your dealer immediately.
Do not damage the power cord or power plug. (Do not scratch, alter, bend, twist, pull or place
heavy objects on the power cord or power plug.)
This could result in damage, fire or electrical shock.
Always grip the plug when disconnecting the power plug from the power outlet. Forcibly
pulling the power cord could cause damage, resulting in fire or electrical shock.
Do not handle the power plug with wet hands. This could result in electrical shock.
Before cleaning this unit, turn the unit off at the power switch and disconnect the power plug
from the power outlet. Accidental operation of the unit during cleaning could result in injury.
CAUTION:
!
Always disconnect the power plug from the power outlet when the unit is not to be used for
an extended period. Failure to do so could result in fire due to leakage current if the
insulation should deteriorate.
Install this unit on a level, stable stand or floor, with sufficient space around it. Failure to do
so could result in the unit overturning and causing injury.
Do not install this unit in a location where there is excessive humidity or where contact with
water is possible. Poor choice of location could result in deterioration of the insulation, fire
or electrical shock.
Disconnect the power plug from the power outlet before attempting to move this unit. Failure
to do so could result in power cord damage, fire or electrical shock.
Do not touch the power switch with wet hands. Otherwise electric hazards may occur.
Keep away long hair, ties, jewelry and loose clothing. This could result in injury.
Do not use flammable sprays inside or near the unit (e.g. when cleaning the unit). Such
flammable gas may ignite and cause fire or combustion.
P.4
Do not use solvent inside or near the unit (e.g. when cleaning the unit). Such solvents may
damage the rubber rollers and resin inside the unit, resulting in malfunctions.
Safety Precautions (Continues)
This equipment shall be installed near the socket-outlet where the plug on the power supply
cord is easily accessible.
Make sure the power supply used is always within the following range.
220 - 240VAC, 50Hz in Europe.
When you power other appliances from the same AC outlet, make sure that the combined
power consumption does not exceed the power supply capacity.
Rated power of this equipment: 75 W
Operate this unit in the following environment:
Where the temperature range is between 5 and 35 C.
Where the humid ity range is between 10 and 80% RH (no dew condensation).
Which is not subject to direct sunlight,
For continued protection against risk of fire, replace only with same type and rating of fuse.
Usage Precautions
110VAC, 60Hz in United State.
P.5
Power Supply
Operating Environment
Where the equipment is not exposed to water.
Maximum paper size
Minimum paper size
paper size
A3, B4, F4A, F4B and A4 (Asia)
Equivalent to 15 sheets of 80gsm ( 20 ) bond paper
or below
6Maximum processing
speed 7 sets / minute
Staple head capacity
11 Fine adjustment Button setting, auto positioning
560,mm x 455mm x 166mm
220V/50Hz (Asia / Europe)
110V/60Hz (U.S.A.)
297mm x 432mm
182mm x 257mm
A3, B4, LG, A4 and B5 (Europe)
LD, A3, LG, A4 and LT (U.S.A.)
Automatic Stapler Heads
Stapling method
4
Stapling and folding ability
5
7Number of stapler head 2
8100 staples each
Operation mode Automatic
Paper size setting Button select
Power consumption 80W
Power supply
Weight 20 Kg / 44 lbs
Dimension
13
Counter
12 4 digit
Specifications are subject to change without prior notice for improvements.
1
2
3
9
10
14
15
16
Specifications
P.6
WxDxH
A3 = 297mm x 420mm
A4 = 210mm x 297mm
F4A = 216mm x 343mm
F4B = 216mm x 330mm
B4 = 257mm x 364mm
B5 = 182 mm x 257mm
Paper size reference:
11 x 17
7 x 10
22 x 18 x 6
Part Names
3. Side cover
1. Stapler assy.
2. Paper guide
4. Pressing roller
5. Clincher
6. Control panel
7. Scale
8. power switch
10. folding roller
11. stapler head
9. Top cover
Accessories
1
2345
6
78
9
10
11
3
12. Paper side guide
12
Option Stoppers Paper Side Guide Press roller
Power Cord (Europe Version)Power Cord (U.S.A. Version)
P.7
Control Panel
1 2 3 45
No Name Operation
1 LCD Display
Scroll up button
Scroll down button
Menu button
Enter button
Light up when power on
Selected paper size and counter indicate when
power on
Option menu indicate when press the Menu button
Error message indicate when error occur
Press the button to change the size of standard
paper
Press the button to select the options of menu
Press the button to change the size of non standard
paper under option menu
Press the button to change the size of standard
paper
Press the button to select the options of menu
Press the button to change the size of non standard
paper under option menu
Press the button to enter the option menu
Press the button to escape from the option menu
Press the button to enter the revised setting
Press the button to confirm the setting finished
Press the button to return to standby mode
2
3
4
5
P.8
