MYIRO myiro-9 User manual

AUTO SCAN
SPECTROPHOTOMETER
En INSTRUCTION MANUAL
Before using this instrument, please read this manual.

Safety Symbols
The following symbols are used in this manual and on the MYIRO-9 to prevent accidents which may occur as a result of incorrect use of the
instrument.
Denotes an instruction regarding a safety warning or note. Read the instruction carefully to ensure safe and correct use.
Denotes an instruction regarding the risk of electric shock. Read the instruction carefully to ensure safe and correct use.
Denotes an instruction regarding the risk of fire. Read the instruction carefully to ensure safe and correct use.
Denotes a prohibited action. This action must never be performed.
Denotes an instruction. This instruction must be strictly adhered to.
Denotes a prohibited action. Never disassemble the instrument.
Denotes an instruction. Be sure to disconnect the AC adapter from the AC outlet.
This symbol indicates A.C.
This symbol indicates D.C.
Notes on this Manual
• Copying or reproduction of all or part of the contents of this manual without permission is strictly prohibited.
• The contents of this manual are subject to change without prior notice.
• Every eort has been made in the preparation of this manual to ensure the accuracy of its contents. However, should you have any
questions or find any errors, please contact your retailer.
• The manufacturer of this instrument will not accept any responsibility for consequences arising from the use of the instrument.
i

Safety Precautions
To ensure correct use of this instrument, read the following points carefully and adhere to them. After you have read this manual, keep it in
a safe place where it can be referred to anytime a question arises.
WARNING Failure to adhere to the following points may result in death or serious injury.
Do not use the instrument in places where flammable
or combustible gases (gasoline, etc.) are present.
Doing so may cause a fire.
Do not disassemble or modify the instrument or the AC
adapter. Doing so may cause a fire or electric shock.
Always use the AC adapter supplied as a standard
accessory or the optional AC adapter, and connect it to
an AC outlet of the rated voltage and frequency. If an AC
adapter other than those specified is used, it may result
in damage to the unit, fire or electric shock.
Take special care not to allow liquid or metal objects to
enter the instrument. Doing so may cause a fire or
electric shock. Should liquid or metal objects enter the
instrument, turn the power o immediately, disconnect
the AC adapter plug from the AC outlet, and contact
your retailer.
If the instrument will not be used for a long time,
disconnect the AC adapter plug from the AC outlet.
Accumulated dirt or water on the prongs of the AC
adapter’s plug may cause a fire and should be removed.
The instrument should not be operated if it is damaged
or the AC adapter is damaged, or if smoke or odd smells
occur. Doing so may cause a fire. In such situations,
turn the power o immediately, disconnect the AC
adapter plug from the AC outlet and contact your
retailer.
Do not forcibly bend, twist, or pull the AC adapter
power cable. Do not scratch or alter the power cable or
place heavy objects on it. Doing so may damage the
power cable and cause a fire or electric shock.
Always hold the plug itself when disconnecting the AC
adapter plug from the AC outlet. Pulling on the power
cable may damage it and cause a fire or electric shock.
Insert the power plug fully and securely. Incomplete
inserting may cause fire or electric shock.
Do not insert or disconnect the AC adapter plug from
an AC outlet with wet hands. Doing so may cause
electric shock.
CAUTION Failing to adhere to the following points may result in injury or damage to the
instrument or other property.
Do not place the instrument on an unstable or sloping
surface. Doing so may result in its falling or
overturning, causing injury. Be careful not to drop the
instrument when carrying it.
Make sure that the AC outlet is located near the
instrument and that the AC adapter plug can be
connected to and disconnected from the AC outlet
easily.
Do not open the cover during scanning. If the cover is
opened during scanning, there is a risk that your hand
might get caught in the instrument, resulting in injury.
When cleaning, disconnect the power plug. Cleaning
with the power plug connected may result in electric
shock.
1

Introduction
The Auto Scan Spectrophotometer MYIRO-9 is designed for the rapid automatic scanning of printed materials.
Notes on Use
Be sure to use this instrument properly. Use of this instrument in ways other than those specified in this manual may result in risk of injury,
electric shock, instrument damage, or other problems.
▍
Operating Environment
• Use the MYIRO-9 at an ambient temperature of between 10°C and 35°C and relative humidity of 30 to 85% with no condensation. Do
not use the instrument in areas subject to rapid temperature changes.
• Do not leave the MYIRO-9 in direct sunlight or near sources of heat, such as stoves, etc. The internal temperature of the instrument
may become much higher than the ambient temperature in such cases.
• Do not use the MYIRO-9 in areas where dust, cigarette smoke or chemical gases are present. Doing so may cause deterioration in
performance or a breakdown.
• Do not use the MYIRO-9 near equipment which produces a strong magnetic field (such as speakers, etc.).
• The MYIRO-9 belongs to installation category I products (equipment which is powered by an AC adapter connected to commercially
available power).
• The MYIRO-9 belongs to pollution degree 2 products (equipment which may cause temporary electrical hazards due to contamination
or condensation or products which are used in such an environment).
• Do not use the MYIRO-9 at altitudes higher than 2,000 m.
• The MYIRO-9 and the AC adapter supplied as a standard accessory have been designed exclusively for indoor use. They should never
be used outdoors because rain or other factors may damage the instrument.
▍
Measurement
• Make sure that test charts are clean and not dusty.
• When bringing test charts from another location, avoid sudden changes in temperature and allow the test charts to become
suciently adapted to room temperature before taking measurements. If condensation occurs on the test chart, it may cause sluggish
scanning or paper jams.
• Be sure that there are no objects blocking the paper entry or paper exit slots of the MYIRO-9.
• The MYIRO-9 is only for measuring paper test charts or similar subjects. It cannot be used for measuring printed cloth or other subjects
with insucient stiness.
▍
Power Source
• Make sure that the power switch is set to o (“ “) when the MYIRO-9 is not in use.
• Always use the AC adapter supplied as a standard accessory and connect it to an AC outlet of the rated voltage and frequency.
• Use an AC power supply of the rated supply voltage (within ±10%).
▍
System
• Do not subject the MYIRO-9 to strong impact or vibration. Doing so may cause deterioration of performance or breakdown.
• When the MYIRO-9 is not in use, it should be covered to prevent entry of foreign matter.
• The MYIRO-9 may cause interference if used near a television, radio, etc.
• Since the MYIRO-9 uses a microcomputer, external magnetic noise may cause malfunction. In this case, turn the power o, and wait 30
minutes, and then turn it on again.
2

Notes on Use
▍
Notes on Storage
• The MYIRO-9 should be stored at temperatures between 0°C and 40°C, and at a relative humidity of 80% or less (35°C) without
condensation. Do not store the instrument in areas subject to high temperatures, high humidity, sudden changes in temperature, or
where freezing or condensation may occur, because these circumstances may cause a breakdown. It is recommended to store the
MYIRO-9 with a drying agent at a temperature around 20°C.
• Do not leave the MYIRO-9 inside a car such as in the trunk. Otherwise, the temperature and/or humidity may exceed the allowable
range for storage during midsummer or midwinter, resulting in a breakdown.
• Keep the packing materials used for shipment and use them to transport the MYIRO-9. This protects the instrument from sudden
changes in temperature, vibration, and shock.
• Do not store the MYIRO-9 in areas where dust, cigarette smoke or chemical gases are present. Doing so may cause deterioration in
performance or a breakdown.
• Entry of dust into the instrument will hinder accurate measurement. When the instrument is not in use, please cover the instrument
with the supplied Dust Cover to prevent the entry of dust.
• Be sure to keep all packing materials (cardboard box, cushioning material, plastic bags, etc.). They can be used to protect the
instrument during storage or during transportation to the service facility for maintenance (recalibration, etc.).
▍
Notes on Cleaning
• If the MYIRO-9 becomes dirty, wipe it with a soft, clean dry cloth. Never use solvents such as thinner or benzene.
• If the internal White Calibration Plate becomes dirty, it can be cleaned according to the procedure on p. 35.
• If the MYIRO-9 breaks down, do not try to disassemble and repair it by yourself. Contact your retailer.
▍
Disposal Method
• Make sure that the MYIRO-9 and its accessories and packing materials are either disposed of or recycled correctly in accordance with
local laws and regulations.
3

Safety Symbols ......................................................................................................................................................i
Notes on this Manual..............................................................................................................................................i
Safety Precautions ................................................................................................................................................1
Introduction .........................................................................................................................................................2
Notes on Use.........................................................................................................................................................2
Operating Environment ................................................................................................................................................................................................2
Measurement ...............................................................................................................................................................................................................2
Power Source................................................................................................................................................................................................................2
System .........................................................................................................................................................................................................................2
Notes on Storage ..........................................................................................................................................................................................................3
Notes on Cleaning ........................................................................................................................................................................................................3
Disposal Method...........................................................................................................................................................................................................3
Table of Contents ..................................................................................................................................................4
Unpacking ............................................................................................................................................................6
Unpacking the MYIRO-9 ...............................................................................................................................................................................................6
Packing Materials:..................................................................................................................................................................................................6
Removing Tapes:....................................................................................................................................................................................................6
Unpacking the Optional Auto Sheet Feeder FD-A09.......................................................................................................................................................7
Packing Materials...................................................................................................................................................................................................7
Removing FD-A09 from Box ...................................................................................................................................................................................7
Removing Tapes.....................................................................................................................................................................................................7
Standard Accessories............................................................................................................................................9
Software...............................................................................................................................................................9
Optional Accessories...........................................................................................................................................10

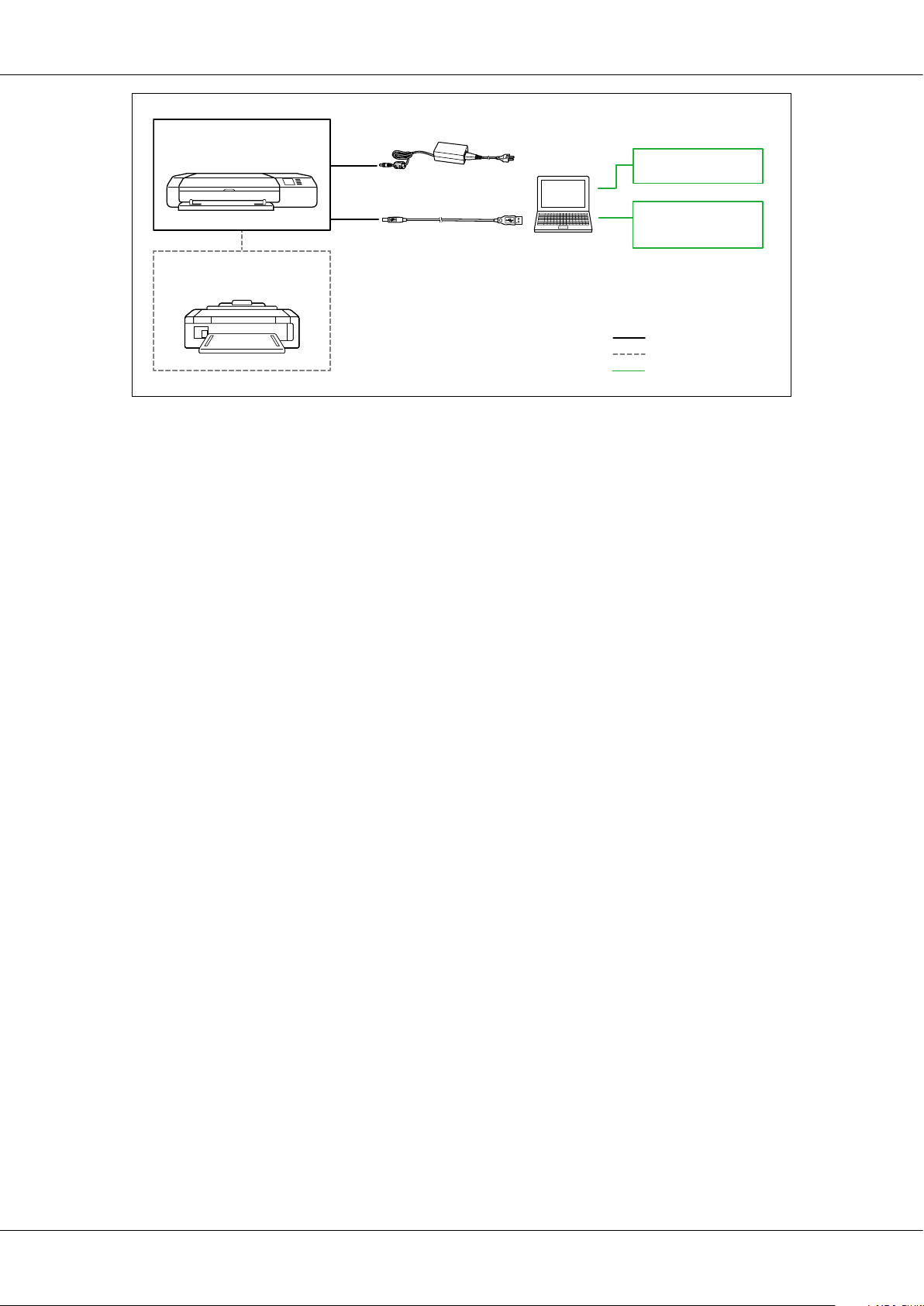

System Diagram .................................................................................................................................................11
Names and Functions of Parts..............................................................................................................................12
Preparations.......................................................................................................................................................13
Setting up MYIRO-9 ....................................................................................................................................................................................................14
Necessary space ..................................................................................................................................................................................................14
Attaching/Removing Paper Guide ..............................................................................................................................................................................15
Attaching.............................................................................................................................................................................................................15
Removing ............................................................................................................................................................................................................15
Setting Up Auto Sheet Feeder FD-A09 (optional accessory) .........................................................................................................................................16
Necessary space for Auto Sheet Feeder FD-A09 ....................................................................................................................................................16
Attaching Output Tray to Auto Sheet Feeder FD-A09.............................................................................................................................................17
Mounting MYIRO-9 on Auto Sheet Feeder FD-A09 ................................................................................................................................................18
Removing MYIRO-9 from Auto Sheet Feeder FD-A09 ............................................................................................................................................19
Connecting the AC adapter.........................................................................................................................................................................................20
Switching Power On/O .....................................................................................................................................21
Switching power on ....................................................................................................................................................................................................21
Table of Contents
4

Switching power o ....................................................................................................................................................................................................21
Connecting MYIRO-9 to Computer.......................................................................................................................22
Connecting MYIRO-9 to Computer using USB cable ....................................................................................................................................................22
Determining connected USB port number............................................................................................................................................................23
Setting Network Settings for Connecting MYIRO-9 to Computer via a LAN...................................................................................................................24
Setting network settings directly..........................................................................................................................................................................24
Setting network settings via DHCP .......................................................................................................................................................................26
Taking measurements .........................................................................................................................................27
Feeding Test Charts into MYIRO-9 ...............................................................................................................................................................................27
Feeding test charts when using the MYIRO-9 alone ..............................................................................................................................................28
Feeding test charts when using optional Auto Sheet Feeder FD-A09 .....................................................................................................................28
Settings screen ...................................................................................................................................................29
Opening/closing settings screen ................................................................................................................................................................................29
Settings screen layout.................................................................................................................................................................................................29
Setting items ..............................................................................................................................................................................................................30
Selecting and changing settings .................................................................................................................................................................................30
Setting display language.....................................................................................................................................31
Troubleshooting .................................................................................................................................................32
Error messages ...........................................................................................................................................................................................................32
Clearing paper jams....................................................................................................................................................................................................32
When using MYIRO-9 without Auto Sheet Feeder .................................................................................................................................................32
When using MYIRO-9 with Auto Sheet Feeder ......................................................................................................................................................33
Cleaning .............................................................................................................................................................35
Cleaning the white calibration plate ............................................................................................................................................................................35
Cleaning inside the MYIRO-9 ......................................................................................................................................................................................36
Scan Measurement Chart Conditions ...................................................................................................................37
Dimensions.........................................................................................................................................................38
Specifications .....................................................................................................................................................39
5

Unpacking
▍
Unpacking the MYIRO-9
Packing Materials:
Keep all packing materials (cardboard box, cushioning materials, plastic bags, etc.) in a safe place. The MYIRO-9 is a precision measuring
instrument. In the event that the instrument needs to be shipped to an authorized service facility, the packing materials can be used to
protect the instrument from impact and vibration during shipment. If the original packing materials are lost or damaged, please contact
your retailer.
Removing Tapes:
The cover, color measurement sensor unit, and conductive pads of the MYIRO-9 have been taped in position to avoid movement during shipment. The
tapes must be removed before use.
After unpacking the MYIRO-9 and placing it in its final location, remove the tape strips ①and ②as indicated in the illustrations below.
Open the cover and remove tape ③as shown at right. If power is switched on before tape
③is removed, the MYIRO-9 may malfunction. After removing tape ③, slide the color
measurement sensor unit slightly by hand to check that it moves smoothly. If it does not
move smoothly or if there is excessive noise, please contact your retailer.
Carefully remove the tapes ④as shown in the figure below. Be careful not to remove the conductive pads under the tapes. If tapes ④are
not removed, repeatability may suer.
6

Unpacking
▍
Unpacking the Optional Auto Sheet Feeder FD-A09
Packing Materials
Keep all packing materials (cardboard box, cushioning materials, plastic bags, etc.) in a safe place. In the event that the FD-A09 needs to
be shipped to an authorized service facility, the packing materials can be used to protect the product from impact and vibration during
shipment. If the original packing materials are lost or damaged, please contact your retailer.
Removing FD-A09 from Box
After opening the box of the FD-A09, remove the output tray as indicated by ①at right before removing any of the other materials.
Remove the cardboard inserts and cushioning materials, and then carefully lift the FD-A09
out of the box and place it where it will be used.
Removing Tapes
To protect some parts of the FD-A09 and prevent their movement during shipment, spacers have been taped to the FD-A09 or parts have
been taped in place. The tapes and spacers must be removed before use. After placing the FD-A09 where it will be used, remove the tapes
and spacers in the order specified below.
Remove the two spacers under the supply tray and the tapes holding them in place (②below) and then remove the tape ③from the
supply tray.
Remove the two tapes ④holding the supply tray closed against the FD-A09, remove the tape ⑤holding the extension tray closed, and
7

Unpacking
then remove the two tapes ⑥holding the cover closed.
Open the supply tray by tilting it down and remove the tape and cushion indicated by ⑦below.
8

Standard Accessories
AC Adapter AC-A324F
Used to supply power from an AC outlet to the instrument.
Input: 100 to 240 V 50/60Hz
Output (Typical): 24 V 6.25A
(STD-24050)
USB Cable (3m) IF-A18
Used to connect the instrument to a computer.
Paper Guide
Used to guide the test chart into the instrument when feeding test charts
manually.
Software
Measurement Utility Software FD-S2w
Used to control the instrument from a computer.
Available for free download from the MYIRO website:
https://www.myiro.com
MYIROtools
A next-generation color management tool oering advanced color
management with simple operation. Includes functions to measure
charts, create ICC profiles, control print quality, and more. (Sold
separately)
9

Optional Accessories
Auto Sheet Feeder FD-A09
Used to automatically feed test charts into the instrument.
Recommended maximum number of loaded sheets:
Normal paper (80 g/m2):100 sheets
Heavy paper (130 g/m2): 70 sheets
Paper size:
Paper width: 90 to 320 mm
Paper length: 170 to 450 mm
Paper thickness: 0.08 to 0.25 mm
10

System Diagram
USB Cable (3m)
IF-A18
Computer
(commercially available)
AC Adapter
Auto Sheet Feeder
FD-A09
Measurement Utility
Software FD-S2w
(free download)
Standard accessories
Optional accessories
Auto Scan
Spectrophotometer
MYIRO-9 MYIROtools
(sold separately)
Software
11

Names and Functions of Parts
Bottom view Inside view
Front view Rear view
1Cover
2Paper guide mounting slots For attaching the Paper Guide.
3Display panel Shows instrument settings, status, error messages, etc.
4Up / down buttons For selecting items from the setting screen or making numerical settings.
5button For confirming selection or settings.
6(Return) button For entering the settings screen or returning from the setting screen.
7Power button For switching power on and o.
8AC adapter input socket For connecting to the AC adapter
9LAN connection terminal For connecting the instrument to a wired network.
10 USB connection terminal For connecting the instrument to a computer via USB.
11 Auto Sheet Feeder alignment holes
12 Auto Sheet Feeder connector cover
13 Color measurement sensor unit Moves back and forth during operation to scan the test chart.
14 Base mounting screws These screws secure the instrument to its base. They can be loosened if necessary to
clear jammed paper (see p. 32) or for cleaning (see p. 35).
• Be sure that these screws are firmly tightened. If they are loose when
measurements are taken, measurement accuracy may suer.
15 White calibration plate Used for performing white calibration.
12

Preparations
13

Preparations
▍
Setting up MYIRO-9

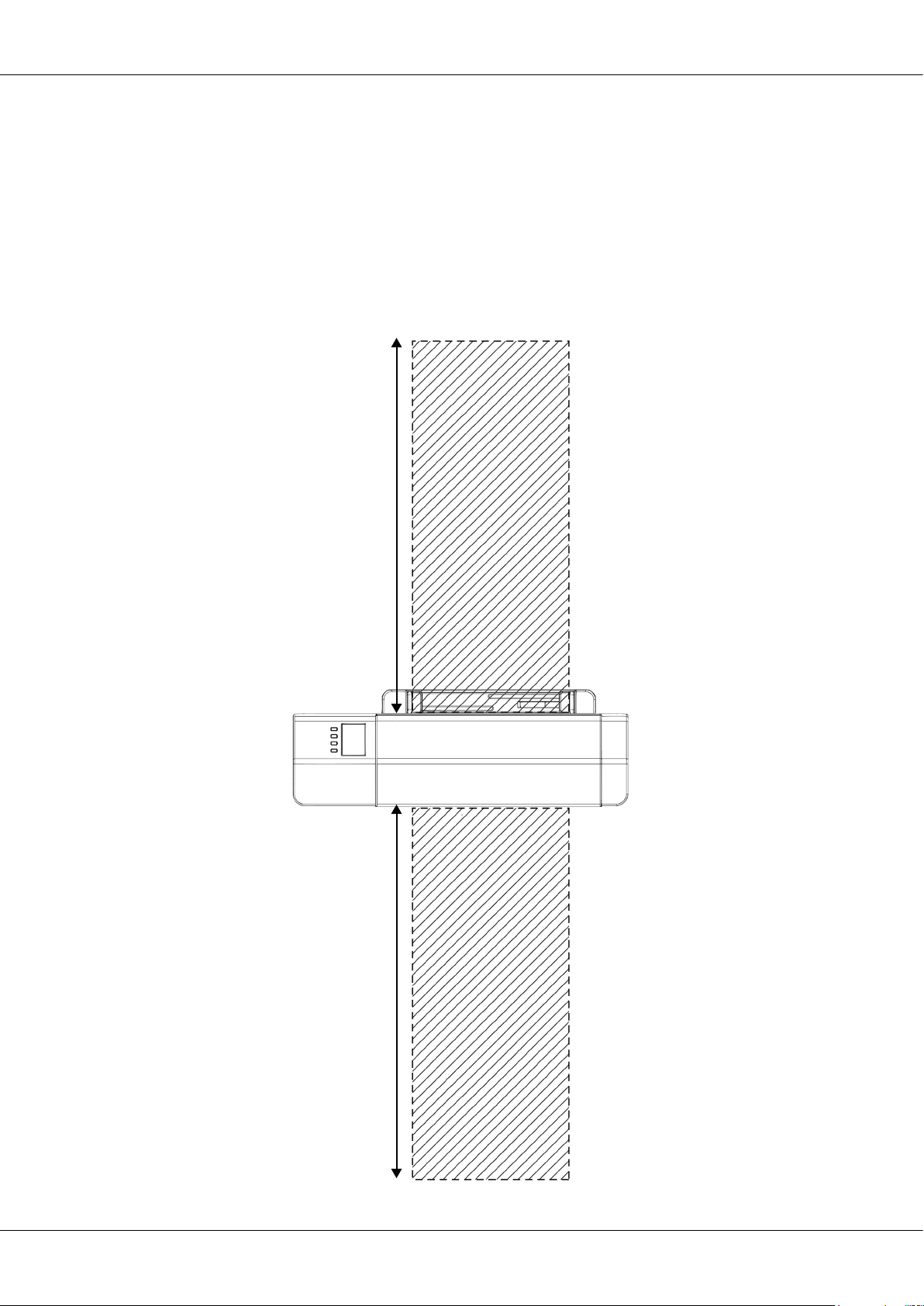

The MYIRO-9 should be set up on a flat, level surface with sucient space for color charts in front of and behind the MYIRO-9. There
should be enough space in front of the MYIRO-9 for color charts to be measured to be inserted into and ejected from the MYIRO-9 without
any obstacles, and enough space behind the MYIRO-9 for color charts to fully extend from the MYIRO-9 without obstacles. (See below.)
• If the MYIRO-9 is set up on a rough surface or a surface which is not level, measurement accuracy may suer.
• Obstacles may cause the color chart to bend or be shifted to either side, resulting in damage to the color chart or misalignment during
scanning.
• After scanning, the scanned color chart will be ejected from the front of the MYIRO-9. If the MYIRO-9 is placed at the edge of a table,
the ejected color chart might fall to the floor and be damaged.
Necessary space
Maximum chart
paper length
Maximum chart
paper length
14

Preparations
▍
Attaching/Removing Paper Guide
Paper Guide is used when test charts will be fed manually into the MYIRO-9.
• If the Auto Sheet Feeder FD-A09 will be used, the Paper Guide should be removed.
• When the Paper Guide is not attached to the MYIRO-9, it should be stored carefully where it will not be lost or broken.
Attaching
1 While gripping the ends of the Paper Guide, align the hooks of
the Paper Guide with the paper guide mounting slots of the
MYIRO-9, and insert the hooks fully.
2 Slide the Paper Guide straight down until the Paper Guide clicks
in place.
• Be careful to slide the Paper Guide straight down. Twisting the Paper Guide
or tilting it away from the MYIRO-9 may cause the hooks to be broken.
Removing
1 While gripping the ends of the Paper Guide, slide the Paper
Guide straight up.
• Be careful to slide the Paper Guide straight up. Twisting the Paper Guide or
tilting it away from the MYIRO-9 may cause the hooks to be broken.
2 Remove the hooks from the paper guide mounting slots.
15

Preparations
▍
Setting Up Auto Sheet Feeder FD-A09 (optional accessory)
The optional Auto Sheet Feeder FD-A09 can automatically feed a stack of test charts into the MYIRO-9. Up to 100 test charts can be placed
in the Auto Sheet Feeder, and they will be automatically fed into the MYIRO-9 one by one to be scanned.
The FD-A09 should be set up on a flat, level surface with sucient space for both the supply tray and the output tray to be fully opened.
There should be enough space for the color charts to be placed in the supply tray in front of the FD-A09 before measurement and for the
charts to be ejected from the MYIRO-9 and lay in the output tray after measurement. (See below.)
Necessary space for Auto Sheet Feeder FD-A09
Approx. 400mm
Approx. 400mm
Supply tray
Output tray
16

Preparations
Attaching Output Tray to Auto Sheet Feeder FD-A09
To attach the output tray to the FD-A09, hold the tray tilted upward, and insert the two tabs at the base of the tray into the corresponding
slots on the back of the FD-A09 as shown below.
17

Preparations
Mounting MYIRO-9 on Auto Sheet Feeder FD-A09
• If the Paper Guide is attached to the MYIRO-9, remove it before proceeding. See p. 15.
1 Unplug all cords and cables (AC adapter power cord, USB cable, LAN cable) from the MYIRO-9.
2 While holding the cover of the MYIRO-9 closed, tilt the MYIRO-9
back so that it rests on its back side.
3 Push down on the tab of the Auto Sheet Feeder connector cover,
pull the cover open, and remove it.
• Please store the cover carefully so that it will not be lost or broken.
4 Return the MYIRO-9 to the normal upright orientation.
5 Place the Auto Sheet Feeder FD-A09 on a flat surface.
6 Lift the MYIRO-9 up, align the Auto Sheet Feeder alignment
holes on the bottom of the MYIRO-9 with the alignment pegs on
the Auto Sheet Feeder, and slowly lower the MYIRO-9 straight
down onto the Auto Sheet Feeder until it clicks in place.
