Mylna sport Abilica Stream RB X User manual

Stream RB X
Art.nr. 300 014
Model KH
-
817S0

2
INNHOLD / INNEHÅLL / CONTENTS
3
Deletegning / Sprängskiss / Parts drawing
4
Deleliste / Dellista / Parts List
7
Montering / Assembly
12
Viktig informasjon
13
Betjening av computeren
17
Reklamasjonsvillkår
18
Kontaktinformasjon
19
Viktig information
20
Betjäning av datorn
24
Reklamationsvillkor
25
Kontaktinformation
26
Important information
27
Operating the console
31
Warranty regulations
32
Conatct information

3
DELETEGNING / SPRÄNGSKISS / EXPLODED VIEW

4
DELELISTE / DELLISTA / PARTS LIST
PART NO. DESCRIPTION MATERIAL SPECIFICATION Q’TY
1 Main frame 1
2 Rear stabilizer Q195 95.4*50.6*2.0Tx500L 1
3 Front stabilizer 1
4 Wheel cover PP 93.2*64.7*62 2
5 Handlebar post tube 1
6 Sliding beam Q195 50*100*2.0T*740L 1
7 Spring washer 70# D15.4 XD8.2x2T 12
8 Allen bolt 35# M8*1.25*50L 6
9 Allen bolt 35# M8x1.25x20L 8
10 Nut Q235A M8*1.25*8T 4
11 Curved washer Q235A D22xD8.5x1.5T 2
12 Rear chain cover (left) PS 805*615.4*74 1
13 Flat washer Q235A D16*D8.5*1.2T 16
14 Allen bolt 35# M8x1.25x15L 8
15 Right crank 1015A 170Lx9/16"-20BC 1
16 Right pedal JD-36A 1
18 Crank axle welding set 1
19 C ring 65Mn D22.5*D18.5*1.2T 2
20 Allen bolt 35# M6x1.0x15L 4
21 Nut Q235A M6x1.0x6T 4
22 Anti-loose nut 35# M10*1.25*10T 2
23 Screw cap P.E6070 D23x6.5 2
24 Bearing GCr15 #6004-2RS(C0) 2
25 Poly belt 410 (1041) PJ6 1
26 Magnetic system D265*86 1
29 Triangle side cap (right) PE 95.7*57.2*51.3 2
31 Idle wheel fixing plate 1
32 Spring 72A# D3*D19*67L 1
33 Bearing GCr15 #99502 2
34 Nut Q235A M10x1.5x10T 1
35 Club knob Q235A*ABS D61*46 1
36 C ring 65Mn S-16(1T) 3
37 Round side cap PE 6/8"x17 1
38 Backrest NL 500*470 1
39 Adaptor 26V,2.3A 1
40 Rear chain cover (right) PS 805*615.4*77.5 1
41 Adjustable pole Q235A D12*122*162 1
42 Seat PU 450*265*60 1
43 Foam NBR D23*4T*415L 2
44 Flat washer Q235A D24xD16x1.5T 2
45 Spacer D19*D13.1*4T 1
46 Upper handle pulse cable 600L 2
47 Lower handle pulse cable 1800L 1

5
48 Handlebar 1
49 Handle pulse cable 700L 1
50 Upper handle pulse cable 750L 2
51 Bushing NL 125*75*53 2
52A Upper computer cable 600L 1
52B Lower computer cable 950L 1
53 Sensor cable 150L 1
54 Electric cable 450L 1
55 Belt wheel ZL102 D260*19 1
56 Handle pulse PE18 2
57 Waved washer 65Mn D27*D21*0.3T 1
58 Allen bolt 35# M8*1.25*50L 1
59 Round magnetic M02 1
60 Computer SE-2580-31 1
61 Axle 45 D15.9*D13*219L 1
62 Foam (HDR) NBR D23*4T*480L 2
63 Oval cap PVC D25.4x28L 4
64 Upper protective cover HIPS 137.1*121*73.4 1
65 Control board EMS2500-A01 1
66 Waved washer 65Mn D21xD16.2x0.3T 1
67 Allen bolt 35# M8x1.25x30L 1
68 Flat washer NL66 D10*D24*0.4T 2
69 Flat washer Q235A D30*D8.5*2.0T 1
70 Side cap PE 30*70*17L 2
71 Front decorative cover PS D91*220L 1
72 Rear decorative cover PS D91*220L 1
73 Nut Q235A M8*1.25*6T 1
74 Flat washer Q235A D24*D13.5*2.5T 1
75 Back support tube Q195 30*70*2.0T*130L 1
76 C ring 65Mn S-12(1T) 3
77 Spring washer 70# D10.5*D6.1*1.3T 4
78 Screw 35# M6*1.0*15L 4
79 Flat washer Q235A D13*D6.5*1.0T 4
80 Bushing D29*D11.9*9T 2
81 Axle
（一） D26*41 1
82 Stopper ABS 53*41*38 1
83 Protective cover PS 95.4*69*49.3 1
85 Foam PU D10*245L*3T,HDR 1
86 Left chain cover HIPS 534.7*502*82.7 1
87 Right chain cover HIPS 534.7*502*78.1 1
88 Seat post tube 1
89 Screw cover PVC D3*30L 1
90 Allen bolt Q235A M8*1.25*40L 2
91 Wheel PVC+PP D70.5*23 2
92 Nut Q235A M8*1.25*8T 2

6
93 Screw 10# ST4.2x1.4x15L 2
94 Buffer NBR+Q235A D20*10L*M8*1.25 2
95 Bolt Q235A M5x0.8x12L 1
96 Screw 10# ST4.2x1.4x20L 17
98 Bolt Q235A M5*0.8*15L 2
99 Adjustable wheel Q235A+ABS D59*M10*40L 4
100 Pin ABS D6*26.5*7.7 3
101 Screw 10# ST3.5*20L 2
103 Screw 10# ST4*1.41*15L 8
104 Bolt Q235A M5x0.8x10L 2
105 Left crank 1015A 170Lx9/16"-20BC 1
106 Left pedal JD-36A 1
108 Triangle side cap(left) PE 95.7*57.2*51.3 2
109 Flat washer Q235A D8*D4.3*0.5T 2
110 Right chain cover HIPS 534.7*502*78.1 1
111 Bolt 4
112 Screw 10# ST4x20L 2
113 Computer bracket ABS 120*40*70 1
114 Computer fixing plate ABS 120*110*2.5T 1
115 Screw 35# M8*1.25*45L 1
116 Nut Q235A M8*1.25*8T 1
117 Connect cable 150L 1
118 Buffer NBR 40.5*28.5*6T 1
119 Screw 10# ST4*1.4L*25L 2
120 Screw 35# 4
121 Screw cover PVC D28*17(M6) 4
122 Left fixing plate Q235A 159,5*40,8*5T 1
123 Right fixing plate Q235A 159,5*40,8*5T 1
124 Screw 35# M6*1*10L,8,8grade 6
125 Inner chainring Q235A 2
126 Left inner chainring blank Q235A D79,3*4T 1
127 Right inner chainring
blank Q235A D79,3*4T 1
128 Spring washer 70# D10,5*D6* 9
129 Outer chainring Q235A D51,4*4T 2
130 Spacer 20# D19*D12,5*25L 1
131 Screw 10# ST4*1,41*12L 1
132 C-Ring 65Mn S-12(1T) 1
133 Screw 35# M6*1*15L,8,8grade 6
134 Flat washer Q235A D14*6,5*0,8T 6
135 Bolt Q235A M5*15L 1
136 Flat Washer Q235A D24*D13,5*2,5T 1

7
MONTERING / ASSEMBLY

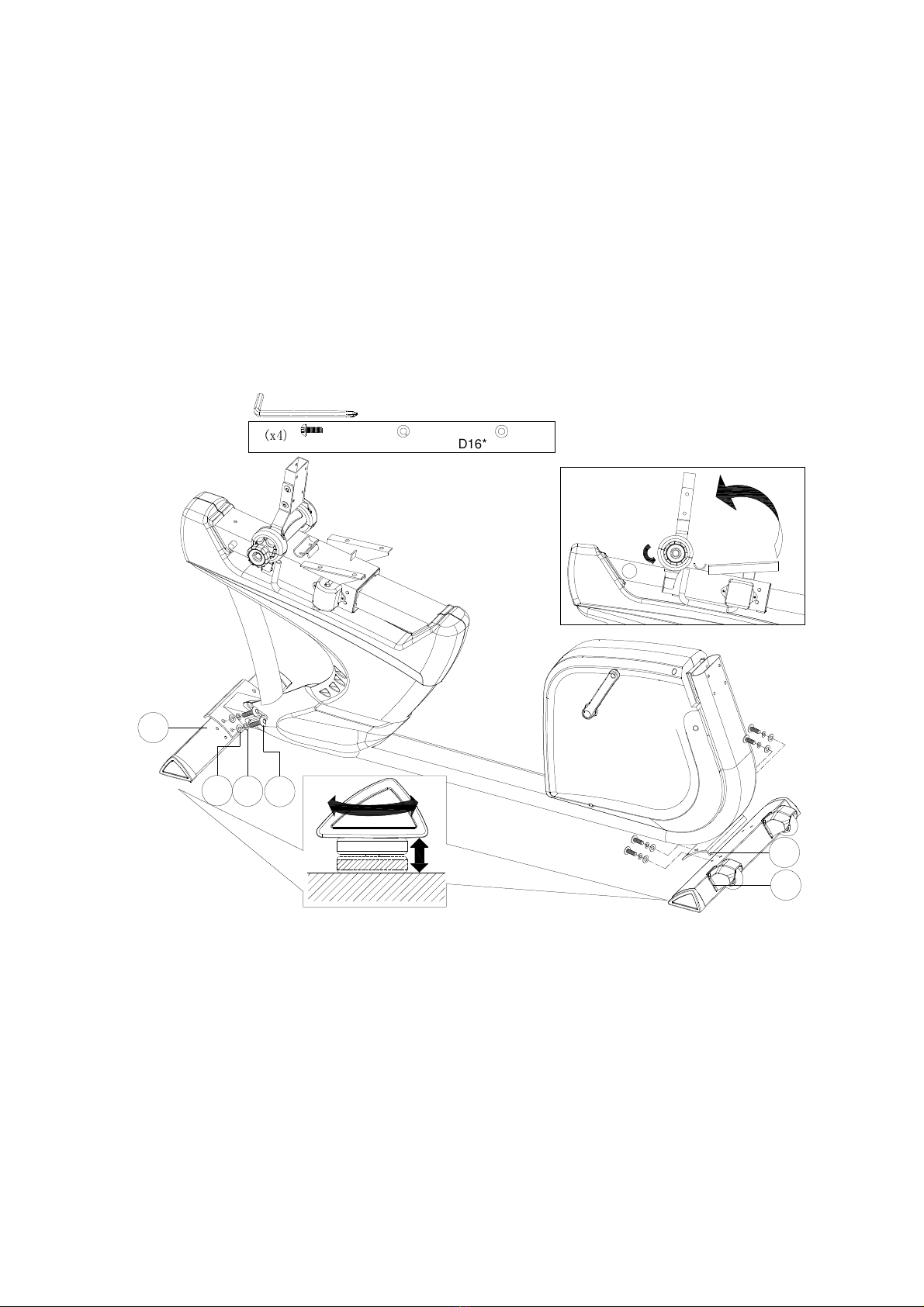

FIG.1
M8*20L D15.4*D8.2*2T
(x4)
D16*D8.5*1.2T
a
1
3
2
13 79

8

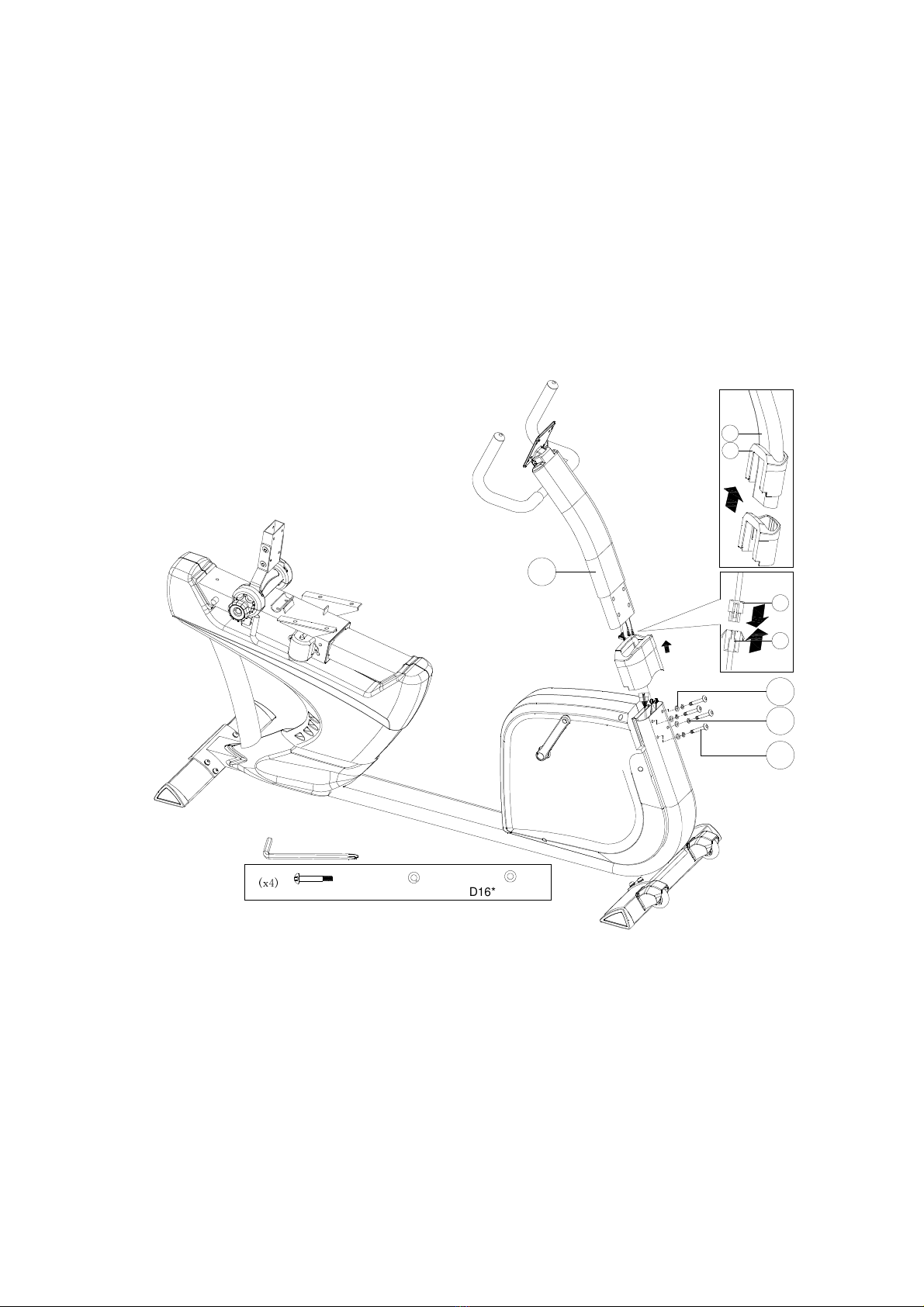

FIG.2
M8*1.25*50L D15.4*D8.2*2T
(x4)
D16*D8.5*1.2T
a
8
7
13
5
64
5
a
46
47
b

9
FIG.3
(x4)
M5*0.8*10L
a
60
46
106
15 16
L
R
R
60
111
13
15

10
(x2)
a
M8*50L D22*D8.5*1.5T
FIG.4
8
48
11
49
47
