Myron&davis AE22 User manual

AGG7
AGG7/ 1
This unit is not intended for installation in the front driver/passenger compartment where it may be seen by the driv-
er. Installation of this unit in any portion of the vehicle which could impair or distract the driver is improper and dan-
gerous. We assume no liability whatsoever for failure to follow the proper installation of this product.
WARNING:
IMPORTANT NOTICE
■ Before operating the unit, please read these instructions carefully.
■ Retain the manual for future reference.
■ You are advised to follow the instructions carefully when operating the unit.
■ Do not use any chemical solvent, cleaning agents or corrosive detergents to clean dirt off the surface of the screen. By doing so,
you may cause irreversible damage to the surface of the TFT screen. To clean off dirt or fingerprints, we recommend using a soft
damp lens cleaning cloth.
■ Using spare parts from another manufacturer may cause permanent damage to the unit.
■ When operating the display unit, avoid touching or pressing the LCD glass panel.
■ Excessive force may cause irreparable damage to the LCD screen.
■ Some states restrict the use of screens and television in vehicles.
■ In the interest of safety, this monitor should never be installed where it will be visible, directly or indirectly, by the operator of the
motor vehicle.
■ Lock the LCD screen in the fully closed position when it is not in use.
■ Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights can drain
the vehicle's battery.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 1

AGG7 AGG7/ 2
MAIN FEATURES:
■7" Active Matrix Super Thin TFT-LCD Panel
■Full Function OSD (On Screen Display) Control
■Full Function Remote Control
■2 Composite Video Inputs
■Built-In Wireless Headphone IR Transmitter
■User Select 7-Channel Wireless FM Modulator Control
■Adjustable Viewing Angle
SPECIFICATIONS:
■Display:
■Back Light:
■Resolution:
■Viewing Angle:
■Color Configuration:
■Video Input System:
■Power Source:
■Operating Temperature:
■Storage Temperature:
■Dimension:
■Net Weight:
7" TFT-LCD 16:9 Wide Screen Format
Built-In CCFT
1440 (H) X 234 (V)
65º / 65º / 65º / 50º (Left / Right / Top / Bottom)
RGB Vertical Stripes
NTSC/PAL (Auto Switching)
DC 12V (Negative Ground)
32º F ~ 140º F
-4º F ~ 158º F
7.3/8"(W) x 5.1/8"(H) x 1"(D)
0.35 lbs.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 2

AGG7
AGG7/ 3
STANDARD PACKAGE:
■(1) AGG7R – Passenger Monitor, (1) AGG7L – Driver Monitor
■(2) Card Size Wireless Remote Controllers
■(1) Wiring Harness
■(1) Noise Filter Relay
OPTIONAL ACCESSORIES:
■ANT129: 7-Channel Wireless FM Modulator
■AE21: Single Channel IR Wireless Headphone (For Single Source Application)
■AE22: Dual Channel IR Wireless Headphone (For Dual Source Application)
■AE31: Single Channel IR Wireless Headphone(Fits small children and adults)
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 3

AGG7 AGG7/ 4
MONITOR OPERATION
■POWER Button
■SOURCE Button
■MENU – UP/DOWN Buttons
Press POWER button to turn the monitor ON. LCD screen will display Video 1 or Video 2.
Press and hold POWER button will turn the monitor OFF.
DIMMER
BRIGHTNESS
CONTRAST
COLOR
TINT
FM MOD
AUTO ON
IR TX
RESET
Press SOURCE button to switch between Video 1 and Video 2
Press SOURCE button to switch between Video 1 and Video 2
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 4

AGG7
AGG7/ 5
Press SOURCE button to switch between Video 1 and Video 2
Press the UP and DOWN buttons to increase or decrease the value of the adjustment item.
DIMMER Select this feature dims the badklight for night viewing or low light condition.
BRIGHTNESS Controls the intensity of the backlight.
CONTRAST Controls the black level ratio.
COLOR Controls the balance of Blue, Yellow and Red
TINT Controls the intensity of Blue, Yellow and Red
FM MOD Whe optional FM Modulator (ANT129) is cormected, user can select any preset frequencies
(88.1MHz -91.5MHz) and listen to the audio through factor FM radio.
AUTO ON Select this feature enable monitor to automatically turn on when vehicle is ON or running.
IR TX Manually turn IR transmitter output for wireles headphone ON/OFF.
RESET Reset Color, Brightness, Contrast, Color and Tirt adjustments back to factory default evel
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 5

AGG7 AGG7/ 6
REMOTE CONTROL OPERATION:
■Press the POWER button to turn monitor ON.
■Press the MENU button to activate the OSD function as shown below.
DIMMER
BRIGHTNESS
CONTRAST
COLOR
TINT
FM MOD
AUTO ON
IR TX
RESET
■Press the UP or DOWN button to select the adjustment item
■Press the LEFT or RIGHT button to decrease or increase the
value of the adjustment item.
■Press the SELECT button to select Video 1 or Video 2 input.
UP
LEFT
DOWN
POWER
MONITOR MENU
RIGHT
VIDEO IN
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 6

AGG7
AGG7/ 7
INFRARED TRANSMITTER FOR WIRELESS IR HEADPHONES
Your Monitors are equipped with Infrared transmitter for wireless headphones. Depending at the time of install,
your video system might include a pair of the following headphones.
■(Single Source (DVD Player) – Audio is transmitted through IR transmitter on the Passenger side monitor (Freq. 2.3/2.8 MHz).
SINGLE CHANNEL WIRELESS IR HEADPHONE (AE21 or AE31) OPTIONAL
DUAL CHANNEL WIRELESS IR HEADPHONE (AE22) OPTIONAL
■Dual Source (DVD Player / Game) - Source 1 audio is transmitted through IR transmitter on the Passenger side monitor
(Freq. 2.3/2.8 MHz). Source 2 audio is transmitted through Driver side monitor (Freq. 3.2/3.8 MHz).
Select Channel-A (DVD) and Channel-B (GAME/DVD2) on Wireless IR Headphone (model AE22)
WIRELESS FM MODULATOR (OPTIONAL)
If your video system includes a wireless FM modulator (ANT129), following the instruction below to fine tuning your FM radio to receive
the audio through your speakers.
Select FM MOD with remote control or MENU button on the monitor. Select one of the preset frequencies:
88.1, 88.3, 88.7, 89.1, 89.7, 90.5, 91.5 MHz.
For single source, FM MOD control is located on the passenger monitor. For dual sources, FM MOD control is located on both
monitors; source 1 is passenger monitor and source 2 is driver monitor.
Tune your radio to match the selected frequency and adjust the volume control to a comfortable listening level.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 7

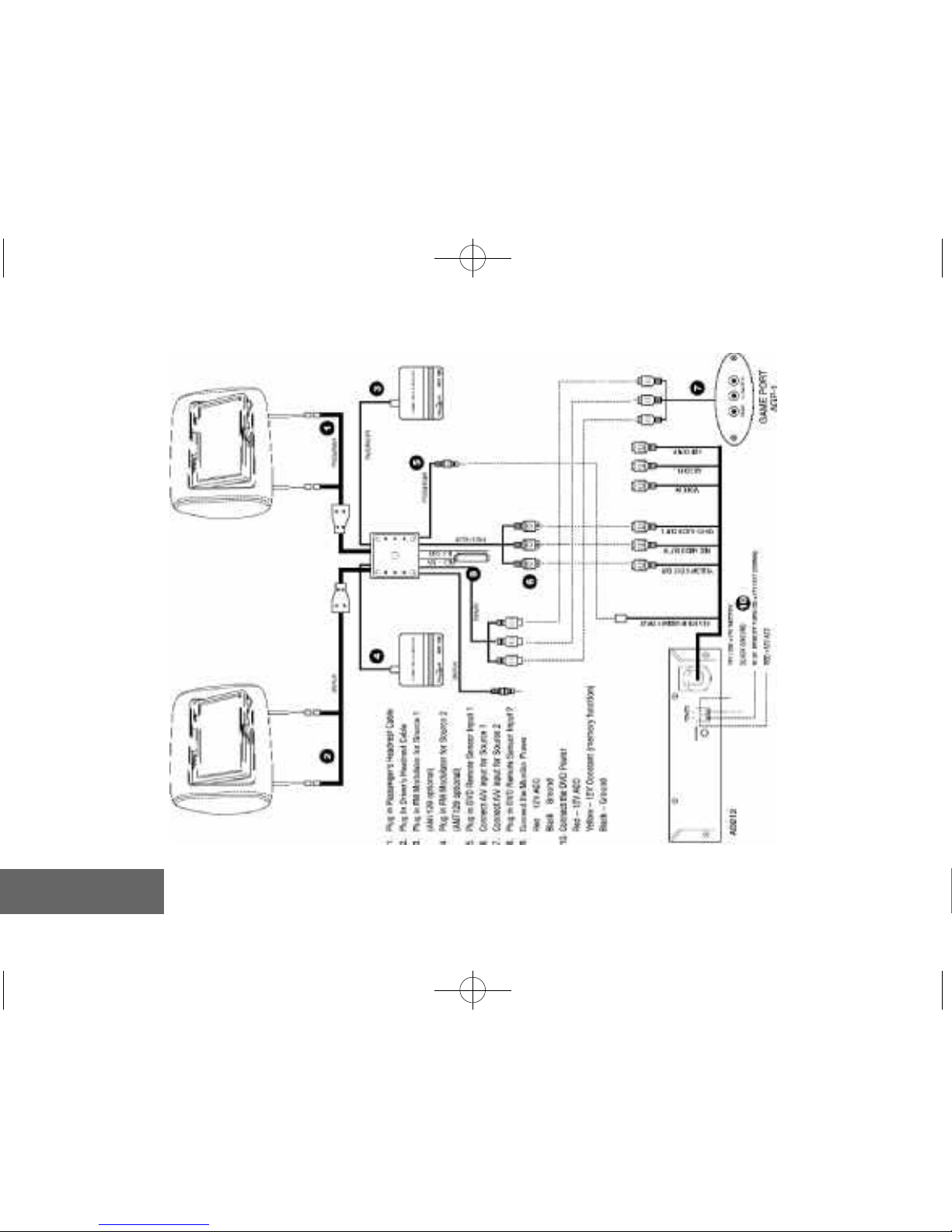

AGG7 AGG7/ 8
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 8

AGG7
AGG7/ 9
Warranty
Limited One-Year Warranty (Non-Transferable)
Myron & Davis warrants to the original purchaser a non- transferable warranty to repair or replace, free of charge, the video product(s)
in materials and workmanship under normal use and conditions for a period of one (1) year from date of purchase.
Limited warranty excludes:
■ Labor cost for removal, reinstallation, and trouble shooting of the video product(s).
■ Damage to DVD discs, CDs, videotapes, accessories, or vehicle electrical parts.
■ Damage due to improper installation, modification of existing equipment, abuse, neglect, or improper service.
■ Damage due to accidents, fire, theft or vandalism.
This warranty is automatically void if the product's serial number or date code is removed or tampered with.
Please visit www.myronanddavis.com for more information.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 9

AHG37
MAIN FEATURES:
■ Active Matrix Super Thin TFT – LCD Panel
■ Full Function OSD (On Screen Display) Control
■ Full Function Remote Control2 Composite Video Inputs
■ Built-In Wireless Headphone IR Transmitter
■ User Select 7 – Channel Wireless FM Modulator Control
■ Adjustable Viewing Angle
AHG37/ 1
SPECIFICATIONS:
■ Display:
■ Back Light:
■ Resolution:
■ Viewing Angle:
■ Color Configuration:
■ Video Input System:
■ Power Source:
■ Operating Temperature:
■ Storage Temperature:
■ Dimension:
■ Net Weight:
7" TFT – LCD 16:9 Wide Screen Format
Built-In CCFT
1440 (H) X 234 (V)
65º / 65º / 65º / 50º (Left / Right / Top / Bottom)
RGB Vertical Stripes
NTSC / PAL (Auto Switching)
DC 12V (Negative Ground)
32º F ~ 140º F
-4º F ~ 158º F
8.9"(W) x 5.7"(H) x 1.3" (D)
0.35 lbs.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 10

AHG37
OPTIONAL ACCESSORIES:
■ ANT129: 7 – Channel Wireless FM Modulator
■ AE21: Single Channel IR Wireless Headphone (For Single Source Application)
■ AE22: Dual Channel IR Wireless Headphone (For Dual Source Application)
■AE31: Single Channel IR Wireless Headphone (For small children and adults)
STANDARD PACKAGE:
■ (1) AHG37R – V Passenger Monitor, (1) AHG37L – Driver Monitor
■ (2) Card Size Wireless Remote Controllers
■ (1) Wiring Harness
■ (1) Noise Filter Relay
AHG37/ 2
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 11

AHG37
AHG37/ 3

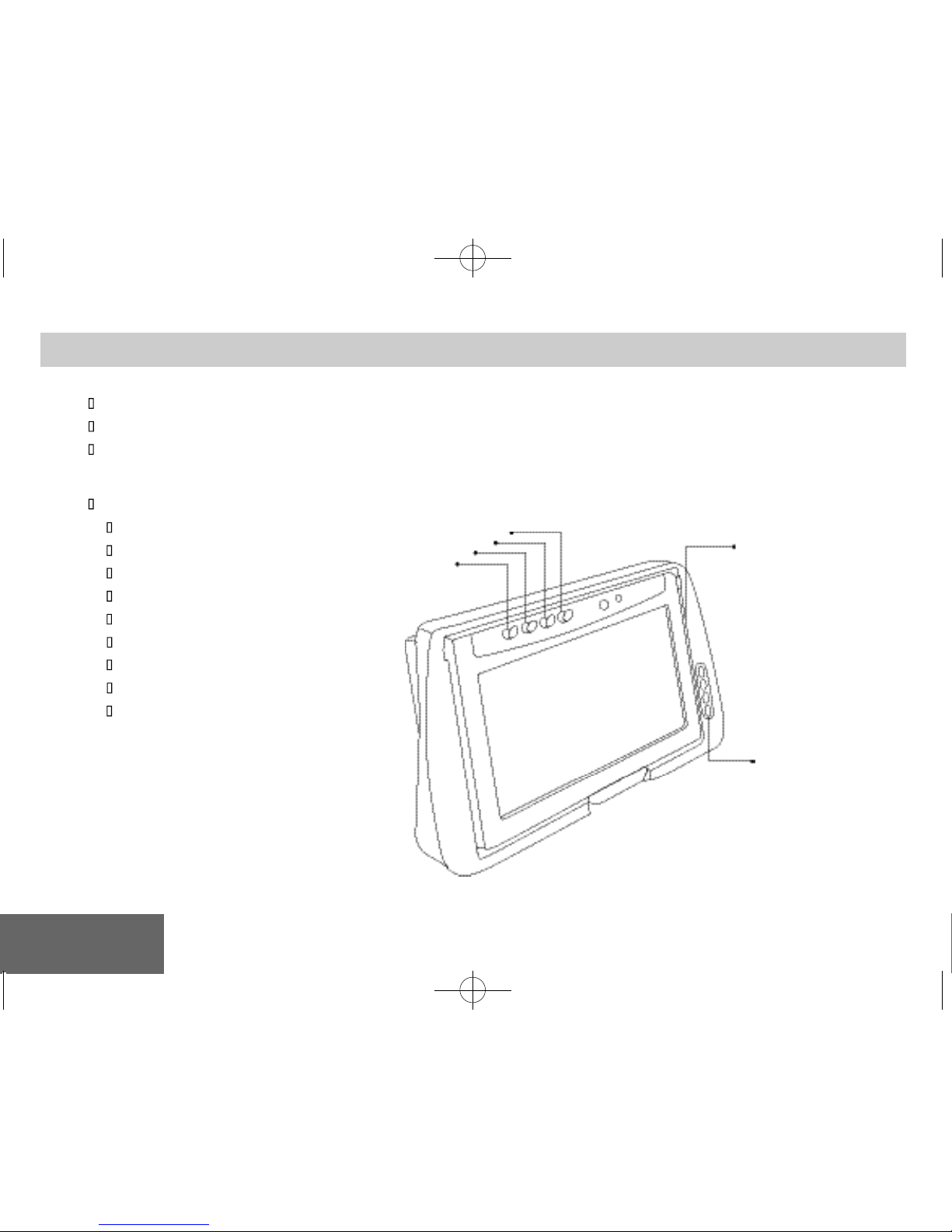

MONITOR OPERATION
■ POWER Button
Press POWER button to turn the monitor ON. LCD screen will display Video 1 or Video 2.
Press POWER button once after the monitor is ON will toggle between Video 1 and Video 2.
Press and hold POWER button will turn the monitor OFF.
■ MENU – UP/DOWN Buttons
Press the MENU button to activate the OSD function as shown below.
DIMMER
BRIGHTNESS
CONTRAST
COLOR
TINT
INVERT
AUTO ON/OFF
FM MODE
RESET
POWER
MENU
UP DOWN
IR Transmittrt for wireles
Headphones
LED & Remote IR Sensor
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 12

AHG37
AHG37/ 4
Press the MENU button to select the next adjustment item.
Press the UP and DOWN buttons to increase or decrease the value of the adjustment item.
DIMMER Select this feature dims the badklight for night viewing or low light condition.
BRIGHTNESS Controls the intensity of the backlight.
CONTRAST Controls the black level ratio.
COLOR Controls the balance of Blue, Yellow and Red
TINT Controls the intensity of Blue, Yellow and Red
AUTO ON Select this feature enable monitor to automatically turn on when vehicle is ON or running.
FM MOD Whe optional FM Modulator (ANT129) is cormected, user can select any preset frequencies
(88.1MHz -91.5MHz) and listen to the audio through factor FM radio.
RESET Reset Color, Brightness, Contrast, Color and Tirt adjustments back to factory default evel
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 13

AHG37
AHG37/ 5

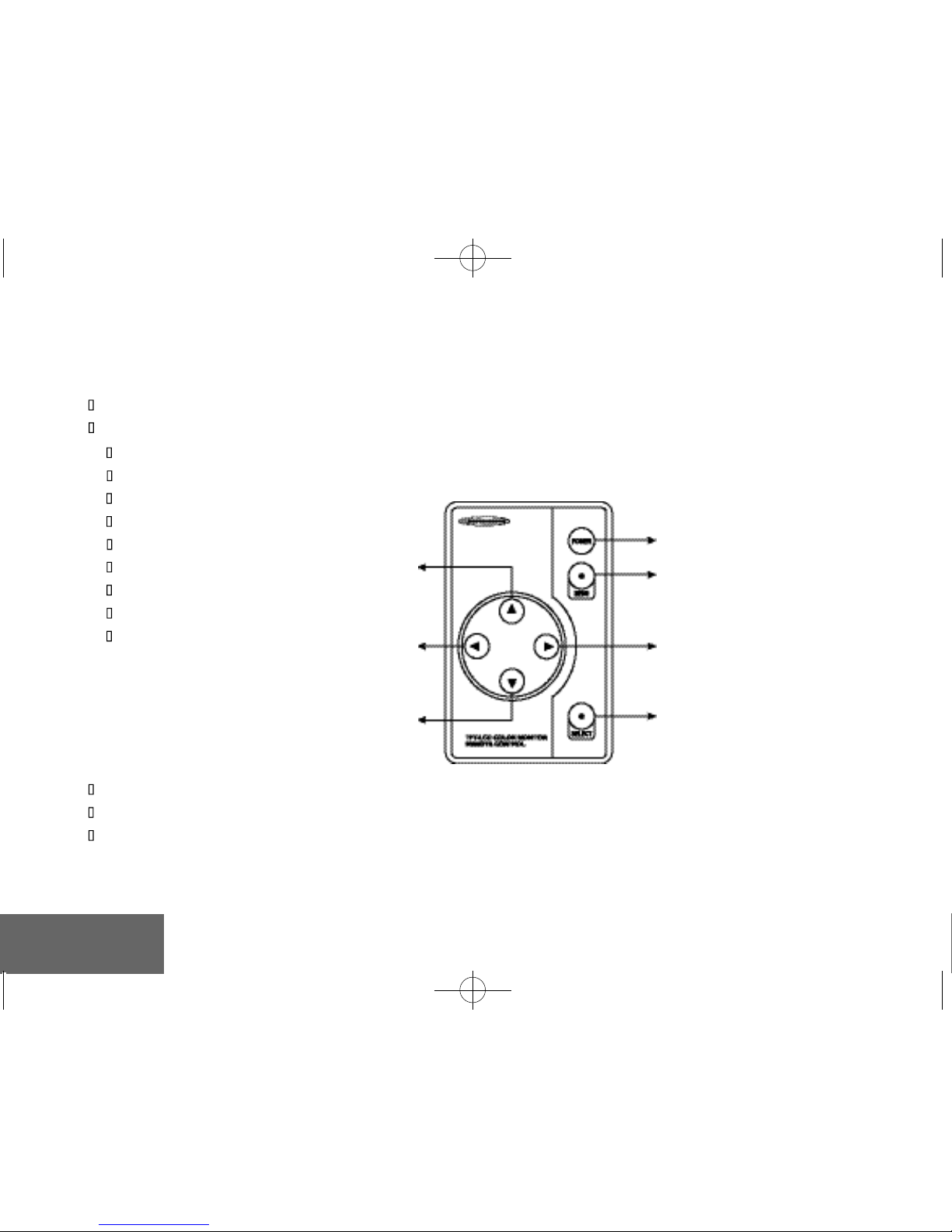

■ REMOTE CONTROL OPERATION:
Press the POWER button to turn monitor ON.
Press the MENU button to activate the OSD function as shown below.
DIMMER
BRIGHTNESS
CONTRAST
COLOR
TINT
INVERT
AUTO ON/OFF
FM MODE
RESET
UP
LEFT
DOWN
POWER
MONITOR MENU
RIGHT
VIDEO IN
Press the UP or DOWN button to select the adjustment item
Press the LEFT or RIGHT button to decrease or increase the value of the adjustment item.
Press the SELECT button to select Video 1 or Video 2 input.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 14

AHG37
AHG37/ 6
■ IR TRANSMITTER FOR WIRELESS IR HEADPHONES
Single Channel Wireless IR Headphone (AE21 or AE31) Optional
Single Source (DVD Player) – Audio is transmitted through IR transmitter on the Passenger side monitor (Freq. 2.3/2.8 MHz
Select Channel-A (2.3/2.8 MHz) and Channel-B (3.2/3.8 MHz) on Wireless IR Headphone (model AE22)
■ Dual Channel Wireless IR Headphone (AE22) Optional
Dual Source (DVD Player / Game) – Source 1 audio is transmitted through IR transmitter on the Passenger side monitor
(Freq. 2.3/2.8 MHz). Source 2 audio is transmitted through Driver side monitor (Freq. 3.2/3.8 MHz).
■ WIRELESS FM MODULATOR
Select FM MODE with remote control or MENU button on the monitor. Select one of the preset frequencies:
88.1, 88.3, 88.7, 89.1, 89.7, 90.5, 91.5 MHz.
For single source, FM MODE control is located on the passenger monitor. For dual sources, FM MODE control is located on
both monitors; source 1 is passenger monitor and source 2 is driver monitor.
Tune your radio to match the selected frequency and adjust the volume control to a comfortable listening level.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 15

AHG37
AHG37/ 7
Warranty
Limited One-Year Warranty (Non-Transferable)
Myron & Davis warrants to the original purchaser a non- transferable warranty to repair or replace, free of charge, the video product(s)
in materials and workmanship under normal use and conditions for a period of one (1) year from date of purchase.
Limited warranty excludes:
This warranty is automatically void if the product’s serial number or date code is
removed or tampered with.
Labor cost for removal, reinstallation, and trouble shooting of the video product(s).
Damage to DVD discs, CDs, videotapes, accessories, or vehicle electrical parts.
Damage due to improper installation, modification of existing equipment, abuse, neglect, or improper service.
Damage due to accidents, fire, theft or vandalism.
AHG37&AGG7說明書 11/29/2005 1:04 PM 頁面 16
