Instructions for
VAS525 Vanquish™Air Scrubber
General Information p. 2
Features & Switch Plate p. 4
Congurations & Operation p. 5
HEPA Filter Replacement p. 7
Parts & Pricing p. 8
Notes p. 10
13655 Stowe Dr., Poway, CA 92064
Model #
Serial #
Form # ADM-VAS525
3-17
Please read before use.
Register your product
at http://www.mytee.
com/support/register
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

2
Dear Customer:
Congratulations on the purchase of your new Vanquish™ Air Scrubber! The scene
of the equipment world is becoming more high tech, and we at Mytee Products Inc.
strive to keep you on the cutting edge with superior quality and technology.
With simple maintenance the Vanquish™ Air Scrubber will give quality per-
formance for many years to come. Keep in mind that neglect or abuse to the
Vanquish™ will cause unnecessary damage and void the warranty. If warranty
questions arise, please get in touch with your distributor from whom you purchased
this equipment.
Before rst use of your new product, please read this manual thoroughly. Thank
you for choosing Mytee!
Sincerely,
Mytee Products, Inc.
Parts & Service
Do not alter or modify your Vanquish™ Air Scrubber in any way. Repairs, when re-
quired, should be performed by Mytee service personnel or a Mytee Authorized Ser-
vice Center using original Mytee replacement parts and accessories. Modications
or use of unauthorized parts could create a hazard and will void your warranty.
Please specify the Model and Serial Number when discussing your product. For a list
of Authorized Mytee Service Centers, visit our website at www.mytee.com.
Grounding Instructions
This machine must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electrical shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed in ac-
cordance with all local code and ordinances. Do not remove ground pin; if missing,
replace plug before use.
Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualied electrician or service person if you are
in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the machine. If it will not t the outlet, have a proper outlet installed
by a qualied electrician.
This appliance is for use on a nominal 120-volt circuit, and has a grounding plug
that looks like the plug illustrated in Figure 1 below. A temporary adapter illustrated
in Figures 2 and 3 may be used~to connect this plug to a 2-pole receptacle as
shown in Figure 2 if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet (Figure 1) can be
installed by a qualied electrician. The green colored rigid ear, tab or the like
extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held
in place by a metal screw. Grounding adapters are not approved for use in Canada.
Replace the plug if the grounding pin is damaged or broken.
The Green (or GreenYellow) wire in the cord is the grounding wire. When replacing
a plug, this wire must be attached to the grounding pin only.
DO NOT use extension cords.
Please Note for America use only
Parts and Service
Repairs, when required, should be performed by Mytee service personnel or Mytee
authorized Service Center using Mytee original replacement parts and accesso-
ries. Call your local service center for repair parts or service. Please specify the
Model and Serial Number when discussing your machine.
Name Plate
The Model and Serial Number of your machine are shown on the Nameplate on the
back panel of the machine. This information is needed when ordering repair parts
for the machine. Use the space provided on the front cover to note the Model and
Serial Number of your machine for future reference.
Unpacking the Machine
When the machine is delivered, carefully inspect the shipping carton and the
machine for damage. If damage is evident, save the shipping carton so that it can
be inspected by the carrier that delivered it. Contact the carrier immediately to le
a freight damage claim.
Caution and Warnings
Symbols
Mytee uses the symbols below to signal potentially dangerous conditions. Always
read this information carefully and take the necessary steps to protect personnel
and property.
Is used to warn of immediate hazards that will cause severe personal injury or
death.
Is used to call attention to a situation that could cause severe personal injury.
Is used to call attention to a situation that could cause minor personal injury or
damage to the machine or other property. When using an electrical appliance, ba-
sic precautions should always be followed, including the following: Read all instruc-
tions before using this machine. This product is intended for commercial use only.
INHALATION HAZARD
Avoid breathing mold spores, bacteria, and other hazardous particles
that may be present. Always wear a NIOSH-approved respirator when
operating the unit, doing a lter change, and when cleaning the unit.
ELECTRIC SHOCK HAZARD
Unit must be grounded when in use. Plug into grounded 3-prong plug
receptacle only. Disconnect power when left unattended. Disconnect
power before servicing. Do not expose to water or rain. Store indoors in
a cool, dry place.
FIRE/EXPLOSION HAZARD
Do not use near open-ame appliances. Do not use where explosive
vapors are present in the air. Flame, gas, or deadly exhaust fume back-
draft could blow out if exposed to negative air pressure.
TIP OVER HAZARD
Unit must be placed on hard, level surface when in use. Tilted or
uneven unit could result in serious injury. Do not stack more than two
units.
To reduce the risk of re, electrical shock, or injury:
1. Read all instructions before using equipment.
2. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
3. Always unplug power cord from electrical outlet before attempting any adjust-
ments or repairs.
4. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
5. Do not pull or carry by cord. Do not close a door on cord or pull cord around
sharp edges or corners.
6. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not use with damaged cord or plug. If cord is damaged, repair immediately.
8. Do not use outdoors or on wet surfaces and/or standing water.
9. Always unplug or disconnect the appliance from power supply when not in use.
10. Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
11. Do not use in areas where ammable or combustible material may be present.
12. Do not leave the unit exposed to harsh weather elements. Temperatures below
freezing may damage components and void warranty.
13. Use only the appropriate handles to move and lift unit. Do not use any other
GENERAL INFORMATION
Figure 1
Grounding Pin
Grounded Outlet
Grounded Outlet Box
Adapter
Tab for Grounding
Screw
Metal
Screw
Figure 2 Figure 3
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

3
parts of this machine for this purpose.
14. Keep hair, loose clothing, ngers, and all parts of the body away from all
openings and moving parts.
15. To reduce the risk of re or electric shock, do not use this machine with a solid-
state speed control device.
16. The voltage and frequency indicated on the name plate must correspond to the
wall receptacle supply voltage.
17. When cleaning and servicing the machine, local or national regulations may
apply to the safe disposal of liquids which may contain: chemicals, grease, oil,
acid, alkalines, or other dangerous liquids.
Pre-Operation
1. Inspect pre-lter for accumulated dust and dirt before each use. Replace if
necessary.
Setup
1. Place the Vanquish™ in position as either an air scrubber or a negative air
machine. (More information on page 6.)
2. Plug into a standard 115V outlet. The Vanquish™ needs 3.1 amps to operate.
Operation
1. Remove the intake cap.
2. Switch on the unit by turning the variable speed switch on the switch plate
clockwise (see pg. 4). Keep turning clockwise to set the speed from high to low.
After Use
1. Replace intake cap.
2. Unplug power cord from wall and wrap around intake cap.
3. Store in a dry location.
Maintenance Schedule
Maintenance item Daily Once a week
Check power supply cable
Clean machine with all purpose cleaner and cloth
Inspect machine for loose hardware
x
x
x
Troubleshooting
There is no power.
1. Make sure unit is plugged into a 115V outlet.
2. Make sure circuit breaker is not tripped.
Change HEPA lter light is illuminated.
1. Replace HEPA lter. Refer to pg. 5 of this manual.
2. Make sure intake is not restricted. Eliminate bends or kinks in ducting or
remove ducting.
Blower wheel isn’t turning.
1. Check if the blower wheel is obstructed. Remove any obstruction.
2. Tighten the blower wheel set screw.
Machine Specications
Air Intake 16”
Air Outlet 8”
CFM 250-500
Circuit Breaker 12 amps
Power
Consumption 3.1 amps @ 115V 60Hz
Machine Weight 57 lbs.
Machine
Dimensions 15” x 27.75” x 24.5”
Power Cord 25’ 14/3
FAQs
Q: What comes standard with the Vanquish™ Air Scrubber?
A: The Vanquish™ comes with the Mytee HEPA lter and pre-lter pre-installed.
Q: Where do I plug the machine in?
A: The Vanquish™ requires a 115V grounded circuit. Please note: GFI outlets may
trip before the breaker setting.
Q: Is there anything I can do to increase the expected life of my machine?
A: Store the Vanquish™ with intake cap on. Replace lters whenever needed.
GENERAL INFORMATION
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

4
FRONT BACK
SWITCH PLATE
4
3
5
1
2
6
VAS525 VANQUISH™ FEATURES & SWITCH PLATE
1. Air intake cap
2. Latches
3. Air outlet
4. 25’ lighted power cord
5. Switch plate
6. Carrying handle
2
4
3
1
1. VARIABLE SPEED CONTROL KNOB
After plugging in the unit to a 115V outlet, the variable speed control knob
is used to turn on the unit and set the fan speed, which adjusts the CFM
from 250-500.
2. HEPA FILTER REPLACEMENT INDICATOR LIGHT
The indicator light illuminates when the HEPA lter exhibits 50% relative
reduction in capacity and airow. The HEPA lter should be changed at this
point to resume efcient operation. Do not attempt to clean and re-use a
HEPA lter. Dust Pre-lters should be replaced after signicant accumula-
tion of dust is clearly visible on surface. Make sure lters are placed in the
housing lid directionally as labeled on the lter itself.
3. CIRCUIT BREAKER
The circuit breaker turns off the unit when power running through the on-
unit circuit exceeds 12 amps.

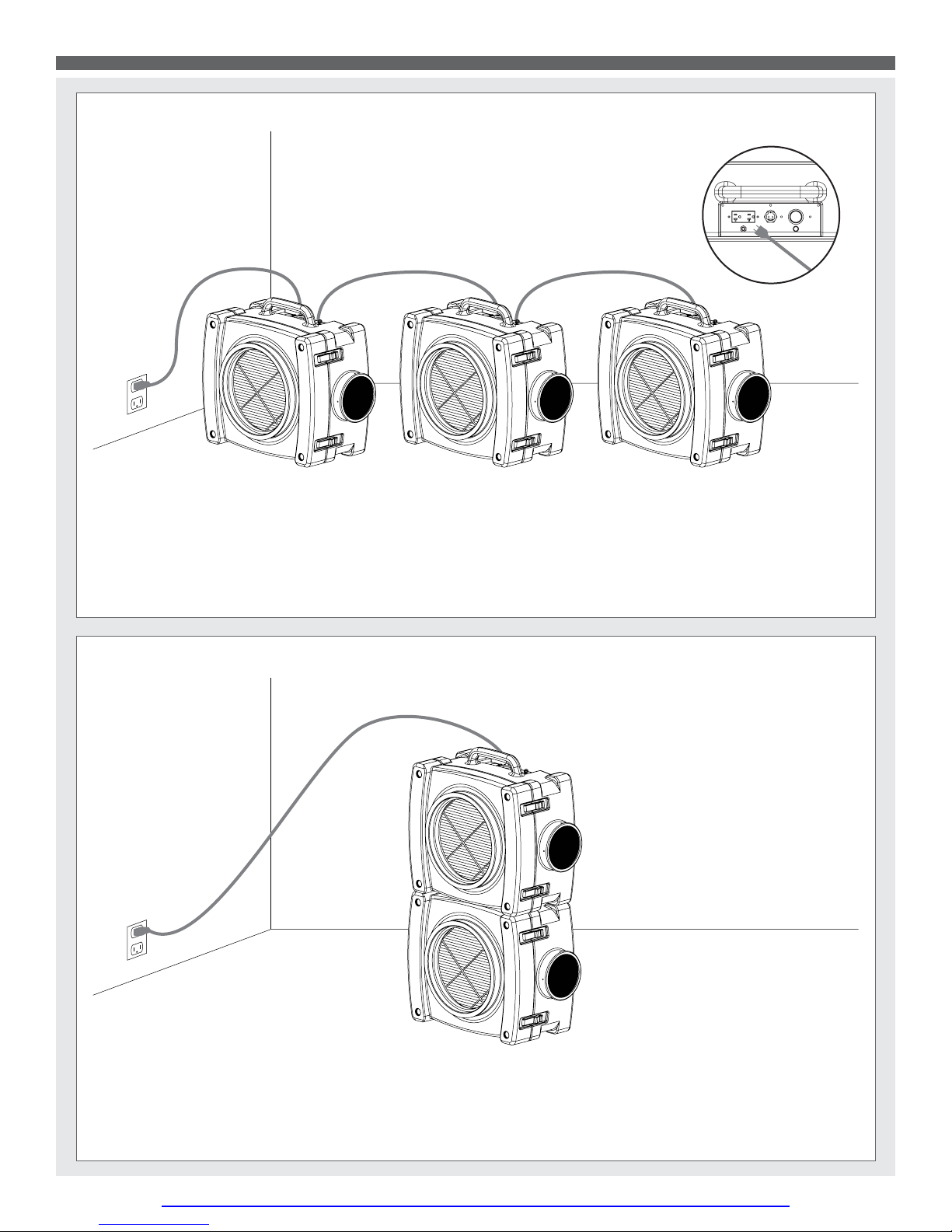

4. AUXILIARY OUTLET
You can daisy-chain up to 2 additional Vanquish™ Air Scrubbers to
customize your setup for maximum air ltration. The unit conducts a
maximum of 12 amps when off and 9 amps when on.
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

5

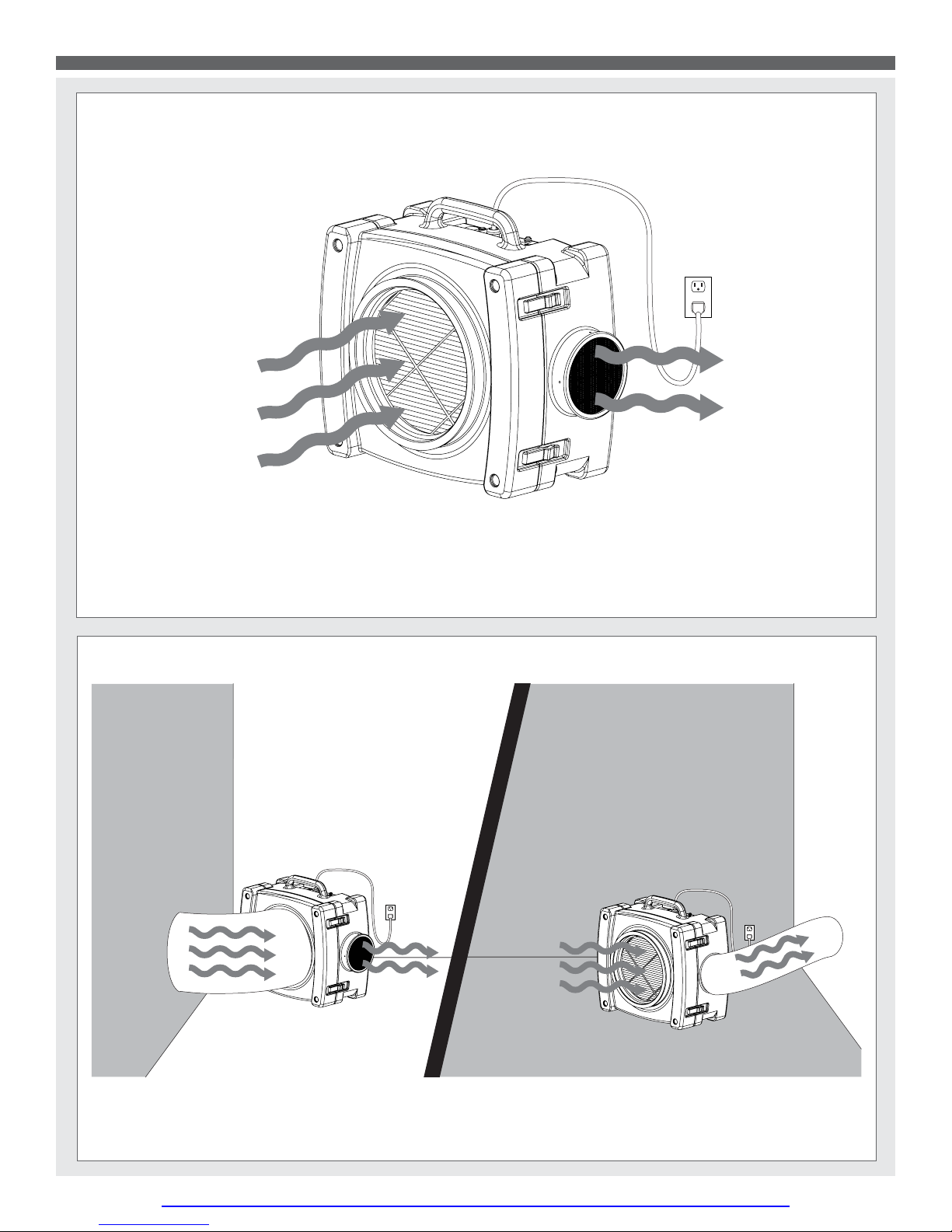

VAS525 VANQUISH™ OPERATION & CONFIGURATIONS
POWERING ON THE AIR SCRUBBER
FILTERS
STORAGE
Plug the Vanquish™ Air Scrubber into a grounded wall
outlet. Remove the air intake cap. Turn the control knob
clockwise to turn on the unit. MAX CFM setting is located
immediately clockwise of the OFF setting. Keep turning
clockwise to lower the CFM until you reach the MIN.
Store the Vanquish™ with the intake cap on in either the
vertical or horizontal position.

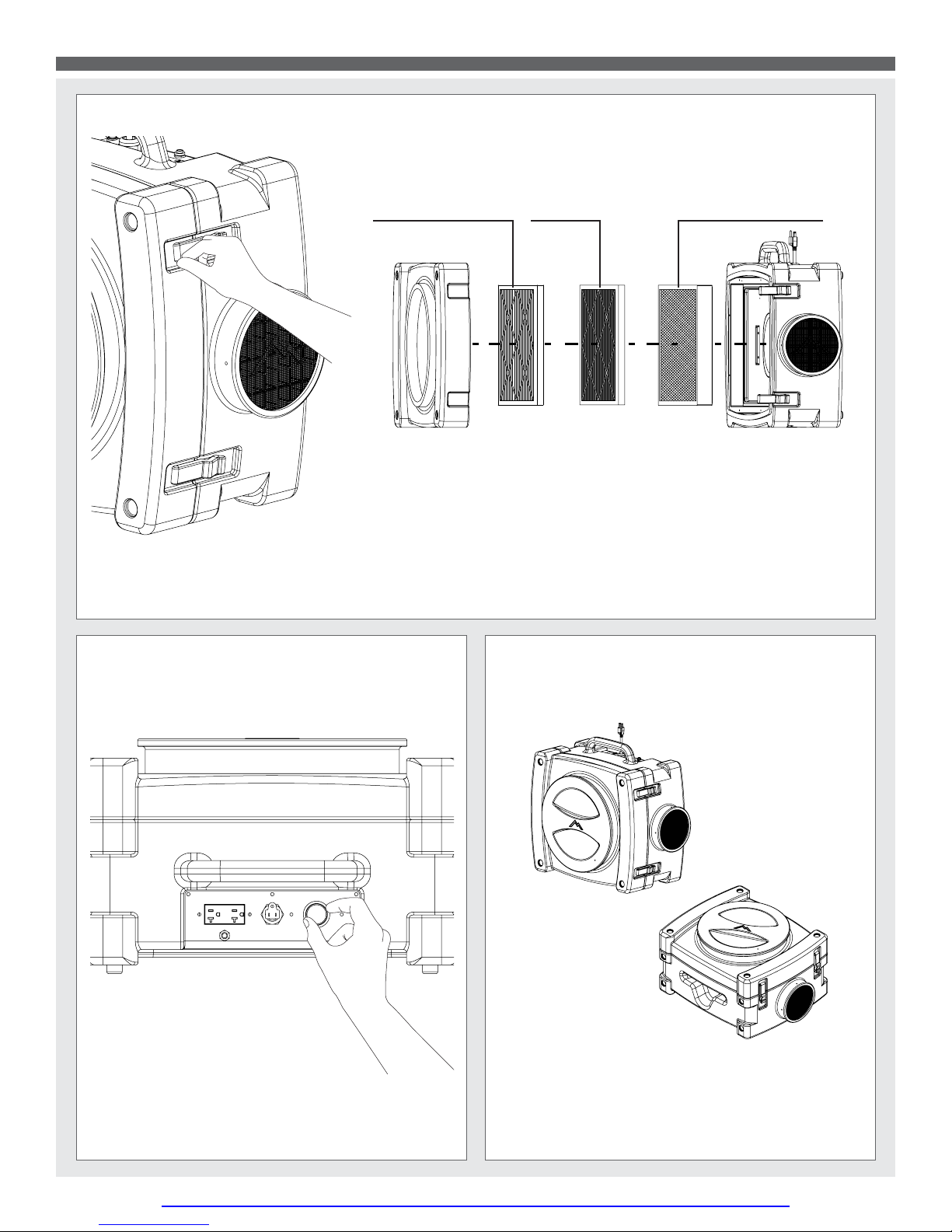

REPLACING THE FILTERS
Open all four case latches to remove housing lid to access the pre-lters. The lters can then be easily removed for disposal
and replacement. The HEPA lter can be removed from the lter tray by tipping one side towards the user, then lifting out.
Pre-lter-
Captures and contains large
particles like dust, lint, pollen,
etc.
Charcoal Fliter-
Removes odors from pets,
smoke, fuel, food, etc.
Mytee HEPA Filter-
Removes 99.99% of particles
at least 0.3 micrometers in
diameter.
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

6
CONFIGURATION 2 – NEGATIVE AIR MACHINE
The Vanquish™ can be set up as a negative air machine either inside or outside a containment area. Outside: Set the unit
up outside the containment area. Attach 16” ducting from the intake of the Vanquish™ to an opening in the containment
area. Inside: Set the unit up inside the containment area. Attach 8” ducting from the outlet of the Vanquish™ to an opening
leading to the outside of the containment area.
VAS525 VANQUISH™ OPERATION & CONFIGURATIONS
CONFIGURATION 1 – SINGLE AIR SCRUBBER
Set the Vanquish™ in a room, uncap the intake, plug it in, and turn it on. The Vanquish™ will begin ltering dust, particu-
lates, and mold spores out of the air with HEPA efciency.
Containment
Area
Containment
Area
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

7
CONFIGURATION 4 – STACKED
Two Vanquish™ Air Scrubbers may be stacked one atop the other during operation in order to save space and connect to
containment easier.
VAS525 VANQUISH™ OPERATION & CONFIGURATIONS
CONFIGURATION 3 – DAISY-CHAIN
Up to three Vanquish™ Air Scrubbers can be daisy-chained for use either as air scrubbers to add ltering capacity, or as
negative air machines to add CFM to larger containment areas.
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

8
Part prices are subject to change.
VAS525 VANQUISH™ PARTS & PRICING
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
OD
ORIGINAL DRAFT
5/2016
JFL
ITEM
NO.
PART NO.
DESCRIPTION
QTY.
MSRP
1
P614 housing, cap, VAS525
1
$19.99 ea
2
P613
housing, lid, VAS525
1
$79.99 ea
3
G129
gasket, seal, lid, VAS525
1
$2.99 ea
4
H368
prefilter, VAS525
1
$9.99 ea
5
H352
HEPA filter, VAS525
1
$89.99 ea
6
P616
filter tray, VAS525
1
$59.99 ea
7
H882
screw, 8 x 3/4 phil pan head, type a, s/s
14
$0.99 ea
8
PH672
tubing, 1/4", vinyl, clear
2
$3.99 ft
9
E403
air switch, VAS525
1
$45.99 ea
10
C339
motor, w/capacitor and fan, VAS525
1
$229.99 ea
11
H353
motor mount, VAS525
1
$39.99 ea
12
H376
switch box, internal, AS650
1
$23.99 ea
13
E525
terminal block, heyco
1
$24.99 ea
14
H273
nut, kep, #10-32 zinc
6
$0.99 ea
15
H230
screw, 10-32 x 1/2" phil pan head, s/s
11
$0.99 ea
16
E405
controller, speed, VAS525
1
$39.99 ea
17
H220
fitting, strain relief, cord
1
$3.19 ea
18
E512B
light, indicator, 125v (amber)
1
$9.99 ea
19
E532
power cord, end, 25', 14/3
1
$44.99 ea
20
E910
receptacle, 15mp GFI, black
1
$33.99 ea
21
E584
circuit breaker, 12Amp
1
$17.99 ea
22
H452
plate, switch, VAS525
1
$17.99 ea
23
H297
screw, 8 x 1/2", hex head, zinc
4
$0.99 ea
24
P615
guard, VAS525
1
$4.99 ea
25
G081
screen, mesh, 7-1/2", VAS525
1
$4.99 ea
26
H304
screw, 8 x 5/8", phil oval, s/s
4
$0.99 ea
27
H770
bolt, 1/4-20 x 1/2" serrated hex flange, zinc
8
$0.99 ea
28
H211
washer, 1/4"id x 1"od, flat, s/s
4
$0.99 ea
29
H289
washer, 10 flat, s/s
4
$0.99 ea
30
G087
bumper w washer
4
$0.99 ea
31
H459
latch, soft draw, VAS525
4
$7.99 ea
32
H315
screw, M6 x 1.0 x 12mm, hex head
8
$0.99 ea
33
H647
screw, 8-32 x 3/8" phil pan head
8
$0.99 ea
34
P598
housing, VAS525
1
$139.99 ea
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
VAS525
SHEET 1 OF 2
air scrubber
5/2016
OD
SCALE: 1:24
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

9
VAS525 VANQUISH™ PARTS & PRICING
1
2
5
6
11
19
20
21
24
27
28
15
29
30
31 34
18
9
25
10
10
12
3
13
8
4
26
27
7
14 15
14
7
22
14
15
16
17
23
32
33
8
9
15
D
C
B
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
VAS525
SHEET 2 OF 2
air scrubber
5/2016
OD
SCALE: 1:24
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MYTEE PRODUCTS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MYTEE PRODUCTS, INC. IS PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera
New & Reconditioned Equipment & Parts - www.southeasternequipment.net

10
Mytee Products Inc.
13655 Stowe Dr.
Poway, CA 92064
www.mytee.com
© 2017 Mytee Products Inc.
Printed in the U.S.A.
NOTES
New & Reconditioned Equipment & Parts - www.southeasternequipment.net
