MyTek Stereo 192-DSD DAC User manual

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Stereo 192-DSD DAC
Mastering Digital to Analog Converter
User Manual
Firmware v1.7.1
ver. 1.7.1 / October 2012
© Mytek Digital 2012
www.mytekdigital.com age: 1 / 47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
This manual may be updated
Download the newest version at:
http://www.mytekdigital.com/hifi)
For technical support, technical tips and support check:
http://www.mytekdigital.com
or contact Mytek tech support at:
[email protected]
or at:
tel. [phone]
fax. [phone]
Mytek Digital
148 India St. FL 1
Brooklyn, NY 11222
USA
www.mytekdigital.com age: 2 / 47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Contents
Introduction...................................................................................4
Stereo192-DSD-DAC Black Preamp Version.................................5
Stereo192-DSD-DAC Sil er Preamp Version................................6
Stereo192-DSD-DAC Black Mastering Version.............................7
Front Panel.....................................................................................8
Rear Panel.......................................................................................9
Menu Menu..................................................................................10
Menu Quick Look............................................................................10
LED View..........................................................................................11
Menu Operation..............................................................................12
Inputs................................................................................................12
Upsampling......................................................................................12
Filters.................................................................................................13
Sync....................................................................................................13
Volume Control...............................................................................13
Volume Trim....................................................................................13
Function Buttons..............................................................................14
Display..............................................................................................14
Remote..............................................................................................14
Firmware...........................................................................................14
Dri er Installation.......................................................................15
Quick Start - USB1.1........................................................................15
Macintosh - USB 2.0.......................................................................16
Macintosh - FireWire......................................................................20
Windows - USB 2.0........................................................................23
Windows - FireWire......................................................................28
Firmware Update........................................................................35
Internal User Adjustments.........................................................36
Remote Control Setup................................................................37
Signal Flow...................................................................................39
FireWire Recording....................................................................40
Specifications...............................................................................44
Important Safety Instructions....................................................45
Warranty.......................................................................................47
www.mytekdigital.com age: 3/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Introduction
The Mytek Stereo192-DSD Digital to Analog Con erter is an
ultra-transparent mastering grade digital audio playback
system. Designed around state of the art Sabre 32 bit
con ersion technology, the Stereo192-DSD DAC deli ers
features and sound quality beyond expectation of the most
discerning listener. The DAC is capable of con erting high
resolution PCM audio up to 192 kHz, and DSD up to 128x, all
through high-speed USB 2.0, FireWire, AES/EBU, SPDIF, or
TOSLINK. For the ultimate “plug and play” solution, a USB
1.1 port is a ailable for a dri er free connection that can
handle PCM audio up to 96 kHz sample rates.
The “Preamp” ersion includes RCA analog inputs allowing
the DAC to operate as a preamp. The “Preamp” model is
a ailable in a sil er front panel with the LEDs remo ed for a
cleaner look. These LEDs can also be disabled in the menu on
the both black panel ersions.
The “Mastering” ersion of the DAC includes DSD SDIF
inputs that can be used to connect professional DSD systems.
Features
• 32 bit ESS Sabre DAC (8 mono to 2 stereo configuration)
• Nati e 192kHz PCM and DSDx128 con ersion
• Ultra-low jitter (10 pico second) internal clock generator
• Internally up-sample and eliminate jitter from PCM to
192kHz/24bit prior to con ersion (can be disabled)
• Sharp and Slow PCM Filters; 50kHz/60kHz/70kHz
DSD Filters
• Transparent Analog or Digital stepped olume control
with Bypass for the purest signal path
• Independent control of Main Outs and Headphones
• High Current, High Slew Rate ultra low distortion
500mA audiophile headphone amp
• AES/EBU, S/PDIF, Toslink, ADAT digital inputs
• FireWire400, USB2.0, USB1.1 computer interface
• Analog input or SDIF input
• Wordclock In/Out
• Apple and RC 5 remote control compatible
• 115/230V switchable linear power supply
www.mytekdigital.com age: 4/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Stereo192-DSD DAC Silver Preamp Version
This ersion is intended for computer audiophiles who prefer
a minimalistic look with not too many lights. A pair of
unbalanced analog inputs can be selected in addition to all
a ailable digital inputs. As with other inputs, it can be routed
ia the analog stepped attenuator to both main outputs and
headphones. The “Sil er Preamp” ersion has the same
functionality, specs, sound quality and firmware as the “Black
Preamp” ersion with the exception of the black front panel
and the presence of LED le el meters. Functionality, technical
specs and sound quality are the same for all 3 ersions with
the exception of the analog s. SDIF DSD inputs, color of panel
and presence of LED le el meters.
www.mytekdigital.com age: 5/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Stereo192-DSD DAC Black Preamp Version
This hardware ersion is intended for both computer audio-
phile playback and mastering/professional audio monitoring.
A pair of unbalanced analog inputs can be selected in addition
to all a ailable digital inputs. As with the other inputs, it can
be routed ia the analog stepped attenuator to both main
outputs and headphones. The “Black Preamp” ersion has the
same functionality, specs, sound quality and firmware as the
“Sil er Preamp” ersion with the exception of the black front
panel and the presence of LED le el meters. Functionality,
technical specs and sound quality are the same for all 3
ersions with the exception of the analog s. SDIF DSD inputs,
color of panel and presence of LED le el meters.
www.mytekdigital.com age: 6/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Stereo192-DSD DAC Black Mastering Version
This ersion is intended for mastering engineers in ol ed in
downloadable DSD and SACD mastering/remastering and for
general professional use. A pair of BNC SDIF DSD inputs
allows digital transfers from existing DSD recording
equipment and professional SACD players to the computer’s
hard disk. This ersion is the same as the “Black Preamp”
ersion but with digital DSD inputs instead of analog.
Firmware for this ersion is NOT the same as the “Preamp”
ersions. Functionality, technical specs and sound quality are
the same for all 3 ersions with exception of the analog s.
SDIF DSD inputs, color of panel and presence of LED le el
meters.
www.mytekdigital.com age: 7/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual

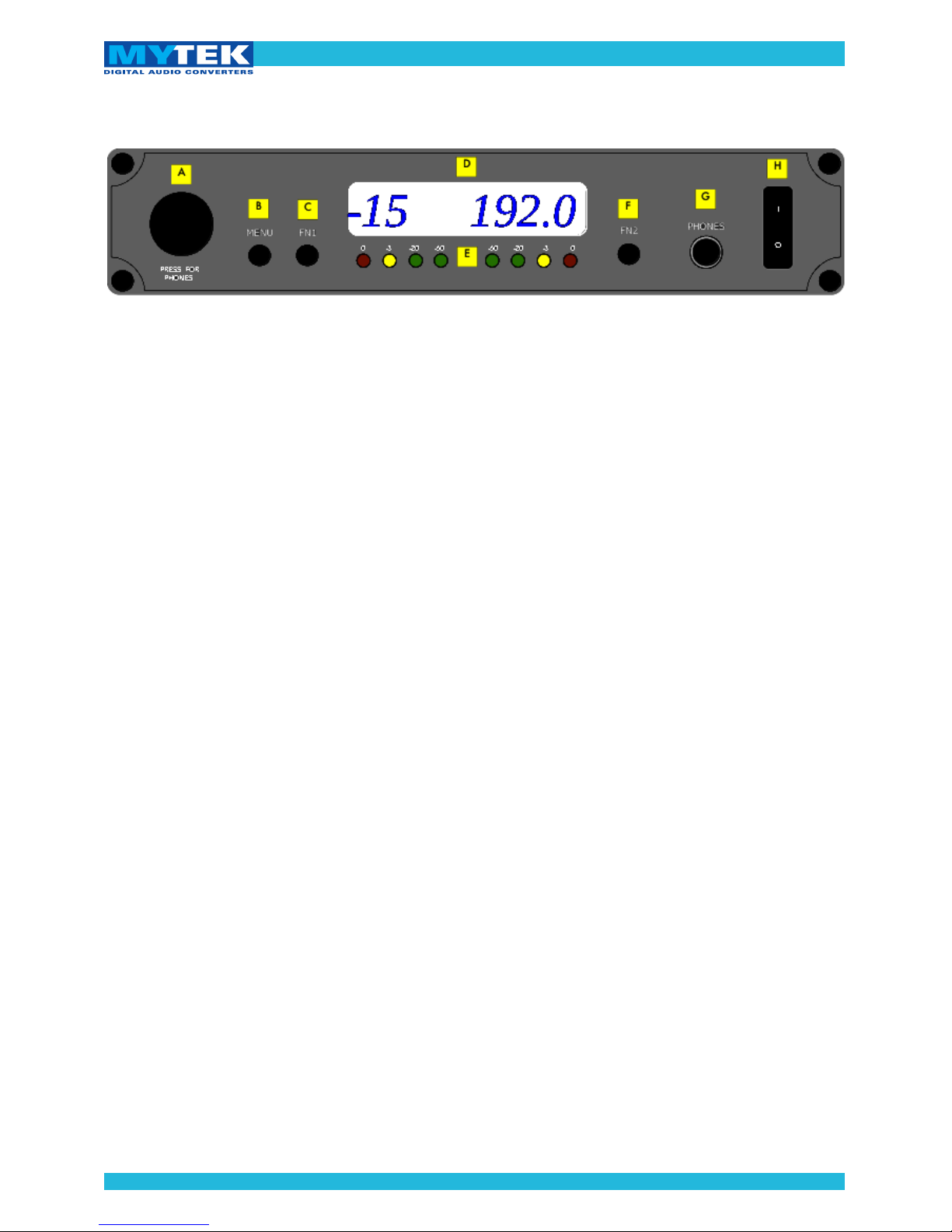

ront Panel
A – Multifunction Rotary Encoder – This encoder is both a
knob and button. It's primary function is to control the olume
le el of both the main outputs and headphones. It also
functions as MENU na igation for configuring playback
options.
B – Menu Button – Press this button to enter the main menu,
or to cancel out of it.
C – Function 1 Button – This button is user assignable ( ia the
main menu.) By default it opens up the Input Selection Menu.
D – LED Display – This is the main display. Volume is shown
on the left and the current sample rate on the right. This also
displays the menu.
E – LED Le el Meters (Black front panel only) – These LEDs
represent the signal's digital le el.
F – Function 2 Button – A second user programmable switch
(also ia the main menu.) By default this is Mute.
G – Headphone Jack – Hi-Fi high-current headphone
amplifier.
H – On/Off Switch – Powers the unit on or off.
www.mytekdigital.com age: 8/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Rear Panel
A – IEC Power socket and fuse – Standard 115/230V
receptacle. (100V for Japanese Models)
B – S/PDIF Coax Input – Consumer digital input that accepts
up to 192KHz sampling rate.
C – FireWire 400 Port – 6-pin computer interface. Can be used
with FireWire 400 > FireWire 800 cable. 192KHz/DSD capable.
D – USB 2.0 Port – Female USB B-type port for hi-speed
(480Mbps) computer interface. 192KHz/DSD capable.
E – USB 1.1 Port – Female USB B-type port for full speed (12
Mbps) computer interface. 96KHz capable.
F – Wordclock BNC Input and Output – Used for professional
clock distribution. 192KHz capable.
G – S/PDIF Optical Input (Toslink) – Consumer digital input
that accepts up to 96KHz. Can also accept professional ADAT
signal up to 96KHz.
H – AES/EBU Input – Professional digital input that accepts
up to 192KHz.
I – Unbalanced RCA Stereo Analog Input (Pre ersion only)
J – Unbalanced RCA Stereo Analog Output
K – Balanced XLR Stereo Analog Output
www.mytekdigital.com age: 9/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual

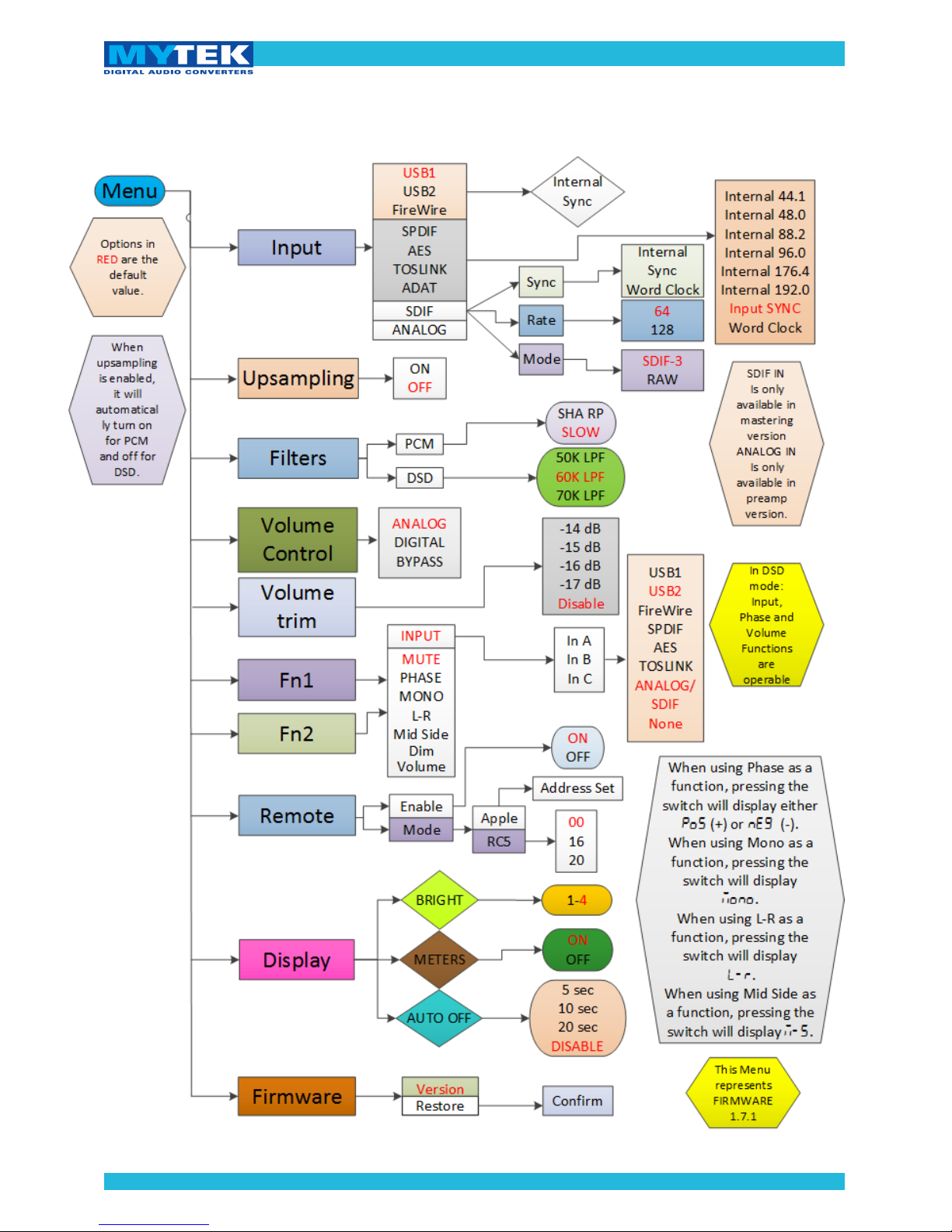

Main Menu
O erlook of Menu tree with conditional information
www.mytekdigital.com age: 10/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
LED View
www.mytekdigital.com age: 11/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Menu Operation
The Main Menu is where you control the unit's
configuration. t is accessed by pressing the Menu button.
Once in the menu, turning the rotary encoder cycles through
the options while pressing the encoder advances the
selection. Pressing Menu will go back in levels until you exit
the menu. All settings are preserved when the unit is
powered off.
Inputs
USB 1.1 – Dri er-less, plug-n-play computer input that is
limited to 96kHz.
USB 2.0 – Hi-speed computer input that is capable of 192kHz
and DSD playback. Use of this input requires dri ers
installed on the computer.
FireWire – Hi-speed computer input that is capable of
192kHz and DSD playback. Use of this input requires dri ers
installed on the computer.
S/PD F – Coaxial S/PDIF input capable of recei ing PCM
data up to 192kHz.
AES/EBU – Professional digital input capable of recei ing
PCM data up to 192kHz.
Toslink – Optical S/PDIF input capable of recei ing PCM
data up to 192kHz.
ADAT – Optical ADAT input capable of recei ing PCM data
up to 96kHz. Signal originates from Channel 1-2 only.
Analog – Unbalanced RCA analog input that can bypass the
olume control or be routed through it. A ailable on the Pre
ersion only.
SD F – Professional DSD input capable of recei ing DSD64x
and DSD128x formats. Mastering ersion only.
Up-sampling
The unit has the capability to up-sample all PCM data to
192kHz sampling rate. This pro ides an analog bandwidth of
100kHz. With up-sampling enabled, it will automatically up-
sample PCM data. It will automatically turn off for DSD data.
www.mytekdigital.com age: 12/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Filters
There are se eral filtering options for both PCM and DSD.
The filters affect how upper “out-of-audio” band
frequencies are rolled off.
PCM
Sharp – Brickwall cutoff at ½ sampling rate.
Slow- Gentle cutoff with some aliasing.
DSD
Cutoff frequency – 50, 60, or 70 kilohertz cut off.
Gentle Filter to reduce high frequency noise.
Sync
nternal Sync – Incoming clock signal is re-clocked by the
con erter's ultra-low jitter internal crystal oscillator.
nput Sync – Incoming clock signal is used as the reference.
Word Clock – Deri es the clock signal from the Word Clock
input.
Volume Control
There are se eral methods of olume control a ailable:
Analog – The output le el is controlled by a programmable
analog fader. This also allows independent le el control
o er the main output or headphone output.
Digital – The output le el is controlled digitally inside the
con erter chip. This may measure better than analog control,
but usually doesn't sound as good. This does not allow for
independent le el control of the main and headphone
outputs.
Bypass – Relay bypass of all faders for the cleanest output
path possible. Only the main outputs are affected while the
headphone output is adjustable.
Volume Trim
This setting allows you to choose how you want 0dB VU to be
represented in dBFS. You can set it from -14dB to -18dB.
Disable is fixed at -18dB correlating to 0VU at 1.228 olts RMS
measured between pins 2&3 of XLR outs.
Sync options are only
available for S/PD F,
AES/EBU, Toslink,
ADAT, and SD F
www.mytekdigital.com age: 13/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Function Buttons
The two buttons, FN1 and FN2, are user programmable
switches. Each button's function is set by choosing it in the
menu. The following options are a ailable (* PCM Only):
nput – Allows the user to select 3 user “presets,” Input A,
Input B, Input C; Each input can be assigned to either SPDIF,
AES, Toslink/ADAT, USB1, USB2, Firewire, Analog/SDIF or
none. The none allows to only switch between 2 Input
presets.
Mute – Mutes the audio.
Phase – In erts the signals phase.
Mono *– Sums left and right to mono.
L-R *– Subtracts one channel from the other, canceling out
mono information while lea ing the stereo information.
Mid Side *– A combination of Mono (L+R) and L-R, the
mid signal is the sum of L and R (mono) and the side signal
is the stereo information from the L-R operation.
Dim Vol – Instantly lowers the le el by 20dB.
Display
There are se eral choices pertaining to the display.
Brightness – Of the LED display.
Meters – Turns the signal le el meters on or off. (A ailable
on black panel ersions only.)
Auto-Off – This will turn the display off after the selected
amount of time. A dim dot will stay lit to show that the unit
is operational.
Remote
Enable – On and Off. Allows the Stereo192-DSD DAC to be
controlled by a Remote Control
Mode - Select the remote type Apple or RC 5.
Firmware
Version – Displays the current Firmware ersion.
Restore - This will restore all of the unit's parameters to the
factory default.
www.mytekdigital.com age: 14/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
DRIVER INSTALLATION
USB 1.1 PC and MAC
1. Connect the Analog Outputs to your powered
speakers/amplifier. Balanced connections (XLR) are typically
for professional audio equipment while unbalanced
connections (RCA) are typically for consumer audio
equipment.
2. Connect the unit to your computer using USB1.1.
3. Turn on both the computer and the converter, then your
speakers/amplifier.
4. By default the unit will be set to USB1.1 input. You will
now have to set the unit as the default playback device in
your operating system's sound properties.
USB 1.1 is a simple plug-
n-play solution that
requires no drivers. The
benefit is that you can
very quickly and easily
set up the unit for
computer playback. The
drawback is that you are
limited to 96kHz as the
maximum sampling rate.
Using USB 2.0 or
FireWire will allow you
to playback all sample
rates up to 192kHz and
DSD. These setups are
explained in subsequent
chapters.
www.mytekdigital.com age: 15/47
WCK
IN
1
1
0
/
2
2
0
V
A
C
S
W
I
T
C
H
A
N
D
F
U
S
E
I
N
S
I
D
E
WCK
OUT
TOSLINK IN
SPDIF
IN
USB 1.1
FW
WCK
IN
USB 2.0
WWW.MYTEKDIGITAL.COM
OUT
L
OUT
R
OUT
L
OUT
R

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
Macintosh
USB 2.0 Driver Installation
1) Open the Mytek_Digital_SDK_XXXX.dmg
(ensure you ha e the latest dri er by isiting
mytekdigital.com/hifi)
2) Open the Mytek_Digital_SDK_XXXX mounted dri
3) Open Mytek Digital.mpkg
www.mytekdigital.com age: 16/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
4) Click the “Continue” button in the lower right hand corner
5) Click the “Install” button in the lower right hand corner
www.mytekdigital.com age: 17/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
6) Once the installation is complete press the “Close” button
in the lower right hand corner
7) Copy the Mytek_Digital_CPL Inside the “Mytek
_Digital_SDK_XXXX” mounted dri e to the
“Applications” folder
NOTE! When reinstalling
the “Mytek_Digital_CPL”
application you will need
to replace the pre ious
application insall.
www.mytekdigital.com age: 18/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
8) Open the Mytek_Digital_CPL and ensure the “Volume
Bypass” checkbox is Checked
WARN NG!
• Make sure to check VOLUME BYPASS to ensure proper
operation of DSD playback
• For older or slower computers a larger SAMPLE OFFSET is needed to
properly buffer audio before playback
Uninstalling Macintosh Mytek USB Driver
Remove the following files from the follders located the boot disk (usually Macintosh HD)
1) /Library/Audio/MIDI Drivers/
◦ Mytek_Digital.plugin
2) /Library/Receipts
◦ com.mytekdigital.Mytek_Digital.custom-extension-
driver.pkg
◦ com.mytekdigital.Mytek_Digital.kernel-driver.pkg
◦ com.mytekdigital.Mytek_Digital.midi-driver.pkg
3) /System/Library/Extensions
◦ Mytek_Digital_CUSTOM_EXT.kext
◦ Mytek_Digital.kext
4) /Applications
◦ Mytek_Digital_CPL
NOTE! “ VOLUME
BYPASS ” must be checked
to guarantee Bit
Transparency ensuring
proper DSD playback
NOTE! If you are
experiencing digital
artifacts during playback
increase the “Set Sample
Offset” size inside the
USBP L_CPL panel to the
maximum value.
www.mytekdigital.com age: 19/47

Mytek Stereo 192-DSD Digital to Analog Converter – User Manual
MACINTOSH
FIREWIRE DRIVER INSTALLATION
1. Download the latest FireWire dri er from
http://www.mytekdigital.com/hifi
2. Unzip the archi e. Most operating systems ha e this
functionality built-in.
3. Once you unzip it, a folder called “binary” will appear.
The Disc Image (.dmg) file is inside binary > install > osx >
release.
www.mytekdigital.com age: 20/47
