Nags Head Hammocks Deluxe Double Swing User manual

Deluxe Double Swing
Congratulations on your purchase. You now have one of Nags
Head Hammocks’ innovative products! If you have any ques-
tions regarding this product, we invite you to call us 7 days a
week at 800-344-6433.
Helpful tips before starting: • Get someone to help you. Some
pieces are heavy and a second pair of hands always helps. •
Do not tighten the bolts completely until the product is fully
assembled. Some pieces are harder to fit in place and this will
help. A hammer or rubber mallet is needed during assembly.
• Do not over-tighten the bolts or screws. • The photos in our
product catalog can provide additional help while assembling
your item. • Build your item close to where it will be used to
eliminate difficulty in moving once completed. • For a uniform
look, face all nuts in the same direction.
Step 3. Lay upper body rollup to front of swing as shown. FIGURE 2
Step 4. Attach left outside upright with 3.5” hex bolt in bottom hole,
making sure washers are touching both sides of upright. Secure with
nut. FIGURE 3
Step 5. Using a 4” button head bolt in upper hole, secure left outside
upright. FIGURE 4
Step 6. Repeat Steps 4 and 5 for right outside upright.
Step 7. Attach front table legs using 5” hex bolt and washers. make sure
angle of feet matches photo. FIGURE 5
Swing Parts
Hardware 7 - 5” x .25” Hex Bolts
8 - 3.5” x .25” Hex Bolts
30 - .25” Washers
15 - .25” Lock Nuts
4 - 4.5” x .25” Button Head Cap
6 - .75” Barrel Bolt Assemblies
2 - Tree Hooks
2 - Chain Assemblies
2 - 4”x.25” Button Head Cap
1 - Allen Wrench
FIGURE 1
FIGURE 2
FIGURE 4
FIGURE 3
Step 1. Align left arm with swing body. Insert 3.5” hex bolt through
washer, through arm and swing body. Secure using washer and nut. Use
this same process for all three holes. FIGURE 1
Step 2. Repeat Step 1 for right arm. FIGURE 5
Rollup
Front of Rollup
Table Top
Back Table Legs
Front Table Legs
Left Upright
Right Upright Center Upright
Right Arm Left Arm
Cup Holder Cup Holder

Step 11. Secure table back with 5” bolt and nut, using washers on both
sides. FIGURE 9
Step 12. Secure table front with two 5” bolts and washers. FIGURE 10
Step 13. Attach center upright with two 5” bolts and washers. FIGURE 11
Step 14. Starting with center upright, attach rollup with two 4.5” button
head bolts and .75” binding posts. FIGURE 12
Step 15. Attach left side of roll
up with 4.5” button head bolt
and .75” binding posts in bottom
hole. FIGURE 13
Step 16. Repeat Step 15 for right
side.
Step 17. Tighten all bolts.
Step 18. Insert plastic drink
holders. FIGURE 14
Step 19. Secure long bolt of chain to back in top hole on of rollup. FIGURE 15
Step 20. Secure short bolt to front of swing. FIGURE 16
Step 21. Space hooks to hang swing 50”-54” apart.
Step 22. Hang swing to desired height.
Step 23. Enjoy your new Nags Head Hammock Deluxe Double Swing.
Care Instruction and Tips: Great care has been put into manufacturing this item. However, it is made of high density resin and some natural esthetic imperfections and
dark spots are normal and should be expected. You can wash the wood and the rope using a hose and some bleach water. You can also brush the wood to help remove
dirt. *These instructions are also available at www.nagsheadhammocks.com/assembly_instructions.asp Warranty: Products of Nags Head Hammocks are guaranteed to
be free of defects in workmanship or material. We will replace defective parts for free. Simply call us and we will see that you get what you need. Prolonged exposure
to weather conditions including snow, rain, and humidity are not covered under the warranty nor is damage caused by normal wear, mildew, improper care including
storage, maintenance, and assembly. Returns: Nags Head Hammocks has a money back guarantee. If you are not satisfied with an item, return it unused in its original
packaging for a complete merchandise refund or exchange. You can return it to any store or to our warehouse, Nags Head Hammocks, 305 Industrial Bd., Greenville,
NC 27834. Please include a copy of your receipt and your contact information. Nags Head Hammocks, PO Box 533, Nags Head, NC 27959
Inst # 5113NHR1

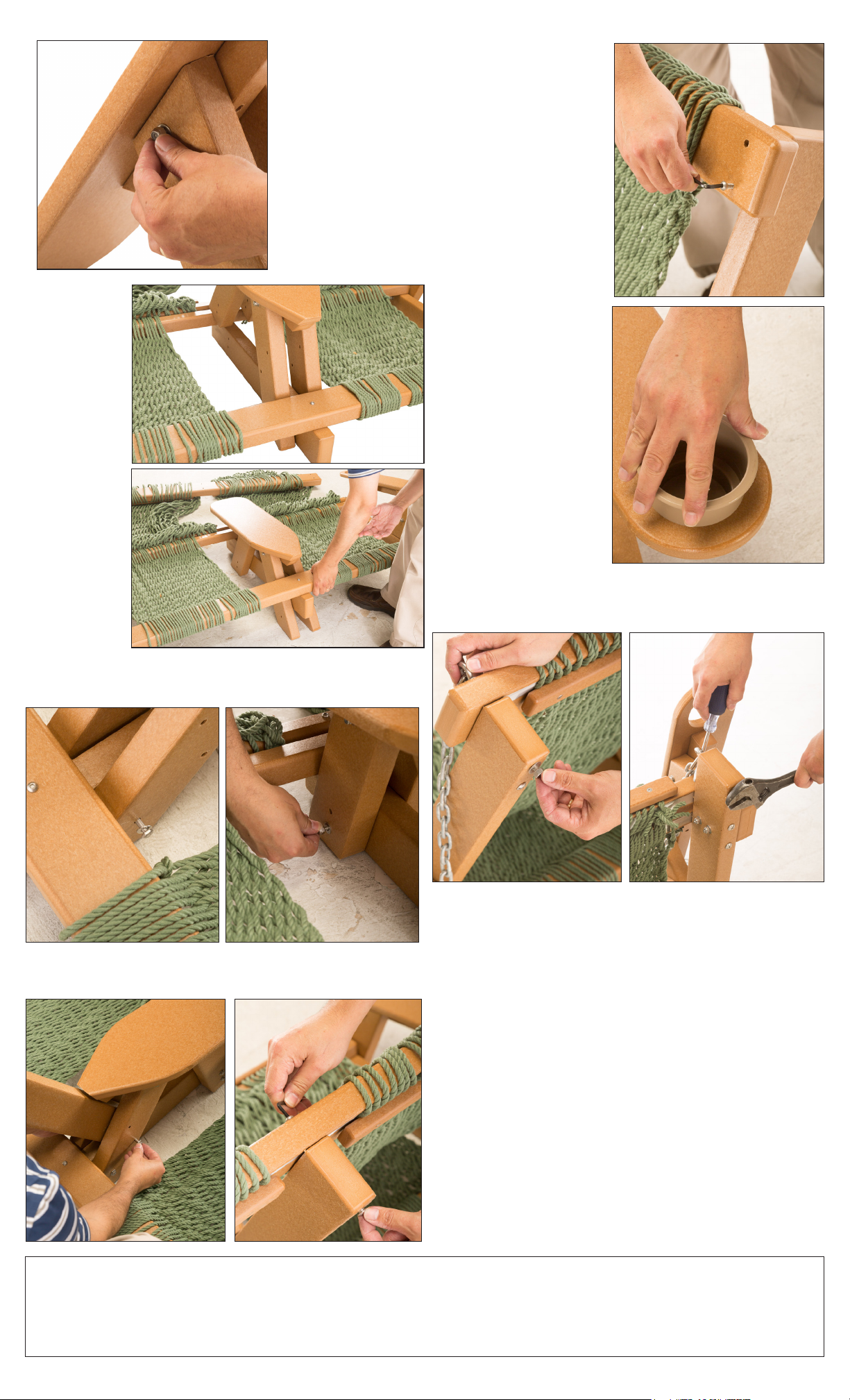

Step 9. Attach
table top using
5” hex bolts and
washers.
Step 10. Place
rear legs in seat
as shown. Lift
seat back to allow
table to seed into
place. FIGURE 7
& FIGURE 8
FIGURE 7
FIGURE 8
FIGURE 9 FIGURE 10
FIGURE 11 FIGURE 12
FIGURE 13
FIGURE 14
FIGURE 15
FIGURE 16
Step 8. Attach back
table legs which are
longer than front legs
using 5” hex bolts and
washers. FIGURE 6
FIGURE 6
