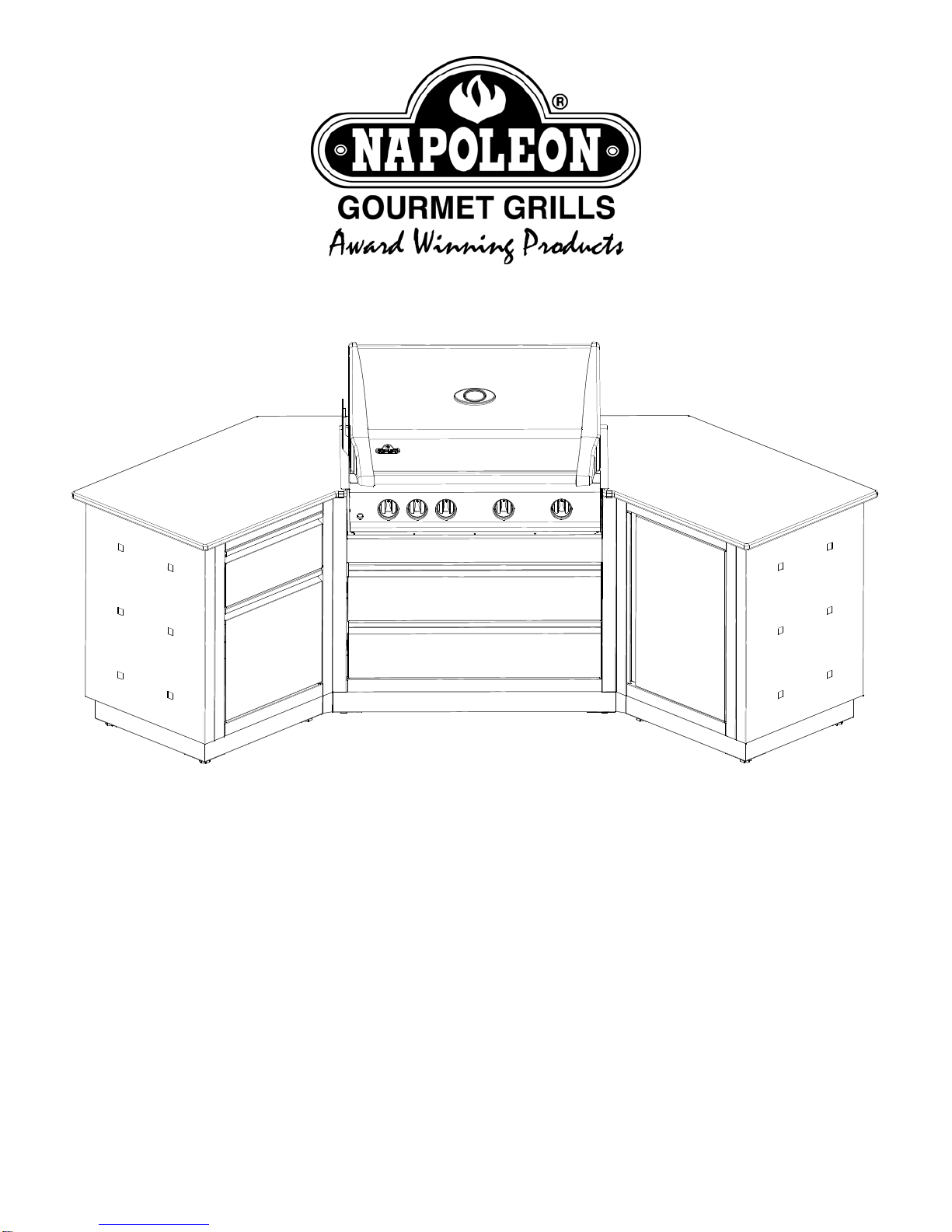

Napoleon Modular cabinet User manual

N415-0230/JUN21/10
RETAINTHISMANUALFORFUTUREREFERENCE.
GARDERCELIVREPOURRÉFÉRENCESFUTURES.
MODULAR CABINET ASSEMBLY INSTRUCTIONS
INSTRUCTIONS D’ASSEMBLAGE DES CABINETS
MODULAIRES
Please use this manual in conjunction with your main manual to properly assemble your built-in grill. Refer to the main
manualforoperating,cleaning,andmaintenanceinstructions. ThisgrillisdesignedforNON-COMBUSTIBLE enclo-
sures only, and must be installed and serviced by a qualified installer to local codes.
Afind’assemblercorrectement votregrilencastré,veuillezvousréféreràcemanuelainsiqu’au manuelprincipal.Consultez
cedernierpourles instructionsd’opération, denettoyageetd’entretien.Cegrilconvientuniquementàdescabinets
INCOMBUSTIBLES etildoitêtreinstalléetentretenu par un installateur qualifié en respectant les codes locaux.
Napoleon Appliance Corp.,
214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: [phone]
Fax: [phone] email: [email protected] web site: www.napoleongrills.com

2www.napoleongrills.com
CONDITIONS AND LIMITATIONS
NAPOLEON gas grills are manufactured under the strict Standard of the world recognized
ISO 9001-2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components
and materials, and are assembled by trained craftsmen who take great pride in their work.
"NAPOLEON warrants its products against manufacturing defects to the original purchaser only, provided that the purchase was made through an authorized
NAPOLEON dealer and is subject to the following conditions and limitations:"
This factory warranty is non-transferable and may not be extended what-so-ever by any of our representatives.
The gas grill must be installed by a licenced, authorized service technician or contractor. Installation must be done in accordance with the installation instructions
included with the product and all local and national building and fire codes.
This limited warranty does not cover damages caused by misuse, lack of maintenance, grease fires, hostile environments, accident, alterations, abuse or neglect
and parts installed from other manufacturers will nullify this warranty.
This limited warranty further does not cover any scratches, dents, painted finishes, corrosion or discolouring by heat, abrasive and chemical cleaners, nor chipping
on porcelain enamel parts, nor any components used in the installation of the gas grill.
Should deterioration of parts occur to the degree of non-performance within the duration of the warranted coverage, a replacement part will be provided.
In the first year only, this warranty extends to the replacement of warranted parts which are defective in material or workmanship provided that the product has
been operated in accordance with the operation instructions and under normal conditions.
After the first year, with respect to this President's Limited Lifetime Warranty NAPOLEON may, at its discretion, fully discharge all obligations with respect to this
warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).
NAPOLEON will not be responsible for the installation, labour or any other costs or expenses related to the re-installation of a warranted part, and such
expenses are not covered by this warranty.
Notwithstanding any provision contained in this President's Limited Lifetime Warranty NAPOLEON's responsibility under this warranty is defined as above and it
shall not in any event extend to any incidental, consequential, or indirect damages.
This warranty defines the obligation and liability of NAPOLEON with respect to the NAPOLEON gas grill and any other warranties expressed or implied with
respect to this product, its components or accessories are excluded.
NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. NAPOLEON will
not be responsible for: over firing, blow outs caused by environmental conditions such as strong winds, or inadequate ventilation,
Any damages to the gas grill due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON.
NAPOLEON reserves the right to have its representative inspect any product or part prior to honouring any warranty claim.
NAPOLEON shall not be liable for any transportation charges, labour costs, or export duties.
NAPOLEON warrants the following materials and workmanship in your new NAPOLEON product against
defects for as long as you own it. This covers: stainless steel panels, stainless steel drawer fronts. Sub-
ject to the following conditions. During the first ten years NAPOLEON will provide replacement parts at
our option free of charge. From the eleventh year to lifetime NAPOLEON will provide replacement parts at
50% of the current retail price.
Components such as the leveling feet, pivot rods, hoses and connectors, fasteners and accessories are
covered and NAPOLEON will provide parts free of charge during the first year of the limited warranty.
NAPOLEON shall not be liable for any transportation charges, labour costs or export duties.
NAPOLEON PRESIDENT'S LIMITED LIFETIME WARRANTY

3
www.napoleongrills.com
PLANNING YOUR NAPOLEON MODULAR OUTDOOR ISLAND
The Napoleon Outdoor Modular Island series has been developed with versatility in mind. The cabinets can be
assembled in virtually any combination to suit your individual needs. They can be assembled against a house wall or
as a standalone island, becoming the focal point of your backyard. With multi-function and storage capabilities, your
backyard island can be transformed into an outdoor kitchen, placing the host in the center of the action when entertain-
ing guests. The built-in grill cabinets are suitable for Mirage Series Grills only.
The cabinets are designed to be easy to assemble and install for either the home owner or private contractor.
All cabinets are 35” tall by 24” deep. All cabinets are 24” wide except for the built-in grill cabinets whose width corre-
spond to the width of the unit it was designed for. Each cabinet has 4 leveling feet for adjustment on even surfaces.
The 2 drawer cabinets are made to fit the Napoleon Mirage series of grills only. The Mirage series of grills come in 3
differentsizes, each withaselfcontaineddrippantoprevent grease drippings from entering the drawersbelow. Refer to
the installation manuals that come with the grill head for proper installation and operating instructions.
The Mirage built-in series of grills can be ordered in your choice of propane or natural gas configuration.
Natural gas is an obvious selection for many people that already have it available in their home. All gas modifications
or installations must be done by a qualified gas installer. Knockouts are present in the side and rear panels for easy
piping and installation. For those who order a propane grill, a propane tank cabinet is available.
ThecabinetscanbeinstalledagainstaNON-COMBUSTIBLE wallofahouse,a masonry or stucco half-wall, or
freestandingin an island configuration. An optional 4”spacerpanelmustbepurchasedandinstalledwhen placing an
island against a wall to allow clearance for the grill lid to open. The spacer also provides closure for the cabinet to
preventdebrisorrodentsfrom entering behind the cabinets. Apowdercoated,2” wide end panelcan be purchased to
cover the knockouts and mounting holes in the outside panels in a run of cabinets, giving a more finished look.
Optional built-in sideburner kits are available through your Napoleon Gas Grill dealer. These sideburner kits
are an excellent complement to the Mirage Built-in series of grills. We recommend that the sideburner kit be installed
over top of the IM-2DC cabinet. It has the false drawer front at the top of the cabinet which allows clearance for the
sideburner valve and hose routing. The IM-2DC cabinet also provides the necessary clearance for those who would
like to install a sink in their outdoor kitchen.
CabinetIM-FDChasbeendesignedtohave a fridge installedinsideofit. It is made by Danby,modelDAR-259BL
(black) or DAR-259W (white), 2.5 cu.ft capacity.
Countertopsmust be ordered and supplied locally by the homeowner. ThecountertopmaterialmustbeNON-
COMBUSTIBLE if a grill is to be installed into it. They can be ordered in advance by drawing out the floorplan of how the
cabinetswillbesituatedandaddingupthewidth measurements, allowing 1-2 inches of countertop overhang. Most
countertop manufacturers are willing to come and take measurements after assembly of the cabinets is complete to
ensure a perfect fit. For best results the countertop thickness should be between 1/2 to 1 1/2” thick. The built-in
grillhead comes with stainless steel brackets and hardware that allow the unit to rest on the countertop above the
correspondingislandcabinetforthatunit. GraniteorCorian are excellent choices of countertop materials. Decorative
countertops made of ceramic tile set on top of cement tiling board can be made to match your surrounding backyard
furniturecolors.

4www.napoleongrills.com
TOOLS REQUIRED
Check for missing or damaged parts before you begin and consult your local retailer if neccessary.
3/8
3/8 WRENCH
OR NUTDRIVER ADJUSTABLE WRENCH PHILIPS SCREWDRIVER HAMMER
GAS AND ELECTRICAL PIPING
The piping up to the gas grill is the responsibility of the installer and piping should be located as shown in the
built-in instructions. Do not use hose to connect the unit. It must be connected with either rigid pipe, copper tube or an
approved flexible metal connector. The installation must comply with CAN B149.1 Natural Gas and Propane installa-
tion code in Canada, or to the National Fuel Gas code, ANSI Z223.1 in the United States. The minimum recommended
piping size is NPS 1/2" for rigid pipe, and 1/2" OD for copper tubing (based on a 20 ft run). Longer runs may require
largersizestoconformwithCANB149.1.PropaneGasInstallationCode in
Canada or to the National Fuel Gas Code,ANSI Z223.1 in the United States.
Look to the manual that came with the gas grill for further
instructions.
Toeaseinstallationand piping, removable knockouts
havebeenprovidedinthe side panels and in thecenterofeach
backpanel. Theknockoutsin the side panels should be removed
before the cabinets are bolted in a row. Only remove the knock-
outsthatare required for the piping of any gas, plumbing or
electrical lines.
KNOCKOUTS

8www.napoleongrills.com
4 x
N570-0026 (#14 x 1/2")
6 x
N570-0026 (#14 x 1/2")
ALIGNREAR
EDGES
ALIGNEZLES
BORDS
ARRIÈRE

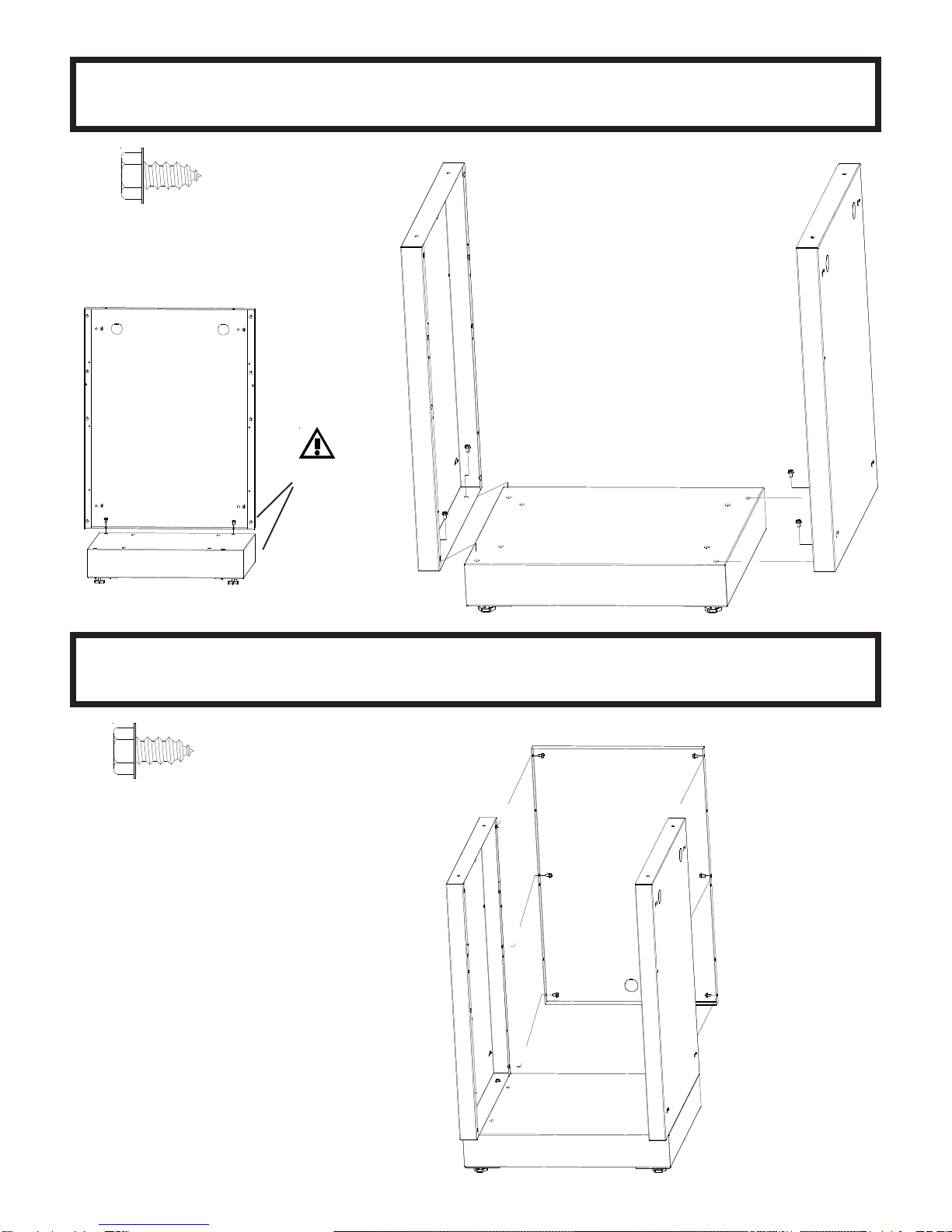

IM-UDC SIDE PANELASSEMBLY
ASSEMBLAGEDES PANNEAUXLATÉRAUX
IM-UDC REARPANELASSEMBLY
ASSEMBLAGEDU PANNEAUARRIÈRE

9
www.napoleongrills.com
4 x
N570-0026 (#14 x 1/2")
2 x
N105-0011
4 x
N570-0013 (#8 x 1/2")
#1
#2
DOORCAN BE MOUNTEDAS
LEFT OR RIGHT OPENING
LAPORTE PEUT ÊTRE
INSTALLÉE POUR S’OUVRIR
ÀGAUCHE OU À DROITE

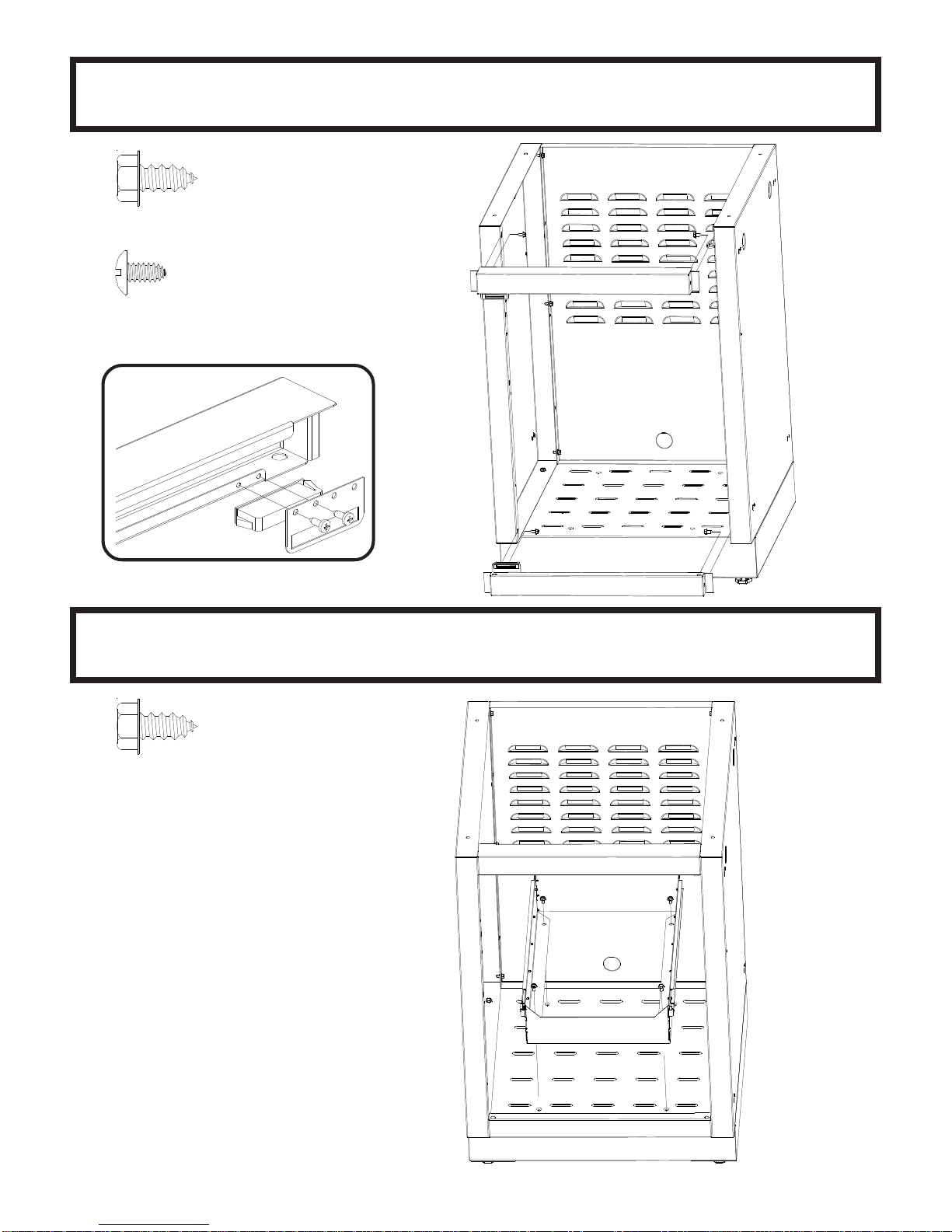

IM-UDC TOP / BOTTOM RAILASSEMBLY
ASSEMBLAGEDES RAILSSUPÉRIEUR ETINFÉRIEUR
IM-UDC CABINETDOORASSEMBLY
ASSEMBLAGEDE LAPORTE DUCABINET

10 www.napoleongrills.com
4 x
N570-0026 (#14 x 1/2")
6 x
N570-0026 (#14 x 1/2")
IM-UTC SIDEPANELASSEMBLY
ASSEMBLAGEDES PANNEAUXLATÉRAUX
IM-UTC REARPANELASSEMBLY
ASSEMBLAGEDU PANNEAUARRIÈRE

11
www.napoleongrills.com
4 x
N570-0026 (#14 x 1/2")
4 x
N570-0026 (#14 x 1/2")
4 x
N570-0013 (#8 x 1/2")
IM-UTC PROPANE TANKSLIDERASSEMBLY
ASSEMBLAGE DE LAGLISSIÈRE POUR RÉSERVOIR DE PROPANE
IM-UTC TOP / BOTTOM RAILASSEMBLY
ASSEMBLAGEDES RAILSSUPÉRIEUR ETINFÉRIEUR

12 www.napoleongrills.com
2 x
N105-0011

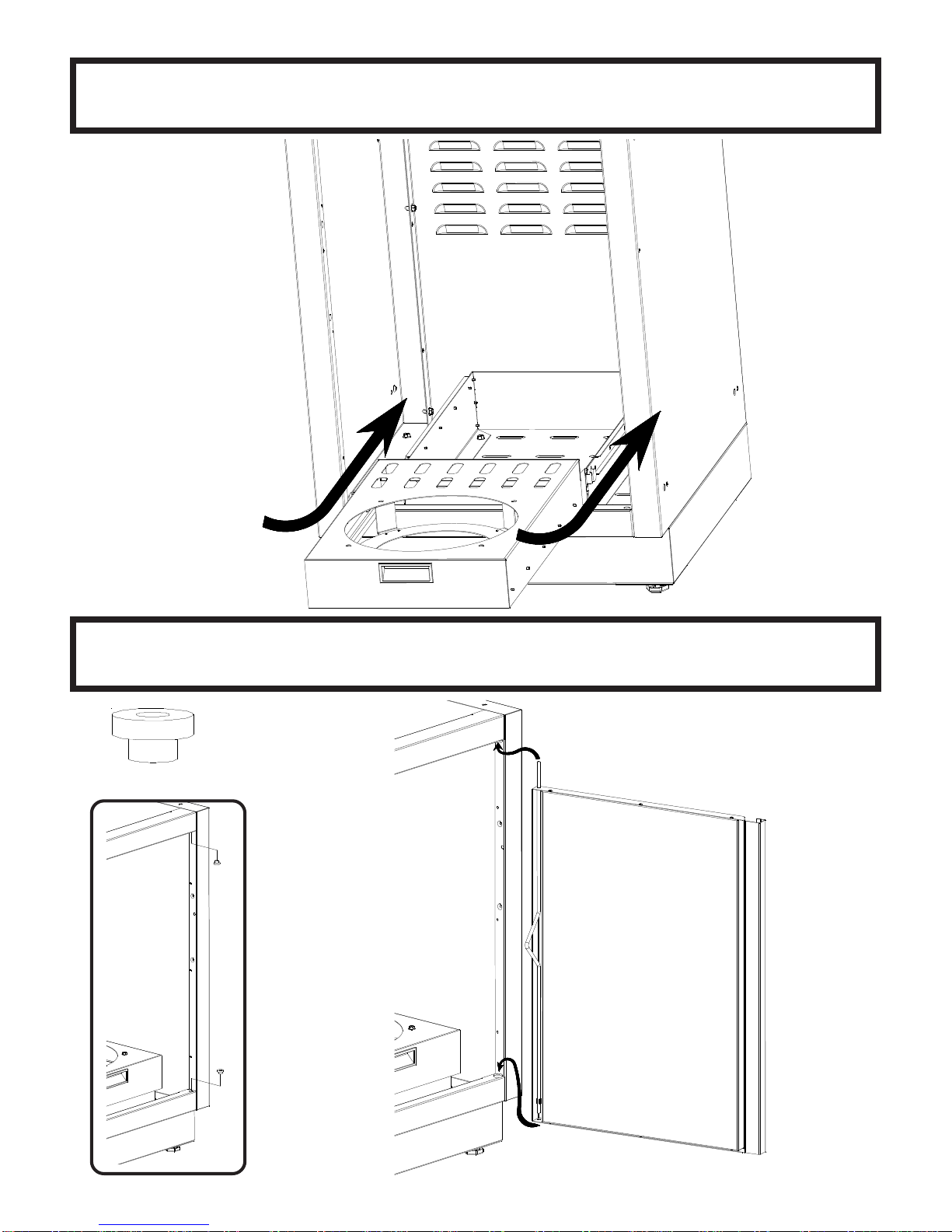

IM-UTC PROPANE TANKDRAWER INSTALLATION
INSTALLATION DE LATABLETTE POUR RÉSERVOIR DE PROPANE
IM-UTC CABINETDOORASSEMBLY
ASSEMBLAGEDE LAPORTE DUCABINET
#1
#2

13
www.napoleongrills.com
The gas connection of the Mirage series grills is at the left of the control panel. Placing the tank enclosure
cabinet to the left of the unit cabinet will make for easier gas piping. Knockouts have been punched in the
sides and back panels to provide easy routing of gas or electrical piping. Once the knockout has been
removed a bushing must be installed to prevent the gas or electrical line being cut on the edge of the hole.
Gas piping and installation must be done by a qualified gas installer.
Le branchement du gaz des grils Napoléon se trouve à la gauche du panneau de contrôle. Placer le cabinet
pour réservoir de propane à gauche du cabinet pour gril simplifiera l’installation de la tuyauterie pour le
gaz. Des plaques ont été poinçonnées dans les panneaux latéraux et arrière pour faciliter l’installation de
l’alimentation électrique et de la tuyauterie pour le gaz. Une fois les plaques poinçonnées enlevées, une
bague doit y être insérée pour éviter que les conduites de gaz ou les fils électriques ne s’endommagent sur
les bords de l’ouverture. L’installation de la tuyauterie pour le gaz doit être faite par un installateur de gaz
qualifié.

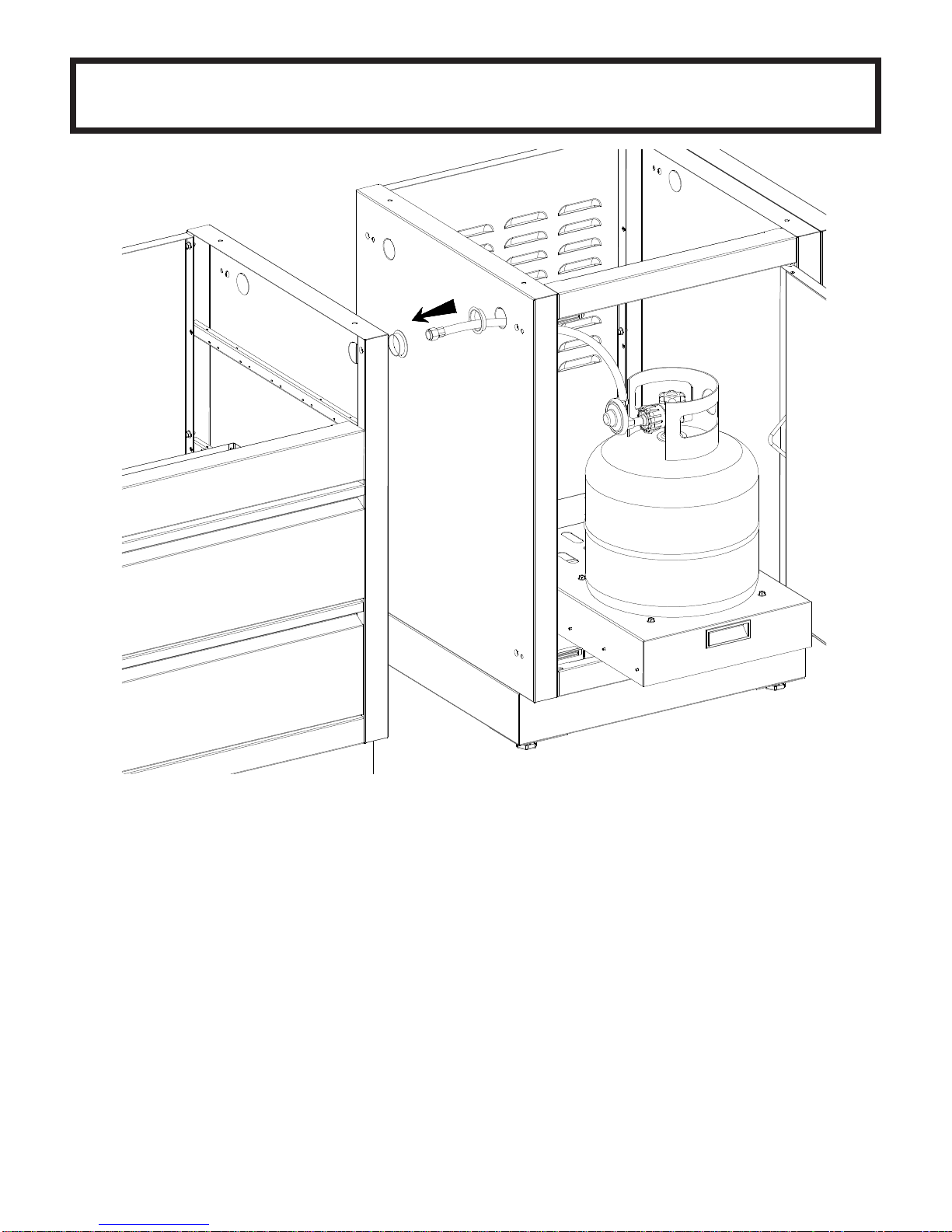

IM-UTC PROPANE SUPPLY HOSE ROUTING
ACHEMINEMENTDU BOYAUD’ALIMENTATIONEN PROPANE

14 www.napoleongrills.com
4 x
N570-0026 (#14 x 1/2")
4 x
N570-0026 (#14 x 1/2")

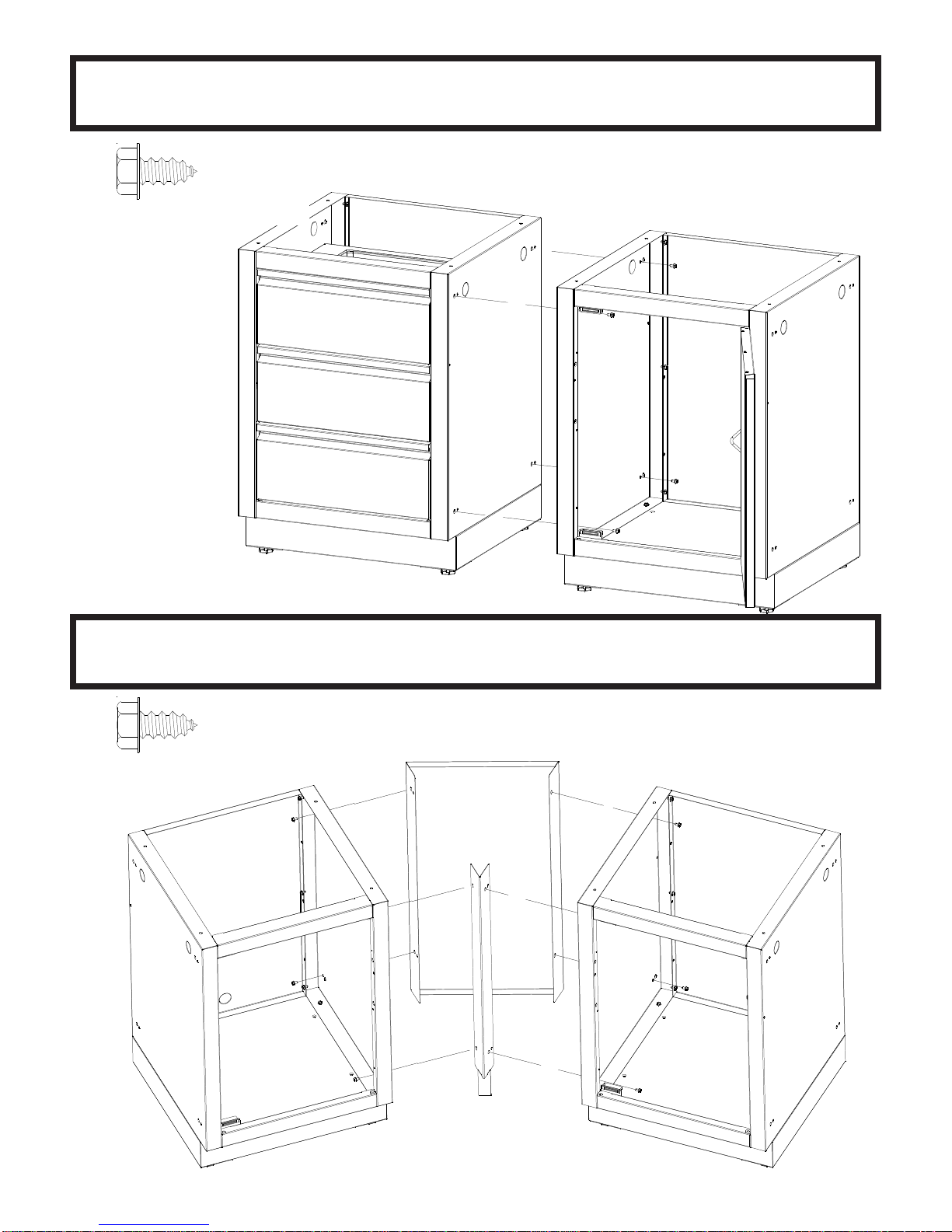

CABINET TO CABINETASSEMBLY
INSTALLATION DE CABINETS CÔTE À CÔTE
IM-45T CABINET45 DEGREECONNECTION
RACCORDEMENTDE CABINETSÀ 45DEGRÉS

15
www.napoleongrills.com
12 x
N570-0026 (#14 x 1/2")
4 x
N570-0026 (#14 x 1/2")

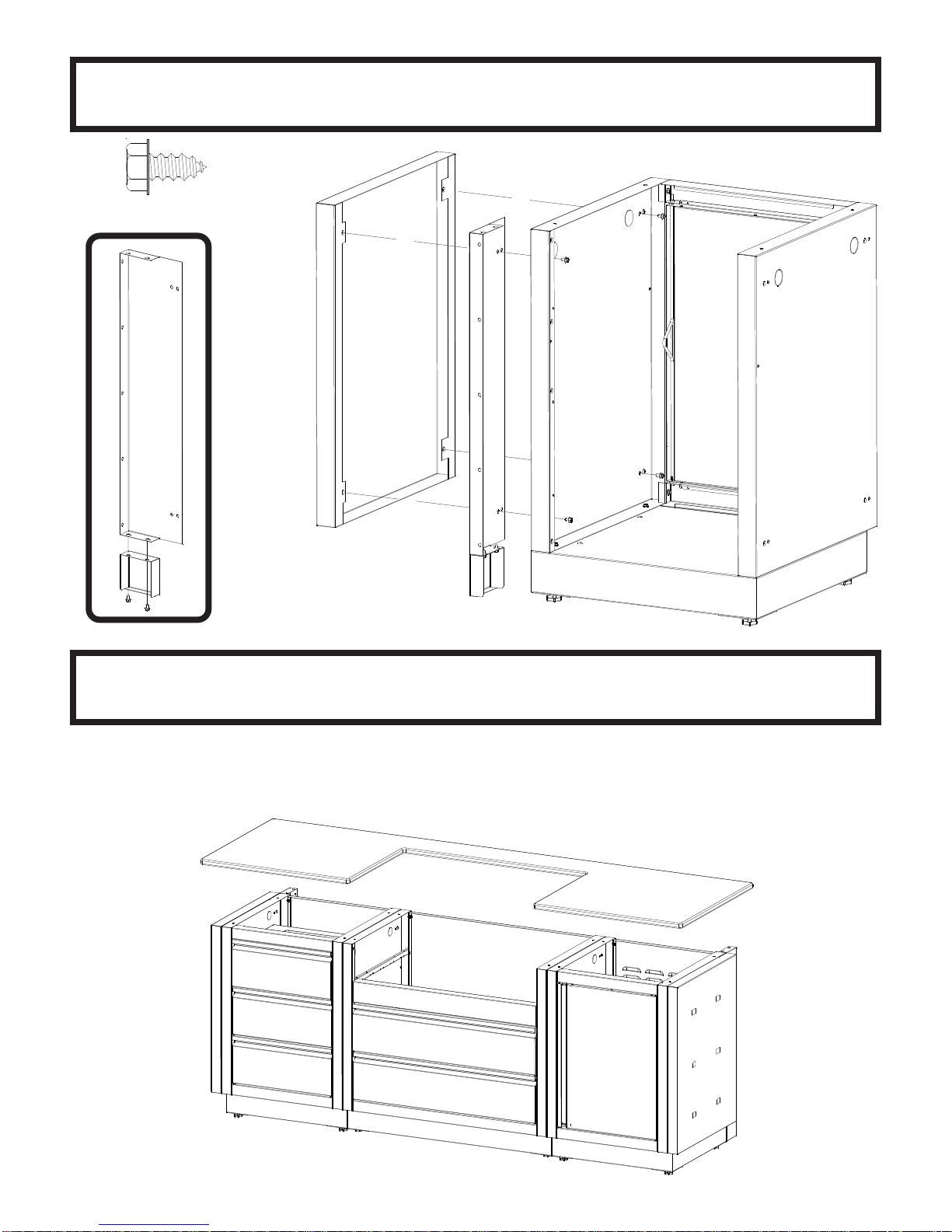

IM-CEP CABINETEND PANELKIT
ENSEMBLEDE PANNEAUD’EXTRÉMITÉ

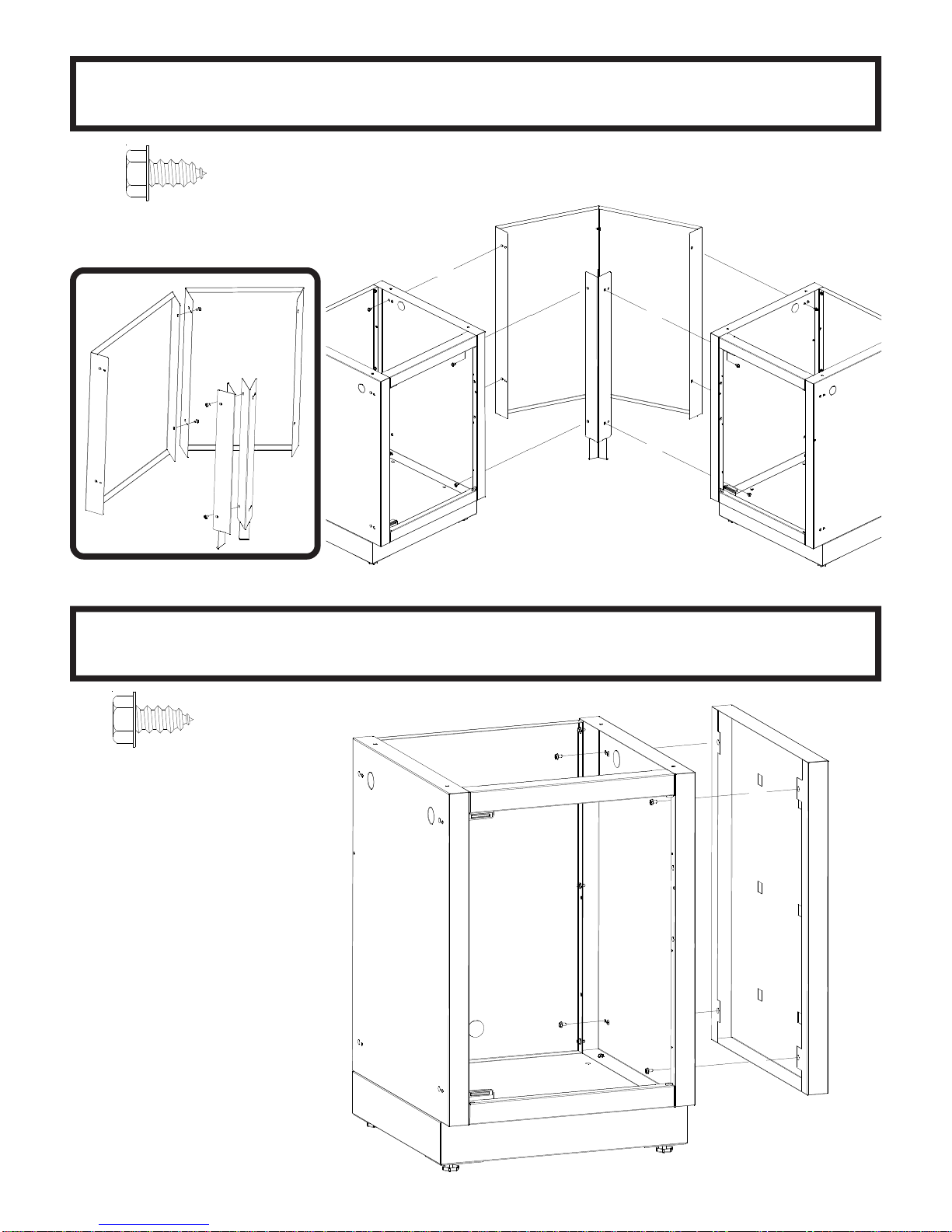

IM-45T x 2 CABINET90DEGREE CONNECTION
RACCORDEMENTDE CABINETSÀ 90DEGRÉS

16 www.napoleongrills.com
6 x
N570-0026 (#14 x 1/2")
COUNTERTOPTO BE FASTENED AS PER MANUFACTURER’S INSTRUCTIONS. HOLES HAVE BEEN PLACED ON
THE TOP FLANGE OF THE SIDE PANELS TOALLOW FOR FASTENERS.
FIXEZ LE COMPTOIR EN RESPECTANT LES DIRECTIVES DU FABRICANT. DES TROUS ONT ÉTÉ MÉNAGÉS
DANS LE REBORD SUPÉRIEUR DES PANNEAUX LATÉRAUX POUR YINSÉRER LES PIÈCES DE FIXATION.
IM-CEP CABINETEND PANELKIT
ENSEMBLEDE PANNEAU D’EXTRÉMITÉ
SHOWN WITH REAR
PANELREMOVED
ILLUSTRÉ SANS LE
PANNEAUARRIÈRE

17
www.napoleongrills.com
REFER TO BUILT-IN MANUAL THATACCOMPANIES THE GRILL FOR COMPLETE INSTRUCTIONS.
GAS PIPING MUST BE DONE BYALICENSED GAS INSTALLER.
CABINETLEVELING PROCEDURE
MISE DE NIVEAU DU CABINET
POUR DES DIRECTIVES COMPLÈTES, CONSULTEZ LE MANUEL QUIACCOMPAGNE LE GRIL ENCASTRÉ.
LA TUYAUTERIE POUR LE GAZ DOIT ÊTRE INSTALLÉE PAR UN INSTALLATEUR POUR LE GAZ AUTORISÉ.

18 www.napoleongrills.com
IM-UDC
IM-UTC
IM-FDC/IM-FHL/IM-FHR

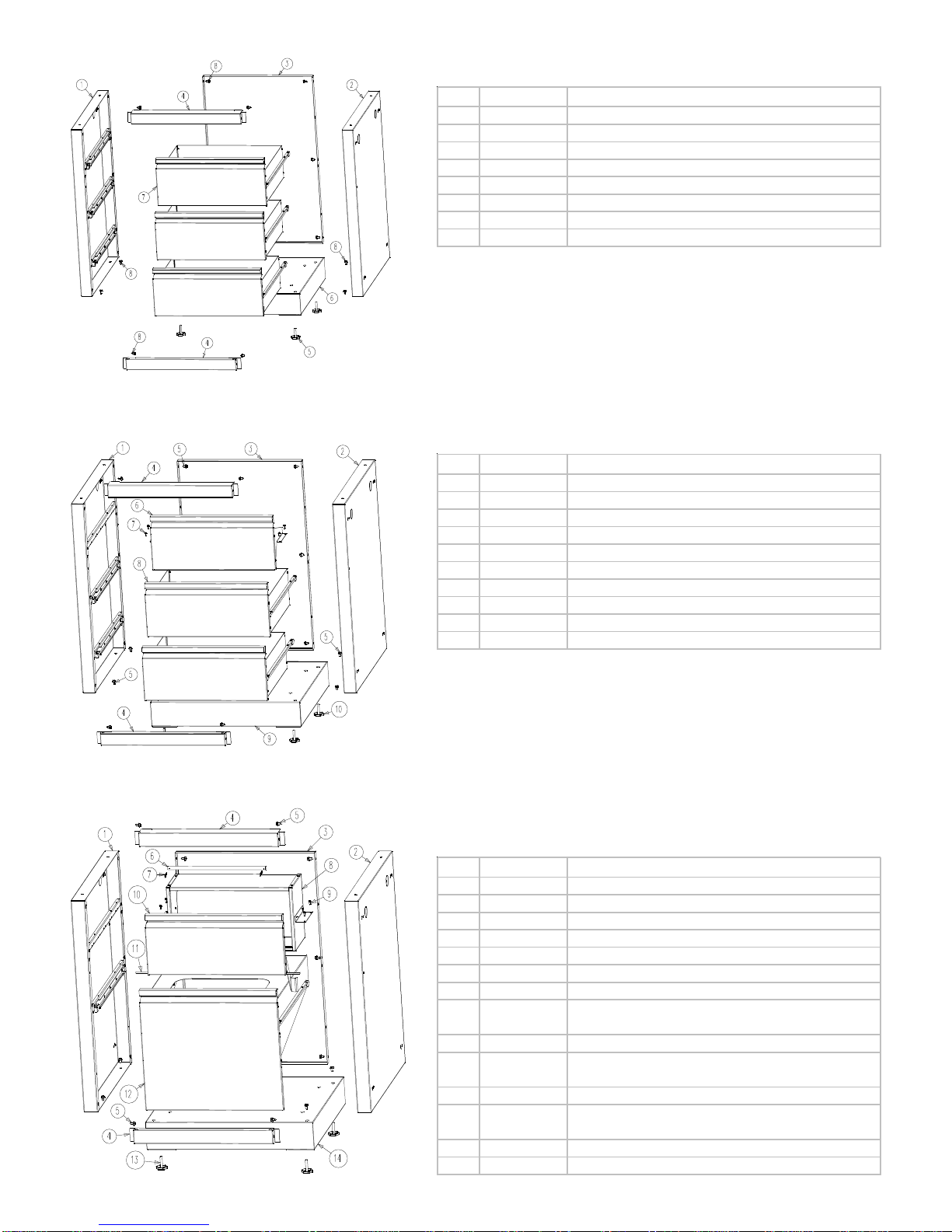

# Part # Description
1 n475-0223p side panel / panneau avant
2 n475-0224p back panel / panneau arrière
3 n570-0026 screw, #14 x 1/2" / ecrou #14 x 1/2"
4 n010-0575p assembly, bottomshelf / ensemble de tablette inférieur
5 n570-0031 leveling foot / mise à niveau du pied
6 n525-0018p rail, top/bottom/ support superior/inférieur
7 n105-0011 bushing, door / bagues de porte
8 n555-0023 door pivot rod / tige-pivot de porte
9 n010-0590 door assembly / ensemble de porte
10 n430-0002 magnetic catch / loquet magnétique
11 n080-0232p door magnet bracket / support de magnétique
12 n570-0008 screw , #8 x 1/2" / ecrou #8 x 1/2"
# Part # Description
1 n475-0223p side panel / panneau avant
2 n475-0281p back panel / panneau arrière
n200-0094p
n570-0013 screw, #8 x 1/2" / écrou #8 x 1/2"
3 n570-0026 screw, #14 x 1/2" / écrou #14 x 1/2"
4 n010-0575p assembly, bottomshelf / ensemble de tablette inférieur
5 n570-0031 leveling foot / mise à niveau de pied
6 n525-0018p rail, top/bottom/ support superior/inférieur
7 n105-0011 bushing, door / bagues de porte
n105-0012 bushing, 1 1/2" / bagues de porte 1 1/2"
8 n555-0023 door pivot rod / tige-pivot de porte
9 n225-0039 door / porte
10 n080-0227p fridge door mounting bracket / support de fixation de la
porte du réfrigérateur
11 n570-0013 screw , #8 x 1/2" / écrou #8 x 1/2"
12 n715-0089p fridge enclosure trimnarrow / moulure de cabinet pour
réfrigérateur - étroite
13 n715-0088p fridge enclosure trimwide / moulure de cabinet pour
réfrigérateur - large
14 n080-0226p fridge mounting bracket / support de fixation du
réfrigérateur
15 n035-0098p fridge platform/ plateforme pour le réfrigérateur
# Part # Description
1 n475-0223p side panel / panneau avant
2 n475-0237p back panel / panneau arrière
3 n570-0026 screw, #14 x 1/2" / ecrou #14 x 1/2"
4 n010-0575p assembly, bottomshelf / ensemble de tablette inférieur
5 n570-0031 leveling foot / mise à niveau du pied
6 n525-0018p rail, top/bottom/ support superior/inférieur
7 n105-0011 bushing, door / bagues de porte
n105-0002 bushing, 1.5" / bagues de porte 1.5"
8 n555-0023 door pivot rod / tige-pivot de porte
9 n010-0590 door assembly / ensemble de porte
n325-0016 door handle / poignée de porte
10 n430-0002 magnetic catch / loquet magnétique
11 n080-0232p door magnet bracket / support de magnétique
12 n570-0008 screw , #8 x 1/2" / ecrou #8 x 1/2"
13 n710-0061p tank draw er
14 n010-0360p tank support ring
15 n080-0225p tank draw er support bracket

19
www.napoleongrills.com
IM-3DC
IM-2DC
IM-WDC
# Part # Description
1 n010-0678 side panel left / panneau avant gauche
2 n010-0678 side panel right / panneau avant droite
3 n475-0224p back panel / panneau arrière
4 n525-0018p rail, top/bottom/ support superior/inférieur
5 n570-0031 leveling foot / mise à niveau du pied
6 n010-0575p assembly, bottomshelf / ensemble de tablette inférieur
7 n010-0677 drawer assembly / assemblage du tiroir
8 n570-0026 screw, #14 x 1/2" / ecrou #14 x 1/2"
# Part # Description
1 n010-0678 side panel left / panneau avant gauche
2 n010-0678 side panel right / panneau avant droite
3 n475-0224p back panel / panneau arrière
4 n525-0018p rail, top/bottom/ support superior/inférieur
5 n570-0026 screw, #14 x 1/2" / ecrou #14 x 1/2"
6 n010-0574 false drawer front / avant faux de tiroir
7 n570-0013 screw, #8 x 1/2" / ecrou #8 x 1/2"
8 n010-0677 drawer assembly / assemblage du tiroir
9 n010-0575p assembly, bottomshelf / ensemble de tablette inférieur
10 n570-0031 leveling foot / mise à niveau du pied
# Part # Description
1 n010-0678 side panel left / panneau avant gauche
2 n010-0678 side panel right / panneau avant droite
3 n475-0224p back panel / panneau arrière
4 n525-0018p rail, top/bottom/ support superior/inférieur
5 n570-0026 screw, #14 x 1/2" / ecrou #14 x 1/2"
6 n555-0032 paper tow el rod / tige pour essuie-tout
7 n485-0012 cotter pin / écrou
8 n010-0576p paper tow el housing assembly / assemblage de la
porte du compartiment à essuie-tout
9 n570-0008 screw, #8 x 1/2" / écrou #8 x 1/2"
10 n010-0578 paper tow el door assembly / assemblage de
compartiment pour essuie-tout
11 n555-0031 pivot rod / tige-pivot
12 n010-0679 drawer assembly, trash can / assemblage du tiroir,
panier à déchets
13 n570-0031 leveling foot / mise à niveau du pied
14 n010-0575p assembly, bottomshelf / ensemble de tablette inférieur

20 www.napoleongrills.com
IM-UGC245/300 / IM-UGC485 / IM-UGC600 / IM-UGC605 / IM-UGC705
IM-UGC750
# 245/300 485 450 600 605 730 Description
1 n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 side panel left / panneau avant gauche
2 n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 side panel right / panneau avant droite
3 n475-0224p n475-0229p n475-0229p n475-0256p n475-0231p n475-0233p back panel / panneau arrière
4 n525-0031p n525-0019p n525-0025p n525-0027p n525-0020p n525-0021p top rail / support superior
5 n570-0026 n570-0026 n570-0026 n570-0026 n570-0026 n570-0026 screw, #14 x 1/2" / écrou #14 x 1/2"
6 n010-0677 n010-0680 n010-0680 n010-0681 n010-0682 n010-0683 drawer assembly / assemblage du tiroir
7 n525-0018p n525-0022p n525-0022p n525-0026p n525-0023p n525-0024p bottomrail / support inférieur
8 n570-0031 n570-0031 n570-0031 n570-0031 n570-0031 n570-0031 leveling foot / mise à niveau du pied
9 n010-0575p n010-0579p n010-0579p n010-0628p n010-0581p n010-0583p bottomshelf / tablette inférieur
10 n585-0062p n585-0050p n585-0053p n585-0059p n585-0051p n585-0052p drawer dripshield / écran anti-égouttement pour tiroir
11 n570-0013 n570-0013 n570-0013 n570-0013 n570-0013 n570-0013 screw , #8 x 1/2" / écrou #8 x 1/2"
n710-0066 drippan, replaces pan included with BI300 / tiroir
d'égouttement, remplace le tiroir inclus avec le BI300
# 750 Description
1 n010-0678 side panel left / panneau avant gauche
2 n010-0678 side panel right / panneau avant droite
3 n475-0258p back panel / panneau arrière
4 n525-0029p top rail / support superior
5 n570-0026 screw, #14 x 1/2" / écrou #14 x 1/2"
6 n010-0677 draw er assembly / assemblage du tiroir
7 n525-0028p bottomrail / support inférieur
8 n570-0031 leveling foot / mise à niveau du pied
9 n010-0624p bottomshelf / tablette inférieur
10 n585-0060p drawer dripshield / écran anti-égouttement pour tiroir
11 n570-0013 screw, #8 x 1/2" / écrou #8 x 1/2"
12 n475-0260p draw er slider mounting panel / panneau d'assemblage
pour glissière de tiroir
13 n475-0259 cabinet fascia panel / panneau de finition pour cabinet
n710-0064 drippan, replaces pan included with BIPT750 / tiroir
d'égouttement, remplace le tiroir inclus avec le BIPT750

21
www.napoleongrills.com
ORDERING REPLACEMENT PARTS
Beforecontactingthecustomercaredepartment,checktheNAC web site for more extensive cleaning, maintenance,
troubleshootingandpartreplacement instructions at www.napoleongrills.com. Contactthe factory directly for replace-
ment parts and warranty claims. The customer care department is available between 9AM and 5 PM (Eastern standard
time)at1-866-820-8686orfax at 1-705-727-4282. In order to processaclaim,wemustbe provided with the following
information:
1. Model and serial number of the unit.
2.Partnumberanddescription.
3.Aconcise description of the problem ('broken' is not sufficient).
4.Proofofpurchase (photocopy of theinvoice).
Insome cases the customer care representative may request to have thepartsreturnedto the factory for inspection,
beforeprovidingreplacementparts. Theparts must be shipped prepaid to the attention ofthecustomercaredepartment
withthefollowing information:
1. Model and serial number of the unit.
2.Aconcise description of the problem ('broken' is not sufficient).
3.Proofofpurchase (photocopy of theinvoice).
4.ReturnAuthorization number -providedbythe customer servicerepresentative.
Beforecontactingcustomercare,pleasenotethat the following items are not covered by the warranty:
-costsfortransportation,brokerageor export duties
-laborcostsfor removal andre-installation
-costsfor service calls to diagnose problems
-discoloration of stainless steel parts
-partfailuredue to lack of cleaningandmaintenance,or use of impropercleaners(ovencleaner).
COMMANDE DES PIÈCES DE RECHANGE
Avantdecontacterle bureau de service duclientele,veuillezprendrenote, que notre guide dedépanageestmaintenent
dispoiblesurlenet a www.napoleongrills.com. Ici,voustrouverbeaucoupd'information comme les instructions de
d'opérationetdenettoyageetcommentremplacerlespièces. Contactezle manufacturier directement pour obtenir des
piècesde rechanges et faire des réclamations sur garantie. Le département de service est à votredispositionentre9
AMet5PM(heure normale de l’est) au 1-866-820-8686 oufaxau1-705-727-4282. Pourqu’uneréclamationsoit traitée,
l’informationsuivanteest nécessaire :
1.Modèleetnumérodesériedel’appareil.
2. Numéro de la pièce et description.
3. Une description concise du problème («cassé» n’est pas suffisant).
4.Preuved’achat(copie de la facture).
5.Avoiren main votre Visaou Mastercard pour payer lesfraisd'expedition.
Dansquelquescas,le département du service peut demanderdeleurretournerlapièce pour des fins d’inspection avant
defournirunepiècederechange.Les pièces doivent être expédiées port payé à l’attention du département de service
avecl’information suivante :
1.Modèleetnumérodesériedel’appareil.
2. Une description concise du problème («cassé» n’est pas suffisant.
3.Preuved’achat(copie de la facture).
4.Unnumérol'autorisation de retour -fourniparlereprésentant du département deservice.
Avantdecontacterledépartementde service, veuillez prendre note que les items suivantsnesontparcouvertsparla
garantie :
-coûts de transport, bris et frais d’exportation
-main-d’oeuvrepourl’enlèvement etl’installationdela pièce
-coûtsdesappelsde service pour diagnostiquerleproblème
-décolorationdespiècesen acier inoxydable
-brisdes pièces suite à un manque d’entretien ou de maintenance, ou utilisation de nettoyeurs nonappropriés
(nettoyeurà fourneau)

22 www.napoleongrills.com
FAX TO: 705 727 4282
CONTACT NAME:______________________________________________________________________
SHIP TO :_____________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
TEL :_________________________________ FAX :______________________________
EMAIL: __________________________________________________________________
VISA OR MASTERCARD # :_______________________________________ EXPIRY DATE: _____________
SIGNATURE:_____________________________________________________________________________
QUANTITY
TAXES MAY APPLY
SHIPPING EXTRA
PLEASE PRINT CLEARLY
IF CONFIRMATION IS REQUIRED PLEASE INCLUDE A FAX NUMBER OR EMAIL ADDRESS
ACCESSORIES & PARTS ORDER FORM
PART NUMBER DESCRIPTION
