Napoleon HD81 User manual

1
W415-0808 / A / 11.09.10
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.22
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
CERTIFIED FOR CANADAAND UNITED STATES USINGANSI/CSA METHODS.
$10.00
CERTIFIED UNDER CANADIANAND AMERICAN NATIONAL STANDARDS: CSA 2.33, ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.
HD81
RIVER ROCK / STONE
BURNER ASSEMBLY
B81NS
NATURAL GAS
B81PS
PROPANE

2
W415-0808 / A / 11.09.10

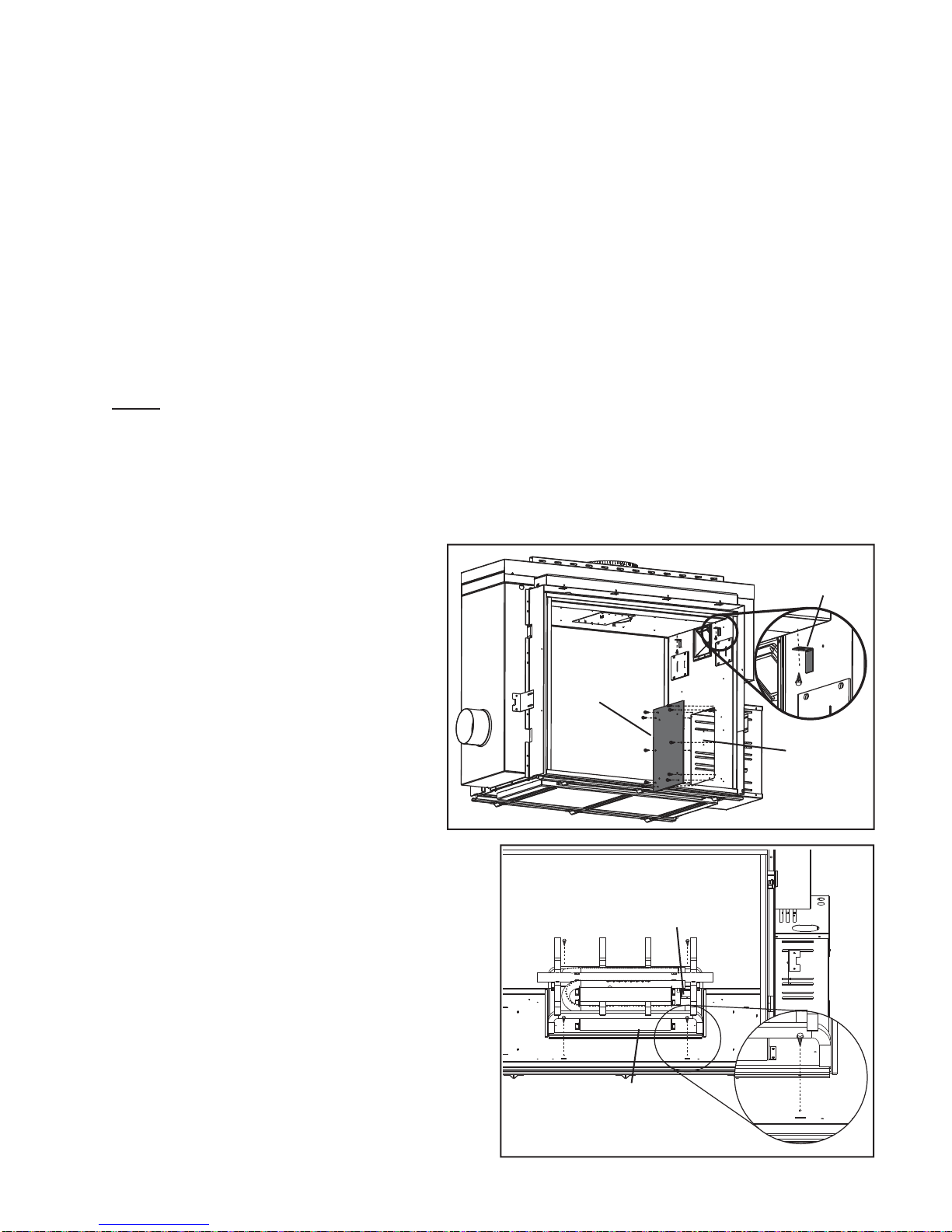

A. Attach the burner assembly to the firebox
base with the screws supplied, making sure
the pilot assembly is closest to the valve
access opening.
1.0 GENERAL INFORMATION
2.0 INSTALLATION
NOTE: Changes, other than editorial, are denoted by a line in the margin.
TABLE OF CONTENTS
A. Once either door is removed (if
required, see HD81 Installation
Instructions), remove the valve
access panel and the 4 retaining
brackets located at the top of the
firebox.
RETAINING
BRACKETS
ACCESS
PANEL
VALVE
ACCESS
OPENING
BURNER
ASSEMBLY
PILOT
ASSEMBLY
This rock burner assembly is approved for use in the HD81 gas appliance only. It is not approved for use as a
stand alone appliance or in conjunction with any other appliance.
2.1 ACCESS PANEL
2.2 BURNER ASSEMBLY
1.0 GENERAL INFORMATION 2
2.0 INSTALLATION 2
2.1 ACCESS PANEL 2
2.2 BURNER ASSEMBLY 2
2.3 BULKHEADS 3
2.4 NIGHT LIGHT™ INSTALLATION 3
2.5 PORCELAIN BASE INSTALLATION 4
2.6 BURNER COVER INSTALLATION 4
2.7 ROCK INSTALLATION 5
3.0 ADJUSTMENT 6
3.1 FLAME CHARACTERISTICS 6
3.2 VENTURI ADJUSTMENT 6
4.0 REPLACEMENTS 7

3
W415-0808 / A / 11.09.10
2.3 BULKHEADS
NOTE: Bulkhead covers need to be removed.
A. Connect the gas flex lines
and the pilot line to the gas
bulkheads located under the
valve access opening. Be sure
to match up the gas manifold
marked with an orange dot
with the center bulkhead, also
marked with an orange dot.
Care must be taken to ensure
the pilot line isn’t damaged and
ensuring gas tight connections
are made.
NOTE: The middle tube is the
primary burner and can not
be turned off. The outside
burner can be turned on and
off with the remote. If this
isn’t the case then switch the flex lines.
B. Connect the pilot electrode leads to the
bulkhead. The leads can only fit one way.
You need to match the 1/4” flag with the 1/4”
bulkhead spade and the 3/16” flag with the
3/16” spade.

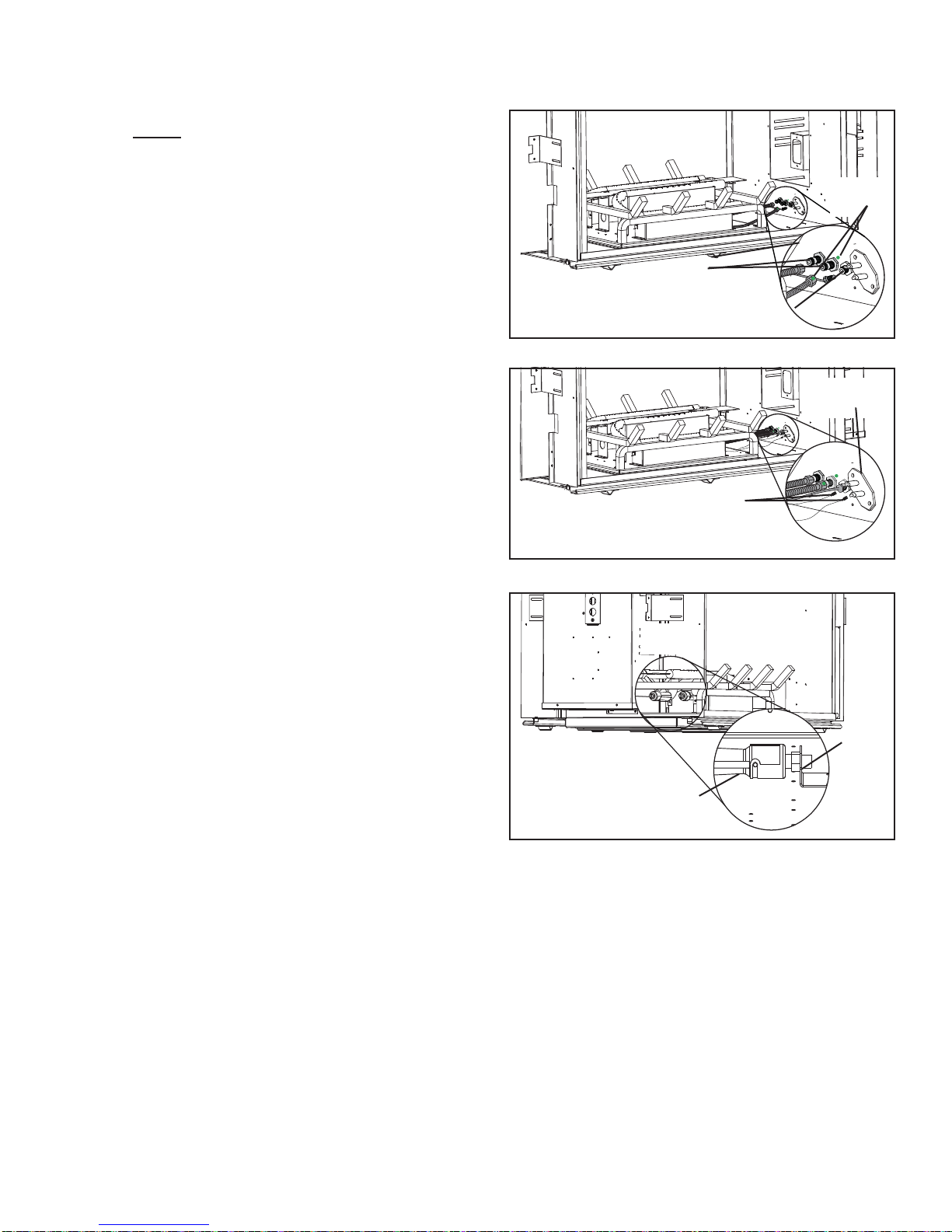

C. Ensure the 2 venturi tubes are over
the orifices before lighting. NOTE: It is
recommended at this stage to do an
operational check before finishing
installation.
D. Check for gas leaks by brushing on a soap
and water solution. Do not use open flame.
E. After leak test has been performed re-install
access panel with gasket. (If removed)
VENTURI
TUBE
ORIFICE
GAS
BULKHEADS
PILOT
BULKHEADS
ORANGE
DOTS
PRIMARY
BURNER
PILOT
ELECTRODE
PILOT
ELECTRODE
LEADS
2.4 NIGHT LIGHT™ INSTALLATION
GASKET
LENS
FRAME
COLOURED SIDE UP
Your HD81 comes
equipped with 2 “Night
Lights™”.
The lights have been pre-
wired and are controlled
from the remote control.
Included with the burner
assembly are the frames,
lenses and gaskets that
need to be installed as
illustrated.
THE FIREBOX MUST
BE SEALED.
Over tightening the screws could break the lens.
“Light Leakage” from the holes in the housing lamp may
be observed. The holes in the lamp housing are neces-
sary for ventilation and must not be covered.
NIGHT
LIGHT

4
W415-0808 / A / 11.09.10

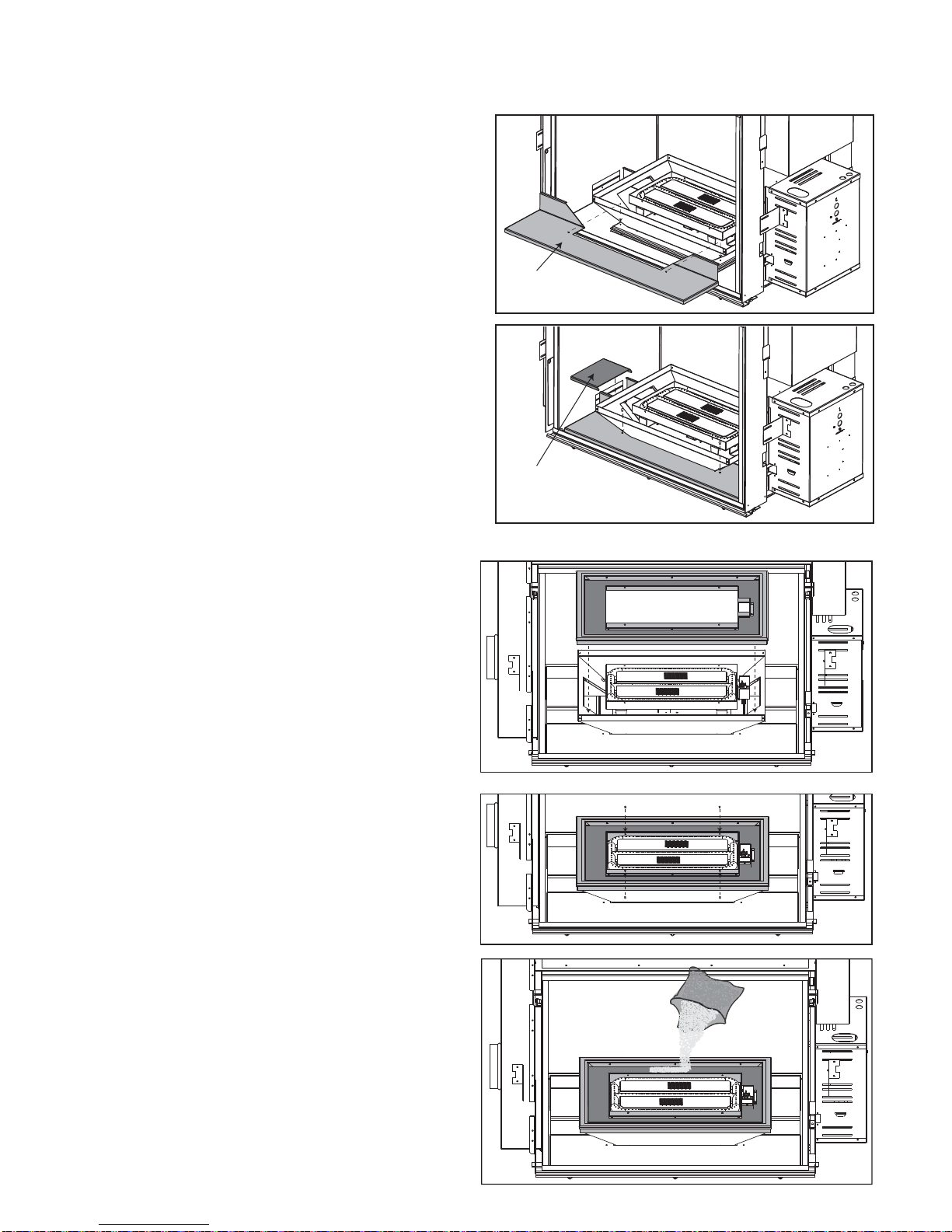

INSTALL IN THE FOLLOWING ORDER:
A. Side porcelain panels or brick panels must
be installed prior to porcelain base cover
plates. For side porcelain panel installation
see “PRP81 PORCELAIN REFLECTIVE
RADIANT PANEL” leaflet and for brick panel
installation see “GD844KT DECORATIVE
BRICK PANEL - SANDSTONE” leaflet.
B. Slide the porcelain cover plates through the
front opening being careful not to scratch
the porcelain panels. The cover plates must
slide under the burner cover as shown.
Secure to the burner base with the screws
provided and repeat on other side. Porcelain
wire shields sit on the cover plates as
illustrated.
A. Lower the burner cover down onto the
burner tray and porcelain base, making
sure the pilot is properly seated through
the slot on the right side.
B. Attach burner cover with four screws as
illustrated.
C. Empty the sand into the burner tray.
Spread the sand evenly over the burner
tray.
2.5 PORCELAIN BASE INSTALLATION
PORCELAIN
COVER PLATE
PORCELAIN
WIRE SHIELD
2.6 BURNER COVER INSTALLATION

5
W415-0808 / A / 11.09.10
2.7 ROCK INSTALLATION
!
WARNING
REAL ROCKS MUST NOT BE USED IN THIS APPLIANCE. HEAT WILL CAUSE THEM TO EXPLODE.

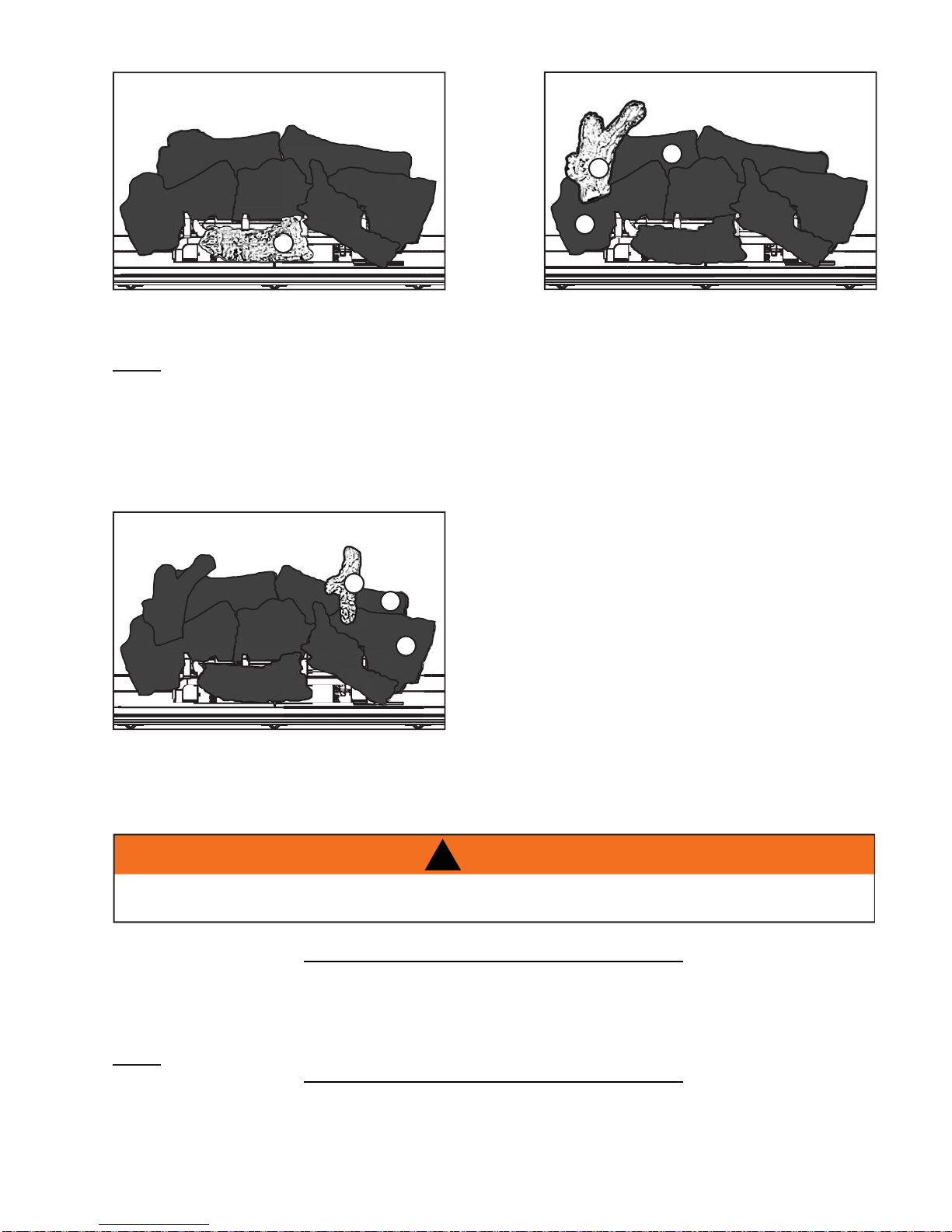

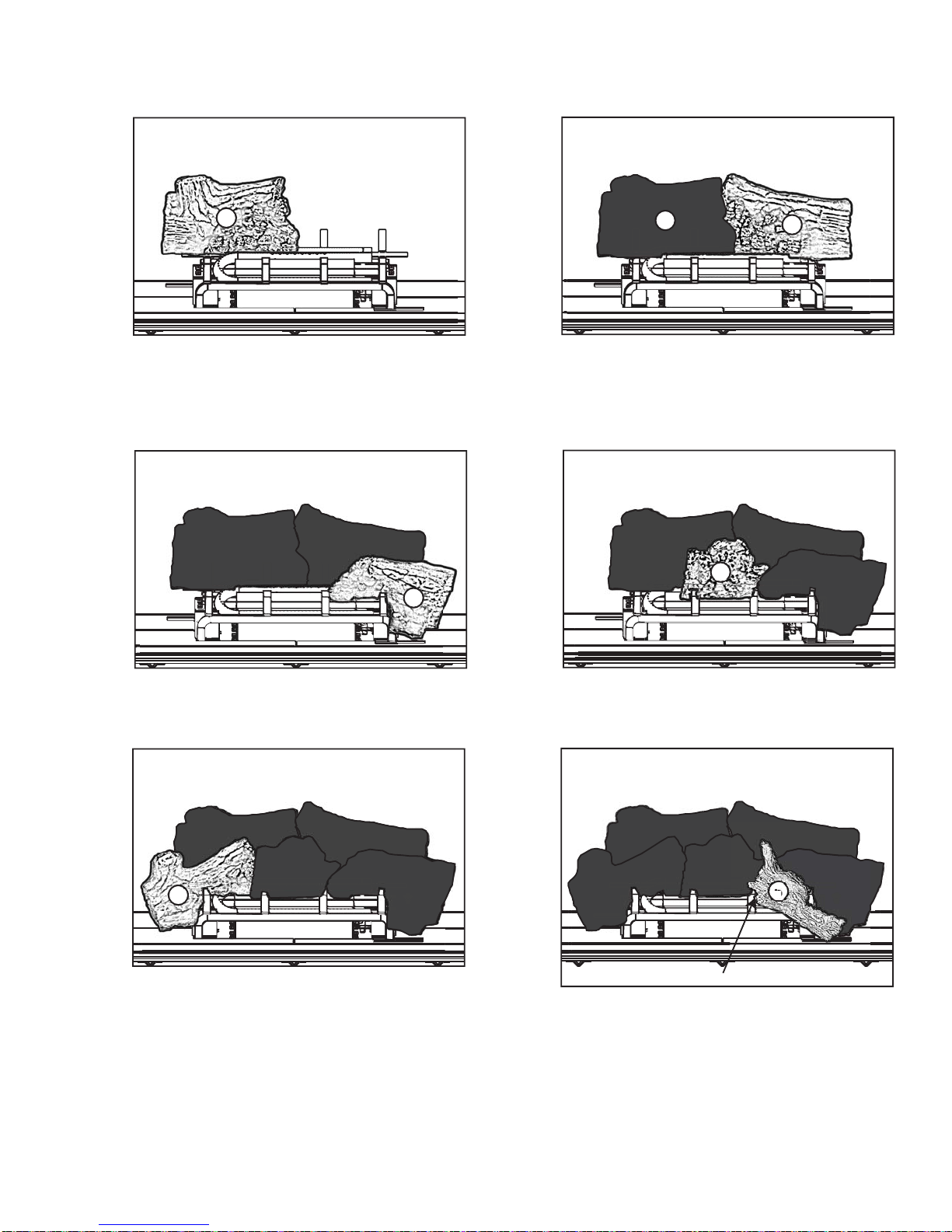

A. Position the two rock clusters in front of the
center burner tube, ensuring the clusters are
sitting flat on the burner and making sure not
to cover burner ports.
B. Place the large cut out rocks along the edge
of the burner, making sure not to cover any
burner ports. (There are no set locations).
C. Position the four large rocks randomly along
the front, making sure not to cover burner
ports.
D. Place the medium rocks randomly between
the other rocks, making sure not to cover
the burner ports.
E. Position the remaining little rocks randomly,
making sure not to cover the burner ports. F. Repeat on other side.

6
W415-0808 / A / 11.09.10

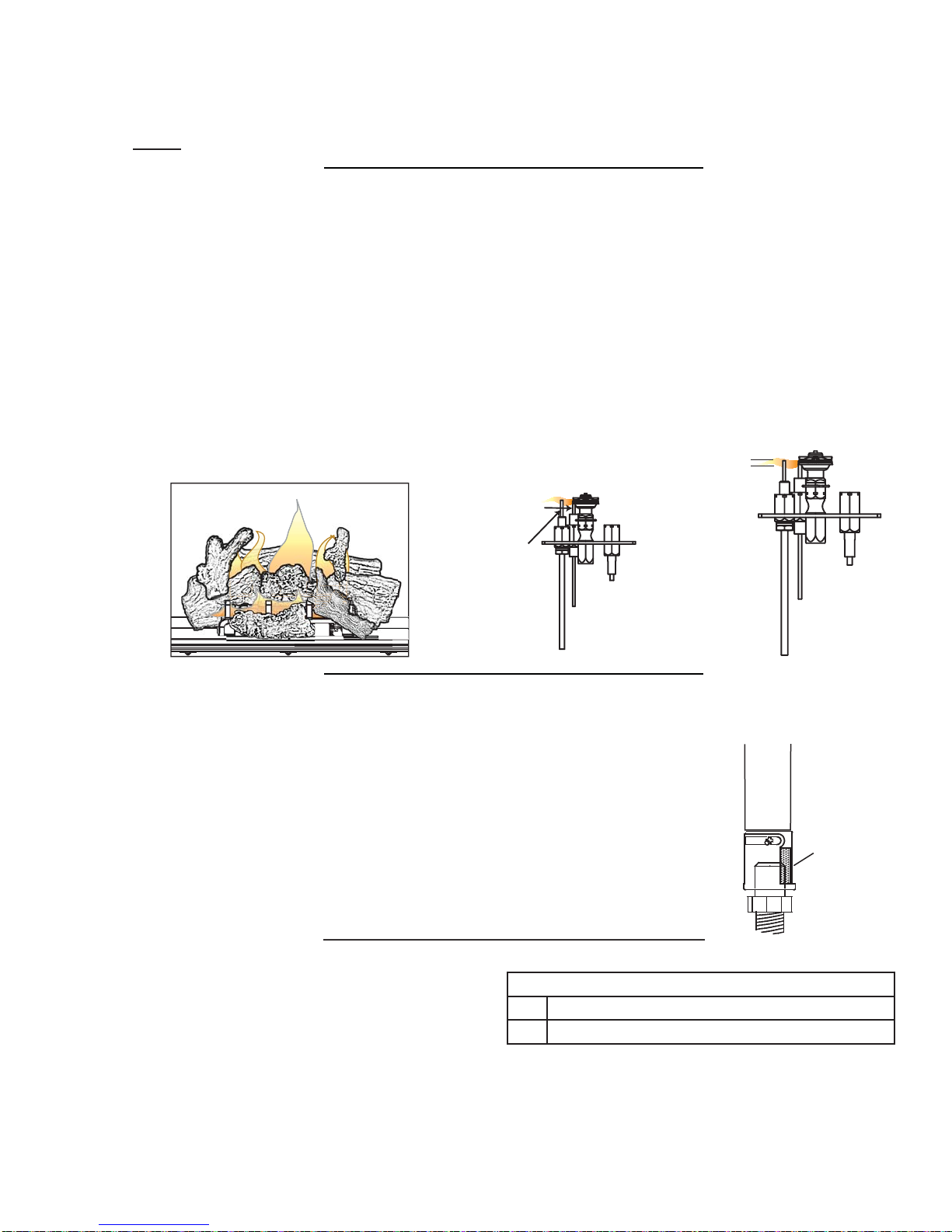

It’s important to periodically perform a visual check of the pilot and burner flames. Compare them to the illustra-
tions provided. If any flames appear abnormal call a service person. 3/8” - 1/2”
PILOT
BURNER
FLAME MUST ENVELOP
UPPER 3/8” TO 1/2” OF
FLAME SENSOR
FLAME
SENSOR
ELECTRODE
54.1
Air Shutter Openings both Burners
LP 7/16”
NG 3/16”
3.0 ADJUSTMENT
3.1 FLAME CHARACTERISTICS
3.2 VENTURI ADJUSTMENT
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner ports. The
flame may not appear yellow immediately; allow 15 to 30 minutes for the
final flame color to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1

7
W415-0808 / A / 11.09.10

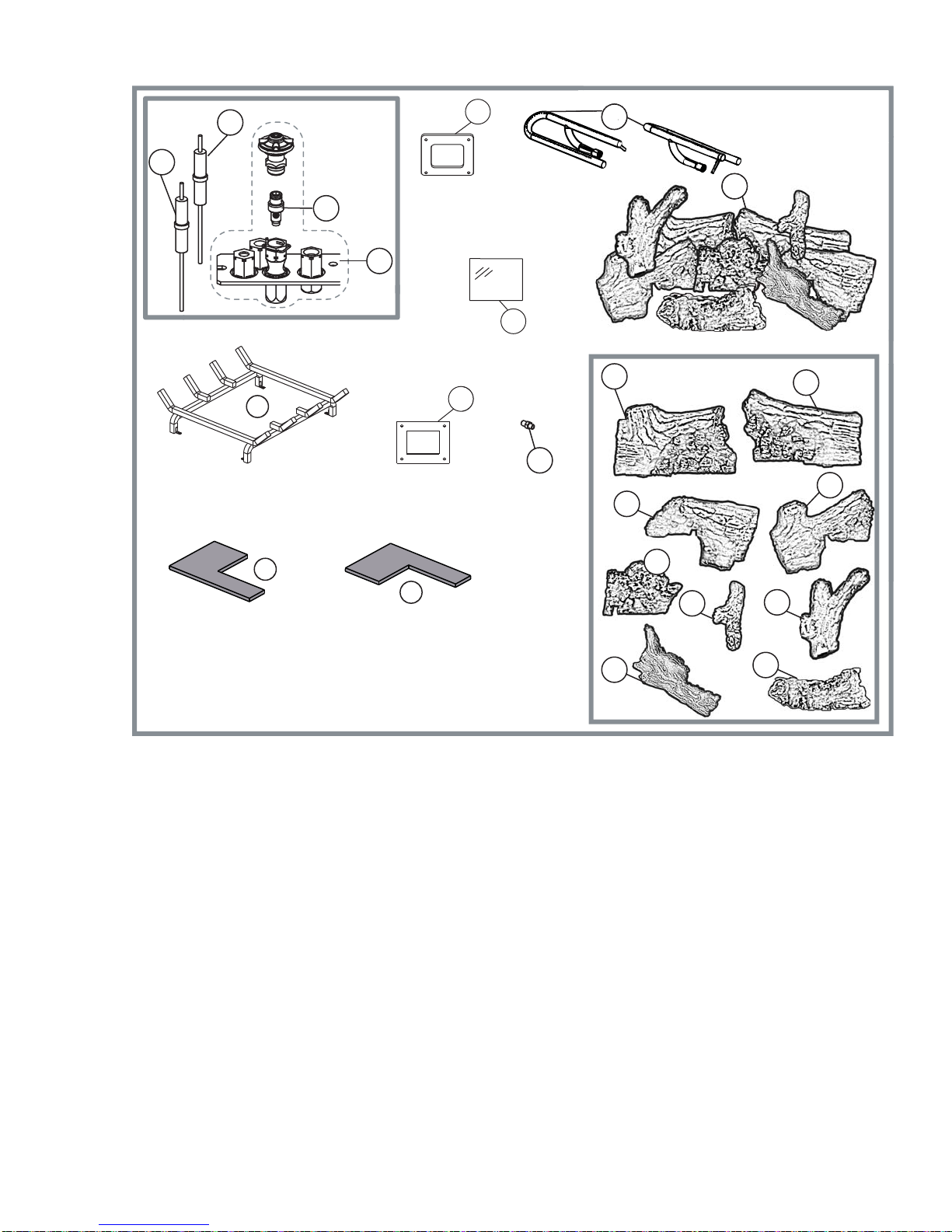

4.0 REPLACEMENTS
COMPONENTS
REF NO. PART NO. DESCRIPTION
1 W280-0071 NIGHT LIGHT LENS FRAME
2 W290-0080 NIGHT LIGHT GASKET
3 W300-0086 CERAMIC BLUE NIGHT LIGHT LENS
4 W350-0460 ROCK BURNER HOUSING
5 W100-0113 DOUBLE TUBE BURNER
6* W175-0227 CONNECTOR, 3/8” STAINLESS STEEL FLEX
7* W175-0289 CONNECTOR, 3/8” STAINLESS STEEL FLEX (24”)
8* W550-0007 FINE AGGREGATE
9 W010-1861 2-WAY NATURAL GAS PILOT ASSEMBLY
9 W010-1862 2-WAY PROPANE GAS PILOTASSEMBLY
10 W565-0109 GLASS BURNER SCREEN
11 W120-0064 ROCK BURNER WIRE SHIELD
12 W750-0200 FLAME SENSOR
13 W750-0201 ELECTRODE
14 W455-0070 NATURAL GAS PILOT INJECTOR
14 W455-0065 PROPANE GAS PILOT INJECTOR
15* W456-0034 #34 ORIFICE NATURAL
15* W456-0054 #54 INSIDE ORIFICE PROPANE
15* W456-0052 #52 OUTSIDE ORIFICE PROPANE
16 W200-0274 ROCK BURNER COVER
Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally
all parts can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR
FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER. 41.1
FAILURE TO POSITION THE PARTS
IN ACCORDANCE WITH THIS
MANUAL OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED
WITH THIS APPLIANCE MAY
RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
!
WARNING
9
12
3
4
5
10
11
12 13
14
16

8
W415-0808 / A / 11.09.10
44.1
5.0 NOTES

1
W415-0713 / A / 11.09.10
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.22
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
CERTIFIED FOR CANADAAND UNITED STATES USINGANSI/CSA METHODS.
$10.00
CERTIFIED UNDER CANADIANAND AMERICAN NATIONAL STANDARDS: CSA 2.33,ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.
HD81
LOG BURNER
ASSEMBLY
B81NL
NATURAL GAS
B81PL
PROPANE

2
W415-0713 / A / 11.09.10
A. Once either door is removed (see
Installation Instructions), remove the
valve access panel and the 4 retaining
brackets located at the top of the firebox.
A. Attach the burner assembly to the firebox
base with the screws supplied, making sure
the pilot assembly is closest to the valve
access opening.
This burner and log assembly are approved for use in the HD81 gas appliance only. They are not approved for
use as a stand alone appliance or in conjunction with any other appliance.
1.0 GENERAL INFORMATION
2.0 INSTALLATION
2.1 ACCESS PANEL
2.2 BURNER ASSEMBLY
1.0 GENERAL INFORMATION 2
2.0 INSTALLATION 2
2.1 ACCESS PANEL 2
2.2 BURNER ASSEMBLY 2
2.3 BULKHEADS 3
2.4 NIGHT LIGHT™ INSTALLATION 4
2.5 HEARTH PANEL INSTALLATION 4
2.6 LOG PLACEMENT 5
2.7 CHARCOAL LUMPS 6
2.8 CHARCOAL EMBERS 6
2.9 VERMICULITE 7
2.10 GLOWING EMBERS 7
3.0 ADJUSTMENT 7
3.1 FLAME CHARACTERISTICS 7
3.2 VENTURI ADJUSTMENT 7
4.0 REPLACEMENTS 8
NOTE: Changes, other than editorial, are denoted by a line in the margin.
TABLE OF CONTENTS
Retaining
Brackets
Access
Panel
Burner
Assembly
Valve
Access
Opening
Pilot
Assembly

3
W415-0713 / A / 11.09.10
NOTE: Bulkhead covers need to be removed.
A. Connect the gas flex lines and the pilot line
to the gas bulkheads located under the valve
access opening. Be sure to match up the gas
manifold marked with a green dot with the
center bulkhead, also marked with a green
dot. Care must be taken to ensure the pilot
line isn’t damaged and ensuring gas tight
connections are made.
Gas
Bulkheads
Green
Dots
Pilot
Bulkhead
Pilot
Electrode
Leads
Pilot
Electrode
2.3 BULKHEADS
See Thru
Window
Orifice
Venturi
Tube
B. Connect the pilot electrode leads to the
bulkhead matching the 1/4” flag with the 1/4”
bulkhead spade and the 3/16” flag with the
3/16” spade.
C. Ensure the 2 venturi tubes are over the
orifices before lighting.
D. Check for gas leaks by brushing on a soap
and water solution. Do not use open flame.
E. After leak test has been performed re-install
access panel with gasket.

4
W415-0713 / A / 11.09.10
GASKET
LENS
FRAME
COLOURED SIDE UP
Your HD81 comes equipped with 2 “Night Lights™”. The lights
have been pre-wired and are controlled from the remote control.
Included with the burner assembly are the frames, lenses and
gaskets that need to be installed as shown.
THE FIREBOX MUST BE SEALED.
Over tightening the screws could break the lens.
“Light Leakage” from the holes in the housing lamp may be observed.
The holes in the lamp housing are necessary for ventilation and must
not be covered.
NIGHT LIGHT
Hearth panels are shipped separate from unit and are included with the burner assembly and the logs. Due to
the brittle material of the panels, care must be taken not to bend or force them into place.
When shipped, the hearth panels range in varying shades of Sandstone. During initial use, the panels will darken
temporarily. The appearance of the panels will permanently lighten in color with use.
INSTALL HEARTH PANELS IN THE FOLLOWING ORDER:
NOTE: Burner assembly must be installed first.
A. Side brick panels or porcelain panels must be installed prior to
hearth panels. For brick panel installation see “GD844KT
DECORATIVE BRICK PANEL - SANDSTONE” leaflet and PRP81
leaflet for porcelain panel installation.
B. Install the left and right hearth panels on both sides.
3
2
1
3
4
2
1
HEARTH PANELS
2.4 NIGHT LIGHT™ INSTALLATION
2.5 HEARTH PANEL INSTALLATION

5
W415-0713 / A / 11.09.10
NOTCH
2.6 LOG PLACEMENT
A. Place the left middle log #1 onto the
locating stud on the middle log support.
Make sure the hollow on the underside
of the log is over the bend tab.
B. Slide log #2 from right to left on the
middle log support creating a tight fit
between logs #1 and #2. Make sure the
hollow on the underside of the log is
over the bend tab.
C. Place log #3 onto the far right locating
stud located on the front deflector. D. Place log #4 onto the two center
locating studs on the front support.
E. Place log #5 onto the far left locating
stud located on the front deflector. F. Place the notch on log #6 onto the third
grate.
12
3
4
56
1

6
W415-0713 / A / 11.09.10
G. Slide the flat portion of log #7 under the
second grate post.
NOTE: Logs 3, 4, 5, 6 and 7 are included
twice. Install these logs on the opposite
side. Logs 8 and 9 are only included once,
to give a different appearance to each side.
Install logs 8 and 9 on the side that you
prefer. If desired a 2nd set of 8 and 9 logs are
available in an upgrade kit GL81L2 and can
be purchased to make both sides identical.
H. Place the pin in log #8 into the locating
hole on log #1 and rest the bottom of
the log on log #5.
I. Place the pin in log #9 into the locating
hole on log #2 and rest the bottom of
the log #3.
7
8
9
1
5
2
3
J. If GL81L2 (upgrade kit) is purchased repeat
“H” and “I” on other side.
2.7 CHARCOAL LUMPS
34.1
Place the lumps in front of the logs in a realistic manner taking care not to block any of the burner ports.
!
WARNING
CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE
BURNER.
2.8 CHARCOAL EMBERS
32.1
Randomly place the charcoal embers along the
f
ront and sides o
f
the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.

7
W415-0713 / A / 11.09.10
Air Shutter Openings both Burners
LP 7/16”
NG 3/16”
2.9 VERMICULITE
33.1
Sprinkle vermiculite around the charcoal embers.
NOTE: Vermiculite is not to be placed on the burner.
2.10 GLOWING EMBERS
Tear the embers into pieces and place along the front row of ports covering all of the burner area. Care should
be taken to shred the embers into thin, small irregular pieces as only the exposed edges of the fibre hairs will
glow. The ember material will only glow when exposed to direct flame; however, care should be taken to not
block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. Phazer™
logs glow when exposed to direct flame. Use only certified “glowing embers” and Phazer™ logs available from
your Authorized dealer.
3.0 ADJUSTMENT
3.1 FLAME CHARACTERISTICS
3.2 VENTURI ADJUSTMENT
It’s important to periodically perform a visual check of the pilot and burner flames. Compare them to the illustra-
tions provided. If any flames appear abnormal call a service person. 3/8” - 1/2”
PILOT
BURNER
FLAME MUST ENVELOP
UPPER 3/8” TO 1/2” OF
FLAME SENSOR
FLAME
SENSOR
ELECTRODE
54.1
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner ports. The
flame may not appear yellow immediately; allow 15 to 30 minutes for the
final flame color to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1

8
W415-0713 / A / 11.09.10
Installation and repairs must be performed by a qualified installer, service agency or the supplier.
4.0 REPLACEMENTS
COMPONENTS
REF NO. PART NO. DESCRIPTION
1 W280-0071 NIGHT LIGHT LENS FRAME
2 W290-0080 NIGHT LIGHT GASKET
3 W300-0067 CERAMIC ORANGE NIGHT LIGHT LENS
4 W100-0107 RIGHT SIDE LOG BURNER
4 W100-0108 LEFT SIDE LOG BURNER
5* W175-0227 CONNECTOR, 3/8” STAINLESS STEEL FLEX
6* W175-0289 CONNECTOR, 3/8” STAINLESS STEEL FLEX (24”)
7 W010-1829 3-WAY NATURAL GAS PILOT ASSEMBLY
7 W010-1830 3-WAY PROPANE GAS PILOTASSEMBLY
8 W456-0033 #33 ORIFICE NATURAL
8 W456-0053 #53 ORIFICE PROPANE
9 W455-0070 NATURAL GAS PILOT INJECTOR
9 W455-0065 PROPANE GAS PILOT INJECTOR
10 GL-666 LOG SET
11 W135-0366 LOG, RIGHT MIDDLE #2
12 W135-0367 LOG, LEFT MIDDLE #1
13 W135-0368 LOG, RIGHT FRONT #3
14 W135-0369 LOG, LEFT FRONT #5
15 W135-0370 LOG, MIDDLE FRONT #4
16 W135-0371 LOG, RIGHT CROSSOVER
17 W135-0372 LOG, LEFT CROSSOVER
18 W135-0373 LOG, BOTTOM FRONT CROSSOVER
19 W135-0374 LOG, BOTTOM LEFT FRONT
20 W475-0574 HEARTH RIGHT FIBRE PANEL
21 W475-0613 HEARTH LEFT FIBRE PANEL
22* W361-0016 GLOWING EMBERS
23* W550-0001 CHARCOAL EMBERS
24* W550-0002 CHARCOAL LUMPS
25* W361-0014 VERMICULITE
26 W750-0200 FLAME SENSOR
27 W750-0201 ELECTRODE
28 W010-1946 ASSEMBLY, LOG GRATE
Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally
all parts can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR
FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER. 41.1
FAILURE TO POSITION THE PARTS
IN ACCORDANCE WITH THIS
MANUAL OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED
WITH THIS APPLIANCE MAY
RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
!
WARNING

9
W415-0713 / A / 11.09.10
7
1
2
3
21
20
4
2
12
11
13 14
15
16 17
18 19
4
4
10
9
8
27
26
28

10
W415-0713 / A / 11.09.10
44.1
5.0 NOTES

11
W415-0713 / A / 11.09.10
44.1

12
W415-0713 / A / 11.09.10
44.1
