National Flooring Equipment 5280-AUS User manual

Caution: Read Manual Before Operating Machine
SELF-PROPELLED SCRAPER
INSTRUCTION MANUAL
RevA
401872


9250 XYLON
A
VE. N
MINNEAPOLIS, MN 55445
MAIN: 763.315.5300
TOLL FREE: 800.245.0267
FAX: [phone]
NATIONALEQUIPMENT.COM
DeclarationofConformity

NationalFlooringEquipmentInc.
9250XylonAveN
Minneapolis,MN55445USA

Declaresthatunderoursoleresponsibilitytheproducts:
6280ͲCOM,6280ͲCOMͲEUR,6280ͲCOMͲAUS,6280ͲCOMͲUK,
5280,5280ͲEUR,5280ͲAUS,5280ͲUK,6280HDͲCOM,
6280HDͲCOMͲEUR,6280HDͲCOMͲAUS,6280HDͲCOMͲUK
AreinconformitywiththeprovisionsofthefollowingEC
Directive,includingallamendments,andwithnational
legislationimplementingthisdirective:
MachineryDirective2006/42/EC
TheFollowingHarmonizedStandardswereapplied:
EN 60335-2-67:2003 + A1 :2006 with
EN 60335-1:2002 + A1:04 + A2:06 + A11:04 + A12:06
EN ISO 12100:2010, ISO 4413:2010
This Product Carries the CE Mark, which was first affixed in 2013
Place Signature Date
Minneapolis, MN 05/19/2014
John Gunsch
Vice President of Operations
9250XylonAveN
Minneapolis,MN55445USA
Place Signature Date
Jönköping, Sweden 05/19/2014
Lars-Owe Kron
Appointed consultant for the EU
JohanSkyttesväg5
SEͲ55448Jönköping.
Sweden

Table of Contents
www.nationalequipment.com Phone: [phone]
Table of Contents ...................................................................................................................................................................................................3
Features and Specificatons................................................................................................................................................................................... 4
Safety....................................................................................................................................................................................................................5-8
General Rules for Safe Operation.............................................................................................................................................................5-6
Characteristics of a Defensive Operator....................................................................................................................................................... 6
Hydraulic Safety Tips.................................................................................................................................................................................... 6
Grounding..................................................................................................................................................................................................... 7
Extension Cords........................................................................................................................................................................................... 7
Machine Operation............................................................................................................................................................................................9-12
Transporting.................................................................................................................................................................................................. 9
Loading/Unloading...................................................................................................................................................................................9-10
Operating Controls..................................................................................................................................................................................10-11
Preparing Machine for Job...........................................................................................................................................................................11
Blade Changing...........................................................................................................................................................................................11
Application Set-up....................................................................................................................................................................................... 12
Blade Sharpening....................................................................................................................................................................................... 12
Blades....................................................................................................................................................................................................13-14
Machine Maintenance.....................................................................................................................................................................................15-16
Wheel Removal.......................................................................................................................................................................................... 15
Adding or Changing Hydraulic Fluid........................................................................................................................................................... 15
Inspection of Internal Parts......................................................................................................................................................................... 15
Tank Removal............................................................................................................................................................................................. 16
Control Valve Replacement........................................................................................................................................................................ 16
Speed Control Replacement....................................................................................................................................................................... 16
Pressure Valve Replacement..................................................................................................................................................................... 16
Forward Switch Replacement..................................................................................................................................................................... 16
Power Cord................................................................................................................................................................................................. 16
Troubleshooting ................................................................................................................................................................................................... 17
Complete Parts List.............................................................................................................................................................................................. 18
Parts List and Diagrams.................................................................................................................................................................................19-27
External Parts............................................................................................................................................................................................. 19
Pump Parts................................................................................................................................................................................................. 20
Handle Parts............................................................................................................................................................................................... 21
Back Parts.................................................................................................................................................................................................. 22
Hydraulic Tank Parts................................................................................................................................................................................... 23
Cutting Head Parts..................................................................................................................................................................................... 23
Labels......................................................................................................................................................................................................... 24
Accessories................................................................................................................................................................................................ 25
Wiring Diagram........................................................................................................................................................................................... 26
Hydraulic Line Diagram.............................................................................................................................................................................. 26
Material Safety Data Sheet..............................................................................................................................................................................28-31
Guarantee.............................................................................................................................................................................................................. 33

Features and Specifications
Fax: [phone] [email protected]4

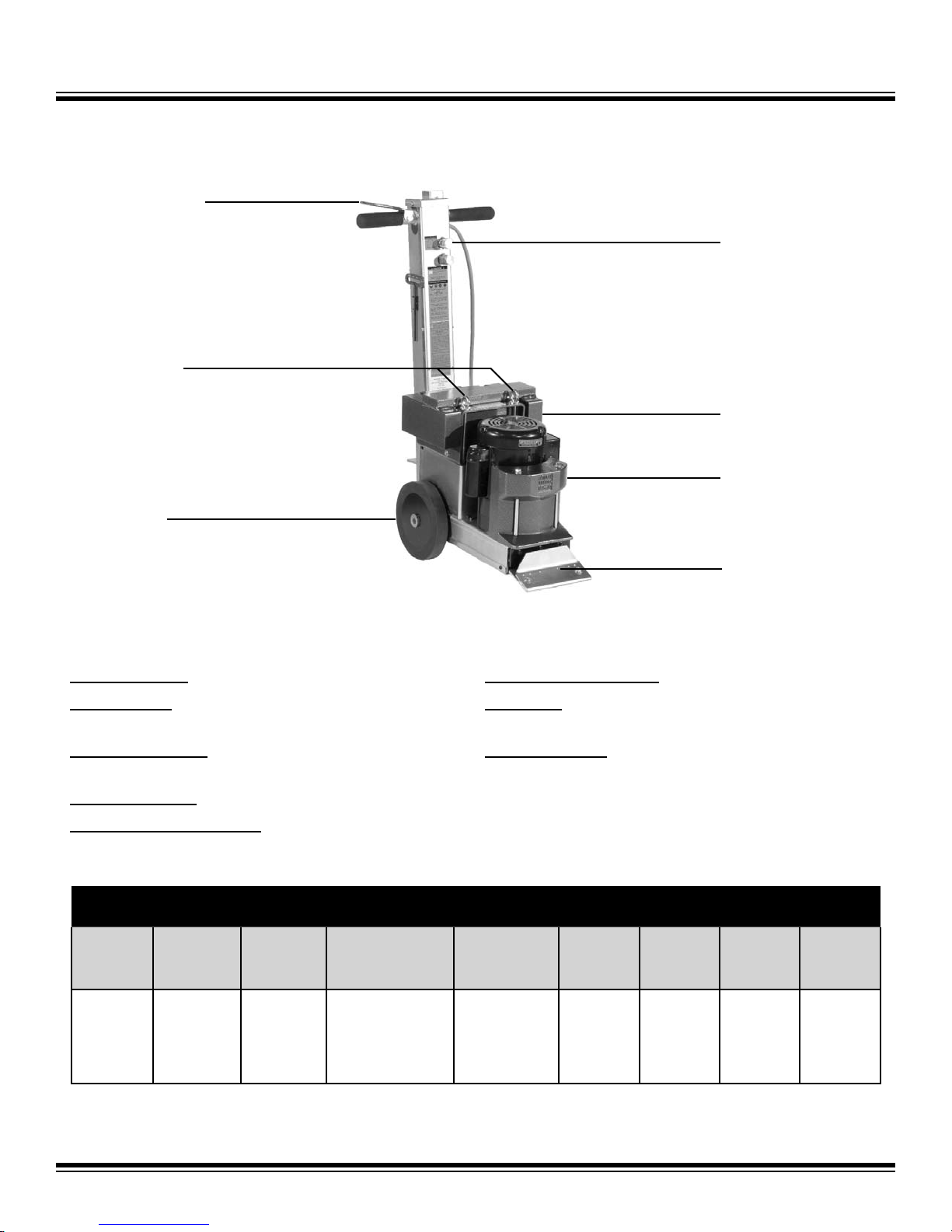

FEATURES
Speed Control Dial- Limits maximum forward speed.
Traction Wheels- These industrial grade wheels are self-cleaning and
disengage for loading/unloading.
Simple Hand Controls- Propels the scraper forward with speed and
safety.
Lifting Bail Eyebolts- Eases loading/unloading.
Debris Deflecting Front Weight- Prohibits material and debris from
clogging or obstructing production.
Quick & Easy Blade Change- Ensuring maximum production rates.
Side Weight- 50 pound side saddle weight provides additional down
pressure and traction for tough jobs.
Speed Control Dial - Control the rate the machine travels forward.
12-50 ft per minute.
Product Specifications
Width Length Height Weight Speed RPM Voltage HP Amps
(full load)
34.3 cm
(13.5”) 71.1 cm (28”) 104.1 cm (41”) 119.75 kg
(264 lb)
4.5-6 m/min
(12-50 feet per
minute) 1725 230 1 Under 10
Traction Wheels
FWD Hydraulic Handle
Control
Lifting Bail Eyebolts
Debris Deflecting Front
Weight
Quick & Easy Blade
Change
Saddle Weight
Speed Control Dial

Safety
www.nationalequipment.com Phone: [phone]
GENERAL RULES FOR SAFE OPERATION
READAND SAVE ALLINSTRUCTIONS FOR FUTURE USE. Before use, ensure operators reads and understand this manual. Read and
understand labeling on machine and components.All operators must view the instruction video. Extra copies of the manual and video are avail-
able.
1. KNOW YOUR EQUIPMENT: Readthismanualcarefully tolearnequipment applicationsandlimitations, potentialhazardsassociated with
this type of equipment. Keep this manual with the equipment it is associated with.
2. GROUND YOUR EQUIPMENT: See Grounding Page 7.
3. AVOID DANGEROUS ENVIRONMENTS: Do not use in rain, damp or wet locations, or in the presence of explosive atmospheres (gas-
eous fumes, dust or flammable materials). Remove materials or debris that may be ignited by sparks.
4. KEEP WORK AREACLEAN AND WELL LIT: Cluttered, dark work areas invite accidents.
5. DO NOT USE ON STEPS.
6. DRESSPROPERLY:Donotwearlooseclothing.Thesemaybecaughtinmovingparts.Whenworkingwearglovesandinsulatednon-skid
footwear. Keep hands and gloves away from moving parts.
7. USE SAFETY EQUIPMENT: Proper eye protection should be worn at all times. Wear hearing protection during extended use and a dust
mask for dusty operations. Hard hats, face shields, safety shoes, etc. should be worn when specified or necessary.
8. KEEP BYSTANDERS AWAY: Children and other bystanders should be kept at a safe distance from the work area to avoid distracting the
operator and contacting the equipment or extension cord. Operator should be aware of the proximity of bystanders. This appliance is not
intendedforusebypersons(includingchildren)withreducedphysical,sensoryormentalcapabilitiesorlackofexperienceandknowledge.
Equipment is not to be used by children.
9. PROTECT OTHERS IN THE WORKAREA: Provide barriers or shields as needed to protect others from debris.
10. USE PROPER ACCESSORIES: Using accessories that are not recommended may be hazardous. Be sure accessories are properly
installed and maintained. Do not delete a guard or other safety device when installing an accessory or attachment.
11. CHECK FOR DAMAGED PARTS: Inspect guards and other parts before use. Check for misalignment, binding of moving parts, improper
mounting,brokenparts andotherconditionsthatmay affectoperation.If abnormalnoiseorvibration occurs,turnoffimmediatelyandhave
the problem corrected before further use. Do not use damaged equipment. Tag damaged equipment “DO NOTUSE” until repaired. Miss-
ing or damaged parts should be properly repaired or replaced immediately. For all repairs, use only identical National replacement parts.
12. REMOVEALLADJUSTINGKEYSAND WRENCHES: Make ahabitofcheckingthat theadjustingkeys,wrenches,etc.are removedfrom
the tool before turning it on.
13. GUARDAGAINST ELECTRIC SHOCK: Prevent body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
When making cuts, always check the work area for hidden wires or pipes. Hold your equipment by insulated nonmetal grasping surfaces.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.
14. AVOID ACCIDENTAL STARTING: Be sure equipment is turned off before plugging in. Do not use equipment if the power switch does not
turn the equipment on and off.
15. DO NOT FORCE EQUIPMENT: Equipment will perform best at the rate for which it was designed. Excessive force only causes operator
fatigue, increased wear and reduced control.
16. KEEP HANDS AWAY FROM ALL CUTTING EDGES AND MOVING PARTS.
17. WEAR gloves when changing accessories.
18. DO NOT ABUSE CORD: Never unplug by pulling the cord from the outlet. Pull plug rather than cord to reduce the risk of damage. Keep
the cord away from heat, oil, sharp objects, cutting edges and moving parts.
19. DO NOT OVERREACH. MAINTAIN CONTROL: Keep proper footing and balance at all times. Maintain a firm grip.
20. STAY ALERT: Watch what you are doing, and use common sense. Do not use when you are tired, distracted or under the influence of
drugs, alcohol or any medication causing decreased control.
21. STARTING MACHINE: On/Off switch must be in off position before connecting to power source.
22. UNPLUG EQUIPMENT: When not in use and before changing accessories or performing recommended maintenance, unplug machine.
23. MAINTAINEQUIPMENTCAREFULLY: Keep handles dry,clean and freefromoil andgrease.Keep cutting edgessharp and clean.Follow
instructions for lubricating and changing accessories. Inspect tool cords and extension cords for damage. Replace damaged parts. Use

Safety
only identical National replacement parts.
24. STORE IDLE EQUIPMENT: When not in use, store in a dry, secured place. Keep away from children.
25. MAINTAIN LABELS AND NAMEPLATES: These carry important information. If unreadable or missing, contact National for a replace-
ment.
26. MACHINE IS HEAVY, DO NOT DROP. Ensure proper lifting procedures are followed when transporting.
27. WHEN OPERATING MACHINE, tether cord must be connected to operator.
28. DO NOTALLOW the oscilating plates to come into contact with the supply cord.
29. REGULARLY EXAMINE the supply cord for damage, such as cracking or aging. If damaged, replace the cord before further use. Only
replace the supply cord with the type specified in this manual.
CHARACTERISTICS OFADEFENSIVE OPERATOR
A Good Operator is a “Defensive” Operator!
QUALITIES INCLUDE:
Education: Educates themself on the machine and the environment.
Alert: Stays alert at all time and never lets guard down.
Skills: Only performs duties he/she is qualified to do.Always tries to improve.
Judgment: Use sound judgement. Does not take uncessary risks.
Common Sense:Applies knowledge in practical situations.
Recognizes the Hazards: Maintains alertness.Anticipates danger.
Understands the Defense: Knows that safety isn’t an accident…it’s a thinking person’s choice.
Acts Correctly: Does not give in to peer pressure. Performs correctly when supervised or not.
HYDRAULIC SAFETY TIPS
MAINTAININGA SAFE WORK ENVIRONMENT
Establishing a safe working environment in and around your hydraulic equipment is just common sense. The easiest and most effective way to
avoid problems is to make sure associates understand their equipment, know how to operate it safely and recognize the danger it represents if
handled carelessly.A few things you must be aware of include:
1. PRESSURE: Hydraulic fluid under pressure is dangerous and can cause serious injury.
2. FLAMMABILITY: When ignited, some hydraulic fluids can explode and/or cause fires.
3. MECHANICAL: Hydraulic fluid creates movement, which causes parts of your equipment to move or rotate.Always be aware of what
you are doing.
4. MOISTURE: Use caution when operating in wet or high moisture conditions. Make sure all electrical fittings, switches, cords plus stain
reliefs are in good condition.Always unplug when not in use and when doing any service work.
5. ELECTRICAL: Faulty wiring can also be an electrical hazard.Aregular preventive maintenance program should always include a wir-
ing check. Unplug batteries and/or charger before serving.
6. TEMPERATURE: Because this machine operates at a relatively low pressure, overheating is not common. If surface of tank becomes
too hot to touch by hand (above 130º F, 55° C), shut off machine and allow to cool off.
PRESSURE
Our system runs at or below 2,000 psi. Never look for a leak when unit is under pressure. Using your hand could cause serious injury.Afew
common ways to encounter hydraulic fluid under pressure include:
1. PINHOLE: Fluid under pressure can cause serious injury. It can be almost invisible escaping from a pinhole, and it can pierce the skin
into the body. Do not touch a pressurized hydraulic hose assembly with any part of your body. If fluid punctures the skin, even if no pain is
felt, a serious emergency exists. Obtain medical assistance immediately. Failure to do so can result in loss of the injured part or death.
2. LEAK: Keep fittings and hoses tight. Only check and service when not under pressure. Leaking hydraulic fluid is not only unsightly, it’s
hazardous.Inaddition tomakingworkplace floorsslipperyand dangerous, leaksalsocontaminate theenvironment.Beforecleaning anoil
Fax: [phone] [email protected]6

Safety
www.nationalequipment.com Phone: [phone]
spill, always check EPA, state and local regulations.
3. BURST: Whether due to improper selection or damage, a ruptured hose can
cause injury. If it bursts, a worker can be burned, cut, injected or may slip and fall.
4. COUPLING-BLOW OFF: If the assembly is not properly made or installed,
the coupling could come off and hit or spray a worker, possibly resulting in serious
injury. Never operate machine without guards.
FLAMMABILITY
With the exception of those comprised primarily of water, all hydraulic fluid is flammable
when exposed to the proper conditions (including many “fire-resistant” hydraulic fluids).
Leaking pressurized hydraulic fluids may develop a mist or fine spray that can flash or
explode upon contact with a cause of ignition. These explosions can be very severe and
could result in serious injury or death.
Precautions should be taken to eliminate all ignition sources from contact with escap-
ing fluids, sprays or mists resulting from hydraulic failures. Sources of ignition could be
electrical discharges (sparks), open flames, extremely high temperatures, sparks caused
by metal-to-metal contact, etc.
HYDRAULIC FLUID
Only use Texaco Rando 46 Hydraulic Oil or Compatible Fluid like IS032. Non-compatible
fluids could cause damage to unit or serious injury.
GROUNDING
Tools marked “Grounding Required” have a three wire cord and three prong grounding
plug. The plug must be connected to a properly grounded outlet (FigureA). If the tool
should electrically malfunction or break down, grounding provides a low resistance path
to carry electricity away from the user, reducing the risk of electric shock.
The grounding prong in the plug is connected through the green wire inside the cord to
the grounding system in the tool. The green wire in the cord must be the only wire con-
nected to the tool’s grounding system and must never be attached to an electrically “live”
terminal.
Your scraper must be plugged into an appropriate outlet, properly installed and grounded
in accordance with all codes and ordinances. The plug and outlet should look like those
in FigureA.

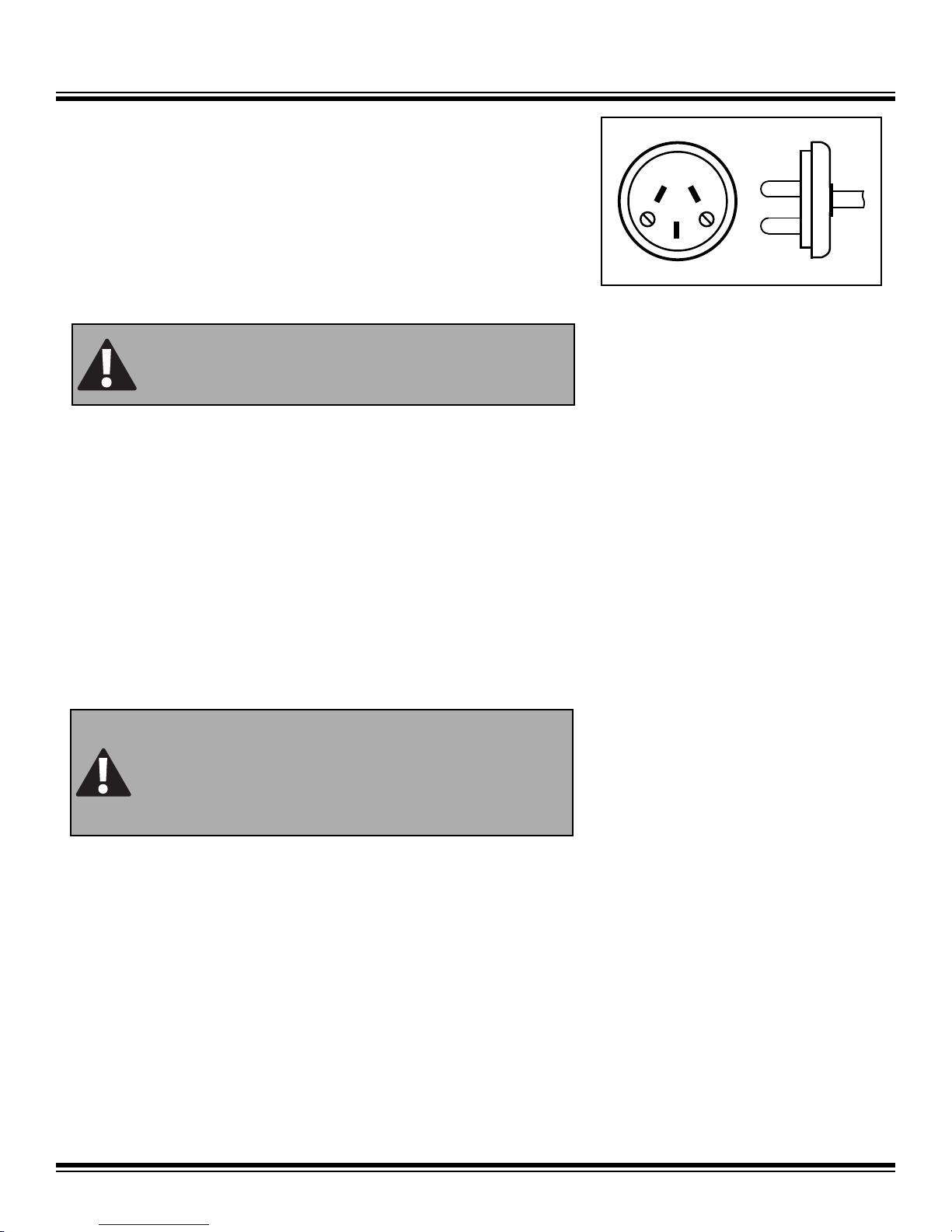

FIG. A
CAUTION: NEVER USE YOUR HANDSTO CHECK FOR LEAKS OVER HOSE
OR HYDRAULIC CONNECTIONS. USEAPIECE OF CARDBOARD TO LOCATE
APRESSURIZED LEAK. FOR LOW PRESSURE LEAKS (DRIPS), USEARAG TO
CLEAN THEAREAAND DETERMINE WHERE THE LEAK ORIGINATES.
WARNING: IMPROPERLY CONNECTING THE GROUNDING WIRE CAN
RESULT IN THE RISK OF ELECTRIC SHOCK. CHECK WITHA QUALIFIED ELEC-
TRICIAN IF YOUARE IN DOUBTAS TO WHETHER THE OUTLETIS PROPERLY
GROUNDED. DO NOT MODIFYTHE PLUG PROVIDED WITH THE TOOL. NEVER
REMOVE THE GROUNDING PRONG FROMTHE PLUG. DO NOT USE THE TOOL
IF THE CORD OR PLUG IS DAMAGED. IFTHE PLUG WILL NOT FITTHE OUTLET,
HAVEAPROPER OUTLET INSTALLED BYAQUALIFIED ELECTRICIAN.

Safety
EXTENSION CORDS
Grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord.As the distance
from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 10 gauge cord can carry a higher current than
a 12 gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum
wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the
required minimum wire size.
GUIDELINES FOR USING EXTENSION CORDS
• If you are using an extension cord outdoors, make sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable
for outdoor use.
• Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it re-
paired by a qualified person before using it.
• Protect your extension cords from sharp objects, excessive heat and damp or wet areas.
• Keep away from water. Do not use if wet.
• Inspect thoroughly before each use. DO NOT USE IF DAMAGED.
• Make sure equipment is OFF before connecting cord outlet.
• FULLY INSERT plug into outlet.
• Do not remove, bend or modify any metal prongs or pins of cord.
• Do not use excessive force to make connections.
• Do not connect a three prong plug to a two-hole cord.
• Avoid overheating. Uncoil cord and do not cover it with any material.
• Do not walk on cord.
• Do not drive, drag or place objects over cord.
• National recommends using a single 50’12 gauge extension cord.
Fax: [phone] [email protected]8
WARNING: ELECTRICAL CORDS CAN BE HAZARDOUS. MISUSE CAN RESULT IN FIRE OR DEATH BY ELECTRICALSHOCK. READ
CAREFULLYAND FOLLOWALL DIRECTIONS.

Machine Operation
www.nationalequipment.com Phone: [phone]
TRANSPORTING
Transport wheels help to eliminate damage to flooring and make movement of unit
easier.
ATTACHING/REMOVING TRANSPORT WHEELS
1. Remove two outside blade cover bolts (Figure B).
2. Tipmachineback andblock upfront ofmachine socutting headhas enoughclear-
ance for front wheel assembly to fit under (Figure C).
3. Mount front wheel assembly over blade cover. Replace two outside blade cover
bolts.
4. Remove blocks.
5. DO NOT leave machine in transport mode while in transit in vehicle without ma-
chine being secured.
6. To remove reverse procedure from above.
LOADING/UNLOADING
LIFTING BAIL
The lifting bails make loading/unloading easier when not able to drive or using a ramp.
Location on lifting bails centrally locates balance of the machine to safely pick-up ma-
chine.
1. Place rope, hook system or chain through eyelets located on top of machine.
2. Raise machine with a fork lift or winch.
3. Slowly lower to desired location.
RAMPLOADING
1. Make sure ramp is clean and dry, free of grease or oil.
2. Attach ramp securely to back of vehicle, making sure there is good contact
3. Position machine at bottom of ramp.
4. Engage power switch and drive onto vehicle.

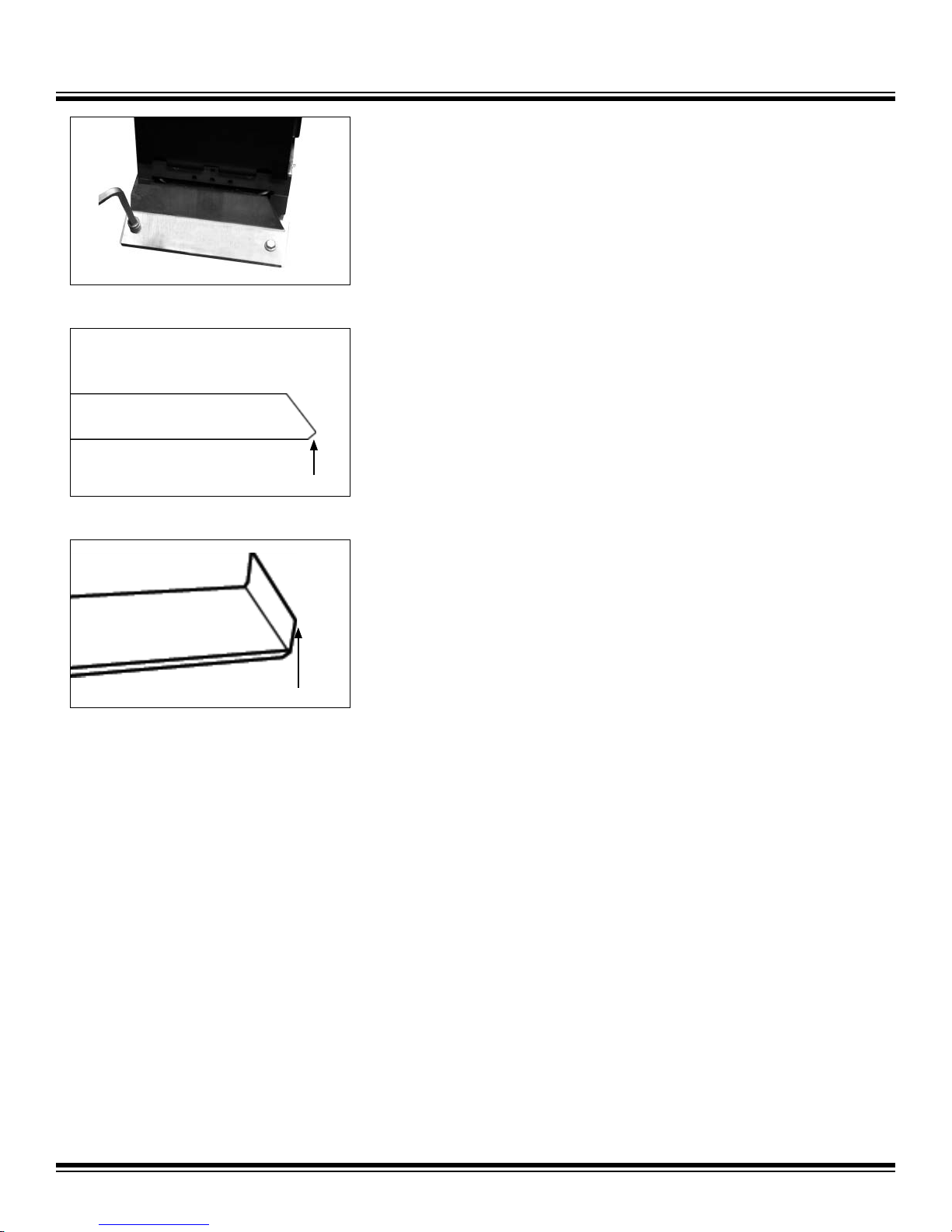

FIG. B
FIG. C
WARNING: NEVER HAVE TRANSPORT WHEELASSEMBLY MOUNTED
ONTO MACHINE OR WEHEELS DISENGAGED WHEN GOING UPOR DOWN A
LOADING RAMP OR INCLINE. FAILURE TO DO SO COULD CAUSE MACHINE
RUNAWAY, DAMAGE TO MACHINE, DAMAGE TO PROPERTYOR CAUSE
SEIOUS INJURY.
CAUTION:ALWAYS REMOVE ALLCOUNTER WEIGHTS & BLADESAND
MAKE SURE THE WHEELSARE IN “ENGAGE MODE” (FIGURE D) BEFORE
LOADING OR UNLOADING. FAILURE TO DO SO COULD RESULT IN PROP-
ERTY DAMAGEAND/OR PERSONAL INJURY.

Machine Operation

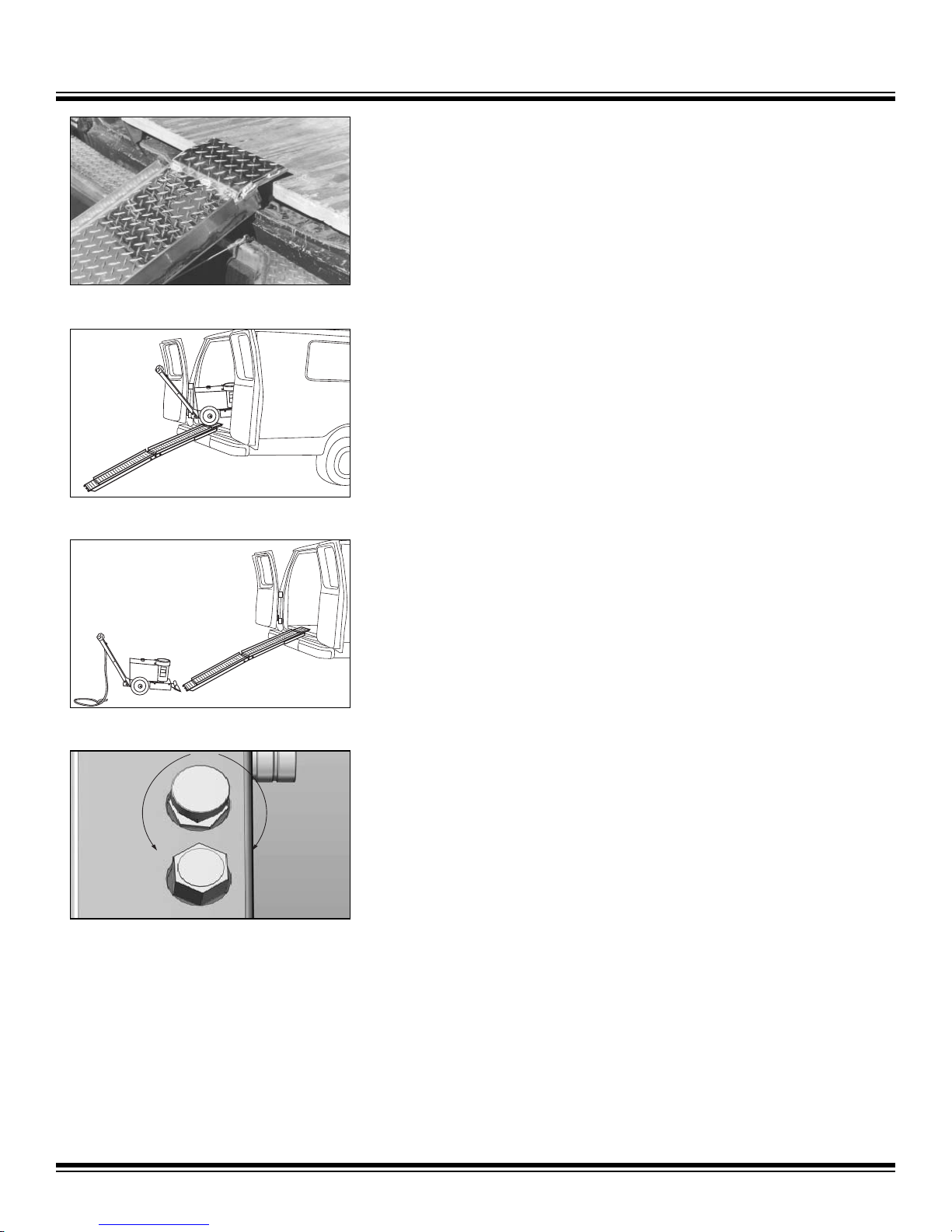

RAMPUNLOADING
1. Position ramp securely to back of vehicle, making sure there is good contact (See
Figure D).
2. Position machine at the back of the truck in line with the ramp (See Figure E).
3. Carefullymovemachineontorampleavingcuttingheaddown(incontactwithramp
surface). CAUTION: Machine even without weights weighs 264 pounds (119.75
kg). Make sure you have machine under control. Failure to do so could cause
machinerunaway,damagetomachine,damagetopropertyorcauseseriousinjury.
4. Slowly back machine down ramp (See Figure F).
OPERATING CONTROLS
MACHINE START-UP PROCEDURE:
1. Machine MUST be off before plugging machine into power source.
2. Plug machine into outlet.
3. Turn speed control to slowest position.
4. Push “ON/OFF” switch to the ON position.
5. Compress handle switch to move forward.
6. Control speed by varying amount of twist on handgrips.
SPEED CONTROL
• Speed control knob can be adjusted while machine is running.
• Turning speed control knob counter clockwise will increase maximum forward
speed (See Figure G).
• Turning speed control knob clockwise will decrease maximum forward speed (See
Figure G).
FIG. D
FIG. E
FIG. F
Fax: [phone] [email protected]10
FIG. G
FASTER SLOWER
