NATURE LOO CLASSIC 650 User manual

NATURE LOO
CLASSIC 650
INSTALLATION & OPERATION MANUAL
IMNL-009-2023.04.28
©Ecoo Wastewater Management Pty Ltd

TABLE OF CONTENTS
ITEMS REQUIRED (NOT INCLUDED) 1
TOOLS REQUIRED 1
NATURE LOO CLASSIC 650 SCHEMATICS 2
INSTALLATION 3
STEP 1: POSITION THE PEDESTAL 3
STEP 2: POSITION THE WASTE CHUTE 3
STEP 3: INSTALL THE WASTE CHUTE 5
EXTRA LENGTH REQUIRED FOR UNDER-FLOOR AREAS 6
STEP 4: INSTALL THE WHEELS 6
STEP 5: INSTALL THE COMPOST CHAMBER 7
STEP 7: CONNECT THE VENT PIPE AND FAN 8
OPTIONAL EXTRAS 8
STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE 9
POWERING YOUR FAN 10
LEACHATE DRAIN 11
COMPOSTING ACCELERATORS 12
CARE & MAINTENANCE 13
ROTATION OF CHAMBERS 14
TROUBLESHOOTING 15
PRODUCT & COMPONENT WARRANTY 17
MAINTENANCE SCHEDULE 18

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 1

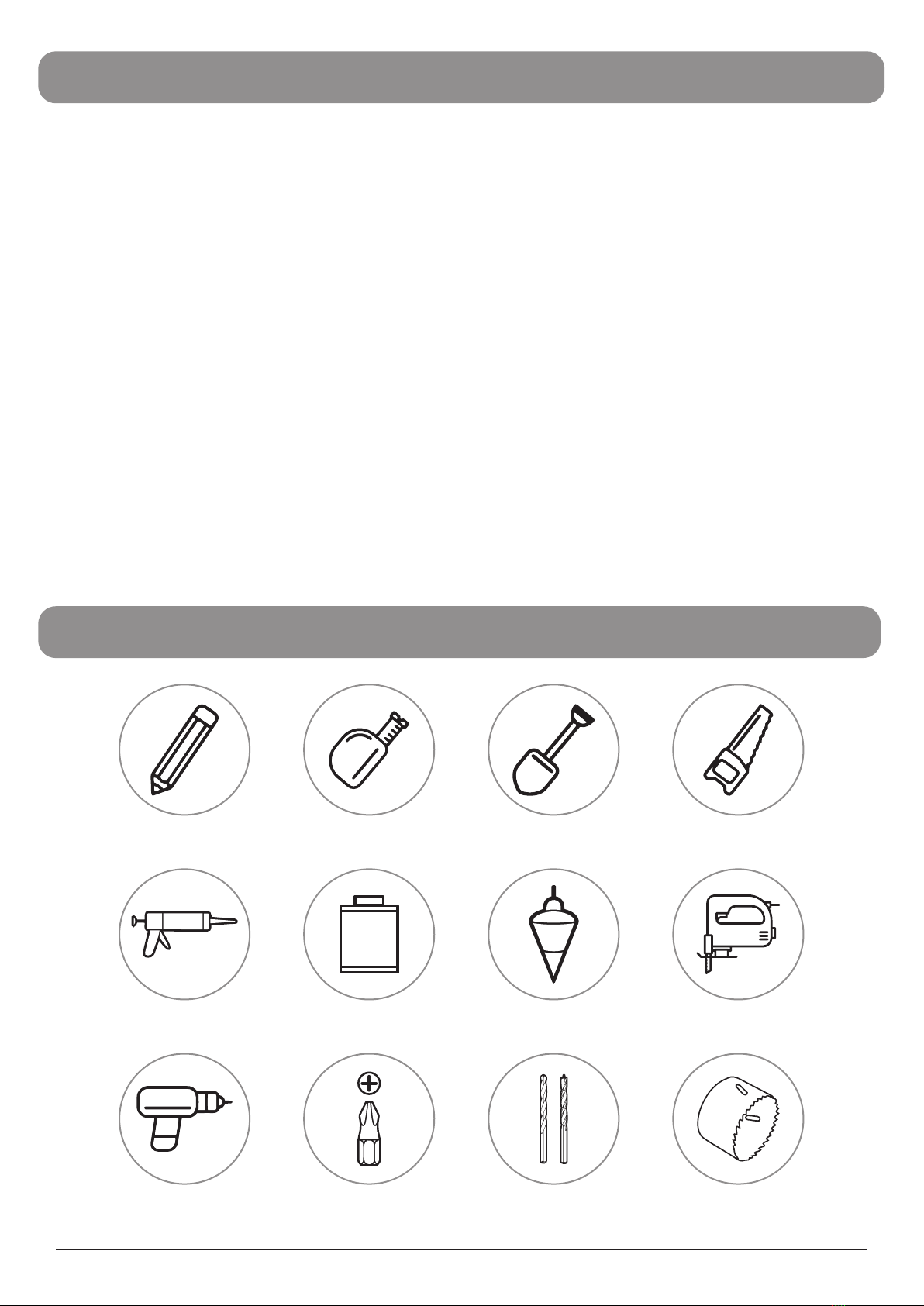

TOOLS REQUIRED
PVC
CEMENT
SILICONE
Marker Tape Measure Shovel Hand Saw
JigsawPlumb BobPVC CementCaulk Gun
Power Drill Philips Drill Bit Masonry and Brad
Point Drill Bits Hole Saw Drill Bit
ITEMS REQUIRED (NOT INCLUDED)
Please check the packing slip to ensure everything has been delivered. If anything is missing, please
notify Ecoo within 72 hrs of receipt.
You will need the following items to complete your installation.
Vent items
• Wall brackets to x the vent pipe to the building
• A length of 100mm DWV vent pipe to connect to the air exhaust (length depends on specic
installation)
• Dektite if DWV vent pipe will penetrate the roof
Leachate drain items (please check with your local authority)
• Ø100mm Agricultural pipe
• 1.5m x 0.5m Synthetic or Hessian geotextile mat
• 50mm PVC pipe to connect the hose to the agricultural pipe
• 0.30m³ 20mm Aggregate
A vent kit and drain kit are available to purchase separately from Ecoo.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 2
Pedestal
Chute
500mm
In-service
chamber
Fan in housing
Y Juntion
End cap
Vent pipe
Brackets*
100mm DWV pipe*
45° bend*
Dektite*
600mm
600mm
Vent cowl
Camlock fittings
Excess liquid drain hose
Moisture trap
Leachate drain*

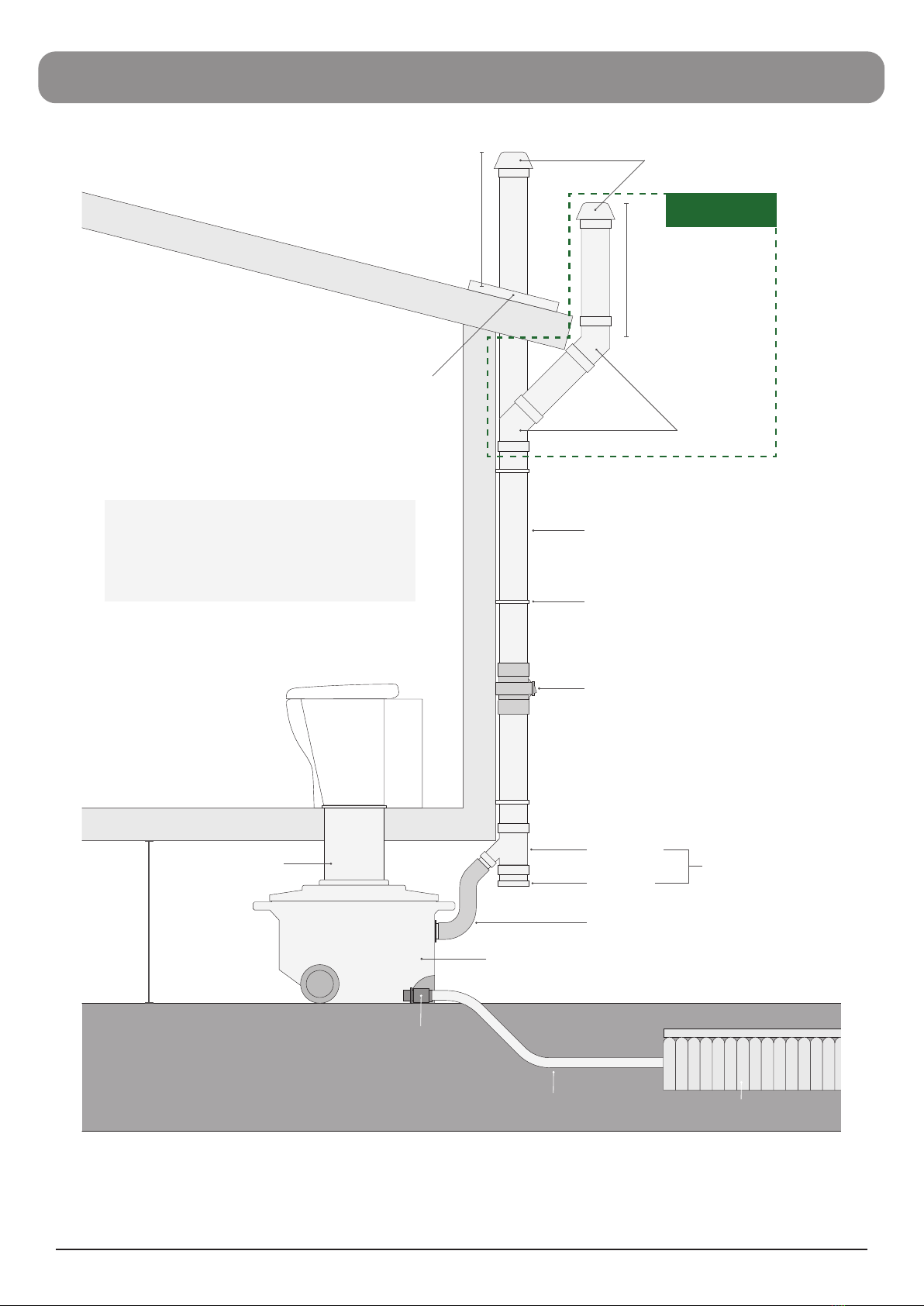

NATURE LOO CLASSIC 650 SCHEMATICS
If you are planning to excavate an area under
the house for the compost chambers, please
ensure the area is well-drained and any
retaining walls are built to the satisfaction of
the local authority.
Vent Installation
Option
*Not included in package
A drain kit and vent kit are available to purchase seperately from Ecoo.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 3
INSTALLATION

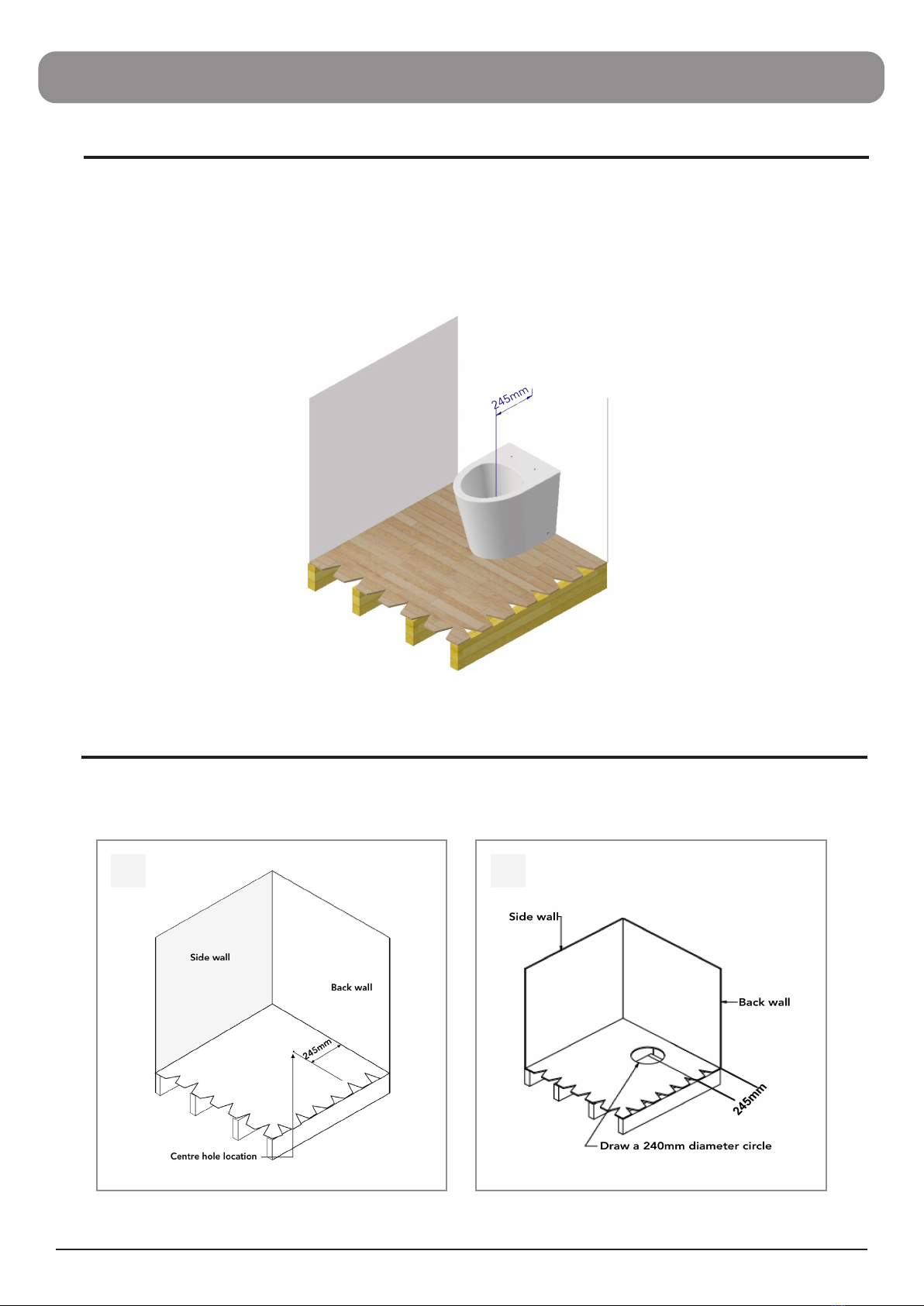

STEP 1: POSITION THE PEDESTAL
Locate the approximate area where you want the pedestal to go before cutting the hole.
The usual position for pedestals is centred between side walls.
NOTE: Due to the pedestals being man made, the distance to the centre may vary from 245 to
255mm. Please check before cutting the hole.

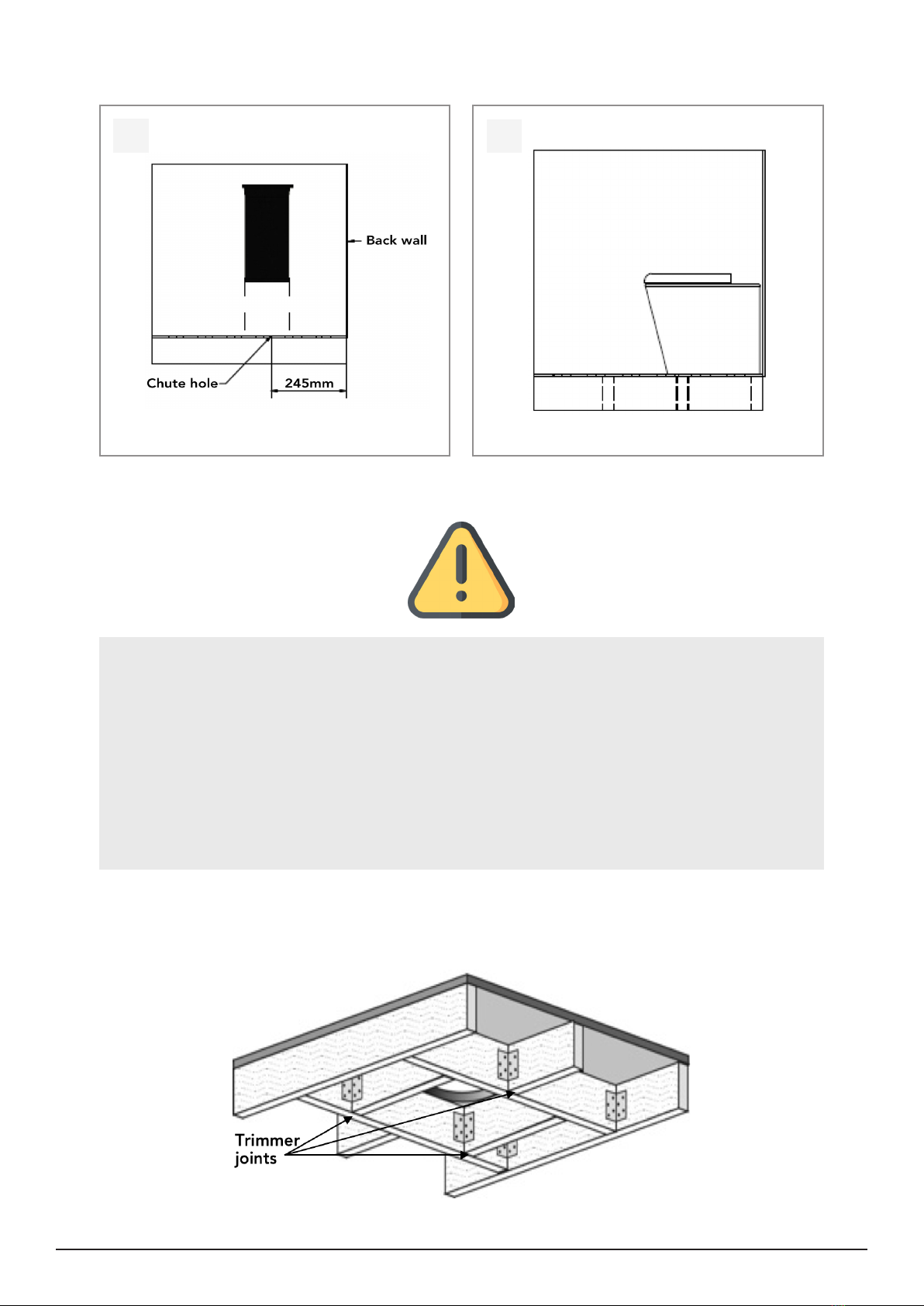

STEP 2: POSITION THE WASTE CHUTE
A 240mm hole must be cut in the toilet room oor to accommodate the waste chute.
2
1

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 4
View from under oor
4
3
Go to the underoor area and look for the hole you have drilled.
Check to see if there is a oor joist, water pipe or electrical wiring under the area you
are going to cut.
If there is a joist in the way, either reposition the waste hole OR install trimmer joists to
each end of the cut joist, and x all connections with galvanized framing anchors with 4
nails each leg (refer to diagram below).

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 5

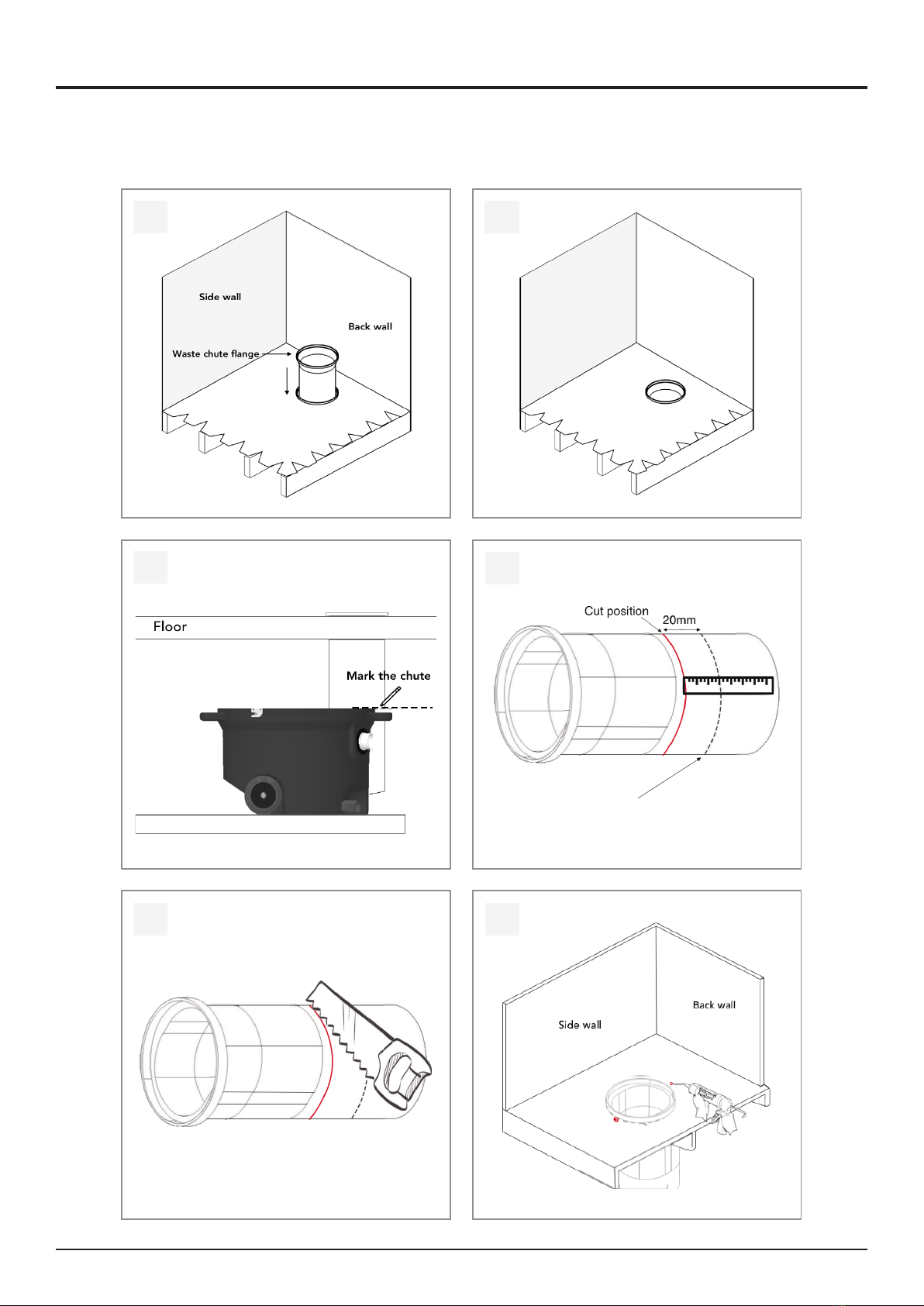

STEP 3: INSTALL THE WASTE CHUTE
First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its nal level
beneath the toilet room.
Insert the chute into the hole
Mark position
1
5
3
6
4
2
Note: Remove lid
before measuring.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 6

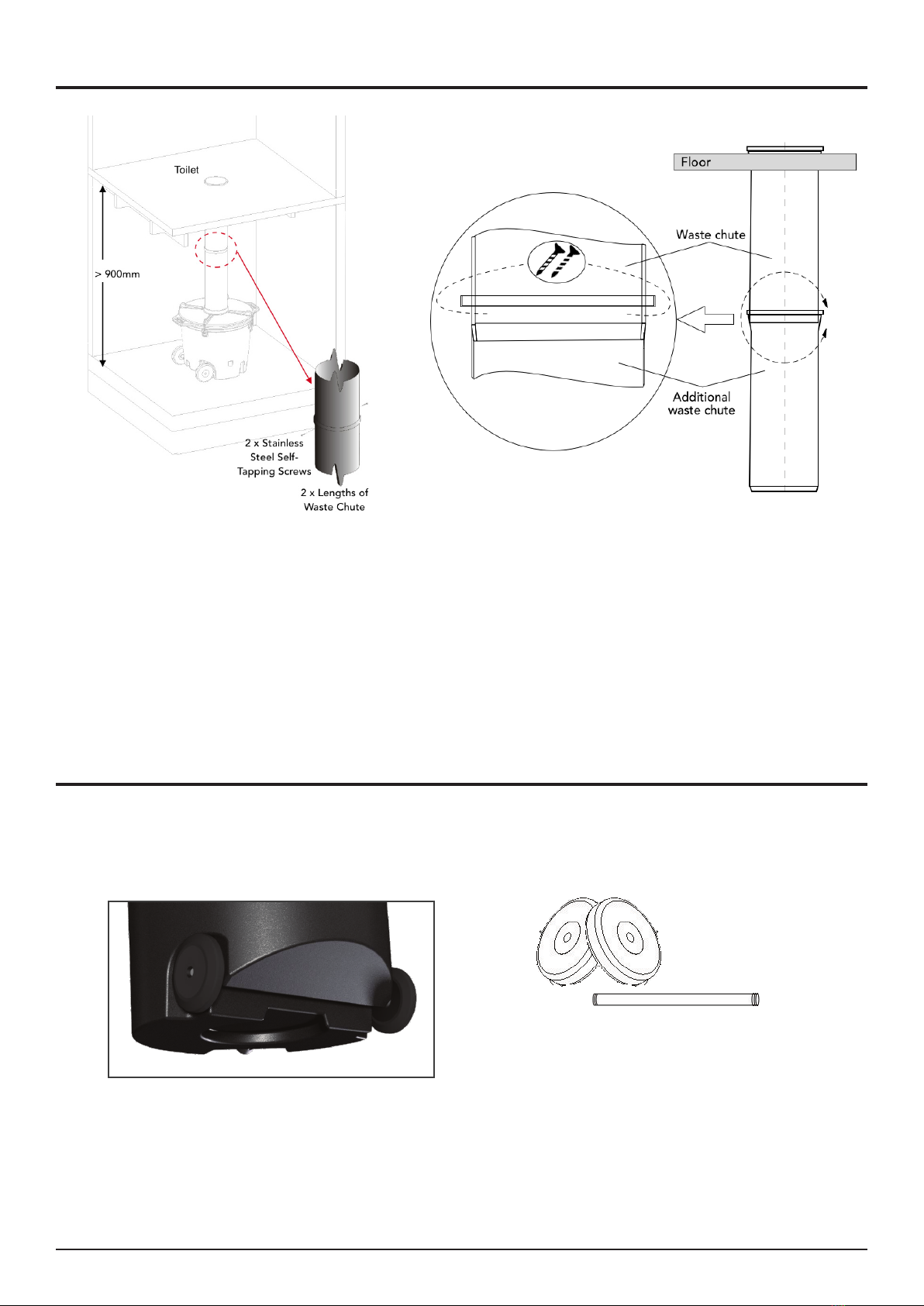

EXTRA LENGTH REQUIRED FOR UNDER-FLOOR AREAS
If the underoor height exceeds 900mm (oor-to-oor), you will require additional lengths of chute,
xed together with small stainless steel self-tapping screws below the ange of the additional waste
chute.
As the chute joints are tapered, the top waste chute must be inserted through the toilet room oor
rst with additional waste chutes added from below.
STEP 4: INSTALL THE WHEELS
Attach the wheels to the ends
of the axle and place under the
chamber.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 7
STEP 5: INSTALL THE COMPOST CHAMBER
1. A brush seal is supplied for the
‘In-service’ lid and acts as a seal to
prevent any odor emitting from the
chamber. Remove the adhesive cover
and place the brush seal on the inside
surface of the lid as shown below.
2. Add 50mm depth of bulking agent
to the chamber to create a bed.
3. Slide the ‘In-service’ compost
chamber lid (with pre-cut hole)
up onto the waste chute from
underneath.
5. Hook the bungee loops over the
knobs as shown.
4. Place the chamber underneath the
lid and lower it onto the chamber.
Place brush seal on insi
de surfaceof
chute extrusion as shown.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 8

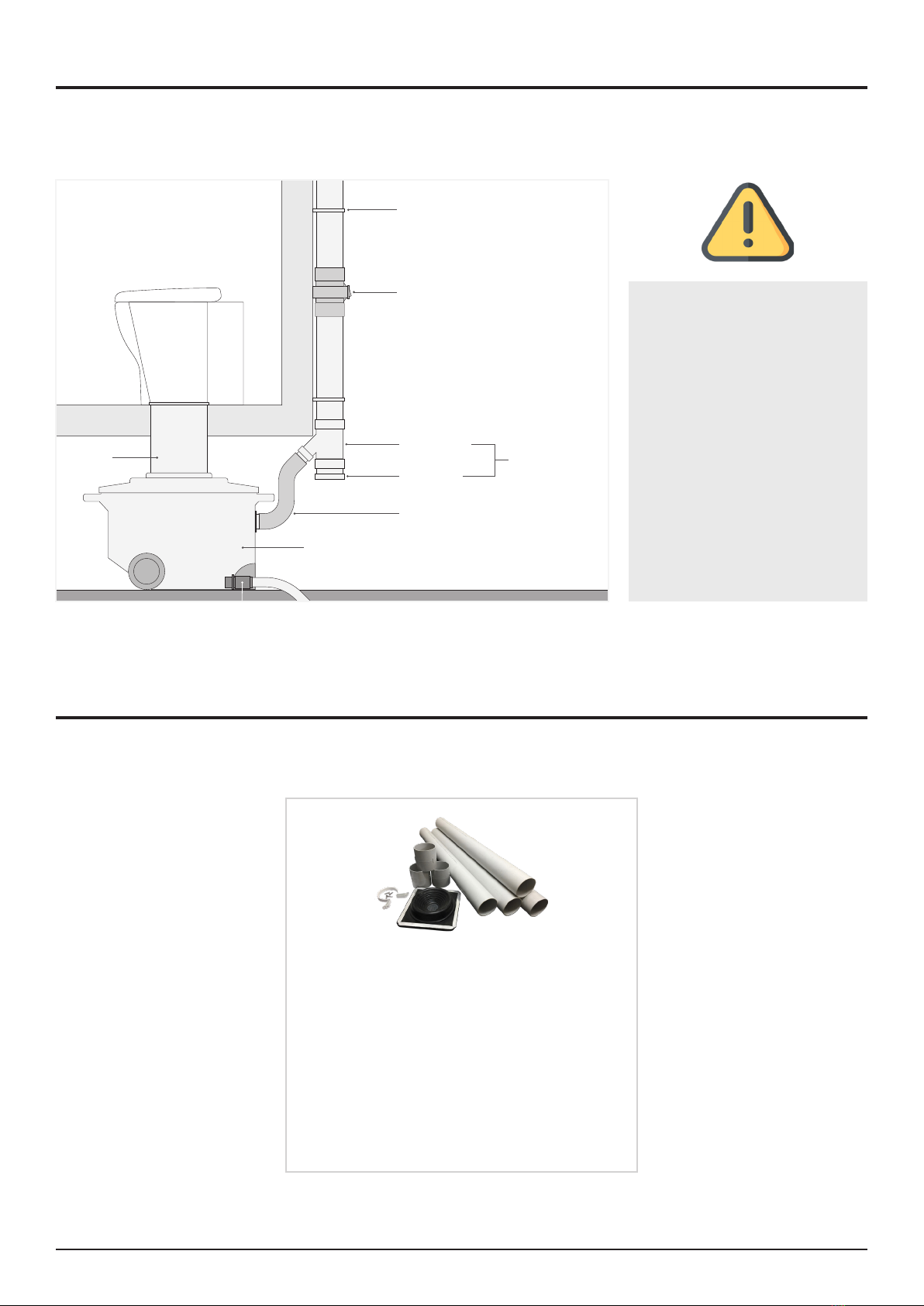

STEP 7: CONNECT THE VENT PIPE AND FAN
The fan is IP68 rated so will not be effected by moisture.
Do not glue the fan
housing to the DWV
ttings.
It is recommended that
the fan runs 24 hours
a day to continuously
circulate air through
the compost heap.
Air is drawn down the
toilet pedestal through
the compost chamber
and out the vent pipe.
100mm DWV vent kit:
• ø100mm DWV Pipes
• ø100mm DWV Slip Joiners
• ø100mm Stand Off Brackets
• Dektite
OPTIONAL EXTRAS
A vent kit is available to purchase separately from Ecoo Wastewater Management.
Pedestal
Chute
500mm
In-service
chamber
Fan in housing
Y Juntion
End cap
Vent pipe
Brackets*
100mm DWV pipe*
45° bend*
Dektite*
600mm
600mm
Vent cowl
Camlock fittings
Excess liquid drain hose
Moisture trap
Leachate drain*

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 9

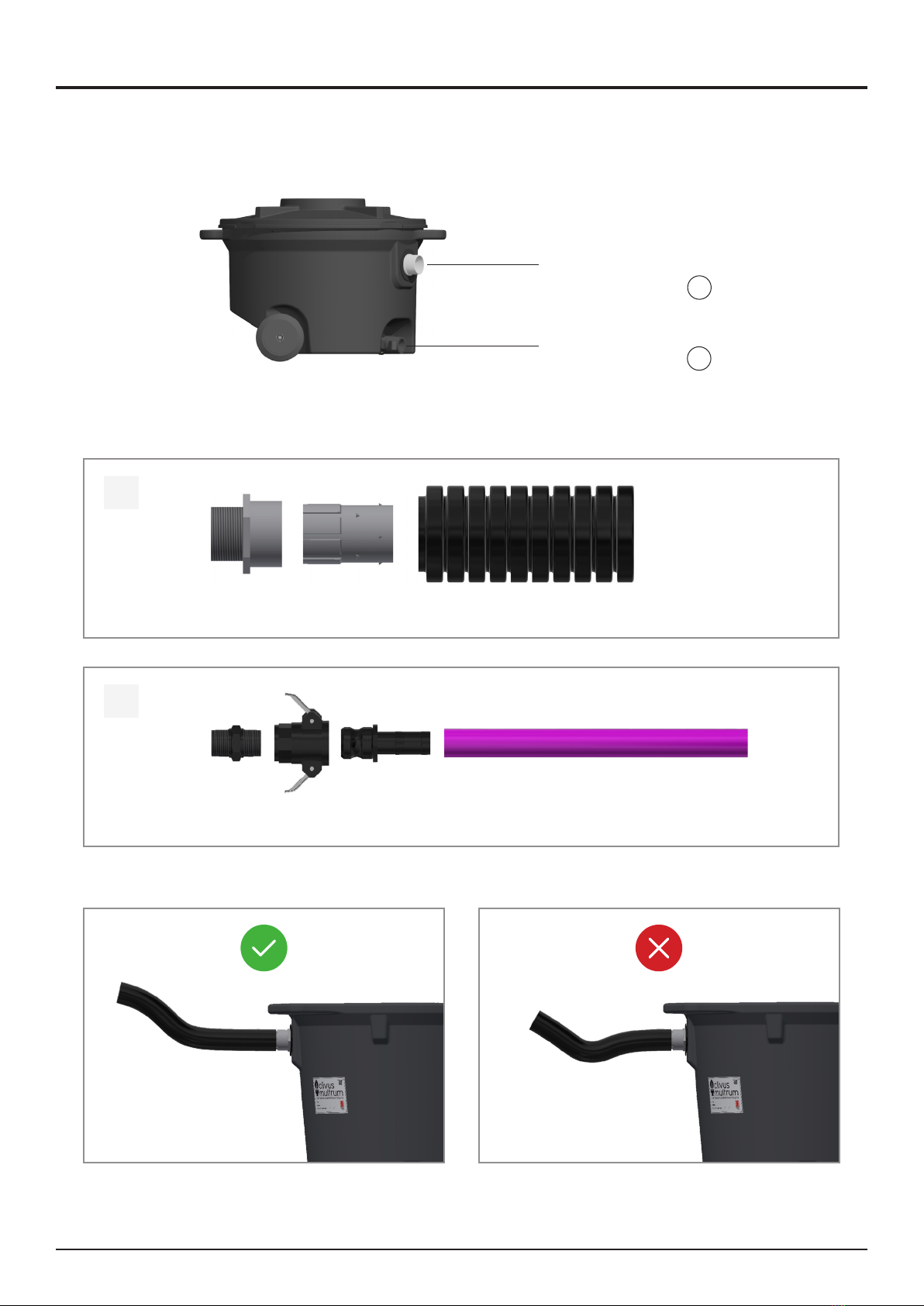

STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE
Liquid Drain Outlet
See image 2
Air Vent Outlet
Screw the 50mm MI
connector into here
See image 1
1
2
MI Connector Slotted Pipe
Connector Flexible Vent Pipe
Female
Camlock
Nipple Male Barbed
Camlock Liquid Drain Hose
Dip the ends of the
vent pipe into hot
water for easier
insertion of the
pipe connectors

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 10
1 2
43

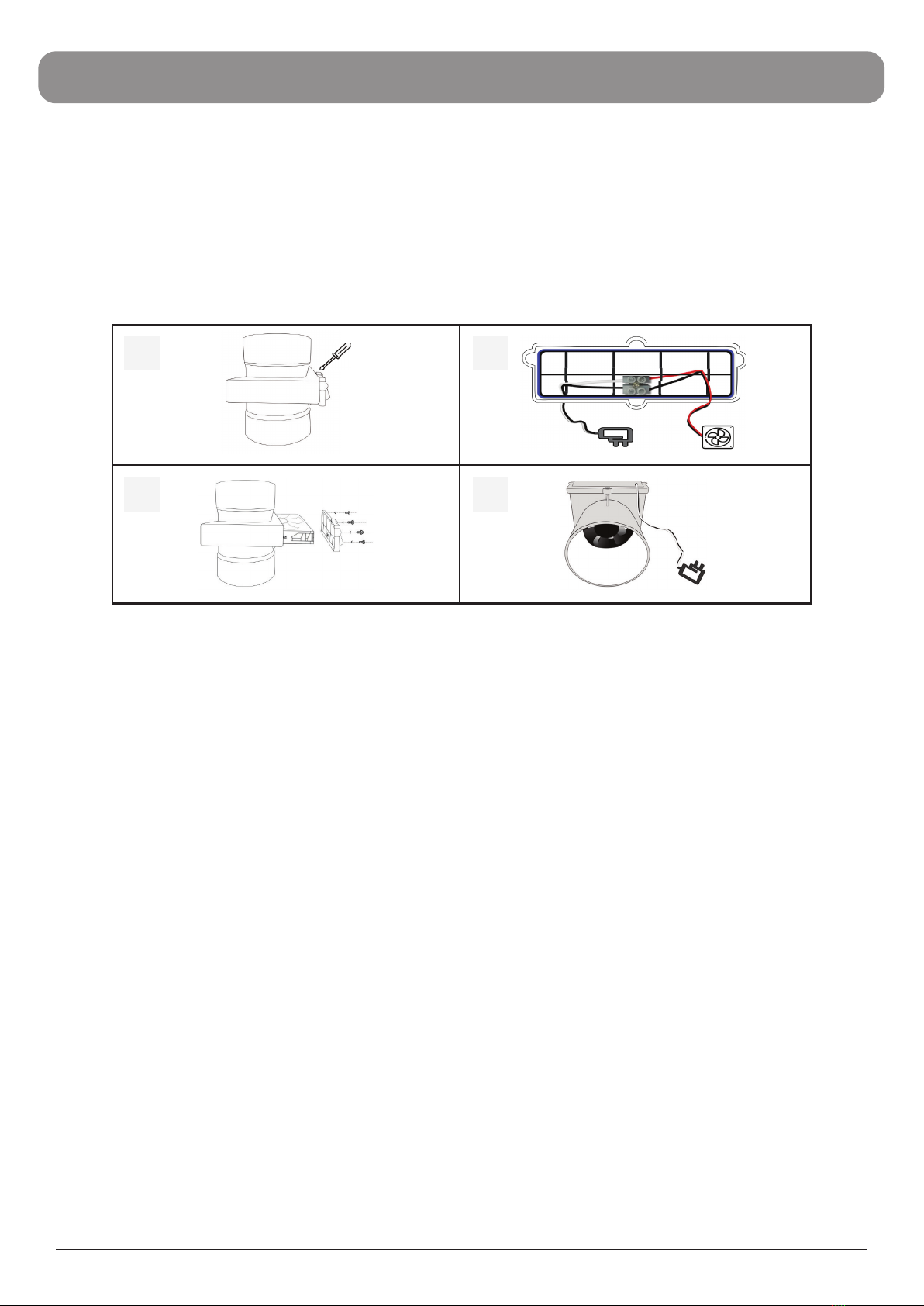

POWERING YOUR FAN
Mains Power
A 120 /12 volt regulated transformer is included to run the fan from mains power. The positive wire
the transformer is marked with a white line. The fan has anti-polarity protection and would not run if
connected incorrectly.
Connect the fans to the transformer as follows:
solar Power
Refer to separate installation manual for the solar panel.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 11

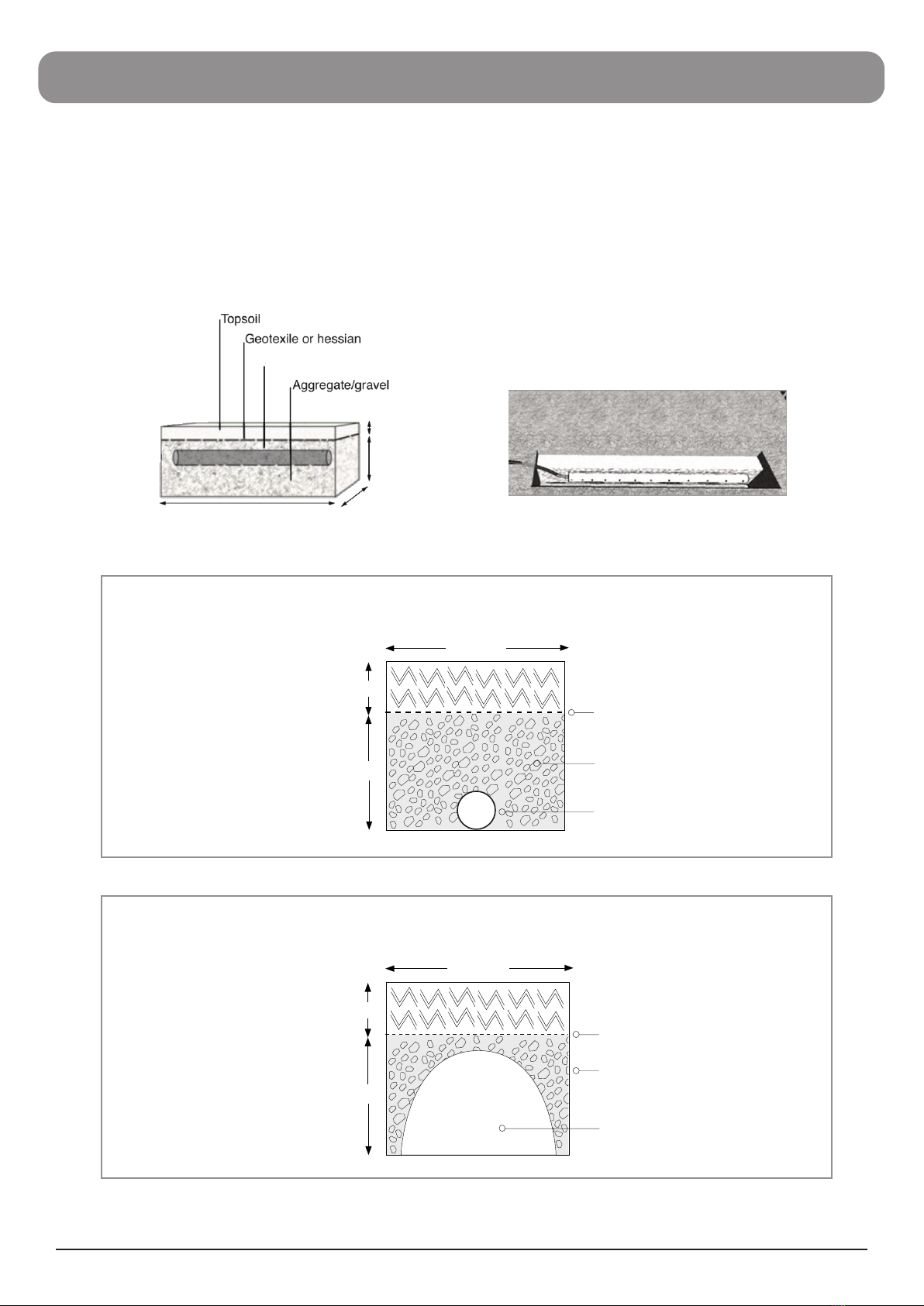

LEACHATE DRAIN
A leachate drain kit (not including gravel) is available to purchase separately from Ecoo Wastewater
Management.
Alternatively, if your council allows, you may wish to construct your own leachate drain. The liquid drain
hose should run into either a 50mm PVC pipe (drilled to allow liquid to escape) OR a length of socked
slotted Ag pipe, buried in an absorption trench as shown in the diagram below.
150mm
230mm
500mm
1200mm
Socked slotted pipe
230 min
150 min
500 min
Leachate drain
Gravel
Geofabric layer
300 min
150 min
450 min
20mm Gravel
ø100mm Agi Drain
Geofabric layer
agi Drain
Trench arch Drain

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 12
COMPOSTING ACCELERATORS
Whilst Clivus Multrum users report successful composting without the use of any additives, we strongly
recommend the use of the following items in order to optimize composting, particularly when the toilet
is in permanent use by more than two people.
Bulking agenT
This should be added on a regular basis, preferably a handful after each
solid use. Alternatively, if this is not possible, add the equivalent of this
on a daily or weekly basis. The bulking agent can be added through the
pedestal.
We do NOT recommend the use of:
• Sawdust as it creates an anaerobic condition within the chamber.
• Cypress, cedar or eucalyptus wood shavings due to their antimicrobial
properties.
• Sugar cane mulch as it makes using the mixer difcult.
liquiD enzyMes
A 125ml bottle of enzyme concentrate is supplied with the toilet. Please
refer to the label for instructions and spray into the waste chute. A spray
ask is provided. Any staining of the pedestal can also be removed with
the spray.
MicroBes
This should be used each time a chamber is changed to kick start the
process in the new chamber.
Shop consumables:
ecoo.com.au/products/consumables

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 13
CARE & MAINTENANCE
Daily or weekly
• Clean restroom & toilet xtures using only biodegradable cleaners.
• Add 1 cup of bulking agent to toilet after every solid use.
MonThly
• Inspect the ‘In-service’ chamber, depends on usage, prepare another ‘In-service’ chamber for
use once the chamber becomes full (refer to Rotation of Chambers, page 13).
• Check vent pipe & remove any foreign matter.
• Check the fan is operating
• Check that system is draining correctly
6 MonThs
• Remove and clean fan
Shop consumables at
ecoo.com.au/products/consumables

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 14
ROTATION OF CHAMBERS
It is important to observe safety procedures when dealing with fresh human waste.
Please ensure you wear protective clothing (gloves and old clothes). Do not attempt
to move the chambers on your own.
your firsT roTaTion of The chaMBers:
The Nature Loo composting toilet chambers will need to be changed on a regular basis. A sufcient
number of chambers must be purchased to allow the ‘Out-of-service’ chamber to have a minimum of 5
months (depending on climate) from the time they are disconnected from the waste chute.
Prepare a new ‘In-service’ chamber for use (refer to Step 5: Install the Compost Chamber, page 7).
Pour a small bucket of bulking agent (clean mulch) down the pedestal to cover up the waste pile before
removing the full chamber.

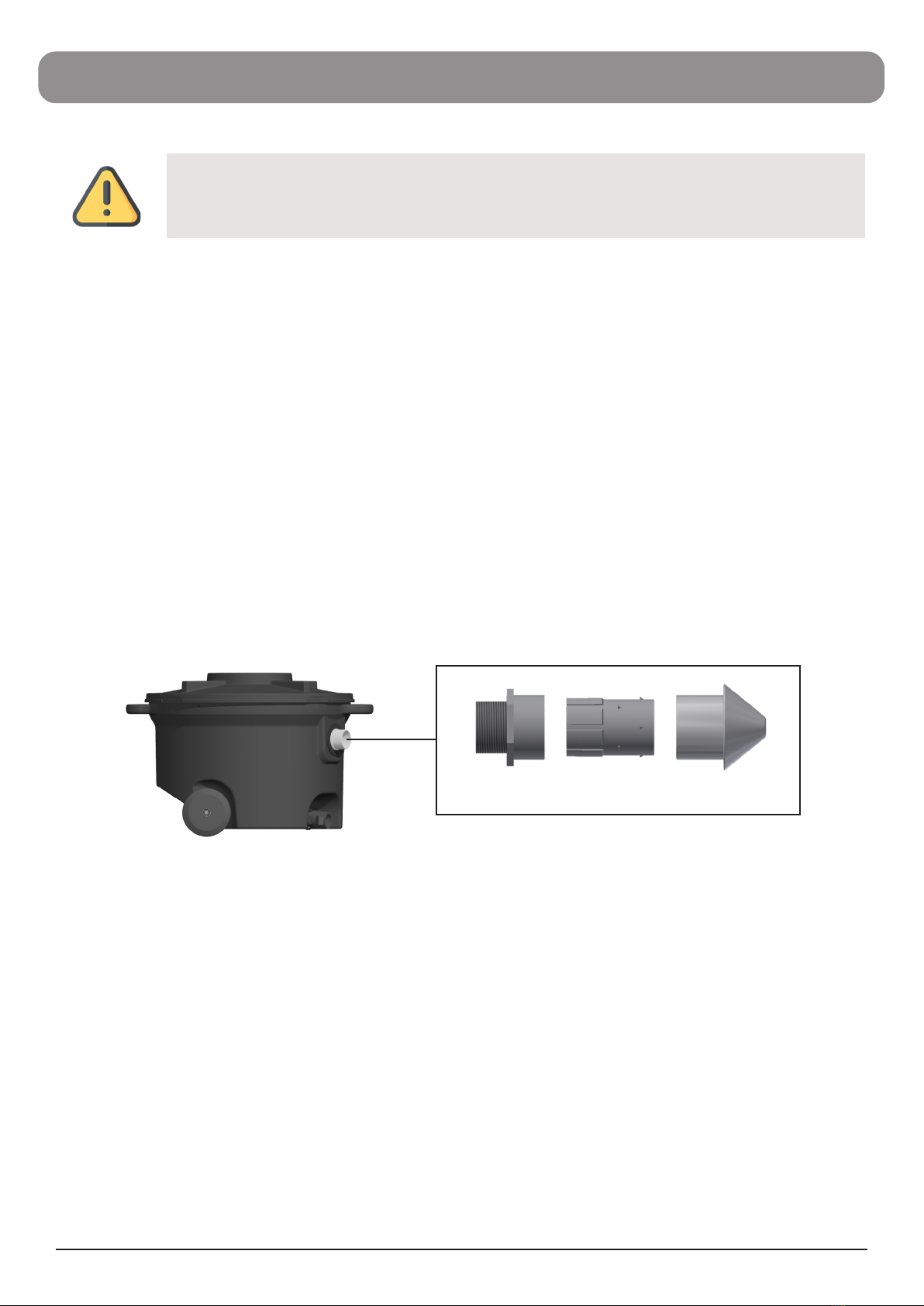

exTra chaMBer/s:
The ‘Out of Service’ chamber should be put in a warm position with the Air Intake Cap attached to
threaded connector and the dust plug attached to the camlock.
reMoval of coMPosT:
The pile should have reduced in size to approximately 20% of its original size and contain a maximum
of 75% moisture. This ‘humus’ must then be disposed of as per the local health department regulations.
This normally means digging the humus into the soil and covering with at least 100mm of soil.
reTurning achaMBer To service:
1. Ensure all hose and vent connections are clear.
2. Prepare the ‘In-service’ chamber for use (refer to Step 5: Install the Compost Chamber, page 7).
If the ‘Out-of-service’ chamber is to be placed away from the Main Vent assembly, you will need to dig
a small second trench (20 x 20 x 20cms) to allow residual liquid to exit the chamber. Connect the second
liquid drain hose from the chamber to the trench.
MI Connector Slotted Pipe
Connector
Air Intake Cap

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 15
TROUBLESHOOTING
Please reaD This secTion Before using your ToileT.
Nature Loo toilets have proven themselves to be one of the easiest systems to manage. However, being
a natural process, reliant on a number of factors beyond our control, it can occasionally need some help
to maintain an appropriate balance.
The ‘in-service’ chaMBer is filling Too quickly:
This may be caused by a number of factors:
THE TEMPERATURE IS TOO LOW for effective composting.
INSUFFICIENT AIR FLOW.
This can be caused by a broken fan or the chamber being too full. Check the fan is operating and the
level of the pile is not too high. This problem could also be caused by a blocked insect screen in the
vent cowl.
THE PILE BEING TOO WET.
This could be the result of the outlet of the liquid chamber being blocked and causing the upper
chamber to ood. Check the drain hose is not blocked and ush with a hose if necessary. You may need
to change chambers if the blockage is in the chamber and thoroughly ush out the contents of the
liquid chamber.
ANTIBIOTICS AND DISINFECTANTS WILL SLOW DOWN OR STOP THE PROCESS.
Restart the composting by reintroducing microorganisms. In many of these situations Nature Flush
Enzymes will help solve inefcient composting by breaking down the solids and thereby speeding up
decomposition.
The ‘ouT-of-service’ chaMBer is coMPosTing Too slowly:
This may happen due to one or more of the problems described above. You could add 500ml of Nature
Flush Enzymes from a domestic spray bottle as you turn the material and add a quantity of Nature Quick
Microbes.
You should consider locating the chamber where it has a greater exposure to direct sun light. However,
if you nd the pile is drying out too quickly put the chamber in a shadier position.
If you nd that none of the above measures are effective, it means the local climatic conditions are less
than ideal. This can happen in cold or humid conditions and you will need to purchase an additional
chamber in order to provide an extended composting period.
If you need to change your ‘In-service’ chamber and the ‘Out-of-service’ chamber is not yet composted,
dispose of the waste as normal and order an extra chamber from Ecoo.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 16
Find more Troubleshooting and FAQ information online at
ecoo.com.au/FAQ
or call us on
1300 138 182
The oDour froM The ‘ouT-of-service’ chaMBer is unPleasanT:
If the ‘Out-of-service’ chamber is not connected to the vent pipe it may smell immediately after it has
been taken ‘Out-of-service’. Odours can be greatly reduced or eliminated by covering the top of the
pile with straw or dry grass clippings. You may wish to do this before disconnecting the chamber.
The oDour froM The ‘in-service’ chaMBer is unPleasanT:
If this is not caused by a failed fan, or blockage in the vent pipe, liquid drain hose or tting, please see
the “‘In-service’ chamber is lling too quickly” section for how to resolve this problem.
The Power has faileD resulTing in ToileT rooM oDours:
Cover the pedestal with cling lm until the power is restored. If you are connected to mains power
consider installing an Uninterrupted Power Supply (UPS), available at Ecoo Wastewater Management.
The UPS will cut in with power from a 7Ah battery when there is a loss of mains power.
Helpful hints from our customers:
• Paint the Vent Stack black to produce an upward air ow.
• Add a wind assisted turbo vent to the Vent Stack.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 17
PRODUCT & COMPONENT WARRANTY
Ecoo will furnish new parts to a customer whose toilet fails within the allotted warranty period for
the particular component, provided that our inspection shows such failure is due to defective material
or workmanship. Any part supplied is warranted for the balance of the original warranty period. The
warranty period for a part begins from the date the original product was dispatched (plus 10 working
days for transportation).
Warranty Period:
Any electrical component including solar 1 year
Any rotomoulded component 10 years
Any porcelain/polymarble component 4 years
Toilet seats 1 year
Any other component 1 year
This warranty does not cover:
• Damage resulting from neglect, abuse, accident or alteration; or damage caused by re, ood, acts
of god or other causality.
• Damage resulting from failure of the purchaser to follow normal installation and operating
procedures outlined in the manual or in any other printed instructions supplied with the system.
• Labour and service charges incurred in the removal and replacement of any parts found defective
under this warranty.
Items subject to a dispute, where photographic evidence is inconclusive, must be sent prepaid to
Ecoo. The cost will be reimbursed by Ecoo should the claim be found valid.
In addition to the above, Ecoo will only replace a fan that fails during the warranty period under the
following conditions:
• The fan has only ever been connected and powered by either a 12 volt transformer plugged into
mains power or a solar system supplied by Ecoo. Connecting your fan directly to a power source
other than one supplied or specied by Ecoo may result in damage to the fan and void the
warranty.
• The fan and transformer must not be modied/altered in any way.
• The faulty fan is returned to Ecoo for inspection, if required.
Providing the above conditions have been met replacement fans are shipped the same or following day
free of charge by regular post.

©Ecoo Wastewater Management Pty Ltd
IMNL-009-2023.04.28 Page 18
MAINTENANCE SCHEDULE
Please place this maintenance schedule close to your ‘In-service’ Chamber and complete the table as
you rotate your chambers.
Model: ______________
Date First Put into Service: _____/_____/________
The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was rst rotated
‘Out-of-service’.
Date chambers were last rotated:
Wear protective clothing including gloves and eyewear
when servicing, rotating or emptying chambers.
