Nautel NV20LT User manual

2: INSTALLATION MANUAL
NV20LT/NV15LT
TRANSMITTER
Document ID: NHB-NV15LT-NV20LT-INS
Version: 4.0
Issue Date: 2018-02-26
Status: Standard
Making Digital Radio Work

VERSION 4.0 2018-02-26 PAGE III
NV20LT/NV15LT INSTALLATION MANUAL
Contact Information
Nautel Limited
10089 Peggy’s Cove Road
Hackett’s Cove, NS Canada B3Z 3J4
Toll Free: +1.877.6NAUTEL (662.8835)
(Canada & USA only) or
Phone: [phone] or
Fax: [phone]
Nautel Inc.
201 Target Industrial Circle
Bangor, Maine USA 04401
Phone: [phone]
Fax: [phone]
Customer Service (24-hour support)
+1.877.628.8353 (Canada & USA only)
+1.902.823.5100 (International)
Email: [email protected]
Web: www.nautel.com
The comparisons and other information provided in this document have
been prepared in good faith based on publicly available information.
For verification of materials, the reader is encouraged to consult the
respective manufacturer's most recent publication on the official
website or through contact with Customer Service.
© Copyright 2018 NAUTEL. All rights reserved.

NV20LT/NV15LT INSTALLATION MANUAL TABLE OF CONTENTS
VERSION 4.0 2018-02-26 PAGE 2.V
CONTENTS
Contact Information 2.iii
RELEASE CONTROL RECORD 2.vii
Preparing for installation 2.1.1
Unpacking and Positioning 2.2.1
Installing Options 2.3.1
Upgrading to Dual Exciter 2.3.2
Installing the UPS Interface 2.3.3
Installing the Orban Inside Card 2.3.4
Connecting to Station Reference Ground 2.4.1
Connecting Ac Power 2.5.1
Installing the RF Feed Cable 2.6.1
Installing Program Inputs 2.7.1
Planning Complete? 2.7.1
Routing Cables 2.7.1
Installing Control/Monitor Wiring 2.8.1
Planning Complete? 2.8.1
Routing Cables 2.8.1

NV20LT/NV15LT INSTALLATION MANUAL TABLE OF CONTENTS
PAGE 2.VI VERSION 4.0 2018-02-26
Commissioning 2.9.1
Pre-Commissioning Tasks 2.9.1
Commissioning 2.9.2
Going On-Air 2.9.5
Network Setup 2.9.6
Changing the OS Password 2.9.8
Parts and Tools 2.10.1
Contacting Nautel 2.10.1
Parts Supplied by Nautel 2.10.2
Parts Not Supplied by Nautel 2.10.2
Parts Ordering 2.10.2
Module Exchange Program 2.10.3
Tools for Installation 2.10.3
Pre-Installation / Installation Assistance 2.11.1
Pre-Installation Consulting 2.11.1
Installation and Commissioning Service 2.11.1
Online Documentation 2.11.2
On-Site Support 2.11.3
Training 2.11.3
Standard Warranty 2.11.4
Extended Warranties 2.11.7
List of terms 2.12.1

NV20LT/NV15LT INSTALLATION MANUAL
VERSION 4.0 2018-02-26 PAGE 2.VII
Release Control Record
ISSUE DATE REASON
4.0 2018-02-26 Release 4 of NV20LT/NV15LT (NARF73C/01). Supports
software version GV SW 4.4

NV20LT/NV15LT INSTALLATION MANUAL
PAGE 2.VIII VERSION 4.0 2018-02-26

NV20LT/NV15LT INSTALLATION MANUAL PREPARING FOR INSTALLATION
VERSION 4.0 2018-02-26 PAGE 2.1.1
SECTION 2.1: PREPARING FOR INSTALLATION
Before installing your NV20LT/NV15LT transmitter, perform the following steps:
1. Ensure that you have performed the pre-installation tasks described in the
NV20LT/NV15LT Pre-installation Manual.
2. Make sure that you received all the components. Check your packing list.
3. Inspect all crates and packages for damage. Monitor the tip and drop indicators attached to the
crates to determine if a crate has been tipped over or has been subjected to excessive shock (see
Figure 2.1.1).
Figure 2.1.1: Tip and drop indicators
4. Report any damage immediately to your Nautel sales representative and the carrier.
5. Move the crates as close as possible to the transmitter’s planned location.
6. Unpack the crates in accordance with the instructions provided on the outside of the crates.
For each crate, remove the panel labelled open this side. The panel is attached using Phillips
head screws.
Remove any visible packing material, including braces, from the crate's interior.
Remove the lag bolts on the bottom edge of the remaining three sides, leaving only the
transmitter and its support pallet.

NV20LT/NV15LT INSTALLATION MANUAL PREPARING FOR INSTALLATION
PAGE 2.1.2 VERSION 4.0 2018-02-26
7. Review any assembly notes or instructions contained inside the transmitter crates. (For sites
requiring custom configurations, the instructions provided with the transmitter replace the
instructions provided here.)
8. Assemble your parts and tools. For a list of required tools, see “Parts and Tools” on page 2.10.1.
9. When you are ready to install the NV20LT/NV15LT transmitter, follow the steps shown in
Figure 2.1.2.

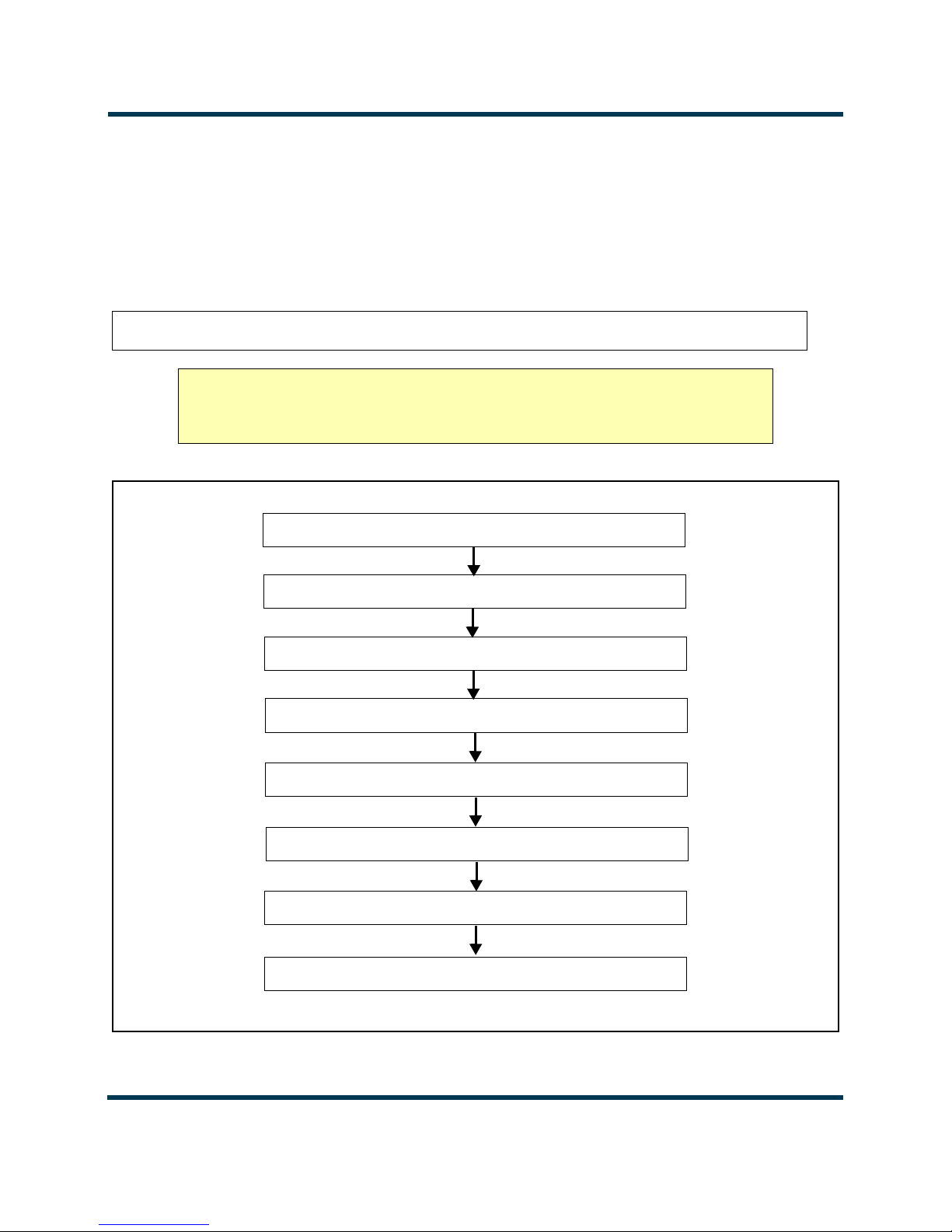

Figure 2.1.2: Flowchart - Installing the transmitter
TIP When you have completed a task or step, put a check mark beside the step number.
CAUTION! FAILURE TO COMPLY WITH RECOMMENDATIONS MAY VOID YOUR
MANUFACTURER’S WARRANTY. FOR MORE INFORMATION, REVIEW YOUR
WARRANTY DOCUMENT.
Unpacking and Positioning - see page 2.2.1
Connecting to Station Reference Ground - see page 2.4.1
Installing Control/Monitor Wiring - see page 2.8.1
Commissioning - see page 2.9.1
Connecting Ac Power - see page 2.5.1
Installing Program Inputs - see page 2.7.1
Installing the RF Feed Cable - see page 2.6.1
Installing Options - see page 2.3.1

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
VERSION 4.0 2018-02-26 PAGE 2.2.1
SECTION 2.2: UNPACKING AND POSITIONING
To install an NV20LT/NV15LT transmitter, perform the following tasks:
1. Lift and slide the transmitter cabinet off the base of its crate. Crated and uncrated cabinet weights
are shown in Table 2.2.1.
Table 2.2.1: NV20LT/NV15LT Cabinet Weights
2. Using necessary mechanical assistance (forklift, etc.), position the cabinet in its final location. If
the transmitter needs to pass through a doorway that is less than 31.0 in. (78.8 cm) wide, you
must remove the transmitter’s rear filter panel (secured with 1/4 turn fasteners). You can also
remove the front hinged UI panel to reduce the transmitter depth below 30 in. (76.2 cm).
3. Obtain the operating system (OS) password document which is attached to the Exciter handle,
located inside the lower front panel. Store in a safe place for future reference.
4. Remove the transmitter’s rear panels to allow access to customer input wiring. This may have
already been done in Step 2. See Figure 2.2.1 on page 2.2.3 to see access panels.If you are
anchoring your transmitter against seismic activity, obtain four 2-1/4 inch square washers (Nautel
Part # HPS30) from the ancillary kit. Position the transmitter over four pre-drilled mounting holes
and install four anchoring bolts (user-provided), with square washers, in the holes provided in the
bottom of the transmitter cabinet (see Figure 2.2.2 on page 2.2.4). It is possible to drill through the
hole plugs in the bottom of the transmitter, without removing them.
5. As desired, remove the M8 shipping screws in the back of each RF power module (see Figure 2.2.3
on page 2.2.5). Nautel recommends you remove these screws, unless your site experiences seismic
activity.
WARNING! DO NOT ATTEMPT TO MOVE THE TRANSMITTER UNLESS
SUFFICIENT MANPOWER OR MECHANICAL ASSISTANCE IS AVAILABLE TO
MOVE IT INTO POSITION WITHOUT DAMAGING THE CABINET OR CAUSING
INJURY TO PERSONNEL.
CABINET CRATED WEIGHT UNCRATED WEIGHT
Transmitter Cabinet 472 kg (1040 lbs) 376 kg (830 lbs)

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
PAGE 2.2.2 VERSION 4.0 2018-02-26
6. Install the RF output connector, which was partially disassembled for shipment, as follows (see
Figure 2.2.4 on page 2.2.6):
NOTE: The RF output connector was factory configured prior to shipping.
Remove the output cover packing plate from the RF output connector on top of the
transmitter. The packing plate - along with three spacer plates - is secured using four M6
screws. Remove only the packing plate, leave the spacer plates in place and retain the screws.
Obtain the “Output Stud Plate”, which was tyrapped in the rear of the transmitter. Using the
M6 screws retained above, install the output stud plate on top of the spacer plates. Firmly
tighten M6 hardware. Note that the output stud plate’s studs contain the necessary securing
hardware (nuts, flat washers and split washers) to connect the RF output to a dummy load or
the antenna system in Section 2.9, “Commissioning”.
7. Verify that the RF feed cable reaches the RF output connector on the top of the cabinet. The RF
feed cable will be connected in Section 2.6, “Installing the RF Feed Cable”.
8. Obtain the ac entry box (Nautel Part # 219-8277) and its securing hardware (four M4 screws),
which were bagged and packed with the ancillaries. Install the ac entry box, noting proper
orientation, on top of the transmitter as shown in Figure 2.2.7 on page 2.2.9.
9. Proceed to Section 2.3, “Installing Options”to configure your transmitter for any options that were
purchased.
10. Do not re-install the rear panels at this time.

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
VERSION 4.0 2018-02-26 PAGE 2.2.3

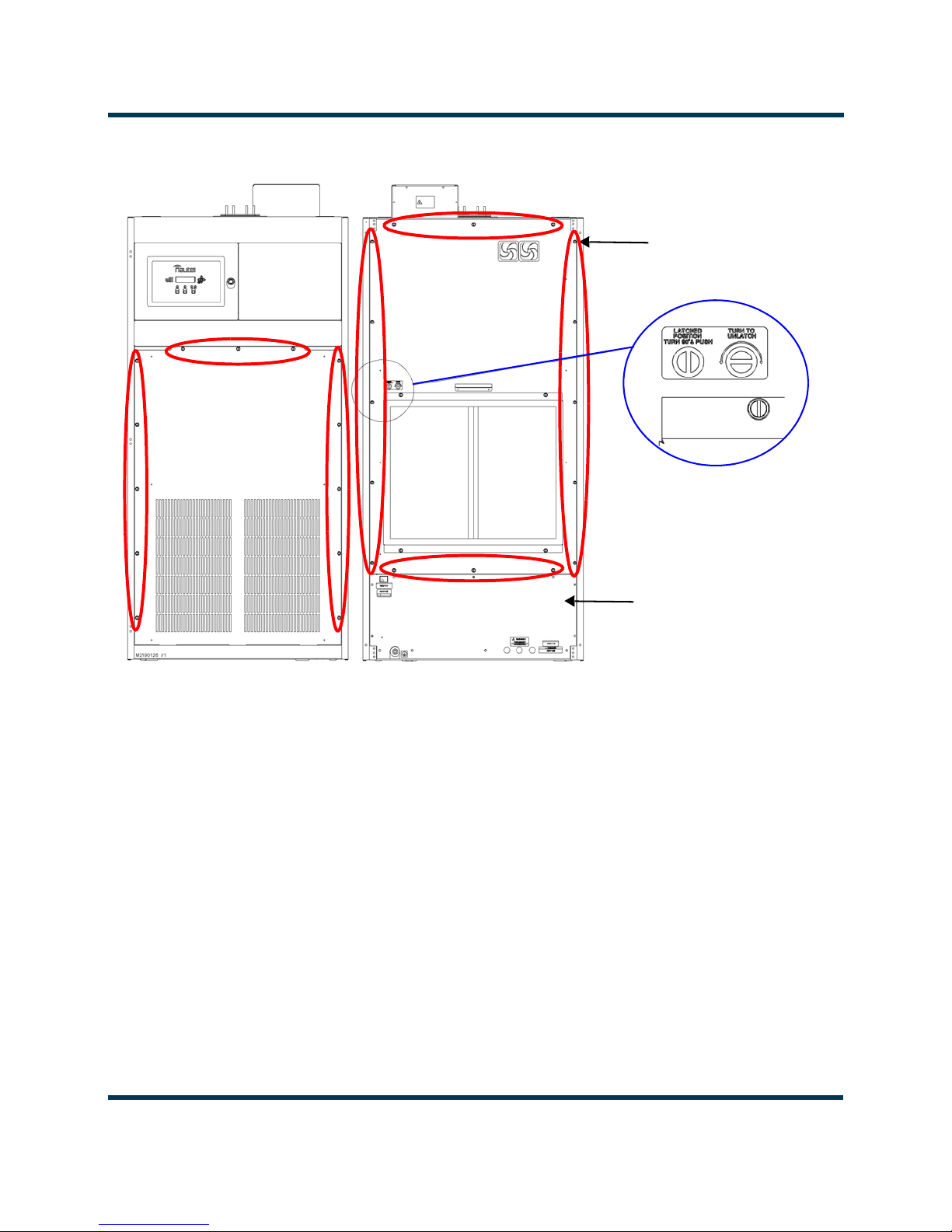

Figure 2.2.1: Front and Rear Access Panels
1/4-TURN LATCHES
13 in front panel
16 in rear panel
LOWER, REAR PANEL
11 M5 screws
LOCK OUT AC POWER
BEFORE REMOVING!

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
PAGE 2.2.4 VERSION 4.0 2018-02-26
Figure 2.2.2: Seismic Anchoring Hole Locations
SEISMIC ANCHORING
HOLES
4 places (3/4 in holes)
FLOOR VIEW OF CABINET FROM ABOVE
FRONT

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
VERSION 4.0 2018-02-26 PAGE 2.2.5
Figure 2.2.3: RF Power Module Shipping Bolts
M8 SHIPPING
BOLTS
(1 per module)
PARTIAL REAR VIEW
(FILTER PANELS
REMOVED)

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
PAGE 2.2.6 VERSION 4.0 2018-02-26

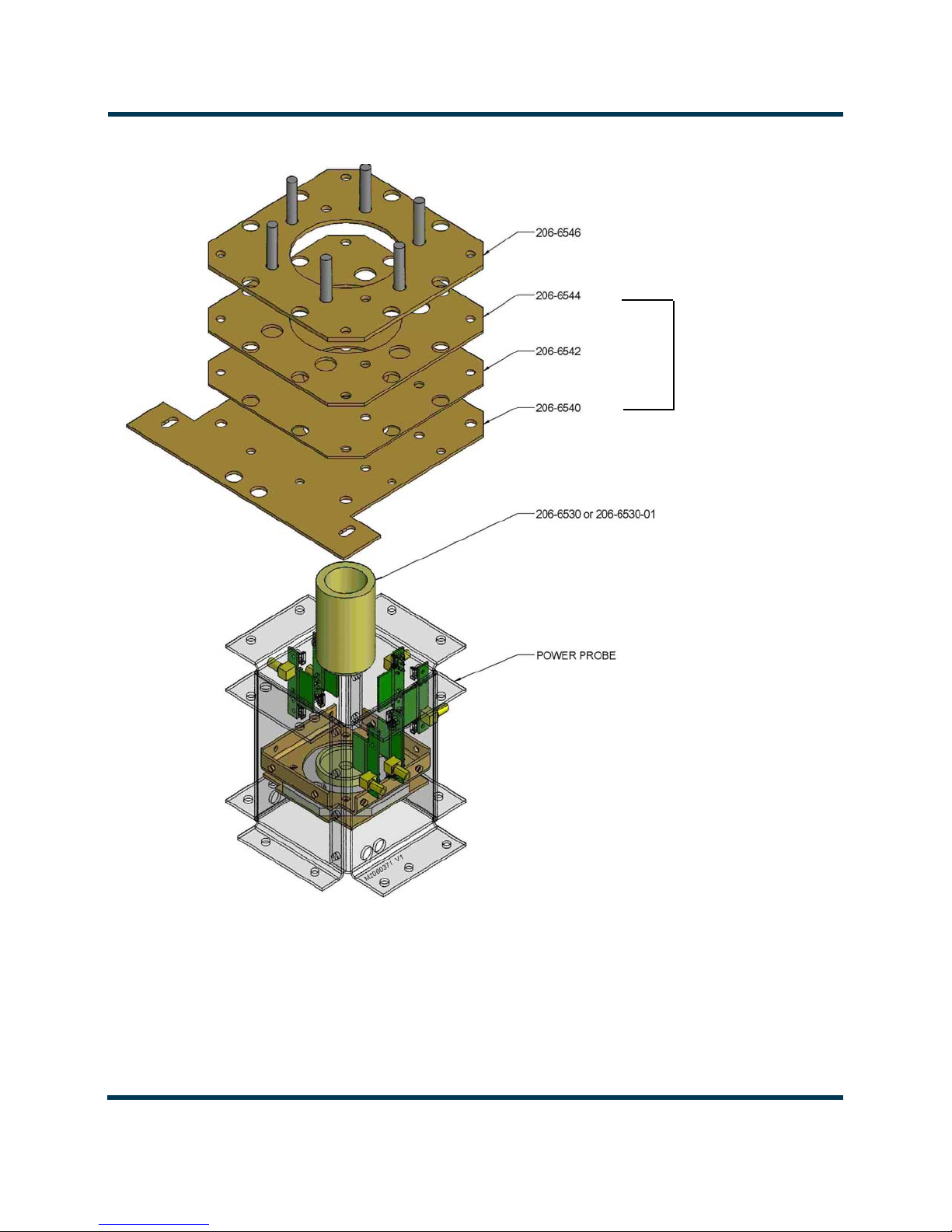

Figure 2.2.4: RF Output Connector Assembly Detail - 3-1/8 inch EIA
TORQUE OUTPUT CONNECTION TO 292 IN-LBS OR 25 FT-LBS
OUTPUT
CONNECTOR
CUP
OUTPUT PLATE
SPACER PLATES

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
VERSION 4.0 2018-02-26 PAGE 2.2.7

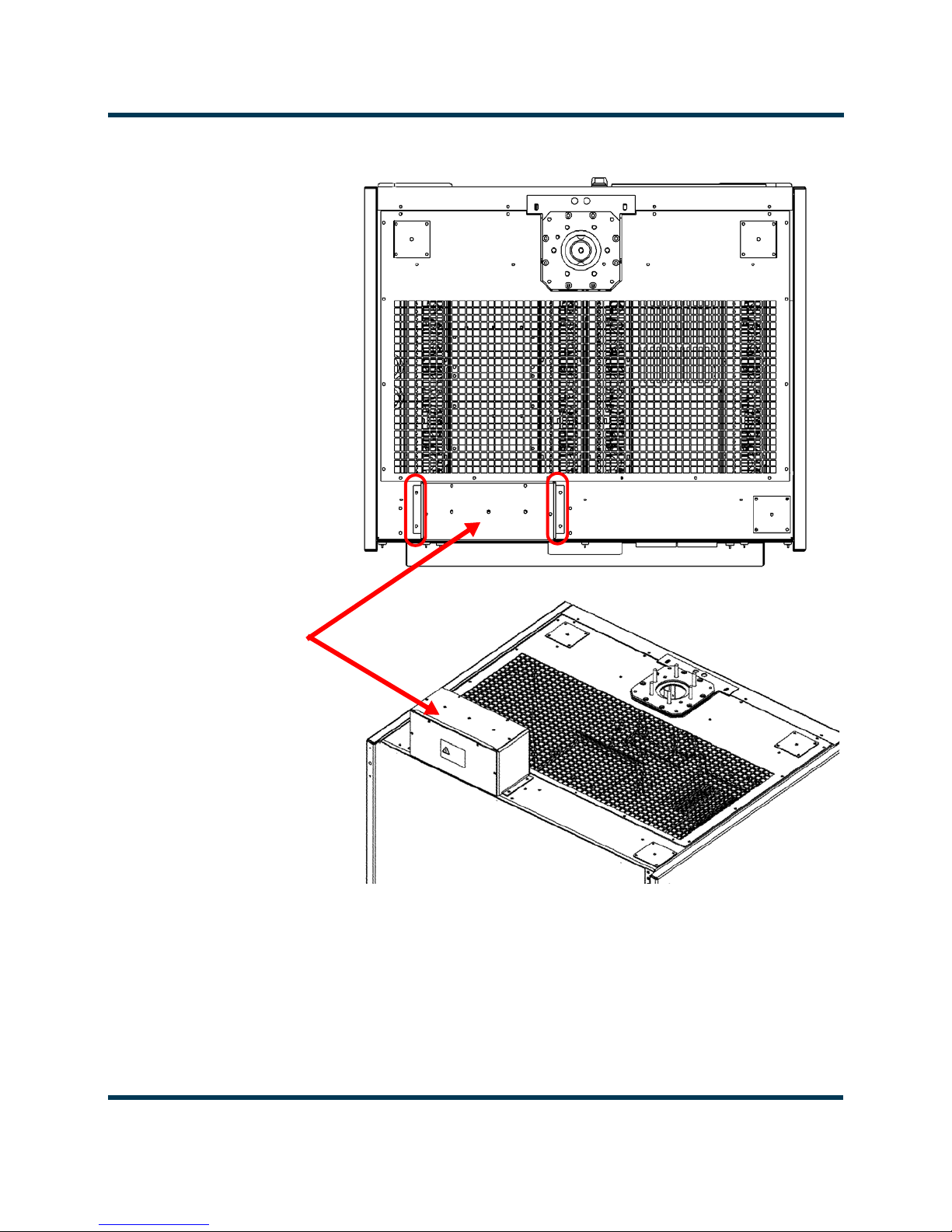

Figure 2.2.5: Ac Entry Box Installation
AC ENTRY BOX
219-8277
(obtain from Packing
Supplies and secure
using four M4 screws)
FRONT
REAR

NV20LT/NV15LT INSTALLATION MANUAL UNPACKING AND POSITIONING
PAGE 2.2.8 VERSION 4.0 2018-02-26

NV20LT/NV15LT INSTALLATION MANUAL INSTALLING OPTIONS
VERSION 4.0 2018-02-26 PAGE 2.3.1
SECTION 2.3: INSTALLING OPTIONS
The NV20LT/NV15LT transmitter is factory configured and shipped to operate with the customer’s
desired ac power source voltage and RF output connector size. There are options available for various
other features, including dual exciter, UPS interface, redundant LVPS, and remote interfacing. These
options may be installed in one of two ways:
You install and configure options at your site, using kits and instructions provided by Nautel.
Each option has a separate kit.
Pre-arrange for Nautel to install and configure options at the factory prior to shipping.
Table 2.3.1 shows the standard (default) configuration of the NV20LT/NV15LT, as well as the available
options. Each option references a recommended schedule of installation and the procedure (or
associated document) that describes how to install and configure the option. Review the options in
Table 2.3.1 to determine which, if any, apply to your installation.
If you did not purchase any options for your NV20LT/NV15LT and intend to operate with the standard
(default) configuration, proceed to Section 2.4, “Connecting to Station Reference Ground”.
NOTE: When an option is installed (UPS interface, dual exciter, etc.), the extra parts removed (e.g.,
blank exciter panel, AC LED cover) from the original configuration are placed in the Ancillary kit.

NV20LT/NV15LT INSTALLATION MANUAL INSTALLING OPTIONS
PAGE 2.3.2 VERSION 4.0 2018-02-26
Table 2.3.1: NV20LT/NV15LT Available Options
ITEM/
FEATURE
STANDARD
CONFIGURATION
AVAILABLE
OPTIONS
WHEN TO
INSTALL? HOW TO INSTALL?
Exciter Single Exciter,
integrated into
controller (NAE106*)
Exciter B (NAE107*) Station
convenience
See “Upgrading to Dual
Exciter” on page 2.3.3
UPS Interface No UPS interface UPS Interface Assembly
and ac input connectors
(219-5140-02); user
provides UPS and wiring
Station
convenience
See “Installing the UPS
Interface” on page 2.3.4
LVPS Single LVPS 1A
(UG92*)
Up to three redundant
LVPS 1B, 2A, 2B (UG92*)
Station
convenience
See “Redundant LVPS
Upgrade” on page 2.3.5
Remote
Control/
Monitor
Connectors on
controller (NAE106*)
rear panel
Remote Interface PWB Kit
(NAPI143/02)
Station
convenience
See “Installing the
Remote Interface PWB”
on page 2.3.6
Internal Audio
Processor
No internal audio
processor
Orban Inside Kit(s) (for
one or both exciters, as
desired)
Station
convenience
See “Installing the Orban
Inside Card” on
page 2.3.7
