83225 Buoyancy Collar for WWL-1
Instruction Manual
FOREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximise
its performance as well as its lifetime.
WARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.

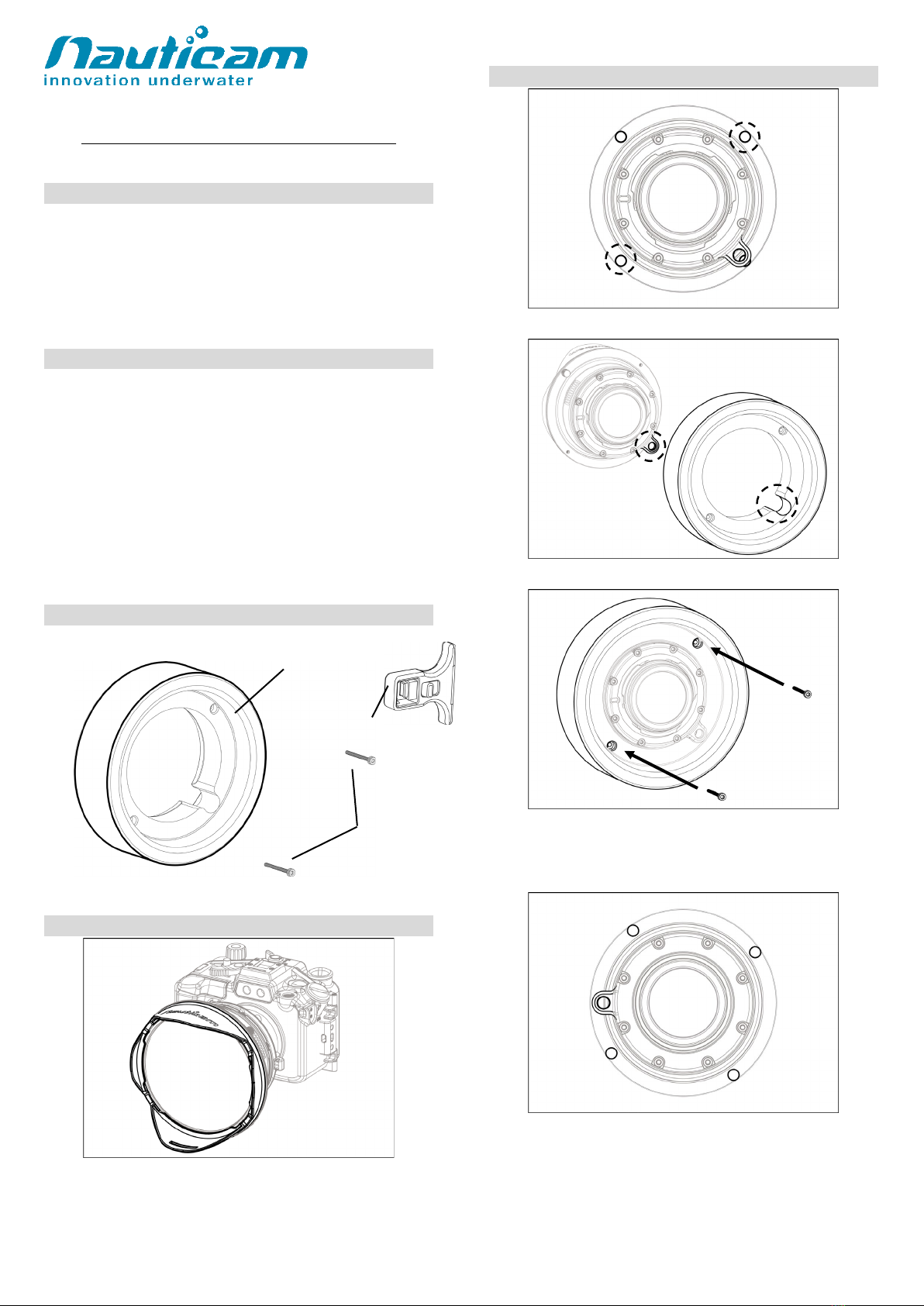

IDENTIFICATION OF PARTS
PREPARATION
Mount the WWL-1 to the port or housing and adjust the lens hood to the
desired position.
Note: Please refer to the WWL-1 instruction manual on how to adjust the lens
hood.
MOUNTING THE BUOYANCY COLLAR TO THE LENS
Remove the two diagonal screws that are not obstructed by the eyelet.
Align the groove on the collar with the eyelet of the WWL-1 and slide in.
Fasten the collar onto the WWL-1 with the two long screws provided.
Tips: Align one at a time, tighten slightly one of the screw and then the other.
Only tighten it when both screws are aligned. When aligning the screw, you
may lift up the collar to get better vision to the threaded hole.
In case a M67 mounting ring for WWL-1 is used, either pair of diagonal
screws can be removed.
--- continue on next page ---
Screws x2
Buoyancy Collar
Remove
Lens Release
Extension

Current as of 2016-06-21
--- continued from front page ---
ATTACHING THE LENS RELEASE EXTENSION
A lens release extension is included in the package for ease of reach to the
lens release button on the bayonet converter.
Pull the red button on the lens release extension backwards and move it over
to the lens release button on the bayonet converter.
The extension will be mechanically locked onto the lens release button.
SPECIFICATIONS
Dimensions:
Dia168mm x 54mm
Weight (air/underwater):
Approx. 58g / +460g
Depth Rating:
100m
Compatible Lenses:
83201 Wet Wide Lens 1 (WWL-1)
