Nauticam CR2470-Z User manual

Current as of 2020-01-09
19567 CR2470-Z Zoom Gear for
Canon RF 24-70mm F/2.8L IS
19568 CR2470-F Focus Gear for
Canon RF 24-70mm F/2.8L IS
Instruction Manual
FOREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater photographers
and fulfill them through the innovative designs of our products. We strive to
achieve a high level of user-friendliness by allowing stress-free installation
and easy operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
WARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service center(s). Please note that this warranty only applies when the
product is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.

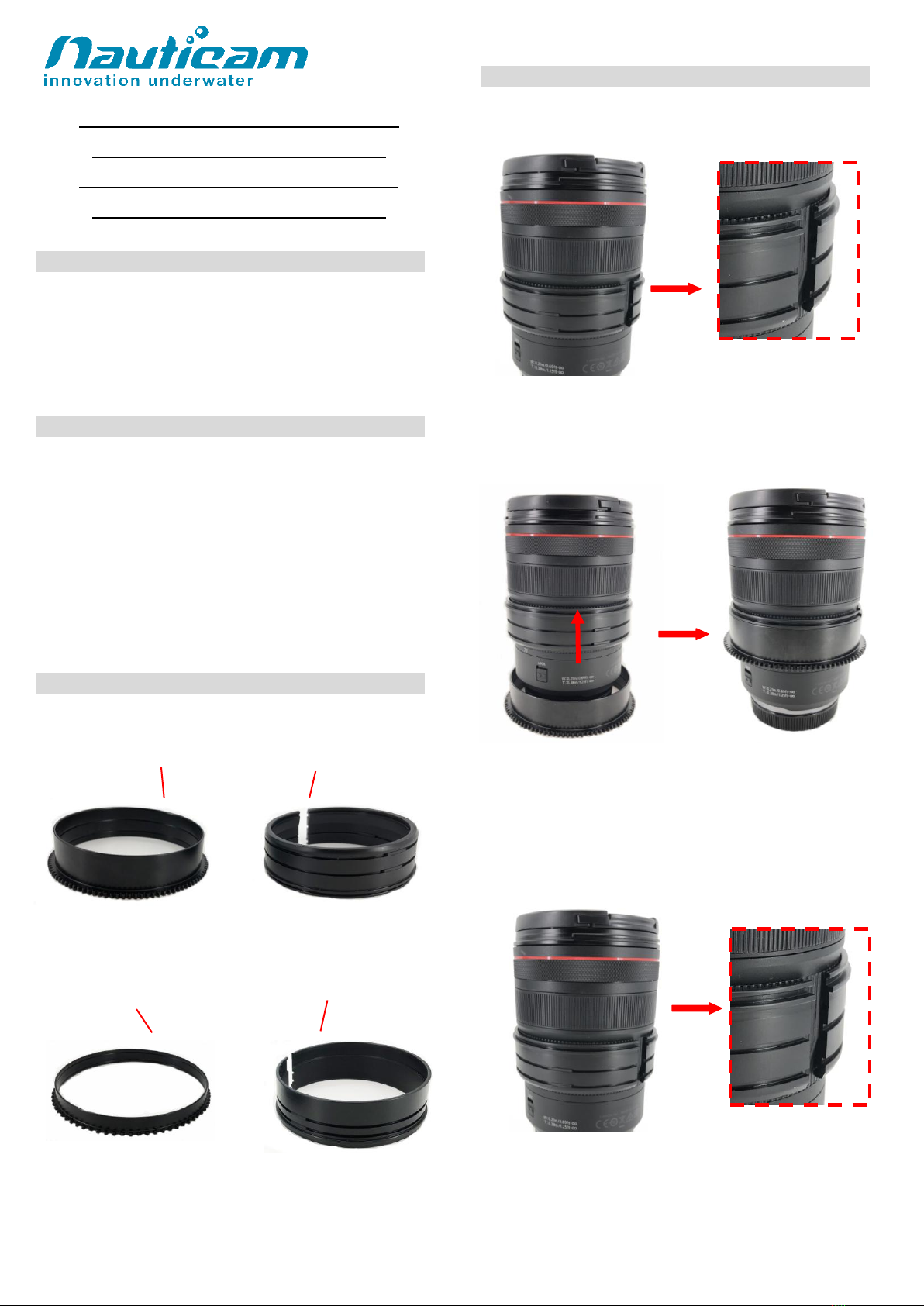

IDENTIFICATION OF PARTS
19567 CR2470-Z Zoom Gear for Canon RF 24-70mm F/2.8L IS
19568 CR2470-F Focus Gear for Canon RF 24-70mm F/2.8L IS
The tightness between gears and the lens can be adjusted by
removing or adding rubber grips on either sides of the plastic
C-ring, spare rubber grips are included in the package.
MOUNTING THE GEAR SET ON A LENS
Mounting the Zoom gear on a lens
1. Insert the zoom plastic C-rings as shown and place them over
the lens.
2. Insert the Canon RF 24-70 zoom gear on the zoom plastic C-
ring until it reaches the flange of the zoom plastic C-ring
Mounting the Zoom gear and Focus gear on a lens
1. Insert the zoom plastic C-rings as shown and place them
over the lens
CR2470-Z Zoom plastic
C-ring
CR2470-Z Zoom Gear
CR2470-F Focus plastic
C-ring
CR2470-F Focus Gear

Current as of 2020-01-09
2. Insert the focus plastic C-rings as shown and place them over
the lens and the flange of the zoom plastic C-ring
3. Insert the Canon RF 24-70 focus gear on the focus plastic C-ring
until it reaches the flange of the focus plastic C-ring
4. Insert the Canon RF 24-70 zoom gear on the zoom plastic C-ring
until it reaches the flange of the zoom plastic C-ring
5. To remove the gears, reverse the above steps
CONTROLLING THE GEAR
1. The Canon RF 24-70mm F/2.8L IS zoom gear can be
controlled by zoom of the housing; The Canon RF 24-70 focus
gear can be controlled by extension ring with focus knob
After mount the camera and lens (with gear installed) on the
housing, confirm that the zoom and focus operates correctly.
SPECIFICATIONS
Product Name:
19567 CR2470-Z Zoom Gear for Canon RF 24-70mm
F/2.8L IS
Dimensions:
Dia102 x 28mm
Type:
Zoom gear
Compatible lens:
Canon RF 24-70mm F/2.8L IS
Product Name:
19568 CR2470-F Focus Gear for Canon RF 24-70mm
F/2.8L IS
Dimensions:
Dia102 x 28mm
Type:
Focus gear
Compatible lens:
Canon RF 24-70mm F/2.8L IS
Remark: Nauticam supports only e-manuals. Please download corresponding
product manuals on Nauticam.com website, or contact us for e-manuals.
