INTRODUCTION
PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
After purchase, we suggest that
you reuse all packaging materials
for future travelling.
Panasonic CR2032 Battery
(pre-installed for Moisture Alarm)
Spare Main O-ring
Padded Travel Case Allen key set
O-ring Remover Manual Instruction Card
NA-C70
(25625 M16 Vacuum Valve II, Nauticam to Canon SDK Control Board,
2 x Handles with Mounting Balls, 1 x Housing Cap, 2 x Stainless Steel
Handle Brackets, Monitor Shade)
Lubricant

3
IMPORTANT INSTRUCTIONS
Water-tight test of the housing
(without camera inside) before usage
is recommended as well as any O-ring
renewal and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intended for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories specified by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.

4

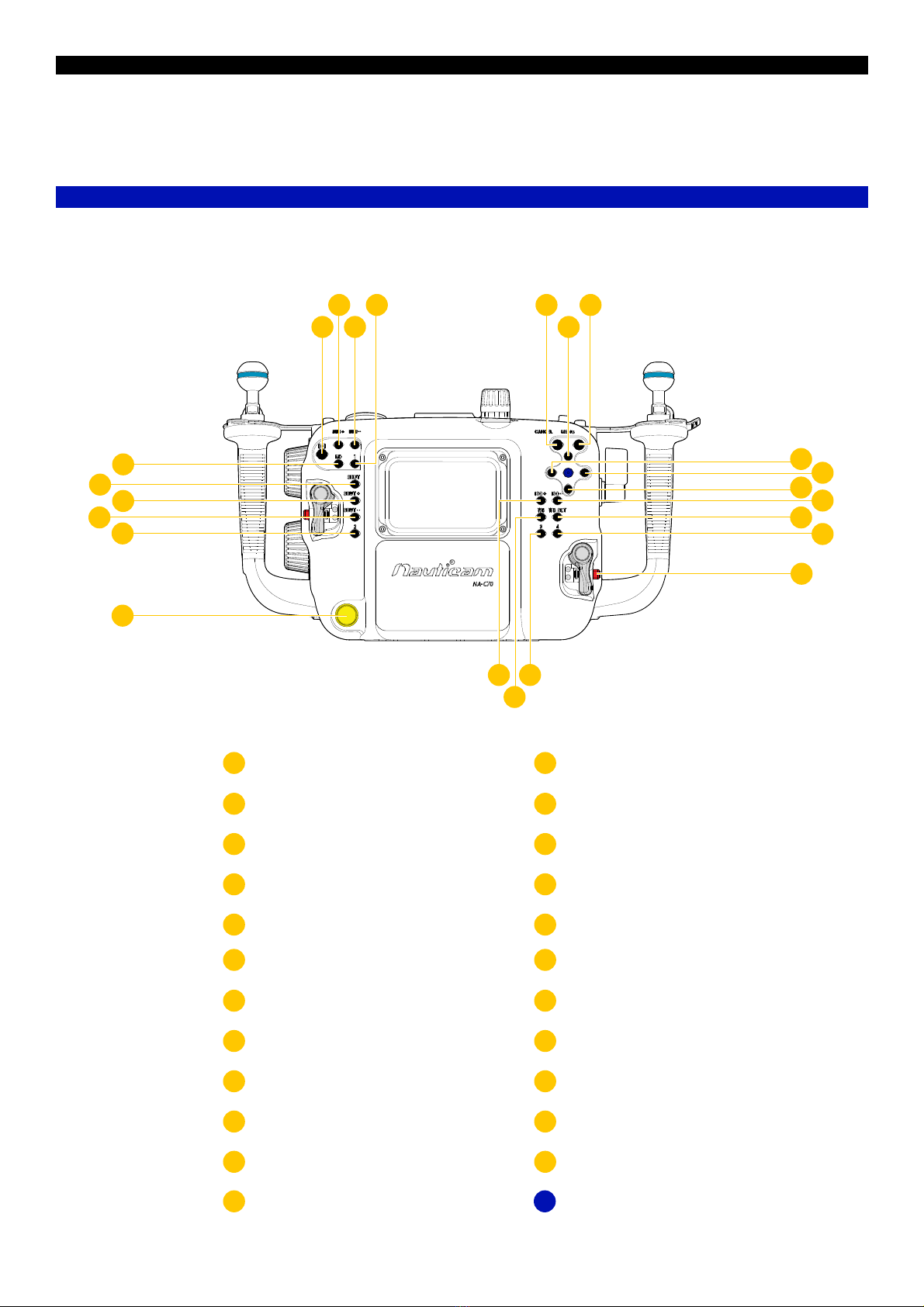

PART NAMES AND FUNCTIONS
Playback button
Shutter adjustment -
IRIS + button
Assignable button 2
IRIS - button
Moisture alarm window
Assignable button 1
Joystick - left
Cancel button
Joystick - right
Menu button
ISO - button
Shutter mode
Assignable button 4
ISO + button
Assignable button 3
Joystick - up
Joystick - down
ND Filter button
White balance adjustment button
Shutter adjustment +
Housing unlock button
White balance button
1
11
2
12
3
13
4
14
5
15
7
17
9
19
21
23
6
16
8
18
10
20
22
Rear View
A
B
16
18
14 15
17
19
12
13
11
Set buttonA
10
9
8
6
5 72 4
1 3
20
21
22
23

5
PART NAMES AND FUNCTIONS

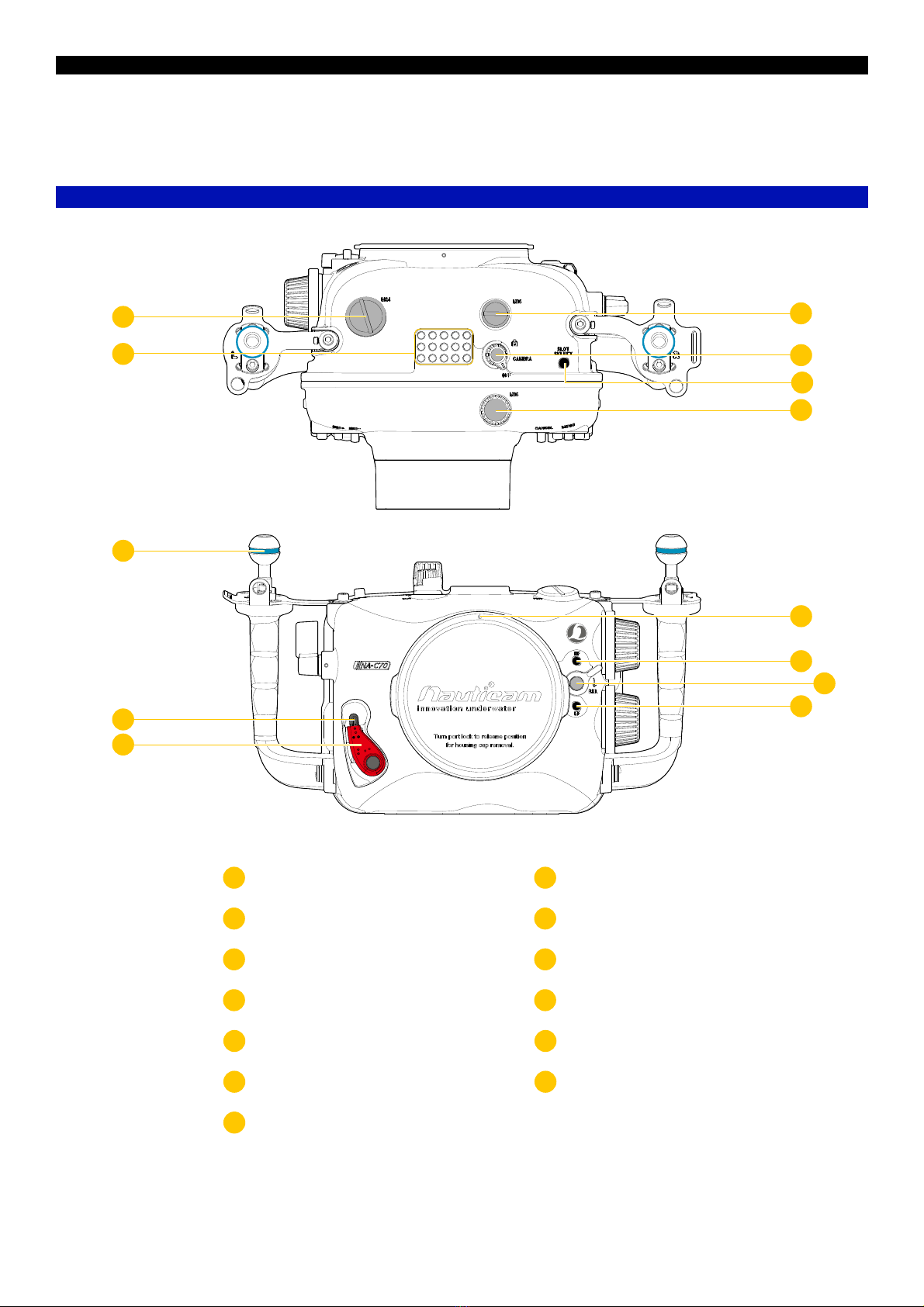

Top + Front Views
10
11
13
12
3
6
4
1
2
7
9
8
M24 Accessory port
Slot select button
Port locking lever
EF lens release button
1/4” -20 mounting threads
M16 Accessory port
Port index mark
M16 Accessory port
Accessory mounting ball
RF lens release button
Power switch
Port lock safety button
Lens release lever
1
5
9
13
2
6
10
3
7
11
4
8
12
5

6
PART NAMES AND FUNCTIONS
Back + Side Views
Focus knob
Sacrificial zinc anodes
Zoom knob
Shutter release lever
1/4” Threaded tripod holes
3
1
4
5
2
2
5
1
4
3

7

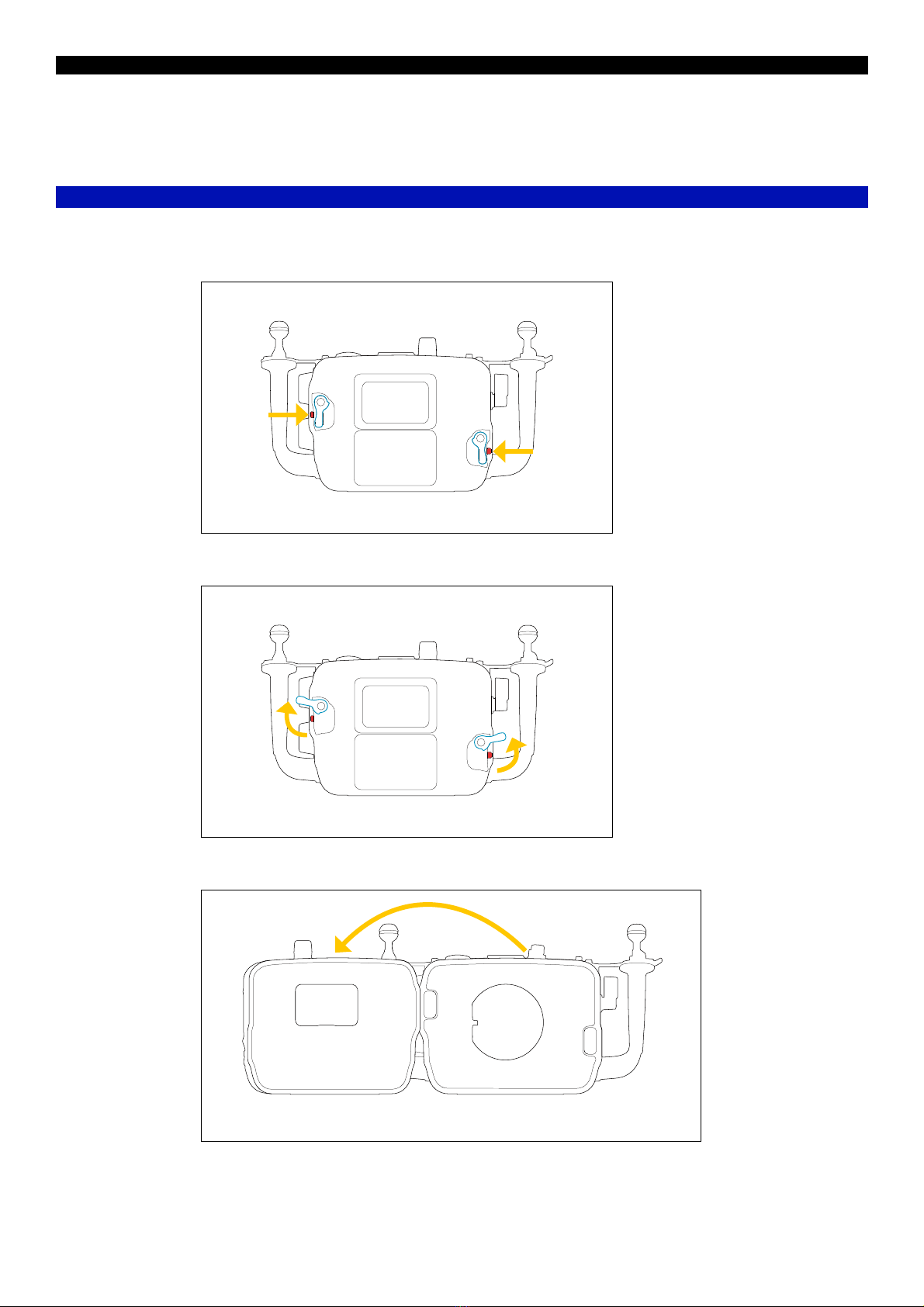

OPENING THE HOUSING
depress housing unlock button
turn housing lock outward
lift up the back housing
*
drawings as illustrations onl
y
1
2
3

8

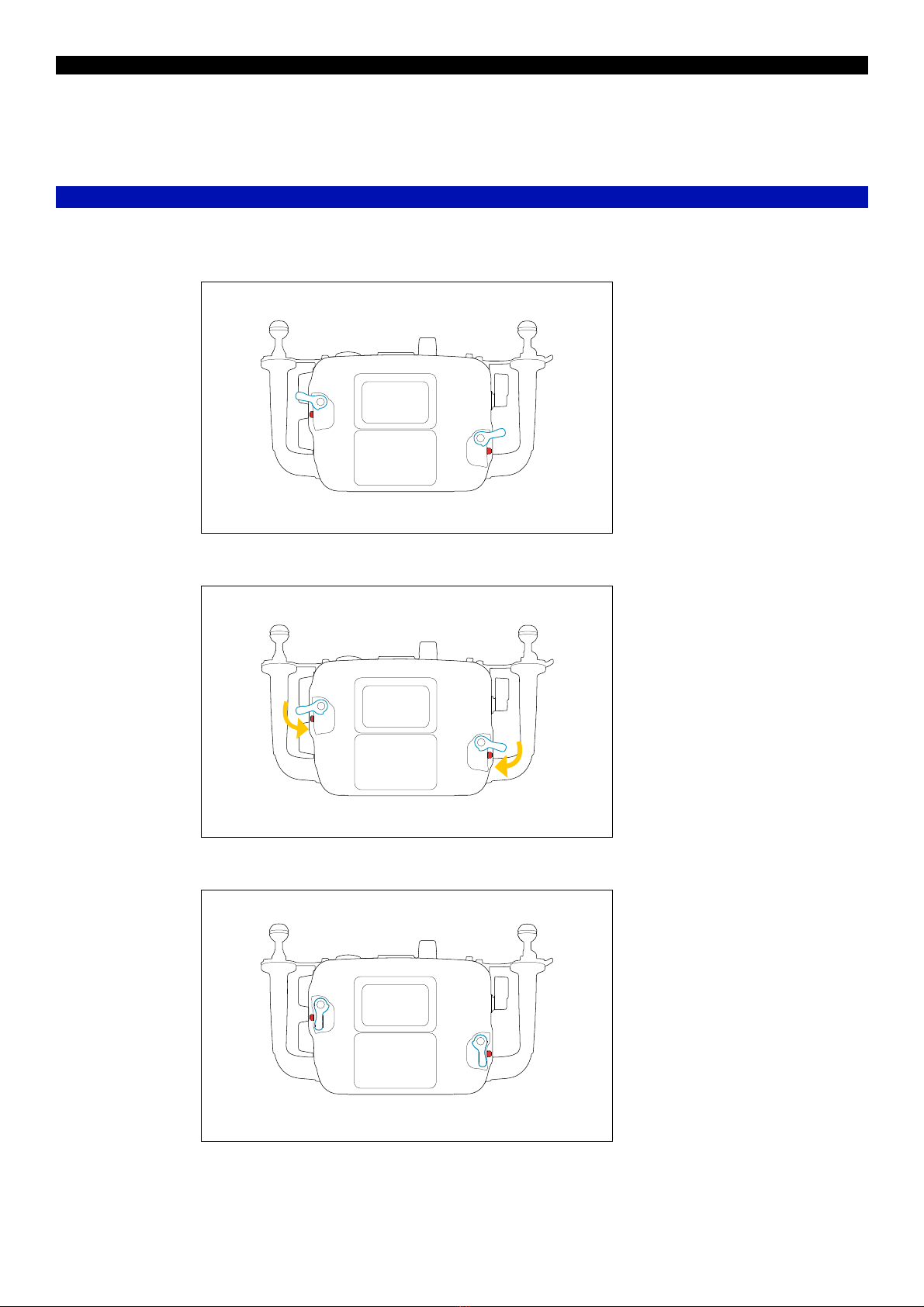

CLOSING THE HOUSING
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
turn housing lock inward until you
hear and feel it click into place
housing locked in place securely
1
2
3
*
drawings as illustrations onl
y

9
PREPARATION FOR USE

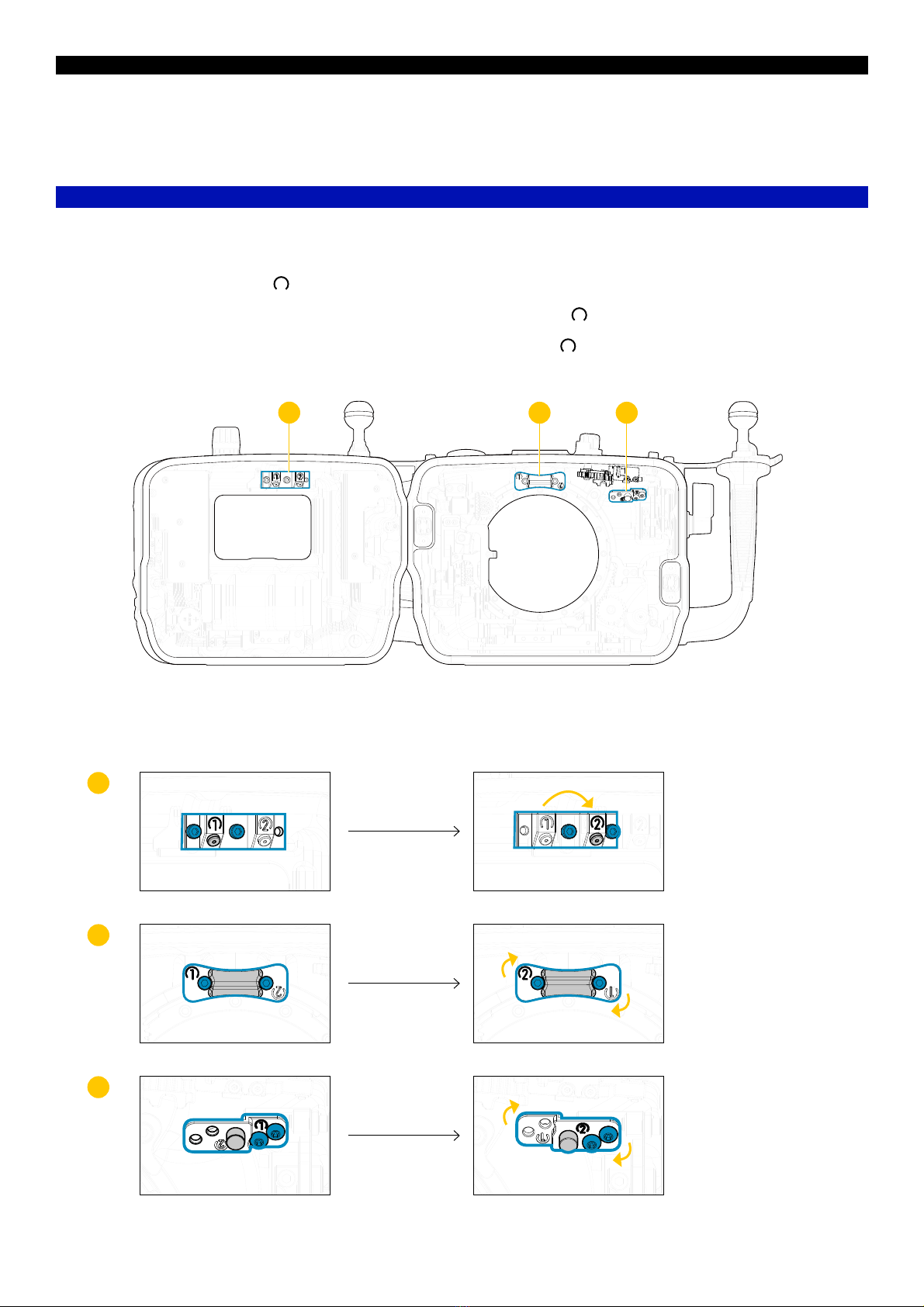

Setting up the housing - RF Lens / EF or EF-S Lens
*
drawings as illustrations onl
y
1
2
3
2 3
This housing allows you to switch between RF & EF lens by alternating 5 pieces of mechanisms inside the housing :
To alternate between Position 1 & 2 :
From Position 1
to Position 2
From Position 1
to Position 2
From Position 1
to Position 2
For RF Lens - Stay on Position 1 -
For EF or EF-S Lens with Canon Mount Adaptor EF-EOS R - Change to Position 1 -
For EF Lens with Canon Mount Adaptor EF-EOS R 0.71x - Change to Position 2 -
1
1
2
unscrew 2 of the attached screws
swift the part to the right so that the
holes are aligned at position 2
tighten the screws
unscrew 2 of the attached screws
flip the part 1800so that it is at
postion 2
tighten the screws
unscrew 2 of the attached screws
flip the part 1800so that it is at
postion 2
tighten the screws
1

10
PREPARATION FOR USE
4
5
Setting up the housing - RF Lens / EF or EF-S Lens
To alternate between Position 1 & 2 :
From Position 1
to Position 2
From Position 1
to Position 2
1
2
press the unlock button
turn the lever to position 2
unscrew the attached screw
turn the part so that it is aligned at
position 2
tighten the screw
54

11
PREPARATION FOR USE
* drawings as illustrations onl
y
Setting up the housing - Zoom/Focus Knob
The housing is designed to maintain an easy access to the focus knob which is positioned as the top from left hand
controls and zoom knob at the bottom on the housing, this works using gear mechanisms that drive the gear set
attached to the camera lenses.
Majority of the camera lenses have the same ring feature, focus ring on the top and zoom ring at the bottom. But in
some cases (e.g. Canon EF-S 10-22mm f3.5-4.5 USM), both rings are arranged oppositely which will also result in the
housing.
Therefore, this housing also allows you to switch focus and zoom knob positioning in a few steps.
Focus Knob Gear Mechanism
Zoom Knob Gear Mechanism
1
3
2
4
unscrew the attached screw
* Before alternation, please firstly remove the camera tray.
flip the part 1800and put it back in place
take out the gear connection part
tighten the screw
Please follow the steps for both focus & zoom knob alternation :

12
PREPARATION FOR USE
Installing the Camera
1
2
3
4
unlock camera tray lever and
remove the tray from the housing
detached the remote cable
connection from the camera
tray before installing the camera
turn the small lever at 900if you
are using a lens adaptor
lock camera tray
* gently push the power switch
lever downwards and make sure
they are engaged with the lever on
the camera
* turn the lens release lever back
up and make sure it is engaged
with lens gear
attach the camera onto the camera
tray by tightening the tray screws into
the tripod socket of the camera
connect the remote cable into the
REMOTE camera terminal
tray screws
remote
cable
*
drawings as illustrations onl
y
*lift up the power switch lever each
time before installing the camera
*turn the lens release lever downwards
if installing the camera with lens and
gear attached
slide the camera tray back into the
housing along the tray rail

13
PREPARATION FOR USE
Port Mounting
depress safety button and rotate
anti-clockwise
lubricant the port O-ring before
mounting
align index mark
push port assembly straight in
rotate locking lever clockwise to
lock
1
2
3
*
drawings as illustrations onl
y

14
PREPARATION FOR USE
Coating housing O-ring
Main O-ring
remove the main O-ring using an O-ring remover
clean the O-ring groove with a cloth and ensure
that it is free from salt or other foreign materials
lightly coat it with provided lubricant
return the main O-ring by slowly pressing from
one corner to the whole perimeter
1
2
3
4
*
drawings as illustrations onl
y

15
PREPARATION FOR USE
Setting up moisture alarm
Alarm ON/OFF
CR2032
Battery
1
3
2
4
remove battery
insulation film
switch on the alarm
- the moisture alarm
window will flash in
BLUE when it is working
correctly
test the alarm
- connect the wires with a
dampened cotton bud; the
alarm will give a repeating
‘beep’ and the mositure alarm
window will flash RED
press the battery down until it
click into place
* drawings as illustrations onl
y
*please contact our authorized service centers if testing fails
*please refer to page 17 for complete vacuum system guidance

16

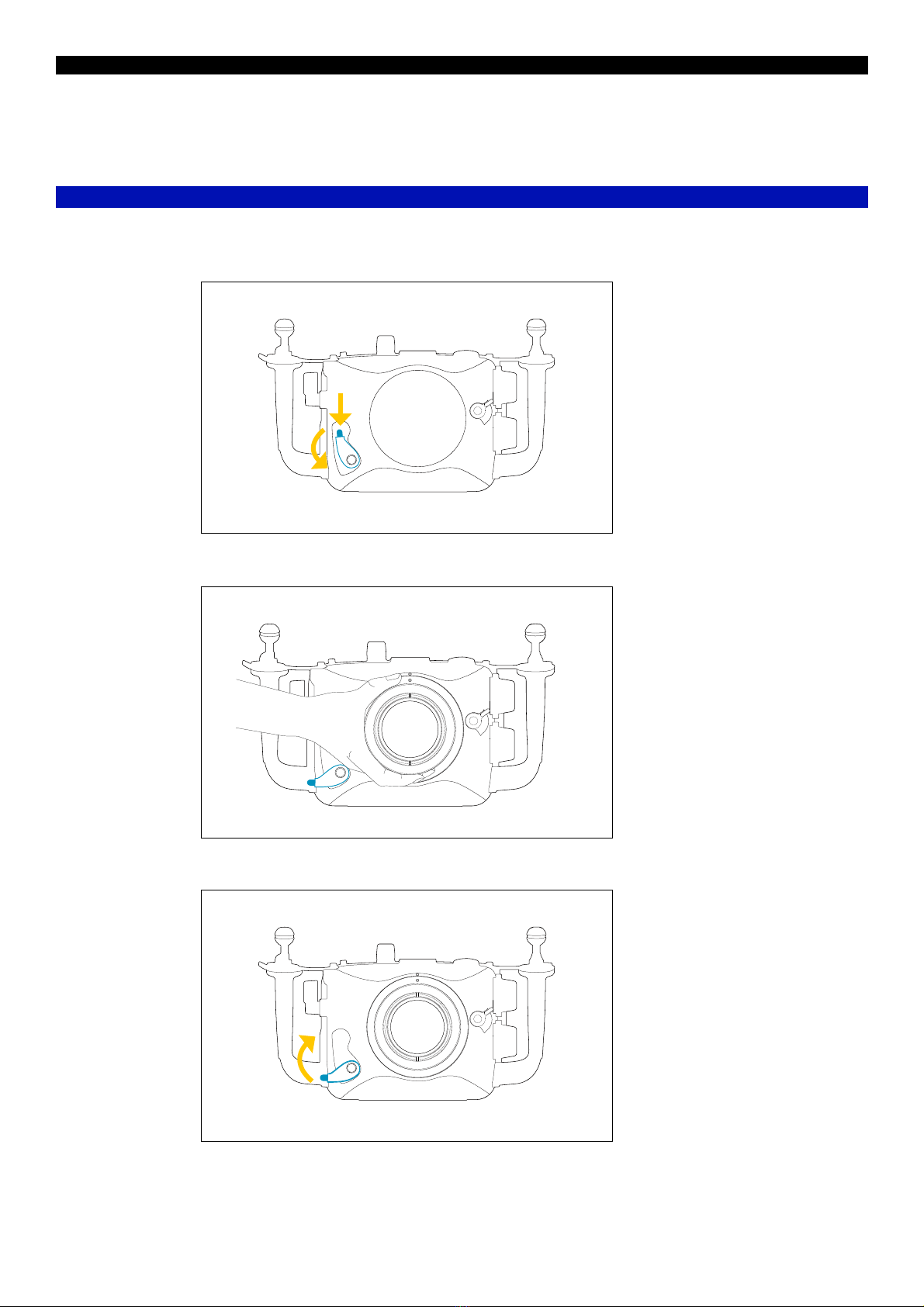

RESET LEAK DETECTOR CIRCUIT
1
4
2
3
If using with vacuum valve :
remove the cap from the vacuum
valve and press the red button to
release pressure before unlocking
port lock
If using without vacuum valve,
please follow from step 2
unlock port lock and remove port
assembly
turn the lens release lever
downwards to disengaged the
gear mechanisms in order to
change camera lens
press the blue button to reset
leak detector circuit before
replacing port
make sure the port lock is safely
fastened after replacing port
reset vacuum level using the
hand pump then close the cap
*please refer to page 17 for complete vacuum system guidance
*
drawings as illustrations onl
y
1
2

17

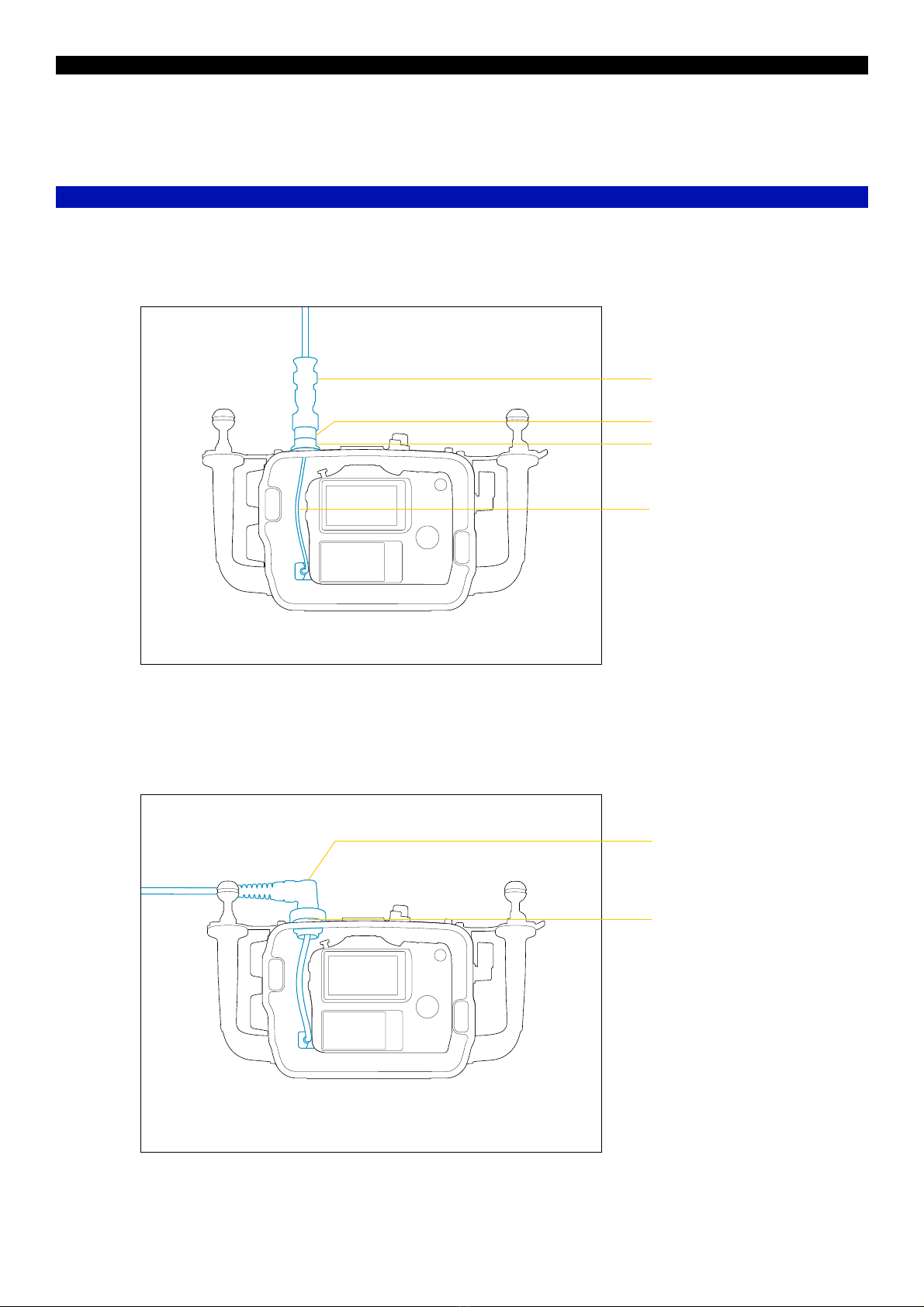

HDMI OUTPUT
HDMI 1.4 / 2.0
*
drawings as illustrations onl
y
25033 Standard HDMI Bulkhead
HDMI Cable Pre-installed
in Monitor packaging
25081
M24-M16 Step Down Adaptor
25701
HDMI (D-A) cable in 260mm length
25086
M24 adaptor for HDMI 2.0 cable
25702
M24A3R210-M28A1R170
HDMI 2.0 cable
HDMI 2.0
HDMI 1.4

19
CARE/STORAGE
Soak the housing system in fresh water
after salt water usage
Soak the housing system in fresh water
after salt water usage
If the contacts get soiled, scratched, or
have fingerprints on them, corrosion or
faulty connections can result. Clean them
with a soft cloth.
Protect the housing with robust and
shock-proof travel case during trans-
portation. Do not travel with camera
inside housing.
Operate all controls and buttons at
least 3 times while immersed in fresh
water
We recommand cleaning and inspecting
the main O-ring each time after diving for
any damage and every time the housing
is opened.
We recommand to ship the housing to our
servic centers for a complete overhual
after 200 dives/every 2 years.
5
3
2* 1
7
6
4
* Electronic Control Contacts
Nauticam to Canon
SDK Control Board System

20
WARRANTY
All NAUTICAM Housing Products and Viewfinders are
warranted against any material and manufacturing
defects for two years from the date of purchase for
consumer use. NAUTICAM Optical Accessories are
warranted against material and manufacturing defects
for a period of one year, and HDMI cables carry a year
warranty.
This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend be-
yond the original retail purchaser.
To return your product for service, please contact your
regional authorized service center(s). Please note that
this warranty only applies when the product is pur-
chased in the territory where the service center is lo-
cated.
NAUTICAM accepts no liability for any damage to and
defects in the housing caused by improper use and/or
poor maintenance; it is the responsibility of the own-
er to carefully follow the instructions in our manuals.
NAUTICAM does not hold responsibility for damage, of
any nature, to any equipment used with and/or placed
within our products.
NAUTICAM accepts no liability for any loss of captured
images or the inability to capture images even if it is
due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our
products will automatically invalidate the warranty.
