MX2600SE Quick Reference Guide
1 ATM Power On/Off
ATM Power On

Open the upper front door.

Press Power Switch in the direction of “I”.
ATM Power Off

Press Power Switch in the direction of “O”.
2
Security Door
Open
Security Door Open

Turn the key clockwise to open the security cover.

The default password of electronic lock is 1-2-3-4-5-6.

Enter this sequence on the electronic lock keypad. (①).

The lock will confirm a valid combination entry with a
double signal. Lock will signal three (3) times for invalid
combination entry.

Turn the vault door handle counterclockwise. (②)
The vault door will open.
3
Opening the Exterior Door
3-1

Opening the upper front body door,
- Insert the key and turn it clockwise. (①)
- Pull the front panel outward. (②)
3-2

Opening the lower front body door,
- Open the security cover with key. (③)
- Unlock the e-lock and open security door. (④)
4
Cash Replenishment
4-1

Enter to Supervisor mode (Refer to
“9 OP Main Screen”)

Select “SETTLEMENT”

Submit “TRIAL CASSETTE TOTAL” to
show note count.
* To show note count and to clear note
count, submit “CASSETTE TOTAL”

How to add note count,
- Select “SETTLEMENT”
- Select “ADD CASH”
- Select the cassette to be added the
notes(①)
- Enter the note count and then press
ENTER key in PIN Pad. (If you want to add
the cash for other cassette, repeat from “①
”)
- After completing, press “APPLY” button.
4-2

Open the security door. (Refer to “3 Opening the
Exterior Door”)

Pull out the cash cassette carefully.

Unlock the cassette cover using key (①).

Pull the push plate back until it is locked
against the push plate latch. (②) And then,
set the bills into the cash cassette.

Then, release the push plate from the cash
plate latch and allow it gradually to take up
its position behind the notes. (③)

Close the cassette cover with key, place
it carefully on the set guide and push it in
until it is locked in place.
* The above description is based on 1000 new note
capacity cassette. For 2000 new note capacity
cassette, refer to operator manual.
1 2 3
Caution: The acceptable condition bills should be
loaded (Refer to Operator Manual)
1
2
1
2
3 4

MX2600SE Quick Reference Guide
5

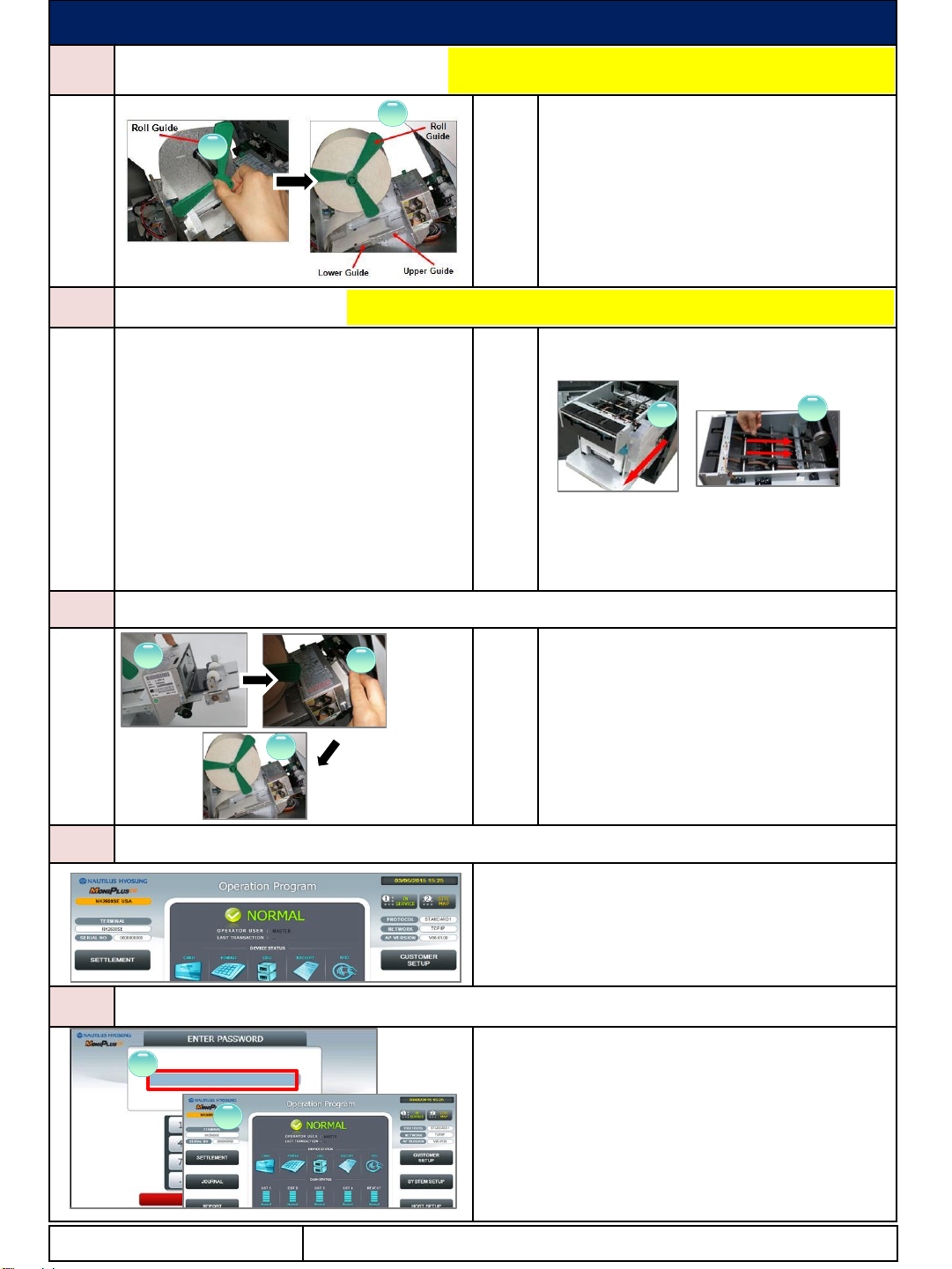

Receipt Paper Replenishment
5-1 5-2

Open the upper front door with key. (Refer to
“3 Opening the Exterior Door”)

Remove the roll guide by pulling it off (①).

Add the receipt paper into the rod and then
insert the roll guide tightly again to fix it. (②).

Insert the leading edge of paper between
lower guide and upper guide of printer slowly
until paper is going to start feeding. (②)
6
Note Jam
6-1

Enter to “OP Main” screen, and submit
“CLEAR” button (Refer to “8 Device Reset”)

If jam is not cleared, power off

Open the security door. (Refer to “3 Opening
the Exterior Door”)

Pull out the cash dispenser (①).

Move the belt by turning the knob beside
cash dispenser to move jammed note into
a well removed position. (②)

Remove jammed note carefully and power on.
6-2
*
Be sure to check if the belt is positioned
correctly after removing the jammed bills.
* The above description is based on CDU with
1000 new note capacity cassette. For CDU with
2000 new note capacity cassette, refer to
operator manual.
7
Receipt
Paper Jam
7-1 7-2

Open the upper front door with key. (Refer to
“3 Opening the Exterior Door”)

To remove a jam inside transport path,
press down the button to release the lower
roller assembly (①) .

To take out a jam in front of transport path,
lift up the transparent window guide. (②)

After finishing clearing the jam, load the
receipt paper properly. (③).
8
Device Reset

To reset each device with error of ATM, enter to “OP
Main” screen, and press “CLEAR” key of EPP.
9
OP Main Screen

To enter to Supervisor mode, press ENTER,
CLEAR, CANCEL, 1, 2 and 3 keys in order.
(Default Password: “555555” and it is changeable in
Supervisor mode.) (①)

If correct password is entered, “OPERATION
FUNCTION” menu will be displayed. (②)
*
Pressing CLEAR key erases the entered number and
pressing CANCEL key goes to in-service-mode.
Contact Information
Caution: Before removing jam, power off for your safety.
1 2
1
Caution: The acceptable condition papers should be
loaded (Refer to Operator Manual)
1
2
1 2
3
