NAV TOOL 6.0-LG2-RR User manual

1
Range Rover Evoque 2005-2009
Installation Manual
Range Rover Evoque 2005-2009
NOTICE: Navtool recommends having this installation performed by a certied technician.
Logos and trademarks used here in are the properties of their respective owners.
Interface with HDMI Mirroring
Part #: NAVTOOL6.0-LG2-RR

2
Range Rover Evoque 2005-2009
Table of Contents
Precautions
What’s In The Box
Interface Connectors Description
Universal Harness Description
NEED HELP?
WELCOME
IMPORTANT WARNING
This product includes instructions for
installation, which must be carefully
followed. The instructions are worded
in such a manner to assume that
the installer is capable of completing
these types of electronic installations.
Suppose you are unclear about what
you are instructed to do or believe
you do not understand the instruc-
tions to complete the installation
properly and safely. In that case, you
should consult a technician who has
this knowledge and understanding.
Failure to follow these instructions
carefully and install the interface as
described could cause harm to the
vehicle or safety systems on the
vehicle. Interference with specic
safety systems could cause damage
to persons as well.
Open the camera app on your smart-
phone and point your rear camera at
the QR-Code to scan it. Finally, tap
the pop up banner to open support
website.
Quick Connection Guide
Installation Instructions
Testing and Settings
3
4
5
6
7-8
9-16
17-20
Installation Instructions

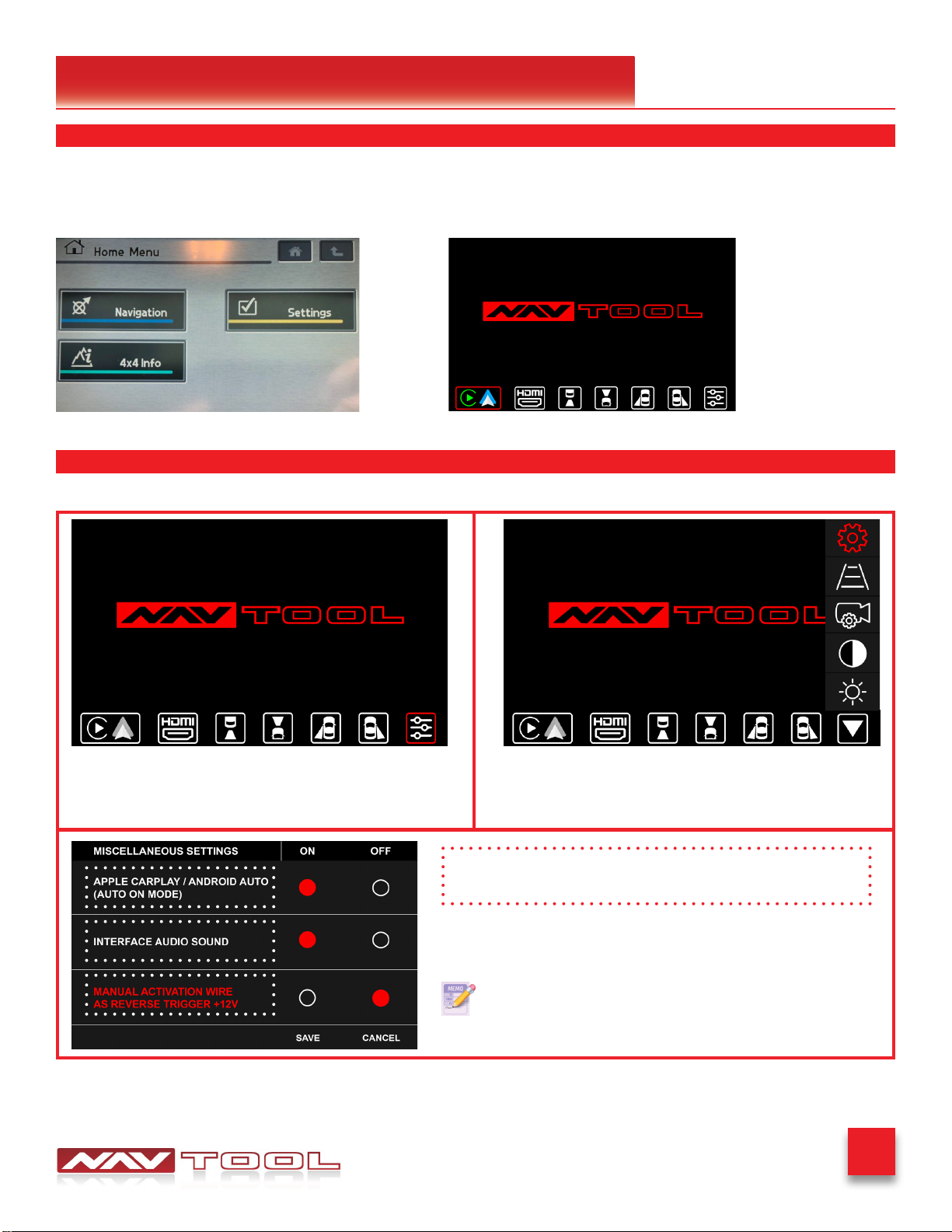

Video Interface Menus
Connect Rear Screens With AV Input
Connect Rear Screens With HDMI Input
22-28
29
30
Extra Details
Vehicle Reassembly Checklist 21
User Manual
User Manual End Pages 1-4
Print End Pages 1-4
and give them to the customer

3
Range Rover Evoque 2005-2009
PLEASE READ BEFORE YOU START THE INSTALLATION
• Please study these instructions carefully before installing NavTool interface.
• Many new vehicles use low-voltage or data-bus systems that can be damaged by test lights and
logic probes. Test all circuits with a digital multi-meter before making connections.
• Do not disconnect the battery if the vehicle has an anti-theft-coded radio, unless you have the radio
code.
• If installing an external push button switch, check with the customer about where to install the
switch.
• To avoid accidental battery drainage turn off the interior lights or remove the dome light fuse.
• Roll down a window to avoid being locked out of the car.
• Use of this product in a manner different to its intended way of operation may result in property
damage, personal injury, or death.
• Set Parking brake.
• Remove the negative battery cable.
• Protect fenders before starting.
• Using protective blankets to cover front seats, interior of the vehicle and center console.
• Always install a fuse 6-12 inches away from NavTool interface, 5 amp fuse should be used.
• Always secure NavTool interface with Velcro or double side tape to prevent rattling of the interface.
• When securing NavTool interface make sure that panels can be closed back easily.
• Use electrical tape on all you connections and splices, do not leave any exposed connections.
• Route all wires along factory harnesses, try not to drill or make any unnecessary holes.
• Make sure you are not connecting to any data wires; always check your connections with a multi-
meter.
• Always use help of a professional installer to prevent any damage to the vehicle or NavTool
interface.
Precautions

4
Range Rover Evoque 2005-2009
What’s In The Box?
NavTool Interface
(Part # NAVTOOL6.0-LG2)
NavTool LVDS Cables
(Part # NT-RR-LVDS)
NavTool Interface Harness
(Part # NT-WHNT6)
NavTool Vehicle Specic
Plug and Play Harness
(Part # NT-RRSPL)
USB Conguration Cable
(Part # NT-USB-CNG)

5
Range Rover Evoque 2005-2009
Interface Connectors Description
USB Port for
Apple CarPlay and
Android Auto
Conguration Port HDMI Port
Main Connector for
Universal Interface Harness
Data LED
Power LED
HDMI LED
Main Connector for Universal Interface Harness- This port is dedicated for a connection of a universal wiring harness
LVDS Cables Input and Output- This port is dedicated for the LVDS cables.
Dip Switches- Set dip switches to ON positio, see page 7, ON position is DOWN.
Conguration Port- This USB port is dedicated for the interface conguration only.
Data LED- Normal operation of the interface must have blue LED blinking. If the blue LED is not blinking, the interface is
not receiving data from the vehicle. If the blue LED is not blinking, the interface will not operate properly.
Power LED- Normal operation of the interface must have a green LED ON. If the green LED is not ON, the interface is
not receiving power. If the green LED is not ON, the interface will not work, and your vehicle radio may also stay OFF.
HDMI LED- Normal operation of the interface must have a green LED ON. If the green LED is not ON, the interface HDMI
is not receiving power. If the green LED is not ON, the interface HDMI port will not work.
USB Port for Apple CarPlay and Android Auto- Not Used
HDMI Port- HDMI port is dedicated for connecting video sources such as iPhone mirroring, Android Mirroring, Apple TV,
Roku, FireStick, Chromecast, PlayStation, Xbox, or similar devices.
NavTool Interface
(Part # NAVTOOL6.0-LG2)
LVDS Cables
Input and Output
ON 1 2
Dip Switches

6
Range Rover Evoque 2005-2009

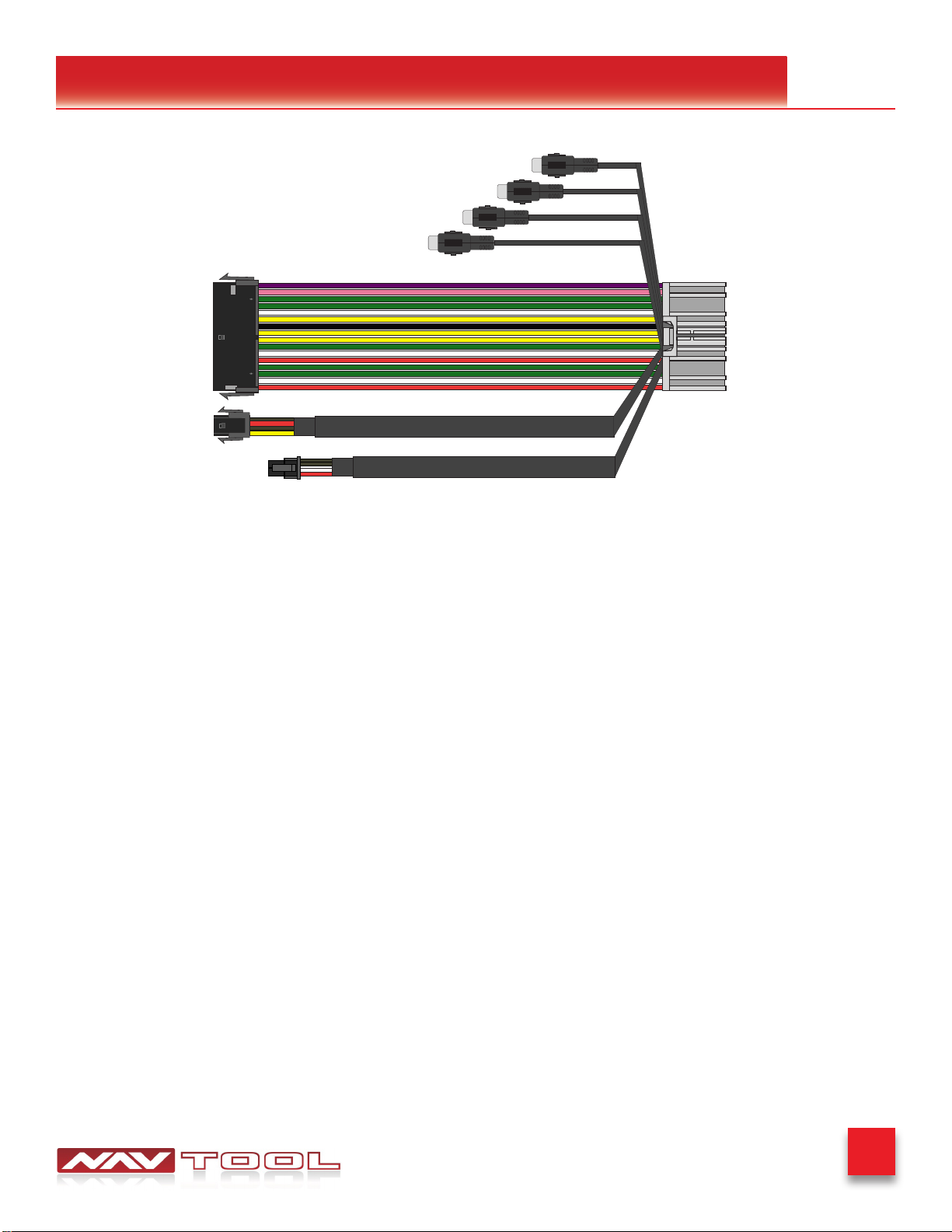

Universal Harness Description
Left Camera Input/ Video Input 3
Right Camera Input/ Video Input 4
Front Camera Input/ Video Input 2
Rear Camera Input/ Video Input 1
Connector for Microphone Input
Connector for Controller
Connector for
Vehicle Specific Harness
Manual Activation Wire
12V Output Wire
Rear Camera Input /Video Input 1- This input is dedicated for an aftermarket rearview camera or a video source with an
RCA video output. Your vehicle factory camera will continue to work as before without any changes.
Front Camera Input /Video Input 2- This input is dedicated for an aftermarket front view camera or a video source with
an RCA video output. Your vehicle factory camera will continue to work as before without any changes.
Left Camera Input / Video Input 3- This input is dedicated for an aftermarket left view camera or a video source with an
RCA video output. Your vehicle factory camera will continue to work as before without any changes.
Right Camera Input / Video Input 4- This input is dedicated for an aftermarket right view camera or a video source with
an RCA video output. Your vehicle factory camera will continue to work as before without any changes.
Connector for Vehicle Specic Harness- This connection is dedicated for connecting vehicle specic plug and play
wiring harness.
Connector to Controller- Not Used
Connector for Microphone Input- Not Used
+12V Manual Activation Input- This connection is used only if the factory rearview camera is not operating correctly
in reverse. In that case, this wire must be connected to the vehicle’s reverse +12V output. (Change setting “Manual
Activation Wire as +12V Reverse Input” See page 41)
+12V Output- 500 mA output can be used to drive a relay. This output provides +12V at all times when the vehicle is
running.
NavTool Interface Harness
(Part # NT-WHNT6)

7
Range Rover Evoque 2005-2009

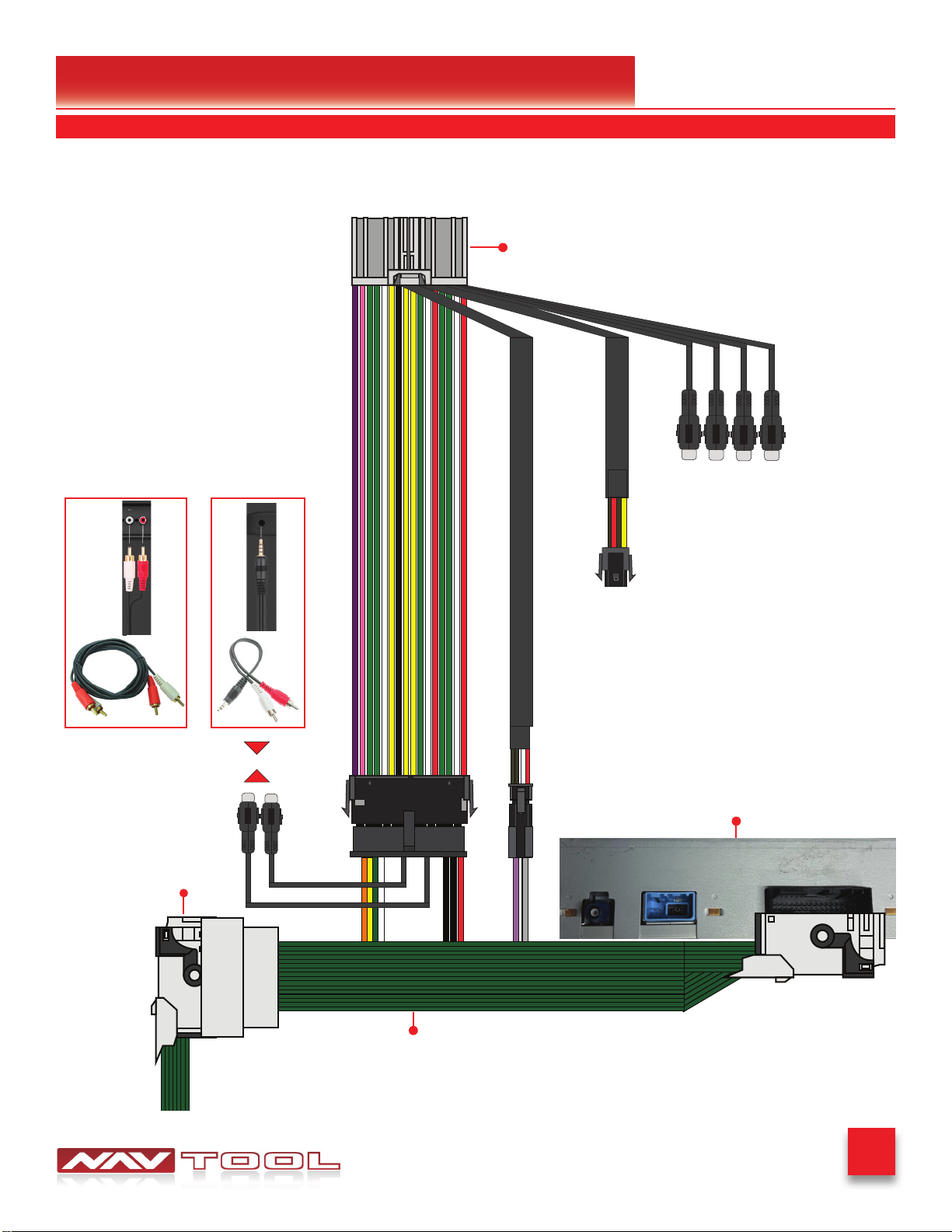

Quick Connection Guide
ON 1 2
Click
Factory Wire
NavTool Supplied Cable
(Part # NT-RRSPL)
NavTool Interface
(Part # NAVTOOL6.0-AR2-NBT)
NavTool Supplied Harness
(Part # NT-WHNT6)
Back of Navigation
Left Camera Input/ Video Input 3
Right Camera Input/ Video Input 4
Front Camera Input/ Video Input 2
Rear Camera Input/ Video Input 1
Click Click
Click
Click
(Not Used)
AUX Input depends on the type of jack
installed in your car from the factory
Or
Click
ON 1 2
- OFF Position - Both Switches Up
- ON Position - Both Switches Down
Switch 1 Set to ON - ON is Down
Switch 2 Set to ON - ON is Down
See Page 8 NavTool Interface
(Part # NAVTOOL6.0-LG2)

8
Range Rover Evoque 2005-2009

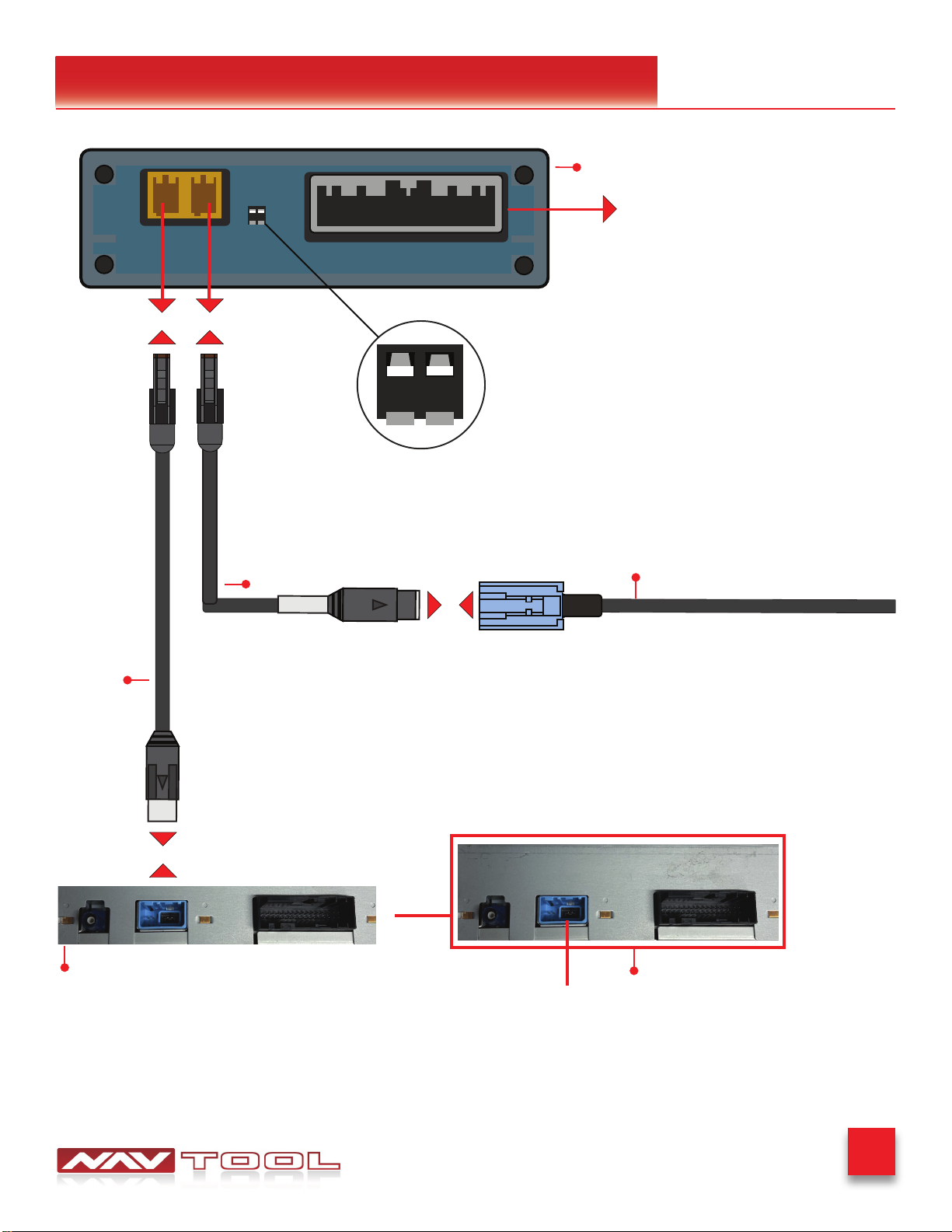

Quick Connection Guide
Click
Click Click
Click
*2
Close Up View of Radio Connectors
*2- Cable that previously used to be
connected to blue connector in the
back of the navigation
NavTool Supplied LVDS Cable
NavTool Supplied LVDS Cable
Factory LVDS Cable
NavTool Interface
Back of Car Navigation
ON 1 2
- OFF Position - Both Switches Up
- ON Position - Both Switches Down
Switch 1 Set to ON - ON is Down
Switch 2 Set to ON - ON is Down
See Page 7

9
Range Rover Evoque 2005-2009
Installation Instructions
NO APPLICATION OR SOFTWARE DOWNLOAD IS REQUIRED TO CONFIGURE THE INTERFACE.
To congure the interface, you must use Windows, Mac, or Google computer.
Windows computers must use the latest version of Google Chrome or Microsoft Edge browser.
Mac computers must use the latest version of the Google Chrome browser.
Google computers must use the latest version of the Google Chrome browser.
TO CONFIGURE THE INTERFACE, GO TO HTTPS://CONFIG.NAVTOOL.COM
Connect the interface to the computer using supplied USB Conguration Cable (Part # NT-USB-CNG)
To see a video of the conguration process
Scan QR-Code or go to
https://youtu.be/iES_rW240X0
Remove Vehicle Navigation Radio or Color Screen

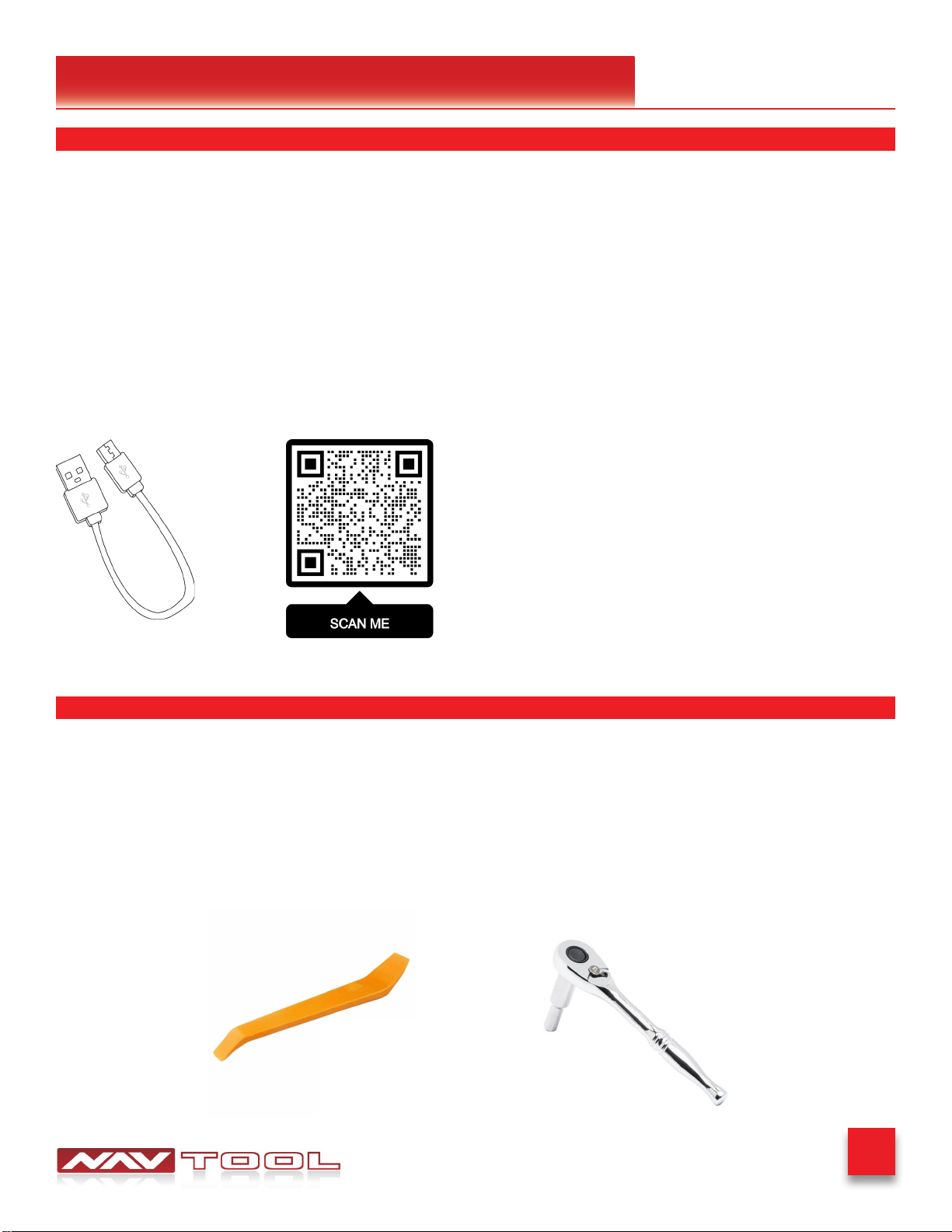

List of Required Tools:
1. Plastic Panel Removal Tool- Example of a removal tool is shown below. Any similar removal tool will do the job. It does
not need to be the same as the picture below.
2. 7 mm Socket- Example of a 7 mm socket tool is shown below. Any similar tool will do the job. It does not need to be the
same as the picture below.
STEP 2
STEP 1

10
Range Rover Evoque 2005-2009
Installation Instructions
STEP 2 Continued

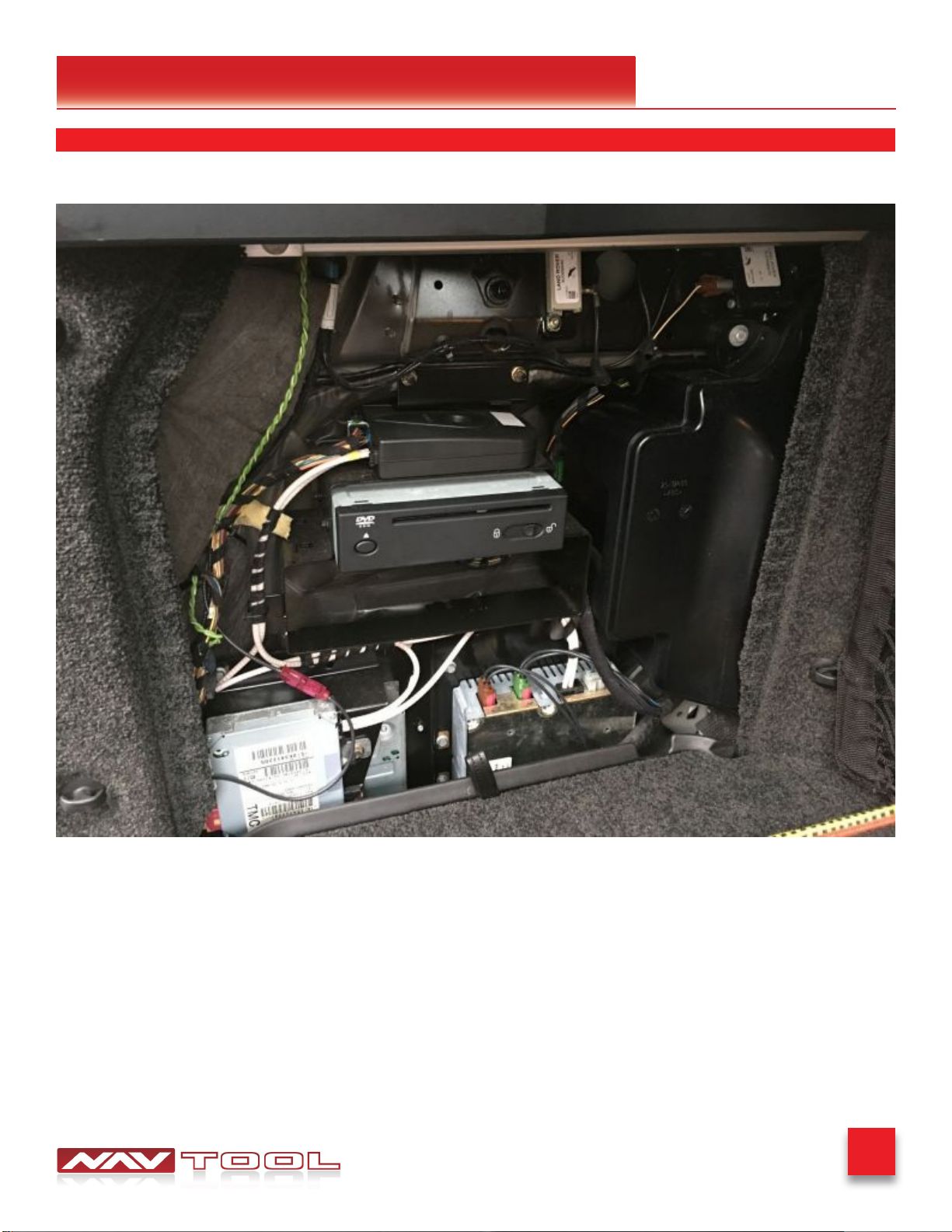

Navigation is located behind the cover of the left cargo area.
Land Rover: Range Rover 2005-2009
Land Rover: Range Rover Evoque 2005-2009

11
Range Rover Evoque 2005-2009
Installation Instructions
STEP 2 Continued
Navigation is located under driver seat.
Land Rover: Range Rover Sport 2005-2009
Land Rover: LR3 2005-2009

12
Range Rover Evoque 2005-2009
Factory Wire
NavTool Supplied Cable
(Part # NT-RRSPL)
Back of Navigation
Click
Click
Installation Instructions
Step 1: Connect supplied plug and play harness (Part # NT-RRSPL) to the back of navigation.
Step 2: Connect factory connectors into the supplied vehicle specic plug and play harness.
Step 2: Reconnect previously removed radio connectors into the back of the radio.
(For complete image, see Quick Connection Guide on page 7)
Continued on Step 4
STEP 4
STEP 3
ClickClick ClickClick
Connect supplied universal wiring harness (Part # NT-WHNT6) into plug and play harness
(Part # NT-RRSPL).
Click Click
(Part # NT-RRSPL)
(Part # NT-WHNT6)
(For complete image, see Quick Connection Guide on page 7)
End View of Harness
NT-RRSPL

13
Range Rover Evoque 2005-2009
Installation Instructions
STEP 5
Step 1: Connect the AUX plugs on NavTool Supplied Cable (Part # NT-RRSPL) to AUX cables and
plug them into the AUX input of your car.
Factory Wire
NavTool Supplied Cable
(Part # NT-RRSPL)
NavTool Supplied Harness
(Part # NT-WHNT6)
Back of Navigation
Left Camera Input/ Video Input 3
Right Camera Input/ Video Input 4
Front Camera Input/ Video Input 2
Rear Camera Input/ Video Input 1
(Not Used)
AUX Input depends on the type of jack
installed in your car from the factory
Or
Click

14
Range Rover Evoque 2005-2009
Installation Instructions
STEP 6
Step 1: Connect factory LVDS cable into the NavTool supplied LVDS cable.
Step 2: Connect NavTool supplied LVDS cable into the brown port shown in the image below.
Click
Click
Cable that previously used to be
connected to blue connector in the
back of the navigation
NavTool Supplied LVDS Cable
Factory LVDS Cable
NavTool Interface
Back of Car Navigation
ON 1 2
- OFF Position - Both Switches Up
- ON Position - Both Switches Down
Switch 1 Set to ON - ON is Down
Switch 2 Set to ON - ON is Down
STEP 7
Step 1: Connect NavTool supplied LVDS cable into the blue port on the back of the navigation.
Step 2: Connect NavTool supplied LVDS cable into the brown port shown in the image below.
Click
Click
Close Up View of Radio Connectors
NavTool Supplied LVDS Cable
NavTool Interface
Back of Car Navigation
ON 1 2
- OFF Position - Both Switches Up
- ON Position - Both Switches Down
Switch 1 Set to ON - ON is Down
Switch 2 Set to ON - ON is Down
See Page 15
See Page 15

15
Range Rover Evoque 2005-2009
Installation Instructions
STEP 8
Plug the universal wiring harness (Part # NT-WHNT6) into the main interface
(Part # NAVTOOL6.0-LG2). See quick connection guide on page 7.
Factory Wire
NavTool Supplied Cable
(Part # NT-RRSPL)
NavTool Supplied Harness
(Part # NT-WHNT6)
Back of Navigation
Left Camera Input/ Video Input 3
Right Camera Input/ Video Input 4
Front Camera Input/ Video Input 2
Rear Camera Input/ Video Input 1
(Not Used)
AUX Input depends on the type of jack
installed in your car from the factory
Or
Click
NavTool Interface
(Part # NAVTOOL6.0-AR2-NBT)
- OFF Position - Both Switches Up
- ON Position - Both Switches Down
Switch 1 Set to ON - ON is Down
Switch 2 Set to ON - ON is Down
• The NavTool interface installation is now complete.
• Do not reassemble the vehicle until testing is fully complete. Only after you have tested that
everything is working can you reassemble the car.
• If you are adding side or front cameras, install them and plug them into the appropriate camera
RCAs.
• If you are installing any HDMI or streaming devices, connect it to the HDMI port of the NavTool.
See Page 14 NavTool Interface
(Part # NAVTOOL6.0-LG2)

16
Range Rover Evoque 2005-2009
Installation Instructions
STEP 9
Plug the AUX plug you connected to the harness into the AUX input of the car. See picture below.

17
Range Rover Evoque 2005-2009
Testing and Settings
STEP 1
• Start the car, observe NavTool LED lights should be one blinking blue and two steady lit green LED
lights.
Data LED
Power LED
HDMI LED
• At this time, your car radio should boot up into its initial state, and the radio should be working.
Please check that the radio operates appropriately. All radio functions are working, including CD,
Satellite Radio, AM/FM radio, audio plays from car speakers, and all other radio features.
STEP 2
• AUX Button: Press the AUX button to display the audio screen. This will let you switch between AM,
FM, or XM, if equipped, Disc, or AUX (Auxiliary). Must set a radio to auxiliary/AUX before activating
NavTool to hear audio from car speakers.
• Audio will not play through car speakers if AUX is not connected or radio is not set to AUX input.
Set Radio to AUX Audio Input:

18
Range Rover Evoque 2005-2009
Testing and Settings
• Tap the Navigation button to activate NavTool interface. (see Fig. 1). You should hear a chirp, and
after that, the interface will start, and the NavTool menu will appear on the screen. After activating the
interface, the NavTool screen will show (see Fig.2)
Fig. 2
STEP 3
STEP 4
Adjust camera inputs if you haven’t done so already during the initial conguration of the interface.
• Touch the settings menu option.
• The menu option is the last icon on the bottom right.
• Touch the settings gear.
• The settings gear is the top icon.
• Touch the text “Manual Activation Wire as Reverse Trigger +12V.”
• Change the setting to OFF, once the red dot is set to OFF (image
shown on the left), click the SAVE button on the bottom right.
Step: 1 Step: 2
Step: 3
To change features ON or OFF, touch the text on the screen
that is indicated in the image with the dotted outline.
Apple CarPlay/Android Auto (Auto ON Mode)
only set it to ON if you do not plan
to use HDMI or video inputs
Fig. 1

19
Range Rover Evoque 2005-2009
Testing and Settings
STEP 5
Camera Settings
• Touch the Camera Settings icon.
Camera Settings
• Image above shows you typical camera settings.
• To change camera input, touch the desired line of the camera
as indicated in the image above. (rear, front, left, or right). Tap
repeatedly to change the options for your camera input.
• Once all camera inputs are set, tap the SAVE button on the
bottom right.
Step: 1
Step: 2
Set vehicle in reverse gear to test the operation of the factory rear view camera.
Press and hold one of the four corners of the touch screen for 3 seconds to turn OFF the NavTool inter-
face. Press and hold the corner of the touch screen for a few seconds until the bottom menu appears on
the screen, release the nger and hold the corner of the screen again to return to the factory menu.
(See page 18 for details)
To change the camera input settings, touch the area on the
screen that is indicated in the image with the dotted outline.

20
Range Rover Evoque 2005-2009
Testing and Settings

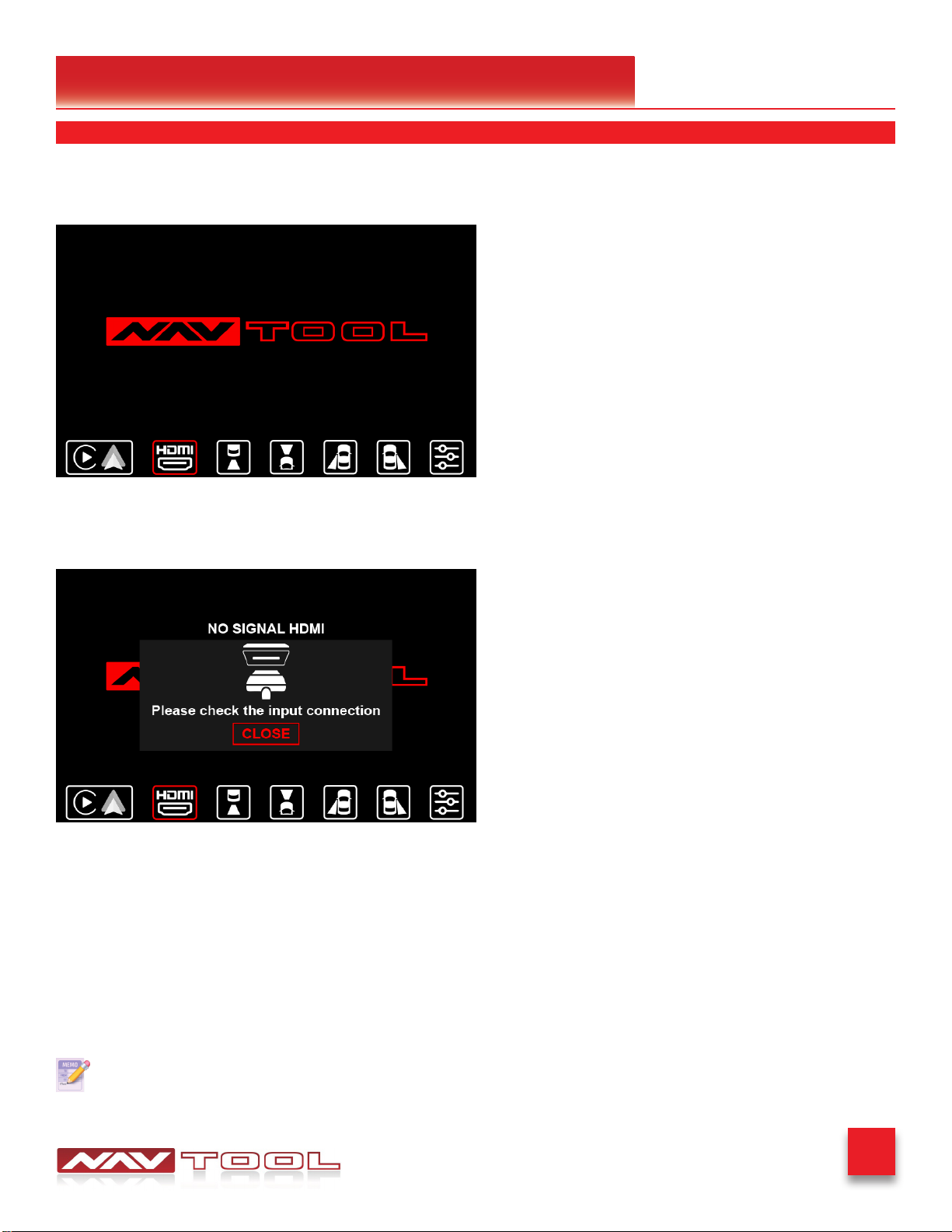

STEP 6
• Test HDMI input if you are connecting any HDMI video source. To bring up the bottom menu, press
and hold one of the four touch screen corners for 3 seconds.
• Touch the HDMI button on the screen to enter the HDMI input of the interface.
• Video signal from your HDMI source will appear on the screen.
• Test AV inputs by selecting them in the menu of the interface or if you are installing any
aftermarket cameras.
• To test aftermarket front camera, put the car in reverse then into drive. Front camera should display
on the screen.
• To test aftermarket left and right cameras, use left and right turn signals. Left and right cameras
should display depending on the turn signal activated.
• To exit HDMI input or any Camera inputs, tap the touch screen to bring up the bottom menu.
After everything is tested and working, reassemble the vehicle.
• If no video source is connected or the connected source is not correctly working, you will see this
message. (Image shown above)
