NavLinkz RL4-LR16-8 User manual

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Video inserter
RL4-LR16-8
RL4-LR16-10
Compatible with
Jaguar and Landrover vehicles
with Incontrol Touch system and 8inch monitor
or Incontrol Touch Pro system and 10.2inch Monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Activating the front camera (dip 1)
1.4.2. Enabling the interface’s video inputs (dip 2-3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Activating the guide lines (dip 6)
1.4.5. Activating the PDC (dip 7)
1.4.6. Monitor selection (Dip 8)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection - factory head unit and monitor
2.3.1. Connection - picture signal cable –

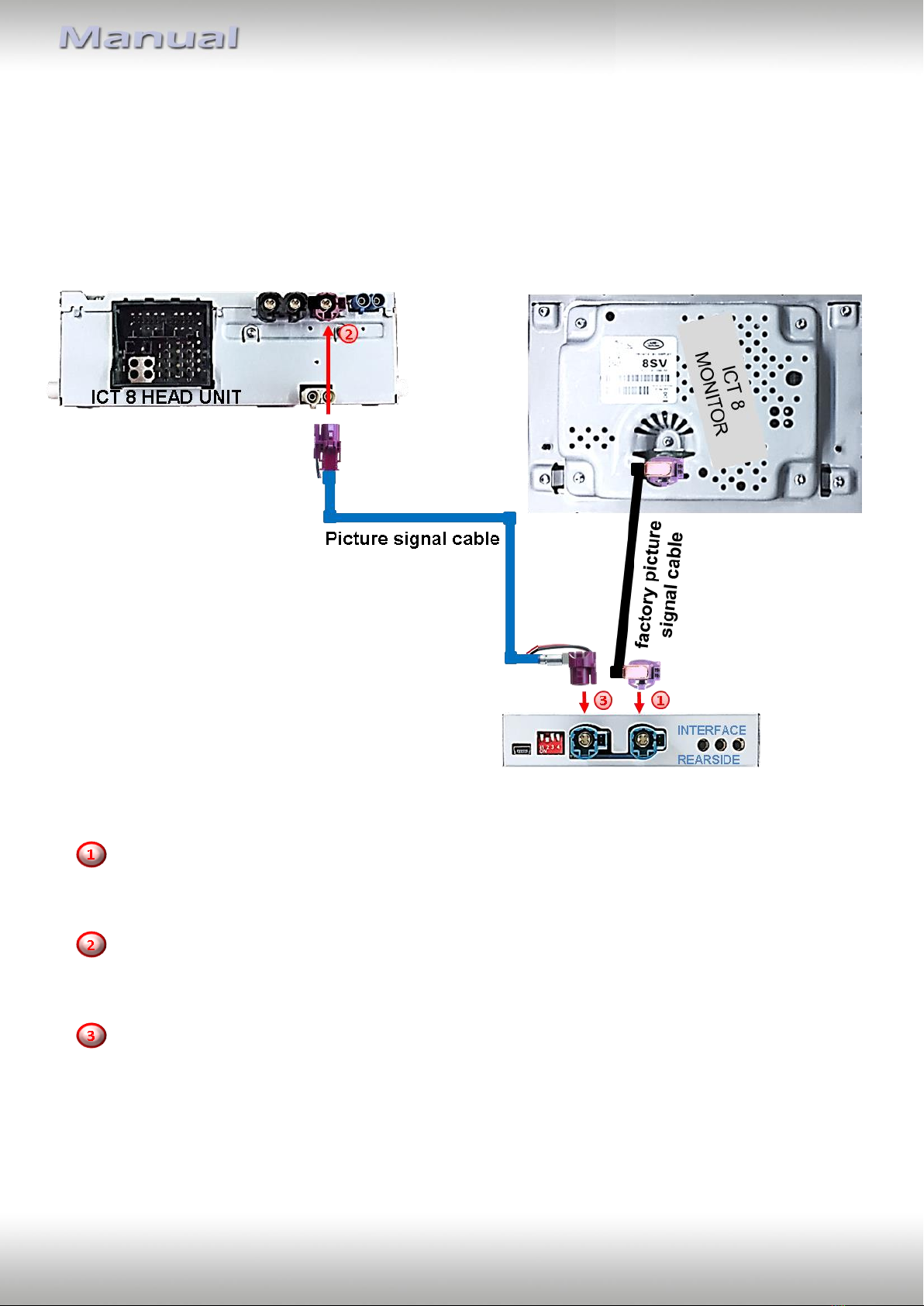

2.3.1.1. ICT head unit and 8inch monitor (RL4-LR16-8)
2.3.1.2. ICT - Pro head unit and 10.2inch monitor (RL4-LR16-10)
2.3.2. Connection - Quadlock - CAN
2.3.2.1. Incontrol Touch head unit (8 inch monitor –RL4-LR16-8)
2.3.2.2. Incontrol Touch Pro head unit (10,2 inch monitor –RL4-LR16-10)
2.4. Analog power supply for the video interface
2.5. Power supply output
2.6. Connection - video-sources
2.6.1. Audio insertion
2.6.2. After-market front camera
2.6.2.1. Connection –RL4-LR16-8 Incontrol Touch with 8inch monitor
2.6.2.2. Connection –RL4-LR16-10 Incontrol Touch Pro with 10.2inch monitor
2.6.3. After-market rear-view camera
2.6.3.1. Case 1: Interface receives the reverse gear signal
2.6.3.2. Case 2Interface does not receive the reverse gear signal
2.7. Connecting - video-interface and external keypad
2.8. Picture settings and guide lines
3. Interface operation
3.1. By factory infotainment button
3.2. By keypad
4. Specifications
5. FAQ –Trouble Shooting-Interface functions
6. Technical support

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.

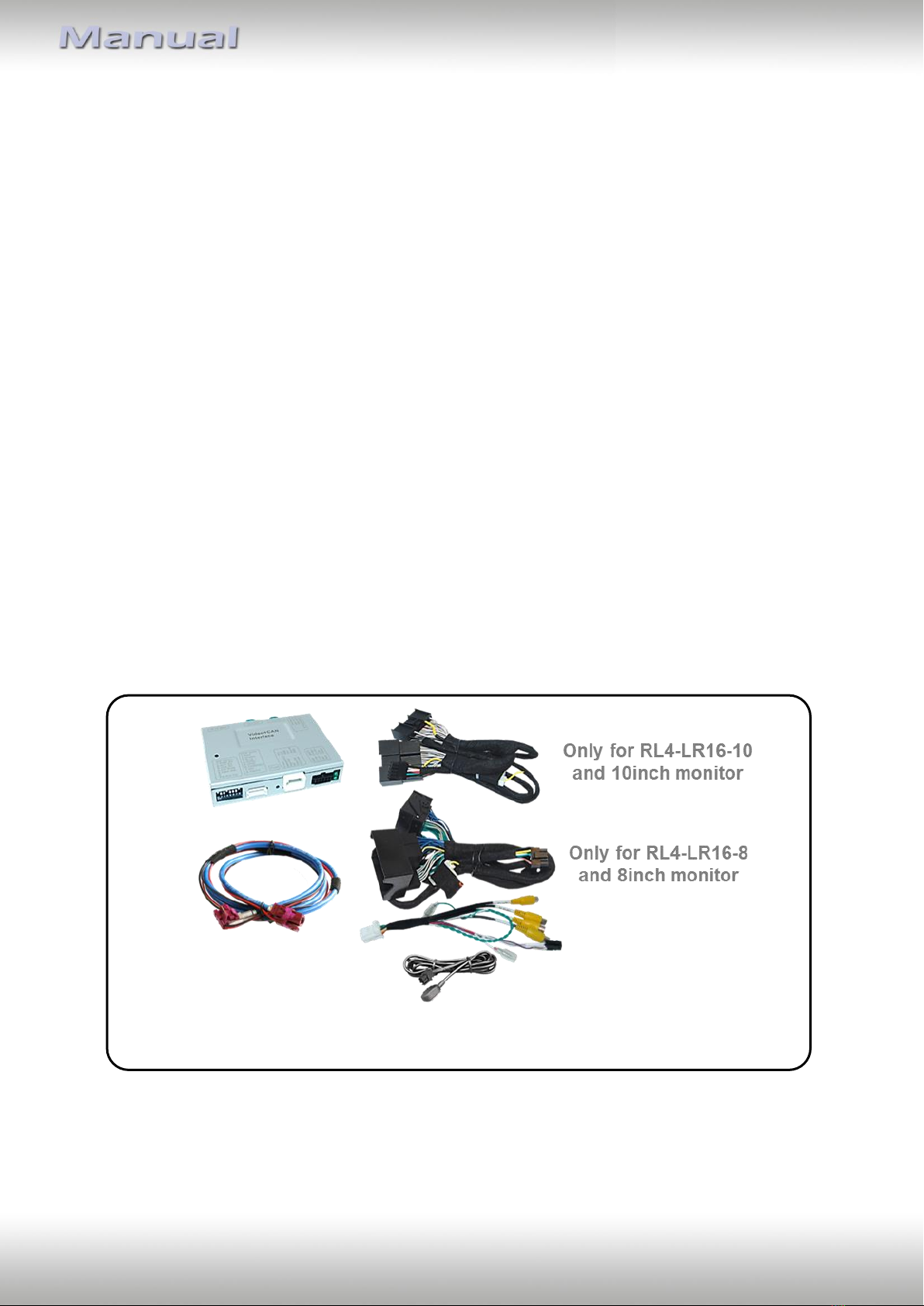

1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page4
Requirements
Brand
Compatible vehicles for RL4-LR16-8
Compatible systems
Jaguar
F-Pace model years since 2016
F-Type model years since 2016
XE model years since 2016
XF model years since 2016
XJ model years since 2016
Incontrol Touch - 8 inch monitor
Not compatible with Dual-View monitor!
Land Rover
Discovery4 model years since 2014
Discovery Sport model years since 2015
Range Rover Evoque model years since 2014
Range Rover Sport model years 2014-2016
Range Rover model years 2014-2016
Freelander2 model years since 2014
Incontrol Touch Pro - 10.2 inch 24:9 monitor
Not compatible with Dual-View monitor!
Brand
Compatible vehicles for RL4-LR16-10
Compatible systems
Jaguar
F-Pace model years since 2016
F-Type model years since 2016
XE model years since 2016
XF model years since 2016
XJ model years since 2016
Incontrol Touch Pro - 10.2 inch 24:9 monitor
Not compatible with Dual-View monitor!
Land Rover
Discovery 5 model years since 2017
Discovery Sport model years since 2017
Range Rover model years since 2017
Range Rover Sport model years 2017
Range Rover Evoque model years 2017-2019
Incontrol Touch Pro - 10.2 inch 24:9 monitor
Not compatible with Dual-View monitor!
Limitations
Video only The interface inserts ONLY video signals into the infotainment. For inserting
Audio signals either the possibly existing factory audio-AUX-input or a FM-
modulator can be used. If 2 audio sources shall be connected to the
infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is
only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is possible by
external keypad.
PDC and guide lines Displayed guide lines and PDC are not available in all vehicles.
1.2. Checking the compatibility of vehicle and accessories

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page5

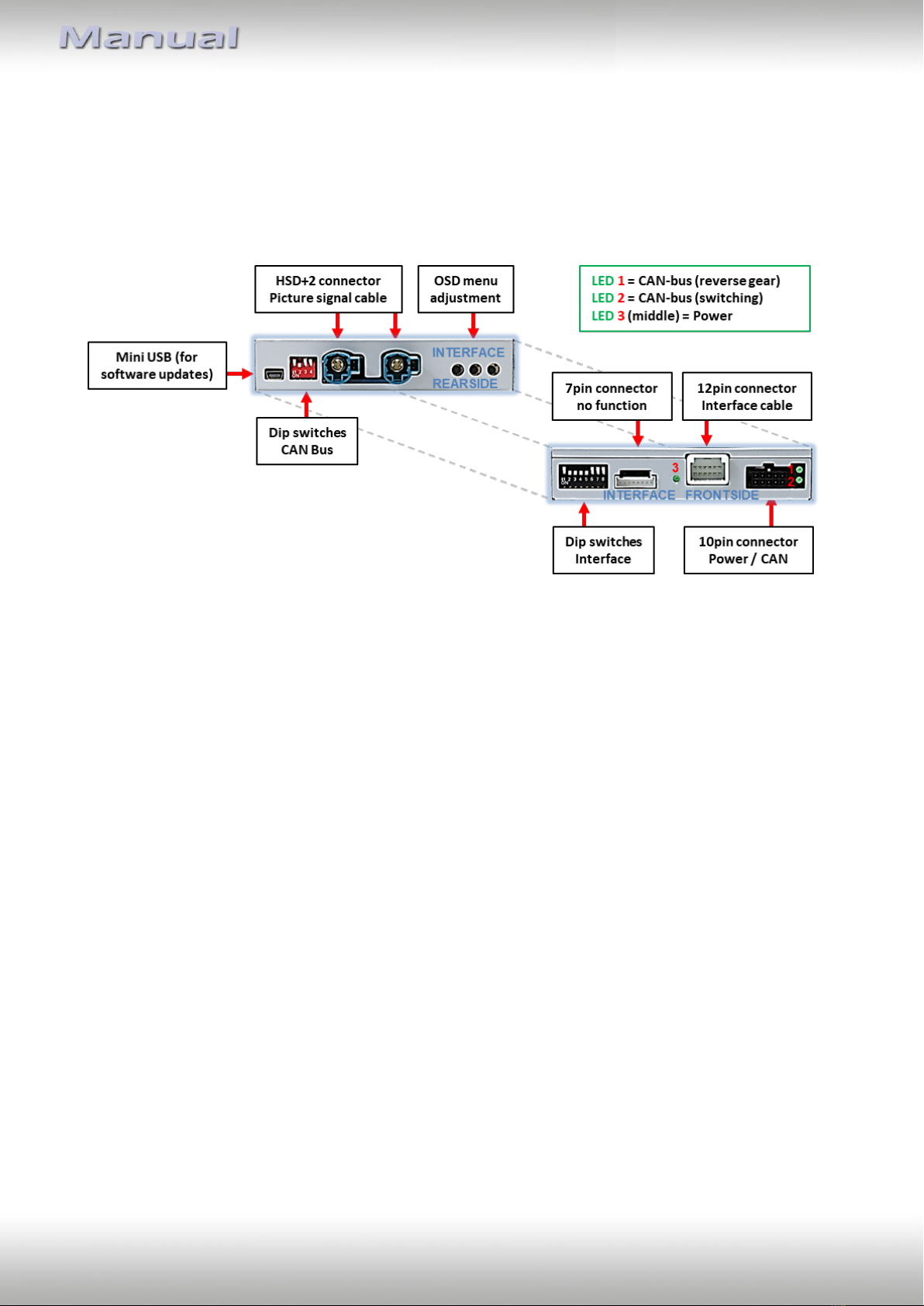

1.3. Boxes and connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page6
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the Video interface has to be performed!
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear (according to the menu adjustments).
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
RL4-LR16-8:
Power supply
front camera
(red wire)
+12V (max. 3A) when reverse gear is
engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
No function
RL4-LR16-10:
Power supply
front camera
(orange wire)
+12V (max. 3A) when reverse gear is
engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
No function
2
Video 1-input
enabled
disabled
3
Video 2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam
type
after-market
factory or none
6
Guide lines
enabled
disabled
7
PDC
enabled
disabled
8
Monitor size
8inch
10.2inch

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page7
1.4.1. Activating the front camera (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.

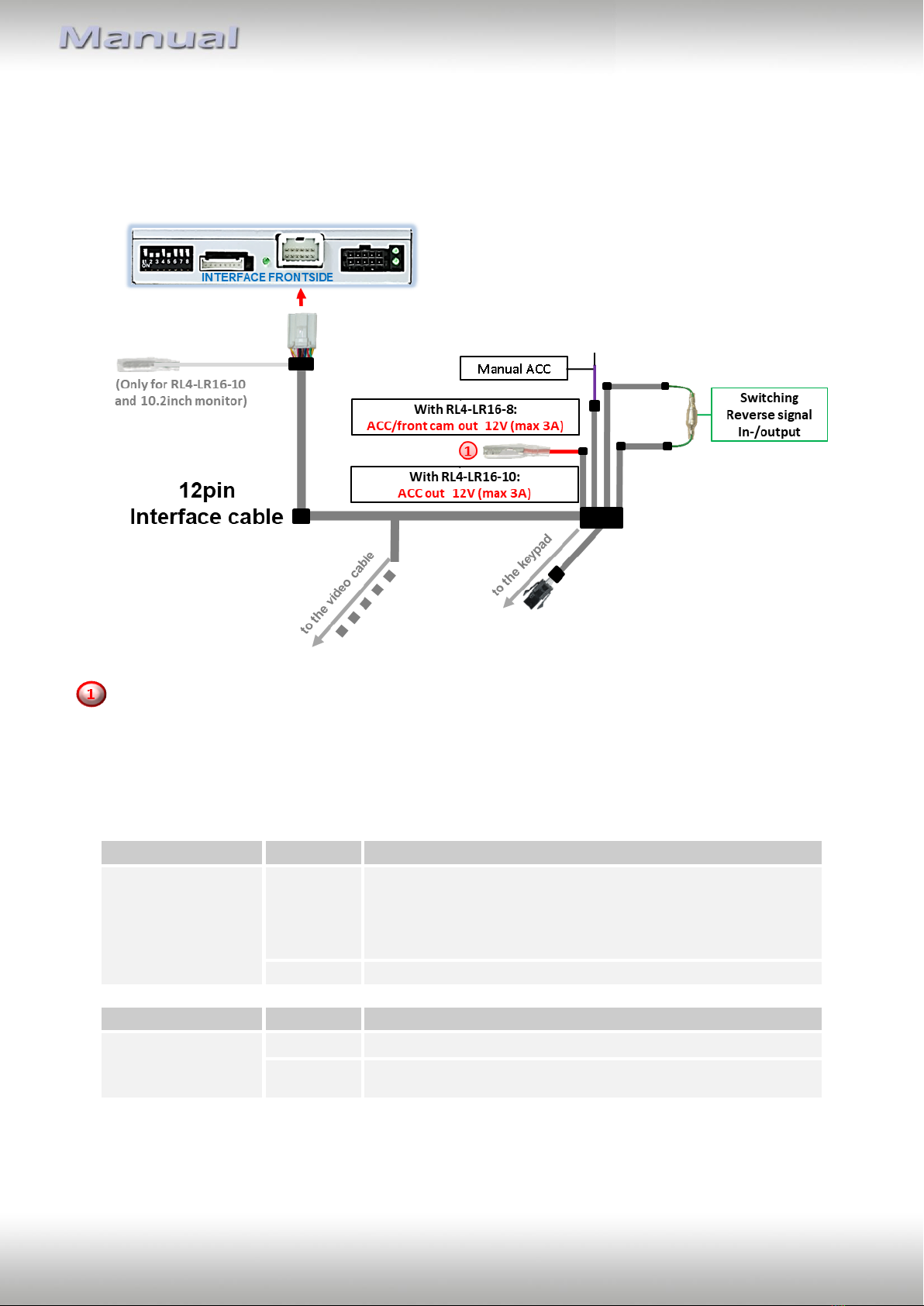

Description of the power supply output: see chapter “Power supply output (only for RL4-LR16-10)”.
1.4.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs. So the disabled inputs will be
skipped while switching through the video interfaces inputs.
1.4.3. Rear-view camera setting (dip5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.4.4. Activating the guide lines (dip6)
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles
aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s
operation, even if they once appear after having switched the system to powerless
1.4.5. Activating the PDC (dip7)
If set to ON, the PDC car will be displayed on the screen and the park distance will be shown
by using the signals of the vehicle’s CAN-bus. If there is no communication between the
interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the park distance
can’t be shown. In this case, set dip7 to OFF.
1.4.6. Monitor selection (dip8)
Dip8 changes the monitor-specific video settings.
Using a 8inch monitor, the dip switch position is ON.
Using the 10,2inch monitor, the dip switch setting is OFF.
Size of monitor
Dip 8
8inch –INCONTROL TOUCH
ON
10.2inch –INCONTROL TOUCH PRO
OFF
Note: Dip 4 is out of function and has to be set to OFF!

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page8
1.5. Settings of the 4 Dip switches (CAN functions –red)
Dip position down is ON and position up is OFF.
Fahrzeug/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
Jaguar XF, Land Rover
Discovery Sport
OFF
ON
OFF
OFF
Jaguar XE 2016
OFF
OFF
OFF
OFF
Jaguar XE 2018
ON
OFF
OFF
OFF
Land Rover Discovery 5,
Ranger Rover Evoque, Range
Rover Sport
ON
OFF
OFF
OFF
The experience values of the CAN bus dip settings are only exemplary. If the Can
communication doesn’t succeed, try other dip combinations
After each Dip-switch-change a power-reset of the Can-box has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
Before a final installation, we recommend a test-run to ensure the compatibility of the
vehicle and the interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
2.1. Place of installation
The interface is supposed to be installed at a suitable location behind the vehicle`s head-
unit. Depending on the vehicle, the head unit may be located at the following places:
Behind the trim panel in the boot on the left (e.g. F-Pace 10.2 inch - not 8 inch)
Under the rear centre console
Under the driver seat (e.g. in the Range Rover Sport - installed low down)
Under the passenger seat

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page9
2.2. Connection schema

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page10
2.3. Connections to factory head-unit and monitor
2.3.1. Connection - picture signal cable
2.3.1.1. INCONTROL TOUCH head unit and 8inch monitor (RL4-LR16-8)
Disconnect the factory picture signal cable’s purple coloured female HSD+2 connector from
the rear-side of the head unit and connect it to the waterblue coloured HSD+2 connector
„TO LCD“ of the video interface .
Connect the not angled aubergine coloured female HSD+2 connector of the enclosed picture
signal cable to the previously become free purple coloured male HSD+2 connector of the
video interface.
Connect the female aubergine coloured HSD+2 connector opposite the picture signal cable
to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface.
Note: The colours of the HSD+2 connectors at monitor and head unit may vary.

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page11
2.3.1.2. INCONTROL TOUCH PRO head unit and 10,2inch monitor (RL4-LR16-10)
Disconnect the factory picture signal cable’s purple coloured female HSD+2 connector from
the rear-side of the head unit and connect it to the waterblue coloured HSD+2 connector
„TO LCD“ of the video interface .
Connect the not angled aubergine coloured female HSD+2 connector of the enclosed picture
signal cable to the previously become free white coloured male HSD+2 connector of the
head unit.
Connect the angled female aubergine coloured HSD+2 connector opposite the picture signal
cable to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface.
Notes:
The colours of the HSD+2 connectors at monitor and head unit may vary.
If the connection of the female HSD+2 connector of the factory picture signal cable which is
coming from the monitor does not fit on the interface, the coding lugs have tob e cut off for
the connection!

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page12
2.3.2. Connection - Quadlock-CAN
2.3.2.1. INCONTROL TOUCH head unit (8 inch monitor –RL4-LR16-8)
Connect the female 10pin connector of the 10pin Power / CAN cable to the 10pin connector
of the video interface.
Remove the female Quadlock connector of the vehicle harness from the rear-side of the
head-unit and connect it to the male Quadlock connector of the 10pin Power / CAN cable.
Connect the opposite female Quadlock connector of the 10pin Power / CAN cable to the
previously become free male Quadlock connector at the rear-side of the head unit.
Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is
turned on, refer to chapter “Analogue power supply for the video interface”

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page13
2.3.2.2. INCONTROL TOUCH PRO head unit (10,2 inch monitor –RL4-LR16-10)
Connect the female 10pin connector of the 10pin Power / CAN cable to the 10pin connector
of the video interface.
Remove the female 24pin connector of the vehicle harness from the rear-side of the head-
unit and connect it to the male 24pin connector of the Power / CAN cable.
Connect the opposite female 24pin connector of the Power / CAN cable to the previously
become free male 24pin connector at the rear-side of the head unit.
Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is
turned on, refer to chapter “Analog power supply for the video interface”

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page14

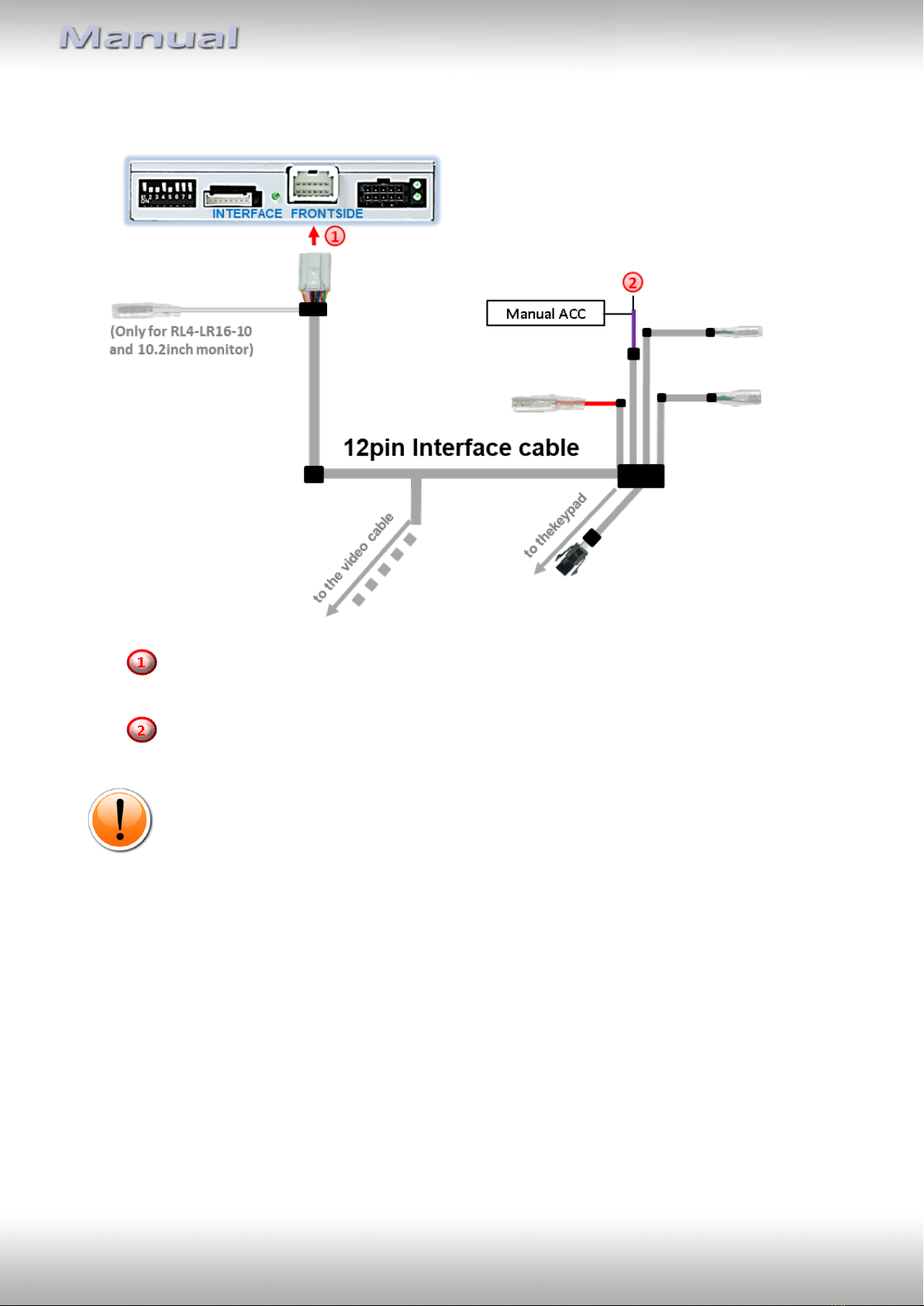

2.4. Analogue power supply for the video interface (without CAN-bus)
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the purple coloured wire Manual ACC of the 12pin interface cable to
S-contact terminal 86s +12V (e.g. glove compartment illumination).
Note: Only a long as the video interface is switched on via +12V and Manual ACC, the
screen is also switched on. Otherwise, the factory picture is black. When selecting the
switch signal, please check whether the factory picture is available in all desired
operating states.
With analogue connection of the video interface (without CAN bus), the connection
of the rear-view camera has also to be done manually (see point: “Case 2: Interface
does not receive a reverse gear signal”).

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page15
2.5. Power supply output (only for RL4-LR16-10)
Depending on the interface or infotainment version (RL4-LR16-8 for Incontrol Touch with
8inch monitor or RL4-LR16-10 for Incontrol Touch Pro with 10.2inch monitor) the function of
the power supply output (red wire) differs!
On the RL4-LR16-10, the red power supply output ACC out 12V (max 3A) can be used to
power up an external source (independent of Dip-1 switch setting).
On the RL4-LR16-8, the red power supply output can only be used to power an after-market
front camera for 10 seconds after the reverse gear has been disengaged.
Interface
Dip
Function
RL4-LR16-8
Incontrol Touch
8inch Monitor
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged incl. 10
seconds delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad
(short press)
Dip 1 OFF
No function!
Variant
Dip
Function
RL4-LR16-10
Incontrol Touch Pro
10.2inch Monitor
Dip 1 ON
+12V (max. 3A) simulated ACC
Dip 1 OFF
+12V (max. 3A) simulated ACC

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page16
2.6. Connecting video sources
It is possible to connect an after-market rear-view camera, a front camera and two more
after-market video sources to the video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page17
2.6.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.6.2. After-market front camera
The connection of an after-market front camera depends on the factory infotainment
system. In contrast to the Incontrol Touch infotainment with 8inch monitor, the enclosed
cable set for the connection of the Incontrol Touch Pro infotainment with 10.2 inch monitor
is equipped with an external relay.
2.6.2.1. Connection - RL4-LR16-8 - Incontrol Touch with 8inch monitor
The red power supply output ACC/front cam out 12V (max 3A) can be used to power a front
camera. If Dip 1 is set to ON (of the black 8 dips), the power supply output supplies +12V
(max 3A) when the reverse gear is engaged and additionally
10 seconds delay after the reverse gear is disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output supplies +12V then, too (if Dip
1 is set to ON and the front camera input is selected).

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page18
2.6.2.2. Connection - RL4-LR16-10 - Incontrol Touch Pro with 10.2inch monitor
Die Stecker der einzelnen roten und schwarzen Leitung des 10-Pin PNP Kabels an den
Buchsen der einzelnen roten und schwarzen Leitung des Relais anschließen.
Den Stecker der einzelnen weißen Leitung des 12-Pin Kabels an der Buchse der einzelnen
weißen Leitung des Relais anschließen.
Die orange farbene Leitung des Relais-Schaltausganges „+12V for Front Cam“ an der After-
Market Frontkamera anschließen.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output supplies +12V then, too (if Dip
1 is set to ON and the front camera input is selected).

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page19
2.6.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.
2.6.3.1. Case 1: Interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.
Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken
from the green wire of the 12pin interface cable.

Version 17.02.2022 HW: CAM(V100)/(V20) and CAM(V100)/(V20)GD RL4-LR16-8/10
Page20
2.6.3.2. Case 2: CAN-box does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
interface cable and connect the green input cable “Reverse-IN” to the output
connector (87) of the relay.
Note: Last but not lot least to avoid short circuits, the best solution should be, to
crimp a male 4mm connector to the relay’s output cable and connect it to the green
cable’s female 4mm connector. The output-cable “Reverse-OUT” remains
disconnected as it’s out of function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).
