Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK

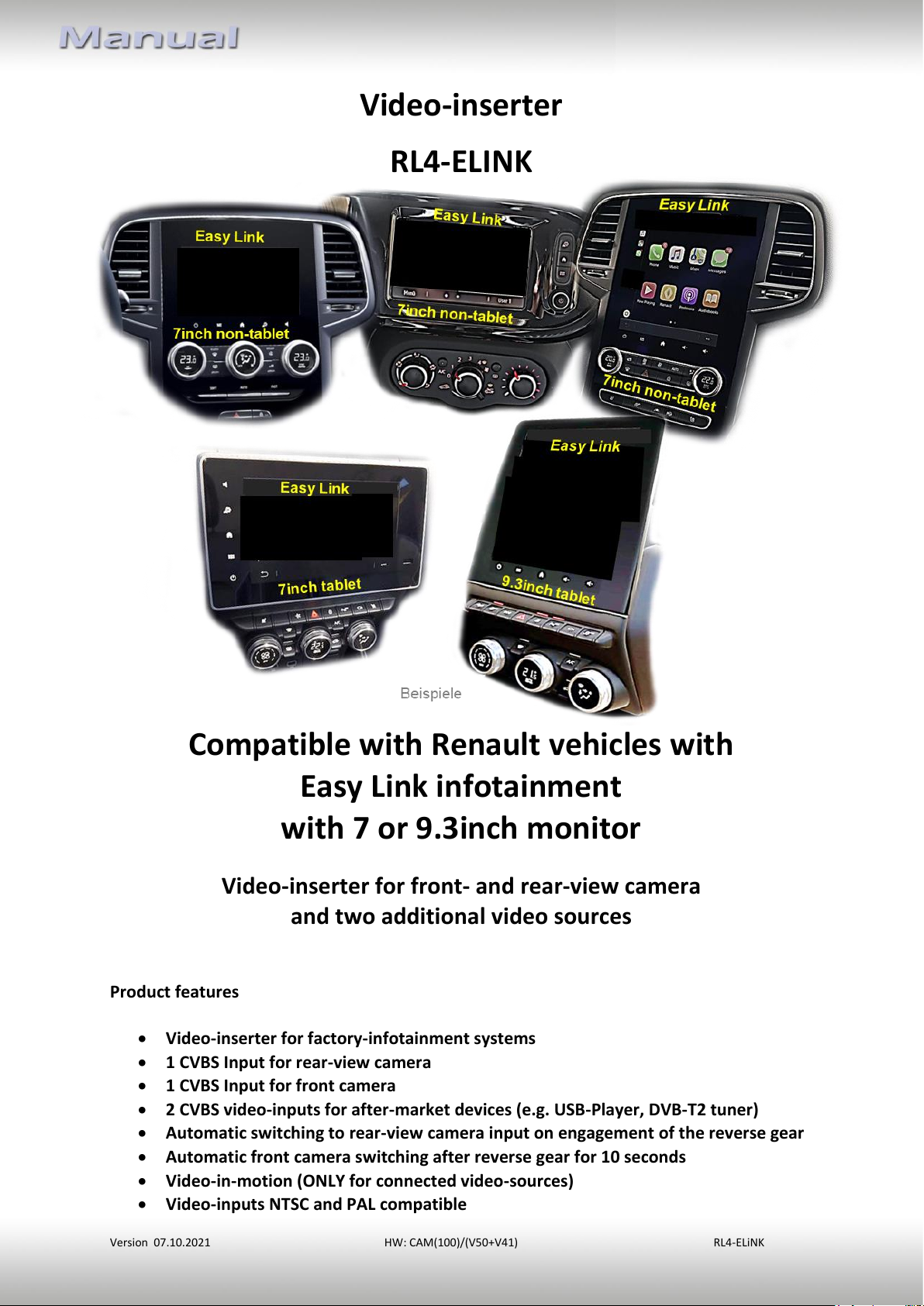

Video-inserter
RL4-ELINK
Compatible with Renault vehicles with
Easy Link infotainment
with 7 or 9.3inch monitor
Video-inserter for front- and rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connectors –video interface
1.4. Dip switch settings
1.4.1. 8 dip –black
1.4.1.1. Activating the front camera input (dip 1)
1.4.1.2. Enabling the interface’s video inputs (dip 2-3)
1.4.1.3. Rear-view camera setting (dip 5)
1.4.1.4. Monitor size (Dip 8)
1.4.2. 4 dip - red
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection - picture signal cable
2.4. Connection –PNP Power/CAN cable
2.4.1. Connection –PNP Power/CAN cable for 8pin monitor connection
2.4.2. Connection –PNP Power/CAN cable for 8pin monitor connection
2.5. Analogue power supply
2.6. Power supply output
3. Connection –video sources

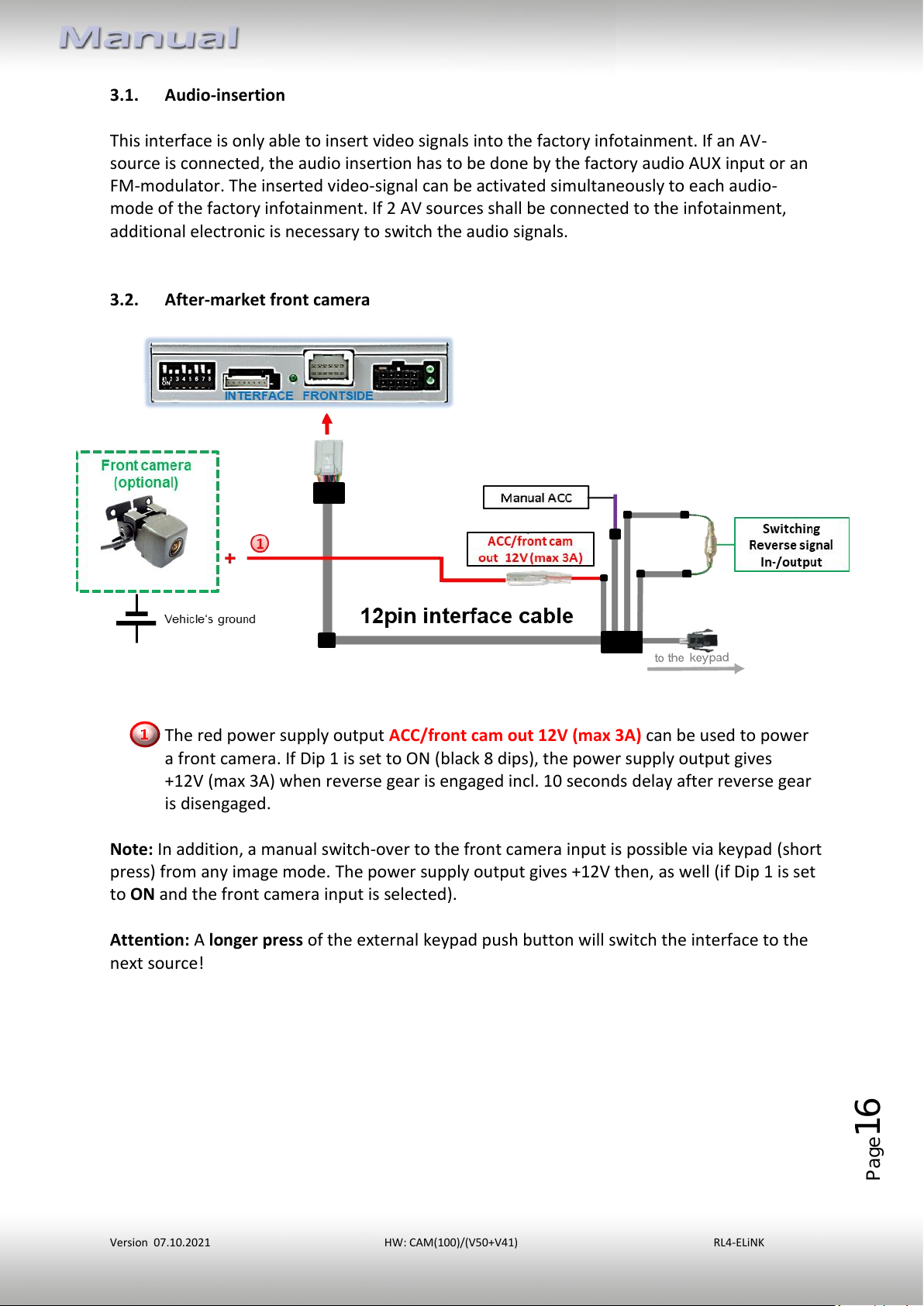

3.1. Audio insertion
3.2. After market front camera
3.3. After-market rear-view camera
3.3.1. Case 1: Interface receives the reverse gear signal

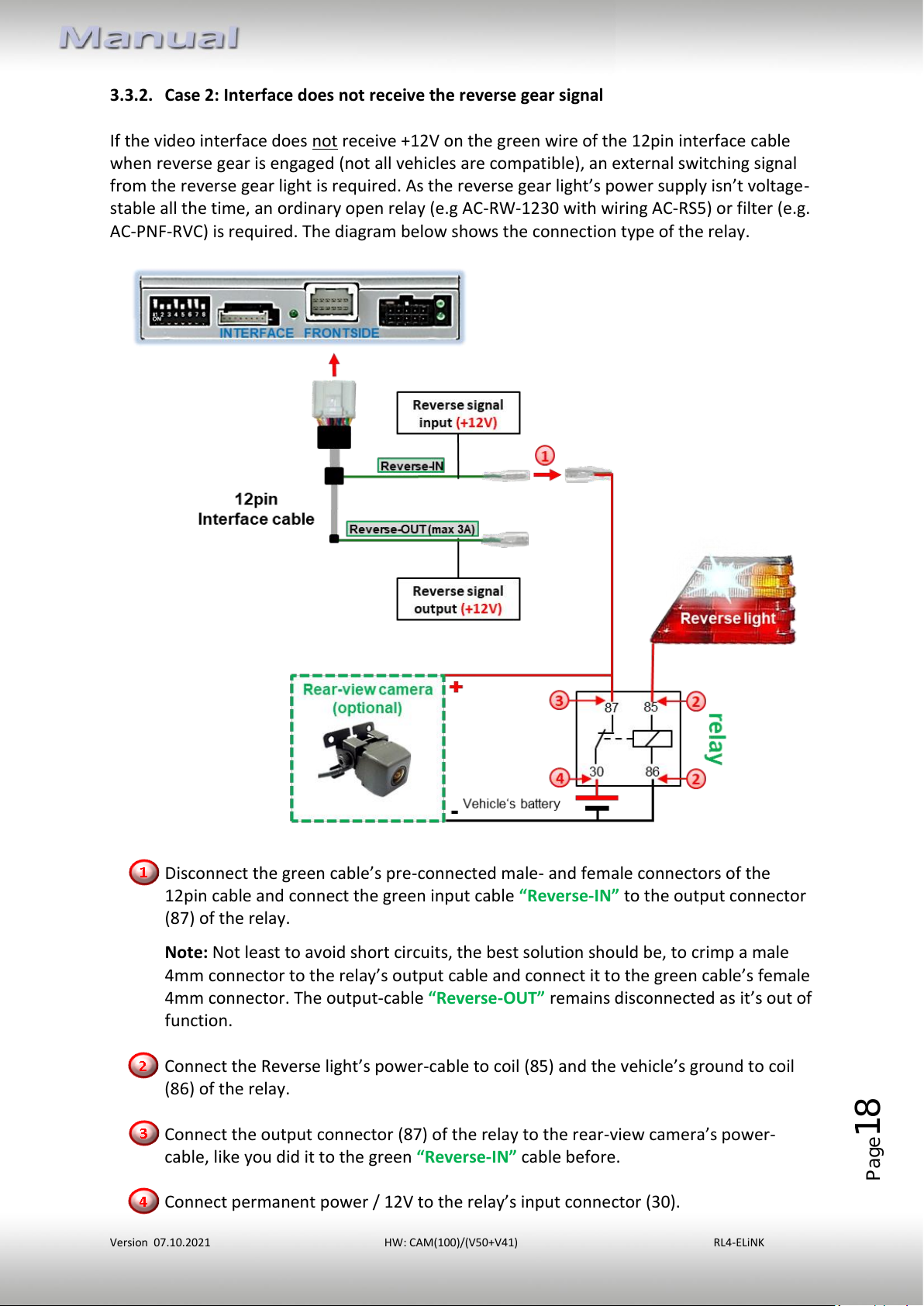

3.3.2. Case 2: Interface does not receive the reverse gear signal
3.4. Connection video-interface and keypad

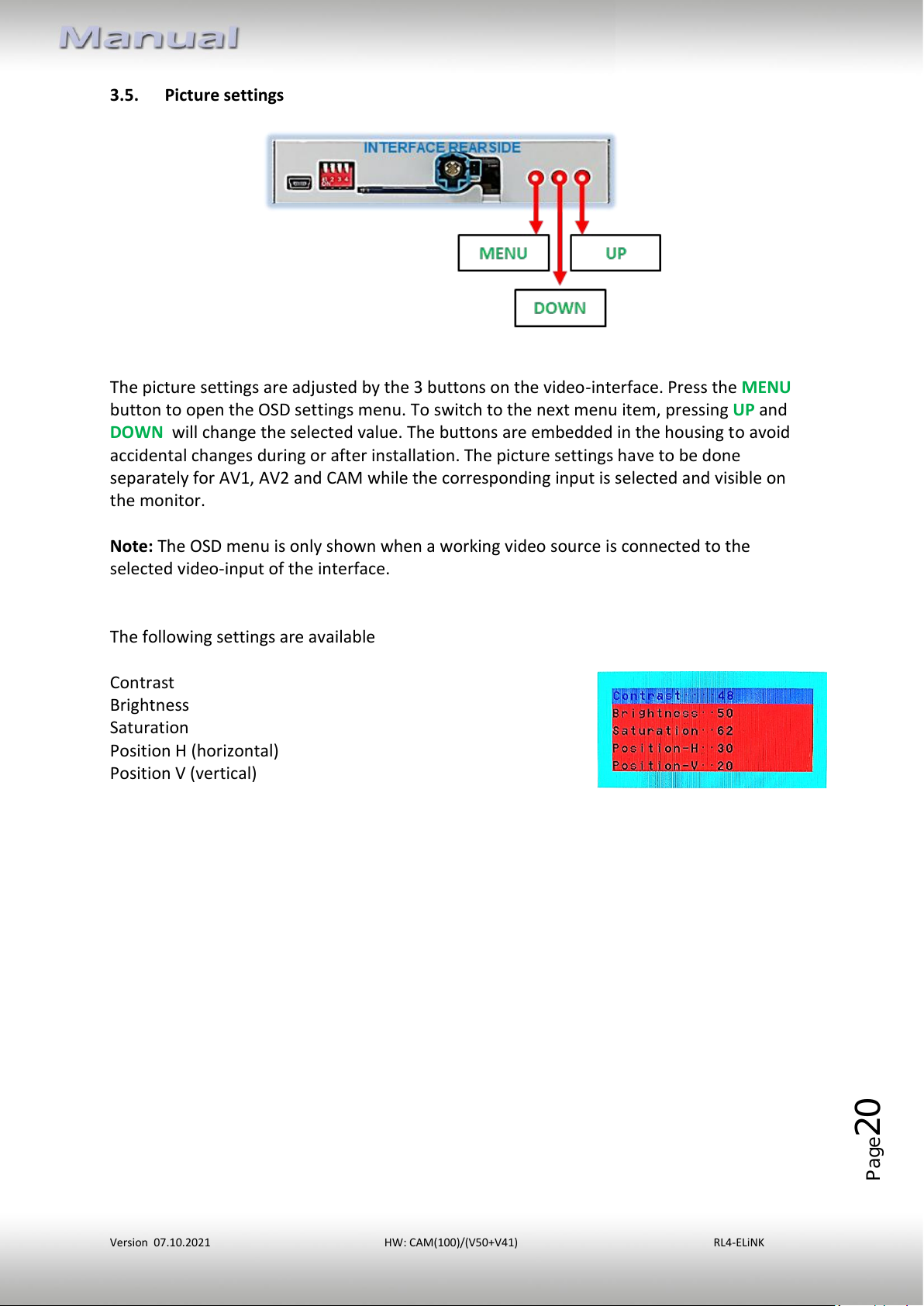

3.5. Picture settings
4. Interface operation
5. Specifications
6. FAQ –Trouble Shooting-Interface functions
7. Technical support
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Please read the manual thoroughly BEFORE starting the installation. Technical knowledge is
imperatively required. The place of installation has to be free of moisture and away from
heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page4
Compatibility
Brand
Compatible vehicles
Infotainment systems
Renault
Captur since model year 2020
Clio V since model year 2020
Espace since model year 2020
Megane since model year 2021
Talisman since model year 2021
Twingo since model year 2020
Zoe since model year 2020
and other vehicles with
Easy Link
with 7inch or 9.3inch Monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory
audio-AUX-input or a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio
switching will require additional electronic.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-
view camera is only possible while the reverse gear is engaged. To
delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds
after disengaging the reverse gear. A manually front camera
switching is possible by external keypad.

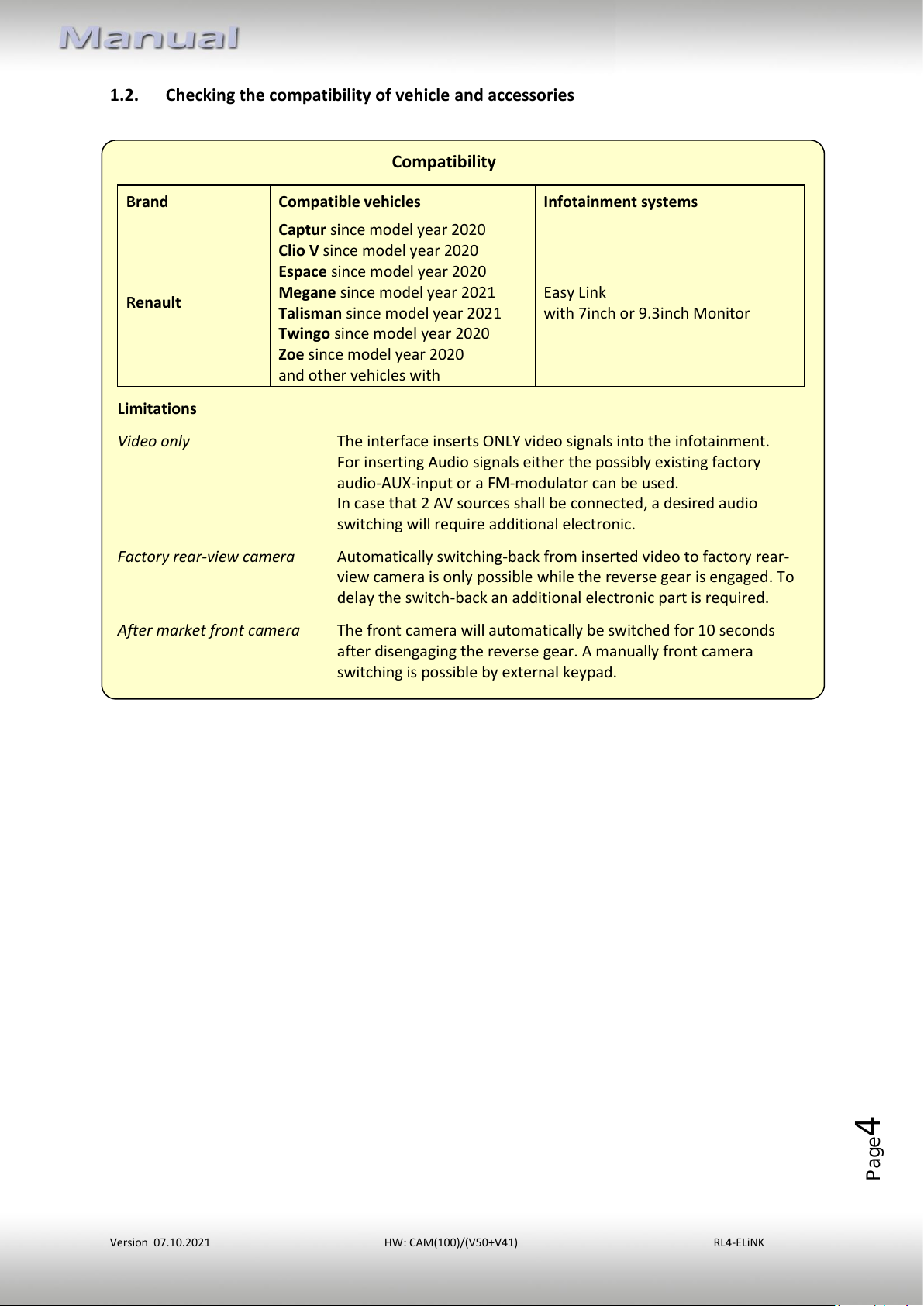

1.2. Checking the compatibility of vehicle and accessories
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page5
1.3. Connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page6

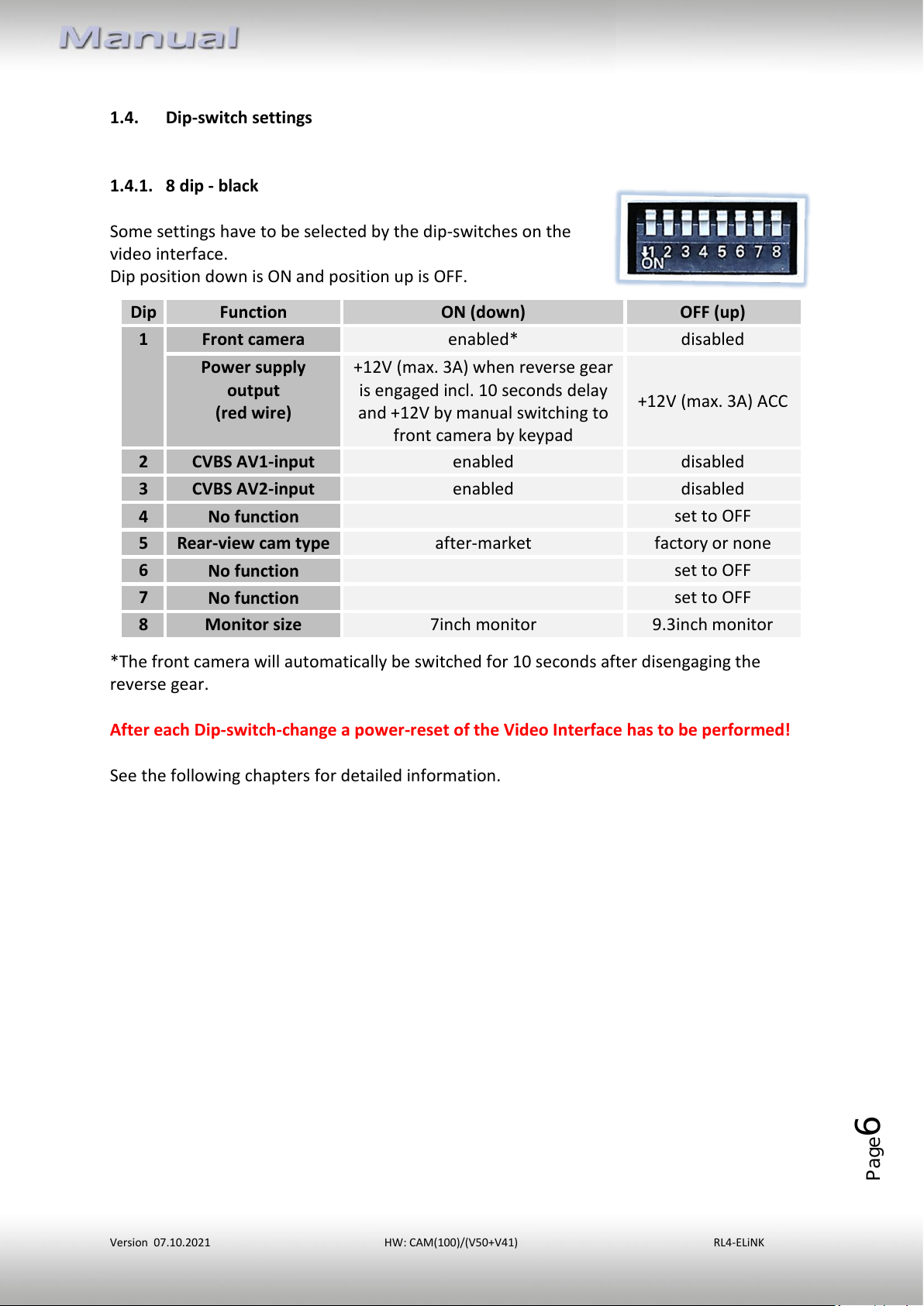

1.4. Dip-switch settings
1.4.1. 8 dip - black
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
No function
set to OFF
8
Monitor size
7inch monitor
9.3inch monitor
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page7
1.4.1.1. Activating the front camera input (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the power supply output: see chapter “Power supply output”.
1.4.1.2. Enabling the interface’s video inputs V1 Left und V2 Right (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.
1.4.1.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „V4 Reverse“ while the
reverse gear is engaged.
1.4.1.4. Monitor selection (Dip 8)
Dip 8 is used to adjust the corresponding monitor size.
If set to ON, 7 inch monitors are selected on the interface.
If set to OFF, 9.3inch monitors are selected on the interface.
Note: Dip4, 6 and 7 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page8

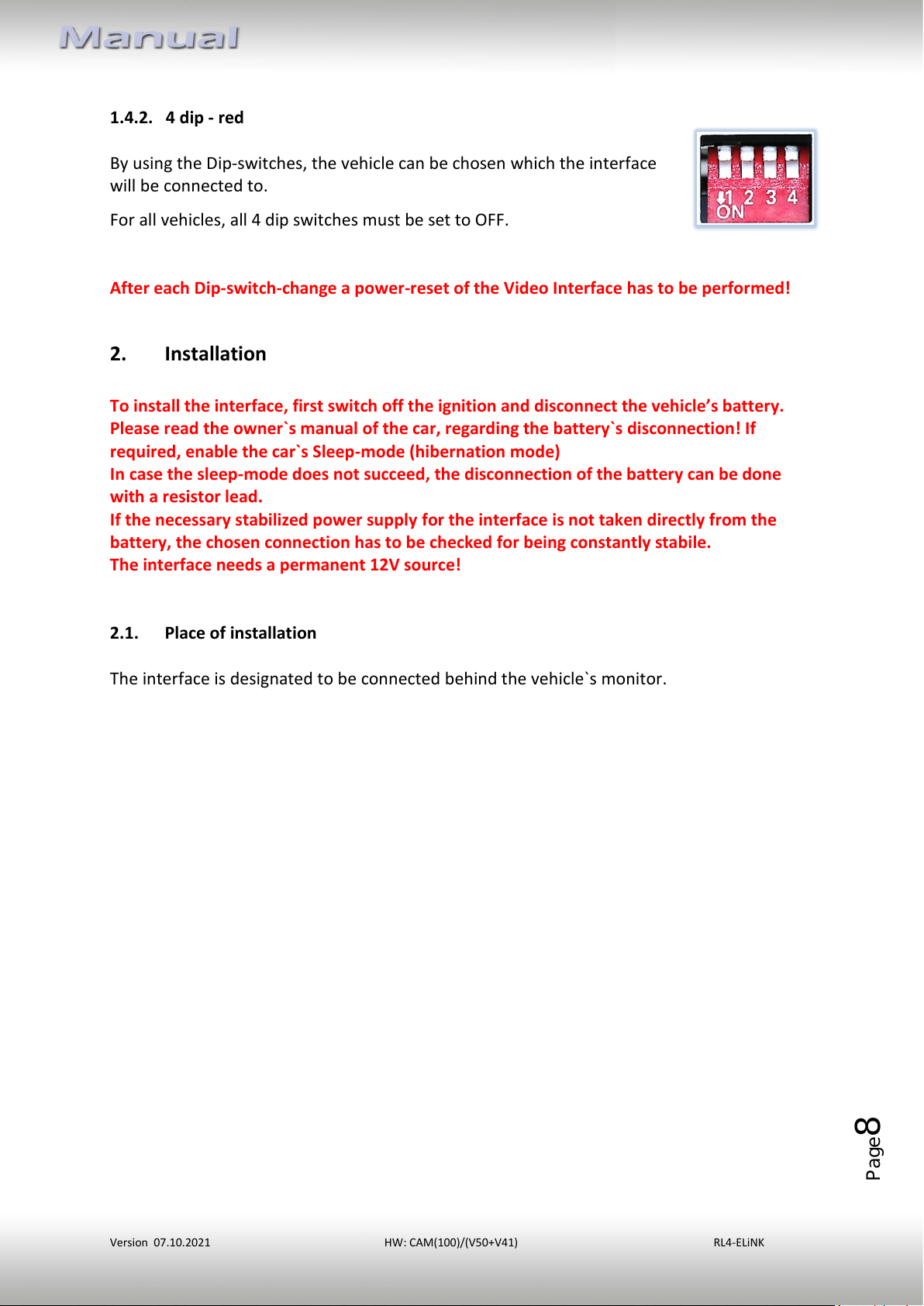

1.4.2. 4 dip - red
By using the Dip-switches, the vehicle can be chosen which the interface
will be connected to.
For all vehicles, all 4 dip switches must be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The interface is designated to be connected behind the vehicle`s monitor.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page9

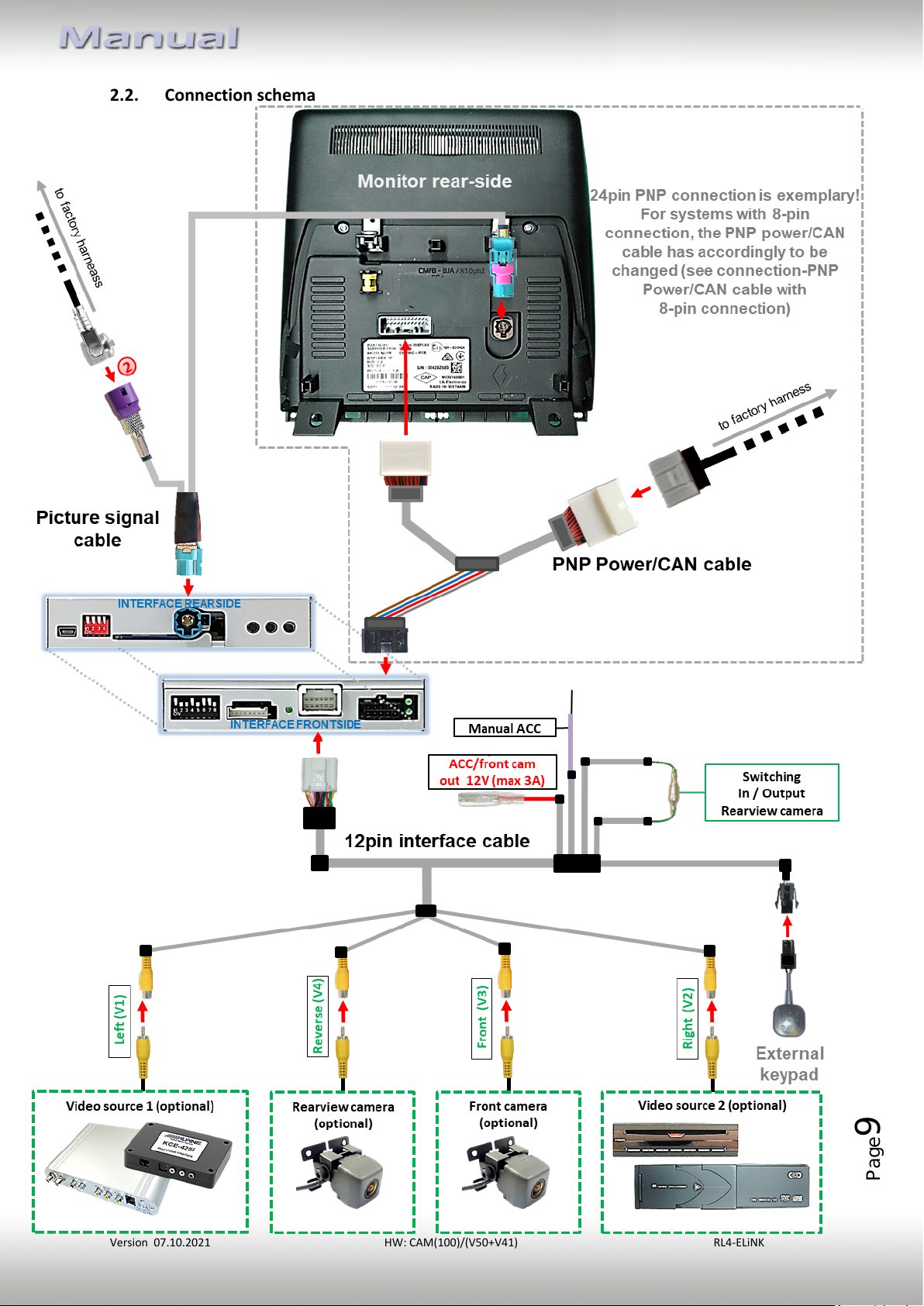

2.2. Connection schema
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page10
2.3. Connection –picture signal cable
Connect the female picture signal cable’s WATERBLUE coloured HSD+2 connector to
the male WATERBLUE coloured HSD+2 connector of the video interface.
Disconnect the female 4pin HSD connector of the factory harness at the rear side of
the monitor and connect it to the male PURPLE coloured HSD connector of the
enclosed picture cable.
Connect the female WATERBLUE coloured HSD connector of the enclosed 4pin HSD
picture signal cable to the previously become free male HSD connector at the
monitor’s rear side.
Caution: The picture signal cable has to be connected to the monitor. Connection to the
head unit may cause damage to the system!
Note: No liability for vehicle wire colours and pin definition!
Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page11

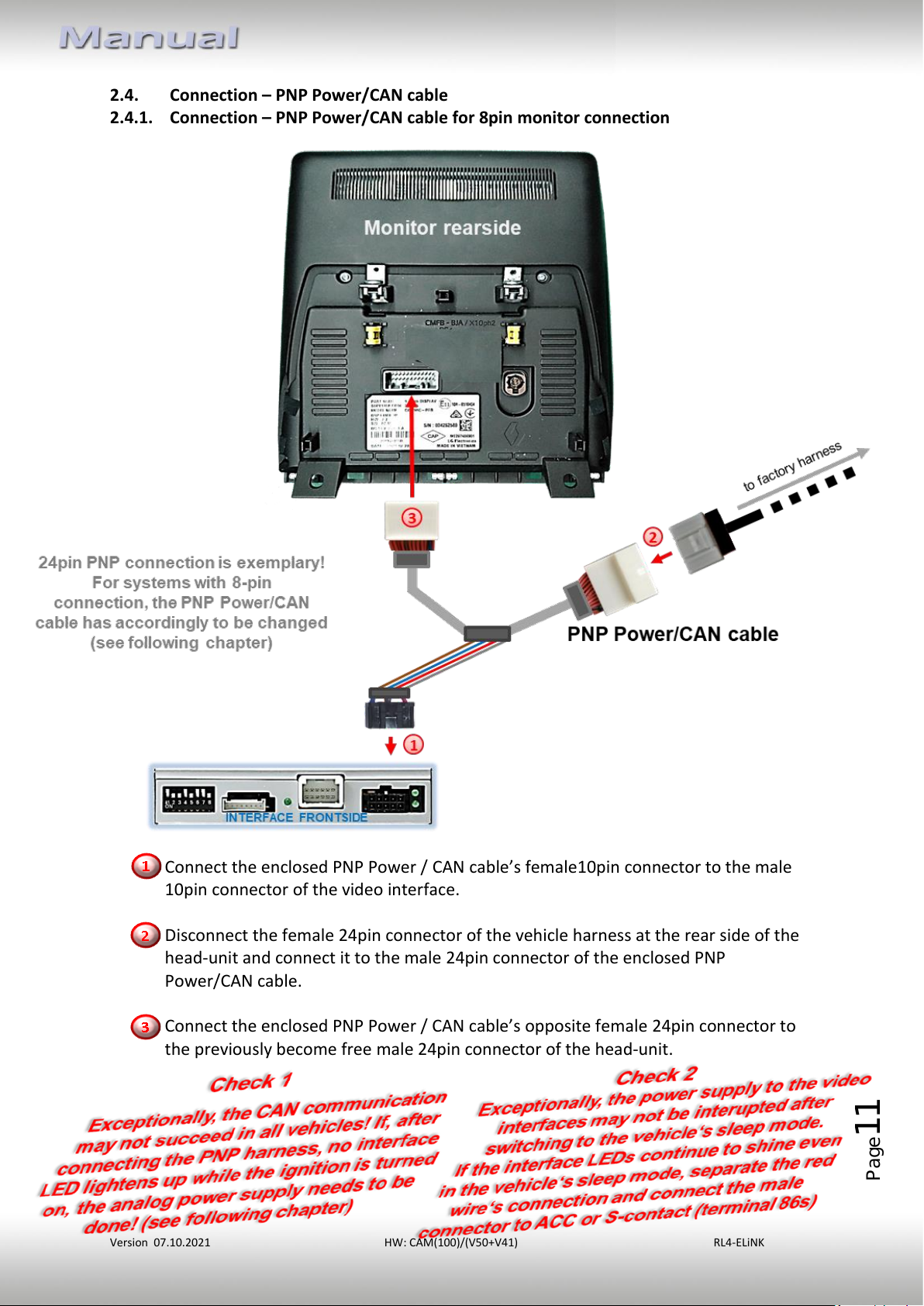

2.4. Connection –PNP Power/CAN cable
2.4.1. Connection –PNP Power/CAN cable for 8pin monitor connection
Connect the enclosed PNP Power / CAN cable’s female10pin connector to the male
10pin connector of the video interface.
Disconnect the female 24pin connector of the vehicle harness at the rear side of the
head-unit and connect it to the male 24pin connector of the enclosed PNP
Power/CAN cable.
Connect the enclosed PNP Power / CAN cable’s opposite female 24pin connector to
the previously become free male 24pin connector of the head-unit.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page12

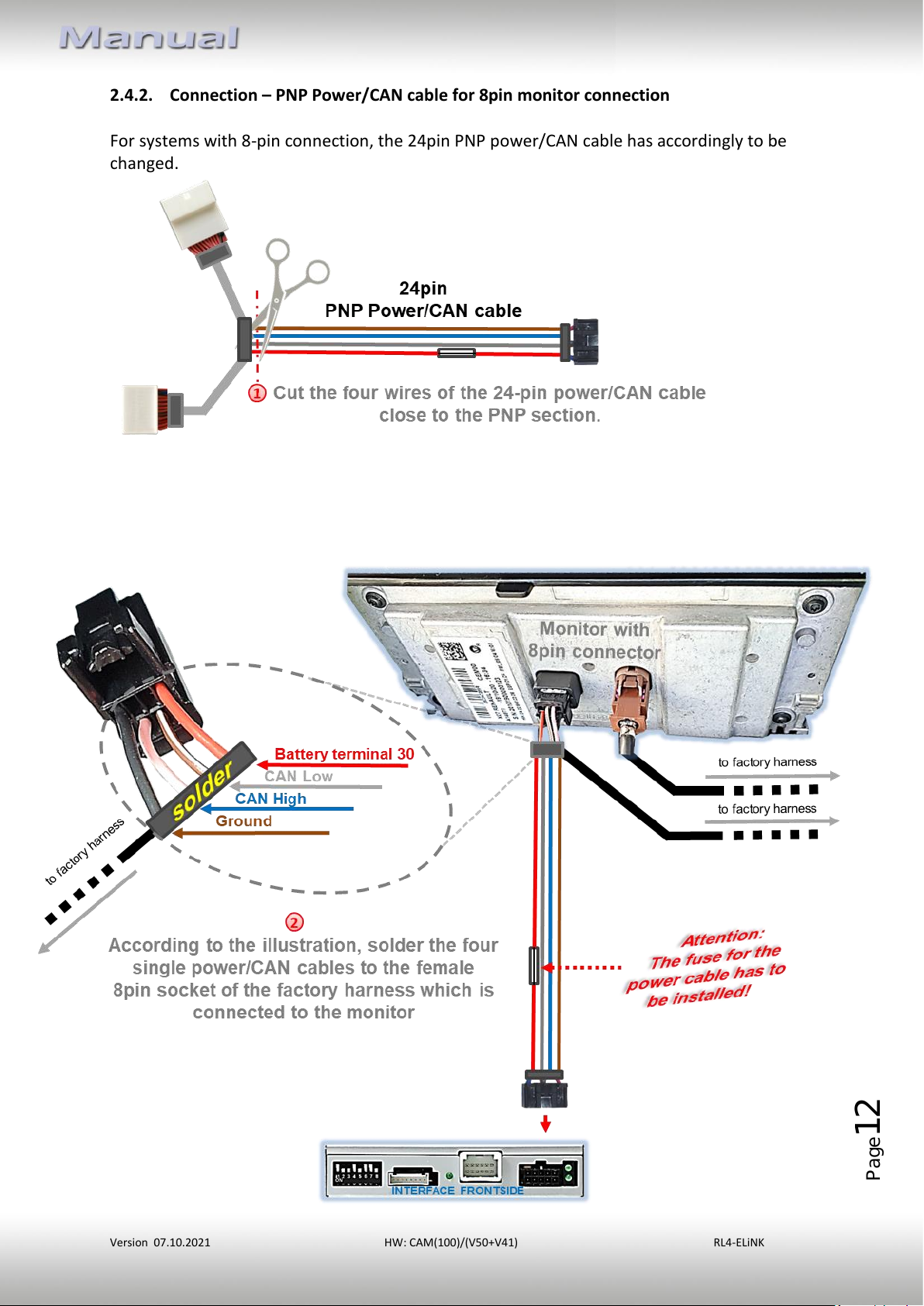

2.4.2. Connection –PNP Power/CAN cable for 8pin monitor connection
For systems with 8-pin connection, the 24pin PNP power/CAN cable has accordingly to be
changed.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page13
2.5. Analogue Power supply
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the 12pin interface cable’s purple coloured wire Manual ACC to
+12V ACC terminal 15 or to +12V S-contact terminal 86s +12V
(e.g. glove compartment illumination).
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page14
2.6. Power supply output
The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment depending on the position of dip switch 1 (of
the black 8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)
Dip 1 OFF
+12V (max. 3A) ACC
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page15

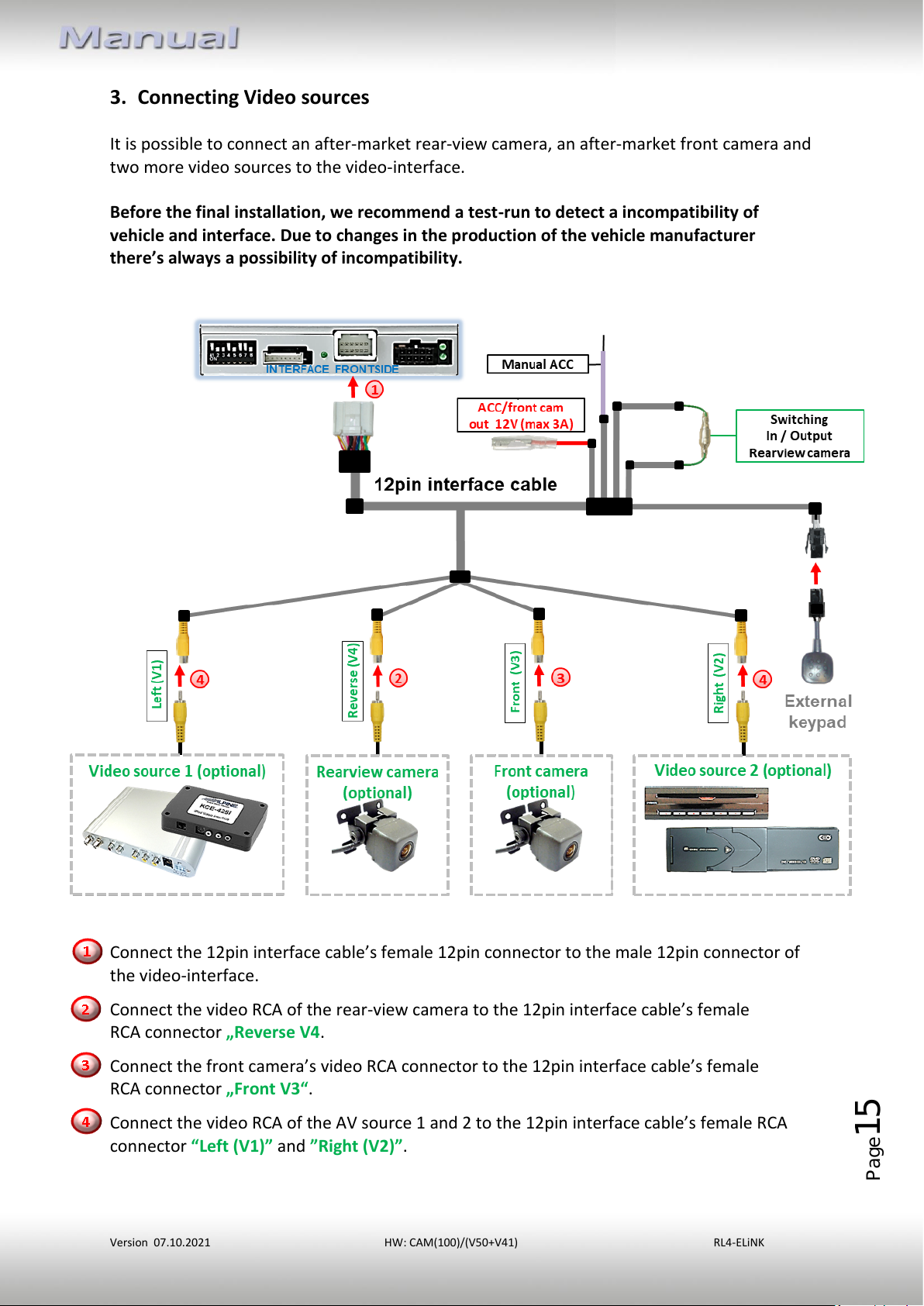

3. Connecting Video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page16
3.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
3.2. After-market front camera
The red power supply output ACC/front cam out 12V (max 3A) can be used to power
a front camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives
+12V (max 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear
is disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad (short
press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set
to ON and the front camera input is selected).
Attention: A longer press of the external keypad push button will switch the interface to the
next source!
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page17
3.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which doesn’t
communicate with the interface’s CAN. In this case there are two different ways of
installation. If the interface’s CAN is able to detect an enabled vehicle’s reverse gear, the
green wire of the 6pin to 12pin cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of video-interface to ON before testing.
3.3.1. Case 1: Interface receives the reverse gear signal
If the interface receives +12V on the green wire of the 12pin interface cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“V4 Reverse”while the reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the
12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary,
permanent power supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page18
3.3.2. Case 2: Interface does not receive the reverse gear signal
If the video interface does not receive +12V on the green wire of the 12pin interface cable
when reverse gear is engaged (not all vehicles are compatible), an external switching signal
from the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s pre-connected male- and female connectors of the
12pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input connector (30).
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page19
3.4. Connection video-interface and external keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin
connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the keypad’s invisible connection and availability is strongly recommended.
All manuals and user guides at all-guides.com

Version 07.10.2021 HW: CAM(100)/(V50+V41) RL4-ELiNK
Page20
3.5. Picture settings
The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu. To switch to the next menu item, pressing UP and
DOWN will change the selected value. The buttons are embedded in the housing to avoid
accidental changes during or after installation. The picture settings have to be done
separately for AV1, AV2 and CAM while the corresponding input is selected and visible on
the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
All manuals and user guides at all-guides.com
