NavLinkz RL4-NG4-HU User manual

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Video-inserter
RL4-NG4-HU
Compatible with
Alfa Romeo, Citroen, Peugeot, Maserati
vehicles with infotainment NG4 with colour display
and 10pin LVDS monitor connector
Video-inserter for front- and rear-view camera
and two additional video sources
Product features
•Video-inserter for factory-infotainment systems
•1 CVBS Input for rear-view camera
•1 CVBS Input for front camera
•2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
•Automatic switching to rear-view camera input on engagement of the reverse gear
•Automatic front camera switching after reverse gear for 10 seconds
•Video-in-motion (ONLY for connected video-sources)
•Video-inputs NTSC and PAL compatible

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the interface compatibility of vehicle and accessories
1.3. Connectors - video interface
1.4. Dip-switch settings
1.4.1. Settings of 8 dip –black
1.4.1.1. Activating the front camera input (dip 1)
1.4.1.2. Enabling the interface’s video inputs (dip 2-3)
1.4.1.3. Rear-view camera setting (dip 5)
1.4.1.4. Type of front camera
1.4.1.5. Monitor selection (dip7-8)
1.4.2. Settings of 4 dip - red
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Connection –LVDS switchable
2.4. Connection –10pin power/CAN cable
2.5. Analogue power supply
2.6. Power supply output
2.7. Connection –video sources
2.7.1. Audio insertion

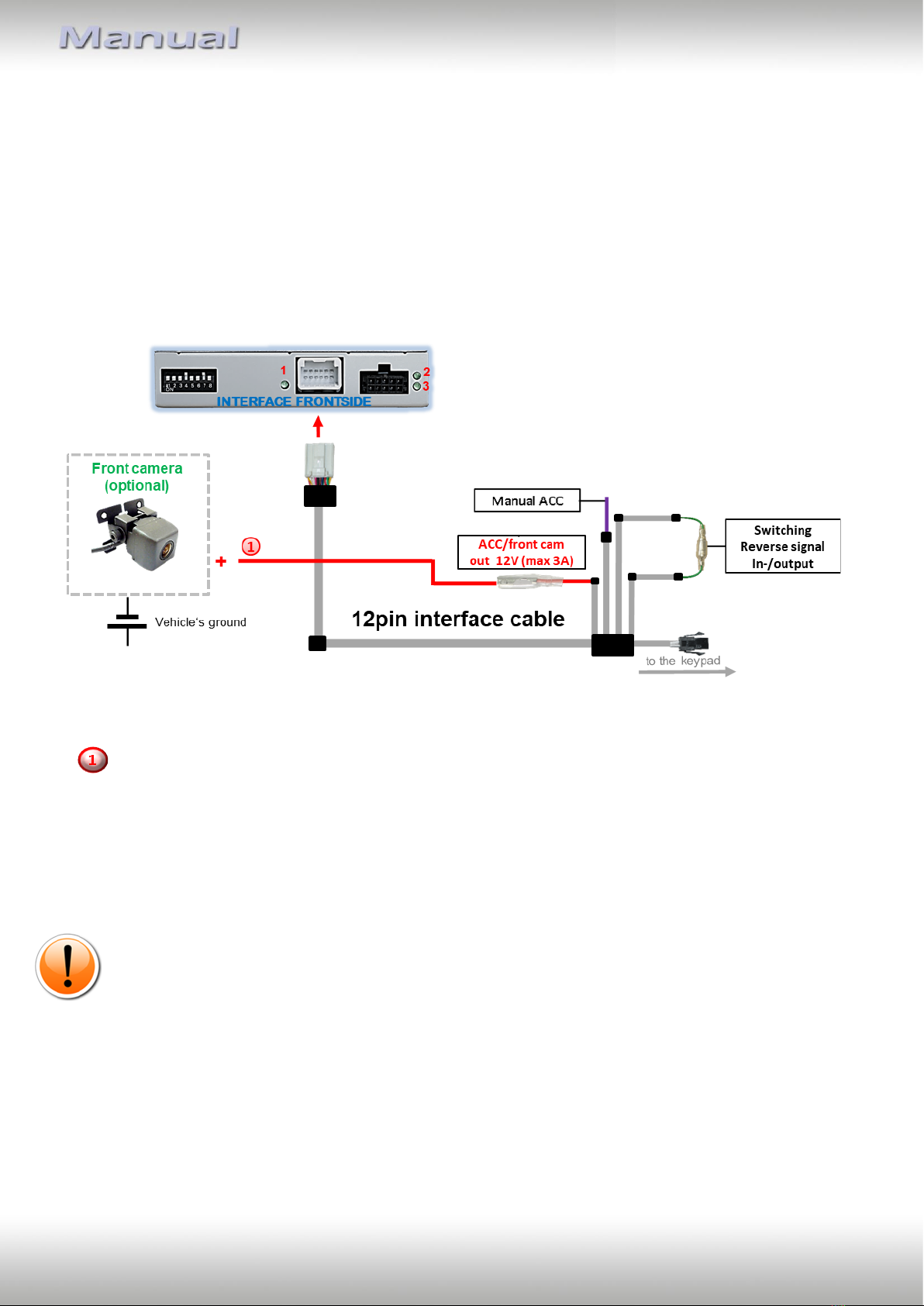

2.7.2. After-market frontcamera

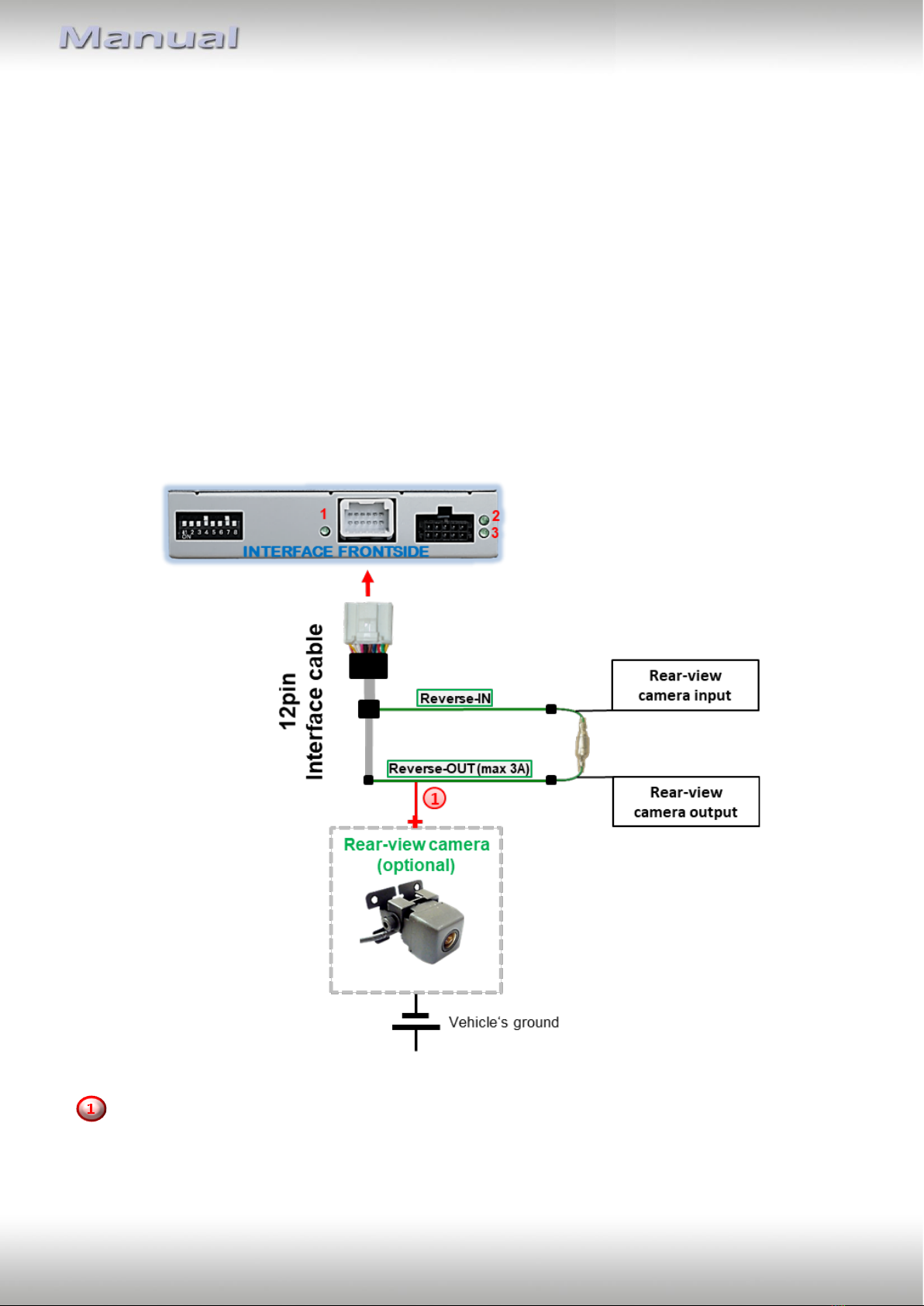

2.7.3. After-market rear-view camera

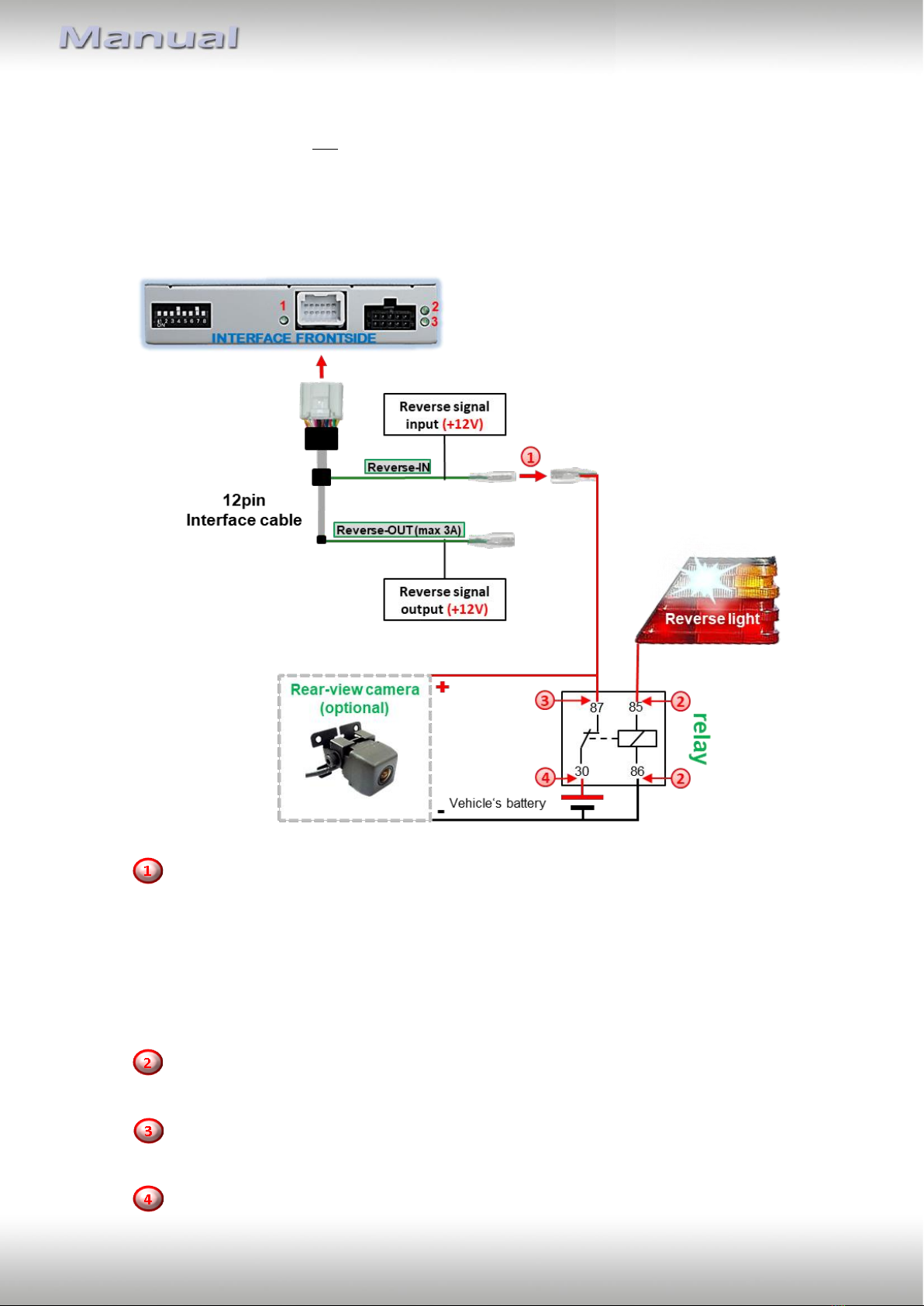

2.7.3.1. Case 1: Interface receives the reverse gear signal
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
2.8. Connection –external keypad
3. Interface operation by external keypad
4. Picture settings
5. Specifications
6. Frequently asked questions
7. Technical support

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation has to be free of
moisture and away from heat sources.
1.1. Delivery contents

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page4
Requirements
Brand
Model
Navigation
Alfa Romeo
Giulietta (940)
Blue&Me
Citroen
Berlingo (B9) 04/2008-03/2015,
C3 11/2009-ca.2015,
C3 Picasso 02/2009-07/2017,
C4 (N) 08/2010-12/2014,
C4 Picasso 09/2006-03/2013,
C5 model years 2008-2017,
C6 09/2005-12/2012,
C8 model years 2008-2014,
DS3 03/2010 –model year 2015,
DS4 05/2011 –model year 2014,
DS5 11/2011-03/2015,
Jumpy II 2009-2015
NaviDrive RT3evo/4/5,
MyWay RNEG,
NaviDrive 3D NG4,
eMyWay
Maserati
GranCabrio 2010-2017,
GranTurismo 2007-2017,
Quattroporte 2009-2012
N3 Magneti Marelli
Peugeot
1007 12/2006-12/2009,
207 02/2011-05/2012,
307 01/2007-03/2008,
307CC 01/2007-03/2009,
308 09/2007-2014,
308CC 04/2009-2015,
3008 06/2009-10/2016,
407 10/2006-12/2011,
508 10/2010-07/2014,
5008 10/2009-01/2017,
607 08/2006-09/2010,
Expert II 07/2007-2016,
Partner II 11/2007-05/2015,
RCZ 02/2010-12/2015
WIP Com/Connect Com
RT3evo/4/5/6,
RNEG,
WIP Com/Connect Com 3D
NG4,
WIP Nav+/Connect Nav+
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory audio-
AUX-input or a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio switching
will require additional electronic.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is
possible by external keypad.
1.2. Checking the compatibility of vehicle and accessories

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page5

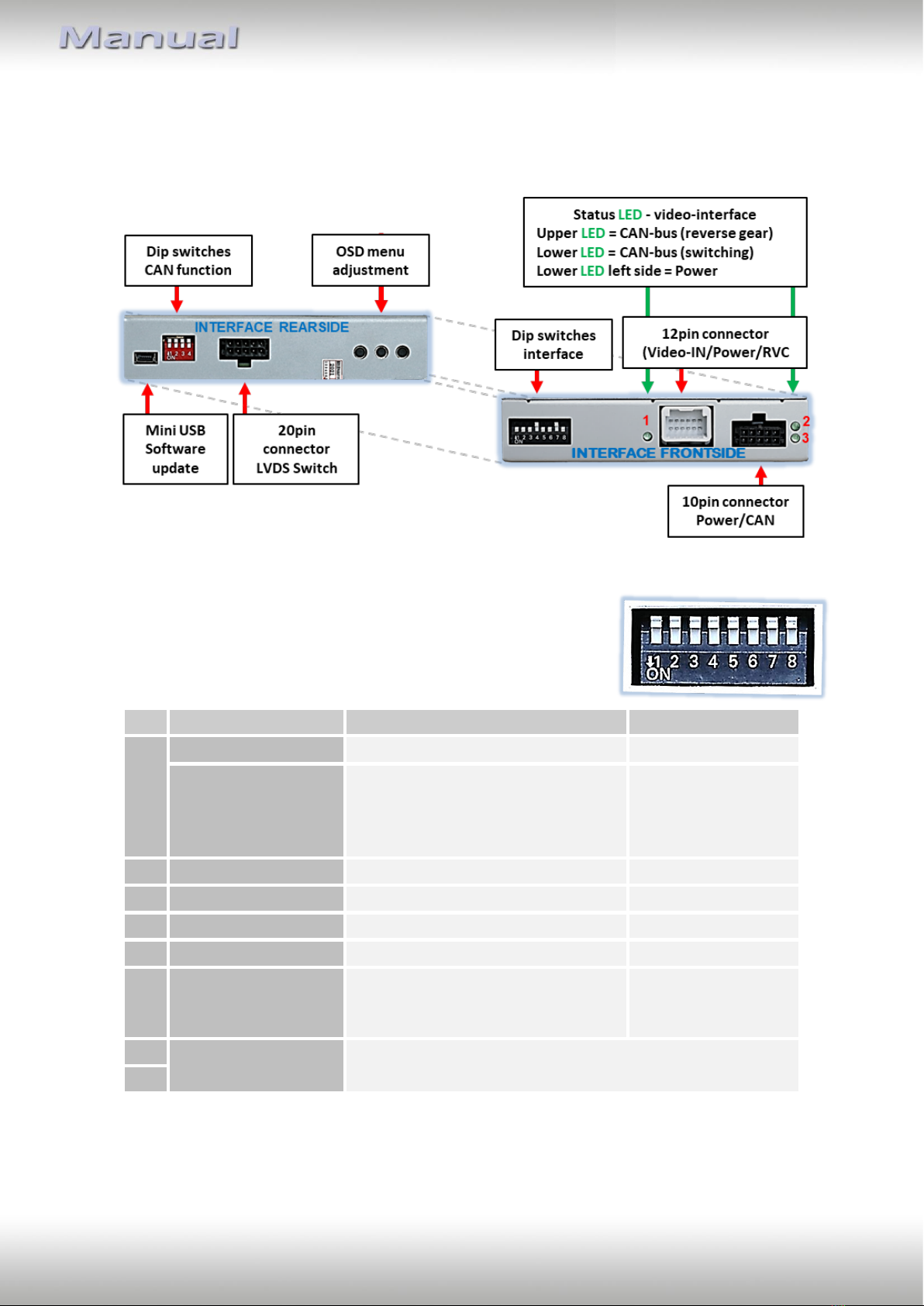

1.3. connectors - video-interface
The video-interface (daughter PCB) converts the video signals of connected after-market
sources in a factory monitor compatible picture signal which is inserted in the factory
monitor, by using separate trigger options.
1.4. Dip-switch settings
1.4.1. 8 dip - black
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.
*The front camera will only be switched automatically for 10 seconds after disengaging the
reverse gear, if dip6 is also set to ON (see following information).
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
Set to OFF
5
Rear-view cam type
after-market
factory or none
6
Type of front
camera activation
for 10 seconds after disengaging
the reverse gear and manually by
keypad
only manually by
keypad
7
Monitor
adjustment
Refer to chapter 1.4.1.4. (Monitor adjustment)
8

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page6
1.4.1.1. Activating the front camera input (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the front camera power supply: see chapter “Power supply output”.
1.4.1.2. Enabling the interface’s video inputs (dip 2 and 3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.
1.4.1.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „V4 Reverse“ while the
reverse gear is engaged.
1.4.1.4. Art der Frontkamera-Aktivierung (Dip 6)
If the dip switch is set to ON (and dip1 is set to ON), the interface switches from the rear
camera to the front camera input for 10 seconds after reverse gear is disengaged. In
addition, manual switching to the front camera input is also possible from any image mode
by pressing the button (short press).
With the dip switch set to OFF (and dip1 set to ON), automatic switch-back tot he front
camera is deactivated, but the manual front camera switching option via external keypad
remains.
1.4.1.5. Monitor adjustment (dip 7 and 8)
Dip 7 and 8 are for monitor-specific video settings which cannot be predicted as even within
the same head-unit version, the monitor specifications may vary. It is necessary to try all
possible combinations (both OFF, both ON, 7 OFF and 8 ON, 7 ON and 8 OFF) - while a
working video source is connected to the chosen input of the interface - to see which
combination gives the best picture quality and size (some may give no picture). It is possible
to first hot plug through the dip combinations, but if you do not experience any change of
picture after trying all 4 options, retry and disconnected the 6pin power plug of the video-
box between every change of the dip setting.
Note: Dip 4 is out of function and has to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page7
1.4.2. 4 dip - red
By using the Dip-switches, the factory Head-unit or vehicle can be chosen which the
interface will be connected to.
Dip position down is ON and position up is OFF.
Set all dip switches to off
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
Citroen
ON
OFF
OFF
OFF
All other vehicles
OFF
OFF
OFF
OFF
Note: In case the CAN functions according to this table do not work, also try the other dip
switch setting of dip1.
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
As with any installation of retrofit equipment, a stand-by test is neccessary after the
installation of the video interface, to ensure that the unit also switches off after reaching
the vehicle‘s sleep mode.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of installation
The video interface is designated to be connected behind the vehicle`s head unit.
The daughter PCB is prepared to be connected inside the factory head unit).

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page8

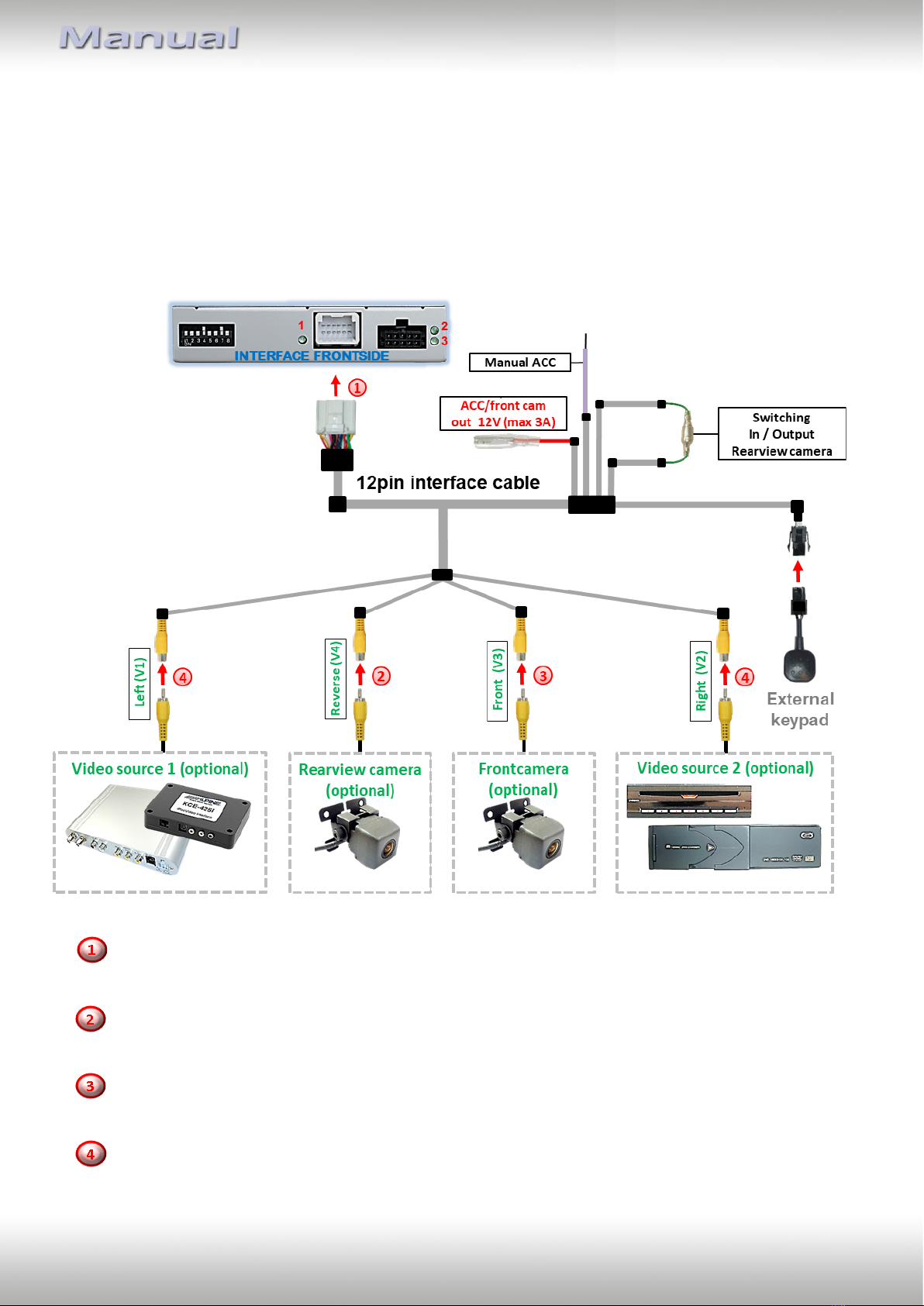

2.2. Connection scheme

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page9
2.3. Connection –LVDS switch
Connect the female 10pin connector “To interface” of the LVDS switch to the video
interface’s male 10pin connector.
Connect the female 10pin connector of the factory harness to the male 10pin connector
“Monitor Cable In” of the LVDS switch (Pay attention to correct pin arrangement).

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page10

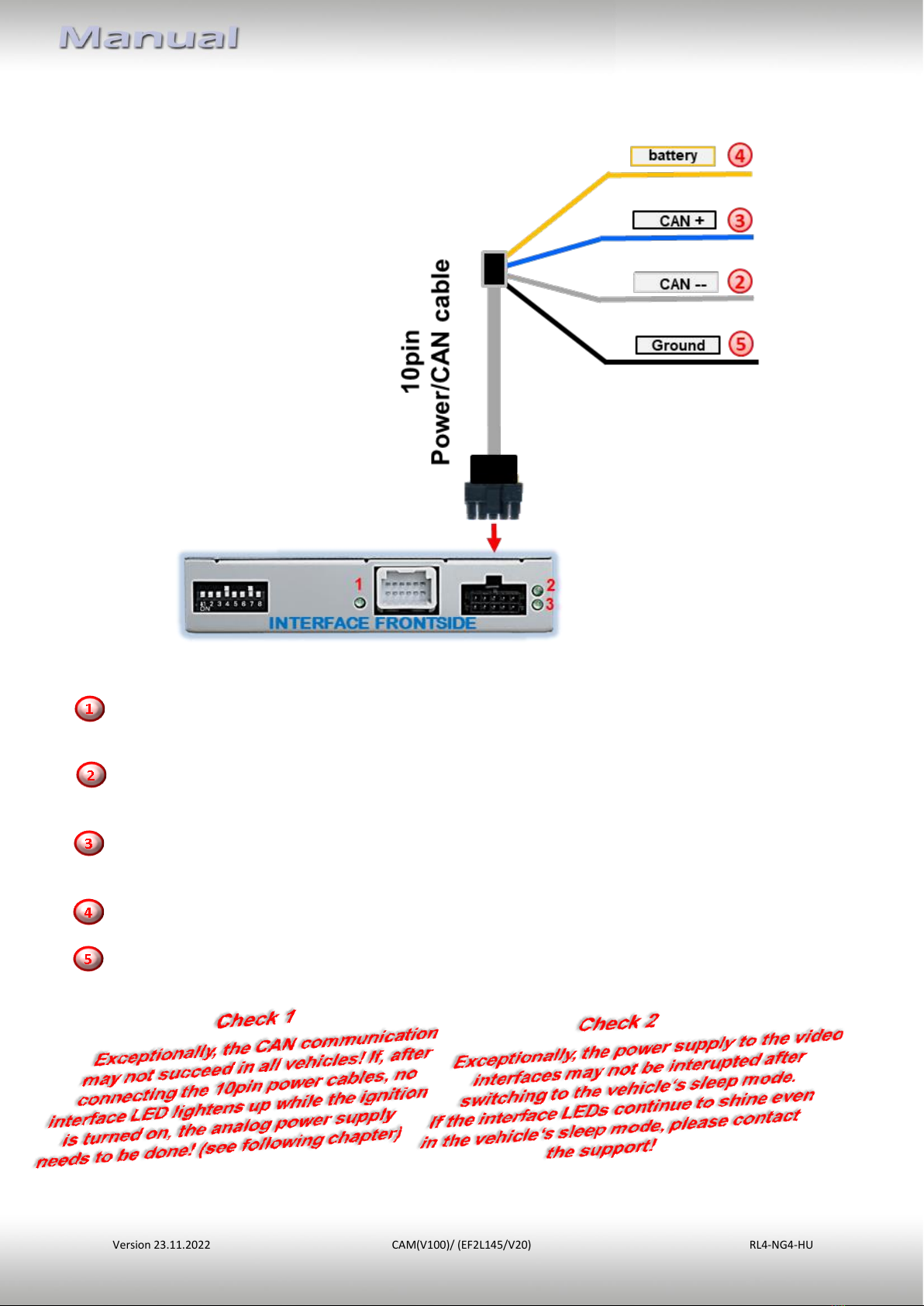

2.4. Connection –10pin Power / CAN cable
Connect the enclosed 10pin Power / CAN cable’s female10pin connector to the male 10pin
connector of the video interface.
Connect the single grey wire „CAN LOW“ of the 4 cables to the vehicle’s CAN low wire and
isolate the connection
Connect the single blue wire „CAN HIGH“ of the 4 cables to the vehicle’s CAN high wire and
isolate the connection
Connect the single red wire to stabile +12V terminal 30.
Connect the single black cable to the vehicle’s negative Ground.

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page11
2.5. Analog power supply
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not
all vehicles are compatible), the analogue connection is required.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition power
or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination).

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page12

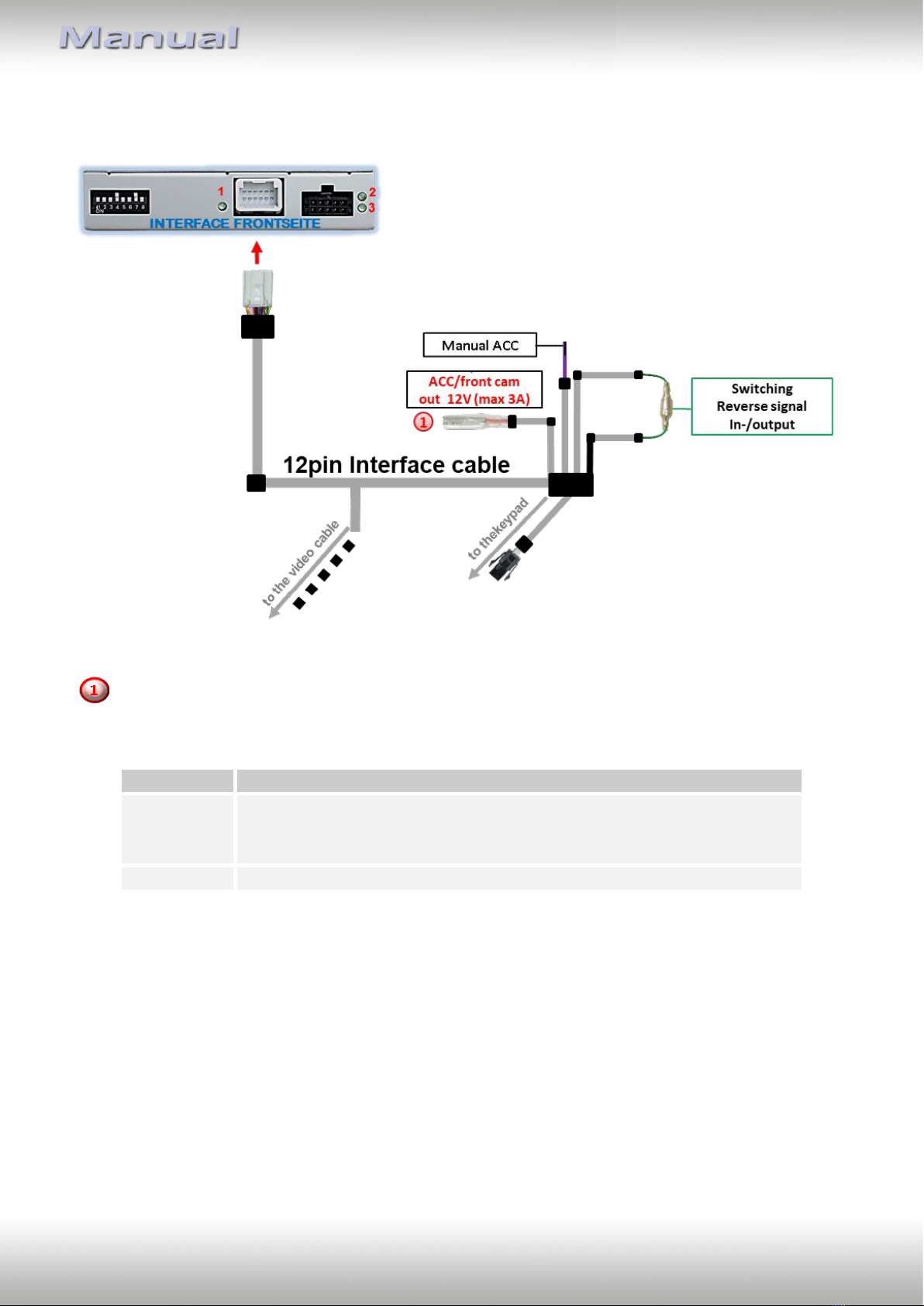

2.6. Power supply output
The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment, depending on the position of dip switch 1
(of 8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay
after reverse gear is disengaged and
+12V when manually switched to front camera by keypad (short press)
Dip 1 OFF
+12V permanent (max. 3A) ACC

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page13
2.7. Connection –Video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page14
2.7.1. Audio insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.7.2. After-market front camera
The red power supply output ACC/front cam out 12V (max 3A) can be used to power a front
camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives +12V (max 3A)
when reverse gear is engaged plus 10 seconds delay after reverse gear is disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).
Futher, it is possible to deactivate the automatic switch-back to the front camera via dip6, so
that the front camera switch can only be activated via the external keypad. If automatic
switch-back is not desired, set dip switch 6 to OFF.
Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page15
2.7.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which doesn’t
communicate with the interface’s CAN. In this case there are two different ways of
installation. If the interface’s CAN is able to detect an enabled vehicle’s reverse gear, the
green wire of the 12pin cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of video-interface to ON before testing.
2.7.3.1. Case 1: Interface receives the reverse gear signal
If the interface receives +12V on the green wire of the 12pin interface cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“CAMERA-IN” while the reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin
interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power
supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page16
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
If the video interface does not receive +12V on the green wire of the 12pin interface cable
when reverse gear is engaged (not all vehicles are compatible), an external switching signal
from the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stable all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.
AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s pre-connected male- and female connectors of the
12pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input connector (30).

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page17
2.8. Connection –external keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin
connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the keypad’s invisible connection and availability is strongly recommended.

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page18
3. Interface operation
The interface’s external keypad can be used to switch the enabled inputs.
➢Long press of keypad (2-3 seconds)
By long pressing the external keypad (2-3 seconds), the video interfaces witches the input
from the factory video to the inserted video sources.
Each press (approx. 2 sec) will switch to the next enabled input. If all inputs are enabled the
order is:
Factory video → video IN1 → video IN2 → factory video → …
Disabled inputs will be skipped.
Note: The interface switches after releasing the switch (after long pressure).
➢Short press of keypad (only if DIP 1 is set to ON)
By short pressing the external keypad, the video interfaces switches from the factory video
to the front camera input and back to factory video.

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page19
4. Picture settings
The picture settings are adjustable by the 3 push-buttons of the daughjter PCB’s menu
keypad. Press the 1. button to open the OSD settings menu or to switch to the next menu
item. By pressing the other both push buttons the selected value will be changed. To avoid
accidental changes during or after the installation, we recommend to disconnect the keypad
from the pushbutton cable after the adjustments are done. Adjustments have to be done,
while the selected input is visible on the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H = horizontal picture position)
Position V = vertical picture position)
Guide-Pos = no function
H-SIZE = horizontal picture size
V-SIZE = vertical picture size
Note: To adjust the reverse picture settings, engage the reverse gear.
5. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 30mA
Power 190mA @12V
Video input 0.7V - 1V
Video input formats NTSC/PAL
Temperature range -40°C to +85°C
Dimensions Video-box 117 x 26 x 90mm (W x H x D)
Dimensions Video-switch 125 x 20 x 35mm (W x H x D)

Version 23.11.2022 CAM(V100)/ (EF2L145/V20) RL4-NG4-HU
Page20
6. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.
