NavLinkz RL4-MIB2-E18 User manual

Version 24.02.2022 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Video-inserter
RL4-MIB2-E18
Compatible with
VW vehicles with
MIB2 GP Composition Color infotainment
and 6.5 Zoll Monitor
Seat vehicles with
MIB2 GP Media System Touch Color infotainment
and 6.5 Zoll Monitor
Skoda vehicles with MIB2 GP-Radio Swing infotainment
and 6.5inch monitor
Video-inserter for front- and rear-view camera
and two additional video sources
Product features
•Video-inserter for factory-infotainment systems
•1 CVBS Input for rear-view camera
•1 CVBS Input for front camera
•2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
•Automatic switching to rear-view camera input on engagement of the reverse gear
•Automatic front camera switching after reverse gear for 10 seconds
•Video-in-motion (ONLY for connected video-sources)
•Video-inputs NTSC and PAL compatible

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the interface compatibility of vehicle and accessories
1.3. Connectors - video interface
1.4. Connectors - daughter PCB)
1.5. Dip-switch settings
1.5.1. 8 dip –black
1.5.1.1. Activating the front camera input (dip 1)
1.5.1.2. Enabling the interface’s video inputs (dip 2-3)
1.5.1.3. Rear-view camera setting (dip 5)
1.5.1.4. Monitor size (dip 7 and dip 8)
1.5.2. 4 dip - red
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Installation –VW and Seat
2.4. Installation–Sloda with DIN housing below
2.5. Installation–Sloda with DIN housing on top
2.6. Warning notes, concerning the installation of ribbon cables
2.7. Connection –20pin picture signal cable
2.8. Connection –10pin Power / CAN cable
2.9. Analogue power supply
2.10. Power supply output
2.11. Connection –video inputs
2.11.1. Audio insertion
2.11.2. After-market front camera
2.11.3. After-market rear-view camera

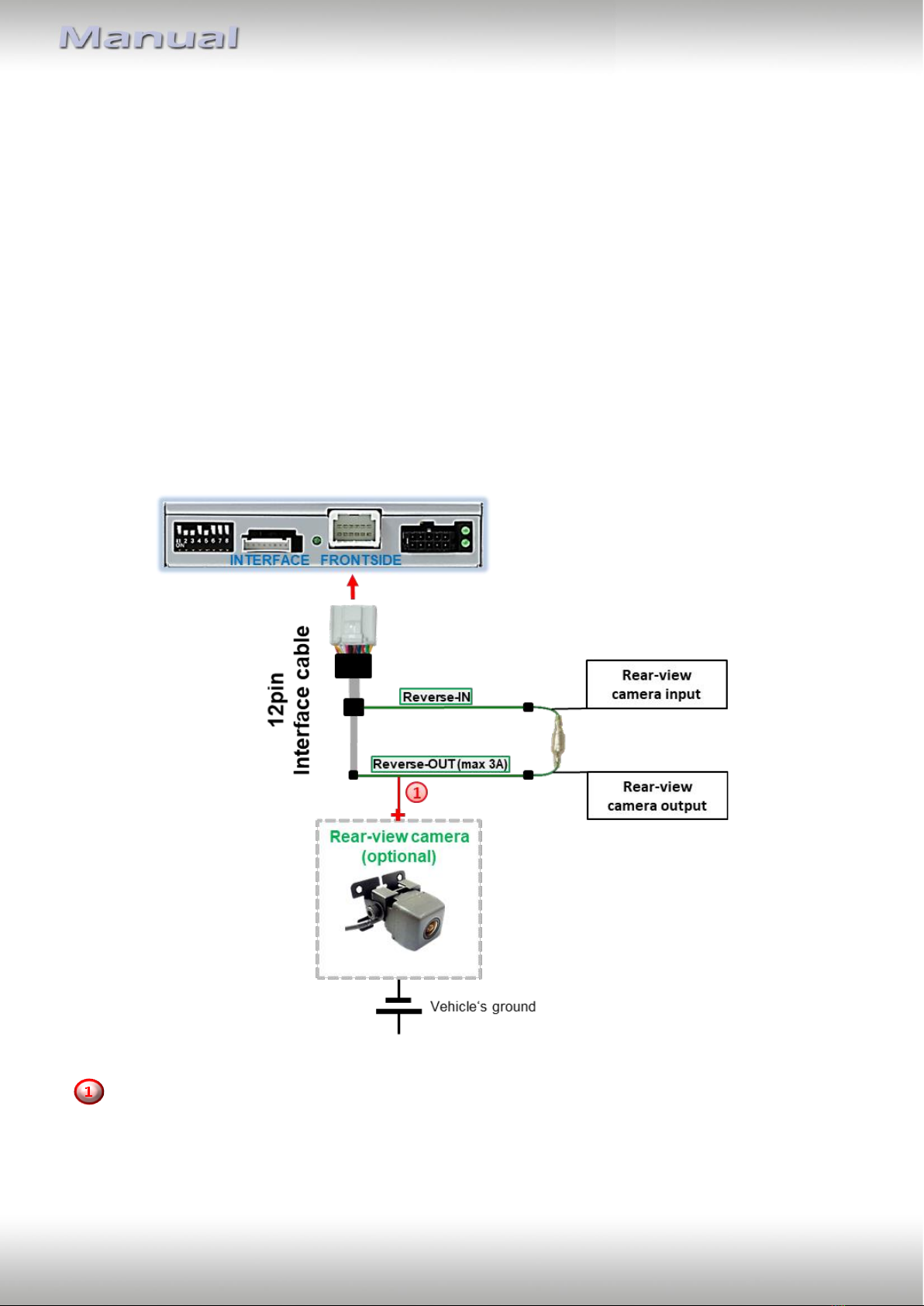

2.11.3.1. Case 1: Interface receives the reverse gear signal
2.11.3.2. Case 2: Interface does not receive the reverse gear signal
2.12. Connection –external keypad
3. Interface operation by external keypad
4. Picture settings
5. Specifications
6. Frequently asked questions
7. Technical support

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation has to be free of
moisture and away from heat sources.

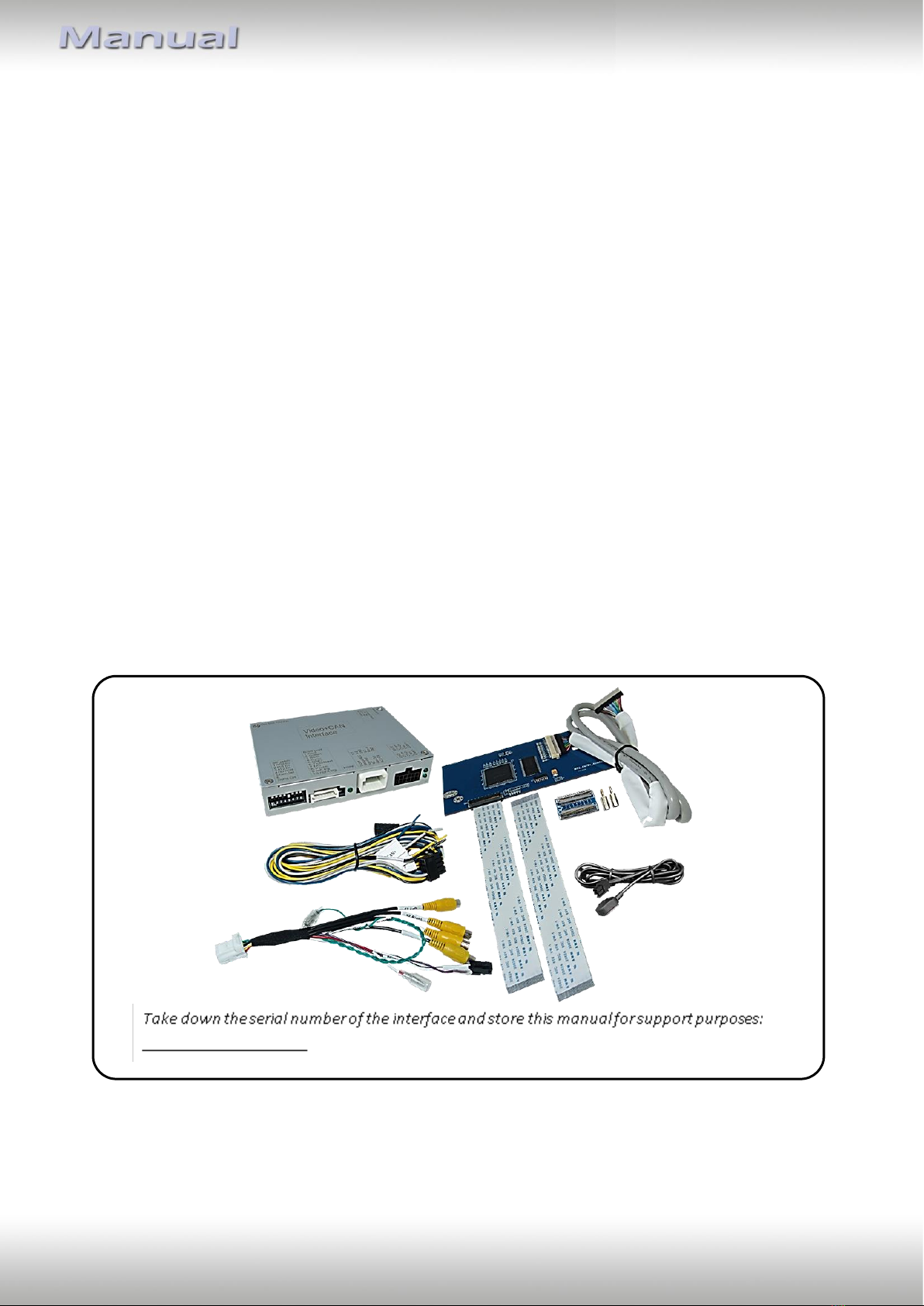

1.1. Delivery contents

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Seat/Cupra
Arona (KJ7) model year 2017-2021
Ateca (KH7) 04/2016 til model year 2020
Ibiza5 (KJ) 06/2017 til model year 2021
Leon3 (5F) model year 2018-2019
Toledo4 (KG) since model year 2018
MIB2 GP - Media System Touch Color
with 6.5inch monitor
Skoda
Fabia3 (NJ) since model year 2018
Kamiq (NW4) since 06/2019
Octavia3 (5E) since model year 2018
Rapid (NH1) since model year 2018
Superb3 (3V) since model year 2018
MIB2 GP - Radio Swing with 6.5inch
coloured monitor and SD-slot without
CD drive
VW
Golf7 (5Q) since model year 2018-,
Golf7 Sportsvan (AM1) model year 2018-2020
Polo6 (AW1) since model year 2018
T-Cross (C1) since 04/2019
T-Roc (A11) since model year 2018
Tiguan (AD1) since model year 2018
Touran (5T) since model year 2018
MIB2 GP - Composition Color All-in-One
head-unit with 6.5inch monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory audio-AUX-input or
a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio switching will
require additional electronic.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is
only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging
the reverse gear. A manually front camera switching is possible by external
keypad.
1.2. Checking the compatibility of vehicle and accessories

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page5

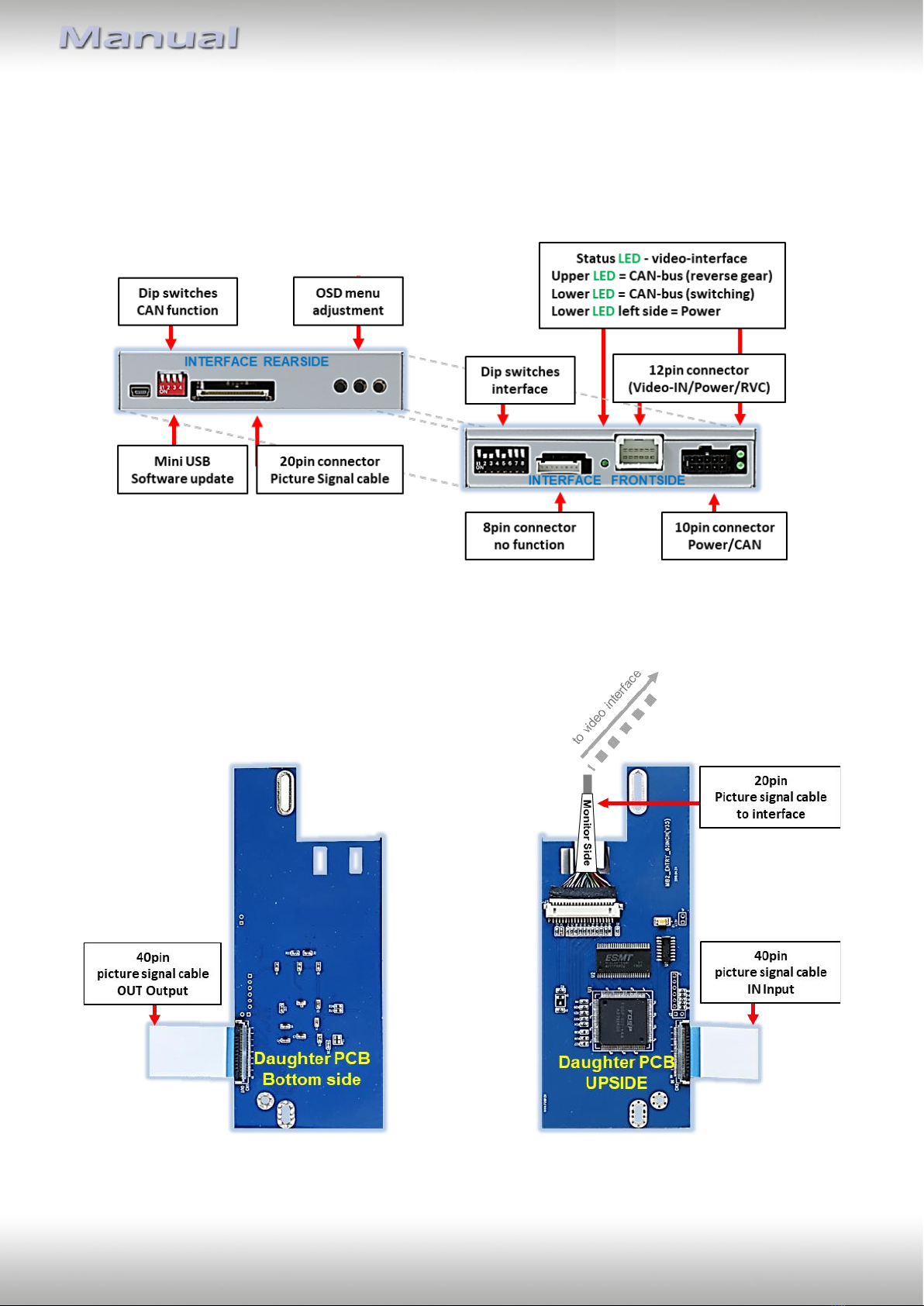

1.3. connectors - video-interface
The video-interface (daughter PCB) converts the video signals of connected after-market
sources in a factory monitor compatible picture signal which is inserted in the factory
monitor, by using separate trigger options.
1.4. connectors –daughter PCB

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page6
1.5. Dip-switch settings
1.5.1. 8 dip - black
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear 8see following information).
1.5.1.1. Activating the front camera input (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the front camera power supply: see chapter “Power supply output”.
1.5.1.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.
1.5.1.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the
reverse gear is engaged.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
Set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
Set to OFF
7
Monitor adjusment
Try all 4 possible combinations of dip 7 and 8 to find the
best picture (quality and size)
8

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page7
1.5.1.4. Monitor size (dip 7 and dip 8)
Dip 7 and 8 are for monitor-specific video settings which cannot be predicted as even within
the same head-unit version, the monitor specifications may vary. It is necessary to try all
possible combinations (both OFF, both ON, 7 OFF and 8 ON, 7 ON and 8 OFF) - while a
working video source is connected to the chosen input of the interface - to see which
combination gives the best picture quality and size (some may give no picture). It is possible
to first hot plug through the dip combinations, but if you do not experience any change of
picture after trying all 4 options, retry and disconnected the 6pin power plug of the video-
box between every change of the dip setting.
Note: Dip 4 and dip6 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
1.5.2. 4 dip - red
By using the Dip-switches, the factory Head-unit or vehicle can be chosen which the
interface will be connected to.
Dip position down is ON and position up is OFF.
Set all dip switches to off
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page8
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle to “Sleep-Mode”. In case it does not succeed,
disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
2.1. Place of installation
The video interface is designated to be connected behind the vehicle`s head unit.
The daughter PCB shell be connected inside the factory head unit’s monitor and installed
behind the monitor panel, or below the DIN housing (e.g. Skoda Rapid).

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page9

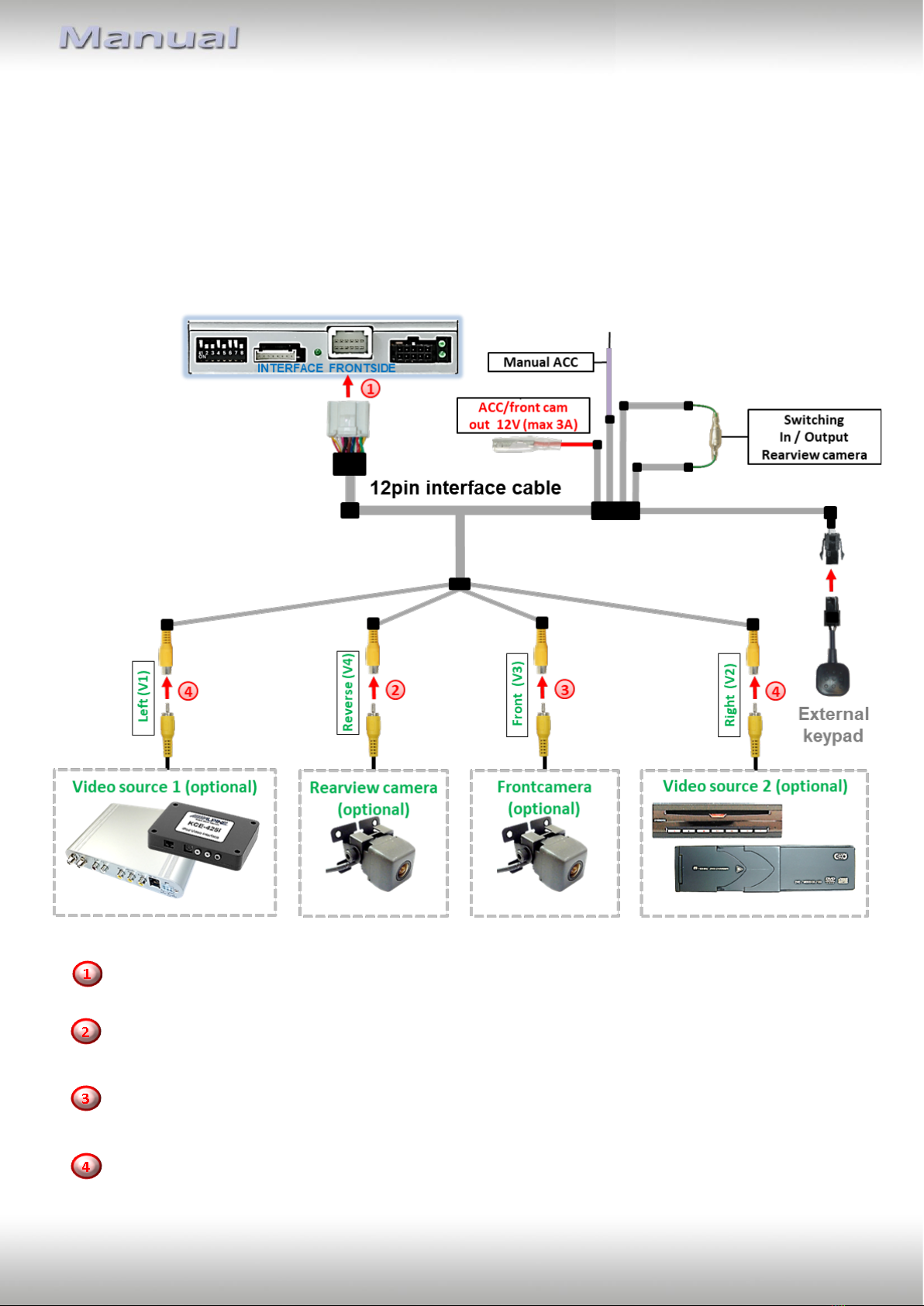

2.2. Connection scheme

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page10

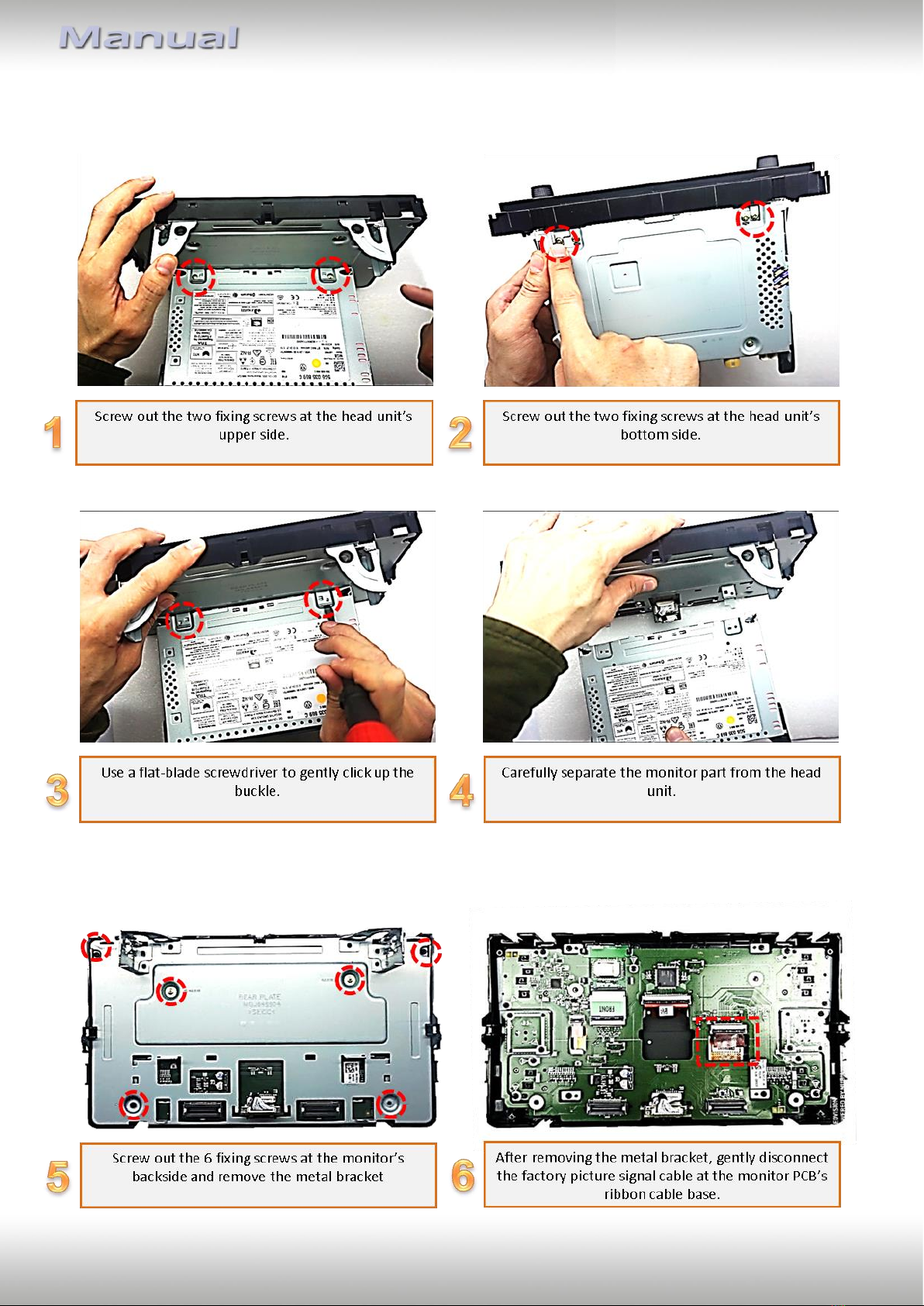

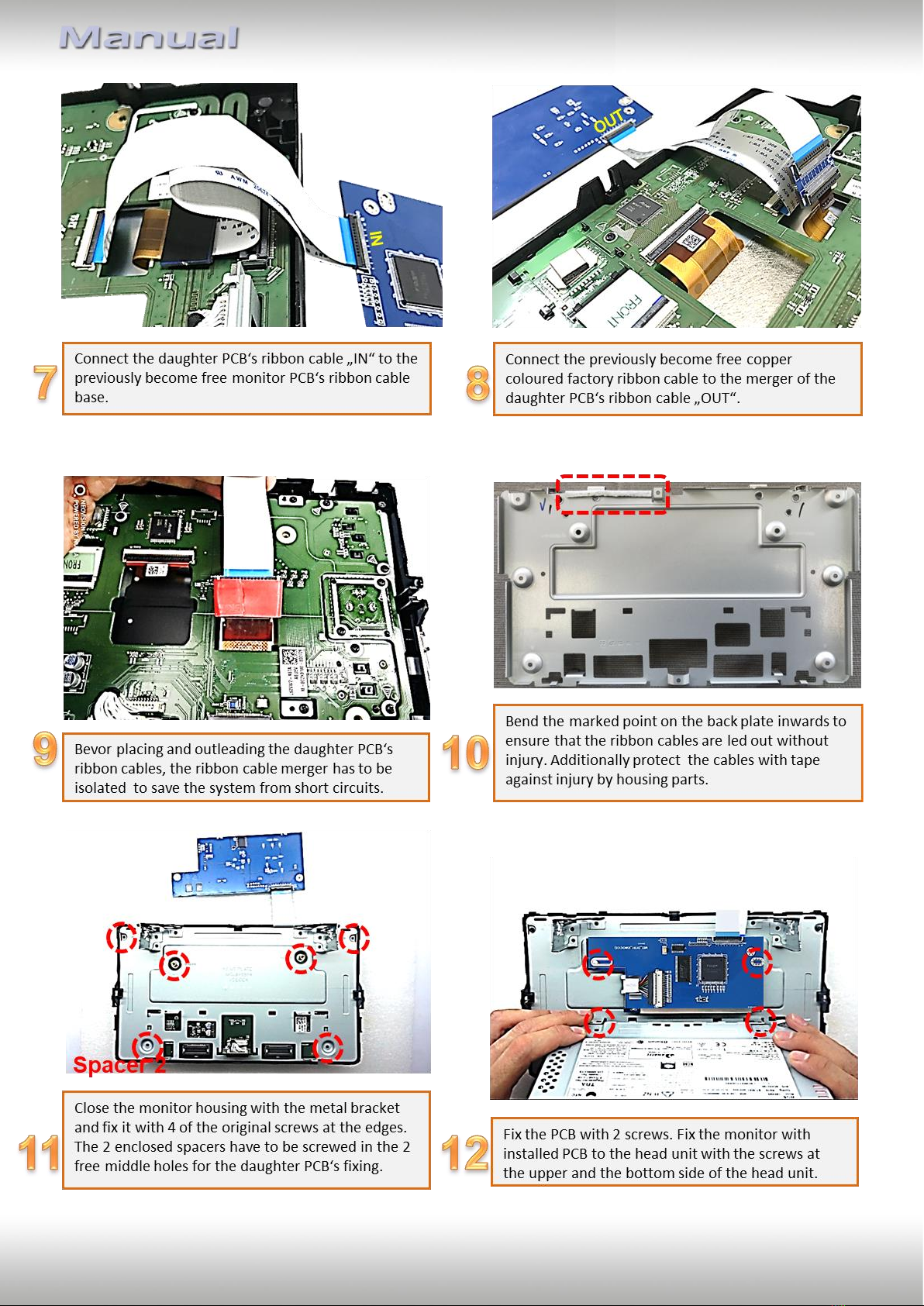

2.3. Installation –VW and Seat
Remove the factory monitor and open it`s housing. The daughter PCB is built to be installed
into the optical lead between the monitor panel and mainboard of the vehicles monitor.

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page11

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page12
2.4. Installation –Skoda with DIN housing below

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page13
2.5. Installation –Skoda with DIN housing on top

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page14
2.5.1. Warning notes, concernin the installation of ribbon cables
1) The contacting ends of ribbon cables always have to be installed in a straight and precise
180° position to the connector. Each deviation from a perfect contact position will curse
faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the
connector, concerning the mounting position.
2.6. Connection –20pin picture signal cable
Connect the female 20pin connector of the daughter PCB’s pre-connected 20pin
picture signal cable to the video interface’s male 20pin connector.

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page15
2.7. Connection –10pin Power / CAN cable
Connect the enclosed 10pin Power / CAN cable’s female10pin connector to the male 10pin
connector of the video interface.
Connect the single grey wire „CAN LOW“ of the 4 cables to the vehicle’s CAN low wire and
isolate the connection (Pins –see diagram).
Connect the single blue wire „CAN HIGH“ of the 4 cables to the vehicle’s CAN high wire and
isolate the connection (Pins –see diagram).
Connect the single red wire to stabile +12V terminal 30.
Connect the single black cable to the vehicle’s negative Ground.

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page16
2.8. Analog power supply
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not
all vehicles are compatible), the analogue connection is required.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition power
or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination).

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page17
2.9. Power supply output
The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment, depending on the position of dip switch 1
(of 8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay
after reverse gear is disengaged and
+12V when manually switched to front camera by keypad (short press)
Dip 1 OFF
+12V permanent (max. 3A) ACC

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page18
2.10. Connection –Video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page19
2.10.1.Audio insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.10.2.After-market front camera
The red power supply output ACC/front cam out 12V (max 3A) can be used to power a front
camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives +12V (max 3A)
when reverse gear is engaged plus 10 seconds delay after reverse gear is disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).
Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 24.02.2021 HW CAM(V100) / (V35, V36, V40) RL4-MIB2-E18
Page20
2.10.3.After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which doesn’t
communicate with the interface’s CAN. In this case there are two different ways of
installation. If the interface’s CAN is able to detect an enabled vehicle’s reverse gear, the
green wire of the 12pin cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of video-interface to ON before testing.
2.10.3.1. Case 1: Interface receives the reverse gear signal
If the interface receives +12V on the green wire of the 12pin interface cable while reverse
gear is engaged, the video interface will automatically switch to the rear-view camera input
“CAMERA-IN” while the reverse gear is engaged.
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin
interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power
supply to the camera electronic.
Both green cables “Reverse IN” and “Reverse OUT” have to remain connected.
