NavLinkz RL4-MIB101 User manual

Version 12.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Video inserter
RL4-MIB101
Compatible with
Audi vehicles
with MMI Radio Plus and MMI Navigation (Plus) infotainment
8.8inch and 10.1inch monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
1.4. Settings - 8 Dip switches (black)
1.4.1. Activating the front camera (dip 1)
1.4.2. Enabling the interface’s video inputs (dip 2-3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Activating the guide lines (dip6)
1.4.5. Activation of the factory Interface PDC Graphic (Dip 7)
1.5. Settings - 4 Dip switches (CAN function –red)
1.6. Settings - 2 Dip switches (Selection head-unit –black)
2. Installation
2.1. Place of installation
2.2. Note for test run
2.3. Connection schema
2.4. Connection - factory head unit
2.4.1. Connection - picture signal cable
2.4.2. Connection - Quadlock - CAN
2.4.3. Connection - Power
2.4.4. Analogue power supply
2.5. Power supply output for
2.6. Connection - video-sources
2.6.1. Audio insertion
2.6.2. After-market front camera
2.6.3. After-market rear-view camera
2.6.3.1. Case 1: Interface receives the reverse gear signal
2.6.3.2. Case 2Interface does not receive the reverse gear signal
2.7. Connection - video-interface and external keypad
2.8. Picture settings and guide lines
3. Interface operation
3.1. By factory infotainment button
3.2. By keypad
4. Specifications
5. FAQ –Trouble Shooting-Interface functions
6. Technical support

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Audi
A3 (8Y) since 03/2020
A4 Facelift (8W) since 05/2019
A5 Facelift (F5) since 10/2019
A6 (4K) since 06/2018
A7 (4K) since 02/2018
A8 (4N-D5) since 11/2017
Q7 Facelift (4M) since 09/2019
Q8 (4M) since 07/2018
e-tron (GE) since 03/2019
Not compatible to vehicles with factory
DVD-player!
MMI Radio Plus and MMI Navigation (Plus)
with MMI Touch Response
and 8.8inch or 10.1inch monitor
A1 (GB) since 11/2018
Q3 (F3) since 08/2018
Q4 e-tron since 03/2021
Q4 Sportback e-tron since 03/2021
Q5 (FY) since 09/2020
Q5 Sportback (FYT) since 03/2021
Not compatible to vehicles with factory
DVD-player!
MMI Navigation (Plus)
with MMI Touch Response MIB3
High/Premium
with 10.1inch monitor.
A1 (GB) since 11/2018
Q3 (F3) since 08/2018
Not compatible to vehicles with factory
DVD-player!
MMI Radio Plus or MMI Navigation
with 8.8inch monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory
audio-AUX-input or a FM-modulator can be used. If 2 audio
sources shall be connected to the infotainment, an additional
electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory
rear-view camera is only possible while the reverse gear is
engaged. To delay the switch-back an additional electronic part
is required.
Factory DVD-player Not compatible to vehicles with factory DVD-player.
After market front camera The front camera will automatically be switched for 10 seconds
after disengaging the reverse gear. A manually front camera
switching is possible by external keypad.
Guidelines Displayed guidelines are not available in all vehicles.
1.2. Checking the compatibility of vehicle and accessories

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page5
1.3. Boxes and connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page6
1.4. Settings - 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the Video interface has to be performed!
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear is
engaged incl. 10 seconds delay
and
+12V by manual switching to front
camera by keypad
+12V (max. 3A) ACC
2
Video 1-input
enabled
disabled
3
Video 2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam
type
after-market
factory or none
6
Guide-lines
enabled
disabled
7
PDC
enabled
disabled
8
No function
set to OFF

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page7
1.4.1. Activating the front camera (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the power supply output: see chapter “Power supply output”.
1.4.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs. So the disabled inputs will be
skipped while switching through the video interfaces inputs.
Note: Dip 4 is out of function and have to be set to OFF!
1.4.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.4.4. Activating the guide lines (dip6)
If set to ON, the guide-lines will be shown on the display.
If set to OFF, the guide lines won’t be visible on the display.
Note: If there is no communication between interface and the vehicle`s CAN-bus (several
vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s
operation, even if they once appear after having switched the system to powerless!
1.4.5. Activation of the factory Interface PDC Graphic (Dip 7)
If set to ON, the interface PDC graphic is displayed as „picture in picture“ in combination
with the camera image.
Dip switches 4 and 8 are out of function and have to be set to OFF.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page8
1.5. Settings of the 4 Dip switches (CAN functions –red)
The 4 dip-switches of the video are used to select the kind and choice of
the factory head-unit.
Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the video interface has to be performed!
1.6. Settings of the 2 Dip switches (selection head unit - black)
The 2 dip switches on the upper side of the interface box are used to select the head
unit.
Warning! Dip position up is ON and position down is OFF (vice versa to the black 8 dips and
the red 2 dips).
Manufacturer head unit
Dip 1
Dip 2
Alpine, Aptiv/Delphi
OFF ↓
ON↓
Harman
ON ↑
ON ↑
After each Dip-switch-change a power-reset of the video interface has to be performed!
Dip
Funktion
ON (unten)
OFF (oben)
1
Maual selection of
the
Head Unit System
(only possible
if dip2= OFF)
Harman
Alpine, Aptiv/Delphi
2
Automatic
recognition of the
head unit system
enabled
disadled
(with manual selection of the
Head Unit via di1)
3
No function
Auf OFF stellen
4
No function
Auf OFF stellen

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page9
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The interface is supposed to be installed at a suitable location behind the vehicle`s head-
unit.
*Note: In the e-tron, the following hidden screw (Torx) must be loosened at the rear of the
centre console (one screw, the rest is inserted - ventilation doesn‘t have to be removed).
2.2. Note for test run
In vehicles in which the climate control system is operated by the touchscreen monitor, it is
necessary to have the monitor connected for an interface test run.
Model
Location of the Head Unit
A6
at the top behind glove box
A8
behind the glove box
e-tron
centre console under the ventilation for the rear
passengers*.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page10
2.3. Connection schema

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page11
2.4. Connection - factory head-unit
Remove the head unit.
*Note: In the e-tron, the following hidden screw (Torx) must be loosened at the rear of the
centre console (one screw, the rest is inserted - ventilation doesn‘t have to be removed).
Model
Location of the Head Unit
A6
at the top behind glove box
A8
behind the glove box
e-tron
centre console under the ventilation for the rear
passengers*.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page12

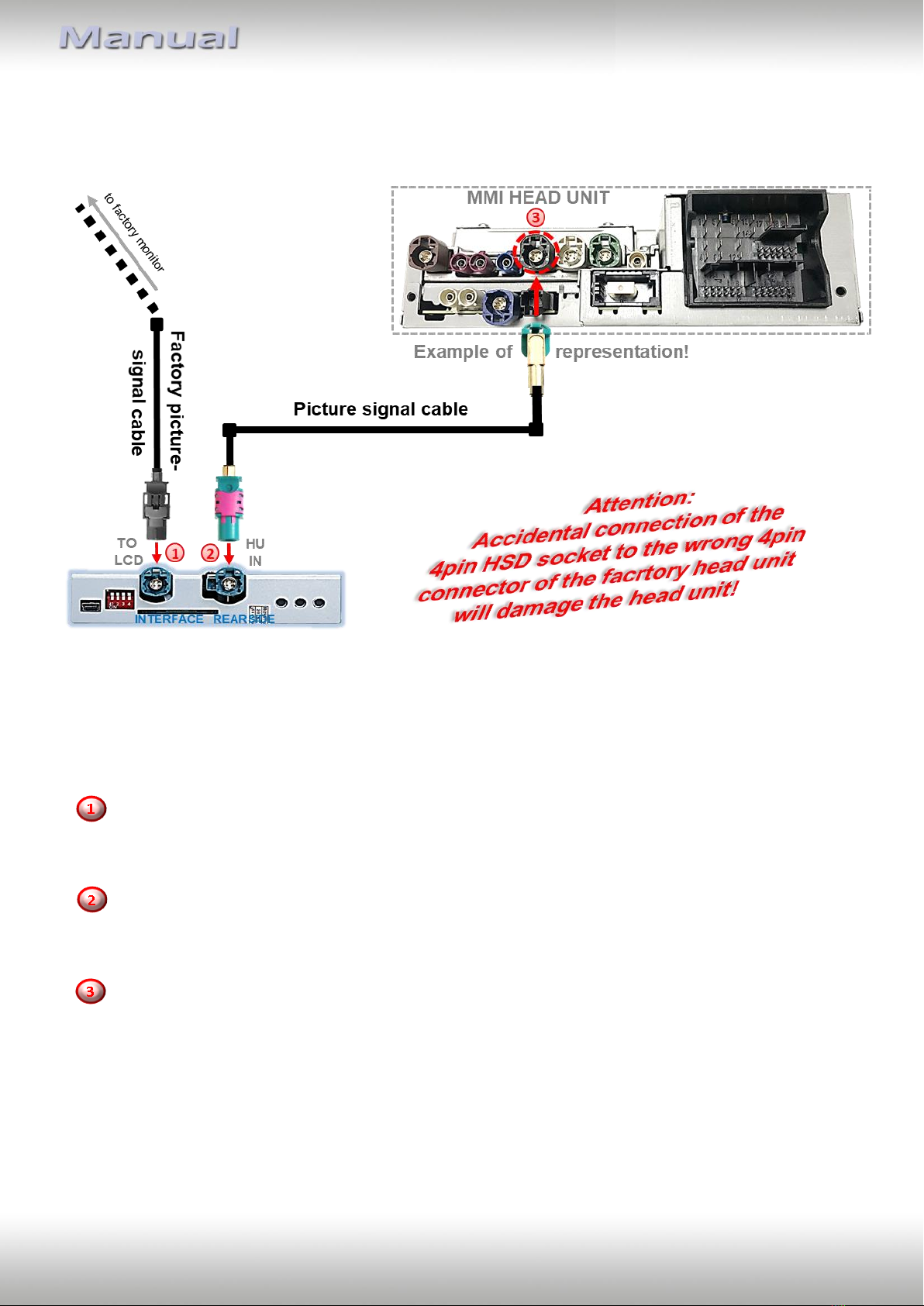

2.4.1. Connection –picture signal cable
Disconnect the factory picture signal cable’s black female HSD connector at the rear-side of
the head unit and connect it to the waterblue coloured male HSD connector „TO LCD“ of the
video interface.
Connect the unangled female waterblue coloured HSD connector "To HU In-Interface" of
the enclosed picture signal cable to the waterblue coloured HSD connector "HU IN" of the
video Interface.
Connect the opposite angled waterblue coloured HSD connector "To HU" of the enclosed
picrure signal cable to the previously become free HSD plug of the head unit.
Note: Depending on the installation conditions, the enclosed picture signal cable may also
be mounted upside down, concerning it’s HSD connectors . However, it‘s connection must
only be made at the head unit!

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page13

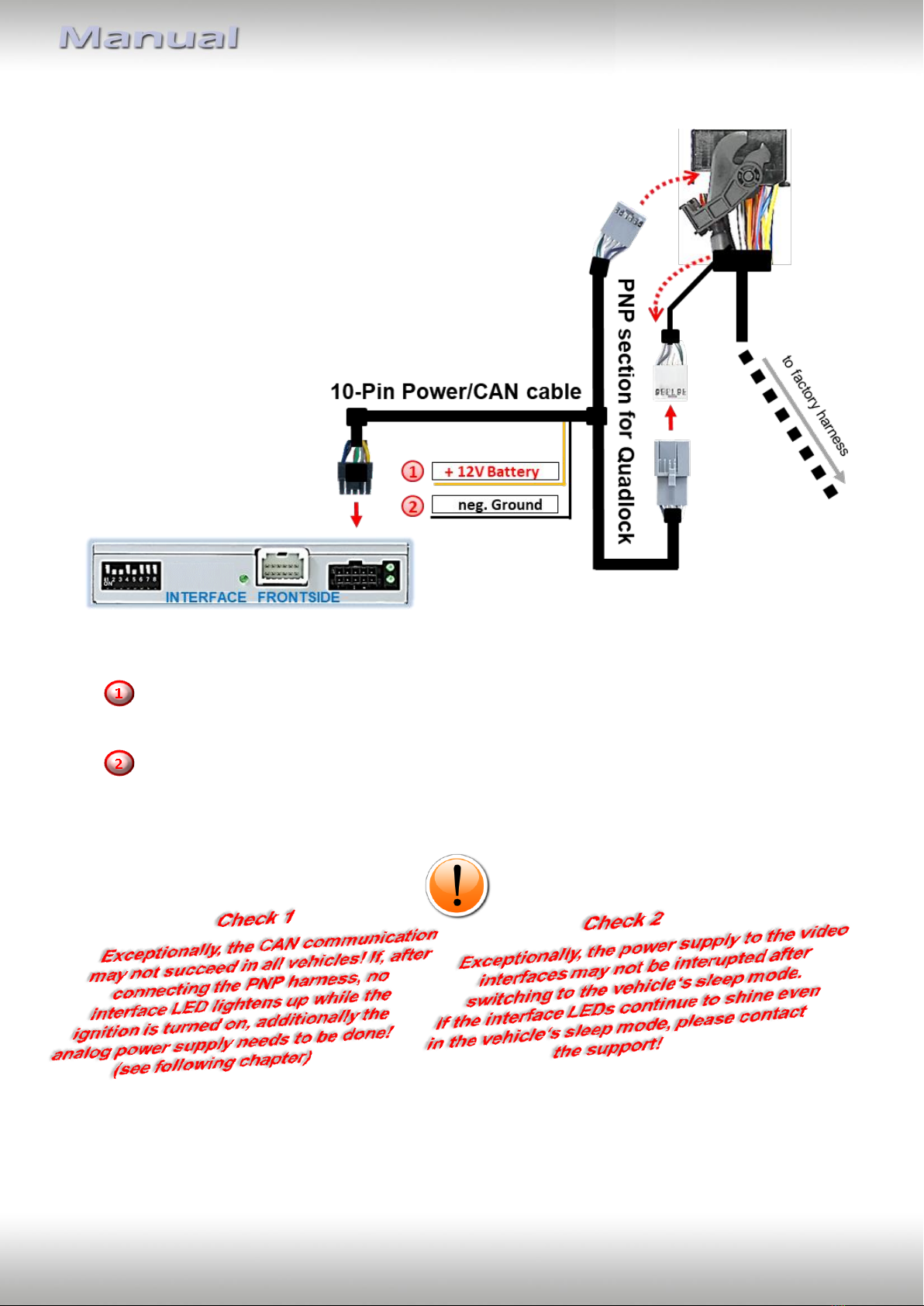

2.4.2. Connection - Quadlock –CAN
Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin connector of the
video interface.
Disconnect the female Quadlock connector of the vehicle harness from the rear-side of the
head-unit and connect the previously clipped out female 12pin connector to the grey
coloured male 12pin connector of the PNP harness.
Clip in the grey coloured female 12pin connector of the PNP harness in the previously
become free position of the female Quadlock connector.
After that, finish the Quadlock reconnection at the rear-side of the head-unit.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page14
2.4.3. Connection - Power
Connect the single yellow wire of the 10pin power/CAN cable to +12V permanent and
stabile power supply.
Connect the single black wire of the 10pin power/CAN cable to the vehicle’s negative
ground.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page15
2.4.4. Analogue power supply
If, after connecting the PNP harness, no interface LED lightens up while the ignition is
turned on, the purple coloured wire Manual ACC of the 12pin interface cable has to
be connected additionately to ACC or S-contact terminal 86s +12V (e.g. glove
compartment illumination).

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page16
2.5. Power supply output
The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment depending on the position of dip switch 1 (of
the black 8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds
delay after reverse gear is disengaged and
+12V by manual switching to front camera by keypad (short
press)
Dip 1 OFF
+12V (max. 3A) ACC

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page17
2.6. Connection - video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)” and ”Right (V2)”.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page18
2.6.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.
2.6.2. After-market front camera
The red power supply output ACC/front cam out 12V (max 3A) can be used to power
a front camera. If Dip 1 is set to ON (black 8 dips), the power supply output gives
+12V (max 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear
is disengaged.
Note: In addition, a manual switch-over to the front camera input is possible via keypad
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip
1 is set to ON and the front camera input is selected).
Attention: A long press of the external keypad push button will switch the interface to the
next source.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page19
2.6.3. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.
2.6.3.1. Case 1: Interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.
Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from
the green wire of the 12pin interface cable.

Version 06.05.2022 HW: CAM(V100)/UP(V11.3) RL4-MIB101
Page20
2.6.3.2. Case 2: Interface does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
interface cable and connect the green input cable “Reverse-IN” to the output
connector (87) of the relay.
Note: Last but not lot least to avoid short circuits, the best solution should be, to
crimp a male 4mm connector to the relay’s output cable and connect it to the green
cable’s female 4mm connector. The output-cable “Reverse-OUT” remains
disconnected as it’s out of function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).
