INSTRUCTION MANUAL
MODEL: NCA-699
IMPORTANTINFORMATION REQUIRED BY THE FCC
This device complieswith Part 15of the FCCRules. Operation issubject to thefollowing two
conditions: (1)this devicemay not causeharmful interference; and(2) this devicemust accept
any interference received,including interference thatmay cause undesirableoperation.
NOTE: This equipmenthas been testedand found tocomply with thelimits for aClass B digital
device, pursuant toPart 15 ofthe FCC Rules.These limits aredesigned to providereasonable
protection against harmfulinterference in aresidential installation .
This equipment generates.usesand can radiateradio frequency energyand, if notinstalled and
used in accordancewith the instructions,may cause harmfulinterference to radioelevation
reception, which canbe determined byturning the equipmentoff and on.The user isencouraged
to try tocorrect the interference byone or more ofthe following measures:
* Reorient orrelocate the receivingantenna.
* Increase theseparation between theequipment and receiver.
* Connect theequipment into anoutlet on acircuit different fromthat to whichthe receiver is
connected.
* Consult thedealer or anexperienced radio/TV technicianfor help.
Detachable PLL Electronic Tuning Stereo,
AM/FM Radio MP3/CD Player with ID3 Text Function,
USB Input, SD/MMC Card Slot And Aux-in Jack

Page 1
Thank you for purchasing this car audio product.
Please read this manual carefully before operating this car audio product.
Please keep this manual for future use. It will be helpful to you if you are encounter any
operational problem.
WARNING!
To reduce the risk of fire or electric shock, do not use the unit in the rain or moisture
environment.
To prevent direct exposure to laser beam, do not try open the enclosure.
Visible and invisible laser radiation when open and interlocks defeated.
To protect our environment, do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points
provided for their disposal.
This helps avoid the potential effects of incorrect disposal on the environment and human
health. This will contribute to the recycling and other forms of reutilization of electrical and
electronic equipment. Information concerning where the equipment can be disposed of can
be obtained from your local authority.
Selecting fine audio equipment is only the start of your musical enjoyment.
Now it is time to consider how to maximize the enjoyment you will get from
knowing how to work your new car stereo receiver.
We hope you enjoy using this product and encourage you to always listen at
a moderate, safe sound level to avoid any possible hearing damage or loss.
If you listen to excessively loud sound over time, your hearing can adapt to
higher volumes and what sounds "normal" to you may be quite harmful and
can cause you to have permanent hearing loss. So please practice "safe sound"
and always listen at moderate sound levels only.
Start with your volume control at the lowest setting, and slowly increase the level
until you can hear it comfortably and clearly, free from distortion.
Once you have established this comfortable sound level, leave it there.
Preface

Page 13

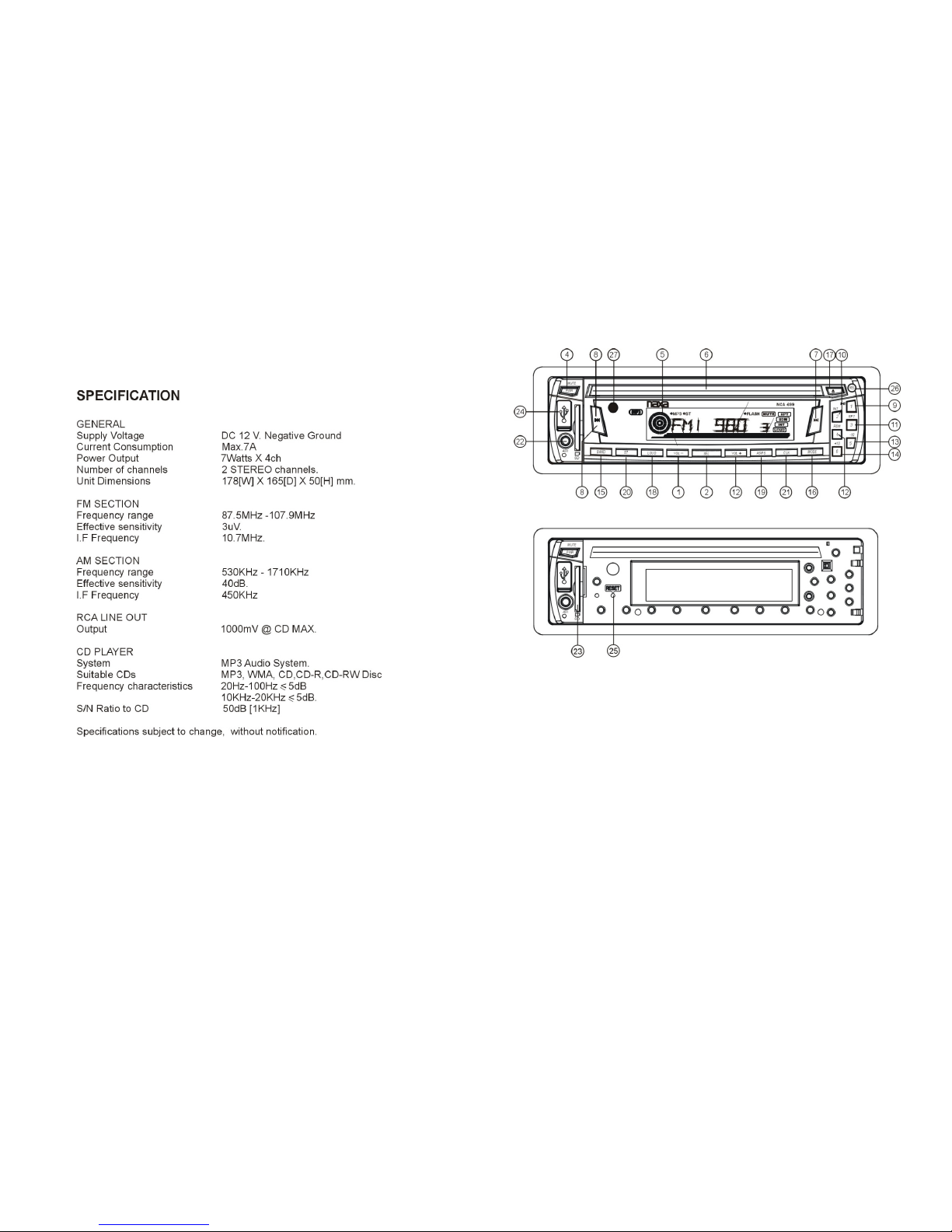

LOCATION AND FUNCTION OF CONTROLS
Page 2
1,2 & 3.SEL(MENU)BUTTON AND VOLUME UP ( + )/DN ( - ) BUTTONS
a) Press the SELbutton briefly, it is activated as selecting each mode of E. VOL.
-> VOLUME ->BASS ->TREBLE -> BALANCE -> FADER ->
When selecting adesired audio mode, press the VOL+ or VOL- button to
adjust the audioeffect.
In each mode, the waitingtime is about 5 seconds, and the time waiting time
is over, it returns to the last display mode of tuner or CDP mode.
The control mode of E.VOL is operated with following numeric display.
- VOL: (MIN)00, 01,......46, 47(MAX).
- BASS/TRE: -07, -06,...,00,...+06,+07
- BAL: 0LR9, 1LR9, ..., 9LR9,..., 9LR1, 9LR0
- FAD: 0FR9,1FR9, ...,9FR9,..., 9FR1, 9FR0
b) When pressed and hold for 2 seconds, it is activated as cyclical mode of
following functions for user’s selection.
->BEEP (ON/OFF) -> USER SET(FLAT/CLASSIC/ROCK/POP)
->VOL(LAST/DEFA) ->CLK(ON/OFF)->CLK(12/24)mode.
When selecting adesired audio mode, press the VOL+ or VOL- button to
adjust the audioeffect.
BEEP ON/BEEP OFF
BEEP ON mode: The beep is generated when any key is pressed.
BEEP OFF mode: The beep sound is disabled.

Page 12Page 3
VOL LAST/VOL DEFA
VOL LAST: The radio switches on at the actual volume it had when it was last
switched off.
VOL DEFA: After pressing SEL button, AVOL will be displayed. Then you can
pre-select a constant switch-on volume by using the VOL knob.
CLK ON/OFF
CLK ON: Clockwill always show on the display when power off.
CLK OFF: Clockwill disappear on the display when power off.
4. POWER ON/OFF & MUTE
When the unit is power off, the unit comes to on by pressing any button except
the EJECT and the RELEASE button.
When the unitis power on, press and hold the power button for more than 0.5
seconds, the unit goes into power off mode.
When the unitis power on, press the power to switch the MUTE state on/off.
5. LCD Display
6. CD SLOT
7&8. TUNE, SEEK, TRACK, SKIP UP / DOWN BUTTONS
a) During RADIO mode:
Press the >>| or |<< button briefly to manual tune up/down for the desired
radio station frequency step by step.
Press and hold the >>| or |<< button for longer 0.5 seconds, to automatically
tune up/down for the radio station frequency of strong signal.
b) During disc, MMC/SD, USB playback mode:
Press the >>| button brieflyto play next track.
Press the |<< button briefly to play the current track from the beginning of it
if the playing time ismore than 2 seconds.
Press the |<< button briefly to play the previous track if the playing time is
less than 2seconds.
Press the >>| or |<< button and hold to skip forwards or backwards, release
to resume normalplayback.
9-14. PRESET STATION MEMORY AND TOP/>||, INT,RPT, RDM BUTTONS
a) During radio mode:
Go to any preset station by pressing one of the 6 preset station buttons (1-6).
If one of these buttons is pressed for more than 2 seconds, the station
currently being listened to will be memorized into the selected preset button.
b) During disc, MMC/SD or USB mode:
1) Press the TOP/ >|| button briefly to interruptthe playback of the disc, MMC/SD
or USB. Press again toresume normal playback of the disc, MMC/SD or USB.
Press the TOP/>|| buttonand hold for approximately 0.5 seconds to play the
first track of the disc,MMC/SD or USB.
2) Press the INT button to sample the first 10 seconds part of each track, and the
INT ON will be visible on the LCD display.
In the process of INT, pressINT button again to stop sampling and to continue
playing the currenttrack, and the LCD will display INT OFF.
TROUBLE SHOOTING
Before using the check list please make all the connections first.
If you still have questions after going through the checklist, please consult
your local customer service representative.
Common Symptoms
There is no power.
The CDs cannot
be loaded.
Cause
The fuse has blown.
Presence of CD disc inside the player
Inserting the disc in upside down
The surface of CD is extremely dirty
or it is damaged.
Temperature inside the car is too
high.
The volume control is set too low.
There is no sound.
The operation keys
do not work
The sound of the
CD player skips
The antenna cable is not connected. Insert the antenna cable firmly into the
antenna socket of the device.
No radio reception.
1.The built-in microcomputer is not
operating properly due to noise
2.Front panel is not properly fix into
its place
1. Switch the device off and on again. Or press
the RESET button to resume the program.
2. Reinstall the front panel
The device has not been correctly
connected.
The installation angle is more than
30 degrees
Wait until the road becomes smoother before
playing the CD.
Adjust the installation angle to less than 30
degrees
Turn up the volume properly.
Check the power and earth connection
according to the wiring diagram.
Cool off until the ambient temperature returns
to normal
Clean the CD or try another CD, if this works
correctly, the first CD is properly damaged.
Insert the compact disc with the label facing
upward
Remove the disc in the player then put a new
upward
Replace another fuse according to the wiring
diagram.
The car ignition is switched off. If the power supply is properly connected to
the car accessory, switch the ignition key to
ON or " ACC" " " .
Solution
The device does
not work correctly
(EJECT, LOAD,
PLAY)
In automatic search
mode the radio does
not stop at a trans-
mitting station.
Tune in to a radio station manually.The transmission signals are too
weak.
The CDs are loaded
only halfway into
the CD tray.
The transport screws have not been
removed.
Remove the transport screws before using.
The surface of the road is uneven.
The surface of CD is extremely dirty
or it is damaged.
Clean the CD or try another CD, if this works
correctly, the first CD is properly damaged.

Page 4Page 11
3) Press the RPT button once to play the current track repeatedly, and the RPT
ONE will be visible on the LCD display.
During MP3/WMAdisc, MMC/SD or USB mode, press the RPT button twice
continuously to play the current folder repeatedly, and the RPT ABM will be
visible on the LCD display.
In the process of RPT, press RPT button again to stop playing repeatedly
mode and theLCD will display RPT OFF.
4) Press the RDM button to play all tracks on disc in random order, and the RDM
ON will be visible on the LCD display.
In the process of RDM, press RDM button again to stop playing in random
order and theLCD will display RDM OFF.
5) Press the -10 and +10button to move up and down10 tracks at a time.
When the remained total tracks is lack of 10, the both buttons are inactively.
15. BAND BUTTON
During radio mode:
Press the BND button briefly to select the radio broadcasting band you would
like to hear. The AM/FM band is toggledcyclically through the tuning bands:
->FM 1-> FM 2 -> FM 3 -> MW 1->MW 2 ->.
Press and hold the BND button to select LOCAL/DX mode.
Note: This button is only for FM reception. In AM mode, LOC is void.
16. MODE BUTTON
Press the MODE button tochange among tuner (radio), disc (when a disc is
loaded), MMC/SD card (when an MMC/SD card is inserted) , USB (when an
USB stick is inserted) and AUX mode.
17. EJECT KEY
In the power on state, the loaded disc can be ejected by pressing the EJ key.
18. LOUDNESS BUTTON
When press briefly, the LOUD mode is turned on, its to enhance the bass sound
effect when the volume level is low. Press again to cancel the loudness effect.
19. AS/PS BUTTON (Auto-storage /Preset scan)
During radio mode:
1) when press and hold for more than 1 second, the radio searches from the
current frequency and checks the signal strength level until 6 station are found.
And then the 6 stations frequency are preset to the corresponding preset
memory numbered bank. The auto-storage operation is implemented in the
each selected band.
When the auto-storage operation is finished, the radio execute the Preset Scan.
2) when press briefly, the radio searches for each preset station in the current
band and holds at that preset number for 5 seconds with releasing mute, and
then search again.
ÒÉÄѽâ³ý

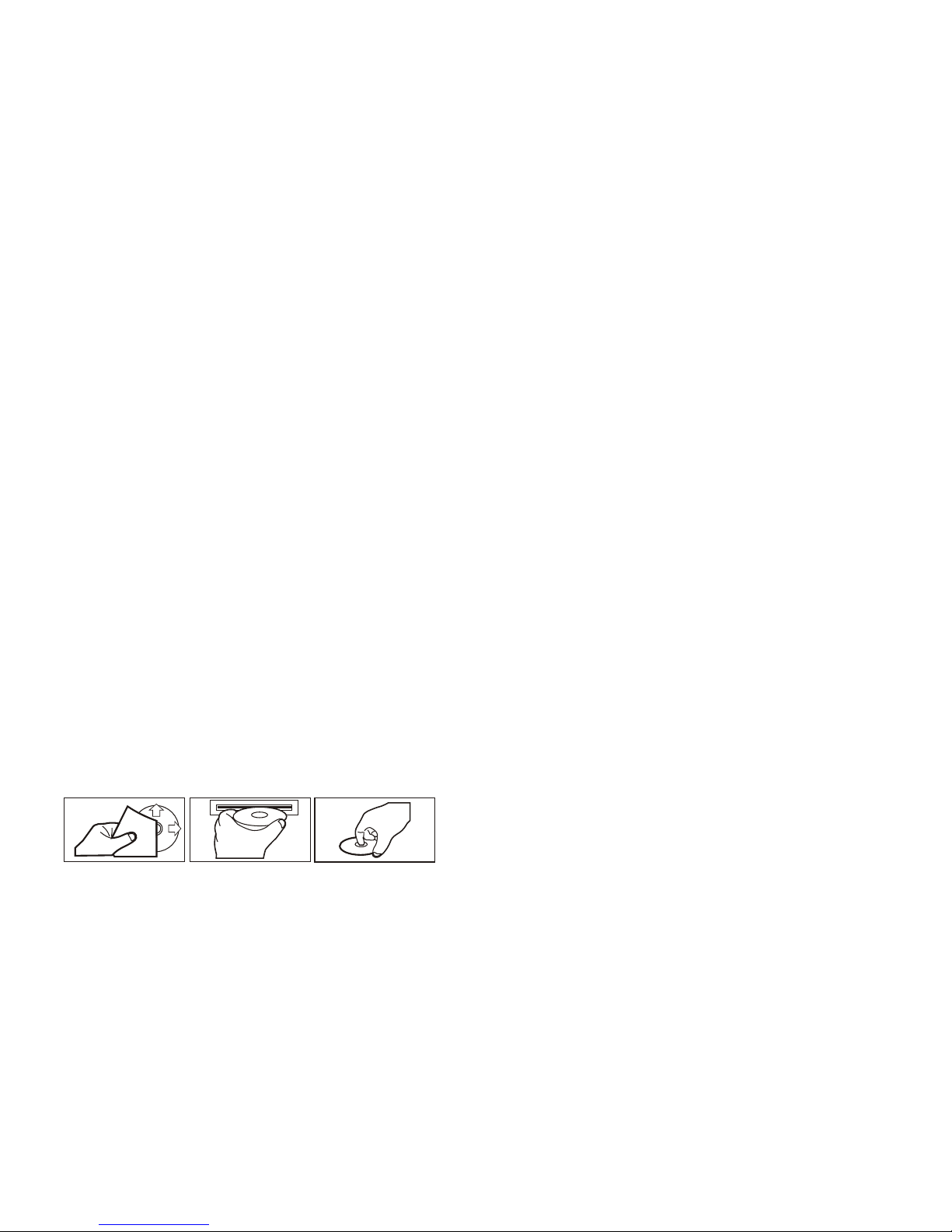

CARE FOR USING CD'S:
1. To keep the disc clean:
Before playing a disc, wipe it off with a clean, dust-free cleaning cloth.
Wipe the disc outwards from the disc center.
2. When one has already been inserted. Doing so may damage the unit
Do not attach any sticker or adhesive tape on the disc.
Handle the disc by its edge to keep the disc clean and do not touch the surface.
. Insert a disc
with labeled surface up, or it will damage the unit.
3. Do not expose the disc to direct sunlight or nearby heat sources such as heating
vents, caliduct which can cause the disc to warp.
Do not leave disc in a car if it is parked in direct sunlight as that will lead to a
considerable rise in the temperature inside the car.
4. Do not use any secondhand or rented disc, usually, there is glue on the surface of
those discs, it will stop the unit working and damage it.
5. Always store the disc in its case for protection. Scratched up discs will produce poor
sound performance and cause CD player to skip.
6. In raining day or wet area, the moisture may form on the disc or the optical parts,
the playback may not be possible. If moisture forms on the disc, wipe it off with a
soft cloth.
If moisture forms on the optical parts of the unit, allow the unit to sit for about one
hour with power on.
7. Do not use solvents such as benzine or thinners. Commercially available cleaners
or anti-static spray will damage the unit.
About CD-R/CD-R/W discs:
In addition to commercially-recorded audio CD's, this unit can play CD-R and
CD-R/W discs. Insome cases, particularlywhen recorded on older CD burners,
some CD-R and CD-R/W discs may not play. Also, whenever you are recording
a CD for playback in this receiver, it is recommended that you record at 24x or
slower speed for CD-R and 4x or slower for CD-R/W to achieve higher signal
quality and better playback performance.

Page 10
Page 5
During MP3/WMAfile in disc, MMC/SD or USB mode:
1) In TRACK SEARCH mode, the LCD will display TRK T000 and flash the biggest
digit 0 that the SD/MMC card or USBstick contain. (if the number of tracks is
less than 100 and more than 9, it will be TRK 00) Then press the VOL+ or VOL-
button to select the numberof the flashing digit from 0 ~ 9. Then press SEL
button to confirm the number and flash next smaller digit 0.
With the same means, select the number of the flashing digit. After finishing
selecting the number of all flashing digit, press SEL button to play the track of
the selected serial number.
2) In FIRST CHARACTER SEARCH mode, the LCD will display A--......, If there
are files namesits first character are A , the ......is the first file name itsfirst
character is Aby the order of A~Z and 0~9; otherwise, the ......is NONE. Then
press the VOL+or VOL- button to select file’s first character by the order of
A~Z and 0~9. Finally press SEL buttonto play the selected file.
3) In DIRECTORY SEARCHmode, the LCD will display the root folder(if there is
not the root folder, it will find a root folder named ROOT). Then press the VOL+
or VOL- button to select your desired folder and then press >> | or |<< button
to select your desired track in the folder. Finally press SEL button to play the
selected track.
20. ST/MO BUTTON
In FM mode, press the ST briefly to select stereo or mono sound mode.
21.CLK BUTTON
Press the CLK button briefly to display time for 5 seconds on the display, and
then returns to its previous display unless the button is pressed again.
Then press the CLK button and hold for more than 1 second until the real time
flashes on the display. Then you can adjust HOUR or MINUTE by press the
VOL+ or VOL- button.
22.AUX INPUT JACK
Press the mode button to select auxiliary input playing mode. Then you can
connect any matched external audiodevice to this socket. Use the volume
knob to adjust volume.
23.SD CARD SLOT
In order toplay the file in the MMC/SD card, insert the MMC/SD card into
the MMC/SD card slot. The system will change into the MMC/SD mode
automatically, and then play the first file in the MMC/SD.
Note:
When MMC/SD cardand USB stick are both inserted into their slot or socket,
the system will change into the playback mode of the latter one.
24.USB SOCKET
In order to play the file in the USB stick, turn over the plastic cover cap then
insert the USB stick into the USB socket. The system will change into the
USB mode automatically, and then play the first file in the USB.
When no needing to do USB operation, please cover the plastic cover cap.
INSTALLATION METHOD
This is an anti-theft installation method.
The main unit wears a METAL MOUNTING SLEEVE.
Please connect the wiring, eg, the Power supply, the Speakers and the Antenna
according to the requirements of this Instruction Manual, then install the metal
mounting sleeve into the car as per the diagram illustrated below.
METAL
SUPPORT STRAP
To raise the anti-skip capability of the unit,
please ensure the metal support strap is
connected firmly to the car chassis.
To properly fix the metal mounting
sleeve, bend the tabs of the sleeve
against the DASH BOARD with a
screwdriver.
UNIT CHASSIS
PLASTIC TRIM RING
FRONT PANEL
DASHBOARD
METAL MOUNTING SLEEVE
To remove the CD player out of the mounting sleeve,
insert the two supplied keys into the left and right side
slots of the chassis at the same time.
NOTE
Before installing andoperating
the CD player, remove themetal
mounting sleeve illustratedby
the arrows.
Remove the two screwsthat protect
the CD player duringtransportation
before operating the player. To attach the removable faceplate, insert the
left side of the faceplate into the left of the
CD player chassis first. Then push the right side
of the faceplate into the chassis until you hear
it “click”.

25. RESET BUTTON
Before operating the unit for the first time, or after replacing the car battery or
changing the connections.Youmust reset theunit.
Press this buttonwith a cuspidalobject. This operation will erase the clock
setting and somestored contents.
26. RELEASE BUTTON
Press the RELbutton to releasethe front controlpanel from theunit chassis,
then pull itup a little to remove from the unit chassis.
When the front control panelis removed theLED indicator flashes.
27. INFRARED REMOTECONTROL SENSOR
Page 6
Page 9
CONNECTOR A
1.
2.
3.
4. Memory +12V
5. Auto Antenna Output
6.
7. 12V (To Ignition Key)
8. GROUND
CONNECTOR B
1. Rear Right Speaker (+)
2. Rear Right Speaker (-)
3. Front Right Speaker (+)
4. Front Right Speaker (-)
5. Front Left Speaker (+)
6. Front Left Speaker (-)
7. Rear Left Speaker (+)
8. Rear Left Speaker (-)

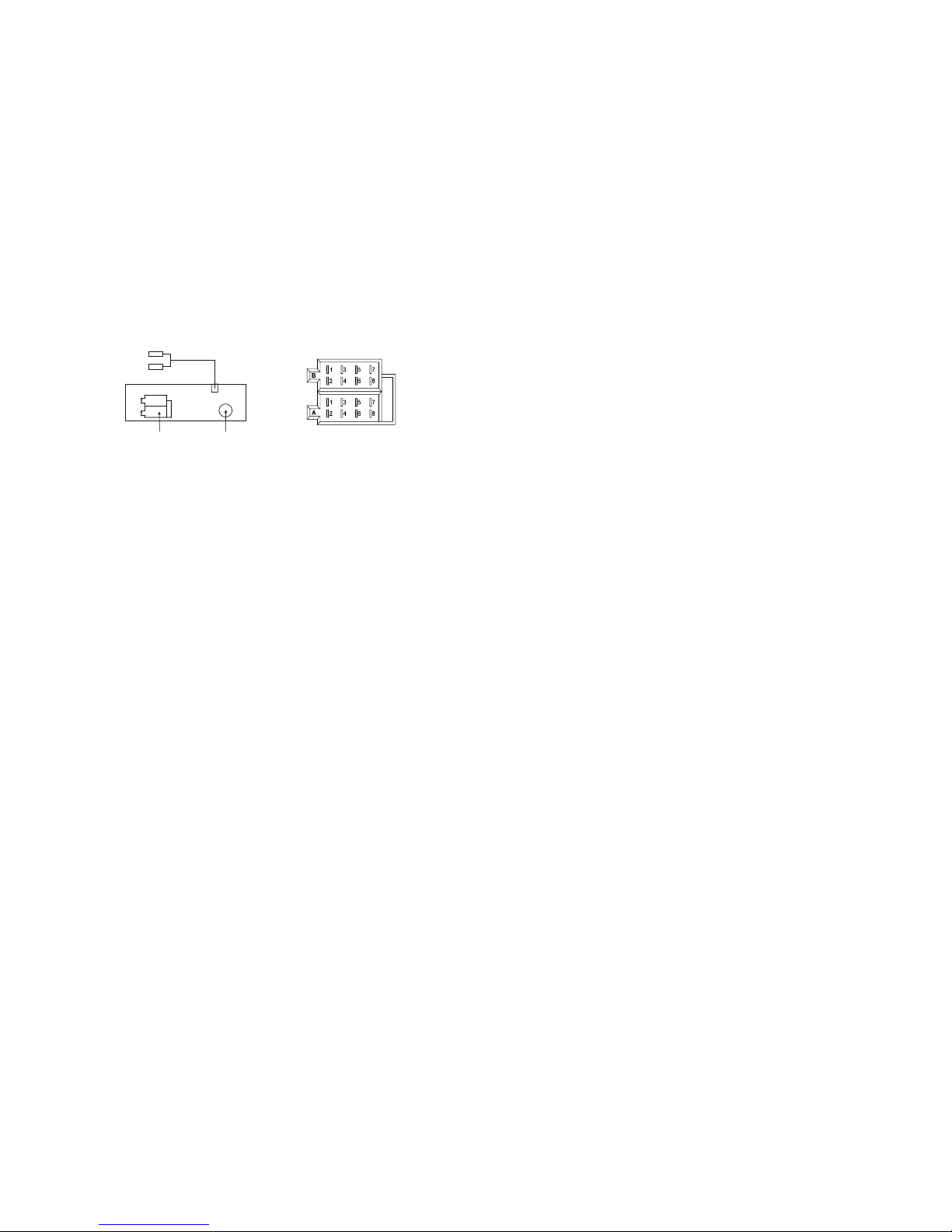

WIRES CONNECTION
ISO SOCKET SKETCH
FUSE7.5 A
ISO SOCKET ANTENNA JACK
RCA LINE OUT
RED R
WHITE L

Page 8
Page 7
An insulation tag was installed in your remote by the manufacturer to prevent the
battery from draining. Removing the tag from the remote before using.
BATTERY INFORMATION:
Lithium Battery: CR2025 3V
Battery Life: Approximately 6 months.
Replacing the Battery from the Remote Controller:
1) Remove the battery holder by pressing the locking tab with your thumb
and pulling it out.
2) Replace the battery with the same type and the “side facing up.
3) Gently push in the holder until securely locked into place.
WARNING:
+”
Do not recharge, disassemble or dispose of in fire.
Battery leakage may cause damage to the unit.
To avoid the risk of accident, keep batteries out of reach of children.
MAINTENANCE OF REMOTE CONTROL
1. Power On/Off.
2. Mute Button
3.
4.
5. SEL/MENU
Loudness Button
Audio Level & Menu UP(+) Button
Button
6. Audio Level & Menu Down(-) Button
7. MO/ST Button
8. A.P Button
9.Band Button
10. Mode Button
11.Tune/Seek Up And Track Skip Up/FF Button
12.Tune/Seek Down And Track SkipDown/REW Button
13.SCAN Button
14. Clock Display /Setting Button
15. LOC/DX Button
16. CD Track TOP/>||/Radio Preset 1
17. CD Track INT/Radio Preset 2
18. CD Track RPT/Radio Preset 3
19. CD Track RDM/Radio Preset 4
20. Radio Preset 5
21. Radio Preset 6
OPERATION OF REMOTE CONTROL
4
6
8
3
16
20
7
11
2
10
17
5
19 21
18
1
14
13
15
9
12
