Class 1 laser product
This car multi-media player is a class 1 laser product. However
This car multi-media player uses a visible/invisible laser beam
which could cause hazardous radiation exposure if directed.
Be sure to operate the car multi-media player correctly as
instructed. Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure. Do not open covers and do not
repair yourself. Refer servicing to qualified personnel.
Precaution
All manuals and user guides at all-guides.com

Page 2

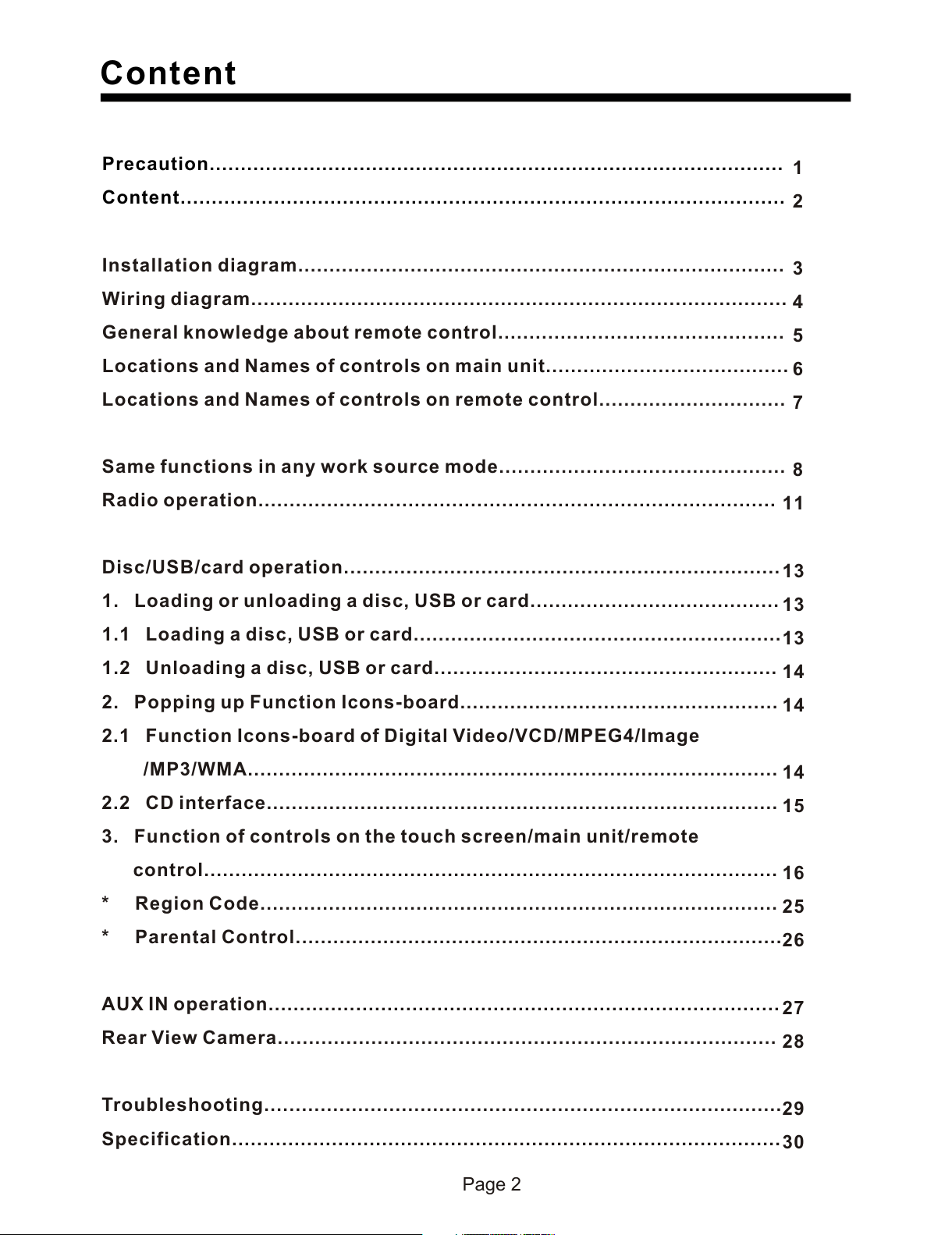

Precaution............................................................................................
Content.................................................................................................
Installation diagram..............................................................................
Wiring diagram......................................................................................
General knowledge about remote control..............................................
Locations and Names of controls on main unit.......................................
Locations and Names of controls on remote control..............................
Same functions in any work source mode..............................................
Radio operation...................................................................................
Disc/USB/card operation......................................................................
1. Loading or unloading a disc, USB or card........................................
1.1 Loading a disc, USB or card...........................................................
1.2 Unloading a disc, USB or card.......................................................
2. Popping up Function Icons-board...................................................
2.1 Function Icons-board of Digital Video/VCD/MPEG4/Image
/MP3/WMA.....................................................................................
2.2 CD interface..................................................................................
3. Function of controls on the touch screen/main unit/remote
control............................................................................................
* Region Code...................................................................................
* Parental Control..............................................................................
AUX IN operation..................................................................................
Rear View Camera................................................................................
Troubleshooting...................................................................................
Specification........................................................................................
1
2
3
4
5
6
7
8
11
13
13
13
14
14
14
15
16
25
26
27
28
29
30
Content
All manuals and user guides at all-guides.com

Page 3
Installation diagram
MOUNTING BRACKET
MOUNTING BRACKET
MOUNTING BOLTS
Installation diagram
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
DASH BOARD
METAL MOUNTING
STRAP
CONSOLE
HEX BOLT
PLASTIC FRAME
All manuals and user guides at all-guides.com

Page 4

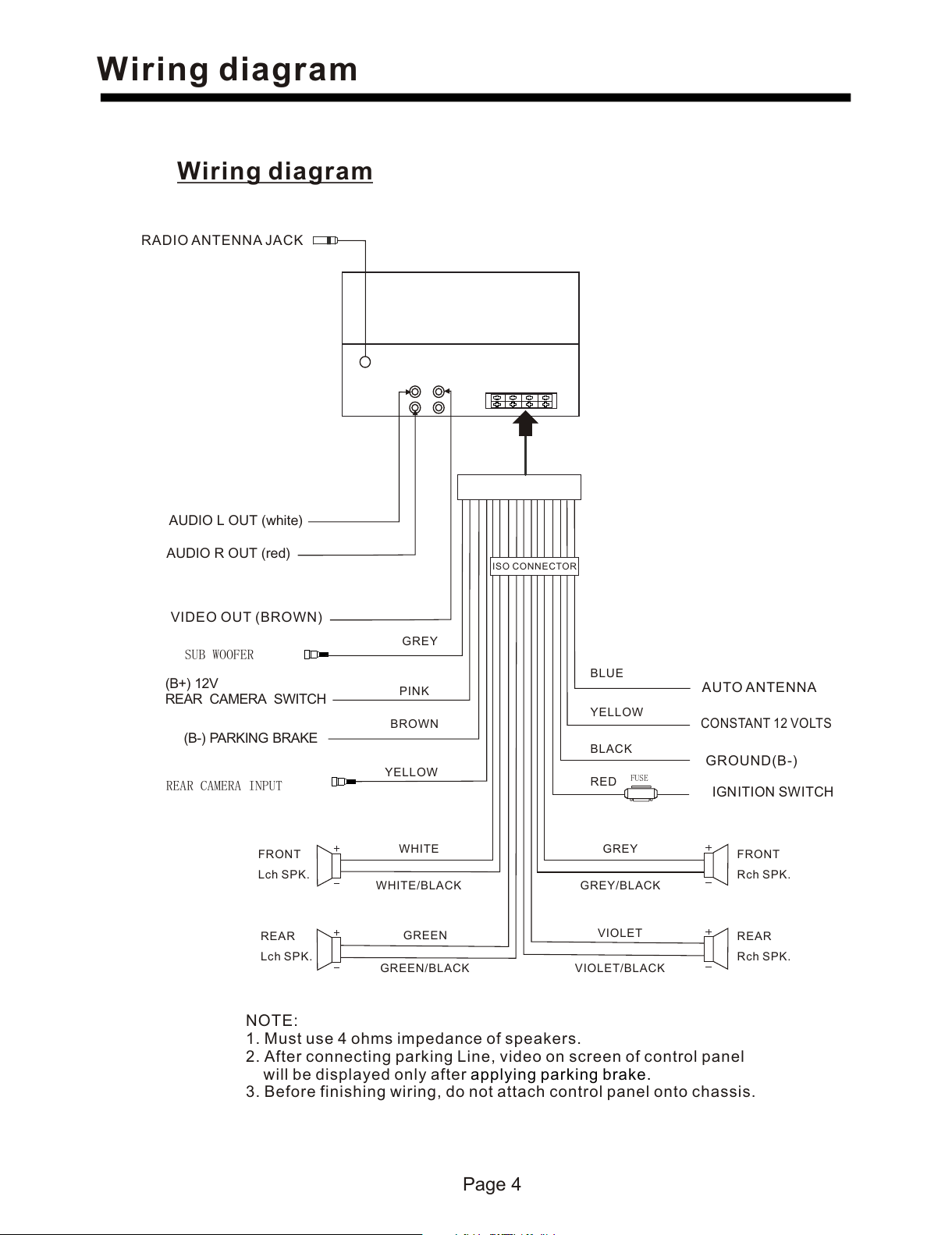

Wiring diagram
NOTE:
1. Must use 4 ohms impedance of speakers.
2. After connecting parking Line, video on screen of control panel
will be displayed only after
3. Before finishing wiring, do not attach control panel onto chassis.
applying parking brake.
IGNITION SWITCH
RED
WHITE
WHITE/BLACK
GREY
GREY/BLACK
GREEN
GREEN/BLACK
VIOLET
VIOLET/BLACK
YELLOW
CONSTANT 12 VOLTS
BLACK
GROUND(B-)
BLUE
AUTO ANTENNA
FRONT
Lch SPK.
REAR
Lch SPK.
FRONT
Rch SPK.
REAR
Rch SPK.
(B-) PARKING BRAKE
PINK
RADIO ANTENNA JACK
(B+) 12V
REAR CAMERA SWITCH
REAR CAMERA INPUT
YELLOW
GREY
SUB WOOFER
AUDIO R OUT (red)
AUDIO L OUT (white)
FUSE
Wiring diagram
VIDEO OUT (BROWN)
BROWN
ISO CONNECTOR
All manuals and user guides at all-guides.com

1. Removing insulating sheet
If
)
)
)
.
)
)
)
.
)
)
using remote control for the first time, you
can see an insulating sheet at the bottom
side of remote control as right.
you must remove the insulating sheet as right.
Otherwise, the remote control is disabled.
2. Replace lithium cell
If the electric energy of lithium cell is weak,
replace it.
1 Press and hold the movable block as direction
indicated by arrow 1 as right, at one time pull
cell holder out of remote control as direction
indicated by arrow 2 as right.
2 Replace the old cell by a new one with (+)
polarity side upward as right.
3 Insert the cell holder into remote control again
as right.
3 Note about using remote control
1 You should face the emitting window of remote control towards the sensor
window of the unit.
2 Operation angle for front panel: About 30 degree
3 The distance between the emitting window of remote control and the sensor
window of the unit : < 5M .
4 Warning for lithium cells of remote control
leakage may cause damage to remote control.1 Cell
2 Do not throw cells into fire, it may cause explosion.
.
3.To avoid risk of accident, keep cells out of reach of children.
GENERAL KNOWLEDGE ABOUT REMOTE CONTROL
Page 5
General knowledge about remote control
All manuals and user guides at all-guides.com
all-guides.com

Page 6

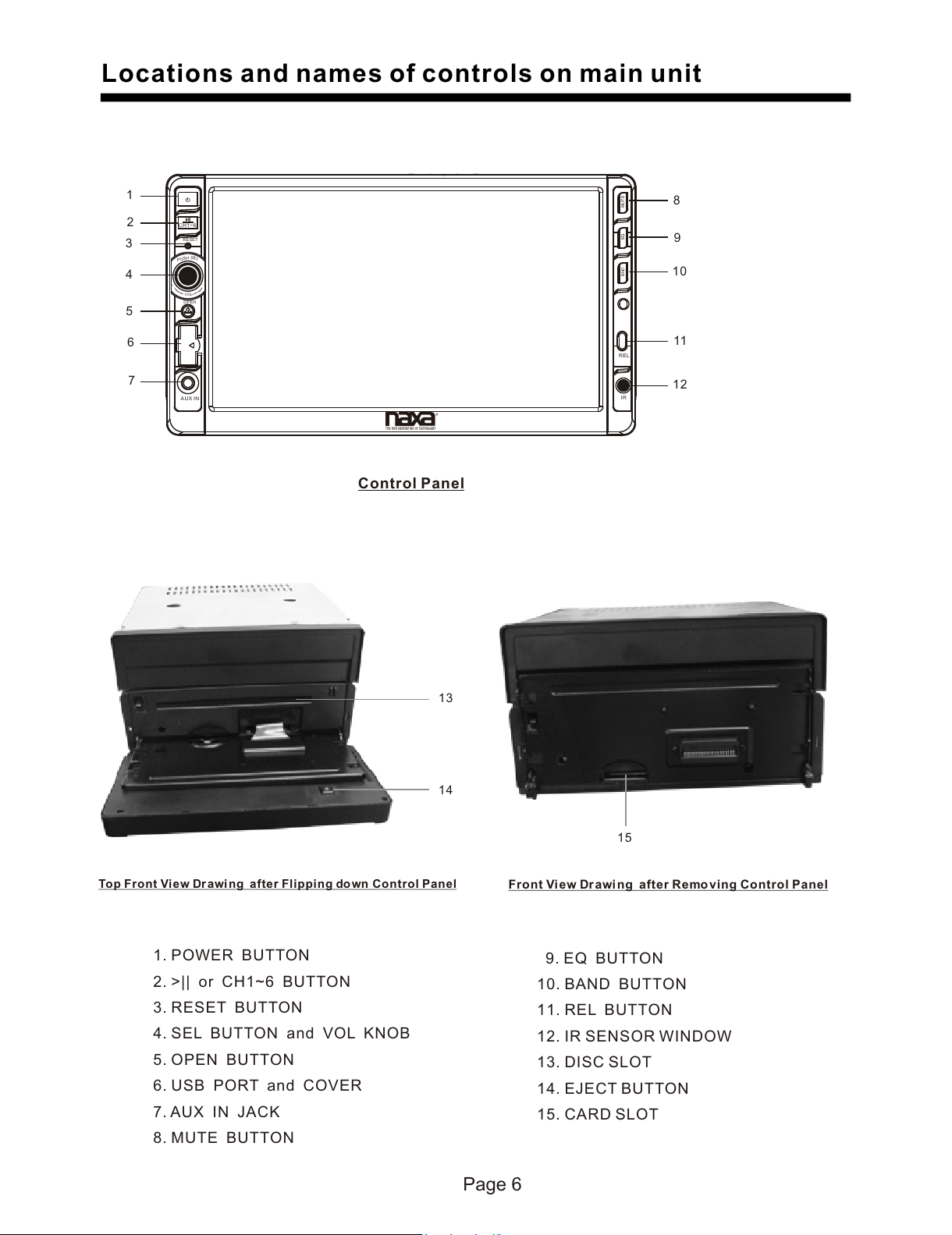

Locations and names of controls on main unit
Top Front View Dr awi ng after Flipping down Control Panel
1. POWER BUTTON
2.
4.
MUTE BUTTON
>|| or CH1~6 BUTTON
3. RESET BUTTON
SEL BUTTON and VOL KNOB
5. OPEN BUTTON
6. USB PORT and COVER
7. AUX IN JACK
8.
9. EQ BUTTON
10. BAND BUTTON
11. REL BUTTON
12. IR SENSOR WINDOW
13. DISC SLOT
14. EJECT BUTTON
15. CARD SLOT
Front View Dr awi ng after Remo ving Control Panel
14
13
15
Control Panel
1
7
2
3
4
6
9
8
10
11
12
5
CH1~6
MUTE
EQBND
REL
IR
RESE T
PUSH
SEL
+
VOL
_
OPEN
AUX IN
All manuals and user guides at all-guides.com

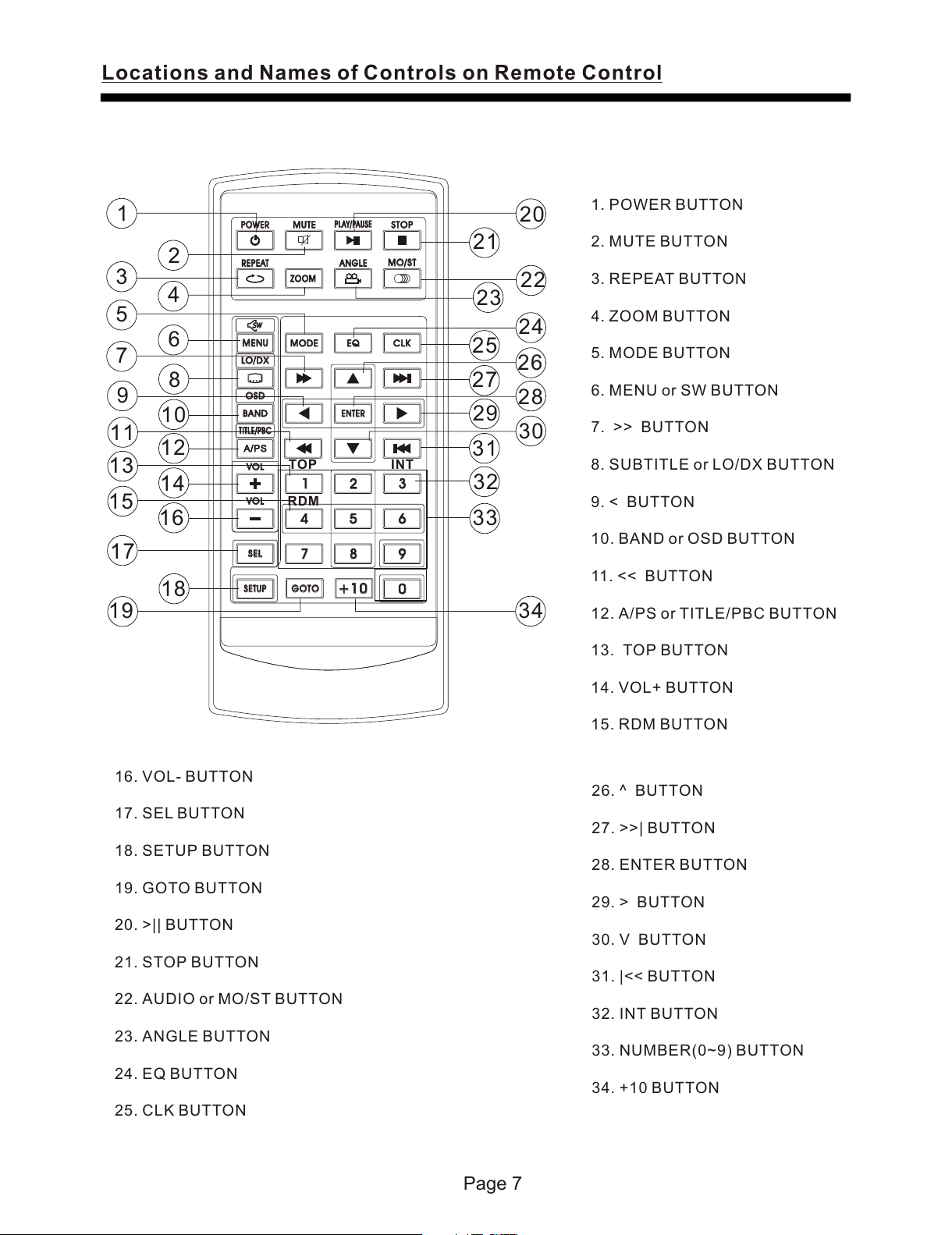

Locations and Names of Controls on Remote Control
Page 7
1
2
6
10
11
3
20
21
33
9
12
17
34
23
4
5
7
8
1314
1516
18
19
22
24
2526
2728
2930
31
32
16. VOL- BUTTON
17. SEL BUTTON
18. SETUP BUTTON
19. GOTO BUTTON
20. >|| BUTTON
21. STOP BUTTON
22. AUDIO or MO/ST BUTTON
23. ANGLE BUTTON
24. EQ BUTTON
25. CLK BUTTON
29. > BUTTON
30. V BUTTON
31. |<< BUTTON
32. INT BUTTON
33. NUMBER(0~9) BUTTON
34. +10 BUTTON
26. ^ BUTTON
27. >>| BUTTON
28. ENTER BUTTON
1. POWER BUTTON
2. MUTE BUTTON
3. REPEAT BUTTON
4. ZOOM BUTTON
5. MODE BUTTON
6. MENU or SW BUTTON
7. >> BUTTON
8. SUBTITLE or LO/DX BUTTON
9. < BUTTON
BAND or OSD
<< BUTTON
12. A/PS or TITLE/PBC BUTTON
13. TOP BUTTON
14. VOL+ BUTTON
15. RDM BUTTON
10. BUTTON
11.
MENUMENU
SETUP SETUP
ENTERENTER
112233
445566
778899
00
VOLVOL
SELSEL
A/PSA/PS
MUTEMUTE STOPSTOP
MO/STMO/ST
REPEATREPEAT
POWERPOWER
CLKCLK
PLAY/PAUSEPLAY/PAUSE
EQEQ
ANGLEANGLE
MODE MODE
BANDBAND
VOLVOL
OSDOSD
TITLE/PBCTITLE/PBC
LO/DXLO/DX
GOTOGOTO +10+10
TOP INT
RDM
ZOOMZOOM
All manuals and user guides at all-guides.com

Page 8
Same functions in any work source mode
Same functions in any work source mode
1. POWER button and icon
In power off mode, pressing POWER button on remote control or pressing POWER button on
control panel powers on main unit.
In power on mode, pressing POWER button on remote control or pressing POWER button on
control panel or touching icon on source menu(see Source menu fig.on next page)
powers off main unit.
2. VOL knob & VOL+/VOL- buttons
To adjust volume level, rotate VOL knob on control panel or press or hold VOL+ or VOL- button
on remote control.
3. SEL button
To switch between BASS,TREBLE,BALANCE, FADE,COLOR,BRIGHTNESS,CONTRAST, TINT
and VOLUME, briefly and repeatedly press SEL button.
After switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.
To switch between LOUD, SWF, EQ, DX/LOCAL(in radio mode), STEREO/MONO(in radio mode),
TIME 12H/24H, CLOCK, BUZZ,EUR/USA FREQ,ANIMATION and BG , long press SEL button to switch
on LOUD, then briefly and repeatedly press SEL button.
After switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.
4. MUTE button
To switch MUTE mode on or off, press MUTE button on remote control or on control panel.
5. EQ button
To select a desired preset EQ mode from JAZZ, CLASSIC, POP , ROCK and USER, press EQ
button on remote control or on control panel continuously.
6. To switch LOUD mode
To switch on or off LOUD mode, long press EQ button on remote control or on control panel .
7. SW button
To switch on or off SUBWOOFER mode, long press SW button on remote control.
8. CLK button
Press CLK button on remote control to display clock time .
9. MODE button and source menu
To switch work source between RADIO, DISC(after inserting a disc), USB(after inserting a USB
storage), CARD(after inserting a card) and AUX IN , press MODE button on remote control
continuously.
During disc(non-CD)/USB/card playback, touch screen to pop up Function Icons-board and then
touch the icon in the Function Icons-board to enter the source menu(refer to Disc/USB/Card
Operation) .
During AUX IN playback, touch screen to pop up AUX interface and then touch icon to enter
the source menu(refer to AUX Operation).
In radio or CD mode, touch icon to enter the source menu(refer to Radio Operation and Disc
/USB/Card Operation).
All manuals and user guides at all-guides.com

Page 9
Same functions in any work source mode
The source menu displays as follows:
In source menu, touch one icon of DISC, RADIO, AUX, USB and SD Card
to enter one work source of DISC, RADIO, AUX IN, USB and SD Card.
10. icon
1) SETTING SYSTEM
In source menu, touch icon to display SYSTEM page of SETUP menu as follows:
In the SYSTEM page of SETUP menu, repeatedly touch the or icon to highlight one setting
item of BRIGHTNESS, CONTRAST, COLOR, TINT, ANIMATION and WALLPAPER. After highlighting a
desired setting item, touch the or icon to set it.
2) SETTING SOUND
In SETUP menu, touch SOUND icon to display SOUND page of SETUP menu as follows:
Source Menu
System page of SETTING menu
Sound page of SETTING menu
CONTRAST
COLOR
15
BRIGHTNESS
BASS
BALANCE
+03
TREBLE
All manuals and user guides at all-guides.com

Page 10
Same functions in any work source mode
In the SOUND page of SETUP menu, repeatedly touch the or icon to highlight one setting
item of TREBLE, BASS, BALANCE, FADE, SUBWOOFER, LOUDNESS, RADIO LOC/DX(entering
Source Menu in radio mode), RADIO STEREO(entering Source Menu in radio mode) and BUZZER
ON/OFF. After highlighting a desired setting item, touch the or icon to set it.
3) SETTING TIME
In SETUP menu, touch TIME icon to display TIME page of SETUP menu as follows:
In the TIME page of SETUP menu, repeatedly touch the or icon to highlight one setting
item of HOUR, MINUTE and 24H/12H. After highlighting a desired setting item, touch the or
icon to set it.
After finishing setting, touch icon to return back to normal playback.
11.OPEN button
press OPEN button on control panel to flip down the control panel.
12.REL button
Press REL button on control panel to detach the control panel, then hold the right part of the
control panel to lift up a little and pull it rightwards to remove it.
13.RESET button
When LCD displays wrongly or some buttons are not available or sound is distorted, use the
sharp end of a pointed object to press RESET button to reset the program to zero.
Time page of SETTING menu
MINUTE
24H/12H
08:13
HOUR
All manuals and user guides at all-guides.com
all-guides.com

Page 11
Radio operation
Radio Operation
1. To enter RADIO mode(MODE button or RADIO icon)
When you use MODE button or source menu (tapping RADIO icon) to enter RADIO
mode, it will display radio interface as follows:
* Some icons on radio interface correspond with the buttons on remote control or control
panel as follows:
SWF icon = SW button(remote control)(long pressing)
LOUD icon = EQ button(remote control)(long pressing)
icon = MUTE button
and icons = VOL- and VOL+ buttons = VOL knob
EQ icon = EQ button
: To enter source menu.
2. To switch between bands (BAND)
The BAND icon or button can switch between bands of FM1, FM2, FM3, AM1(MW1) and AM2
(MW2), and the word FM1,FM2,FM3,AM1(MW1) or AM2(MW2) will be displayed on screen.
3. To search for a station ( < and > icons or v and ^ buttons)
1) Long touching < or > icon or long pressing v or ^ button on remote control can automatically
search down or up for an available station beginning from the current frequency.
2) Briefly touching < or > icon or briefly pressing v or ^ button on remote control can manually
search down or up for a your desired station beginning from the current frequency.
4. To preset and scan all memory stations (APS icon or A/PS button)
1) When long touching APS icon or long pressing A/PS button on remote control , the radio
searches from the lowest frequency and checks the signal strength level until 1 cycle
search is finished, and the 6 strongest stations are preset to corresponding preset
number memory bank for the current band.
The presetting function can be implemented in selected FM or AM(MW) band. (It can presets
3x6 stations for FM and 2x6 stations for AM(MW) in all)
2) When briefly touching APS icon or briefly pressing A/PS button, the radio scans
for each preset station in FM or AM(MW) band from NO.1 bank, each preset station broad-
casts for 5 seconds. After finishing a circle of scanning, it will resume broadcasting the
station in NO.1 bank.
NOTE: In FM band, FM1,FM2 and FM3 are preset and scaned as one band at a time;
In AM(MW) band, AM1(MW1) and AM2(MW2) are preset and scaned as one band at a time.
DXDX STST USERUSER SWF SWF
FM1FM1
107.00107.00
MHZMHZ
55
CHCH
11
2233
44
55
66
87.5087.50
90.0090.00 98.0098.00
86.6086.60
107.00107.00
106.00106.00
All manuals and user guides at all-guides.com

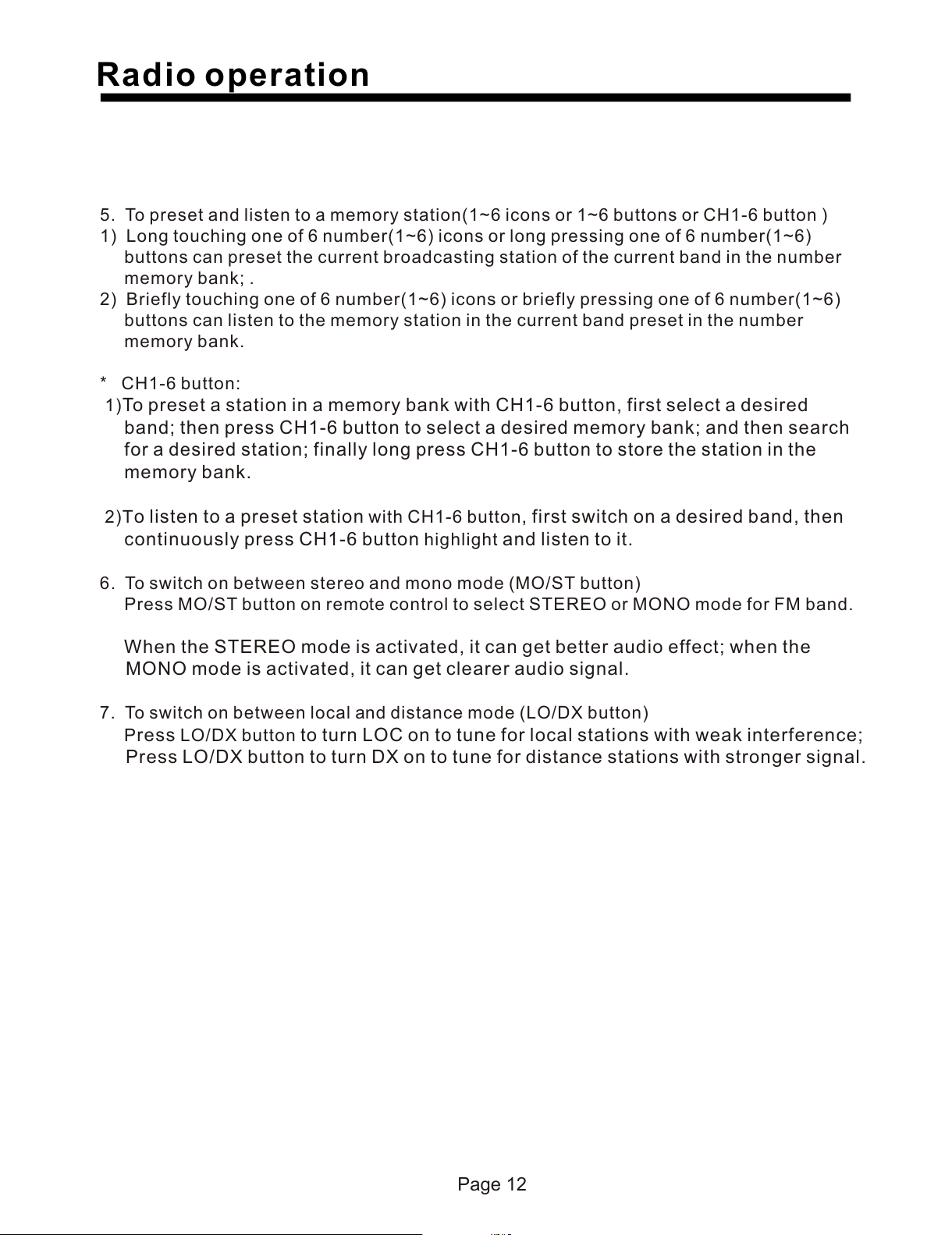

Page 12
Radio operation
5. To preset and listen to a memory station(1~6 icons or 1~6 buttons or CH1-6 button )
1) Long touching one of 6 number(1~6) icons or long pressing one of 6 number(1~6)
buttons can preset the current broadcasting station of the current band in the number
memory bank; .
2) Briefly touching one of 6 number(1~6) icons or briefly pressing one of 6 number(1~6)
buttons can listen to the memory station in the current band preset in the number
memory bank.
* CH1-6 button:
1)To preset a station in a memory bank with CH1-6 button, first select a desired
band; then press CH1-6 button to select a desired memory bank; and then search
for a desired station; finally long press CH1-6 button to store the station in the
memory bank.
2)To listen to a preset station with CH1-6 button, first switch on a desired band, then
continuously press CH1-6 button highlight and listen to it.
6. To switch on between stereo and mono mode (MO/ST button)
Press MO/ST button on remote control to select STEREO or MONO mode for FM band.
When the STEREO mode is activated, it can get better audio effect; when the
MONO mode is activated, it can get clearer audio signal.
7. To switch on between local and distance mode (LO/DX button)
Press LO/DX button to turn LOC on to tune for local stations with weak interference;
Press LO/DX button to turn DX on to tune for distance stations with stronger signal.
All manuals and user guides at all-guides.com

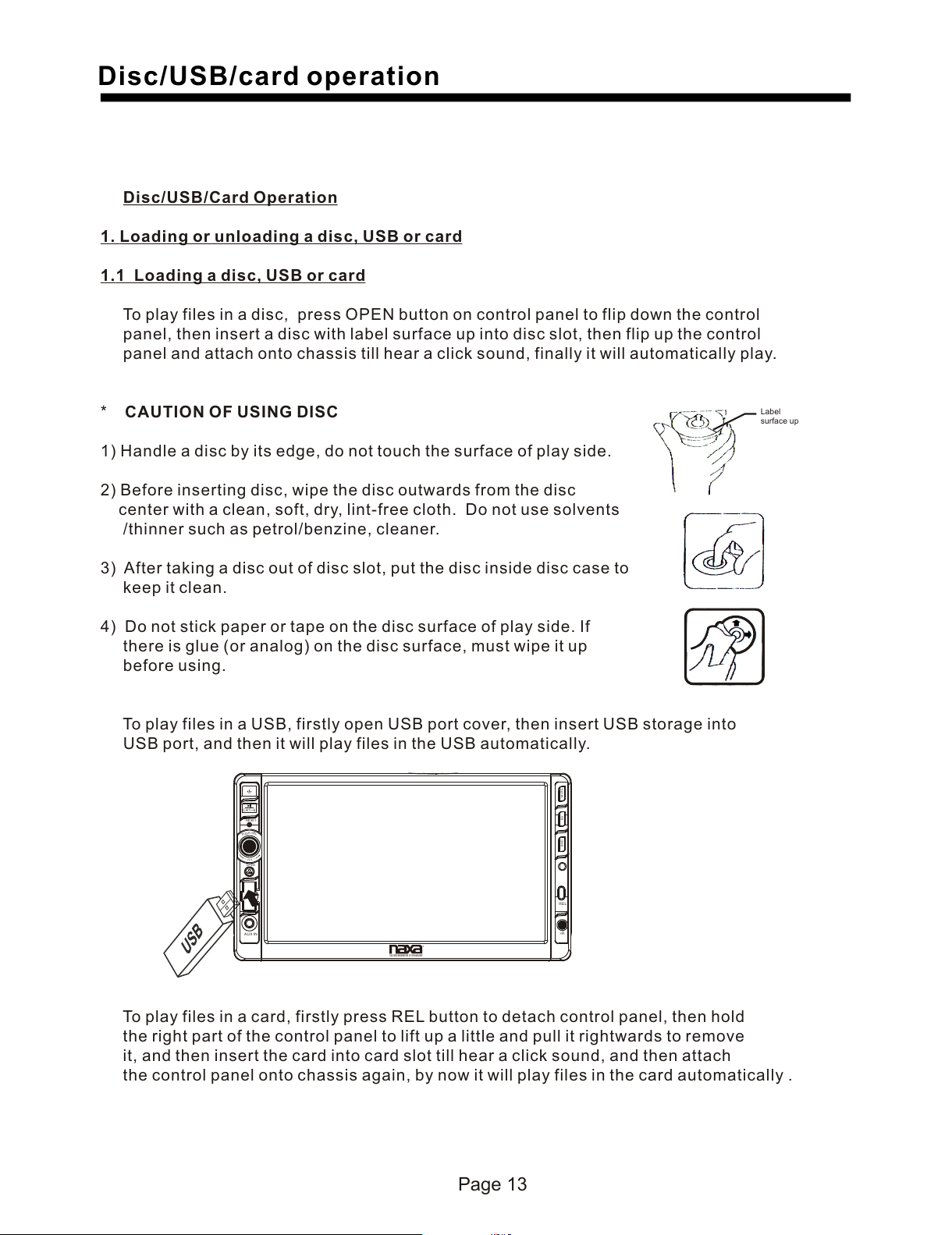

Page 13
Disc/USB/card operation
Disc/USB/Card Operation
1. Loading or unloading a disc, USB or card
1.1 Loading a disc, USB or card
To play files in a disc, press OPEN button on control panel to flip down the control
panel, then insert a disc with label surface up into disc slot, then flip up the control
panel and attach onto chassis till hear a click sound, finally it will automatically play.
* CAUTION OF USING DISC
1) Handle a disc by its edge, do not touch the surface of play side.
2) Before inserting disc, wipe the disc outwards from the disc
center with a clean, soft, dry, lint-free cloth. Do not use solvents
/thinner such as petrol/benzine, cleaner.
3) After taking a disc out of disc slot, put the disc inside disc case to
keep it clean.
4) Do not stick paper or tape on the disc surface of play side. If
there is glue (or analog) on the disc surface, must wipe it up
before using.
To play files in a USB, firstly open USB port cover, then insert USB storage into
USB port, and then it will play files in the USB automatically.
To play files in a card, firstly press REL button to detach control panel, then hold
the right part of the control panel to lift up a little and pull it rightwards to remove
it, and then insert the card into card slot till hear a click sound, and then attach
the control panel onto chassis again, by now it will play files in the card automatically .
Label
surface up
CH1~6
MUTE
EQBND
REL
IR
RESE T
PUSH
SEL
+
VOL
_
OPEN
AUX IN
All manuals and user guides at all-guides.com

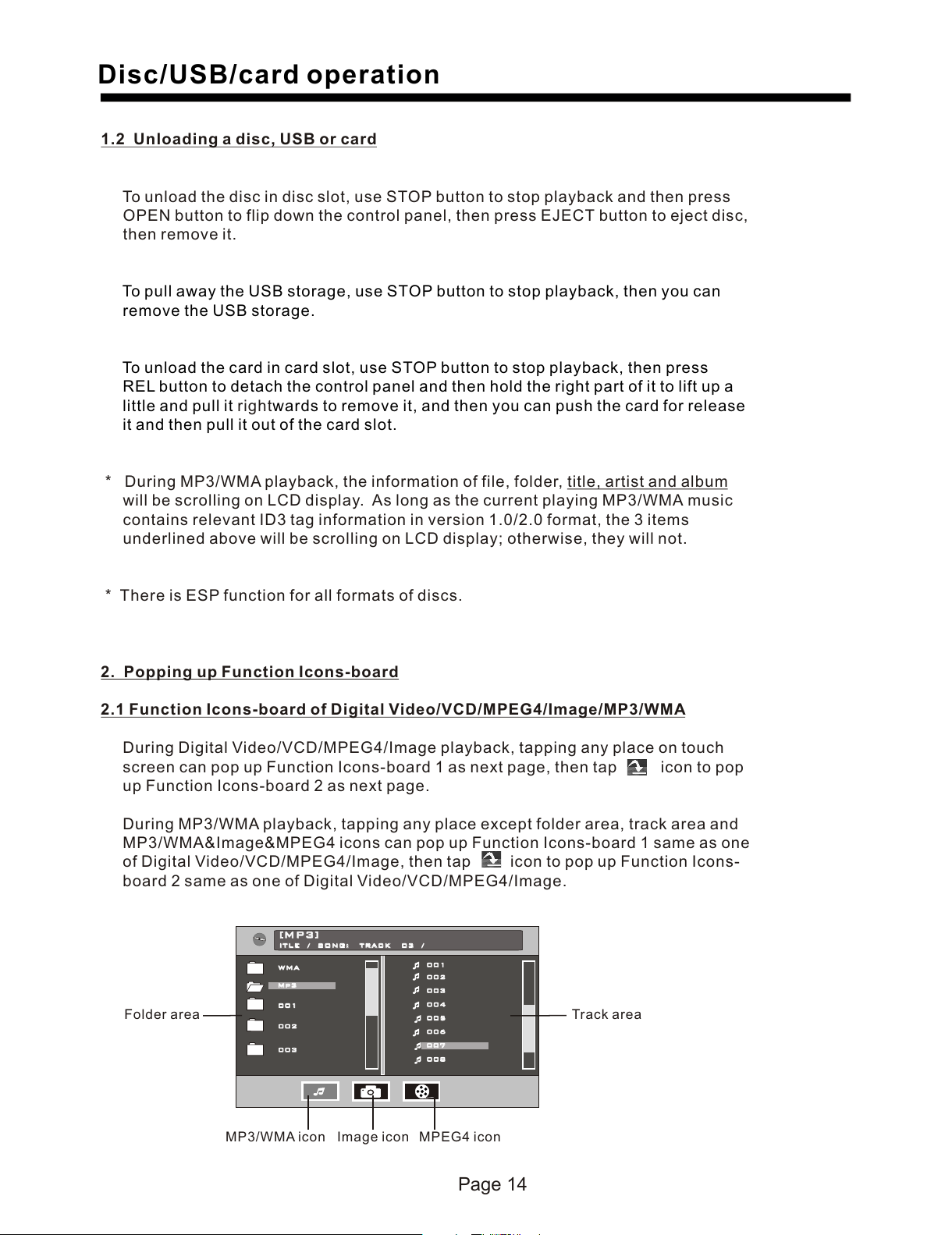

Page 14
Disc/USB/card operation
1.2 Unloading a disc, USB or card
To unload the disc in disc slot, use STOP button to stop playback and then press
OPEN button to flip down the control panel, then press EJECT button to eject disc,
then remove it.
right
* During MP3/WMA playback, the information of file, folder, title, artist and album
will be scrolling on LCD display. As long as the current playing MP3/WMA music
contains relevant ID3 tag information in version 1.0/2.0 format, the 3 items
underlined above will be scrolling on LCD display; otherwise, they will not.
* There is ESP function for all formats of discs.
2. Popping up Function Icons-board
2.1 Function Icons-board of Digital Video/VCD/MPEG4/Image/MP3/WMA
During Digital Video/VCD/MPEG4/Image playback, tapping any place on touch
screen can pop up Function Icons-board 1 as next page, then tap icon to pop
up Function Icons-board 2 as next page.
During MP3/WMA playback, tapping any place except folder area, track area and
MP3/WMA&Image&MPEG4 icons can pop up Function Icons-board 1 same as one
of Digital Video/VCD/MPEG4/Image, then tap icon to pop up Function Icons-
board 2 same as one of Digital Video/VCD/MPEG4/Image.
To pull away the USB storage, use STOP button to stop playback, then you can
remove the USB storage.
To unload the card in card slot, use STOP button to stop playback, then press
REL button to detach the control panel and then hold the right part of it to lift up a
little and pull it wards to remove it, and then you can push the card for release
it and then pull it out of the card slot.
WMAWMA
Mp 3Mp 3
[MP3][MP3]
IT LE / S O N G : T RA C K 03 / IT LE / S O N G : T RA C K 03 /
001001
002002
003003
004004
005005
006006
007007
008008
007007
001001
002002
003003
Folder area Track area
MP3/WMA icon Image icon MPEG4 icon
All manuals and user guides at all-guides.com

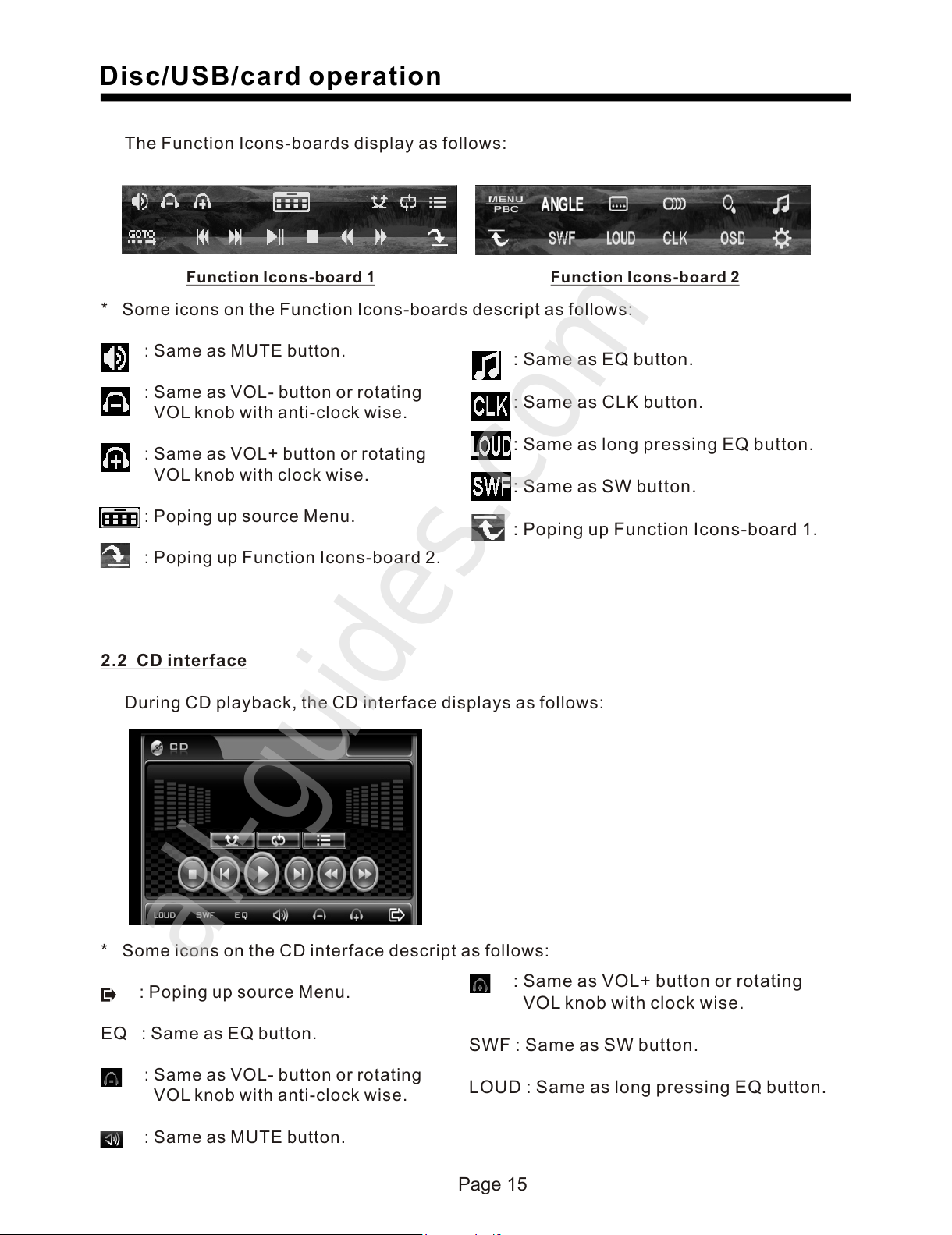

Page 15
Function Icons-board 1 Function Icons-board 2
The Function Icons-boards display as follows:
* Some icons on the Function Icons-boards descript as follows:
: Same as MUTE button.
: Same as VOL- button or rotating
VOL knob with anti-clock wise.
: Same as VOL+ button or rotating
VOL knob with clock wise.
: Poping up source Menu.
: Poping up Function Icons-board 2.
2.2 CD interface
During CD playback, the CD interface displays as follows:
* Some icons on the CD interface descript as follows:
: Poping up source Menu.
EQ : Same as EQ button.
: Same as VOL- button or rotating
VOL knob with anti-clock wise.
: Same as MUTE button.
: Same as EQ button.
: Same as CLK button.
: Same as long pressing EQ button.
: Same as SW button.
: Poping up Function Icons-board 1.
: Same as VOL+ button or rotating
VOL knob with clock wise.
SWF : Same as SW button.
LOUD : Same as long pressing EQ button.
Disc/USB/card operation
All manuals and user guides at all-guides.com
all-guides.com

Page 16
Disc/USB/card operation
3. Function of controls on the touch screen/main unit/remote control
1. icon or button
During playback, use it to pause playback; in pause mode, use it to resume play-
back.
In CD interface, the icon displays as .
2. icon or button
During Digital Video/VCD/CD/MP3/WMA playback, tapping or pressing it pre-stop
or pause playback; in pre-stop or pause mode, use icon or button to resume
playback.
During playback, tapping or pressing it twice to fully stop playback; in fully stop
mode, use icon or button to start playback from the beginning of the media.
During MPEG4/image playback, use icon or button to display root menu as
follows:
During MP3/WMA playback, the root menu above displays all the time.
/chapter
* Tapping folder icon, track icon or kind icon can execute the operation above.
3. / icons or buttons
During playback, continuously tapping or icon or continuously pressing
or button can fast backwards or forwards at the following multiple of normal
When displaying root menu, use < or > button to highlight the current chapter/
track, the current folder or the kind icons.
* If there are no track for a kind icon, you can’t highlight the kind icon.
When highlighting a kind icon, press ENTER button to enter it.
When highlighting the current folder, use v or ^ button to highlight other folders
and then press ENTER button to enter it.
When highlighting the current track, use v or ^button to highlight other tracks and
then press ENTER button to play it.
* For image, after highlighting a track, press ENTER button to display only the high-
lighted track; press >|| button to display all tracks step by step from the highlighted
track.
WMAWMA
Mp3Mp3
[MP 3 ][MP 3 ]
IT LE / S O N G : TRAC K 03 / IT LE / S O N G : TRAC K 03 /
001001
002002
003003
004004
005005
006006
007007
008008
007007
001001
002002
003003
Folder area Track area
MP3/WMA icon Image icon MPEG4 icon
All manuals and user guides at all-guides.com

Page 17
Disc/USB/card operation
MENUMENU
PBCPBC
MENUMENU
PBCPBC
MENUMENU
PBCPBC
MENUMENU
PBCPBC
MENUME NU
PBCPBC
speed: x2, x4, x8, x20, x1.
During fast playback, use icon or button to resume normal playback.
For image files, no this function.
4. / icons or buttons
During playback, use one of them to play previous or next chapter/track.
In CD interface, the icons displays as / .
5. Number buttons
During Digital Video/VCD(PBC OFF)/MPEG4/Image/CD/MP3/WMA playback,
use number buttons to input chapter/track SN. , then it will play or display it.
digit in s place digit
in
6. icon and MENU button
During Digital Video playback, use MENU icon or button to display the current
chapter list, then use direction buttons to select your desired chapter and then
press ENTER button to play it.
For VCD, MENU button is disabled, track list is displayed on the monitor screen
by pressing TITLE/PBC button or tapping icon.
7. icon and TITLE/PBC button
During Digital Video playback, use TITLE/PBC button to display title list; then use
direction buttons to select your desired title and then press ENTER button to open
the chapter list of the title; then use direction buttons to select your desired chapter
and then press ENTER button to play.
* You can also tap a desired title and then chapter to play.
During VCD playback, use icon or TITLE/PBC button to switch PBC mode on
or off. When PBC mode is switched on, it will play from the beginning of media till
it displays a track list. When a track list is displayed, use the number buttons to
select your desired track to play.
For CD, the TITLE/PBC button is disabled.
To input a chapter/track with an SN that is equal to or bigger than 10, use the +10
button to input the ten and then use 0-9 button to input the
units order.
I.e. +10 ~ 1 = 11 (number 11 chapter/track will be displayed/played.)
During VCD playback, when it is in PBC ON mode, the number buttons are disabled.
For MPEG4/image, MENU button and icon are disabled, root menu is displayed
on the monitor screen by pressing button or tapping icon.
For MP3/WMA, MENU button and icon are disabled, root menu displays on
the monitor screen all the time. Root menu of MP3/WMA is same as the one of
MPEG4/image.
For CD, MENU button is disabled.
For MP3/WMA/MPEG4/image, icon and TITLE/PBC button are disabled.
MENUMENU
PBCPBC
MENUMENU
PBCPBC
All manuals and user guides at all-guides.com

Page 18
Disc/USB/card operation

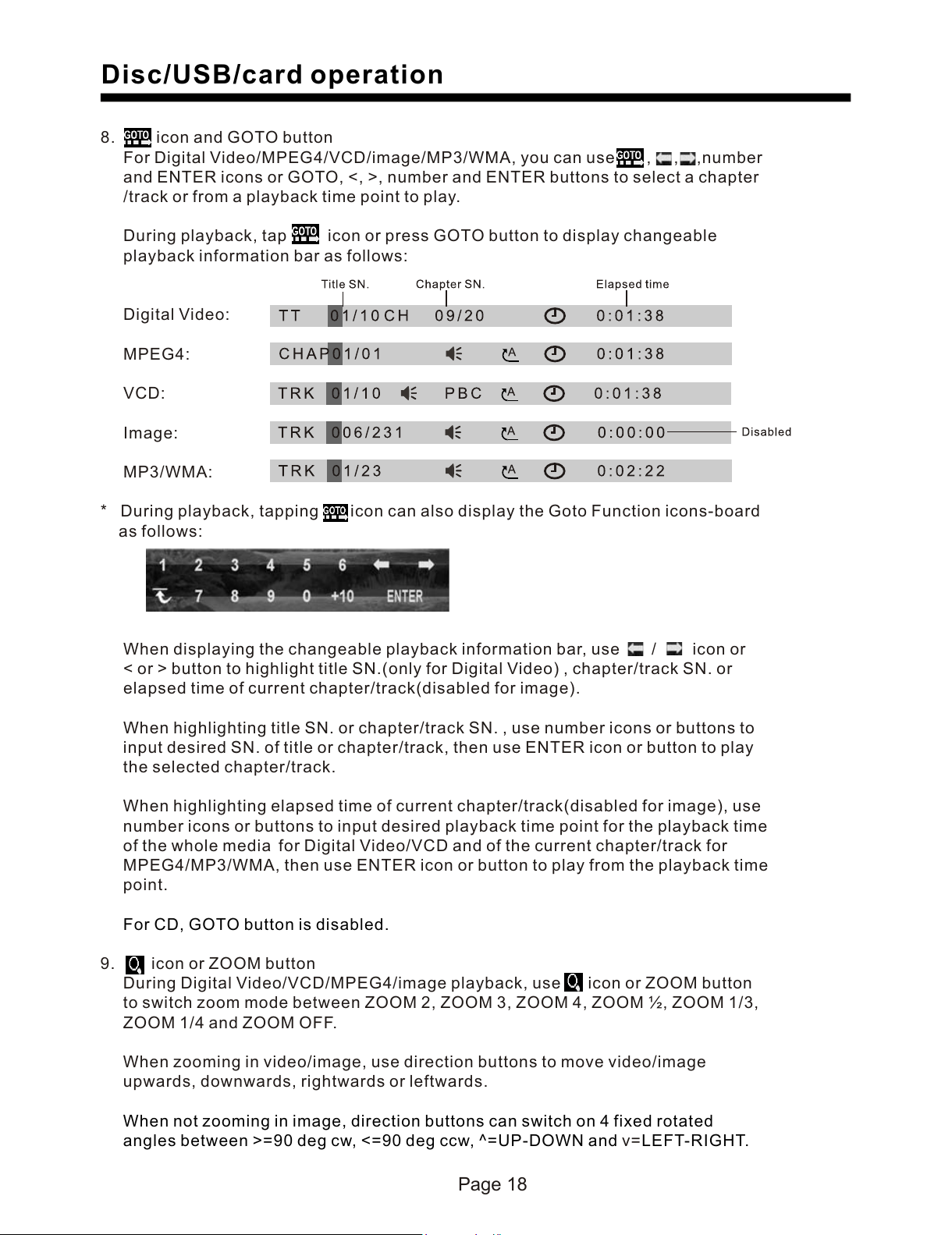

8. icon and GOTO button
For Digital Video/MPEG4/VCD/image/MP3/WMA, you can use , , ,number
and ENTER icons or GOTO, <, >, number and ENTER buttons to select a chapter
/track or from a playback time point to play.
During playback, tap icon or press GOTO button to display changeable
playback information bar as follows:
Digital Video:
MPEG4:
VCD:
Image:
MP3/WMA:
* During playback, tapping icon can also display the Goto Function icons-board
as follows:
When displaying the changeable playback information bar, use / icon or
< or > button to highlight title SN.(only for Digital Video) , chapter/track SN. or
elapsed time of current chapter/track(disabled for image).
When highlighting title SN. or chapter/track SN. , use number icons or buttons to
input desired SN. of title or chapter/track, then use ENTER icon or button to play
the selected chapter/track.
When highlighting elapsed time of current chapter/track(disabled for image), use
number icons or buttons to input desired playback time point for the playback time
of the whole media for Digital Video/VCD and of the current chapter/track for
MPEG4/MP3/WMA, then use ENTER icon or button to play from the playback time
point.
9. icon or ZOOM button
During Digital Video/VCD/MPEG4/image playback, use icon or ZOOM button
to switch zoom mode between ZOOM 2, ZOOM 3, ZOOM 4, ZOOM ½, ZOOM 1/3,
ZOOM 1/4 and ZOOM OFF.
When zooming in video/image, use direction buttons to move video/image
upwards, downwards, rightwards or leftwards.
v=
For CD, GOTO button is disabled.
When not zooming in image, direction buttons can switch on 4 fixed rotated
angles between >=90 deg cw, <=90 deg ccw, ^=UP-DOWN and LEFT-RIGHT.
All manuals and user guides at all-guides.com

Page 19
icon and are
For CD, the ZOOM button is disabled.

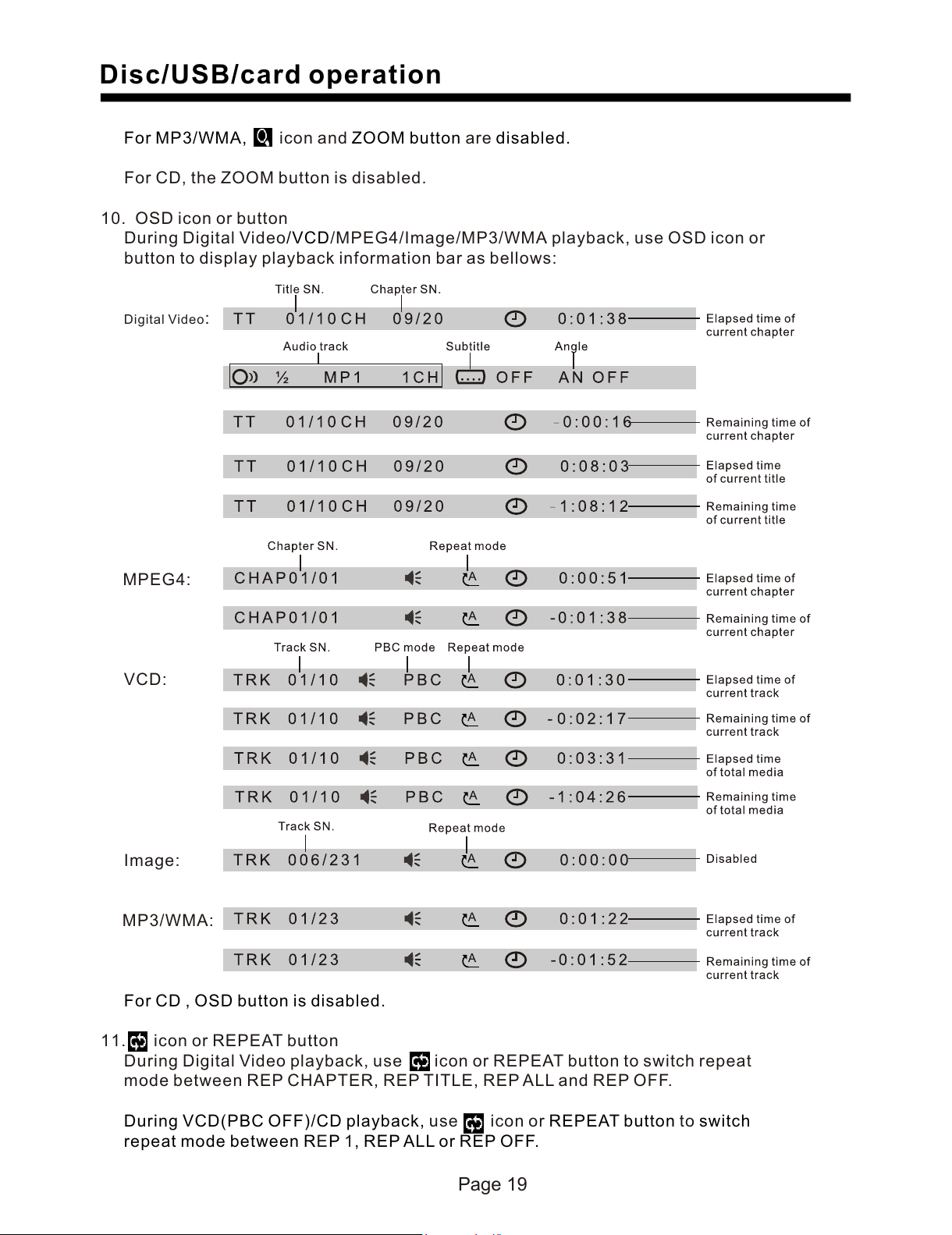

10. OSD icon or button
During Digital Video /MPEG4/Image/MP3/WMA playback, use OSD icon or
button to display playback information bar as bellows:
Digital Video:
MPEG4:
VCD:
Image:
MP3/WMA:
11. icon or REPEAT button
During Digital Video playback, use icon or REPEAT button to switch repeat
mode between REP CHAPTER, REP TITLE, REP ALL and REP OFF.
use icon or to
E 1
For MP3/WMA, ZOOM button disabled.
/VCD
For CD , OSD button is disabled.
During VCD(PBC OFF)/CD playback, REPEAT button switch
repeat mode between R P , REP ALL or REP OFF.
Disc/USB/card operation
All manuals and user guides at all-guides.com
