Naxa NT- 90A User manual

90A
9” Portable TV & Digital Multimedia Player
NT-
Instruction Manual
Please read carefully before use and keep for future reference.

Page 2 Naxa Electronics
Table of Contents
Thank You .....................................................................3
In the Box ......................................................................3
Before Your Start......................................................... 4
At a Glance ....................................................................6
Main Unit................................................................................................ 6
Remote Control..................................................................................... 9
Basic Operation ..........................................................10
Connect the Power Supply .................................................................10
Connect the Antenna........................................................................... 11
Connect an External A/V player........................................................ 11
Setting the Input Source.....................................................................12
Adjusting the Volume..........................................................................12
Using the Number Keypad .................................................................12
TV Menu Operation .................................................... 12
Channel..................................................................................................13
Picture....................................................................................................13
Sound.....................................................................................................13
Time........................................................................................................14
Option .....................................................................................................14
Lock.........................................................................................................15
Multimedia Interface..................................................15
Photo Playback ....................................................................................15
Music Playback.....................................................................................15
Movie Playback.................................................................................... 15
W recautions......................................... 17
............................................................. 21
Support ....................................................................... 21
...................................................................
FM Radio Receiving
16
specifications

90A
www.naxa.com Page 3
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer-
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us
and you. If anything is missing, check back with your
local retailer to get immediate assistance. If they can-
not help you, please contact our Naxa Support team at
www.naxa.com/naxa_support.
•NT- Portable TV
•Stand (option 1)
•Stand (option 2)
•AC power adapter
•DC car power cord
•Antenna extension adapter
•External antenna
•A/V cable
•Remote control
•User manual

Page 4 Naxa Electronics
Before Your Start
Please take note of the following before you start.
WARNING
The operation instructions provided are intended for
reference, only. Changes in the manufacturing process
may cause the features and designs described herein
to change without notice.
WARNING
•To prevent injury, this apparatus must be securely
attached to the oor/wall in accordance with the
installation instructions.
•The mains plug is used to disconnect the device
from power. The mains plug must remain readily
accessible and able to disconnect completely from
the mains.
•The apparatus should not be exposed to dripping
or splashing liquids. No objects lled with liquids,
such as vases, shall be placed on the apparatus.
• No naked ame sources, such as lighted candles,
should be placed on the apparatus.
•Batteries (battery pack or batteries installed) shall
not be exposed to excessive heat such as direct sun-
shine, the interior of a parked car, re or the like.
•Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Storage
•Keep this product away from extremely hot or cold
places. This storage temperature range of this de-
vice is 20°C to 60°C (-4°F to 140°F); the operating
temperature range of this device -5°C to 40°C (23°F
to 104°F).
•Do not use this product in a damp environment
(e.g., in or near bathtubs, wash basins, kitchens,
basements, swimming pools, or similar places).
•Do not expose your TV set to high humidity, dust or
smoke (including auto exhaust).
•Do not throw or drop this product.

www.naxa.com Page 5
•Do not subject this device to strong vibrations or
impact. If using the device in a car, rough roads will
shorten the life of your device.
•Do not puncture or abrade the device, or otherwise
subject it to strong forces.
Maintenance
•Disconnect power and all cables from this device
before cleaning it.
•Use a soft cloth to wipe the screen, enclosure, and
keys. If necessary, use a cloth lightly moistened
with water to wipe the device. Do not use rough or
abrasive materials to wipe the device (e.g., a pol-
ishing cloth).
•Do not clean the device with astringents, propel-
lants, or cleaning agents (including alcohol and
benzene)
WARNING
•Do not use this device while operating a car or other
motorized vehicle. Obey all local and federal regu-
lations when using this device. There may be spe-
cic laws in your area to prevent distracted driving.
• For your safety and the safety of others, do not
turn the TV on or watch TV programs while driving.
Notice
•The panel used in this television contains millions
of thin lm transistors that have been manufac-
tured using a high-technology process to deliver
a crisp, clear, and detailed picture. Occasionally, a
few of these transistors may become stuck or non-
active; please note that this does not affect the
performance of the television. These light or dark
spots are within the normal operating tolerances
of the unit; do not attempt to x the screen.
•This unit is controlled by microcomputer. If it
should freeze, please restart it.
•If the TV behaves abnormally, turn it off imme-
diately and please contact us or the retailer. This
device contains many nely tuned electronic com-
ponents but has no user serviceable parts inside.
Disassembly or alteration may result in damage or
serious injury.

Page 6 Naxa Electronics
At a Glance

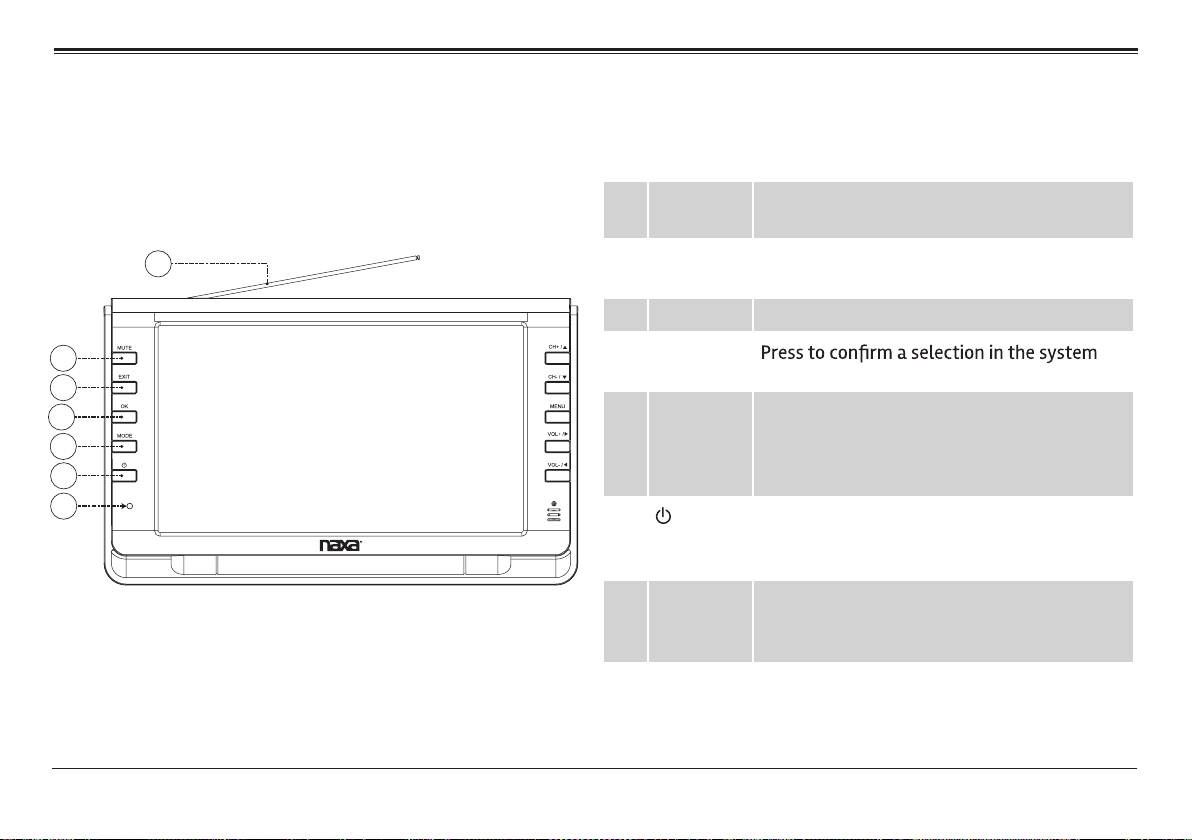

Main Unit
2
3
4
5
6
7
1
1 Telescopic
antenna
2 MUTE Disable the sound. Press again to restore the
sound.
3 EXIT Press to leave a menu.
4 OK
menu.
5 MODE Change the active source mode. Press to view
the Mode menu; press CH+/CH- to browse
the list of modes; then press OK to select
and change the mode.
6Power/Standby. Press to turn the TV on or to
place it in standby mode. Make sure that the
Master Power Switch [16] is set to ON.
7 Charge
indicator
Lights red when the TV is connected to power
and charging. The indicator will darken when
the TV is fully charged.
Antenna for TV reception

www.naxa.com Page 7
8
9
10
11
12
13
14
8 CH+/ Channel up/browse up when navigating a
menu
9 CH-/ Channel down/browse down when navigat-
ing a menu
10 MENU Access the system menu to adjust the TV’s
options.
11 VOL+/ Volume up/browse right when navigating a
menu
12 VOL–/ Volume down/browse left when navigating
a menu
13 Remote
sensor
Detects IR signals from the included remote
control.
14 TV display Color TFT LCD screen

Page 8 Naxa Electronics

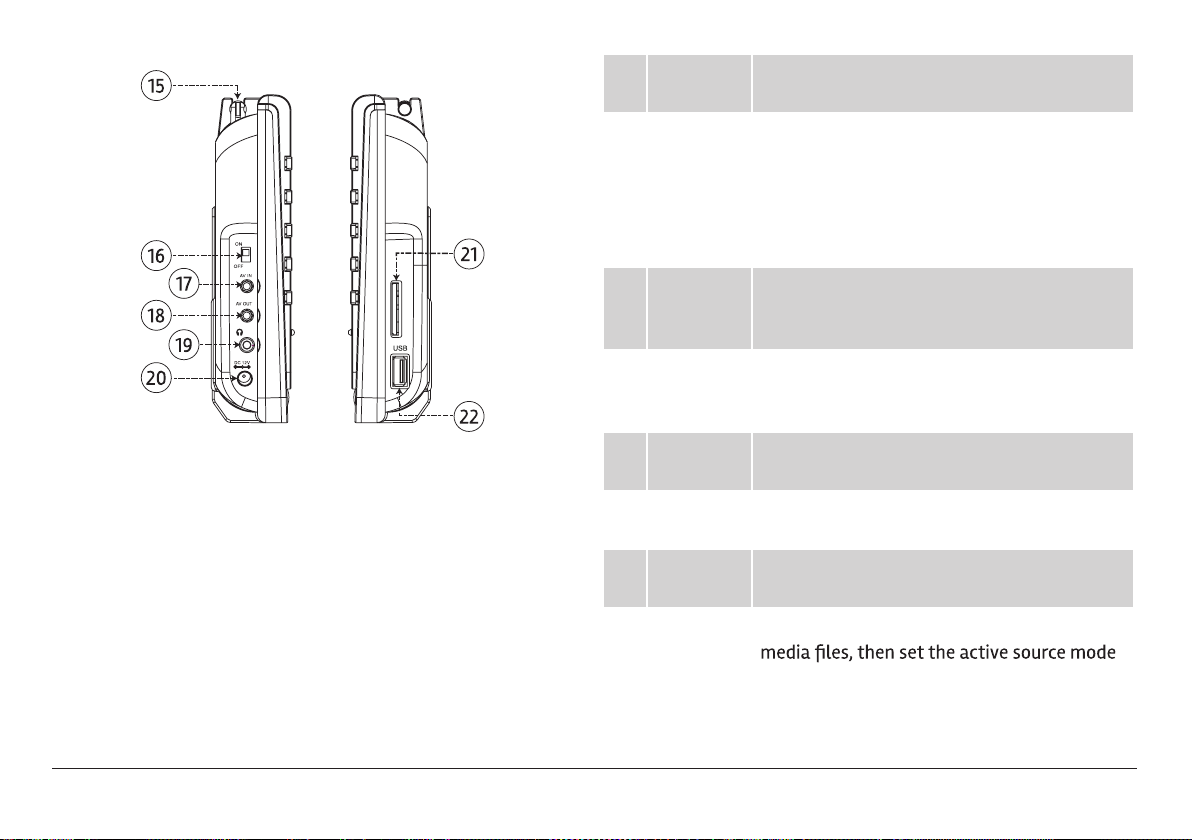

15 Antenna
input jack
75 ohm coaxial connector for TV antennas.
16 Master
Power
Switch
Set to ON to use the TV. If you will not be
using the TV for an extended period of time,
set the switch to OFF to turn the unit off
completely. (The TV will use a little bit of
power when the switch is set to ON and the
TV is placed in Standby mode.)
17 AV IN jack Watch video files from an external media player
through the AV IN jack with the supplied A/V cable
and setting source mode to AV IN.
18 AV OUT
19 Head-
phone jack
3.5 mm stereo audio output.
20 DC input Use with the included AC power adapter or
DC power cord.
21 Card slot
22 USB port Load a USB memory stick with compatible
to USB.
CA RD
jack
Load a memory card with compatible media
files then set the active source mode to CARD.
Audio and Video output function in
ATV and AV source only.

www.naxa.com Page 9
Remote Control
Power Power Switching Key. Turn the TV on or off.
ZOOM Picture modes
FREEZE Temporarily pause the video.
MUTE Enable/disable the sound output.
Channel Keys Use the number keypad to change the
channel.
Return Go to the last viewed channel.
SOURCE Change the active input source mode (TV, AV,
MEDIA)
INFO View program information.
Up/Down Browse up/down in menu lists.
Left/Right Browse left/right or adjust an option in menu
lists.
CH+/
CH–/
Change the channel up or down, respectively.
VOL+/
VOL–/
Increase/decrease the volume level,
respectively.
MENU View the system menu.
EXIT Exit the system menu.
AUDIO Change the default audio language.
CC Change the closed-caption display modes.
EPG If available, view program guide informa-
tion from over-the-air ATSC TV broadcasts.
P.MODE change the picture preset mode.
Voice prompt function On/Off
CH.LIST View all the available channels.
FAV.LIST View the channels in your favorites list.
SLEEP Set a sleep timer (max 240 minutes).
The following keys only work when playing music/vid-
eos in CARD or USB mode.
REP Change the repeat mode.
Start, pause, or resume playback.
Stop playback.
Go to the previous track.
Skip to the next track.
TTS
FM Radio ,
Confirm button.
OK

Page 10 Naxa Electronics
Scan in reverse quickly.
Scan forward quickly.
To adjust the volume when playing an MP3
key on the
TV to hide the system menu, then press
VOL or VOL to adjust the volume. To
return to the system menu, press OK.
Basic Operation
Connect the Power Supply
Use the supplied power adapter to connect the DC In-
put jack [20] on the TV to a power supply. The AC power
adapter works with AC 100-240V outlets; the DC car
adapter works with the power socket found in most
motor vehicles.

www.naxa.com Page 11
Connect the Antenna
Use the supplied external antenna for improved TV
reception. Connect one end of the antenna extension
adapter to the Antenna Input jack [15] of the TV. Con-
nect the other end of the adapter to the supplied ex-
ternal antenna.
Antenna extension adapter
Connect an External A/V player
A/V cable
antenna for improved reception.
The TV can accept composite video and audio signals
from external players (e.g., DVD player). Using the
supplied A/V cable, plug the side with the 1/8” jack
into the AV IN [17] connector of the TV. Connect the
yellow RCA plug to the composite video out jack of
the external player; connect the white and red RCA
plugs to the L/R audio out jacks of the external
player, respectively.

the OK
the OK
Page 12 Naxa Electronics
Setting the Input Source
Set the input source to choose which connection is ac-
tive and displayed on the TV screen.
Press MODE [5] to access the input source menu, then
press CH or CH [8, 9] to change the input source.
Adjusting the Volume
•Use the VOL and VOL keys [11, 12] to increase or
decrease the volume level, respectively.
•
Using the Number Keypad
Use the number keypad (0-9) on the remote to tune di-
rectly to a channel or to input a value when prompted
on a menu or option screen.
To tune to channel 15-1, for instance:
1. Press the “1” key, then press the “5” key.
2. Press the “--/-” key.
3.
To go to track 15, for instance:
1. Press the “1” key, then press the “5” key.
2. Press key.
TV Menu Operation
Press the MENU key to access the menu list and then
press the RIGHT arrow key to enter the list. Press the
CH /CH arrow keys to browse menu options; press
the VOL /VOL arrow keys to adjust the selected menu
change.
To exit the menu, press the MENU key to back out of all
menu options.
Press OK [4] to confirm the selection.
Press the MUTE [2] key to disable sound output
completely. Press the MUTE key again to restore
sound output.
Press key.
Press key.

OK
OK
www.naxa.com Page 13
Channel
1. Air/Cable: Set to Air if you are using an antenna
like the ones provided to receive over-the-air TV
broadcasts. Set to cable if you are connecting to a
Cable TV system.
1. Picture mode: Select a picture preset that looks
best (Standard, Soft, user, and Dynamic).
2. Color Temperature: Press “OK” then the Left/Right
arrow keys to adjust color to Warm, User or Cold.
3. Aspect Ratio: Adjust the screen width by pressing
“OK” then UP/DOWN arrows to select Auto, 4:3, 16:9,
Zoom1, Zoom2 and Panorma.
2.
a signal and saves them to the channel list. Note:
use this Auto Scan feature whenever you move the
TV to a different geographic location.
3. Favorite: Add channels to the Favorites list. Press /
and / to browse the channel list, then press to
mark/unmark a channel as a Favorite.
4. S
a
t
with the numeric keypad.
6. DTV Signal: Displays the signal quality of the cur-
rent channel.
how/Hide: Choose whether a channel will be select-
able when tuning with the CH+/CH- keys. Press /
nd / to browse the channel list, then press
o mark/unmark a channel as hidden.
You can still tune to a hidden channel directly
5. Software Update (USB): Used to perform software
updates via USB.
4. Noise Reduction: Press “OK” then the Up/Down
arrow keys to select, “close, low, middle, or high.”
Sound
1. Sound mode: Set a preset equalizer to match the
type of program you are watching from; standard,
music, movie, sports, and user setting.
2. Balance: Press “OK” then the Left/Right arrow
keys to adjust the audio level from -50 to 50.
3. Auto Volume: Press the “OK” key to enter the
menu and select Open or Close to set Auto Vol.
4. Surround Mode: Press “OK” then the Up/Down
arrow keys to select, “open or close surround.”

Page 14 Naxa Electronics
5. Audio Only: Press the “OK” key to enter the menu
to select, “close the image signal.” Only audio will
be heard as the image will disappear.
Time
1. Clock: Press the “OK” key to enter the menu then
the Up/Down to select; then press the Left/Right
keys to adjust the current date and time.
2. Off Time: Press the “OK” key to enter the menu
then Left/Right arrow keys to set a day and time
to auto shut off the TV.
3. On Time: Press the “OK” key to enter the menu
then Left/Right arrow keys to set a day and time
to auto turn on the TV.
4. Sleep Timer: Set a timer. the TV will turn off
automatically at the end of the timer.
5. Auto Sync: Set the system time to match the time
carried by the antenna signal (cable or air). This
option is not adjustable. The TV must be connected
to an antenna or cable system for Auto Sync to work.
6. Time Zone: Set the time zone adjustment to match
your location.
Option
1. OSD Language: Set the display language of the
onscreen menus.
2. Closed Caption: When closed caption is availabe
for a TV program, a synchronized transcript of the
program can be displayed on screen.
•Select Off to never display the closed caption
information.
•Select On to always display the closed caption
information.
•Select CC on Mute to only display the closed
caption information when MUTE is enabled.
3. Setup Wizard: An on-screen guide that will help
you get your TV up and running. Set the menu
language, time zone, DST, and time format. Then,
it scans all the channels to find all stations within
broadcast range.
4. Restore Factory Default: Return all options to their
factory setting
5. TTS (Text to Speech): Converts normal language
text to speech.

From the input Menu, select MEDIA. Press OK to
www.naxa.com Page 15
4. US: Prevent programs from being viewed based on
US TV or MPAA rating guidelines.
6. Reset RRT: Refresh the Rating Region Table if you
5. Canada: Prevent programs from being viewed
based on Canadian English or French guidelines.
are having problems with the US or Canada rating
guidelines.
7. Unrated: Enable or disable the ability to watch un-
rated programs.
Lock
Use the remote control to enter the default password
(0000) to access the Lock options.
1.
2. Set Password: Set a new password. WHen you
change the password, write it down and store it
in a safe place. Resetting the factory options will
not reset the password.
3. Input Block: Completely block the TV mode or the
AV modes.
Multimedia Interface
Make sure your USB drive is in the USB Slot on the TV.
access either Photo/Music/Movie/ or Text icon.
Photo Playback
Music Playback
Movie Playback
enter
Press OK key to
OK
OK
OK

M S
Page 16 Naxa Electronics
FM Radio Receiving:
Press "MODE" to select " FM Radio"
mode, and then
FM frequency channels automaticlly.
1.
2.
How to work the FM radio:3.
10 87.00 CH10
9 87.00 CH09
8 87.00 CH08
7 87.00 CH07
6 87.00 CH06
5 87.00 CH05
4 87.00 CH04
3 87.00 CH03
287.00 CH02
1
87.00 CH01
FM Radio
All Tune Backlight ok Choose CH
Channel Number:1
lnfo
Frequency: 87.00
Name: CH01
Sele ct ( )
Red Button on
Remote t erform
can
Select ( )
G reen Butto n
R emote toTurn
ON/OFF TV
backlight .
Pree ( O K ) button on
remote t elec he
Station you want to
listen to.
Use the down arrow
key to go to next
s tation . pres he up
arrow key to go to
previous station .
F M C umber
F requency/S tation
Channel
Name/ Number
You can change the FM
Frequency by pressing
the (OK) butto n remote.
press the(R )arrow key to
single d press the (UP )
arrow ke o ext auto
frequenc uning.
lnpu h rese hannel
number t
desir M station.
“RED”key
“GREEN”key
igits

Page 17 Naxa Electronics
Warnings and Precautions
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulat-
ed “dangerous voltage” within the product’s enclosure that may
be of signicant magnitude to constitute risk of electric shock
The exclamation point within an equilateral triangle is intended
to alert the userto the presence of important operation and ser-
vicing instructions in the literature accompanying the appliance.
CAUTION
• Do not block the ventilation openings or holes.
• Do not place any naked ames (such as lighted candles) on the ap-
paratus.
• When discarding batteries, follow all local rules and laws governing the
disposal of batteries. Consider the environmental impact of your actions!
• To prevent re or shock hazard, do not expose this appliance to rain
or moisture.
Important Safety Information
1. Read Instructions: All the safety and operating instructions should be
read before the product is operated.
2. Retain Instructions: The safety and operating instruction should be
retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating in-
structions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be
followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments: Use only attachments recommended by the manufac-
turer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a
bathtub, washbowl, kitchen sink, laundry tub, in wet basements, or
near a swimming pool and the like).
8. Accessories: Do not place this product on an unstable cart, stand, tri-
pod, bracket, or table. Use only with carts, stands, tripods, brackets,
or tables recommended by the manufacturer or sold with the product.
Any mounting of the product should follow the manufacturer’s in-
structions and should use a mounting accessory recommended by the
manufacturer. A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
9. Ventilation: Slots and openings in the cabinet are provided for ven-
tilation to ensure reliable operation of the product and to protect it

Page 18www.naxa.com
from overheating. These openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer in-
structions have been adhered to.
10. Power Sources: This product should be operated only from the type of
power source indicated on the rating label. If you are not sure of the
type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power or other sources, refer to the operating instructions.
11. Grounding or Polarization: This product may be equipped with a po-
larized alternating-current line plug that has one blade wider than
the other. This plug will only t into the power outlet in one direction.
This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the direction of the plug. If the plug should
still fail to t, contact an electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
12. Power-Cord Protection: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, con-
venience receptacles, and at the point which they exit
from the product.
13. Protective Attachment Plug: The product may be
equipped with an attachment plug with overload
protection. This is a safety feature. See the operat-
ing instructions for replacement or directions to re-
set the protective device. If replacement of the plug is
required, be sure the service technician has used a replace-
ment plug that has the same overload protection as the original plug as
specied by the manufacturer.
14. Outdoor Antenna Grounding: If an outside antenna is connected to
the product, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANS/NFPA 70 provides in-
formation with regard to proper grounding of the mast and support-
ing structure,grounding of the lead-in wire to an antenna-discharge
unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode (see gure).
15. Lightning: For added protection for this product, unplug it from the
wall outlet and disconnect the antenna or cable system during a
lightning storm or when it is left unattended and unused for long pe-
riods of time. This will prevent damage to the product due to lightning
or power-line surges.
16. Power Lines: An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power cir-
cuits, or where it can fall into such power lines or circuits. When in-

Page 19 Naxa Electronics
stalling an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits, as contact with them
might be fatal.
17. Overloading: Do not overload wall outlets, extension cords, or inte-
gral convenience receptacles as this can result in a risk of re or elec-
tric shock.
18. Object and Liquid Entry: Never push objects ofany kind into this prod-
uct through openings as they may touch dangerous voltage points or
shout-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
19. Servicing: Do not attempt to service this product yourself as open-
ing or removing covers may expose you to dangerous voltage or other
hard-surfaced all servicing to qualied service personnel.
20. Damage Requiring Service: Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the following
conditionals) when the power-supply or plug is damaged; b) if liquid
has been spilled or if objects have fallen into the product; c) if the
product has been exposed to rain or water; d) if the product does not
operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as im-
proper adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore the
product to its normal operation; e) if the product has been dropped or
damaged in any way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
21. Replacement Parts: When replacement parts are required, be sure
that your service technician has used replacement parts specied
by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in re, electric shock, or
other hazards.
22. Safety Check: Upon completion of any service or repairs to this
product,ask the service technician to perform safety checks to ensure
that the product is in proper operating condition.
23. Wall or Ceiling Mounting: The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
24. Heat: The product should be situated away from heat sources such as
radiators,heat registers, stoves, or other products (including ampli-
ers) that produce heat.
WARNING:
This product contains lead, a chemical known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash hands
after handling.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

Page 20www.naxa.com
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION ON MODIFICATIONS
Any changes or modications not expressly approved by the grantee of
this device may void the authority granted by the FCC to operate the
equipment.
