NEC LED-FE012i3 User manual

User’s Manual
LED Module
[Models for indoor use]
LED-FE012i3
LED-FE015i3
LED-FE019i3
MODELS: LED-FE012i3, LED-FE015i3, LED-FE019i3

Table of Contents
Important Information...................................................................English-1
Contents.........................................................................................English-5
Related Items for Installation ........................................................English-6
Parts Name and Functions..............................................................English-7
Specications .................................................................................English-9
Diagram .......................................................................................English-10
NOTE: (1) The contents of this manual may not be reprinted in part or whole without permission.
(2) The contents of this manual are subject to change without notice.
(3) Great care has been taken in the preparation of this manual; however, should you notice any
questionable points, errors or omissions, please contact us.
(4) The image shown in this manual is indicative only. If there is inconsistency between the image and the
actual product, the actual product shall govern.
(5) Notwithstandingarticles(3)and(4),wewillnotberesponsibleforanyclaimsonlossofprotorother
matters deemed to result from using this device.
The company names and product names mentioned in this manual are trademarks or registered trademarks of
respective companies.

English - 1
Important Information
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LED DISPLAY SYSTEM:
About the Symbols
To ensure safe and proper use of the product, this manual uses a number of symbols to prevent
injury to you and others as well as damage to property. The symbols and their meanings are
described below. Be sure to understand them thoroughly before reading this manual.
WARNING
Failing to heed this symbol and handling the product
incorrectly could result in accidents leading to major
injury or death.
CAUTION
Failing to heed this symbol and handling the product
incorrectly could result in personal injury or damage to
surrounding property.
Examples of symbols
Indicates a warning or caution.
This symbol indicates you should be careful of electric shocks.
Indicates a prohibited action.
This symbol indicates something that must be prohibited.
Indicates a mandatory action.
This symbol indicates that the power cord should be unplugged from the
power outlet.

English - 2
● Be sure to read the following before using the product to use it correctly and safely.
WARNING
Do not apply vibrations or shocks to the
product.
Do not install the product to unstable
locations or locations subject to vibrations.
Always ask a technician to perform the
installation.
Do not connect the cables with wet hands.
Otherwise, it may cause an injury or an
electrical shock.
Do not repair or modify the product yourself.
Otherwise, it may cause an injury, a re or an
electrical shock.
In case of thunder, do not touch the power
cord. Otherwise, it may cause an electrical
shock.
Connect the product to the correct voltage.
If the product is connected to a voltage other
than the specied voltage, it may lead to a
re or an electrical shock.
In case of a malfunction (nothing is displayed
on the screen, etc.) or if smoke, abnormal
heat, or a strange sound or odor is generated,
turn the power off and immediately ask a
technician or your retailer for repair.
Install the product so that the vents are not
obstructed.
Make sure there are enough people available
to ensure safety (at least two people) when
installing or moving the product. Otherwise, it
may lead to an injury.
Be sure to ground the product. If the product
is not grounded, there is a risk of electrical
shock in case a malfunction occurs.
In case foreign matter has entered into the
product, immediately disconnect the power
supply and stop using the product.
After the installation, if a problem such as
loose screws occurs, immediately ask a
technician or your retailer for repair.
Do not put objects into the product.
Otherwise, it may cause a re or an electrical
shock.
In case the product is in contact with water
or another liquid, immediately disconnect the
power supply and stop using the product. If
you continue using the product in that state,
it may lead to a malfunction, a re, or an
electrical shock.
When using the power connector (WAGO),
do not use it outdoors or in a humid
environment. Otherwise, it may cause a re
or an electrical shock.

English - 3
This product can only be serviced in the country where it was purchased.
CAUTION
When connecting the power cord to the
product’s AC IN terminal, make sure the
connector is fully and rmly inserted.
Do not damage the power cord. Do not put
heavy objects on it, place it near heaters, pull
it with excessive strength, or apply a strong
force on it while it is bent.
A damaged power cord may cause a re or an
electrical shock.
Do not install the product in narrow places
where heat tends to build up.
Do not use the product in an environment
with low heat dissipation.
Otherwise, it may cause a malfunction.
The RJ-45 port of the product is for use
with the product only. Do not connect it to a
network. Connecting this port to a network
that may receive over-voltage current may
cause damage to the product or an electrical
shock.
Do not use the product in a vehicle or another
means of transportation.
Do not place the product under direct sunlight
or near heaters.
This product is designed to be used indoors.
Do not use it outdoors. Otherwise, it may
cause a malfunction.
Do not use or store the product in the
following places.
• Near heaters
• Places with lots of humidity or dust, or
places subject to oily smoke
• Places where water or oil may splash
• Places with lots of corrosive gases, such as
near hot springs
• Places where the product may freeze
• Do not place the product on its side, face
down, or upside down.
• Places with lots of vibrations
If you will not be using the product for a long
time, disconnect it from the power distributor
for safety purposes.
Disconnect the power supply when
performing the maintenance.
Install the product in accordance with the
local laws and regulations.
Use ESD gloves when handling Pixel cards
to prevent static electricity from the human
body and contamination due to nger oils,
perspiration salts, aking skin, and/or other
forms of human excretory secretions. The
LED modules and their electrical components
are sensitive to biological agents and
exposure to such risks degradation of
materials and performance.
Eliminate any static electricity from your body
before touching the Pixel cards by touching
an aluminum sash, a door knob, or some
other metal object.

English - 4
Recommended Use & Maintenance
About the LED lamps
The surface of the pixel card is vulnerable to shocks, so do not press or hit the surface.
LED lamps are sensitive to static electricity and surge voltage, which may damage their components
and decrease their reliability.
Take measures against static electricity during the installation. Do not touch the LED display areas.
When you install the product or when you use it for the rst time after leaving it unused for a long
time, follow the instructions below.
The LED lamps may absorb and hold moisture during the LED module installation or if not used for
a long time. Therefore, in such cases, the brightness must be increased gradually during a break-
in period before setting the normal brightness.
If the LED lamps are lit with 100% brightness while moisture is retained, the temperature will
rise very quickly and the water inside the lamps will evaporate and expand. This will cause the
encapsulating resin to expand, which may lead to separation of the boundary surface inside the
LED lamps. This separation can cause the LED lamps not to light up properly.
Lamp break-in
Congure the brightness settings as shown below with a video displayed on the LED
module.
After a break-in period of approximately 3 hours, the LED module can be used under
normal conditions.
Time since start-up: 0
(just after start-up)
1 hour 2 hours 3 hours
Full white Normal operation70%50%
80%60%40%
Brightness
value 20%
Normal operation
Video content
About the Pixel card
The surface of the pixel card is easily scratched, so handle it with care so as not to push or rub it with
a hard object. Be careful not to stain the surface of the pixel card with your ngers. If the surface of
the pixel card becomes dirty, wipe it gently with a dry cloth. Also, use a clean cloth and avoid using the
same cloth repeatedly.

English - 5
Contents
The supplied parts are as follows.
In case one of these parts is missing or damaged, contact the retailer.
CAUTION
Depending on the system you ordered, there is a cabinet without the upper connector.
[Cabinet]
[Pixel card]
8 cards per cabinet

English - 6
Related Items for Installation
The items required when installing the system are shown below.
Contact your retailer for more details.
[Power cord]
To connect the LED module to the power distributor
[LAN cable]
To connect two LED modules together
(750 mm for vertical connection, 1000 mm for horizontal connection)
[Cabinet alignment bracket]
[Screw for Adjustment plates]
[Connection screw for LED modules]
[USB drive]
Contains the data, the user’s manual (this document), and
the control software for the product you have purchased.

English - 7

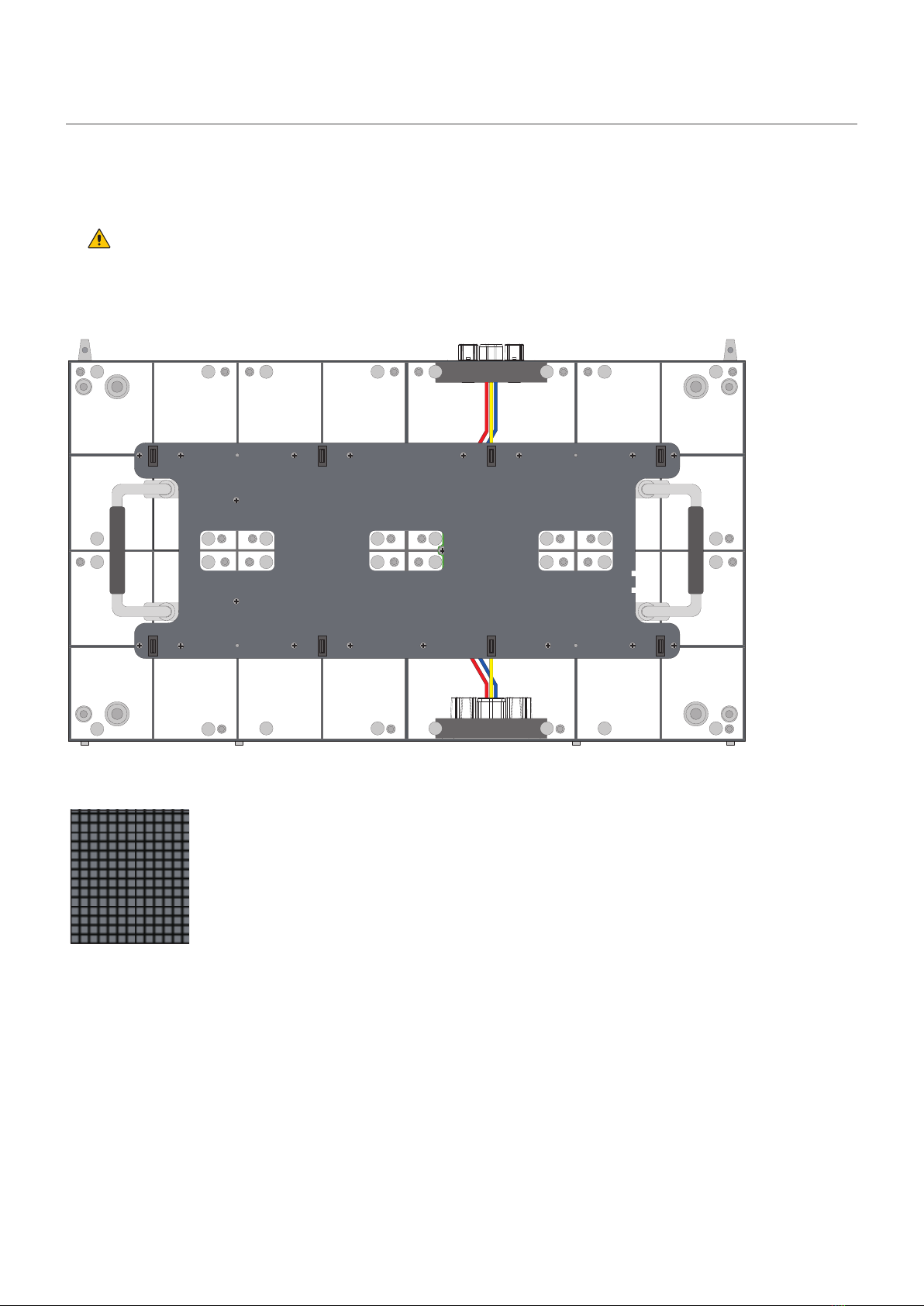

Parts Name and Functions
Front Rear
⑩
②
⑨
③
⑤
⑧
⑥
⑦
①
④
Name Description
Interface connectors Input and output connectors for the signal and AC power.
12 Signal input/output To input the signal from the LED controller or the previous LED module.
When a signal is input into 1, the signal is output from 2.
When a signal is input into 2, the signal is output from 1.
34 Power input (output) When AC power is input into 3, AC power is output from 4.
When AC power is input into 4, AC power is output from 3.
Do not input AC power into both 3and 4.
5Status lamp (red) Lights up when power is on.
6Status lamp (blue) Not functioning with this device.
7Status lamp (green) Flashes at intervals of approximately 4 seconds when no signal is input.
Flashes at intervals of about 1 second when a signal is being input.
8Test button Used to display the test patterns. The displayed pattern changes each
time the test button is pressed.
The signal from the LED controller must be interrupted to display a test
pattern.
9Handle Use the handles when carrying and installing the cabinet.
0Guide pin Used to align the cabinets when installing them on top of each other.

English - 8
There are three types of cabinets.
(1) When using other than the top (Type A)
The connectors are equipped on the top and bottom sides. There are guide pins on the top.
Power unit Receiving
card
Power
hub
board
(2) When used at the top (Type B)
There are no connectors on the top side. There are no guide pins.
Power unit Receiving
card
Power
hub
board
(3) When connecting a LAN cable from the middle (Type A’)
There is a hole for LAN cable connection on the rear.
Power
Data
Power unit Receiving
card
Power
hub
board
Hole for LAN cable connection Hole for power code connection

English - 9
Specications
LED-FE012i3 LED-FE015i3 LED-FE019i3
LED conguration 3-in-1 Flip chip SMD
Pixel pitch 1.27 mm 1.58 mm 1.90 mm
Number of displayed pixels (resolution/module) 480×270 384×216 320×180
Brightness 700 cd/m2
Contrast ratio 8000:1
Brightness adjustment range 0 to 100% (256 increments)
Gamma correction 1.0 to 4.0 (default setting: 2.8)
Color temperature 3000 K to 9500 K (default setting: 6500 K)
Viewing angle Up 80°, Down 80°, Left 85°, Right 85°
Signal interface Signal input 1×RJ-45
Signal output 1×RJ-45
Power supply 100 V AC to 240 V AC, 50 Hz/60 Hz
Power consumption (all white, 100% brightness) 38 W
IP rating Front IP20 / Rear IP20
Maintenance Front
Dimensions 608×342×49 mm
Weight 8.8 kg
Operating environment Temperature -20 to 40°C
Humidity 10% to 80% (without condensation)
Altitude No more than 5000 m
Storage environment Temperature -20 to 45°C
Humidity 10% to 85% (without condensation)
Specications are subject to change without notice.

English - 10
Diagram
LED-FE012i3, LED-FE015i3, LED-FE019i3
608 49
342
Rear
4 x M8
18.5
24
24
44 44520
294
(Unit: mm)

English - 11
Adjustment plate
10
75
28
75
4-Φ8.5
(Unit: mm)

English - 12
WEEE Mark (European Directive 2012/19/EU and amendments)
Disposing of your used product: In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and
electronic products carrying the mark (left) must be disposed of separately from normal
household waste. This includes LED module and electrical accessories, such as signal
cables or power cords. When you dispose of such products, please follow the guidance
of your local authority or ask the shop where you purchased the product, or if applicable,
follow applicable legislation or agreement you may have. The mark on electrical and
electronic products may only apply to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please
contact your local authority and ask for the correct method of disposal.
For EU: The crossed-out wheeled bin implies that used batteries should not be put to the
general household waste! There is a separate collection system for used batteries, to allow
proper treatment and recycling in accordance with legislation.
According to EU directive 2006/66/EC and amendments, the battery can’t be disposed
improperly. The battery shall be separated to collect by local service.
Service & Support in Europe
Please contact:
Sharp NEC Display Solutions Europe GmbH.
Landshuter Allee 12-14, D-80637 München
Phone: + 49 (0) 89/99699-0
Fax: + 49 (0) 89/99699-500
For the latest information please see
https://www.sharpnecdisplays.eu
Data is subject to change without notice.
Sales Ofce List for Asia/Pacic
For the latest information please see
https://www.sharp-nec-displays.com/ap/contact/index.html
This manual suits for next models
2
Table of contents
Other NEC Control Unit manuals

NEC
NEC NEAX 2400 ICS User manual

NEC
NEC N8181-153 User manual

NEC
NEC SFP+ User manual

NEC
NEC LED-FC012i User manual

NEC
NEC LED-E012i User manual

NEC
NEC ASPV46-AVT - AccuSync - 46" LCD TV Manual

NEC
NEC NL10276BC13-01C Operating and safety instructions

NEC
NEC N8115-15 User manual

NEC
NEC Univerge SV8100 VM8000 InMail Parts list manual

NEC
NEC N8104-129 User manual
Popular Control Unit manuals by other brands

COMAIR
COMAIR Delta 52YF manual

Lowrance
Lowrance Satellite Weather Radio Module LWX-1 installation instructions

CAME
CAME 806XG-0080 manual

GEA
GEA AVR Series operating instructions

Interlogix
Interlogix TruPortal TP-ADD-2D Series quick reference

American Standard
American Standard BORNEO Installation instruction
