NEC WT Series Projectors
Revolutionary lensless
technology
Eye catching design
Installation flexibility
100" image size at less than
26" throw
Fits in incredible small
spaces
Extensive Connections
WT610
Goes where no projector has gone before
Smart designs enable versatile actions.
°Space saving design. Achieve up to a 100” diagonal image from 25.95” away from
the screen.
°Designed to fit into the smallest of rooms.
°Network connectivity. Communicate with the projector with or without wires through
an existing infrastructure or an on-the-fly peer-to-peer connection.
°USB flexibility. Play back presentations or display images stored as .jpgs from
standard USB keys.
°Project on almost any color wall. Preset selections provide for adaptive color tone correction
when projecting onto non-white screen material or walls.
°Extensive connections to virtually any source through HDTV, S-Video, Component,
Composite video.
°Adapts for special needs. ADA508 compliant for hearing-impaired and colorblind
users supporting closed caption display and black & white menu options.
°Pincushion adjustment. Maximize image display with fine tune pincushion
adjustments that reduce barrel distortion.
°Autosense™ intuitively syncs the projector with most computer signals and features
one-touch image optimization.
Amazing images enable stunning presentations.
°High resolution display. XGA (1024 x 768) native resolution, compatible with computer
signals up to SXGA+ (1400 x 1050).
°High contrast. 3500:1 enables varying levels of black to be displayed by the projector
for improved video quality.
°Bright. 2,000 ANSI lumens.
°Real life colors. VORTEX Technology Plus™ breakthrough image processing
technology improves white balance, color accuracy, dynamic range and varying levels
of black in an image.
°HDTV capable. HD Signal compatibility for the best video quality.
°Advanced AccuBlend™. Ensures detailed images even when non-native resolution
sources are connected to the projector.
°Color management. Automatically adjusts for input type (presentation, movie, video,
graphic and sRGB).
°Variable audio out. Control external amplified audio through the projector.
°Enhanced video. DLP™ technology enables real life video.
NEC is a leader in developing technologies to extend projector life.
°Extended lamp life. Eco-mode™ technology increases lamp life by up to 100% for up
to 4,000 hours.
°Security features. Enhanced multi-level security features protect your investment.
•Integrated lock slot. Attach a security cable to physically lock down the projector
•Cabinet control lock. Password protection restricts access to menu system
•Logo lock.Restricts changes to logo saved in projector memory
•Password protection restricts unauthorized use of projector
°E-mail notification when maintenance is due
°Quiet operation. Low operating noise at <32dB in Eco-Mode.
°Sleep timer setting enables projector to automatically shut down.

NEC WT Series Projectors
NEC 010539
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248

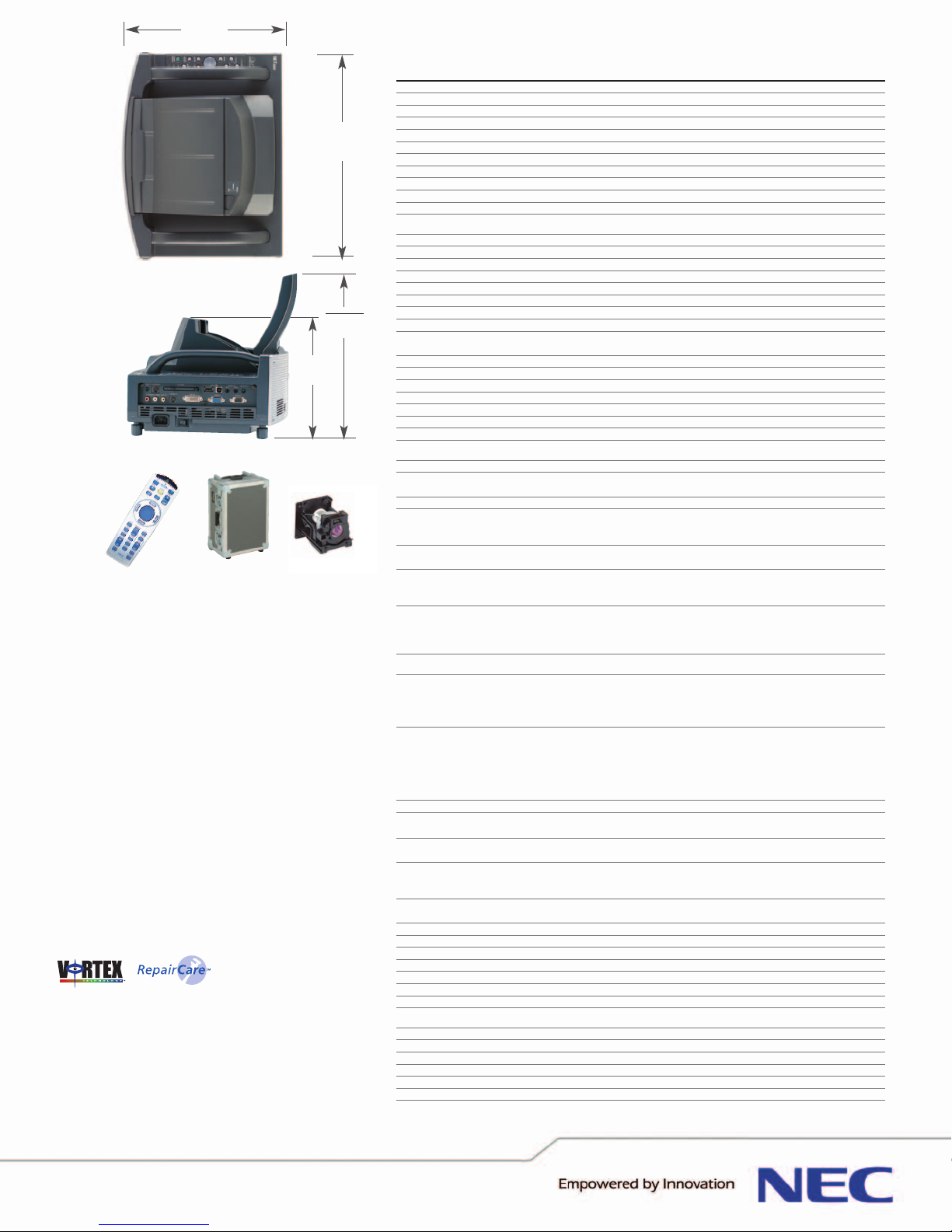

12.32”
(313 mm)
14.96”
(380 mm)
12.32”
(313 mm)
8.94”
(227 mm)
remote LampWT60ATA
Optical*
Panel Single chip 12 degree DMD
Resolution 1024x768 pixels native up to UXGA with Advanced AccuBlend
Optical display Aspheric mirror x 4, power focus
Light Output 2000 normal, 1500 Eco-Mode (ANSI, typical)
Lamp 275W normal, 210W Eco-Mode
Lamp Life (up to) Eco-mode 4000H; Normal mode 2000H
Contrast Ratio 3500:1
Image Size 40 - 100 inches diagonal
Keystone Correction ±5° Horizontal and –5° Vertical
Projection Distance 2.5 – 25.9 inches, 64 – 659 mm
Projection Angle 55°
Electrical
Inputs 1 DVI-I (w/HDCP), 1 RGB, 1 S-Video, 1 Video, 1 PC Card, 2 Stereo Mini Audio, 1 RCA Audio
Outputs 1 RGB, 1 Stereo Mini Audio
Control Terminals 1 USB A, 1 USB B, 1 Remote Control Input, 1 PC Control
Video Compatibility NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL-60, SECAM, HDTV: 1080i, 720p, SDTV: 480p, 480i
Scan Rate Horizontal: 15 to 100 kHz (non-interlaced) Vertical: 50 to 120Hz
Video Bandwidth RGB 80 MHz
Pixel Clock Freq 135MHz
Color Reproduction 16.7 million colors simultaneously, Full color
Horizontal Resolution NTSC, NTSC4.43, PAL/PAL-M/PAL-N/PAL-60 - 540 TV lines, SECAM -
300 TV lines, Y/Cb/Cr -540 TV lines, RGB -1024dots (H) x 768dots (V)
External Control RS232, LAN (AMX/Crestron compatibility), remote in
Sync Compatibility Separate Sync / Composite Sync / Sync on G
Built-in Speakers 1Wx2
Fan Noise Eco-Mode <32dB; Normal mode <37dB
Power Requirements 100-120VAC/200-240VAC, 50/60Hz
Input Current 3.9A (100V), 1.7A (240V)
Power Consumption Eco-Mode 300W, Normal 370W, 0.6W Standby, 8.0W Idle Mode
Mechanical
Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 14.96” x 12.32” x 12.32”
380x313x313mm, mirror open (not including protrusions)
Net Weight 14.1 lb. (6.4 kg)
Environment Operational Temp. 41° to 95°F / 5° to 35°C
Humidity: 20-80% non-condensing
Storage: 14° to 122°F / -10° to 50°C
Regulations USA UL 1950 FCC Class B
Canada CSA950 ( C-UL )
Accessories Users manual, wired/wireless remote control, D-sub signal cable, DVI-D signal cable,
DVI-A – D-sub signal cable, audio cable, USB A-B cable, power cable, set up guide,
registration card
Warranty Owners receive a 2-year limited parts and labor warranty. RepairCare™ is provided during
the first year of coverage for registered owners. RepairCare provides the original owner
with 3-business day repair and return of the projector. When used under normal operating
conditions, the lamp is covered for 90 days or 500 hours, whichever comes first.
Special Features
Networking PC Card slot provides for optional wireless or wired network connection. System
administrator can access the projector to handle remote diagnostics and control, asset
management and provide for real time source display. Also provides email notification
selection
Security Enhancements User can enable Projector to become inoperable if password or PCMCIA security card are
not input.
Cabinet Control Panel Lock –Lock cabinet control keys to prevent unauthorized access
and adjustments
Password protected logo and menu enable to further eliminate unauthorized use
Kensington Lock slot
Pincushion Adjustment Maximize image display with pincushion fine tune adjustments that reduce barrel display
Digital Zoom Manage the image size and position with the ability to digitally zoom and move in on the
displayed information
Built-In Wall Color Correction Preset selections provide for adaptive color tone correction when projecting onto a
non-white screen material or wall
VORTEX Technology Plus Provides uncompromising display of video and data. Improves white level, color accuracy,
dynamic range, and display of varying levels of black in an image. Color correction system
enables six-axis adjustment of CMY and RGB for display of personal color preferences
3D Reform Allows flexible placement of projector for square image display- adjusts horizontal, vertical
and diagonal keystone correction
Sleep Timer Timer can be set to automatically turn off the projector at selected intervals up to 16 hours
Advanced AccuBlend Ensures detailed images when non-native resolution sources are connected to the projector.
AutoSense Automatic set-up and one touch adjustments for ease of use
Eco-Mode Increase lamp life through light output adjustments
USB connections Allows for USB drive or USB mouse support
Gov Regulation Compliance ADA508 and Executive Order 13221compliant
Built-in Presentation Viewer Download your presentation onto a PC Card and present directly from the projector
Product/Accessories
Order Code Description
WT610 WT610 2000 ANSI lumen mirror projector
WT61LP Replacement lamp
WT60CM Ceiling mount kit
WT60ATA ATA shipping case
NWL-100A 802.11b/g wireless LAN PC card
*Please consult www.necvisualsystems.com for screen information when using the WT610 in rear projection displays.
