NED RMSL8K76CP User manual

User’s Manual

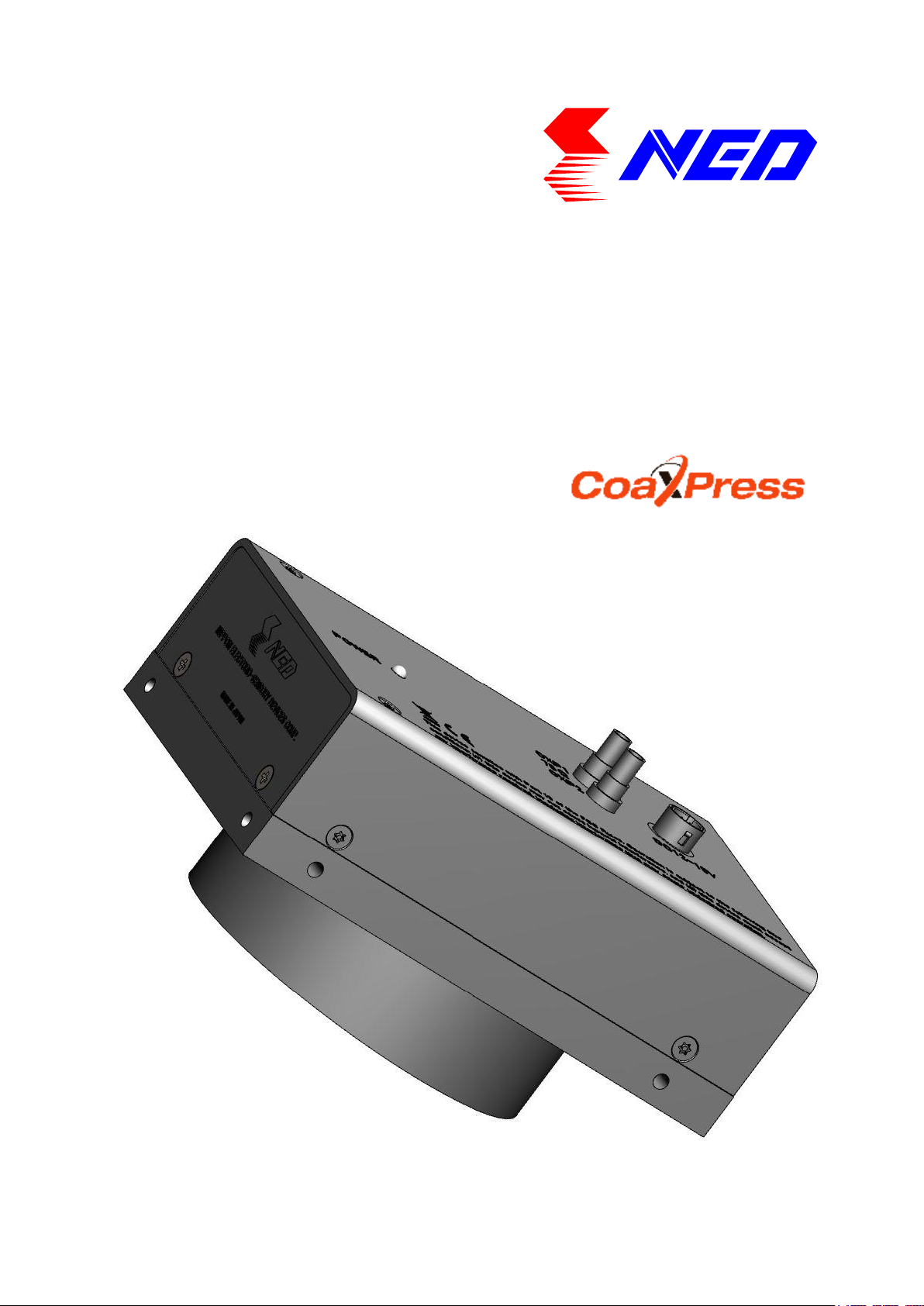

Line Scan Camera
Model:RMSL8K76CP/RMSL6K76CP/RMSL4K76CP
NIPPON ELECTRO-SENSORY DEVICES CORPORATION

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
2
For Customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A
digital device, in accordance with Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference,
in which case the user will be required to correct the interference at his or her own
expense.
For Customers in the EU
This equipment has been tested and found to comply with the essential requirements
of the EMC Directive 2004/108/EC, based on the following specifications applied:
EU Harmonised Standards
EN55032:2015 Class A
EN55011:2009+A1:2010 Class A
EN61000-6-2:2005
*Group 1 contains all ISM (Industrial, Scientific and medical) equipment in which there
is intentionally generated and/or used conductively coupled radio-frequency energy
which is necessary for the internal functioning of the Equipment itself.
*Class A equipment is equipment suitable for use in all establishments other than
domestic and those directly connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
Directive on Waste Electrical and Electronic Equipment (WEEE)
Please return all End of Life NED products to the distributor from whom the product
was purchased for adequate recycling and / or disposal. All costs of returning the
Product to NED are borne by the shipper.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
3
Introduction
Thank you for purchasing NED’s Line Scan Camera. We look forward to your
continued custom in the future.
For safety use
◆For your protection, please read these safety instructions completely before
operating the product and keep this manual for future reference.
◆The following symbols appear next to important information regarding safe product
handling.
Warning
If the product is not handled properly, this may result in
serious injury or possible death.
Caution
If the product is not handled properly, this may result in
physical injury or cause property damage.
Safety precaution
Warning
◆Never disassemble or modify this product, unless otherwise specified to do so in
this manual.
◆When hands are wet, avoid handling this product and do not touch any of the
connection cable pins or other metallic components.
◆Do not operate this product in an environment that is exposed to rain or other
severe external elements, hazardous gases or chemicals.
◆If the product is not to be used for an extended period of time, as a safety
precaution, always unplug the connection cable from the camera unit.
◆If the product installation or inspection must be executed in an overhead location,
please take the necessary measures to prevent the camera unit and its
components from accidentally falling to the ground.
◆If smoke, an abnormal odor or strange noise is emitted from the camera unit, first
turn off power, then unplug the cable from the camera unit.
◆This product is not intended for use in a system configuration built for critical
applications.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
4
Instructions before use
◆Only operate this product within the recommended environmental temperature
range.
◆Use only the specified power source and voltage rating.
◆Do not drop this product.Avoid exposure to strong impact and vibrations.
◆Install the camera unit in a well-ventilated environment, in order to prevent the
camera from overheating.
◆If the camera must be installed in an environment containing dust or other particles,
take required measures to protect the camera unit from dust adhesion.
◆Do not unplug the cable while power is being supplied to the camera unit. To
prevent product damage, always shut down the power supply before unplugging
the power cable.
◆When the surface of the camera window becomes dirty due to dust or grime, black
smudges appear in the displayed image. Use an air blower to remove the dust
particles. Dip a cotton swab into ethanol alcohol and clean the camera window. Be
careful not to scratch the glass.
◆Use of non-infrared lighting such as a fluorescent lamp is recommended. If halogen
lighting is employed, always install an infrared filter into your system configuration.
◆Please note that exposure to long wavelength light outside of the sensors visible
optical range can affect the image.
◆Sensitivity may fluctuate depending on the spectral response level of the light
source. In cases like this, changing the light source to one with a different spectral
response level may reduce this problem. Moreover, this irregular sensitivity can be
completely lost by using 4.11 pixel correction function. Please refer to 4.11 pixel
correction function for details.
◆Note that when the sensor is exposed to excessive quantities of light, blooming
may occur, because this product does not have a special Anti-Blooming function.
◆For stabilized image capturing, turn on the power supply and execute aging for ten
to twenty minutes before actually using the camera unit.
◆Do not share the power supply with motor units or other devices that generate
noise interference.
◆The signal ground (SG) and the frame ground (FG) are connected inside the
camera unit. Design the system configuration so that a loop will not be formed by
the ground potential differential.
◆Do not disconnect the camera while rewriting an embedded memory.
◆When using external trigger, change the setting with the trigger packet supplied
beforehand from the frame grabber board.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
5
Product Warranty
Warranty Period
◆The product warranty period, as a general rule, is two years from purchase;
however for detailed conditions please contact the sales representative for your
region/country.
◆However, in some cases due to the usage environment, usage conditions and/or
frequency of use, this warranty period may not be applicable.
Warranty Scope
◆Product repair will be performed on a Return To Manufacturer basis. On-site
maintenance will incur additional charges.
◆If defects in material or workmanship occur during the warranty period, the faulty
part will be replaced or repaired by us free of charge. Return shipping charges
must be paid by the sender. However, the following cases fall outside of the scope
of this warranty:
◆The expired date of the warranty period on the product repaired or replaced during
the warranty period of the original product is the same as the eapired date of the
warranty period on the original product.
Exclusions from Warranty Coverage
◆We will under no circumstances assume responsibility for the following cases:
damage caused by fire, earthquake, other acts of a third party, other accidents,
negligent or intentional misuse by the user, or other usage under extraordinary
circumstances.
◆Damages (e.g. loss of business profits, business interruption, etc.) resulting from
use or non-use.
◆Damages caused by use other than as described in this document.
◆Damages resulting from malfunction due to a connected device.
◆Damages resulting from repairs or modifications performed by the customer.
Fault Diagnosis
◆As a general rule, in the first instance fault diagnosis should take the form of a
telephone call or an email to enable us to assess the circumstances of the
malfunction.
◆However, depending on the customer’s requests, we, or our agent, may require an
additional fee for this service.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
6
Exclusion of Liability for Compensation for Missed Opportunities
◆Regardless of whether within the warranty period or not, our warranty does not
cover compensation for missed opportunities for our customers, or our customers’
customers, caused by a fault of our products, nor for damage to products other
than our own, or related business.
Note about Product Usage
◆This product has been designed and manufactured as a general-purpose product
for general industry. In applications expected to be life-critical or safety-critical, the
installer or user is requested to install double or triple failsafe systems.
Repair Service Outline
◆The cost of dispatching engineers etc. for repair service is not included in the price
of purchased and supplied goods. On request, arrangements can be made
separately.
Scope of Repair Service
◆The above assumes business dealings and usage to take place in the customer’s
region / country. In cases of business dealings and/or usage outside the customer’s
region/country, separate consultation is required.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
7
Table of Contents
1 Product Outline 10
1.1 Features--------------------------------------------------------------------------------------------------10
1.2 Application ----------------------------------------------------------------------------------------------10
1.3 Image Sensor-------------------------------------------------------------------------------------------12
1.4 Performance Specifications -----------------------------------------------------------------------12
2 Camera Setting and Optical Interface 16
2.1 Setting the Camera -----------------------------------------------------------------------------------16
2.2 Fixing the Camera-------------------------------------------------------------------------------------16
2.3 Optical Interface ---------------------------------------------------------------------------------------20
3 Hardware 21
3.1 Camera Connection ----------------------------------------------------------------------------------21
3.2 Input / Output Connectors and Indicator ------------------------------------------------------23
3.3 Connectors･Pin Assignments---------------------------------------------------------------------23
3.4 Power Supply-------------------------------------------------------------------------------------------24
3.4.1 How to supply from power connector 24
3.4.2 How to supply from the CXP 1 connector (PoCXP) 25
3.5 LED Indicator Status ---------------------------------------------------------------------------------25
4 Camera Control 26
4.1 Flow of Camera Control---------------------------------------------------------------------------26
4.1.1 GenICam overview 26
4.1.2 Camera Control registers 26
4.2 Details on register system--------------------------------------------------------------------------29
4.2.1 Category 31
4.2.2 Device Control 32
4.2.3.1 Setting Pixel Readout Direction 33
4.2.3.3 Generating Test Pattern 33
4.2.4 Acquisition Control 34
4.2.5 Analog Control 36
4.2.5.1 Setting Analog Gain 36
4.2.5.3 Setting Digital Gain 37
4.2.6 User Set Control 39

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
8
4.2.7 Transport Layer Control –CoaXPress 40
4.2.8 NED additional features 41
4.2.8.1 Setting Pixel Correction 41
4.2.8.3 Saving White Pixel Correction Data 42
4.2.8.4 Saving Black Pixel Correction Data 42
4.3 Digital Processing flow in FPGA -----------------------------------------------------------------43
4.4 Startup----------------------------------------------------------------------------------------------------43
4.5 Saving and Loading Camera Settings ----------------------------------------------------------44
4.6 XML file ---------------------------------------------------------------------------------------------------45
4.7 Video Output Format---------------------------------------------------------------------------------45
4.8 Exposure Mode and Timing Chart ---------------------------------------------------------------46
4.8.1 Free Run Exposure Mode (When external trigger permission is invalid) 46
4.8.2 External Trigger (Timed) Exposure Mode 47
4.8.3 External Trigger (TriggerWidth) Exposure Mode 48
4.9 Setting Offset-------------------------------------------------------------------------------------------49
4.10 Setting Gain -------------------------------------------------------------------------------------------50
4.11 Pixel Correction --------------------------------------------------------------------------------------52
4.11.1 Pixel (bit) correction related register 53
4.11.2 White pixel · Black pixel correction data acquisition condition 53
4.12 Test Pattern--------------------------------------------------------------------------------------------54
5 Sensor Handling Instructions 57
5.1 Electrostatic Discharge and the Sensor -------------------------------------------------------57
5.2 Protecting Against Dust, Oil and Scratches --------------------------------------------------57
5.3 Cleaning the Sensor Window----------------------------------------------------------------------57
6 Troubleshooting 58
6.1 When there is no Image -----------------------------------------------------------------------------58
6.2 When Noise is present in the Image-------------------------------------------------------------60
6.3 When the Camera becomes hot.------------------------------------------------------------------62
7 Others 63
7.1 Notice -----------------------------------------------------------------------------------------------------63
7.2 Contact for support-----------------------------------------------------------------------------------63
7.3 Product Support---------------------------------------------------------------------------------------64

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
9
7.3.1 Warranty card (attach a separate) 64
7.3.2 When you need to repair 64
Revision History 65

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
10
1 Product Outline
1.1 Features
⚫7µm 8192/6144/4096 pixels monochrome
⚫Maximum line rate is 76.923KHz
⚫Flat-field correction –minimizes lens vignetting, non-uniform lighting and
sensor FPN and PRNU
⚫Compatible with CoaXPress IF Ver1.1.1
⚫Cable length about 100m at CXP-3(3.125Gbps)X1 or X2
CXP-5(5.000Gbps)X1 or X2 is about 40m
＊Set to CXP-3X1 at factory mode.
＊Operating power supply can be a single external power supply 12V to 15V or
PoCXP
1.2 Application
⚫Inspection of Transparent panels and PCBs
⚫Inspection of high speed moving objects
⚫Flat panel display inspection
⚫Inspection of glass and sheet-like objects
⚫Printed circuit board inspection
⚫This camera utilizes an Intelligent Transportation System
⚫Outdoor surveillance
Wide dynamic range prevents the camera from saturation caused by direct rays
and specular refection rays.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
11
An example of Visual Inspection of PCBs is shown below.
Figure 1-2-1 Visual Inspection of PCBs
Applicable Work
COB, BGA and MCM printed circuit boards
Performance
1. Maximum board size: 100mm×200mm
2. Resolution: 10μm
3. Inspection time: less than 30 seconds
Unit Configuration
1. Camera: Line scan camera
2. Controller: Dedicated software for PC system
3. Size: L930 x D500 x H500 (mm)
Applicable Fields
Inspection of patterns on film PCBs
Line scan camera

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
12
1.3 Image Sensor
The camera uses a CMOS sensor with a maximum line rate of 76.923KHz to
acquire high responsivity and superior quality images.
The pixels are 7μmx7μm.
RMSL8K76CP outputs 8192 pixels, RMSL6K76CP outputs 6144 pixels and
RMSL4K76CP outputs 4096 pixels data on the CoaXPress interface.
1.4 Performance Specifications
The Performance Specifications are shown in Table 1-4-1. It shows the data when
the camera is operating at maximum line rate, unless otherwise specified.
Table 1-4-1 Performance Specifications
Items
Specifications
RMSL8K76CP
RMSL6K76CP
RMSL4K76CP
Number of Pixels
8192
6144
4096
Pixel Size HxV (μm)
7x7
Sensor Length (mm)
57.344
43.008
28.672
Spectral Responsivity (nm)
400 -1000 (Peak : 625, See Figure 1-4-1)
Maximum Line Rate
(kHz) / (μs)
76.923 / 13.00 (See Table 1-4-3)
Saturation Exposure (lx･s)
(typically)
0.071[Minimum Gain, Pixel Correction Initial Value,
Daylight Fluorescent Light]
Responsivity (typically)
[Minimum Gain,
Pixel Correction Initial Value,
Daylight Fluorescent Light]
Visible Area (400~700nm)
100(V/[lx･s])
Analog 5V Conversion Sensitivity
Gain Adjustable Range
*Analog Amplifier +Digital
Analog Amplifier：ｘ1 to ｘ10 (8 Steps)
Digital：ｘ1 to ｘ2 (512 Steps)
Offset Adjustable Range
*Digital
Digital：-127～127 (0.5DN/STEP:8bit)
-127～12 7(2.0DN/STEP:10bit)
FPN
(Fixed Pattern Noise)
Typically 5DN (without correction, at minimum gain)
2DN (with correction, at minimum gain)
PRNU(Photo Response Non
Uniformity)
Typically 20DN (without correction, at minimum gain)
4DN (with correction, at minimum gain)
Random Noise
Typically 20DN (peak value at minimum gain)
Video output
CoaXPress

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
13
Connectors
CXP1 / CXP2
75Ω DIN 1.0/2.3 type
Power Supply
Hirose: HR10G（6Pin）
Lens Mount
M72x0. 75 Screw
Nikon F Mount
Operating Temperature (˚C)
No Condensation
0 to 50
Power Supply Voltage (V)
DC12~15[±5％]
Consumption Current (mA)
(typically)
750
650
550
Size W x H x D (mm)
80x120x71.2
80x120x85.9
Mass (g) (Camera only)
610
600
600
Additional Functions
1 Shading Correction
2 Gain/Offset/Video Output(8bit/10bit) Adjustable
3 Test Pattern Output On/Off
4 Programmable Exposure Control
5 Scan Direction Switching
6 Display of Internal Temperature of Camera
*1) DN : Digital Number (10-bit : 0 -1023)
*2) Measurements were made at room temperature.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
14
Table 1-4-2 CoaXPress IF Specifications
CoaXPress interface specifications
Ver.
1.1.1 *1
Bit Rate
3.125 or 5.000
(CXP-3 or CXP-5)
Discovery Rate
3.125
(CXP-3)
Number of Connections
1 or 2（cable）
Power Over CoaXPress
（PoCXP）
Only for connector CXP 1 side
Pixel Format
Mono8 or Mono10
（black and white 8bit ・10bit）
Image Type
Rectangular
Low Speed connection
Trigger (Trigger packet)
frame grabber（Host）→ camera（Device）
jitter ±8ns・Min. pulse width 2.9us ＊2
* 1 Please use the frame grabber board for CoaXPress Ver1.1.1.
Indicator status (refer to P.24) is different from CoaXPress Ver1.0.
* 2 Jitter and minimum pulse width also depend on the frame grabber board.
Table 1-4-3 CxpLinkConfiguration and maximum line rate and maximum cable length
CxpLink
Configuration
Maximum Line Rate (kHz)
Cable length
(m)
RMSL8K76CP
RMSL6K76CP
RMSL4K76CP
CXP-3X1(Factory set.)
25.000
33.333
50.000
100
CXP-5X1
38.461
50.000
76.923
40
CXP-3X2
50.000
66.666
76.923
100
CXP-5X2
76.923
76.923
40
＊CxpLinkConfiguration is set to CXP-3X1 when loading the factory - shipped setting value in
the memory. It is necessary to reconfigure CxpLink Configuration and store it in memory
according to the maximum line rate to be used. (Refer to 4.2.7.1 CXP link setting and 4.2.6
User Set Control)
Maximum cable length is approximate.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
15
The quantum efficiency is shown below.
Figure 1-4-1 Quantum efficiency

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
16
2 Camera Setting and Optical Interface
2.1 Setting the Camera
Use the M4 screw holes or the tripod screw hole to set the camera.
An optional mounting base (sold separately) is available.
2.2 Fixing the Camera
⚫Use the M4 screw holes (4 on the front, 8 on the side) to set the camera.
⚫Or use the 1/4"-20UNC screw hole for a tripod (1 place at bottom).
◆If using the front panel M4 mounting holes (4 places at front, 8 places at side), the
screw length for fixing the camera at the front should be less than 8mm, and less
than 6mm for the side.
◆No X-, Y-axis orientation and tilt adjustment mechanism is available. Please
prepare an adjustment mechanism if required.

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
17
The dimensions of the camera are shown below.
M72×0.75 screw mount
Figure 2-2-1 Dimensions of the RMSL8K76CP

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
18
Nikon F Mount
Figure 2-2-2 Dimensions of the RMSL6K76CP

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
19
Nikon F Mount
Figure 2-2-3 Dimensions of the RMSL4K76CP

NED
RMSL8K76CP/RMSL6K76CP/RMSL4K76CP UME-0094-02
20
2.3 Optical Interface
For RMSL8K76CP, M72×0.75 screw mount is used.
For RMSL6K76CP, RMSL4K76CP, Nikon F mount is used.
The amount and wavelengths of light required to capture useful images depend on
the intended use. Factors include the property, speed, the objects spectral
characteristics, exposure time, the light source characteristics, the specifications of
the acquisition system and so on.
The exposure amount (exposure time x light amount) is the most important factor in
getting desirable images. Please determine the exposure amount after studying what
is most important to your system.
Keep these guidelines in mind when setting up your light source:
⚫LED light sources are relatively inexpensive, provide a uniform field and longer
life span compared to other light sources. However, they also require a camera
with excellent sensitivity.
⚫Halogen light sources generally provide very little blue light but have high
infrared light (IR) proportions.
⚫Fiber-optic light distribution systems generally transmit very little blue light
relative to IR.
⚫Metal halide light sources are very bright but have a shorter life span compared
to other light sources.
Generally speaking, the brighter the light sources, the shorter the life span.
CMOS image sensors are sensitive to infrared (IR). We recommend using daylight
colour fluorescent lamps that have low IR emissions. If you use a halogen light
source, to prevent infrared from distorting the images use an IR cutoff filter that does
not transmit wavelengths.
