NED XCM8085DLMT8 User manual

User’s Manual
Line Scan Camera
Type: XCM８０８５DLMT８
NIPPON ELECTRO-SENSORY DEVICES CORPORATION

2 NED
XCM8085DLMT8 UME-0060-04
For Customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A
digital device, in accordance with Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his or her own expense.
For Customers in the EU
This equipment has been tested and found to comply with the essential requirements
of the EMC Directive 2004/108/EC, based on the following specifications applied:
EU Harmonised Standards
EN55022:2010 Class A
EN61000-6-2:2005
Warning
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Directive on Waste Electrical and Electronic Equipment (WEEE)
Please return all End of Life NED products to the distributor from whom the product was
purchased for adequate recycling and / or disposal. All costs of returning the Product to
NED are borne by the shipper.

3 NED
XCM8085DLMT8 UME-0060-04
Introduction
Thank you for purchasing NED’s Line Scan Camera. We look forward to your
continued custom in the future.
For safety use
For your protection, please read these safety instructions completely before
operating the product and keep this manual for future reference.
The following symbols appear next to important information regarding safe product
handling.
Warning
If the product is not handled properly, this may result
in serious injury or possible death.
Caution
If the product is not handled properly, this may result
in physical injury or cause property damage.
Safety precaution
Warning
Never disassemble or modify this product, unless otherwise specified to do so in this
manual.
When hands are wet, avoid handling this product and do not touch any of the
connection cable pins or other metallic components.
Do not operate this product in an environment that is exposed to rain or other severe
external elements, hazardous gases or chemicals.
If the product is not to be used for an extended period of time, as a safety precaution,
always unplug the connection cable from the camera unit.
If the product installation or inspection must be executed in an overhead location,
please take the necessary measures to prevent the camera unit and its components
from accidentally falling to the ground.
If smoke, an abnormal odor or strange noise is emitted from the camera unit, first
turn off power, then unplug the cable from the camera unit.
This product is not intended for use in a system configuration built for critical
applications.

4 NED
XCM8085DLMT8 UME-0060-04
Instructions before use
Only operate this product within the recommended environmental temperature
range.
Use only the specified power source and voltage rating.
Do not drop this product. Avoid exposure to strong impact and vibrations.
Install the camera unit in a well-ventilated environment, in order to prevent the
camera from overheating.
If the camera must be installed in an environment containing dust or other particles,
take required measures to protect the camera unit from dust adhesion.
Do not unplug the cable while power is being supplied to the camera unit. To prevent
product damage, always shut down the power supply before unplugging the power
cable.
When the surface of the camera window becomes dirty due to dust or grime, black
smudges appear in the displayed image. Use an air blower to remove the dust
particles. Dip a cotton swab into ethanol alcohol and clean the camera window. Be
careful not to scratch the glass.
Use of non-infrared lighting such as a daylight fluorescent lamp is recommended. If
halogen lighting is employed, always install an infrared filter into your system
configuration.
Please note that exposure to long wavelength light outside of the sensors visible
optical range can affect the image.
Sensitivity may fluctuate depending on the spectral response level of the light
source.In cases like this, changing the light source to one with a different spectral
response level may reduce this problem.Moreover, this irregular sensitivity can be
completely lost by using 4.11 pixel correction functiom.Please refer to 4.11 pixel
correction function for details.
Please note that when the sensor is exposed to excessive quantities of light,
blooming may occur. because this product does not have a special Anti-Blooming
function.
For stabilized image capturing, turn on the power supply and execute aging for ten
to twenty minutes before actually using the camera unit.
Do not share the power supply with motor units or other devices that generate noise
interference.
Do not disconnect the camera while rewriting an embedded memory.

5 NED
XCM8085DLMT8 UME-0060-04
Product Warranty
Warranty Period
The product warranty period, as a general rule, is two years from purchase; however
for detailed conditions please contact the sales representative for your
region/country.
However, in some cases due to the usage environment, usage conditions and/or
frequency of use, this warranty period may not be applicable.
Warranty Scope
Product repair will be performed on a Return To Manufacturer basis. On-site
maintenance will incur additional charges.
If defects in material or workmanship occur during the warranty period, the faulty
part will be replaced or repaired by us free of charge. Return shipping charges must
be paid by the sender. However, the following cases fall outside of the scope of this
warranty:
Exclusions from Warranty Coverage
We will under no circumstances assume responsibility for the following cases:
damage caused by fire, earthquake, other acts of a third party, other accidents,
negligent or intentional misuse by the user, or other usage under extraordinary
circumstances.
Damages (e.g. loss of business profits, business interruption, etc.) resulting from
use or non-use.
Damages caused by use other than as described in this document.
Damages resulting from malfunction due to a connected device.
Damages resulting from repairs or modifications performed by the customer.
Fault Diagnosis
As a general rule, in the first instance fault diagnosis should take the form of a
telephone call or an email to enable us to assess the circumstances of the
malfunction.
However, depending on the customer’s requests, we, or our agent, may require an
additional fee for this service.

6 NED
XCM8085DLMT8 UME-0060-04
Exclusion of Liability for Compensation for Missed Opportunities
Regardless of whether within the warranty period or not, our warranty does not
cover compensation for missed opportunities for our customers, or our customers’
customers, caused by a fault of our products, nor for damage to products other than
our own, or related business.
Note about Product Usage
This product has been designed and manufactured as a general-purpose product
for general industry. In applications expected to be life-critical or safety-critical, the
installer or user is requested to install double or triple failsafe systems.
Repair Service Outline
The cost of dispatching engineers etc. for repair service is not included in the price
of purchased and supplied goods. On request, arrangements can be made
separately.
Scope of Repair Service
The above assumes business dealings and usage to take place in the customer’s
region / country. In cases of business dealings and/or usage outside the customer’s
region/country, separate consultation is required.

7 NED
XCM8085DLMT8 UME-0060-04
Table of Contents
1 Product Outline...................................................................................................... 10
1.1 Features.....................................................................................................................................10
1.2 Application ................................................................................................................................10
1.3 Image Sensor............................................................................................................................12
1.4 Performance Specifications....................................................................................................13
2 Camera Setting and Optical Interface.................................................................. 15
2.1 Setting the Camera...................................................................................................................15
2.2 Fixing the Camera.....................................................................................................................15
2.3 Optical Interface........................................................................................................................16
3 Hardware................................................................................................................ 17
3.1 Camera Connection..................................................................................................................17

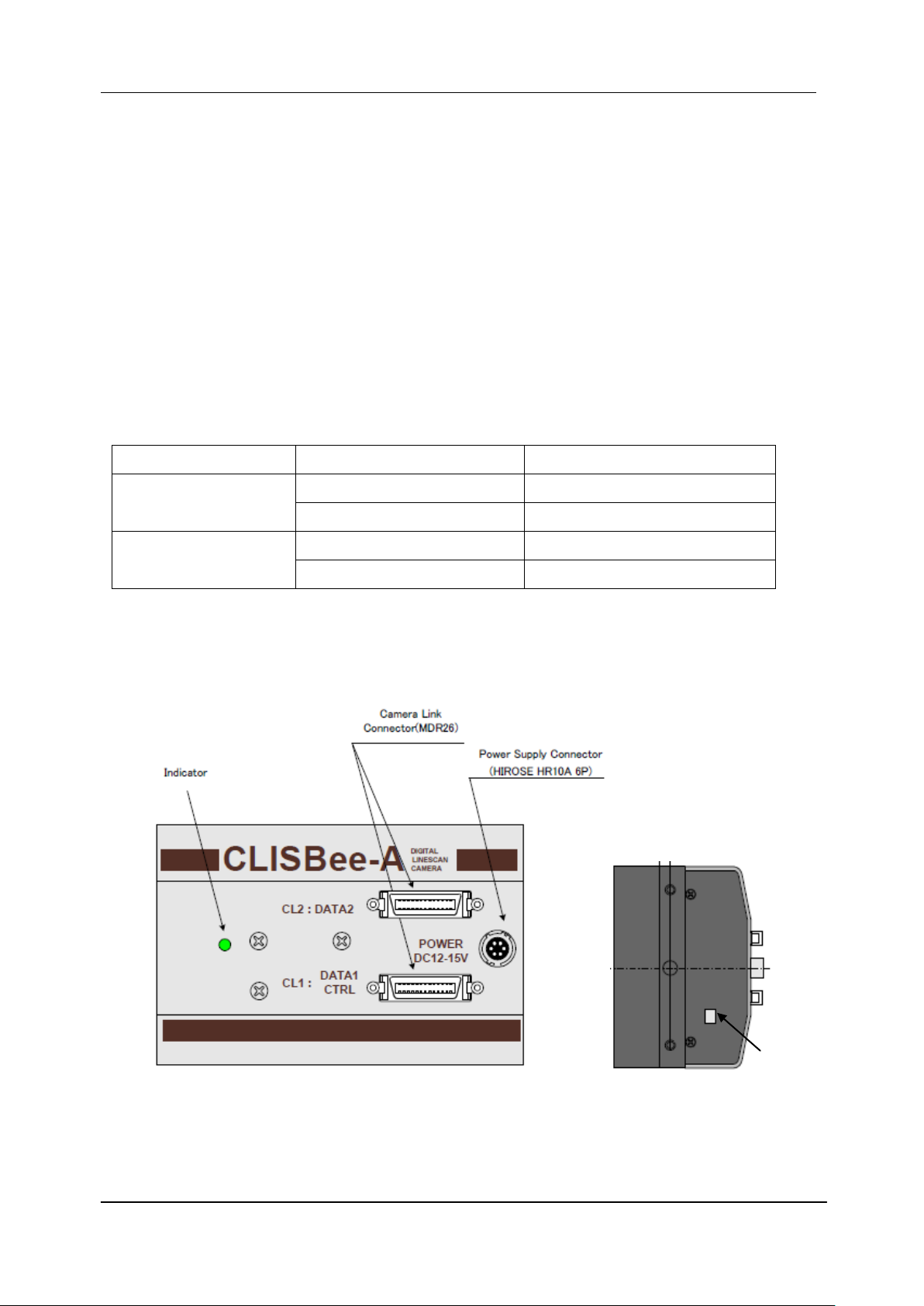

3.2 Input / Output Connectors and Indicator...............................................................................18
3.3 Connectors･Pin Assignments･Cables...................................................................................19
3.4 Power Supply............................................................................................................................22
4 Camera Control...................................................................................................... 23
4.1 Flow of Camera Control...........................................................................................................23
4.1.1 Command Overview ........................................................................................................ 23
4.1.2 Camera Receiving Message (PC Sending Command)................................................. 23
4.1.3 Camera Sending Message (PC Receiving Message)................................................... 24
4.1.4 Camera Control Commands........................................................................................... 25
4.1.5 Memory Setup Values (Factory Settings)...................................................................... 27
4.2 Details on Commands..............................................................................................................28
4.2.1 Setting Analog Gain......................................................................................................... 28
4.2.2 Setting Digital Gain.......................................................................................................... 28
4.2.3 Setting Digital Offset........................................................................................................ 28
4.2.4 Setting Exposure Mode................................................................................................... 29
4.2.5 Setting Exposure Time.................................................................................................... 29
4.2.6 Memory Initializing (Initializing Camera Settings)........................................................ 32
4.2.7 Memory Load.................................................................................................................... 33
4.2.8 Memory Save.................................................................................................................... 34
4.2.9 Generating Test Pattern .................................................................................................. 34
4.2.10 Black Pixel Correction Data Save ................................................................................ 34
4.2.11 White Pixel Correction Data Save ................................................................................ 34
4.2.12 Setting Pixel Correction................................................................................................ 35
4.2.13 Setting Exposure Time - Readout Time....................................................................... 35
4.2.14 Returning the Camera Settings status ........................................................................ 36
4.2.15 Setting Pixel Readout Direction................................................................................... 36

8 NED
XCM8085DLMT8 UME-0060-04
4.2.16 Setting OutputSignal 1.................................................................................................. 37
4.2.17 Setting OutputSignal 2.................................................................................................. 37
4.2.18 Setting Line Delay.......................................................................................................... 38
4.2.19 Setting Display............................................................................................................... 38
4.2.20 Setting Output TAP Number ......................................................................................... 38
4.2.21 Temperature Display...................................................................................................... 39
4.2.22 Selecting Output Data Rate........................................................................................... 39
4.2.23 Summary of Settings of Four Modes........................................................................... 40
4.3 Digital Processing flow in FPGA.............................................................................................41
4.4 Startup........................................................................................................................................41
4.5 Saving and Loading Camera Settings....................................................................................42
4.6 Serial Communication Settings ..............................................................................................43
4.7 Video Output Format................................................................................................................43
4.8 Exposure Mode and Timing Chart..........................................................................................50
4.8.1 Free Run Exposure Mode (Programming time setting)............................................... 50
4.8.2 External Trigger Exposure Mode (External trigger edge)............................................ 51
4.8.3 External Trigger Exposure Mode (Trigger Level) ......................................................... 53
4.9 Setting Offset............................................................................................................................55
4.10 Setting Gain.............................................................................................................................56
4.11 Pixel Correction ......................................................................................................................58
4.11.1 Command Settings ........................................................................................................ 59
4.11.2 How to correct................................................................................................................ 59
4.12 Test Pattern .............................................................................................................................60
4.13 Line Delay Setting...................................................................................................................61
5 Confirming Camera Settings ................................................................................ 62
5.1 Before Power-on.......................................................................................................................62
5.2 After Power-on ..........................................................................................................................64
5.3 In Operation...............................................................................................................................66
6 Sensor Handling Instructions............................................................................... 67
6.1 Electrostatic Discharge and the Sensor ................................................................................67
6.2 Protecting Against Dust, Oil and Scratches..........................................................................67
6.3 Cleaning the Sensor Window..................................................................................................67
7 Troubleshooting .................................................................................................... 68
7.1 When there is no Image...........................................................................................................68
7.2 When Noise is present in the Image.......................................................................................70
7.3 When the Camera becomes hot..............................................................................................72
8 CLISBeeCtrl............................................................................................................ 73
8.1 Overview....................................................................................................................................73
8.2 System Requirements..............................................................................................................73

9 NED
XCM8085DLMT8 UME-0060-04
8.3 Install..........................................................................................................................................73
8.4 Uninstall.....................................................................................................................................73
8.5 Operation...................................................................................................................................74
8.5.1 Start Program ................................................................................................................... 74
8.5.2 Selecting interface and Timeout setting ....................................................................... 75
8.5.3 Connect............................................................................................................................. 78
8.5.4 Disconnect and end program......................................................................................... 79
8.5.5 Check of the contents of communication..................................................................... 79
8.5.6 Export Parameters to text file......................................................................................... 80
8.5.7 Import Parameters from text file .................................................................................... 80
8.6 Control.......................................................................................................................................81
8.6.1 Gains and Offsets ............................................................................................................ 81
8.6.2 Clock & Integration.......................................................................................................... 82
8.6.3 Exposure mode (Trigger Mode) & Video output mode................................................ 83
8.6.4 Intelligence ....................................................................................................................... 84
8.6.5 Memory in camera ........................................................................................................... 84
8.7 Upgrade .....................................................................................................................................85
8.8 How to Program........................................................................................................................85
8.9 Attention on use........................................................................................................................85
9 Others..................................................................................................................... 86
9.1 Notice.........................................................................................................................................86
9.2 Contact for support..................................................................................................................86
9.3 Product Support .......................................................................................................................87
Revision History ....................................................................................................... 88

10 NED
XCM8085DLMT8 UME-0060-04
1 Product Outline
1.1Features
7μm 8192 pixels x 2, dual lines scan camera
Low noise image with 2 lines TDI mode
Choice of 2tap, 4tap or 8tap with 8192 pixels on data format
Programming control of each line’s exposure time
Binning function on data format (14μm-square 4096 pixels_4tap and
4096 pixels_2tap equivalent by 2x2 pixels binning)
On-chip A/D converter (8/10bit) on readout of all format
Easy control of gain / offset / gamma exchange with software outside the
camera.
Easy connection with a variety of frame grabber boards via Camera Link
interface
Single power source DC 12V to 15V for operation
PRNU / Shading correcting function
The camera comes with a M72-Mount.
1.2 Application
Inspection of transparent panels and PCBs
Flat panel display inspection
Inspection of glass and sheet-like objects
Inspection of high speed moving objects
This camera utilizes an Intelligent Transportation System
Outdoor surveillance

11 NED
XCM8085DLMT8 UME-0060-04
An example of Visual Inspection of PCBs is shown below.
Applicable Work
COB, BGA and MCM printed circuit boards
Unit Configuration
1. Camera: Line scan camera
2. Controller: Dedicated software for PC system
Applicable Fields
Inspection of patterns on film PCBs
Figure 1-2-1 Visual Inspection of PCBs
LED incident lighting
PCB pattern
Power supply
BOX

12 NED
XCM8085DLMT8 UME-0060-04
1.3 Image Sensor
The camera uses a CMOS sensor with a maximum data rate of 680MHz to acquire
high responsivity and superior quality images.
The sensor has pixels of 7μmx7μm in size and dual lines
The output data of 8192 pixels comes from 85MHz-8tap, 85MHz-4tap or
85MHz-2tap on TDI mode. Also, it comes as the output data of 4096 pixels with
14μm-square pixel equivalent from 85MHz_4tap or 85MHz_2tap by 2x2 pixels
binning
In addition, the output data rate can be selected at 40MHz by setting the camera link
clock.
（View from camera mount side when the camera screw hole for a tripod is at the
bottom）
4096 pixels with 14μm-square pixel equivalent by 2x2 pixels binning
8192Pixels
7um
7um
7um
line A
line B
14um
4096Pixels
14um

13 NED
XCM8085DLMT8 UME-0060-04
1.4 Performance Specifications
The Performance Specifications are shown in Table 1-4-1. It shows the data when
the camera is operating at maximum scan rate, unless otherwise specified.
Table 1-4-1 Performance Specifications
Items
Specifications
Number of Pixels
8192x2(Dual lines)
Pixel Size H x V (μm)
7ｘ7
Sensor Length (mm)
57.344
Data Rate (MHz)
680 (85x8)
Max. Scan rate [kHz]/
Min. Scan period (μs)
8k 8tap
77.55 / 12.89
8k 4tap
41.32 / 24.20
8k 2tap
21.67 / 46.14
4k 4tap
77.55 / 12.89
4k 2tap
41.32 / 24.20
Responsivity (V/[lx･s]) (typically)
[Minimum Gain, Pixel Correction Initial
Value]
125 ＊Daylight Fluorescent Light
＊Analog 5V Conversion Sensitivity
Gain Adjustable Range
*Analog Amplifier +Digital
Analog Amplifier：ｘ1 to ｘ17.8 (8 Steps)
Digital ：ｘ1 to ｘ2 (512 Steps)
Offset Adjustable Range
*Digital
-127 to 127 (0.5DN / Steps): 8bit
FPN
(Fixed Pattern Noise)
Typically 5%(without correction, at minimum gain)
2%(with correction, at minimum gain)
PRNU
(Photo Response Non Uniformity)
Typically 8% (without correction, at minimum gain)
4%(with correction, at minimum gain)
Random Noise
Typically 10DN
(peak value at minimum gain)
Video output
Camera Link(full/medium/base)
①8,10bit/8192pixels 8,4,2tap
Camera Link (full/medium)
②8,10bit/8192pixels x2(all pixel readout)/8,4tap
Camera Link (medium/base)
③8,10bit/4096pixels 4,2tap(2x2pixels binning)

14 NED
XCM8085DLMT8 UME-0060-04
Control Input
CC1: External Trigger Signal, CC2-4: Not in use
Connectors
Data/Controller
3M: MDR26 [Camera Link] x 2
Power Supply
Hirose: HR10A (6Pin)
Lens Mount
Standard: M72 Mount
Operating Temperature (˚C)
No Condensation
0 to 50
Power Supply Voltage (V)
DC 12 to 15 [+/-5%]
Consumption Current (mA) (typically)
700 (DC12V)
Size W x H x D (mm)
80x110x62
Mass (g) (Camera only)
Approx.630
Additional Function
1. Two-line TDI (8/4/2tap output)
2. Programmable Exposure Control of each line
3. 4096 pixels 4/2tap output by 2x2 pixels binning
4. Test Pattern Output On / Off
5. Scan Direction Switching
6. Display of internal camera temperature
Note:
*1) DN : Digital Number (8bit : 0-255)
*2) Measurements were made at room temperature.
The spectral responsivity is shown below.
Figure 1-4-1 Spectral Responsivity

15 NED
XCM8085DLMT8 UME-0060-04
2 Camera Setting and Optical Interface
2.1 Setting the Camera
Use the M4 screw holes or the tripod screw hole to set the camera.
An optional base holder is also available as accessory.
2.2 Fixing the Camera
Use the M4 screw holes (4 at the front, 8 at the side) to set the camera.
Or use the 1/4”-20UNC screw hole for a tripod (1 place at the side).
If using the front panel M4 mounting holes (4 places at the front, 8 places at the side),
the screw length for fixing the camera should be less than 8mm at the front and less
than 6mm at the side.
No X-, Y-axis orientation and tilt adjustment mechanism is available. Please prepare
an adjustment mechanism if required.
The dimensions of the camera are shown below.
1st.pixel
MADE IN JAPAN
NIPPON ELECTRO-SENSORY DEVICES CORP.
CL2: DATA2
POWER
DC12-15V
DIGITAL LINESCAN
CAMERA
This device complies with Part 15 of the FCC Rules.Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesiredoperation.
DATA1 CTRL
CL1:
110
7020
65
80
65 7.5
65 7.5
φ80
9010
5
5
5
(11.75)
20
(61.2)
M72 Mount
(FB=31.8)
2-M4 DEEP6
(Top)
2-M4 DEEP6
1/4"-20UNC DEEP6
(Bottom)
(Bottom)
USB Connector
7.5 4-M4 DEEP8
(Front)
40
55
Indicator
Cameralink Connector
Power Connector
4-M4 DEEP6
(Side)
(66.7)
Mount
M72×0.75 DEEP10
Figure 2-2-1 Dimensions of the Camera

16 NED
XCM8085DLMT8 UME-0060-04
2.3 Optical Interface
The XCM8085DLMT8 comes with M72-Mount as standard.
1) Quantities of light and the wavelength etc. of a source of light necessary to take the
image for which the customer hopes are different according to the usage. The factor to
decide these contains physical properties, the speed, the spectrum characteristic of
the object taken a picture of, the exposure time, and the characteristic of the source of
light and the specification etc. of the taking system.
It is a luminous exposure (exposure time × quantities of light) that it is important
because an appropriate image is obtained. Please decide the exposure time and
quantities of light after examining which element the customer values enough.
2) Keep these guidelines in mind when setting up your light source:
LED light sources are relatively inexpensive, provide a uniform field and longer life
span compared to other light sources. However, they also require a camera with
excellent sensitivity.
Halogen light sources generally provide very little blue light but have high infrared
light (IR) proportions.
Fiber-optic light distribution systems generally transmit very little blue light relative
to IR.
Metal halide light sources are very bright but have a shorter life span compared to
other light sources.
3) Generally speaking, the brighter the light sources, the shorter the life span.
CMOS image sensors are sensitive to infrared (IR). We recommend using daylight
color fluorescent lamps that have low IR emissions. If you use a halogen light source,
to prevent infrared from distorting the images use an IR cut off filter that does not
transmit wavelengths.

17 NED
XCM8085DLMT8 UME-0060-04
3 Hardware
3.1 Camera Connection
1. Connect the camera to the frame grabber board in the PC with two pieces of
Camera Link cables.
Notes:
1) Use asymmetric Camera Link cables
2) Connect the camera with the connector labeled as “Camera side”if Camera
Link cables have transmission direction.
2. Connect the power to the camera.
Notes:
Use a power cable to connect the camera with the power source. Connect the
plug end of the cable to the camera, and the open end to the power supply.
In addition, a personal computer, the frame grabber board, a lens, lens mount,
a light source and an encoder, etc. may be required. Please choose equipment
suitable for your application.
Figure 3-1-1 Connections between Camera and Frame Grabber Board and Power Supply
Camera Link cable manufacturers may have two types of cable for the Camera Link Full
Configuration board. See the specification and choose the appropriate cable.

18 NED
XCM8085DLMT8 UME-0060-04
<Note: Choosing the appropriate Camera Link cable length >
According to the Camera Link Specification, the maximum cable length is 10m. But the
maximum cable length to be able to transfer data depends on the type of cable
performance and clock speed. The actual maximum transmission distance becomes
less than 10m at faster clock speeds, though the transmission distance of 10m is
feasible at slower clock speeds.
The following table shows values being calculated in accordance with the Camera Link
Specification 2007.Version1.2, using a typical cable (14B26-SZLB-xxx-0LC from 3M)
and frame grabber board (Solios from Matrox). Please choose the appropriate Camera
Link cable type and length for your application. We recommend you perform a
connection test in advance.
Table 3-1-1 Calculated value of maximum cable length
Solios model
clock speed (MHz)
maximum cable length (m)
SOL 6M CL E*
(20～66MHz)
40
9.8
66
8.0
SOL 6M FC E*
(20～85MHz)
75
7.6
85
5.8
3.2 Input / Output Connectors and Indicator
The layout of input /output connecters and the LED indicator are as follows.
Figure 3-2-1 Input/Output Connectors and Indicator
Mini-USB
*For maintenance
【side panel】

19 NED
XCM8085DLMT8 UME-0060-04
3.3 Connectors･Pin Assignments･Cables
This camera adopts Full/Medium/Base Configuration of Camera Link interface
standards. Figure 3-3-1 shows the interface for the camera and a typical
implementation for the frame grabber interface.
Figure 3-3-1 Camera / Frame Grabber Interface (Full Configuration)
CC1(Control input)

20 NED
XCM8085DLMT8 UME-0060-04
Notes:
1) Do not make the driver side of LVDS open but set the logic to H or L, even if not
used.
2) Set the LVDS, Channel Link receiver side to 100-ohm termination.
Figure 3-3-2 Circuit of LVDS
The camera has 26-pin MDR connectors for control signals of Camera Link, data
signals and serial communications.
Figure 3-3-3 Camera Link Connector
Half pitch (miniature half ribbon) shape
Locking screw (UNC #4-40) type
1
14
2
15
3
16
11
24
12
25
13
26
#4-40
