Nedap Invexs 170 Series Instructions for use

EN
Date: 27-05-2019 Version 12.0 Document no.: 5265800
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does
the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be
reproduced in any way, in whole or in part, without the written consent of the publisher.
© Nedap N.V., P.O. Box 103, NL-7140 AC GROENLO, The Netherlands
1. General
The Invexs 170 reader series is capable of reading
(simultaneously) Nedap, Mifare and DESFire credentials
due to its dual reader technology. The Invexs can read
Mifare, DESFire and Nedap cards, and is equipped with
keypad and / or a display. The Invexs output can be set
to either Wiegand, XS RF modulation or RS485 protocol
(plain or encrypted). Functionality and output are
determined by the configuration of the Invexs reader.
The configuration is defined using the program AEreco,
and deployed by the configuration card or via AEmon.
(More information about configurations can be found in
the Convexs Invexs Installation Manual). Three LEDs
(red, green, blue) and beeper are included (display
version has no LED). Ciphers of the keypad versions light
up after activation, so when not active the ciphers are not visible.
Back panel is available only black (MNK170B).
2. Dimensions
3. Mounting Procedure Invexs
For mounting the Invexs, the back plane must be placed on the wall first.
For removing the back plane from the Invexs, unscrew the two screws at
the bottom of the Invexs and push the front cover up . Mount the back
plane using the 4 holes. Connections must be made on the connector on the
Invexs 170 Readers
Mifare Nedap dual technology readers
Quick Install sheet
EN
1
2
3
4
5
6
7
8
9
C
0
E
1
2
3
4
5
6
7
8
9
C
0
E
75.2
52
40
6.8
4.8
20.3
120
40
170.5
24.5
1.5
0.5
Dimensions: 171 x 75 x 25 mm.
4 mounting holes available
at 52 x 120 mm
Cable outlet: 40 x 40 mm
1
2
3
4
5
6
7
8
9
C
0
E
Unscrew
Push up
01
02
01
02

2
EN
Quick Install sheet | Invexs 170 Readers Mifare Nedap dual technology readers
Version 12.0
backside of the front. After making the connections, replace the front and tighten up the two
screws at the bottom of the Invexs.
4. Connections
Invexs is not hot-swappable, so when making or changing connections power must be switched
Off.
•Cable shield must be connected to Power GND of Convexs (A2) and GND of
external device (or metal case).
•If connected to a 120kHz RF device (AEOS Nedap reader AEpack or XS device) the
power is supplied via the Convexs adapters (AX1014 for AEpacks, AB350 for XS
devices). Existing antenna cabling can then be reused for connecting the
ConveXS.
•UL*,NA* and BEEP are Open Collector to GND.
If the Convexs adapters are used, the original UL and NA signals are
converted to the UL* and NA*.
5. LED Indicators Inside
There are two LEDs available: Blue for Status (of application), Green for Identification (both
visible through two small holes at the back side).
6. LED Indicators Front
At the front a three colour LED is positioned at the middle of the Invexs
Depending on the used configuration the function of these LEDs can differ:
•Green LED:Card is been authorised (UL LED)
•Red LED:Card is not authorised (NA LED), controller is stand-by
•Blue LED:
Blinks fast; No configuration is available at this Invexs (present Configuration
card or load Configuration first).
Continuously ON; Determined by configuration: E.g. Reader stand-by.
(Blue LED is activated if UL is OFF and NA is more than 1 sec OFF.)
Invexs
Function
1
Power /
XSMOD
Power in (12-30VDC) /
XS modulator (120kHz)
2
POWER GND/Shield
Power Ground
3
A (-)
RS485
4
B (+)
RS485
5
D0
Wiegand Data 0
6
D1
Wiegand Data 1
7
BEEP
Beep input
8
UL*
UL LED input
9
GND
LED Common Ground
10
NA*
NA LED input
R
GND
UL*/NA* / BEEP
1
10
1
10
5
6
Invexs with display
Invexs without display
ID (green)
Blinking
Card detected
ST: STATUS (blue)
Slow blinking
Application running (operating)
Fast blinking
Downloading or error during
loading
2 short flashes
Application present but not active
3 short flashes
No application present

3
EN
Quick Install sheet | Invexs 170 Readers Mifare Nedap dual technology readers
Version 12.0
Function of LEDs and Beeper is controlled by used application settings of Invexs.
Green and Red LED can be controlled by hardware signals (Connector 8 and 10) or
RS485NR, Blue LED indirectly by UL and NA, if this setting is activated (configuration).
Beeper can be controlled by hardware signal (Connector 7), RS485NR or software
(configuration).
7. Firmware
Pay attention that the firmware loaded in the Invexs together with the Invexs type and
configuration determines functionality and protocols. For the Invexs with screen contact Nedap.
Default (from factory) the Invexs handles the credentials on several ways simultaneously:
XS cards as: RS485NR, RF badge
Mifare cards (CSN) as: RS485NR, RF data
8. System Configurations (how to connect Invexs readers)
Configurations can be determined by using the configuration card.
Check the Convexs Invexs Installation Manual chapter 8 (Available reader Firmware) for
the compatibility for the used readers.
9. Tamper Switch
The Invexs 170 is equipped with a tamper switch which can be monitored over the RS485NR
protocol.
10. Beeper Indications
Beeper is also used for indication of loading the configuration:
•High sound beep (‘happy sound’): Configuration is loaded correct, second high sound
beep indicates that this configuration can be used with this Invexs
•Low sound beep (‘unhappy sound’): Configuration is not correct loaded or no
configuration available at start-up

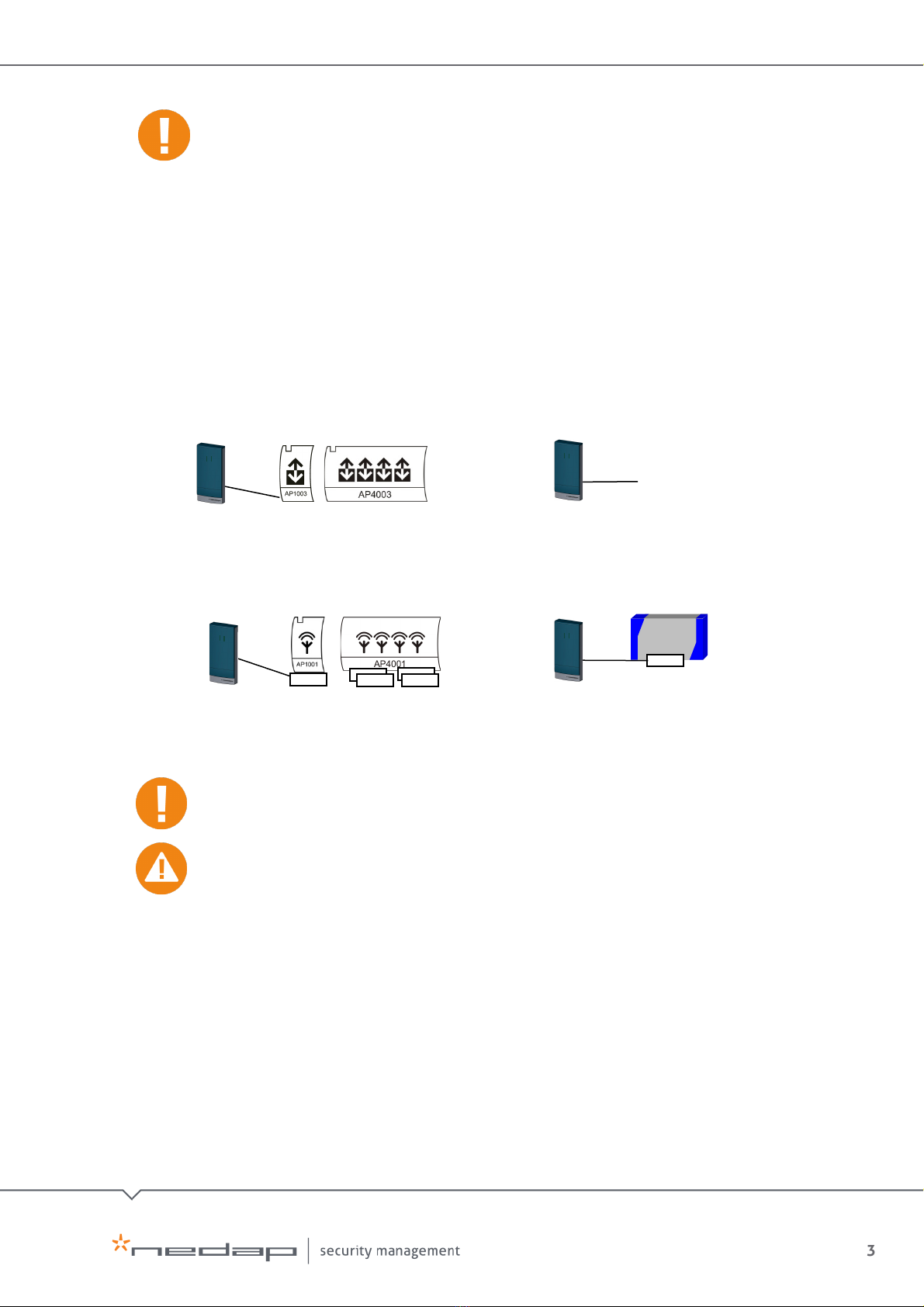

Invexs uses existing antenna cabling
(Coax + 3*0,25qmm for LEDs).
On each AEpack
-RF interface an AX1014
must be added. Connections: see AX1014
RF interface AEpacks
Accessor III /
SimpleXS
AX1014
AX1014
AX1014
AX1014
AX1014
AB350
RF interface XS systems
Invexs uses existing antenna cabling
(Coax + 3*0,25qmm for LED
s).
On each XS reader
-RF interface an AB350
must be added. Connections: see AB350
To APx003 readers with RS485 special encrypted
protocol. (LED
s, Beeper, Keys and Display are
controlled over the RS485 communication)
AEOS RS485 interface
- Third party systems
-
AEOS Wiegand
Wiegand interface
Wiegand output connected to Third party systems
(or to AEOS Wiegand interfaces). LEDs andBeeper
are controlled by hard wiring. (PINcode possible)
1
2
3
4
5
6
7
8
9
C
0
E
1
2
3
4
5
6
7
8
9
C
0
E

4
EN
Quick Install sheet | Invexs 170 Readers Mifare Nedap dual technology readers
Version 12.0
SPECIFICATIONS Invexs 170: MD170B (article no.9834400), MND170B (article no.9899570), MDK170B (article no.9834680),
MNDK170B (article no.9938761), MDNKS170B (article no.9938796)
Discontinued products: M170B (article no. 9833900), M170W (article no. 9832750), MD170W (article no. 9834370), MN170B
(article no. 9834060), MN170W (article no. 9832890), MND170W (article no. 9899570), MK170B (article no. 9834230),
MK170W (article no. 9832920), MDK170W (article no. 9834540), MNK170B (article no. 9833730), MNK170W (article no.
9833080), MNDK170W (article no. 9938753), MKS170B (article no. 9939822), MKS170W (article no. 9833390), MDKS170B
(article no. 9939849), MDKS170W (article no. 9891820), MNKS170B (article no. 9833870), MNKS170W (article no. 9833420),
MNDKS170W (article no. 9938788)
Dimensions:
171 x 75 x 25 mm
Weight:
± 200 gr
Protection:
IP40
Power Supply:
M(N)(D)170 12 – 30VDC, 70 - 28mA SELV
Power
Consumption:
70mA@12VDC, 35mA@24VDC
M(N)(D)K170 12 – 30VDC, 125 - 50mA SELV
125mA@12VDC, 60mA@24VDC
MNDKS: 12 – 30VDC, 130 - 52mA SELV
130mA@12VDC, 65mA@24VDC
Environment:
Temperature: Operating:0-55°C, Storage:-30-65°C
Relative humidity:
10 – 93% non-condensing
Tamper switch:
Yes
Communication
RS485 (Encrypted AEOS protocol to APx003, (firmware APx003rs485NR). RS485 plain
Wiegand Data 0 and Data 1 (protocol depending on configuration)
RF Modulator (120 kHz for AX1014 or AB350)
Inputs:
Beeper (Beep ON / OFF, controlled by application) Open collector to GND, max 20mA
UL* LED Open collector to GND, max 20mA
NA* LED Open collector to GND, max 20mA
Indicators:
UL (green) NA (red) ,MD (blue) (if available)
Antennas
(internal):
Antenna 1: 120 kHz, Nedap XS compatible (PM and AM cards). Detection distance UniXS card: 15 cm
Antenna 2: 13,56 MHz, Mifare compatible Detection distance Mifare card: 5 cm
Mifare EV1 card: 1 cm
CABLE SPECIFICATIONS
RS485:
2 x 2 x 0,25mm² shielded, max cable length: 1000 meter, cable capacity <= 100pF/meter
UL/GND/NA:
3 x 0,25mm², max cable length: 50 meter
XS MOD / GND:
Coax RG58U, max cable length: 50 meter
Or 5 x 0,25mm² shielded, max cable length: 50 meter, cable capacity <= 100pF/meter
Wiegand:
4 x 0,25mm² shielded (excl. LEDs), max cable length: 150 meter, depending on receiving device
MORE INFORMATION: Contact your local Nedap supplier or check our website www.nedapsecurity.com
