Installation Guide
ProSafe Wireless N VPN Firewall FVS318N
Follow these instructions to set up your VPN firewall.You can also consult the
documentation links on the Resource CD or the NETGEAR knowledge base at
http://kbserver.netgear.com.
Prepare to Install Your VPN firewall
• For Cable Modem Service. When you perform the VPN firewall setup steps be
sure to use the computer you used when you first set up your cable Internet
connection.
• For DSL Service. You may need information such as the DSL login name/e-
mail address and password in order to complete the VPN firewall setup.
Package Contents
The FVS318N contains the following:
• FVS318N VPN Firewall
• Ethernet cable (yellow)
• Power adapter
• Installation Guide
• Resource CD
Connect the FVS318N
1. Connect the cables between the FVS318N, computer, and modem
a. Turn off your computer.
b. Unplug and turn off the broadband modem.
c. Locate the Ethernet cable (Cable 1 in the diagram) that connects your
modem and computer.
d. Disconnect the cable at the computer end only, point Ain the diagram.
e. Securely insert the Ethernet cable from your modem (Cable 1 in the
diagram) into the WAN port of the FVS318N as shown in point B of the
next diagram.
A
f. Securely insert the yellow cable that came with your FVS318N (the Yellow
NETGEAR Cable in the diagram below) into a LAN port on the firewall such
as LAN port 1 (point C in the diagram), and the other end into the Ethernet
port of your computer (point D in the diagram).
C
D
BInternet
Your network cables are connected and you are ready to restart your network.
2. Restart your network in the correct sequence
WARNING!! Warning: Failure to restart your network in the correct sequence
could prevent you from connecting to the Internet.
a. First, plug in the power cord to your broadband modem, turn it on, and wait
two minutes.
b. Now, plug in the power cord to your FVS318N, turn it on, and wait one
minute.
c. Last, turn on your computer.
d. Note: For DSL customers, if ISP-provided software logs you in to the
Internet, do not run that software. You may need to go to the Internet
Explorer Tools menu, Internet Options, Connections tab page where you
can select “Never dial a connection.”
LAN Ports WAN
Power Test
e. Check the FVS318N status lights to verify the following:
f. Power.The Power light should turn solid green. If it does not turn solid
green, check the power adapter.
g. Test. The Test light goes on when the router is first turned on and then
goes off. If after two minutes it is still on, see the Troubleshooting Tips in
this guide.
h. WAN. The WAN port light should be on. If not, make sure the Ethernet
cable is securely attached to the FVS318N Internet port and the modem.
Also, make sure the modem is powered on.
i. LAN. Each local LAN port has two LEDs. The green LED on the upper left
indicates network activity. The right LED indicates communication speed. It
will be green for 1000 Mbps, amber for 100 Mbps, and off for 10 Mbps. If
the LAN port LED is not on, check that the Ethernet cable from the
computer to the firewall is securely attached at both ends, and that the
computer is on.
Configure the FVS318N for Internet Access
Use your browser to access and configure the FVS318N.
1. From the Ethernet connected computer you just set up, open a browser such
as Internet Explorer. With the FVS318N in its factory default state, type http://
192.168.1.1 in the browser address bar and click Enter. The login screen will
display.
FVS318N_IG 6May11.fm Page 1 Friday, May 6, 2011 1:54 PM

May 2011
This symbol was placed in accordance with the European Union Directive 2002/96 on the Waste
Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union,
this product should be treated and recycled in accordance with the laws of your jurisdiction
implementing the WEEE Directive.
©2011 by NETGEAR, Inc. All rights reserved. NETGEAR and the NETGEAR logo are registered trademarks of
NETGEAR, Inc. in the United States and/or other countries. Other brand and product names are trademarks or
registered trademarks of their respective holders. Information is subject to change without notice.

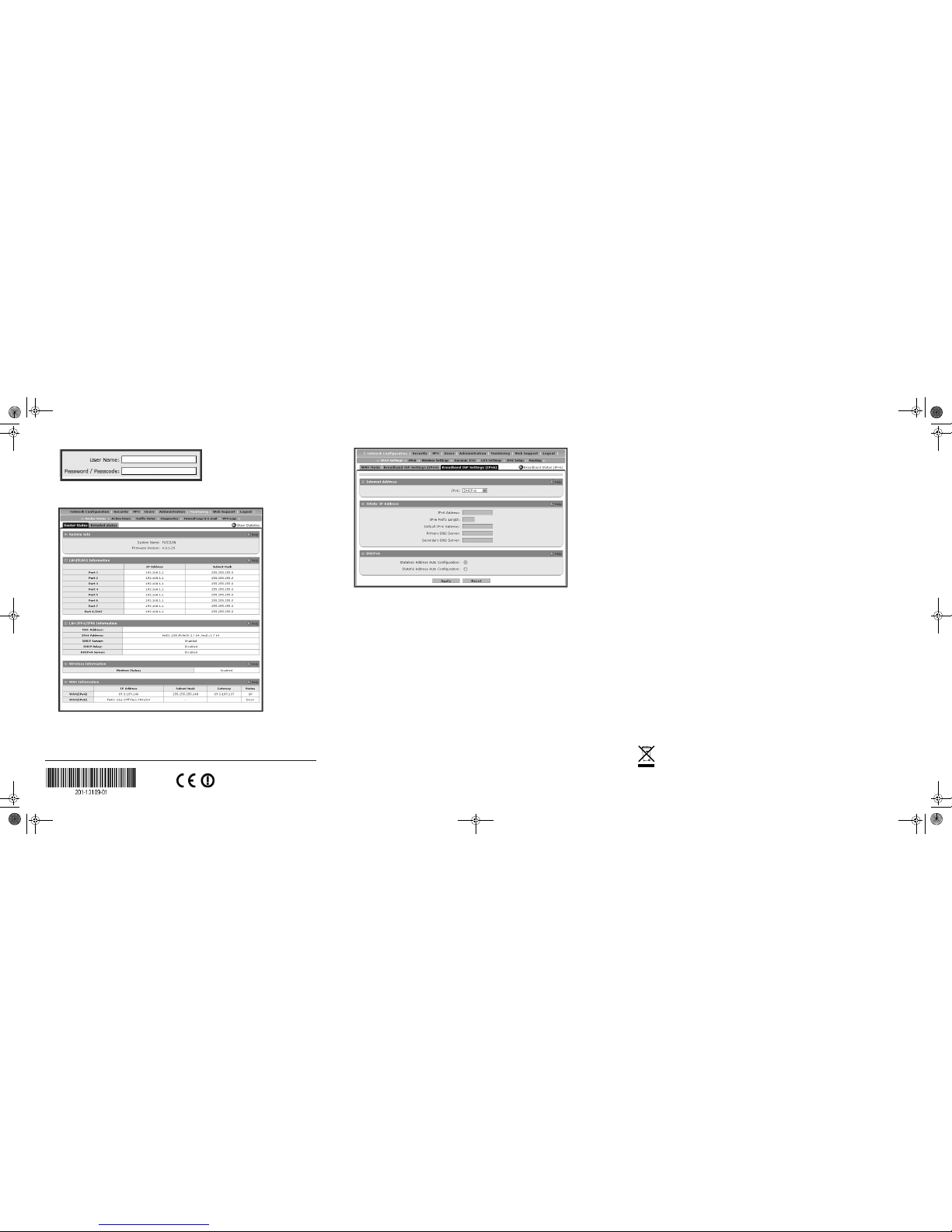

2. Enter admin as the user name and password for the password both in lower
case letters and click Login. The Router Status window will display.
3. If you need to change settings, select Network Configuration and enter
settings for your network and click Apply.
4. You can click Broadband Status in the upper right of the Configuration
display to check the connection status.
5. If you are not connected, you can click Connect on the Broadband Status
screen to establish the network connection. See the Reference Manual for
information on configuring FVS318N features..
Troubleshooting Tips
Here are some tips for correcting common problems you may encounter.
Be sure to restart your network in this sequence:
1. Turn off and unplug the modem, turn off the FVS318N, and shut down the
computer.
2. Plug in and turn on the modem, wait two minutes.
3. Turn on the FVS318N and wait one minute.
4. Turn on the computer.
Make sure the Ethernet cables are securely plugged in.
• The WAN port LED on the FVS318N will be on if the Ethernet cable to the
FVS318N from the modem is plugged in securely and the modem and
FVS318N are turned on.
• For each powered on computer connected to the FVS318N with a securely
plugged in Ethernet cable, the corresponding FVS318N LAN port LED will be
on. Make sure the network settings of the computer are correct.
• Ethernet cable and wirelessly connected computers should be configured to
obtain IP and DNS addresses automatically via DHCP whenever possible. For
help with this, see the Reference Manual.
• Some cable modem ISPs require you to use the MAC address of the computer
registered on the account. The FVS318G will automatically detect your MAC
address. You can manually enter the MAC address by selecting Network
Configuration > LAN Settings > LAN Groups and editing the address.
Technical Support
Thank you for selecting NETGEAR products.
After installing your device, locate the serial number on the label of your product and
use it to register your product at http://www.NETGEAR.com/register. Registration is
required before you can use the telephone support service. Registration via our
website is strongly recommended.
Go to http://support.netgear.com for product updates and Web support.
For additional information about setting up, configuring, and using your VPN
firewall, see the User Manual.
For complete DoC please visit the NETGEAR EU Declarations of Conformity
website at: http://support.netgear.com/app/answers/detail/a_id/11621/
For GNU General Public License (GPL) related information, please visit
http://support.netgear.com/app/answers/detail/a_id/2649
WARNING!!
DO NOT stack equipment, or place equipment in tight spaces, or in drawers. Be
sure your equipment is surrounded by at least 2” of air space.
