)NSTALLATION'UIDE

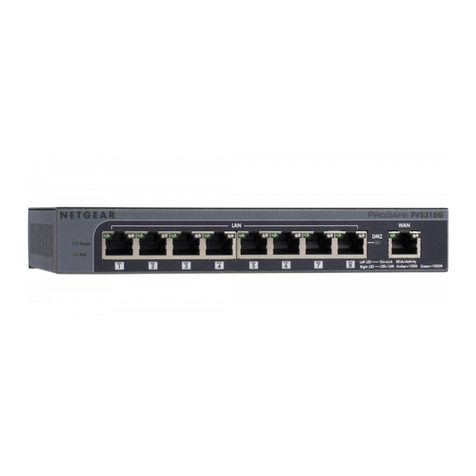

ProSafe Gigabit 8 Port VPN Firewall FVS318G
Start Here
Follow these instructions to set up your VPN firewall.You can also consult the
documentation links on the Resource CD or the NETGEAR knowledge base at
http://kbserver.netgear.com.
Prepare to Install Your VPN firewall
•For Cable Modem Service. When you perform the VPN firewall setup steps be sure
to use the computer you used when you first set up your cable Internet connection.
•For DSL Service. You may need information such as the DSL login name/e-mail
address and password in order to complete the VPN firewall setup.
Product Contents
The FVS318G contains the following:
• FVS318G VPN Firewall
• Ethernet cable (yellow)
• Power adapter
• Installation Guide
•ResourceCD

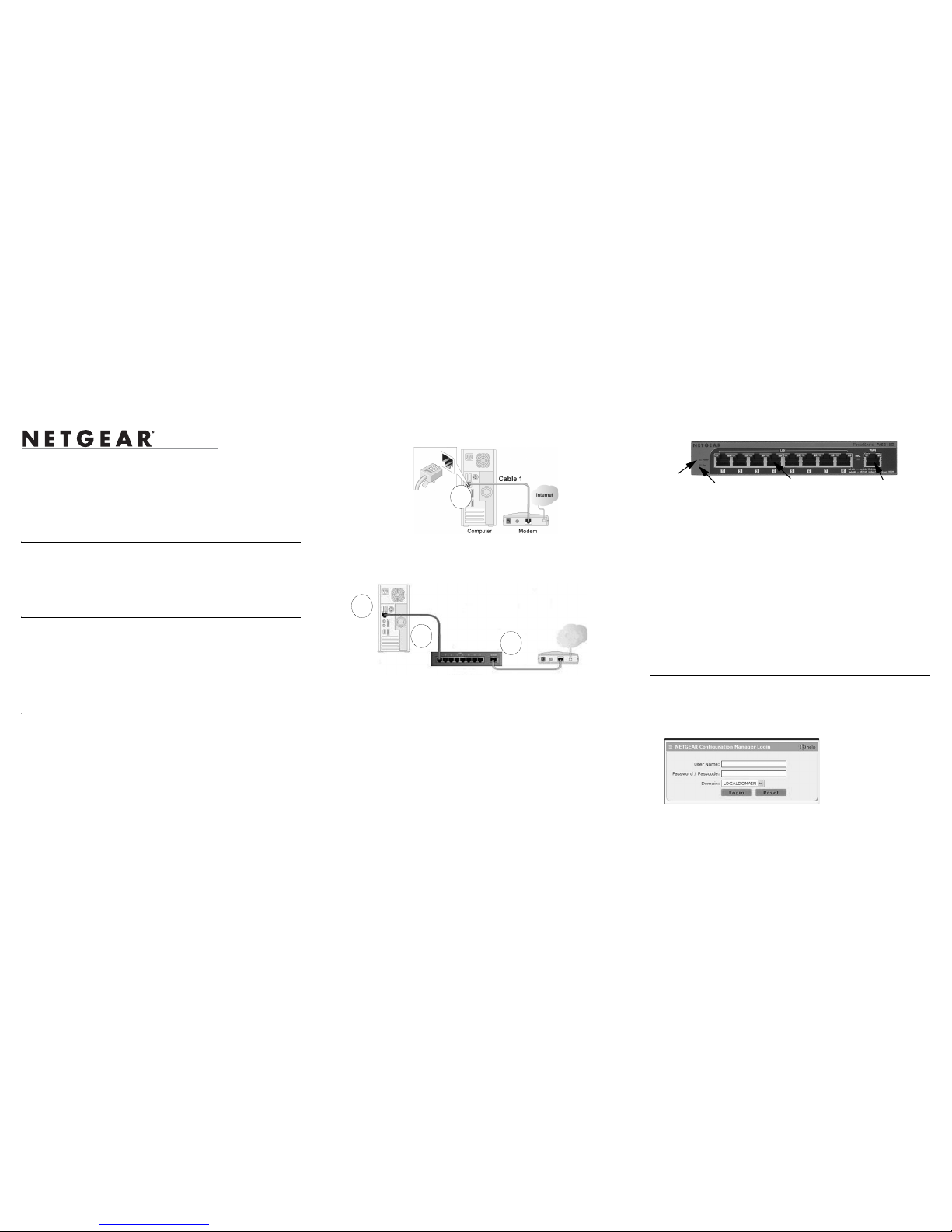

First, Connect the FVS318G
1. CONNECT THE CABLES BETWEEN THE FVS318G, COMPUTER, AND
MODEM
a. Turn off your computer.
b. Unplug and turn off the broadband modem.
c. Locate the Ethernet cable (Cable 1 in the diagram) that connects your modem
and computer.
d. Disconnect the cable at the computer end only, point Ain the diagram.
e. Securely insert the Ethernet cable from your modem (Cable 1 in the diagram)
into the WAN port of the FVS318G as shown in point B of the next diagram.
f. Securely insert the yellow cable that came with your FVS318G (the Yellow
NETGEAR Cable in the diagram below) into a LAN port on the firewall such as
LAN port 1 (point C in the diagram), and the other end into the Ethernet port of
your computer (point D in the diagram).
Your network cables are connected and you are ready to restart your network.
2. RESTART YOUR NETWORK IN THE CORRECT SEQUENCE
Warning: Failure to restart your network in the correct sequence could prevent you
from connecting to the Internet.
a. First, plug in the power cord to your broadband modem, turn it on, and wait two
minutes.
b. Now, plug in the power cord to your FVS318G, turn it on, and wait one minute.
c. Last, turn on your computer.
Note: For DSL customers, if ISP-provided software logs you in to the Internet,
do not run that software. You may need to go to the Internet Explorer Tools
menu, Internet Options, Connections tab page where you can select “Never dial a
connection.”
A
C
D
B
Local Ports
VPN Firewall
Yellow NEGEAR
Cable
Internet
Modem
d. Check the FVS318G status lights to verify the following:
•Power.The Power light should turn solid green. If it does not turn solid
green, check the power adapter.
•Test. The Test light goes on when the router is first turned on and then goes
off. If after two minutes it is still on, see the Troubleshooting Tips in this
guide.
•WAN. The WAN port light should be on. If not, make sure the Ethernet
cable is securely attached to the FVS318G Internet port and the modem.
Also, make sure the modem is powered on.
•LAN. Each local LAN port has two LEDs. The green LED on the upper left
indicates network activity. The right LED indicates communication speed. It
will be green for 1000 Mbps, amber for 100 Mbps, and off for 10 Mbps. If
the LAN port LED is not on, check that the Ethernet cable from the
computer to the firewall is securely attached at both ends, and that the
computer is on.
Now, Configure the FVS318G for Internet
Access
Use your browser to access and configure the FVS318G.
1. From the Ethernet connected computer you just set up, open a browser such as
Internet Explorer or Netscape® Navigator. With the FVS318G in its factory default
state, type http://192.168.1.1 in the browser address bar and click Enter. The
FV316G login screen will display.
Power LAN Ports WAN
Test

July 2009
This symbol was placed in accordance with the European Union Directive 2002/96 on the Waste
Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union,
this product should be treated and recycled in accordance with the laws of your jurisdiction
implementing the WEEE Directive.
© 2009 by NETGEAR, Inc. All rights reserved. NETGEAR and the NETGEAR logo are registered trademarks
of NETGEAR, Inc. in the United States and/or other countries. Other brand and product names are trademarks or
registered trademarks of their respective holders. Information is subject to change without notice.

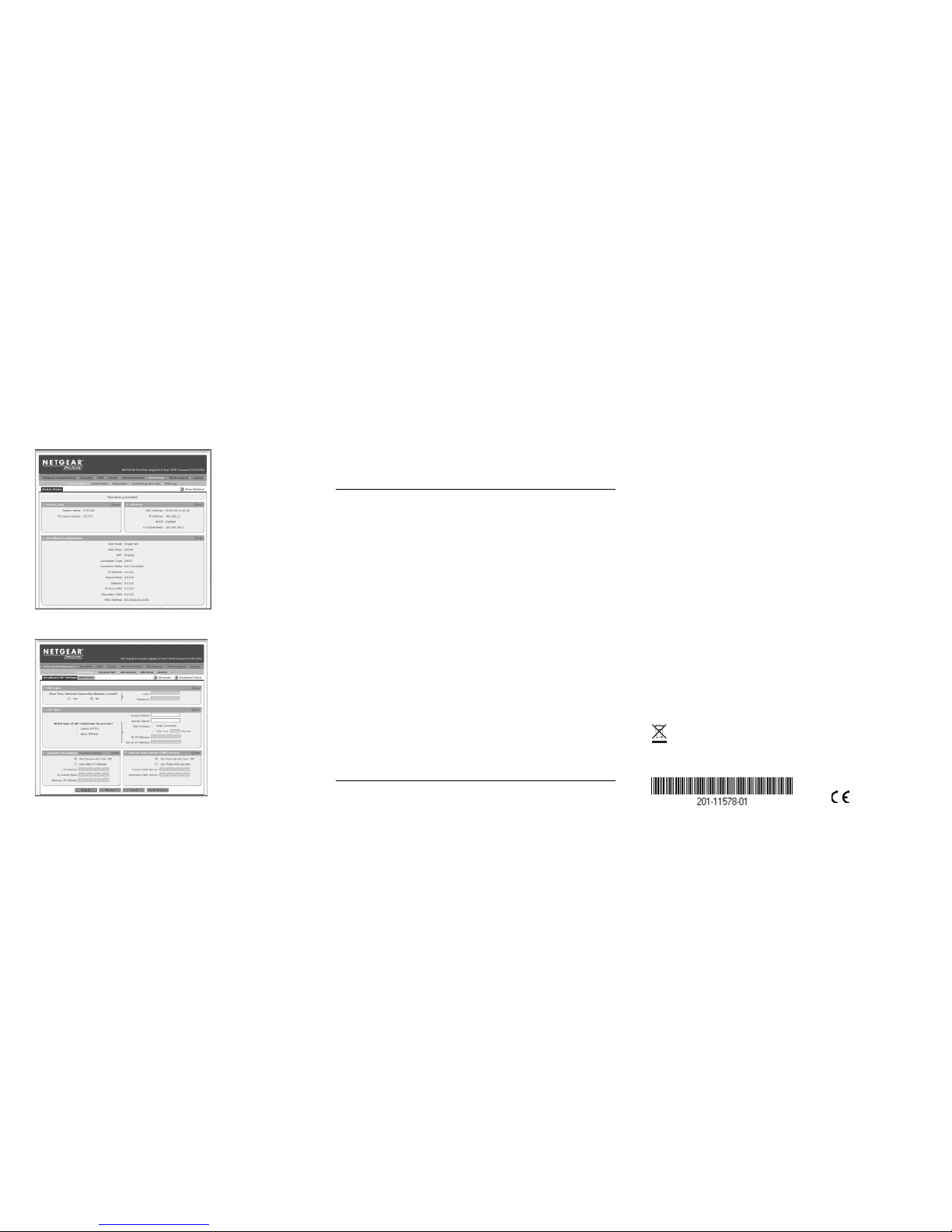

2. Enter admin as the user name and password for the password both in lower case
letters and click Login. The Router Status window will display.
3. If you need to change settings, select Network Configuration and enter settings for
your network and click Apply.
4. You can click Broadband Status in the upper right of the Configuration display to
check the connection status.
5. If you are not connected, you can click Connect to establish the network connection.
6. See the Reference Manual for information on configuring FVS318G features.
Troubleshooting Tips
Here are some tips for correcting common problems you may encounter.
Be sure to restart your network in this sequence:
1. Turn off and unplug the modem, turn off the FVS318G, and shut down the computer.
2. Plug in and turn on the modem, wait two minutes.
3. Turn on the FVS318G and wait one minute.
4. Turn on the computer.
Make sure the Ethernet cables are securely plugged in.
• The WAN port LED on the FVS318G will be on if the Ethernet cable to the FVS318G
from the modem is plugged in securely and the modem and FVS318G are turned on.
• For each powered on computer connected to the FVS318G with a securely plugged in
Ethernet cable, the corresponding FVS318G LAN port LED will be on. Make sure the
network settings of the computer are correct.
• Ethernet cable and wirelessly connected computers should be configured to obtain IP
and DNS addresses automatically via DHCP whenever possible. For help with this,
see the Reference Manual.
• Some cable modem ISPs require you to use the MAC address of the computer regis-
tered on the account. The FVS318G will automatically detect your MAC address.
You can manually enter the MAC address by selecting Network Configuration >
LAN Settings > LAN Groups and editing the address.
Use the FVS318G status lights to verify correct operation.
If the FVS318G Power light does not turn solid green within two minutes of turning
the firewall on, or if the Test light does not go off, reset the firewall as described in the
Reference Manual.
Technical Support
Thank you for selecting NETEAR products.
After installing your device, locate the serial number on the label of your product and use
it to register your product at http://www.netgear.com/register. Registration is required
before you can use our telephone support service. Registration via our web site is strongly
recommended.
Go to http://kbserver.netgear.com for product updates and Web support. For Warranty and
Regional Customer Support information, see the Resource CD that came with your
product.
