NETGEAR ProSafe GSM5212P User guide

350 East Plumeria Drive
San Jose, CA 95134
USA
November 2011
208-10793-01
Managed Switch
Software Setup Manual
Version 9.0.2
GSM5212P
GSM7212F
GSM7212P
GSM7224P
XSM7224S

2
Managed Switch
© 2011 NETGEAR, Inc. by NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
P/N: 208-10793-01
Technical Support
When you register your product at http://www.netgear.com/register, we can provide you with faster expert technical
support and timely notices of product and software upgrades.
Email: [email protected]
Website: http://www.netgear.com
Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card.
Trademarks
NETGEAR, the NETGEAR logo, ProSafe, Smart Wizard, and Auto Uplink are trademarks or registered
trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista are registered trademarks of Microsoft
Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use or application of the product(s) or circuit layout(s) described herein.

3
Contents
Chapter 1 Getting Started
In-Band and Out-of-Band Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Configuring the Switch for In-Band Connectivity . . . . . . . . . . . . . . . . . . .5
Configuring the Switch for Out-of-Band Connectivity . . . . . . . . . . . . . . . .7
Starting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Initial Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Initial Configuration with the Easy Setup Wizard . . . . . . . . . . . . . . . . . . .9
Software Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Quick-Starting the Networking Device . . . . . . . . . . . . . . . . . . . . . . . . . .10
System Information and System Setup . . . . . . . . . . . . . . . . . . . . . . . . .10
Using Ezconfig for Switch Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Changing the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setting Up the Switch IP Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Assigning a Switch Name and Location Information . . . . . . . . . . . . . . .14
Saving the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Using the Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Configuring for Web Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Starting the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Configuring an SNMP V3 User Profile . . . . . . . . . . . . . . . . . . . . . . . . . .18
Chapter 2 Auto Install Configuration
Switch IP Address Assignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TFTP IP Address and the Configuration File Name. . . . . . . . . . . . . . . . . .21
Handling Conflicting TFTP Server Configurations . . . . . . . . . . . . . . . . . . .21
DNS Server Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Obtaining a Config File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Host-Specific Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Default Network Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Monitoring and Completing the Auto Install Process . . . . . . . . . . . . . . . . .23
Saving Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Host-Specific Config File Not Found . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Terminating the Auto Install Process . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Managing Downloaded Config Files. . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Restarting the Auto Install Process . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Logging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Auto Install Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Stacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
DHCP Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
TFTP Server Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

4
7000 Series Managed Switch
CLI: Switch Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Chapter 3 Software License Activation
Creating an Account at mynetgear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Registering Your Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Activating a License Key for a Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Index

5
1
1. Getting Started
This manual includes software configuration tasks that are most commonly used when new
switches are installed. To configure the switch software, connect a terminal to the switch.
Note: Some products have Release Notes that detail the platform specific
functionality of the switching, routing, SNMP, config, management,
and other features. It is a good idea to read the Release Notes
before setting up the switch.
A number of other publications are available for your switch, including the following:
• The NETGEAR Quick Installation Guide for your switch
• The Hardware Installation Guide for your switch
• NETGEAR ProSafe 7000 Managed Switch Software Administration Manual
• ProSafe Managed Switch Command Line Interface (CLI ) User Manual. Refer to this
document for information about the command structure. This manual provides
information about the CLI commands used to configure the switch and the stack. It
provides CLI descriptions, syntax, and default values.
These documents can be found at http://www.NETGEAR.com.
In-Band and Out-of-Band Connectivity
Ask the system administrator to determine whether you will configure the switch for in-band or
out-of-band connectivity.
Configuring the Switch for In-Band Connectivity
In-band connectivity allows you to access the switch from a remote workstation using the
Ethernet network. To use in-band connectivity, you must configure the switch with IP
information (IP address, subnet mask, and default gateway).

Getting Started
6
7000 Series Managed Switch
Configure for in-band connectivity using one of the following methods:
• BootP or DHCP
• EIA-232 port
Using BootP or DHCP
You can assign IP information initially over the network or over the Ethernet service port
through BootP or DHCP. Check with your system administrator to determine whether BootP
or DHCP is enabled.
You need to configure the BootP or DHCP server with information about the switch—obtain
this information through the serial port connection using the show network command. Set
up the server with the following values:
• IP Address: Unique IP address for the switch. Each IP parameter is made up of four
decimal numbers, ranging from 0 to 255. If there is no DHCP server available to assign
an IP address to the switch through DHCP, the default IP address for the switch is
169.254.100.100.
• Subnet: Subnet mask for the LAN.
• gateway: IP address of the default router, if the switch is a node outside the IP range of
the LAN.
• MAC Address: MAC address of the switch.
When you connect the switch to the network for the first time after setting up the BootP or
DHCP server, it is configured with the information you supplied (IP address, subnet, and so
on). The switch is ready for in-band connectivity over the network.
If you do not use BootP or DHCP, access the switch through the EIA-232 port, and configure
the network information as described in the following section.
Using the EIA-232 Port
You can use a locally or remotely attached terminal to configure in-band management
through the EIA-232 port.
1. To use a locally attached terminal, attach one end of a null-modem serial cable to the
EIA-232 port of the switch and the other end to the COM port of the terminal or
workstation. For remote attachment, attach one end of the serial cable to the EIA-232
port of the switch and the other end to the modem.
2. Set up the terminal for VT100 terminal emulation.
a. Set the terminal to ON.
b. Launch the VT100 application.

Getting Started
7
7000 Series Managed Switch
3. Configure the COM port as follows:
a. Set the data rate to 9600 baud.
b. Set the data format to 8 data bits, 1 stop bit, and no parity.
c. Set the flow control to none.
d. Select the correct mode under Properties.
e. Select Terminal keys.
The Log-in User prompt displays when the terminal interface initializes.
4. Enter an approved user name and password. The default is admin for the user name, and
the password is blank.
The switch is installed and loaded with the default configuration.
5. Reduce network traffic by turning off the Network Configuration Protocol. Enter the following
command:
configure network protocol none
6. Set the IP address, subnet mask, and gateway address by issuing the following command:
config network parms ipaddress netmask gateway
• IP Address: Unique IP address for the switch. Each IP parameter is made up of four
decimal numbers, ranging from 0 to 255. The default IP address is 169.254.100.100.
• Subnet: Subnet mask for the LAN. The default value is 255.255.255.0.
• Gateway: Subnet mask for the LAN. The default value is 255.255.255.0.
7. To enable these changes to be retained during a reset of the switch, press Ctrl + zto return
to the main prompt, type save at the main menu prompt, and type yto confirm the
changes.
8. To view the changes and verify in-band information, issue the command: show network.
9. The switch is configured for in-band connectivity and ready for Web-based management.
Configuring the Switch for Out-of-Band Connectivity
To monitor and configure the switch using out-of-band connectivity, use the console port to
connect the switch to a terminal desktop system running terminal emulation software. The
console port connector is a male DB-9 connector, implemented as a data terminal equipment
(DTE) connector.
The following hardware is required to use the console port:
• VT100-compatible terminal, or a desktop, or a portable system with a serial port running
VT100 terminal emulation software.
• An RS-232 crossover cable with a female DB-9 connector for the console port and the
appropriate connector for the terminal.

Getting Started
8
7000 Series Managed Switch
To connect a terminal to the switch console port using out-of-band connectivity:
1. Connect an RS-232 crossover cable to the terminal running VT100 terminal emulation
software.
2. Configure the terminal emulation software as follows:
a. Select the appropriate serial port (serial port 1 or serial port 2) to connect to the
console.
b. Set the data rate to 9600 baud.
c. Set the data format to 8 data bits, 1 stop bit, and no parity.
d. Set the flow control to none.
e. Select the correct mode under Properties.
f. Select Terminal keys.
Note: When using HyperTerminal with Microsoft Windows 2000, make
sure that you have Windows 2000 Service Pack 2 or later installed.
With Windows 2000 Service Pack 2, the arrow keys function
properly in HyperTerminal’s VT100 emulation. Go to
www.microsoft.com for more information about Windows 2000
service packs.
3. Connect the female connector of the RS-232 crossover cable directly to the switch console
port, and tighten the captive retaining screws.
Starting the Switch
1. Make sure that the switch console port is connected to a VT100 terminal or VT100
terminal emulator through the RS-232 crossover cable.
2. Locate an AC power receptacle.
3. Deactivate the AC power receptacle.
4. Connect the switch to the AC receptacle.
5. Activate the AC power receptacle.
When the power is turned on with the local terminal already connected, the switch goes
through a power-on self-test (POST). POST runs every time the switch is initialized and
checks hardware components to determine if the switch is fully operational before completely
booting. If POST detects a critical problem, the startup procedure stops. If POST passes
successfully, a valid executable image is loaded into RAM. POST messages display on the
terminal and indicate test success or failure. The boot process runs for approximately 60
seconds.

Getting Started
9
7000 Series Managed Switch
Initial Configuration
The initial simple configuration procedure is based on the following assumptions:
• The switch was not configured before and is in the same state as when you received it.
• The switch booted successfully.
• The console connection was established and the console prompt displays on the screen
of a VT100 terminal or terminal equivalent.
The initial switch configuration is performed through the console port. After the initial
configuration, you can manage the switch either from the already-connected console port or
remotely through an interface defined during the initial configuration.
The switch is not configured with a default user name and password.
All of the following settings are necessary to allow the remote management of the switch
through Telnet (Telnet client) or HTTP (Web browser).
Before setting up the initial configuration of the switch, obtain the following information from
your network administrator:
• The IP address to be assigned to the management interface that will manage the switch
• The IP subnet mask for the network
• The IP address of the default gateway
Initial Configuration with the Easy Setup Wizard
You can perform the initial configuration using the Easy Setup Wizard or by using the
command line interface (CLI). The Setup Wizard automatically starts when the switch
configuration file is empty. You can exit the wizard at any point by pressing Ctrl + z.
Note: For information about CLI initial configuration, see the ProSafe
Managed Switch Command Line Interface (CLI) User Manual.
The Setup Wizard sets up the following configuration on the switch:
• Establishes the initial privileged user account with a valid password. The wizard
configures one privileged user account during the setup.
• Enables CLI login and HTTP access to use the local authentication setting only.
• Sets up the IP address for the management interface.
• Sets up the SNMP community string to be used by the SNMP manager at a given IP
address. You can choose to skip this step if SNMP management is not used for this
switch.
• Allows you to specify the management server IP address or permit SNMP access from all
IP addresses.
• Configures the default gateway IP address.

Getting Started
10
7000 Series Managed Switch
Software Installation
This section contains procedures to help you become acquainted quickly with the switch
software. Before installing switch software, you should verify that the switch operates with the
most recent firmware.
Quick-Starting the Networking Device
1. Configure the switch for in-band or out-of-band connectivity. In-band connectivity allows
access to the software locally or from a remote workstation. You must configure the
device with IP information (IP address, subnet mask, and default gateway).
2. Turn the power on.
3. Allow the device to load the software until the login prompt displays. The initial state of the
device is called the default mode.
4. When the prompt asks for operator login, perform the following steps:
• Type admin at the login prompt. Since a number of the Quick Start commands require
administrator account rights, log in to an administrator account.
• Do not enter a password because the default mode does not use a password.
• Check that the CLI User EXEC prompt is displayed.
• Enter enable to switch to the Privileged EXEC mode from User EXEC.
• Enter configure to switch to the Global Config mode from Privileged EXEC.
• Enter exit to return to the previous mode.
• Enter ? to show a list of commands that are available in the current mode.
System Information and System Setup
This section describes the commands you use to view system information and to set up the
network device. The following table contains the Quick Start commands that allow you to view
or configure the following information:
• Software versions
• Physical port data
• User account management
• IP address configuration
• Uploading from a networking device to out-of-band PC (only XMODEM)
• Downloading from an out-of-band PC to networking device (only XMODEM)
• Downloading from a TFTP server
• Restoring factory default settings

Getting Started
11
7000 Series Managed Switch
If you configure network parameters, you should execute one of the following commands:
copy system:running-config nvram:startup-config
or
save
These commands copy or save the changes to the configuration file in the switch permanent
memory. You must be in the correct mode to execute the command. If you do not save the
configuration, all changes are lost when a you power down or reset the networking device. In
a stacking environment, the running configuration is saved in all units of the stack.
Command Mode Description
show hardware Privileged
EXEC Shows hardware version, MAC address, and software version information.
show users Privileged
EXEC • Displays all users who are allowed to access the networking device.
• Access mode shows whether you can change parameters on
the networking device (Read/Write) or can only view them (Read
Only).
• As a factory default, the admin user has Read/Write access,
and the guest user has Read Only access. There can be only
one Read/Write user. There can be up to five Read Only users.
show loginsession User EXEC Displays all of the login session information.
Username <username> Global
Config • Set the password or change the password for the user name. You are prompted to enter the user’s old password. In the
absence of an old password, leave the area blank.
• The password should not be more than eight characters in
length.
copy system:running-config
nvram:startup-config
or
save
Privileged
EXEC Copy or save passwords and all other changes to the device.
If you do not save the configuration, all changes are lost when you
power down or reset the networking device. In a stacking
environment, the running configuration is saved in all units of the
stack.
logout User EXEC
Privileged
EXEC
Logs the user out of the networking device.

Getting Started
12
7000 Series Managed Switch
show network User EXEC Displays the following network configuration information:
• IP Address: IP address of the interface (default: 0.0.0.0).
• Subnet Mask: IP subnet mask for the interface (default:
0.0.0.0).
• Default Gateway: The default gateway for this interface
(default: 0.0.0.0).
• IPv6 Administrative mode: Indicates whether IPv6 is enabled.
• IPv6 Prefix: The prefix/prefix length of the IPv6 address.
• Burned in MAC Address: The burned in MAC address used for
in-band connectivity.
• Locally Administered MAC Address : Can be configured to
allow a locally administered MAC address.
• MAC Address Type: Specifies which MAC address should be
used for in-band connectivity.
• Network Configurations Protocol Current: Indicates which
network protocol is being used (default: none).
• Configured IPv6 Protocol: Indicates which network protocol is
being used (default: none) for IPv6.
• Management VLAN Id:Specifies VLAN ID.
network parms <ipaddr>
<netmask> [gateway] Privileged
EXEC Sets the IP address, subnet mask, and gateway of the router. The IP address and the gateway must be on the same subnet. The IP
address range is from 0.0.0.0 to 255.255.255.255.
copy nvram:startup-config Privileged
EXEC Starts the configuration file upload, displays the mode and type of upload, and confirms that the upload is progressing. The URL
must be specified as:
xmodem:<filepath>/<filename>
For example, if you are using HyperTerminal, you must specify
where the file will be received by the PC.
copy nvram:errorlog Privileged
EXEC Starts the error log upload, displays the mode and type of upload, and confirms that the upload is progressing. The URL must be
specified as:
xmodem:<filepath>/<filename>
copy nvram:traplog Privileged
EXEC Starts the trap log upload, displays the mode and type of upload, and confirms that the upload is progressing. The URL must be
specified as:
xmodem:<filepath>/<filename>
copy nvram:startup-config
Privileged
EXEC Sets the destination (download) datatype to be an image (system:image) or a configuration file
(nvram:startup-config). The URL must be specified
as:
xmodem:<filepath>/<filename>
For example, if you are using Hyper Terminal, you must specify
which file is to be sent to the networking device. The networking
device restarts automatically once the code has been downloaded.
Command Mode Description

Getting Started
13
7000 Series Managed Switch
Using Ezconfig for Switch Setup
Ezconfig is an interactive utility that provides a simplified procedure for setting up the
following switch parameters:
• Switch management IP address
• Switch admin user password
• Switch name and location
Ezconfig can be entered either in Global Config mode (#) or in Display mode (>). The utility
displays the following text when you enter the ezconfig command:
(FSM7352S) >ezconfig
NETGEAR EZ Configuration Utility
--------------------------------
Hello and Welcome!
This utility will walk you through assigning the IP address for the
switch management CPU. It will allow you to save the changes at the
end. After the session, simply use the newly assigned IP address to
access the Web GUI using any public domain Web browser.
Admin password not defined. Do you want to change the password?
(Y/N/Q)
Note: At any point in the setup, you can type Qto abort the program. At
this point, Ezconfig checks to see if there is any change, and
prompts you if the changes should be saved.
Changing the Password
As shown in the the following example, you are prompted to change the admin password. For
security reasons, you should change the default password by typing Y. If you have already
set the password and do not wish to change it again, type N.
Enter new password:********
Confirm new password:********
Password Changed!
The 'enable' password required for switch configuration through the command
line interface is currently not configured. Do you wish to change it
(Y/N/Q)? y
Enter new password:********
Confirm new password:********
Password Changed!

Getting Started
14
7000 Series Managed Switch
Setting Up the Switch IP Address
After the password for both Admin and Enable mode is changed, you are prompted to set up
the IP address of the switch.
Assigning an IP address to your switch management
Current IP Address Configuration
--------------------------------
IP address: 0.0.0.0
Subnet mask: 0.0.0.0
Would you like to assign an IP address now (Y/N/Q)? y
IP Address:
Ezconfig displays the current IP address and subnet mask. By default, the network DHCP
server assigns IP addresses automatically according to DHCP protocol. However, you can
overwrite the DHCP client mode by assigning a fixed IP address here. Once a fixed IP
address is assigned, Ezconfig automatically disables DHCP client mode and assigns the
static IP address to the management VLAN.
If an IP address is already assigned, and you do not wish to change the IP address again,
simply type N.
Assigning a Switch Name and Location Information
Ezconfig proceeds to the next step in the setup:
Do you want to assign switch name and location information (Y/N/Q)?
System Name: Alpha1-1
System Location: Bld1
System Contact: James
There are changes detected, do you wish to save the changes
permanently (Y/N)?
Note: The System Name, System Location and System Contact fields
accept only alphanumeric characters. Characters such as #$ are not
supported. The value cannot be larger than 31 bytes.

Getting Started
15
7000 Series Managed Switch
Saving the Configuration
After the name and location values are entered, Ezconfig asks if you would like to have the
changes be saved in flash (permanent storage). Enter Yto save the configuration.
There are changes detected, do you wish to save the changes
permanently (Y/N)?
y
The configuration changes have been saved successfully.
Please enter 'show running-config' to see the final configuration.
Thanks for using EzConfig!
If the switch loses its power during the session, the setup information is lost if Ezconfig does
not have the chance to save the changes before power-down.
Using the Web Interface
This section is a brief introduction to the Web interface; for example, it explains how to
access the Web-based management screens to configure and manage the system.
Tip: Use the Web interface for configuration instead of the CLI. Web
configuration is quicker and easier than entering the multiple required
CLI commands. There are equivalent functions in the Web interface and
the terminal interface—that is, both applications usually employ the
same commands to accomplish a task. For example, when you log in,
there is a main menu with the same functions available.
You can manage your switch through a Web browser and Internet connection. This is
referred to as Web-based management. For you to use Web-based management, the
system must be set up for in-band connectivity.
To access the switch, the Web browser must support:
• HTML version 4.0, or later
• HTTP version 1.1, or later
• JavaScriptTM version 1.2, or later
There are several differences between the Web and terminal interfaces. For example, on the
Web interface the entire forwarding database can be displayed, while the terminal interface
displays only 10 entries starting at specified addresses. To terminate the Web login session,
close the Web browser.

Getting Started
16
7000 Series Managed Switch
Configuring for Web Access
To enable Web access to the switch:
1. Configure the switch for in-band connectivity. (See Configuring the Switch for In-Band
Connectivity on page 5.)
2. Enable Web mode:
a. At the CLI prompt, enter the show network command.
b. Set Web Mode to Enabled.
Starting the Web Interface
Follow these steps to start the switch Web interface:
1. Enter the IP address of the switch in the Web browser address field.
2. When the Login screen displays, click Login.
3. Enter the appropriate user name and password. The user name and associated password
are the same as those used for the terminal interface. Click the Login button.
4. A menu displays, with selections on the left.
5. Make a selection by clicking it.
Web Interface Layout

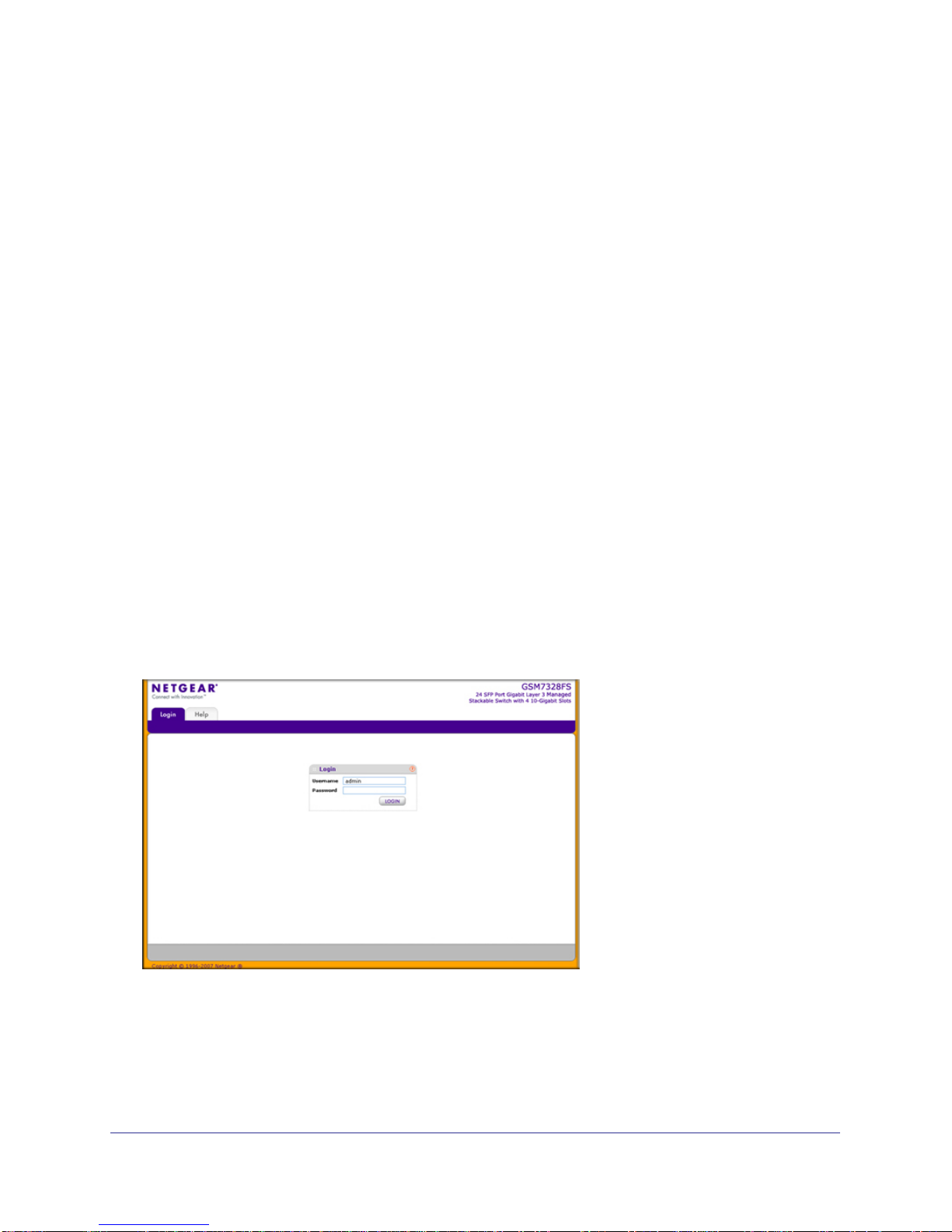

The Web interface is called the Prosafe Control Center (PCC). When you use the switch’s IP
address to log in to the switch, the following screen displays:

Getting Started
17
7000 Series Managed Switch
The switch can accommodate two types of users: administrative users and guests. An
administrative user can configure the switch for network application, but a guest cannot. The
guest can only view the settings and status of the network. As shipped from the factory, both
users can log in without a password. NETGEAR strongly recommends that the network
administrator create a unique password for the administrative user before placing the switch
into production.

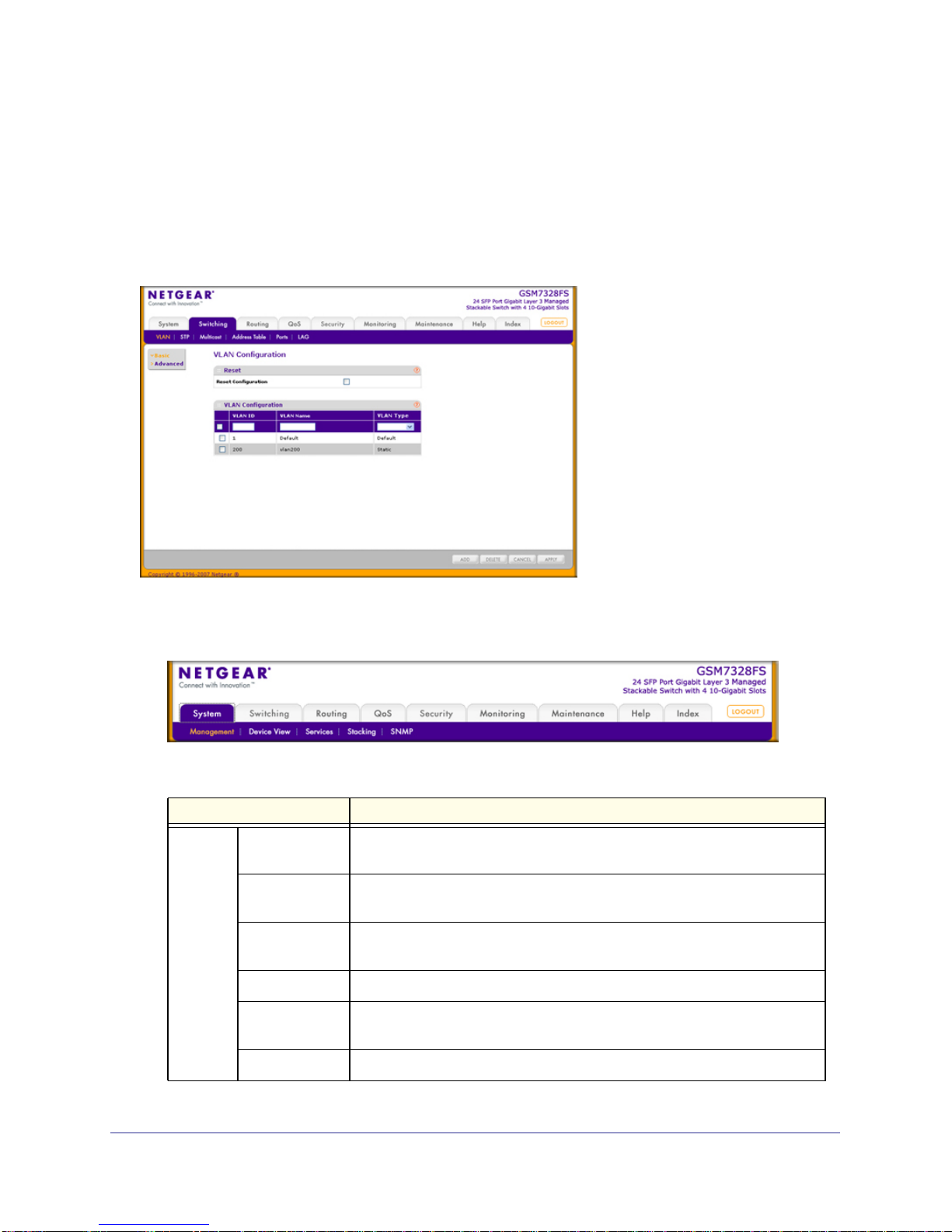

The following screen shows an example of the PCC:
The PCC Web interface has the following four significant features:
1. Layout: The navigation pane has two rows of tabs, as shown in the following screen:
Table 1. PCC Web Interface Tabs
Tabs Tab Contents
Main tabs System Configuration and status information for system features and services such
as the timer, DNS server, IP address, and system resource usage.
Switching Features that relate to Layer 2 services such as VLANs, link aggregation,
spanning tree protocol, port configuration, and the MAC address table.
Routing Layer 3 services such as VLAN routing, port routing, and protocols such as
RIP, OSPF, VRRP, and other protocols.
QoS Quality of Service features such as DiffServ and CoS queue assignment.
Security Security services such as 802.1x port authentication, traffic control with
various forwarding controls, and ACLs.
Monitoring Ethernet port statistics, various system logs, and port mirroring.

Getting Started
18
7000 Series Managed Switch
2. Unified Web Control Buttons: Depending on the selected main tab and sub tab, in the
lower right corner, buttons enable you to perform various screen-dependent operations:
• Add: Add a new class, group, ACL, or VLAN.
• Apply: Apply all changes that you made to a screen.
• Cancel: Cancel all changes that you made to a screen.
• Delete: Delete an existing list or group that was created by using an Add operation.
• Refresh: Refresh the data on the screen such as log entry, port statistics, and other
data.
3. Index Screen: One of the unique features of the PCC is the Index screen. This screen
provides links to all available screens on the PCC, allowing you to connect to each screen
directly. On the Index screen, you can use your Web browser’s search function to locate a
particular feature, and then connect directly to the screen that enables you to view or
configure that feature. Note that when you access a screen directly from the Index screen,
the navigation pane does not adjust as it normally would when you navigate to the screen by
using a main tag and sub tab.
4. Saving the Configuration: When you click the Apply button to save the changes, the
changes are applied to the switch but not saved in the permanent memory of the switch.
When you reboot the switch, the changes are lost.To save the changes in the permanent
memory of the switch, use the Save Configuration function that you can reach by selecting
the Maintenance tab and then the Save Config tab.
Configuring an SNMP V3 User Profile
Configuring an SNMP V3 user profile is a part of user configuration. Any user can connect to
the switch using the SNMPv3 protocol, but for authentication and encryption, additional steps
are needed. Use the following steps to configure an SNMP V3 new user profile.
1. Select System>Configuration>User Accounts from the hierarchical tree on the left
side of the Web interface.
2. In the User field, select Create to create a new user.
3. Enter a new user name in the User Name field.
4. Enter a new password in the Password field and then retype it in the Confirm Password
field.
Main tabs Maintenance Services to perform a firmware upgrade, to save the configuration, and to
perform a backup of the configuration.
Help Access to the NETGEAR product support website and documentation.
Index Tthe site index that allows direct access to any of the screens under the
main tabs and sub tabs.
Sub tabs The sub tab content changes depending on the selected main tab. In turn,
each sub tab provides further sub categories of functions.
Table 1. PCC Web Interface Tabs (Continued)
Tabs Tab Contents

Getting Started
19
7000 Series Managed Switch
Note: If SNMPv3 authentication is to be used for this user, the password
must be eight or more alphanumeric characters.
5. If you do not need authentication, go to Step 9.
6. To enable authentication, in the Authentication Protocol field select either MD5 or SHA for
the authentication protocol.
7. If you do not need encryption, go to Step 9.
8. To enable encryption select DES for the encryption scheme in the Encryption Protocol
field. Then, in the Encryption Key field, enter an encryption code of eight or more
alphanumeric characters.
9. Click Apply.

20
2
2. Auto Install Configuration
Auto Install is a software feature that provides for the configuration of a switch automatically
when the device is initialized and no configuration file is found on the switch. The downloaded
configuration file is not distributed across a stack. When an administrator saves configuration,
the config file is distributed across a stack.
The Auto Install process requires DHCP to be enabled by default in order for it to be completed.
The downloaded config file is not automatically saved to startup-config. An administrator must
explicitly issue a save request in order to save the configuration. The Auto Install process
depends on the configuration of other devices in the network, including a DHCP or BOOTP
server, a TFTP server and, if necessary, a DNS server.
There are three phases to Auto Install:
1. Configuration or assignment of an IP address for the device.
2. Assignment of a TFTP server.
3. Obtaining a configuration file for the device from the TFTP server.
Switch IP Address Assignment
If BOOTP or DHCP is enabled on the switch and an IP address has not been assigned, the
switch issues requests for an IP address assignment. The behavior of BOOTP or DHCP with
respect to IP address assignment is unchanged by the addition of the Auto Install feature.
That is, the following information returned from the server is recognized.
• The IP address (yiaddr) and subnet mask (option 1) to be assigned to the switch
• The IP address of a default gateway (option 3), if needed for IP communication. Some
network configurations require the specification of a default gateway through which some
IP communication can occur. The default gateway is specified by Option 3 of a BOOTP
or DHCP response.
After an IP address is assigned to the switch, if a host name is not already assigned, then
Auto Install issues a DNS request for the corresponding host name. This host name is also
displayed as the CLI prompt the same as if the hostname command was used.
