NetPing 995S2 User manual

1. [ENG] NetPing Supply Voltage Sensor 995S2, User guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 [ENG] [995S2] Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 [ENG] [995S2] Disclaimer and Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 [ENG] [995S2] Overview and Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 [ENG] [995S2] Connectors and Indication Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5 [ENG] [995S2] Installation and Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6 [ENG] [995S2] Shipping Kit of the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.7 [ENG] [995S2] Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.8 [ENG] [995S2] Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.9 [ENG] [995S2] Operating and storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.10 [ENG] [995S2] Additional Documents and Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] NetPing Supply Voltage Sensor 995S2, User guide

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Introduction
This guide will help you to get to know the features of the , get an idea of its functionality and technicalNetPing Supply Voltage Sensor 995S2
specifications, and prepare the device for operation.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Disclaimer and Copyright
The information, contained in this document, can be changed by a manufacturer without a prior notice.Although every effort was made to make
the information in this document accurate and without errors, a manufacturer is not liable for their possible presence and for the consequences
that may result from the errors herein. A manufacturer is not liable if supplied equipment, software and this user guide does not correspond to
expectations of a user and his/her opinion about where and how to use all the above.All copyrights on supplied devices, described in this User
Guide, as well as firmware and software of devices and this User Guide belong to NetPing global Ltd. Сopying, replication and translation of this
user guide to other languagesare not allowed without a prior written permission of a rightholder. Copying, replication, changing, disassembling of
provided software For the part of software that is providedare not allowed without a prior written permission of a rightholder.
in source codes, there is a separate license agreement, which defines an order of its use and modification. Other trademarks used in this
description belong to corresponding rightholders.
Developer and manufacturer:
NetPing east Co Ltd.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Overview and Key Features

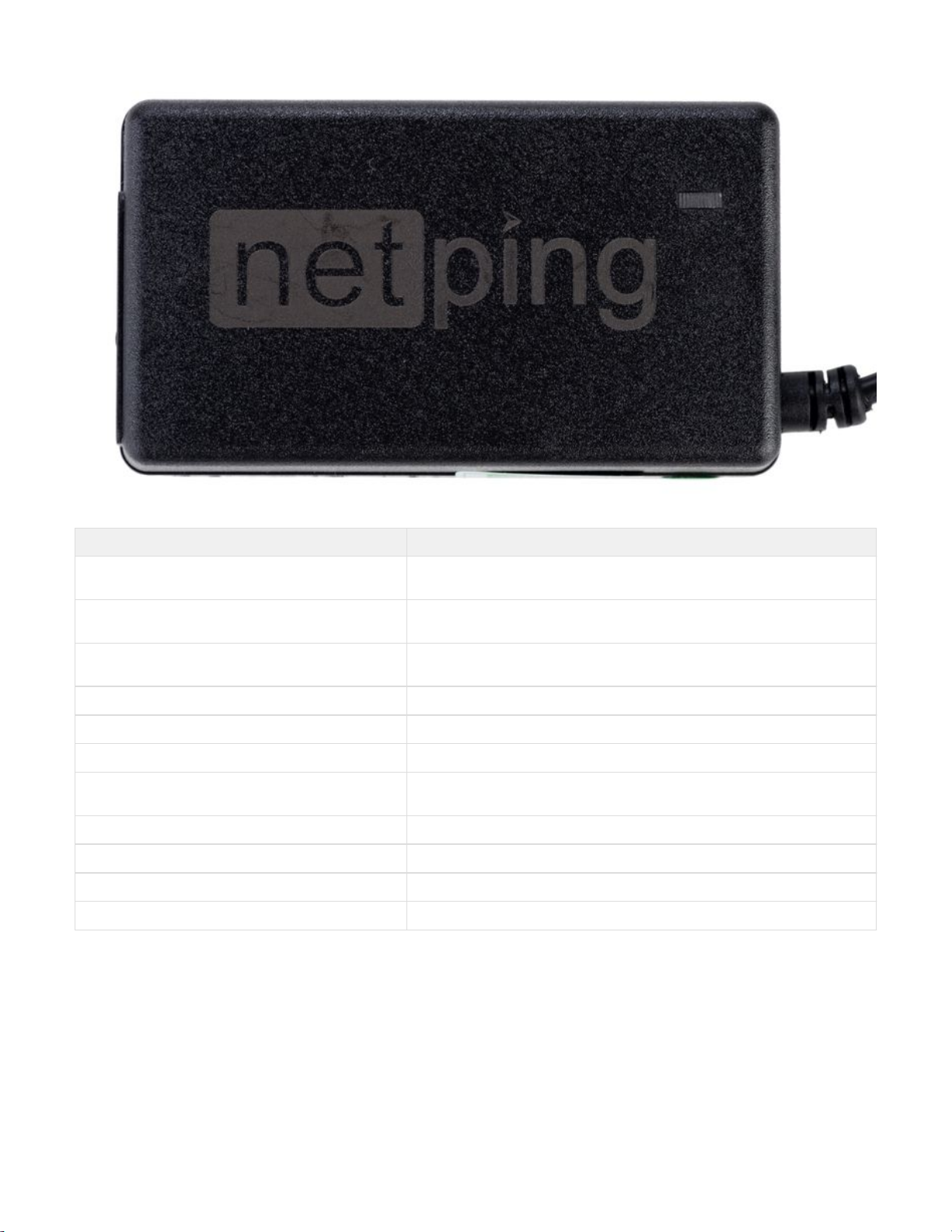

The physical configuration of the device is shown in the photo:
Bottom view:
View from above:

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
Device specifications Meaning
Threshold r (valid only for  ,esponse 995S2 modification
intended for 220 V network)
178–193 V
Threshold release (valid only for  inte995S2 modification,
nded for 220 V network)
155 175 V–
Supply voltage required for the correct operation of
internal components and maintain operability
70 250 В – 50/60 Hz
Overvoltage impulses up to 350 V for a duration of 50 ms, not more than 2 times per minute
Number of network voltage measuring channels 1 pc.
Operating Temperature Range -30 ° С ... +50 ° С (without moisture condensation, normal humidity)
The type of output/condition of the contacts Аdry contact, switching (N.C. and N.O. contacts), voltage up to 24 V, current up to
0.5 A
The case/the degree of case protection plastic/IP20
Indication available
Weight 101 gram
Device dimentions 89 х 50 х 31

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Connectors and Indication Elements
View from above
The sensor operation indicator is on when it is connected to the power supply.
Side view

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
The type of output contacts

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
N.O.-C pair - normally opened contacts. Opened when voltage failure is detected.
N.C.-C pair - normally closed contacts. Closed when registering a lack of voltage.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Installation and Connection
The supply voltage sensor can be installed on a horizontal or vertical surface. Mounting holes are not provided.
When you install the device, the following restrictions must be considered:
Do not expose the device to direct sunlight.
Do not install the device close to any heat sources.
Do not open the case of the device.
Avoid getting liquid on the sensor, particularly in the connectors.
Connection Order
Step 1.

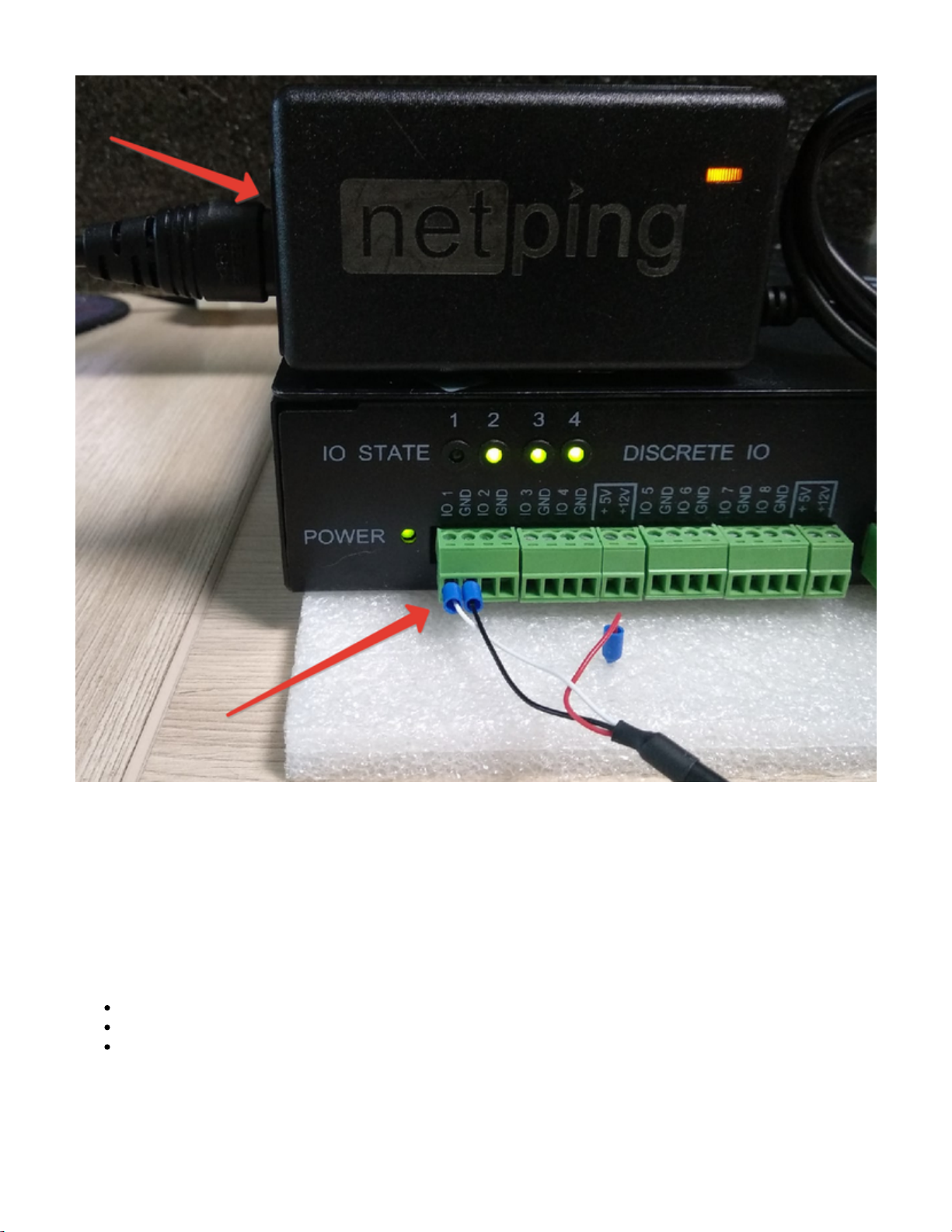

Connect the sensor to the device and the power supply. The connection order does is not important, the sensor has galvanic isolation.
the black wire — common;
the white wire normally opened (break) contact—
the red wire normally closed (live) contact—
When you connect the sensor, it is recommended to disconnect the monitoring device/power control of the device from the mains
supply(IP PDU).

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
Step 2.
Open to the web interface of the monitoring device / IP PDU to start the configuration. The sensor settings in the device’s web interface are
specified in the firmware description, the section “Working with Channels of Discrete Input-Output” for the corresponding model here:http://docs.n
.etpingdevice.com/
Sensor Connection Diagrams
The sensor output is a dry contact. The connection order of the N-NC or N-NO wires is not important.
NetPing 2/PWR-220 v3/ETH, NetPing 2 IP PDU ETH 53R14, NetPing 2 IP PDU GSM3G 203R15
NetPing 2/PWR-220 v3/ETH — http://www.netpingdevice.com/products/netping-2-pwr-220-v3-eth
NetPing 2 IP PDU ETH 53R14 — http://www.netpingdevice.com/products/netping-2-ip-pdu-eth-53r14
NetPing 2 IP PDU GSM3G 203R15 — http://www.netpingdevice.com/products/netping-2-ip-pdu-gsm3g-203r15

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
Sensor Loop Device Terminal
Black (common) GND
Red (N.C.) I 1...4
White (N.O.) I 1...4
UniPing server solution v3, UniPing server solution v4/SMS
UniPing server solution v3 — http://www.netpingdevice.com/products/uniping-server-solution-v3
UniPing server solution v4/SMS — http://www.netpingdevice.com/products/uniping-server-solution-v4-sms
Sensor Loop Device Terminal
Black (common) GND
Red (N.C.) IO 1...8

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
Белый (N.O.) IO 1...8
NetPing IO v2
NetPing IO v2 — http://www.netpingdevice.com/products/netping-io-v2
Sensor Loop Device Terminal
Black (common) GND
Red (N.C.) IO 1...4
White (N.O.) IO 1...4

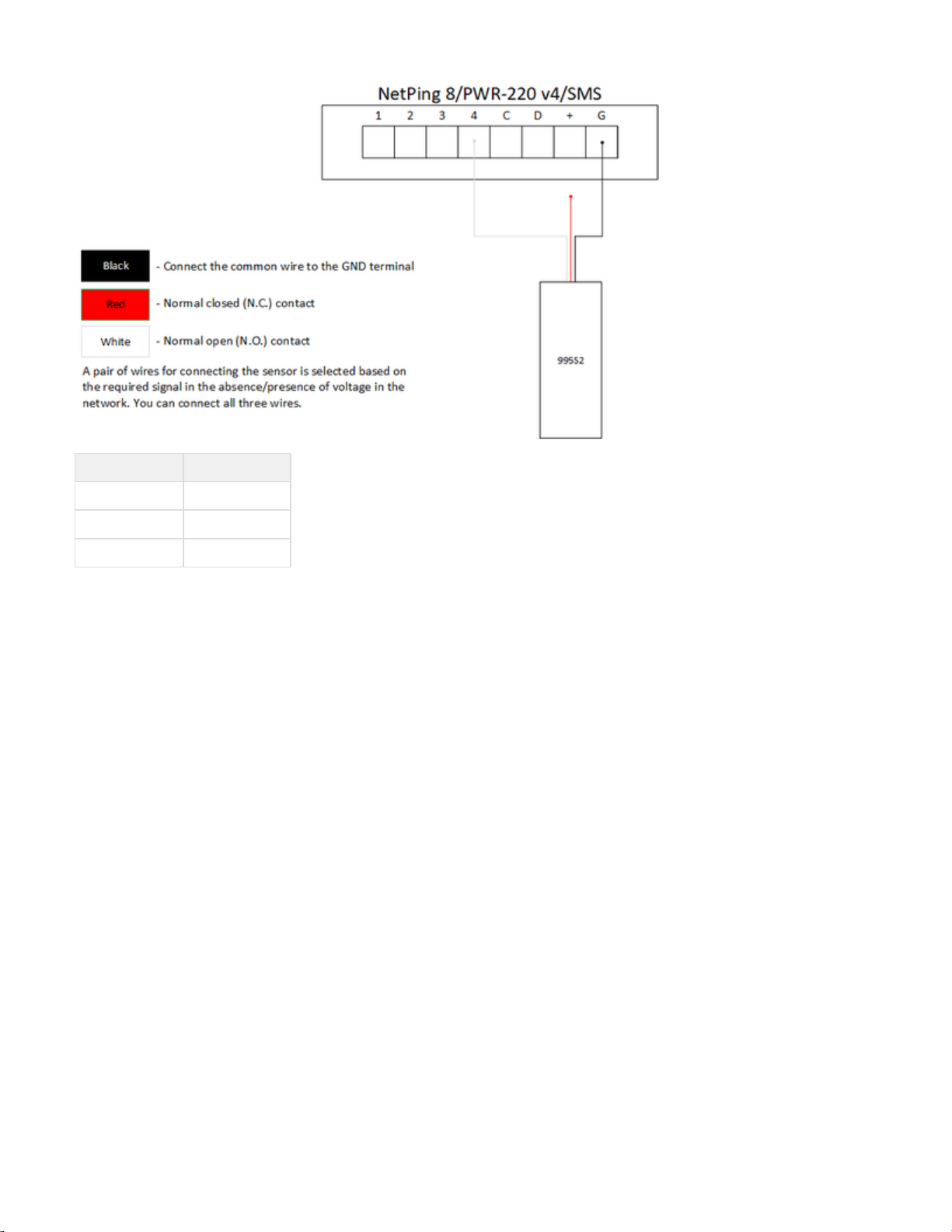

NetPing 8/PWR-220 v4/SMS
NetPing 8/PWR-220 v4/SMS — http://www.netpingdevice.com/products/netping-8-pwr-220-v4-sms

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
Sensor Loop Device Terminal
Black (common) G
Red (N.C.) 1...4
White (N.O.) 1...4

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Shipping Kit of the Device
This shipping kit includes:
NetPing Supply Voltage Sensor 995S2with the soldered wire of 1.5 meters long— 1 pc.;
Quick Start Guide— 1 pc.;
power cableIEC320 C7 to CEE7 XVII (SL-5+SL-8) of 1,8 meters long— 1 pc.;
package cardboard box + a stick with the name— 1 pc.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Warranty
The manufacturer guarantees normal operation of the product within 24 months from the date specified on the warranty sticker if a buyer follows
operating and storage conditions. Manufacturer warranty applies only to failure of a device which occurred because of defects in manufacturing
process of products and components used. If during a warranty period the manufacturer receives a notice of such defects, it will repair or
exchange the product (by its own discretion). If the manufacturer is unable to repair or replace a flawed item during a period of time determined by
the current legislation, the manufacturer according to a customer’s wish can return the amount paid for the product at the time of purchase. The
manufacturer provides a limited warranty on firmware and device configuration software. In case of detecting any errors in the software which
became known to the manufacturer on its own or from a customer, the manufacturer will fix these errors within a reasonable time and provide an
update for the customer. Only the errors that block normal use of the device at conditions and for performing functions described in this User
Guide are a subject to mandatory fix. This warranty does not apply to cases when defects appear because of: a misuse of a device, any
modifications of a device without a written permission of the manufacturer, opening up a device (a warranty sticker on the case of a device is
damaged)except cases foreseen by this description; repairing by unauthorized personnel, using or storing a device out of the range of allowable
temperature and humidity, pressure, a software modification, and the reasons, listed below:
A device failed because of the problems in a public electric network, plugging a device into power supply networks with invalid
parameters, absence of grounding, etc. (power fluctuations and surges, overloading, etc.);
A device failed because of having liquid inside;
A device failed as a result of extreme temperatures;
A device failed because of mechanical damage;
A device failed because of connecting a power supply unit with invalid output voltage or a defective power supply unit;
There are foreign objects, insects, etc inside the enclosure;
During operation a voltage bigger than an allowable voltage range by the Ethernet standard has been supplied to the ports of a device.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Safety Precautions
The device should only be used on the power supply specified by the manufacturer. Use of any other type of power may damage the
product.
Do not use damaged power cords or sockets that are not firmly fixed to the wall.
It is prohibited to open the case of the device.
Do not drop the device and avoid force impact on it.
Keep the device dry. It is also forbidden to touch the device and connected equipment with wet hands.
Use the device only indoors.
Do not place the device on a surface or on top of heating appliances such as microwave ovens, stoves, or radiators.
Do not use the device in the locations marked as potentially explosive ones, with the possibility of explosion and the prohibition of the use
of wireless devices (valid for devices with a built-in GSM modem).
Protect the device from fire and extreme temperatures.
Avoid the impact of direct sunlight on the device.
Do not allow children to use a device.
The next information will allow users to avoid both injuries and damaging a device as well as connected equipment.
Attention!Failure to comply with these conditions is a violation of the operating conditions of a device.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Operating and storage conditions
This sensor is designed for continuous round-the-clock operation indoors. The sensor is resistant to air temperature from -30 °С to +50 °С
(without moisture condensation, at normal humidity) under operating conditions. The sensor should be protected from the impact of moisture and
direct sunlight.
The sensor design provides reliable non-stop operation for a long time without the necessity to maintain it specially.
Store the device at a temperature from -40 °C to +70 °C.
In storage rooms, the content of dust, vapors of acids and alkalis, aggressive gases and other harmful impurities that cause corrosion should not
exceed the content of corrosive agents for the atmosphere of 1 type.

NetPing server room environmental monitoring solutions and IP power distribution units.
Copyright © NetPing east Co., Ltd / E-mail: / / Phone: [phone][email protected] www.netpingdevice.com
[ENG] [995S2] Additional Documents and Links
The page of the device 995S2:http://www.netpingdevice.com/products/voltage-sensor-995s2
Manufacturer's website:http://www.netpingdevice.com
Technical support contacts: http://www.netpingdevice.com/support
Phone:[phone]
E-mail:[email protected]
