Nexans Euromold K200LR User manual

• For indoor and outdoor applications.
• Only for cables NF C 33-226, UTE C 33-223, NF C 33-223 & HN 33-S-23 [Part 1],
NF C 33-220 (HN 33-S-22) with graphite coating screen [Part 2],
NF C 33-220 (HN 33-S-22) with extruded semi-conductive screen [Part 3].
• In case the ambient temperature is less then 0°C, it could be necessary to warm up the
sealing mastic and tape.
CAUTION : Read instructions thoroughly and completely prior to beginning installation.
Installation Instructions Separable Elbow Connector - CENELEC interface type A
(K)200LR
Up to 24 kV
Check if the diameter over cable core insulation is in accordance with
the cable reducer range as indicated in table below:
Cable reducer size
(see marking inside cable reducer)
200CA-12
200CA-16
13.0
17.5
21.0
25.0
Dia. over core insulation (mm)
min max
This product should be installed only by competent personnel trained in good safety practices involving
high voltage electrical equipment. These instructions are not intended as a substitute for adequate
training or experience in such safety practices. These instructions do not attempt to provide for every
possible contingency. Failure to follow these instructions could result in damage to the product and
serious or fatal injury. IMPORTANT : Cable and associated apparatus must be de-energised, locked
out, and tagged prior to product installation.
Page 1/9
IS97082-ENG - 200LR/G-MT345
15 January 2018 - Revision 0 - Supersedes edition of 3 June 2016
IS97082-ENG - 200LR/G-MT345 - Revision 0

3 x Earthing
device
6 x Stainless steel
straps 3 x Semi-
conductive tape
Cable reducer
200CA
Conductor contact
200LRF +
200LRMC + hex
Contents :
Elbow
connector housing
200LR/G
Roll adhesive
tape
Installation
instructions
Silicone grease
+ wipers
+
Gloves
Bail restraint
200LRBA
3x
Water sealing
mastic, type MWS
IS97082-ENG - 200LR/G-MT345 - Revision 0
Page 2/9

5
interface type A
outer sheath 130
semi-conductive screen
Part 1. Cable NF C 33-226, UTE C 33-223, NF C 33-223 & HN 33-S-23
40

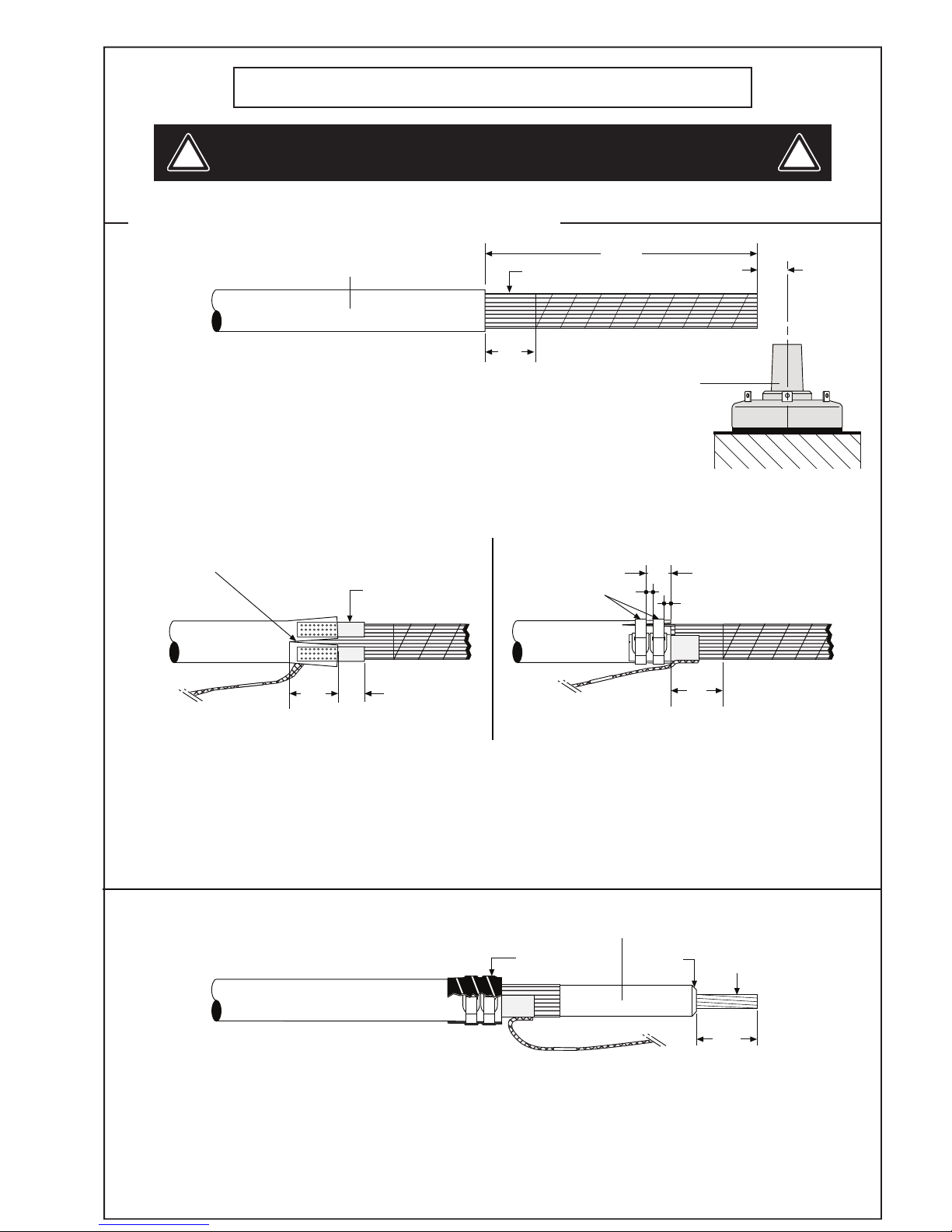

CABLE PREPARATION AND SCREEN EARTHING
1Cut the cable at 5mm from the centerline of the bushing.
2Remove the outer sheath for a distance of 130 mm.
3 Using an appropriate tool, remove the extruded semi-conductive screen
to a point 40 mm from the outer sheath.
30
semi-conductive
tape
core
insulation
conductor
round-off
8Apply one layer of semi-conductive tape around the metal straps (50% stretch, 50% overlap).
Ensure the split is covered.
9 Bare the conductor for a distance of 30 mm from the cable end.
a Slightly round-off the edge of the core insulation.
z Remove the extruded conductive screen.
4 Cut longitudinal split(s) in the outer sheath to a point 40 mm from the edge.
5 Using a blunt tool, make a slight funnel of the outer sheath to fit the earthing device underneath the sheath.
6 Install the earthing device underneath the outer sheath, protruding for a distance of max. 20 mm.
7 Cleat the outer sheath using the stainless steel straps. Twist straps twice around the cable and fold back the ends
to avoid sharp edges.
18
40
5
5
20
max
40
longitudinal
split(s) earthing
device with
flexible braid
stainless
steel straps
! !
For the preparation of the NF C 33-226 cables, please refer to the corresponding
instructions marked on the cable : POPY, NIKOL or VINYL.
Page 3/9
IS97082-ENG - 200LR/G-MT345 - Revision 0

1Fold one strip of mastic twice (4 layers) and place it under the solder block on the braid. Then wrap the second
strip of mastic over the solder block of the braid and around the outer sheath.
2 Fixate the flexible braid using adhesive tape.
3Apply two layers of semi-conductive tape, overlapping the water sealing mastic by 5mm and overlapping the
earthing device by 5mm (50% stretch, 50% overlap).
semi-con-
ductive tape
water sealing
mastic
water sealing
mastic
adhesive tape
solder block
on the braid
5
two layers of semi-conduc-
tive tape
5

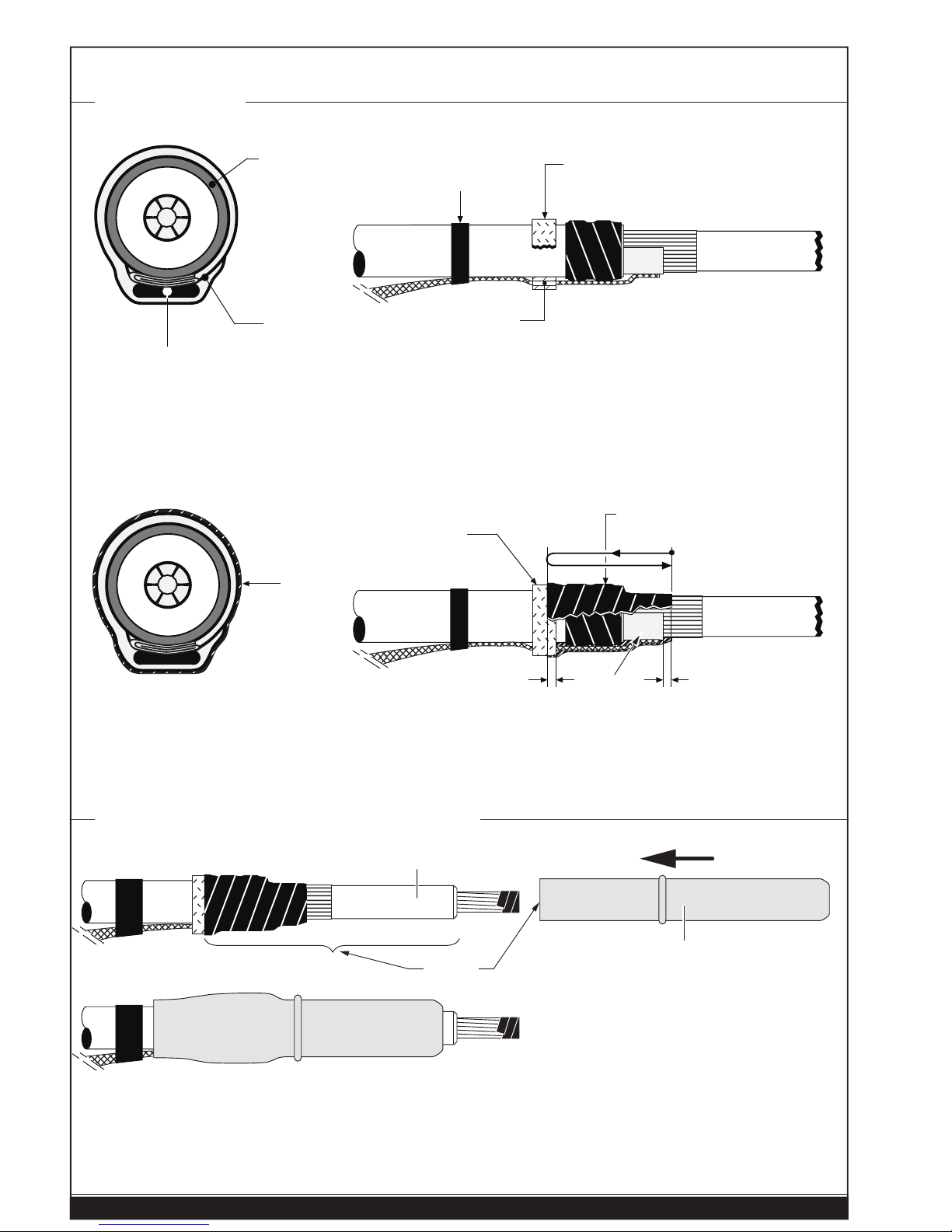

WATERSEALING
earthing
device
1As a protection, wrap a few turns of adhesive tape around the conductor end.
2Lubricate* the indicated area : cable surface and inner surface of the reducer.
3Slide the reducer down the cable.
4Remove the protective adhesive tape from the conductor.
INSTALLATION OF THE CABLE REDUCER
* USE ONLY THE SILICONE LUBRICANT SUPPLIED
lubricate
core insulation
cable reducer
outer
cable
sheath
water sealing
mastic
solder block
on the braid
IS97082-ENG - 200LR/G-MT345 - Revision 0
Page 4/9

min
10 mm
I
II
III
TIGHTENING OF THE CONTACT
1 Install the contact with the contact palm facing the bushing interface.
2Tighten the contact until the bolt head shears off.
(*) For 70 - 95 mm², tighten again until the second level of the bolt head shears off.
3After tightening the contact, slide the cable reducer up until it butts against the contact.
* Only for
70 - 95 mm²
hex SW
5 mm
Page 5/9
IS97082-ENG - 200LR/G-MT345 - Revision 0

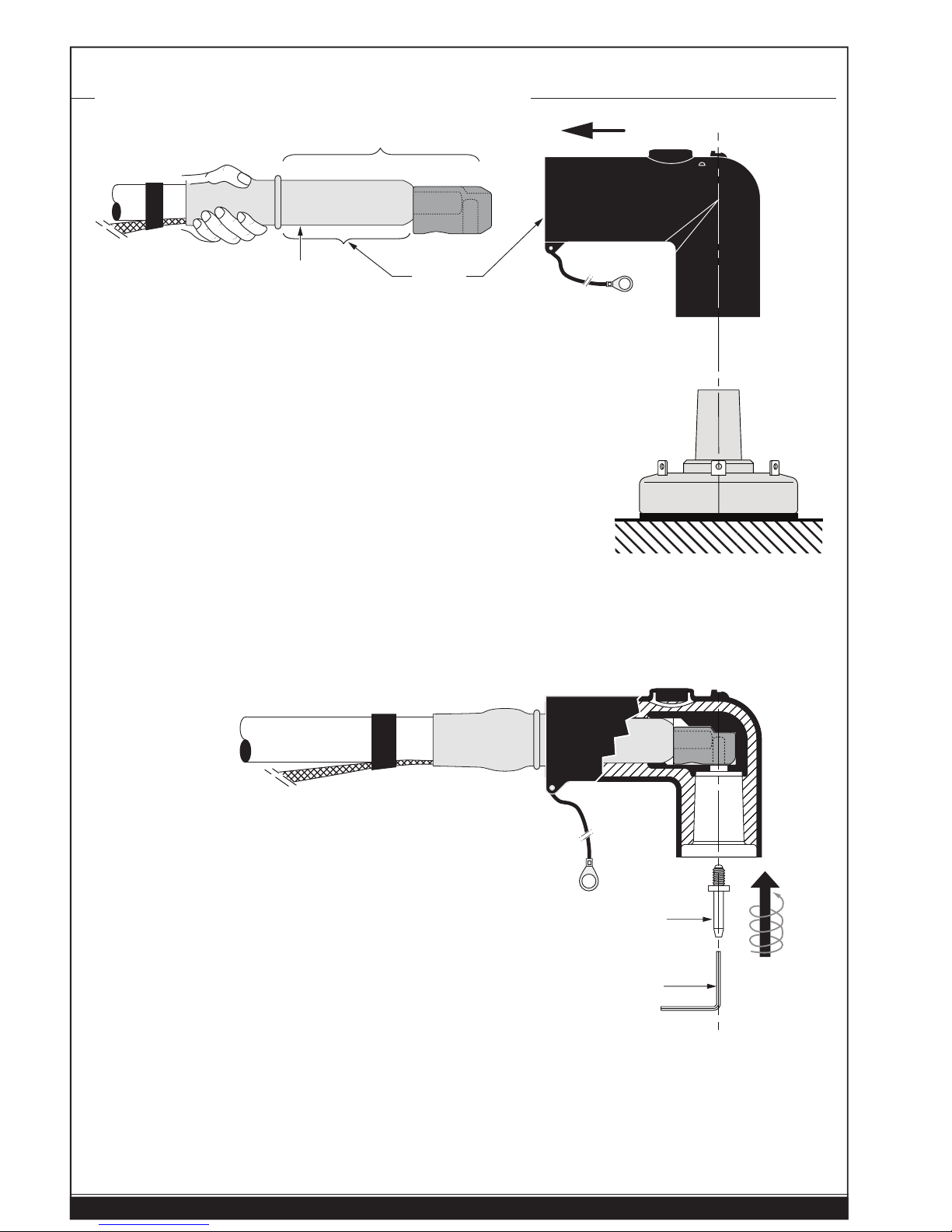

CONNECTOR INSTALLATION ON THE CABLE
1Thoroughly clean cable reducer and contact.
2Lubricate* the cable reducer and inside surface of the connector.
3Slide the connector housing on to the reducer until it cannot advance any further.
4 Insert the supplied hex key into the pin contact. Insert the threaded end of the pin contact into the mating part and
engage threads. Take care not to cross threads.
5 Tighten with the supplied hex key until the key has taken a set.
NOTE:
-The hex key must be inserted in the pin contact until it cannot advance any further.
-The hex key is only usable twice (once every side).
cable reducer lubricate
pin contact
hex key
clean thoroughly
* USE ONLY THE SILICONE LUBRICANT SUPPLIED
IS97082-ENG - 200LR/G-MT345 - Revision 0
Page 6/9

* USE ONLY THE SILICONE LUBRICANT SUPPLIED
CONNECTOR INSTALLATION ON THE BUSHING
1Clean and lubricate* lightly both
bushing interface and elbow connector
interface.
2 Place the elbow connector firmly down
on the bushing
& .
3 Insert bail into the bushing tabs and
position bail over elbow connector
é .
NOTE :
A connector/bushing mated combination should not be allowed to carry the full weight of the cable.
Therefore it is necessary to clamp the cable as close as possible to the connector.
IMPORTANT NOTES :
- Never disconnect the connector from energised equipment nor energise a disconnected connector
without previously installing an appropriate mating part.
- Do not allow hydrocarbon oils or solvents to contaminate the E.P.D.M. rubber.
In the event of contamination, wipe the surface clean with a dry cloth.
4 Connect earthing lead of the connector and flexible braid to the system earth.
lubricate
equipment
bushing
&é
Installation hint :
Apply a small dash of silicone grease on the
connector’s surface to easily snap the bail
into position.
silicone
grease
Page 7/9
IS97082-ENG - 200LR/G-MT345 - Revision 0

Continue the installation on page 4.
1Cut the cable 5mm from the centerline of the bushing.
2Remove the outer sheath for a distance of 130 mm.
3Remove the copper tape screen and fabric tape to a point 25 mm from
the outer sheath and secure it with a wrap of adhesive tape.
Do not remove the graphite varnish at this stage.
4Cut longitudinal split(s) in the outer sheath to a point 40 mm from the edge.
5Using a blunt tool, make a slight funnel of the outer sheath to fit the earthing device underneath the sheath.
6Install the earthing device underneath the outer sheath. Have it protruded by maximum 20 mm.
7Cleat the outer sheath using the stainless steel straps. Twist straps twice around the cable and fold back the ends
to avoid sharp edges.
8Apply 2 layers of semi-conductive tape, (50% stretch, 50% overlap), as follows: start taping on
the metal straps (ensure the splits are covered), up to a point 40 mm behind the outer sheath. Without cutting the
tape, apply a second layer back to the start.
9Remove the core insulation from the conductor for a distance of 30 mm.
aUsing an appropriate solvent thoroughly remove the graphite coating up to the semi-conductive
tape.
zSlightly round-off the edge of the core insulation. Do not sharpen in cone-shape.
CABLE PREPARATION AND CABLE SCREEN EARTHING
Part 2. Cable with graphite coating screen NF C 33-220 (HN 33-S-22)
graphited core insulation
adhesive
tape
copper
tape screen
longitudinal
split(s)
earthing device
with braid
cleaned core
insulation
conductor
semi-conductive tape
25
130
40 20
max
18
5
5
stainless steel straps
40 30
outer
sheath
round-off
5
interface type A
IS97082-ENG - 200LR/G-MT345 - Revision 0
Page 8/9

Continue the installation on page 4.
Nexans Network Solutions NV - div. EUROMOLD
Zuid III - Industrielaan 12
B-9320 EREMBODEGEM-AALST – BELGIUM
Tel: [phone]
www.euromold.be - [email protected]
1Cut the cable 5mm from the centerline of the bushing.
2Remove the outer sheath for a distance of 130 mm.
3Remove the copper tape screen to a point 25 mm from the outer sheath
and secure it with a wrap of adhesive tape.
4Remove the extruded semi-conductive screen to a point 40 mm from the outer sheath.
5Cut longitudinal split(s) in the outer sheath to a point 40 mm from the edge.
6Using a blunt tool, make a slight funnel of the outer sheath to fit the earthing device underneath the sheath.
7Install the earthing device underneath the outer sheath. Have it protruded by maximum 20 mm.
8Cleat the outer sheath using the stainless steel straps. Twist straps twice around the cable and fold back the ends
to avoid sharp edges.
9Apply 1 layer of semi-conductive tape, (50% stretch, 50% overlap), on the metal straps (ensure the splits are
covered).
aRemove the core insulation from the conductor for a distance of 30 mm.
zSlightly round-off the edge of the core insulation. Do not sharpen in cone-shape.
CABLE PREPARATION AND CABLE SCREEN EARTHING
Part 3. Cable with extruded semi-conductive screen NF C 33-220 (HN 33-S-22)
core insulation
adhesive
tape Important : have the extruded
semi-conductive screen protruded
copper
tape screen
outer
sheath
longitudinal
split(s)
earthing device
with braid
core insulation conductor
semi-conductive tape
25
40 130
40 20
max
18
5
5
stainless steel straps
30
round-off
5
interface type A
Page 9/9
IS97082-ENG - 200LR/G-MT345 - Revision 0
