Nextar MA201 User manual

MA201 | Digital MP3 Player
Instruction Manual

B
Table of Contents
1. Introduction...........................................................................................................1
2. Safety instructions.................................................................................................1
3. Function overview.................................................................................................2
4. Product description...............................................................................................3
5. LCD description....................................................................................................3
6. Basic operation.....................................................................................................4
7. System menu........................................................................................................5
8. Playing music........................................................................................................8
9. Telephone book...................................................................................................14
10. Recording voice................................................................................................15
11. Voice playback..................................................................................................16
12. USB disk function.............................................................................................17
13. Troubleshooting................................................................................................22
14. Specications...................................................................................................23

1
1. INTRODUCTION
Thank you for purchasing our MP3 player.
Before using the unit please read this
manual carefully to obtain the best possible
performance from your player. Keep this
manual for future reference
2. SAFETY INSTRUCTIONS
The manual contains the important safety
instructions and information of the device’s
proper usage. Make sure to read carefully
and understand all the instructions to avoid
accident.
Do not expose the device to extreme
temperature (above 40°), especially in cars
with shutting windows in summer.
Do not expose to moisture. Do not store in
humid or dirty areas.
Avoid the device falling and bumping
strongly. Do not make OLED suffer from
violent shake; otherwise, OLED could be
damaged or displayed abnormally.
Choose the suitable volume. Do not turn up
the volume of the earphones too high while
using it. If you get ringing in your ears stop
using the device or turn the volume down.
Do not disassemble the device yourself
and do not wipe the surface of device with
alcohol and benzene and thinners.
Do not using the device in areas with
prohibiting electronic devices, such as in
plane.
Do not use the device while driving
an automobile or walking in the street,
otherwise, an accident may result.
Our company take partly responsibility
that memory is lost because of defective
products and repair and other reasons.
Please users comply with the manual to
operate it properly.
Our company reserves the right to improve
the product so product’s specication and
design are subject to change without further
notice.

2
3. FUNCTION OVERVIEW
Portable USB storage device with huge
memory
You can upload/download les in shortcut
way in WINDOWS EXPLORER without
other programs (WINDOUWS 98 above).
OLED display, multi-screen saver
pictures
Supports various audio formats
Supports MP1.2.3, WMA, ASF, WAV musical
les
Digital recording/repeating
Records and saves the audio les as the
WAV or ACT format; contrast and following
reading function make users experience the
real digital repeating function.
Support multi-languages
Display three languages and track
information with lyric in simplied Chinese,
English, traditional Chinese, Japanese,
Korean, French, German, Italian, Dutch,
Portuguese and Spanish
Multiple EQ modes
Switch EQ in seven types: normal, rock,
pop, classic, soft, jazz, bass
Multiple play modes
Switch play modes in seven types: normal
play, repeat one, single folder play, repeat
folder play, repeat all, random, intro
Managing disk function
Sets two partitions for USB disk by
accessorial tool. One is normal disk, the
other is security disk in which les could not
be accessed freely

3

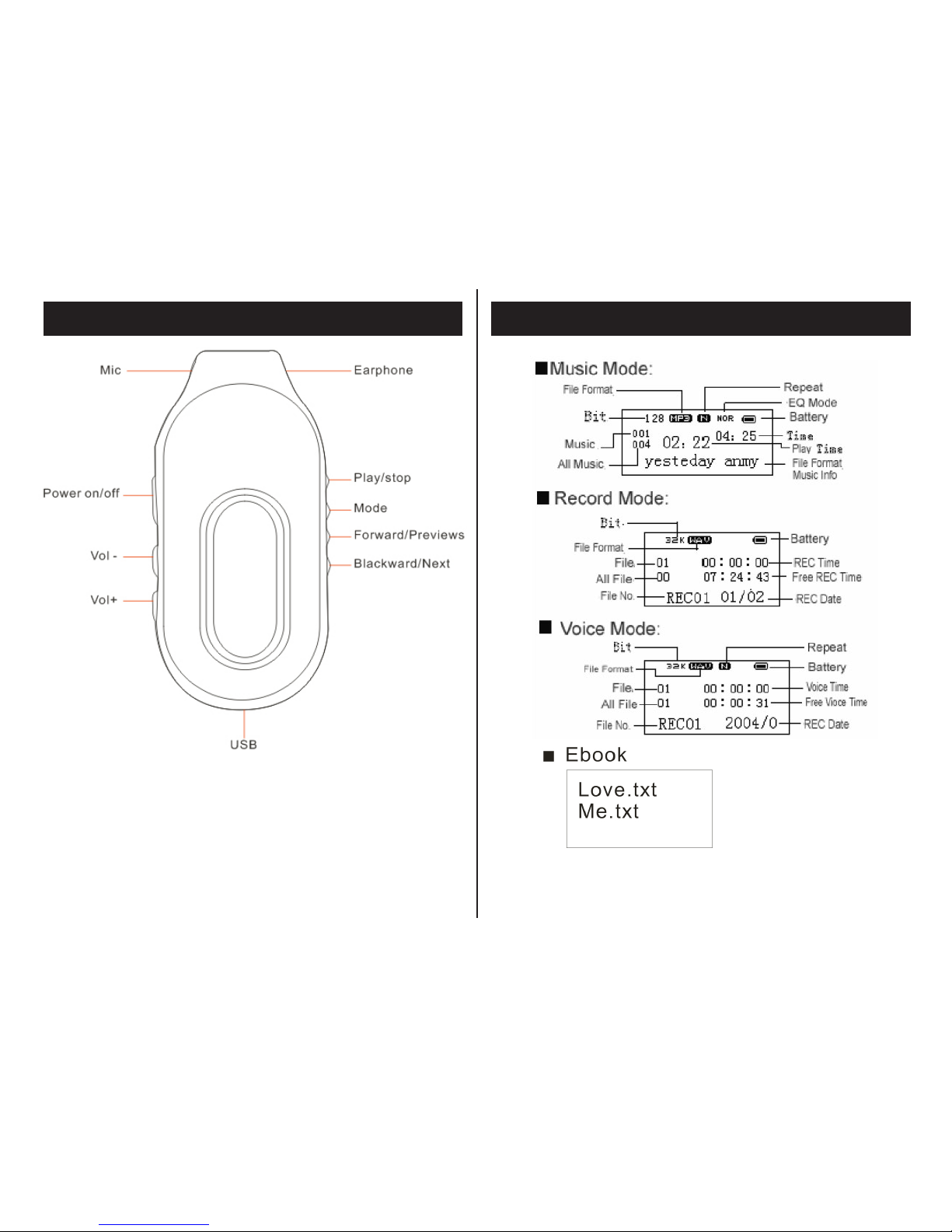

4. PRODUCT DESCRIPTION 5. LCD DESCRIPTION

4
6. BASIC OPERATION
Power on/off
The player supports auto and manual power
on function
Manual power on:
press and hold [>II] button for 3 seconds,
the player will go to working mode when the
player is turned on. Auto power off: in the
power off status, the player will automatically
go to USB mode via USB cable to connect
to PC.
Power off
a. Playing status: to press [>II] button, the
song will pause; to hold [>II] button for
three second, the player will be turned off.
b. In music mode: to hold [>II] button for two
seconds, the music will stop, then to hold
[>II] button for three seconds, the player will
be turned off.
c. In other modes: to press [>II] button for
three seconds, the player will be turned off.
d. When batter power is low, system will
automatically power the player off.
Adjusting the volume
In music mode, voice playback mode and
FM mode, pressing [VOL] button briey will
enter volume adjustment interface.
Pressing [>>I] button or [I<<] button will
increase/decrease the volume one step.
Holding [>>I] button or [I<<] button will
increase/decrease continuously.
Notice: Do not turn up the volume of the
earphones too high, otherwise your hearing
will be impaired.
Reset power
You can press [Reset] button to reboot the
player if it crashes.
Battery
The player adopts a built-in polymer
battery with a large capacity.

5
If the battery power is low, the screen will
display “low power” and the player will
automatically power off.
Recharge your battery by connection to PC
via USBA cable or by the provided charger.
The screen displays battery icon and impulse
when recharging battery. The battery
power will indicate full when completing
recharging.
The battery will be full until it is recharged
continuously for 4hours(the rst two times
will take 10hours).
The usable time of battery depends on high
or low of volume, playing les format, button
operation, etc.
The user could set [power off setting] to
save power.
The user could set [screen saver on] to save
power.
The user could hold [VOL] button to set
HOLD UNLOCK to avoid exhausting the
power caused by wrong operation of
buttons.
7. SYSTEM MENU
System menu
enter menu: press[MODE] button briey.
select menu: press[I<<] button or [>>I]
button to select the setting.
save setting: hold [MODE]button to save
and escape from menu.
Music mode:
playing music for more details, refer to
“playing music”
Record mode:
recording voice for more details, refer to
“recording voice”
Voice mode:
playback voice for more details, refer to
“voice playback”

6
Radio mode:
listen to radio for more details, refer to “FM
radio”
The text reads originally:Can see the document
that you love to see (for example:Novel)
The telephone is thin:
Can at any time see your friend of personal
name card
System mode:
setting system or more details, refer the
following “system setting”
System setting
Press [I<<] button or [>>I] button to select
menu in [system setting], then press
[MODE] button briey to enter system
setting interface.
Record time
In [system setting] menu, set record time.
Press [VOL] button briey and the digit of year
will be blinking; Press [VOL] button briey
and the digit of month will be blinking.
Select and start the year, month, day, hour,
minute, and second.
Use [I<<] button or [>>I] button to adjust the
digit. Press [MODE] button briey to conrm
the setting and return to the previous menu.

7
Language
In [language] interface, use [I<<] button or
[>>I] button to select language, then press
[MODE] button conrm.
Backlight
The user could set OLED lightness duration
to save OLED and power. Using OLED
screen with high lightness duration will short
OLED screen life.
Use [I<<] button or [>>I] button to adjust
time time from 0 to 30seconds.
If 0 is selected, the high lightness is set to
off.
Adjust backlight and use [MODE] button to
conrm.
Notice: without pressing any button, OLED
screen displays low lightness when setting
time is up (the time unit is second).
Power off setting
Operation refers to “backlight” setting.
Off time mode: To set the self-power off time
when the player playback is stopped and no
button is pressed.
If “0” is selected, this function will be
disabled. The time unit is seconds.
Sleep time mode
To set self-power off time after last key
pressed, regardless of whether the player is
active or stopped. The time unit is minutes.
Screen saver setting
Setting screen saver to save OLED screen
and to spare battery power.

8
Press [I<<] button or [>>I] button briey to
select option, then press [MODE] button
briey to conrm the selected option.
Online mode
Refer to other mode setting. Some
operating systems Windows 98/98SEP4
cannot support USB disk with two disks
icons display in MY COMPUTER.
When disk is encrypted, select [multi driver],
[normal only] and [encrypted only] in the
player via connection to PC.
Memory information
To display the built-in memory size and used
memory percentage.
Firmware version
To display the rmware version and date.
Firmware upgrade
To enter [rmware upgrade] function,
rmware can be upgraded via connection to
PC (refer to “upgrading the player”).
8. PLAYING MUSIC
Play/Stop
Play: In music mode, connect the earphone
to the player and select songs, then press
PLAY/STOP [>II] button briey.
Stop: Press PLAY/STOP [>II] button briey.
Select music
Pressing [I<<] button briey will move to the
previous songs. Holding [I<<] button will
move backward fast.
Pressing [>>I] button briey will move to the
next songs. Holding [>>I] button will move
forward fast.
