NI MXI-Express x1 Series User manual

National Instruments PXI-8366 Manual
Get Pricing & Availability at
ApexWaves.com
Call Today: 1-800-915-6216
Email: [e-mail]
https://www.apexwaves.com/modular-systems/national-instruments/mxi-express-x1-series/PXI-8366

MXITM-Express x1
MXI-Express x1 Series User Manual
MXI-Express x1 Multisystem eXtension Interface for PCI, PCI Express, CompactPCI/CompactPCI
Express, ExpressCard, and PXI/PXI Express Bus Computers
NI PCI-8361
NI PCI-8366
NI PCIe-8361
NI PCIe-8362
NI PXI-8360
NI PXI-8361
NI PXI-8364
NI PXI-8366
NI PXI-8367
NI PXIe-8360
NI PXIe-8364
NI ExpressCard-8360
MXI-Express x1 Series User Manual
November 2011
373241D-01

Support
Worldwide Technical Support and Product Information
ni.com
Worldwide Offices
Visit ni.com/niglobal to access the branch office Web sites, which provide up-to-date contact information,
support phone numbers, email addresses, and current events.
National Instruments Corporate Headquarters
11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: [phone]
For further support information, refer to the Technical Support and Professional Services appendix. To comment
on National Instruments documentation, refer to the National Instruments Web site at ni.com/info and enter
the Info Code feedback.
©2011 National Instruments Corporation. All rights reserved.

Important Information
Warranty
The NI PCI-8361/8366, NI PCIe-8361/8362, NI PXI-8360/8361/8364/8366/8367, NI PXIe-8360/8364, and NI ExpressCard-8360 are
warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other
documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period.
This warranty includes parts and labor.
The media on which you receive National Instruments software are warranted not to fail to execute programming instructions, due to defects in
materials and workmanship, for a period of 90 days from date of shipment, as evidenced by receipts or other documentation. National Instruments
will, at its option, repair or replace software media that do not execute programming instructions if National Instruments receives notice of such defects
during the warranty period. National Instruments does not warrant that the operation of the software shall be uninterrupted or error free.
A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the outside of the package before any
equipment will be accepted for warranty work. National Instruments will pay the shipping costs of returning to the owner parts which are covered by
warranty.
National Instruments believes that the information in this document is accurate. The document has been carefully reviewed for technical accuracy. In
the event that technical or typographical errors exist, National Instruments reserves the right to make changes to subsequent editions of this document
without prior notice to holders of this edition. The reader should consult National Instruments if errors are suspected. In no event shall National
Instruments be liable for any damages arising out of or related to this document or the information contained in it.
EXCEPT AS SPECIFIED HEREIN, NATIONAL INSTRUMENTS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AND SPECIFICALLY DISCLAIMS ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE. CUSTOMER’SRIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF NATIONAL
INSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER. NATIONAL INSTRUMENTS WILL NOT BE LIABLE FOR DAMAGES RESULTING
FROM LOSS OF DATA, PROFITS, USE OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY THEREOF. This limitation of
the liability of National Instruments will apply regardless of the form of action, whether in contract or tort, including negligence. Any action against
National Instruments must be brought within one year after the cause of action accrues. National Instruments shall not be liable for any delay in
performance due to causes beyond its reasonable control. The warranty provided herein does not cover damages, defects, malfunctions, or service
failures caused by owner’s failure to follow the National Instruments installation, operation, or maintenance instructions; owner’s modification of the
product; owner’s abuse, misuse, or negligent acts; and power failure or surges, fire, flood, accident, actions of third parties, or other events outside
reasonable control.
Copyright
Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying,
recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of National
Instruments Corporation.
National Instruments respects the intellectual property of others, and we ask our users to do the same. NI software is protected by copyright and other
intellectual property laws. Where NI software may be used to reproduce software or other materials belonging to others, you may use NI software only
to reproduce materials that you may reproduce in accordance with the terms of any applicable license or other legal restriction.
Trademarks
LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National
Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks.
The ExpressCard™word mark and logos are owned by PCMCIA and use of such marks by National Instruments is under license. Other product
and company names mentioned herein are trademarks or trade names of their respective companies.
Members of the National Instruments Alliance Partner Program are business entities independent from National Instruments and have no agency,
partnership, or joint-venture relationship with National Instruments.
Patents
For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software,
the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents.
Export Compliance Information
Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance
policy.
WARNING REGARDING USE OF NATIONAL INSTRUMENTS PRODUCTS
(1) NATIONAL INSTRUMENTS PRODUCTS ARE NOT DESIGNED WITH COMPONENTS AND TESTING FOR A LEVEL OF
RELIABILITY SUITABLE FOR USE IN OR IN CONNECTION WITH SURGICAL IMPLANTS OR AS CRITICAL COMPONENTS IN
ANY LIFE SUPPORT SYSTEMS WHOSE FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO CAUSE SIGNIFICANT
INJURY TO A HUMAN.
(2) IN ANY APPLICATION, INCLUDING THE ABOVE, RELIABILITY OF OPERATION OF THE SOFTWARE PRODUCTS CAN BE
IMPAIRED BY ADVERSE FACTORS, INCLUDING BUT NOT LIMITED TO FLUCTUATIONS IN ELECTRICAL POWER SUPPLY,
COMPUTER HARDWARE MALFUNCTIONS, COMPUTER OPERATING SYSTEM SOFTWARE FITNESS, FITNESS OF COMPILERS
AND DEVELOPMENT SOFTWARE USED TO DEVELOP AN APPLICATION, INSTALLATION ERRORS, SOFTWARE AND HARDWARE
COMPATIBILITY PROBLEMS, MALFUNCTIONS OR FAILURES OF ELECTRONIC MONITORING OR CONTROL DEVICES,
TRANSIENT FAILURES OF ELECTRONIC SYSTEMS (HARDWARE AND/OR SOFTWARE), UNANTICIPATED USES OR MISUSES, OR
ERRORS ON THE PART OF THE USER OR APPLICATIONS DESIGNER (ADVERSE FACTORS SUCH AS THESE ARE HEREAFTER
COLLECTIVELY TERMED “SYSTEM FAILURES”). ANY APPLICATION WHERE A SYSTEM FAILURE WOULD CREATE A RISK OF
HARM TO PROPERTY OR PERSONS (INCLUDING THE RISK OF BODILY INJURY AND DEATH) SHOULD NOT BE RELIANT SOLELY
UPON ONE FORM OF ELECTRONIC SYSTEM DUE TO THE RISK OF SYSTEM FAILURE. TO AVOID DAMAGE, INJURY, OR DEATH,
THE USER OR APPLICATION DESIGNER MUST TAKE REASONABLY PRUDENT STEPS TO PROTECT AGAINST SYSTEM FAILURES,

INCLUDING BUT NOT LIMITED TO BACK-UP OR SHUT DOWN MECHANISMS. BECAUSE EACH END-USER SYSTEM IS
CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING PLATFORMS AND BECAUSE A USER OR APPLICATION
DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT
EVALUATED OR CONTEMPLATED BY NATIONAL INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY
RESPONSIBLE FOR VERIFYING AND VALIDATING THE SUITABILITY OF NATIONAL INSTRUMENTS PRODUCTS WHENEVER
NATIONAL INSTRUMENTS PRODUCTS ARE INCORPORATED IN A SYSTEM OR APPLICATION, INCLUDING, WITHOUT
LIMITATION, THE APPROPRIATE DESIGN, PROCESS AND SAFETY LEVEL OF SUCH SYSTEM OR APPLICATION.

Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for electromagnetic
compatibility (EMC) as stated in the product specifications. These requirements and limits are designed to provide
reasonable protection against harmful interference when the product is operated in its intended operational
electromagnetic environment. There is no guarantee that interference will not occur in a particular installation.
To minimize the potential for the product to cause interference to radio and television reception or to experience
unacceptable performance degradation, install and use this product in strict accordance with the instructions in the
product documentation.
The following statements contain important information needed before installing and using this product:
Caution This product is intended for use in industrial locations. As a result, this product may cause
interference if used in residential areas. Such use must be avoided unless the user takes special
measures to reduce electromagnetic emissions to prevent interference to the reception of radio and
television broadcasts.
Caution To ensure the specified EMC performance, operate this product only with shielded cables
and accessories. Products that use fiber optic cables, the NI PCI-8366 and NI PXI-8366/8367, do not
require shielded cables.
Caution Changes or modifications not expressly approved by National Instruments could void the
user’s authority to operate the hardware under the local regulatory rules.

©National Instruments Corporation vii MXI-Express x1 Series User Manual
Contents
About This Manual
Products Covered...........................................................................................................ix
Current Generation MXI-Express x1 Products ...............................................ix
Previous Generation MXI-Express x1 Products..............................................ix
Related Documentation..................................................................................................x
Conventions ...................................................................................................................xi
Chapter 1
Introduction
Description and Features ...............................................................................................1-1
Functional Overview......................................................................................................1-3

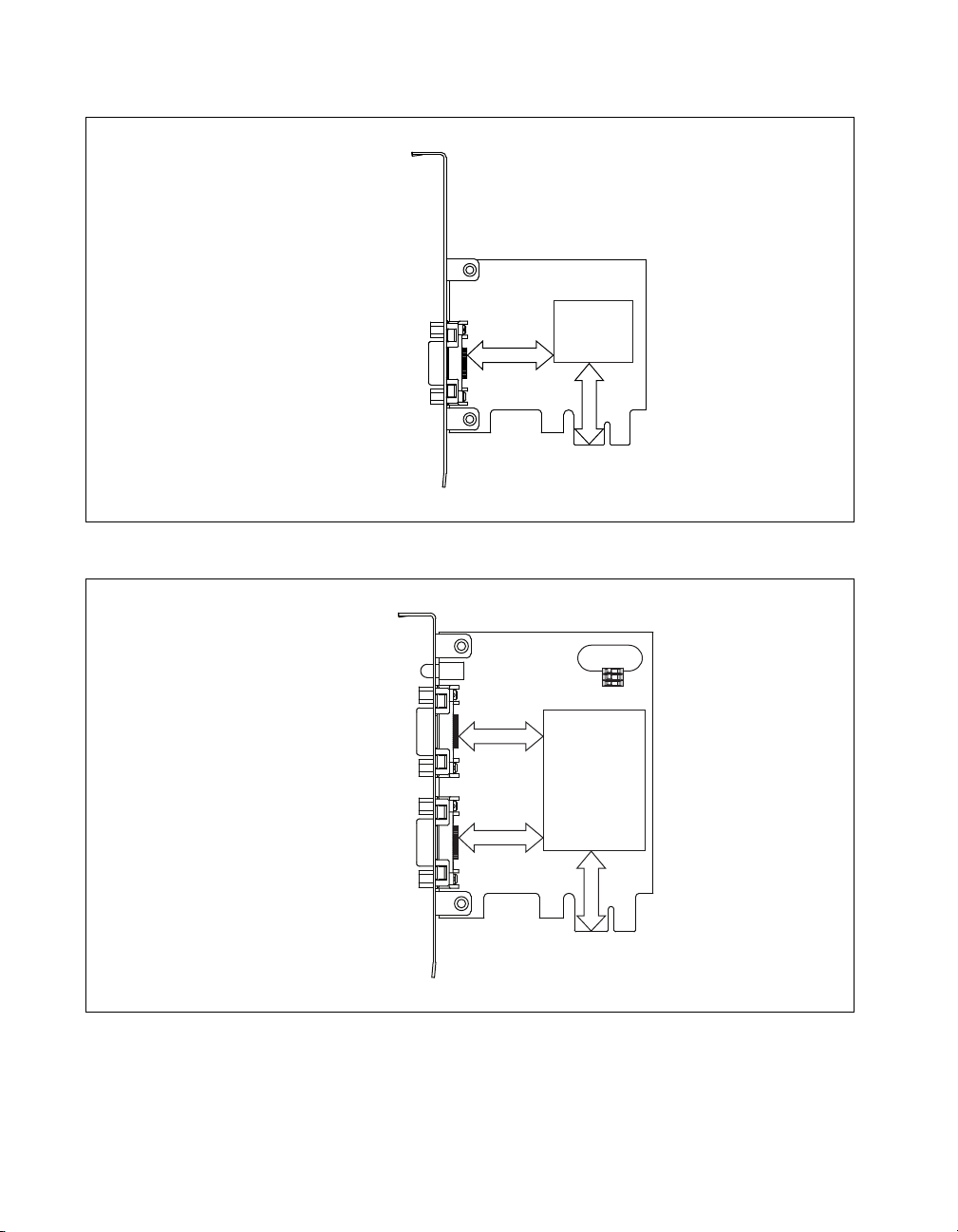

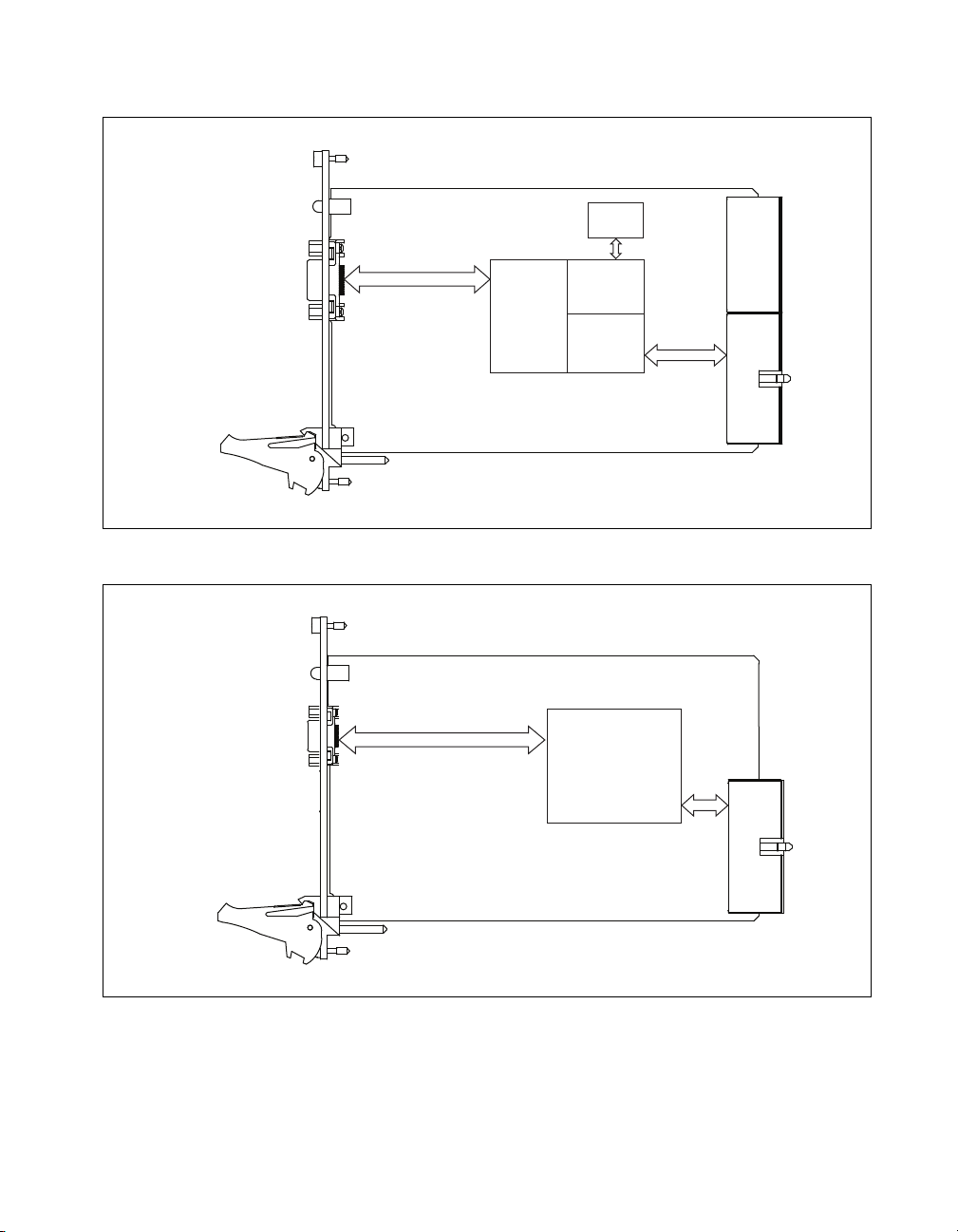

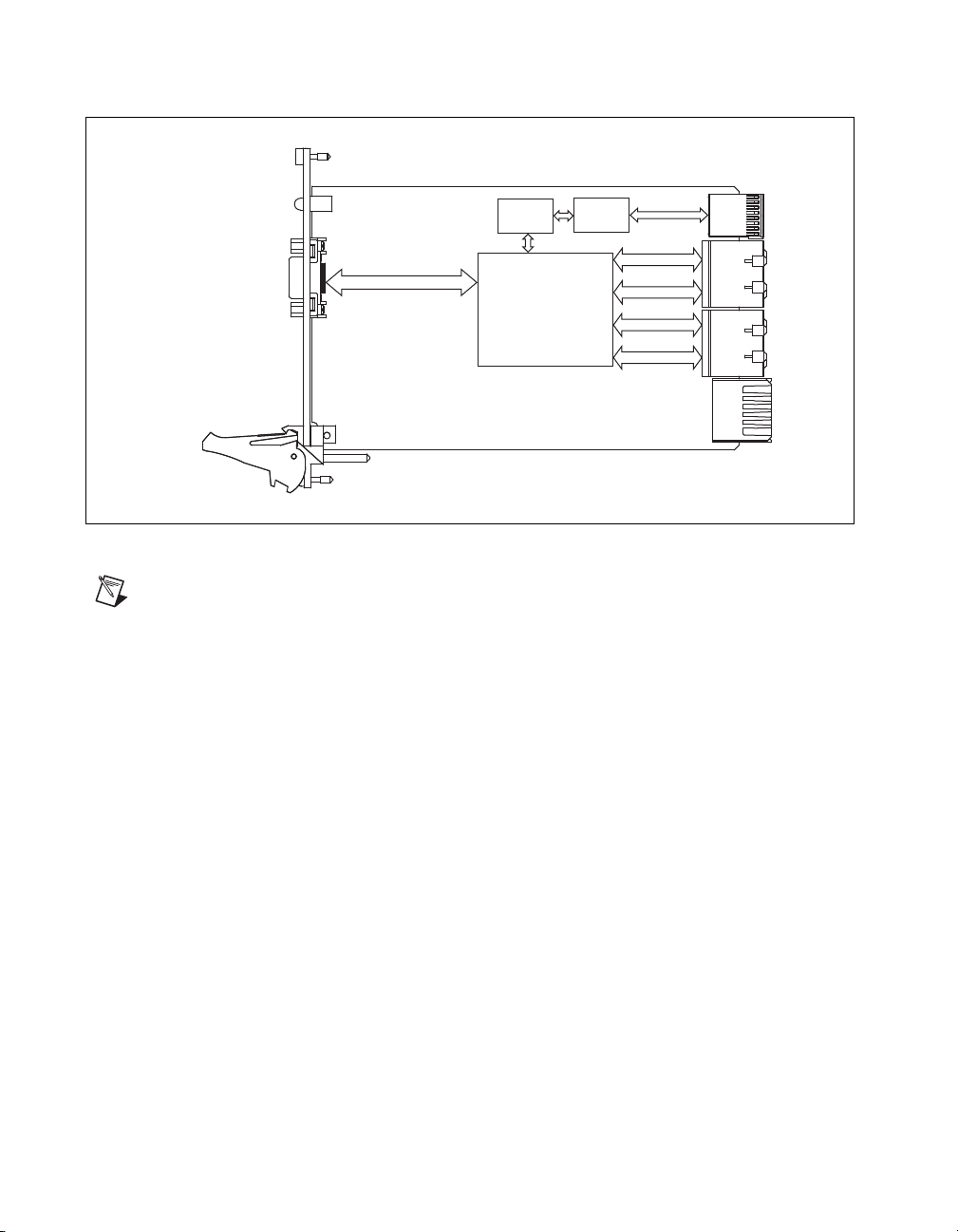

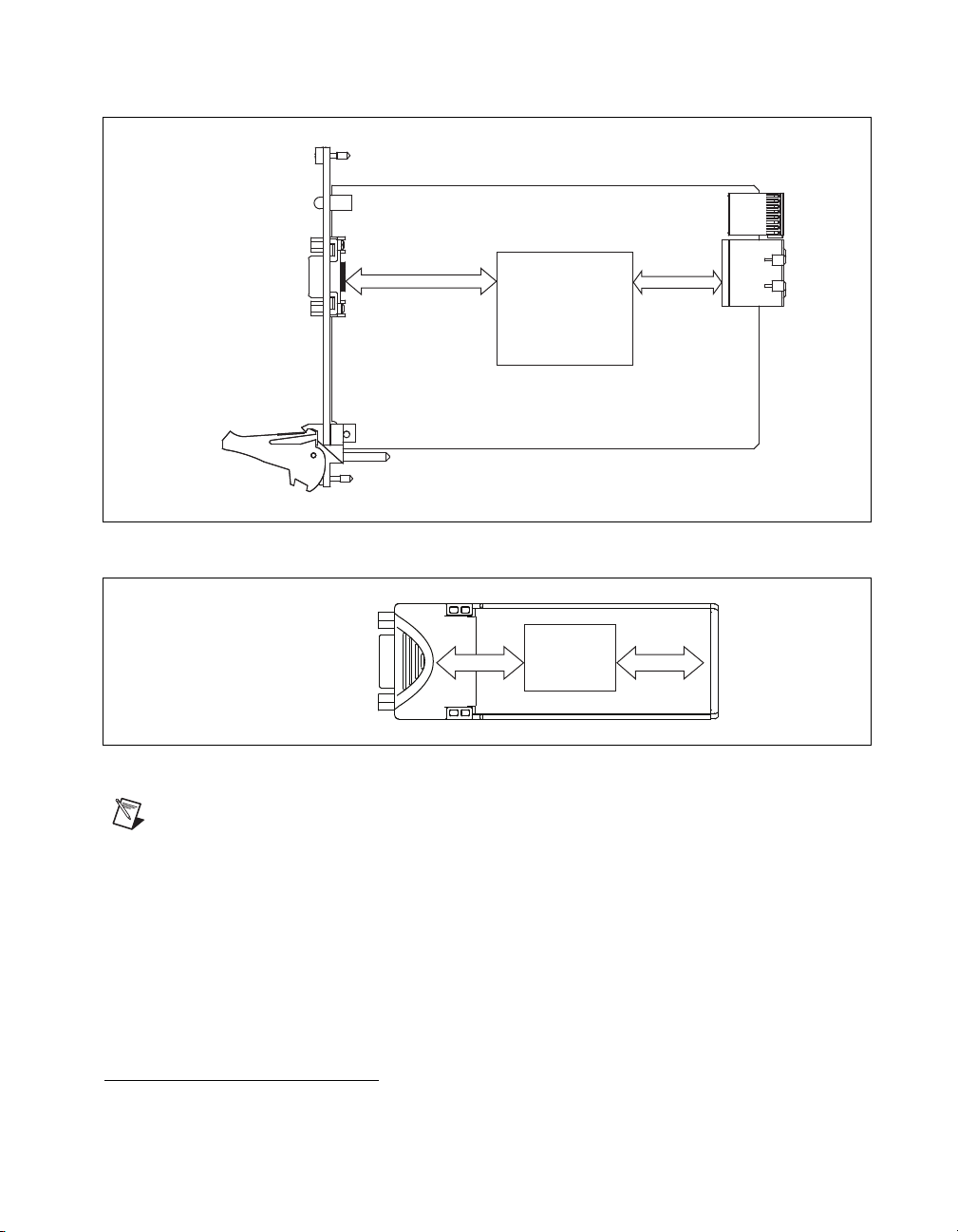

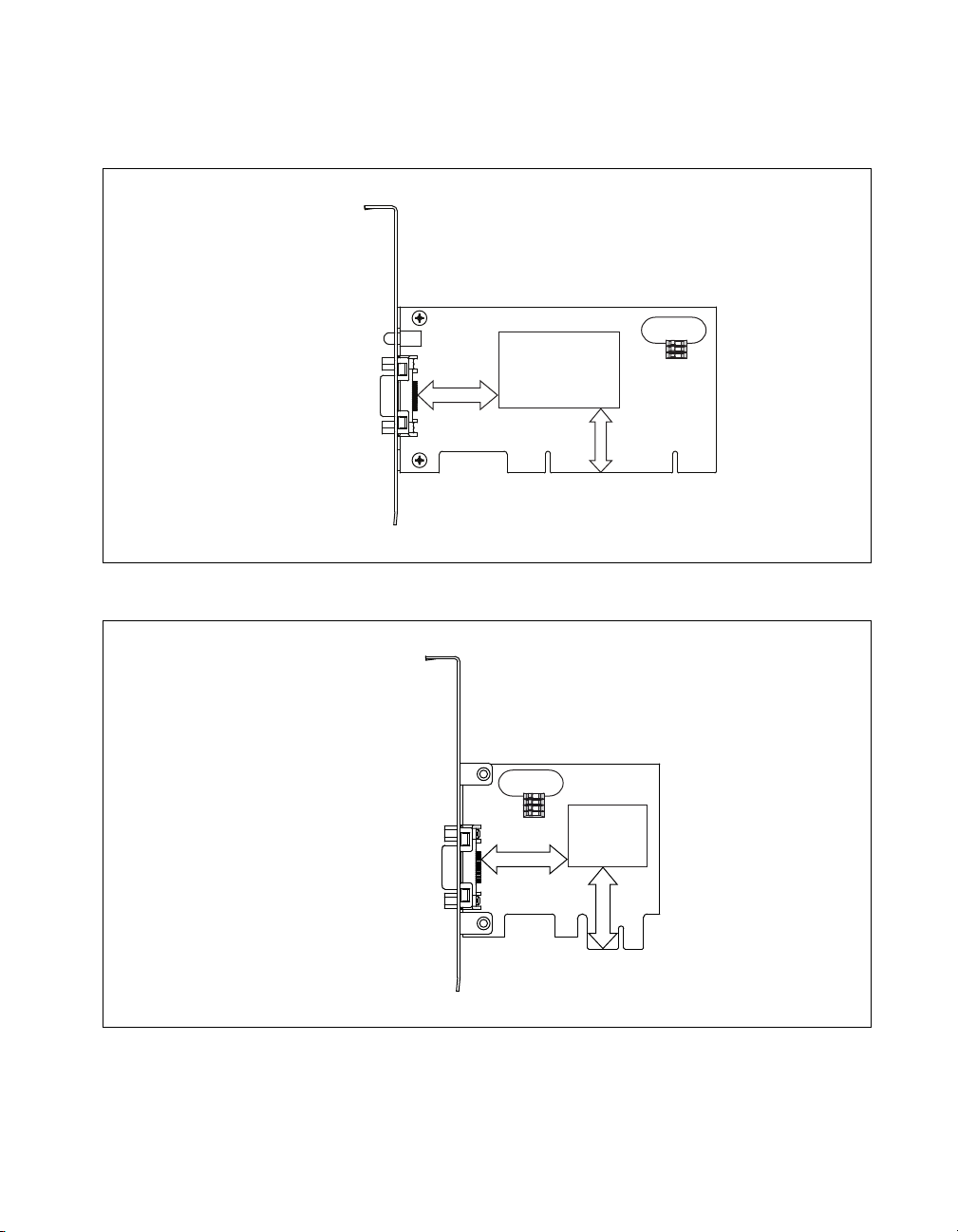

Functional Block Diagrams.............................................................................1-5
Basic MXI-Express x1 Systems ......................................................................1-9
Larger MXI-Express x1 Systems ....................................................................1-12
Chapter 2
Getting Started
Terminology...................................................................................................................2-1
Connecting a PC or Laptop to an Expansion Chassis....................................................2-2
Using a MXI-Express x1 Copper Cable..........................................................2-2
Equipment Needed............................................................................2-2
Connecting Additional Expansion Chassis to a System ................................................2-4
Using a MXI-Express x1 Copper Cable..........................................................2-4
Equipment Needed............................................................................2-4
Chapter 3
Installation and Configuration
Unpacking......................................................................................................................3-1
Hardware Installation.....................................................................................................3-2
Installing an NI PCI-8361 or NI PCIe-8361/8362 Host Card .........................3-2
Installing the Low-Profile Bracket (Optional) ..................................3-3
Installing an NI ExpressCard-8360 Host Card................................................3-5
Installing an NI PXI-8360/8364 or NI PXIe-8360/8364 Board ......................3-6
Cabling ............................................................................................................3-8
Powering On the MXI-Express x1 System .....................................................3-8
Powering Off the MXI-Express x1 System.....................................................3-9
LED Indicators ................................................................................................3-9

Contents
MXI-Express x1 Series User Manual viii ni.com
Software Installation and Configuration ....................................................................... 3-12
Installation....................................................................................................... 3-12
Configuring Your System ............................................................................... 3-12
Appendix A
Common Questions
Appendix B
Specifications
Appendix C
Specifications for Legacy Products
Appendix D
NI PCI-8366 Low-Profile Bracket Installation Instructions
Appendix E
Technical Support and Professional Services
Glossary
Index

©National Instruments Corporation ix MXI-Express x1 Series User Manual
About This Manual
This manual describes the features, functions, and operation of the
NI PCI-8361, NI PCI-8366, NI PCIe-8361, NI PCIe-8362,
NI PXI-8360/8361/8364/8366/8367, NI PXIe-8360/8364, and
NI ExpressCard-8360 MXI-Express x1 series of products.
Products Covered
Note The model numbers listed below are followed by their specific NI assembly numbers
in parentheses. xdenotes all letter revisions of the assembly. Ensure the specifications of
interest match the NI assembly number that is printed on either the front or back side of the
board.
Current Generation MXI-Express x1 Products
•NI PCI-8361 (199392x-01L)
•NI PCIe-8361 (199042x-01L)
•NI PCIe-8362 (190735x-01L)
•NI PXI-8364 (199991x-02L)
•NI PXI-8360 (191373x-01)
•NI PXIe-8360 (194402x-01L)
•NI PXIe-8364 (193970x-01L)
•NI ExpressCard-8360 (198266x-01L)
Previous Generation MXI-Express x1 Products
Refer to Appendix C, Specifications for Legacy Products, for more
information on these products.
•NI PCI-8366 (199392x-02L) 1
•NI PCIe-8361 (195315x-01L)
•NI PCIe-8361 (191376x-02) 1
•NI PCIe-8362 (191376x-01) 1
•NI PXI-8361 (199991x-01L) 1
•NI PXI-8366 (199991x-03L) 1
•NI PXI-8367 (199991x-04L) 1
•NI ExpressCard-8360 (192290x-01) 1
1 No longer available for purchase.

About This Manual
MXI-Express x1 Series User Manual x ni.com
Related Documentation
The following documents contain information that you might find helpful
as you read this manual:
•Set Up Your MXI-Express x1 System
• Your computer or chassis documentation
•PXI-1 PXI Hardware Specification, Revision 2.1
•PXI-2 PXI Software Specification, Revision 2.1
•PXI-5 Express Hardware Specification, Revision 1.0
•PXI-6 PXI Express Software Specification, Revision 1.0
•PCI Specification, Revision 3.0
•PCI-PCI Bridge Architecture Specification, Revision 1.2
•PCI Express Specification, Revision 1.0a
•PICMG CompactPCI 2.0 R3.0 specification
• PICMG EXP.0 CompactPCI Express Specification R1.0
•PCMCIA ExpressCard Standard, Revision 1.0
•PCI Express Base Specification, Revision 1.1

About This Manual
©National Instruments Corporation xi MXI-Express x1 Series User Manual
Conventions
The following conventions appear in this manual:
»The » symbol leads you through nested menu items and dialog box options
to a final action. The sequence Options»Settings»General directs you to
pull down the Options menu, select the Settings item, and select General
from the last dialog box.
This icon denotes a note, which alerts you to important information.
This icon denotes a caution, which advises you of precautions to take to
avoid injury, data loss, or a system crash. When this symbol is marked on a
product, refer to the Safety section in Appendix B, Specifications,for
information about precautions to take.
bold Bold text denotes items that you must select or click in the software, such
as menu items and dialog box options. Bold text also denotes parameter
names.
italic Italic text denotes variables, emphasis, a cross-reference, or an introduction
to a key concept. Italic text also denotes text that is a placeholder for a word
or value that you must supply.
monospace Text in this font denotes text or characters that you should enter from the
keyboard, sections of code, programming examples, and syntax examples.
This font is also used for the proper names of disk drives, paths, directories,
programs, subprograms, subroutines, device names, functions, operations,
variables, filenames, and extensions.
Note In this manual, whenever a PXI or PXI Express chassis is referenced, a CompactPCI
or CompactPCI Express chassis could be used instead.

©National Instruments Corporation 1-1 MXI-Express x1 Series User Manual
1
Introduction
Description and Features
MXI-Express x1 functions as a cabled PCI Express x1 link that enables
control of devices installed in a PXI, PXI Express, VXI, or CompactRIO
chassis through the use of desktop computers, workstations, laptops or
any other host controller with a PCI, PCI Express, or ExpressCard slot.
With MXI-Express x1, you can do the following:
• Control a PXI/PXI Express/CompactPCI/CompactPCI Express,
CompactRIO, or VXI backplane with a PCI, PCI Express, or
ExpressCard-based PC or laptop/mobile host adapter.
• Physically separate the measurement or automation system from
a host PC or laptop.
• Combine PCI Express, CompactPCI, CompactPCI Express, PXI,
PXI Express, and CompactRIO devices into the same system.
Table 1-1 lists the products covered by this manual, and lists their features
for comparison.

Chapter 1 Introduction
MXI-Express x1 Series User Manual 1-2 ni.com
Note There are other NI products not listed in Table 1-1 that support MXI-Express x1
connectivity. For installation instructions and other information concerning the
NI PXI-1033, NI PXI-1073, NI VXI-8360T, NI 9157, NI 9159, and NI 3100/3110, refer to
their respective user manuals.
For information concerning the NI PCI-8366, NI PXI-8361, NI PXI-8366, and
NI PXI-8367, refer to AppendixC, Specifications for Legacy Products.
Table 1-1. Feature Comparison of Available MXI-Express x1 Interfaces
Model Slot Type Number of Ports Cable Support
NI PCI-8361 PCI 1MXI-Express x1 Copper
NI PCIe-8361 PCI Express x1 1MXI-Express x1 Copper
NI PCIe-8362 PCI Express x1 2MXI-Express x1 Copper
NI PXI-8364 PXI or PXI Express
Hybrid Peripheral
1MXI-Express x1 Copper
NI PXI-8360 PXI Controller 1MXI-Express x1 Copper
NI PXIe-8360 PXI Express
Controller
1MXI-Express x1 Copper
NI PXIe-8364 PXI Express
Peripheral
1MXI-Express x1 Copper
NI ExpressCard-8360 ExpressCard/34 and
ExpressCard/54
1MXI-Express x1 Copper

Chapter 1 Introduction
©National Instruments Corporation 1-3 MXI-Express x1 Series User Manual
Functional Overview
MXI-Express x1 is based on PCI Express technology. A MXI-Express x1
kit may use a combination of PCI Express switches or PCI Express-to-PCI
bridges to enable control of a PXI or PXI Express chassis from a PC with
an available PCI, PCI Express, or ExpressCard slot. The bridge architecture
is transparent to device drivers, so no additional software is needed for
CompactPCI level support for PXI or PXI Express devices in connected
chassis.
Note For full PXI/PXI Express functionality such as chassis and controller identification,
trigger routing, and slot detection, install the PXI Platform Services software included with
your kit. This software also can be found at ni.com/updates by searching for
PXI Platform Services.
The link between the PC and the chassis is a x1 cabled PCI Express link.
This link is a dual-simplex communication channel comprised of a
low-voltage, differentially driven signal pair. The link can transmit at a rate
of 2.5 Gbps in each direction simultaneously. This port is not compatible
with the cabled PCI Express specification developed by the PCI-SIG.
The BIOS of some host machines may not support the extension of the
PCI-Express fabric or PCI bus. Since this is the primary function of
MXI-Express x1 products, those systems may not boot or function
correctly. To address this issue, certain MXI-Express x1 products have
additional functionality intended to hide all PCI or PCI-Express resources
that are connected to the host machine, and allow NI MXI-Express BIOS
Compatibility Software to handle the enumeration process of these
resources instead of the BIOS.
In the cases where this software is required, there may be a dip switch on
the board that needs to be toggled as instructed by the documentation for
the software. The functional block diagrams in this chapter illustrate the
locations and availability of the dip switch package. Only the first dip
switch in the package is used for this purpose. The other switches serve no
function and should be left in their default position1.
1 On certain legacy MXI-Express x1 products that contain the dip switch package, the secondary switches may serve a reserved
purpose.

Chapter 1 Introduction
MXI-Express x1 Series User Manual 1-4 ni.com
Note Unless NI MXI-Express BIOS Compatibility Software is installed on the host
machine for use, the BIOS Compat Mode dip switch (switch 1) should remain in the off
position. If this mode is enabled on a MXI-Express x1 product in a host machine that does
not have the software installed, the connected devices will not be detected by the operating
system.
The ExpressCard-8360 (198266x-01L only) also includes support for
NI MXI-Express BIOS Compatibility Software, but the support is toggled
using the software instead of a physical dip switch. The software is required
to check whether the function is enabled.
For more information on host system compatibility with MXI-Express x1
products, refer to the NI Developer Zone document Tips to Help You
Successfully Use MXI-Express Controllers at ni.com/zone.

Chapter 1 Introduction
©National Instruments Corporation 1-5 MXI-Express x1 Series User Manual
Functional Block Diagrams
Figure 1-1. NI PCI-8361 (199392x-01L) Block Diagram
Figure 1-2. NI PCIe-8361 (199042x-01L) Block Diagram
BIOS Compat
OFF ON
Mode
Reverse
PCIe-to-PCI
Bridge
MXI-Express x1
Copper
PCI
PCIe Gen 1 x1
PCIe
Switch
BIOS Compat
OFF ON
Mode
MXI-Express x1
Copper
PCIe Gen 1 x1
PCIe Gen 1 x1

Chapter 1 Introduction
MXI-Express x1 Series User Manual 1-6 ni.com
Figure 1-3. NI PCIe-8361 Repeater Version (195315x-01L) Block Diagram
Figure 1-4. NI PCIe-8362 (190735x-01L) Block Diagram
Signal
Repeater
MXI-Express x1
Copper
PCIe Gen 1 x1
PCIe Gen 1 x1
BIOS Compat
OFF ON
Mode
PCIe Switch
PCIe Gen 1 x1
PCIe Gen 1 x1
PCIe Gen 1 x1
MXI-Express x1
Copper
MXI-Express x1
Copper

Chapter 1 Introduction
©National Instruments Corporation 1-7 MXI-Express x1 Series User Manual
Figure 1-5. NI PXI-8360 (191373x-01) Block Diagram
Figure 1-6. NI PXI-8364 (199991x-02L) Block Diagram
PCIe-to
PCI
Bridge
ID Device
PCIe Gen 1 x1
PCI
Function 0
Function 2
MXI-Express x1
Copper
Reverse
PCIe-to-PCI
Bridge
PCI
MXI-Express x1
Copper
PCIe Gen 1 x1

Chapter 1 Introduction
MXI-Express x1 Series User Manual 1-8 ni.com
Figure 1-7. NI PXIe-8360 (194402x-01L) Block Diagram
Note The PCI Express switch on the NI PXIe-8360 also supports dual link mode,
which will merge the links to the chassis backplane into two Gen 1 x8 links instead of
four Gen 1 x4 links.
PCIe Switch
PCIe-to-
PCI Bridge
SMBUS
Master
PCIe Gen 1 x4
PCIe Gen 1 x1
MXI-Express x1
Copper PCIe Gen 1 x4
PCIe Gen 1 x4
PCIe Gen 1 x4

Chapter 1 Introduction
©National Instruments Corporation 1-9 MXI-Express x1 Series User Manual
Figure 1-8. NI PXIe-8364 (193970x-01L) Block Diagram
Figure 1-9. NI ExpressCard-8360 (198266x-01L) Block Diagram
Note The NI ExpressCard-8360 (Part Number 192290x-01) has the same architecture as
the 198266x-01L version, except that it uses a signal buffer instead of a PCI Express
switch.
Basic MXI-Express x1 Systems
The simplest MXI-Express x1 system can consist of a host board1
connected to a target board1installed in the controller slot of a chassis or
integrated port of a chassis. Some example configurations are shown in
Figure 1-10, and Table 1-2 lists all connectivity options going from a host
PC to a chassis.
1 For more information refer to the Terminology section of Chapter 2, Getting Started.
PCIe Switch
PCIe Gen 1 x4
PCIe Gen 1 x1
MXI-Express x1
Copper
PCIe
Switch PCIe Gen 1 x1
PCIe Gen 1 x1
MXI-Express x1
Copper
