TPC-2206/TPC-2212
User Manual
TPC-2206/TPC-2212 User Manual
December 2010
373297A-01
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Support
Worldwide Technical Support and Product Information
ni.com
National Instruments Corporate Headquarters
11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: [phone]
Worldwide Offices
Australia 1800 300 800, Austria 43 662 457990-0, Belgium 32 (0) 2 757 0020, Brazil 55 11 3262 3599,
Canada 800 433 3488, China 86 21 5050 9800, Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,
Finland 358 (0) 9 725 72511, France 01 57 66 24 24, Germany 49 89 7413130, India 91 80 41190000,
Israel 972 3 6393737, Italy 39 02 41309277, Japan 0120-527196, Korea 82 02 3451 3400,
Lebanon 961 (0) 1 33 28 28, Malaysia 1800 887710, Mexico 01 800 010 0793, Netherlands 31 (0) 348 433 466,
New Zealand 0800 553 322, Norway 47 (0) 66 90 76 60, Poland 48 22 328 90 10, Portugal 351 210 311 210,
Russia 7 495 783 6851, Singapore 1800 226 5886, Slovenia 386 3 425 42 00, South Africa 27 0 11 805 8197,
Spain 34 91 640 0085, Sweden 46 (0) 8 587 895 00, Switzerland 41 56 2005151, Taiwan 886 02 2377 2222,
Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545
For further support information, refer to the Technical Support and Professional Services appendix. To comment
on National Instruments documentation, refer to the National Instruments Web site at ni.com/info and enter
the Info Code feedback.
©2010 National Instruments Corporation. All rights reserved.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Important Information
Warranty
The TPC-2206 and TPC-2212 are warranted against defects in materials and workmanship for a period of one year from the date of shipment,
as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective
during the warranty period. This warranty includes parts and labor.
The media on which you receive National Instruments software are warranted not to fail to execute programming instructions, due to defects in
materials and workmanship, for a period of 90 days from date of shipment, as evidenced by receipts or other documentation. National Instruments
will, at its option, repair or replace software media that do not execute programming instructions if National Instruments receives notice of such defects
during the warranty period. National Instruments does not warrant that the operation of the software shall be uninterrupted or error free.
A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the outside of the package before any
equipment will be accepted for warranty work. National Instruments will pay the shipping costs of returning to the owner parts which are covered by
warranty.
National Instruments believes that the information in this document is accurate. The document has been carefully reviewed for technical accuracy. In
the event that technical or typographical errors exist, National Instruments reserves the right to make changes to subsequent editions of this document
without prior notice to holders of this edition. The reader should consult National Instruments if errors are suspected. In no event shall National
Instruments be liable for any damages arising out of or related to this document or the information contained in it.
EXCEPT AS SPECIFIED HEREIN, NATIONAL INSTRUMENTS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AND SPECIFICALLY DISCLAIMS ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE. CUSTOMER’SRIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF NATIONAL
INSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER. NATIONAL INSTRUMENTS WILL NOT BE LIABLE FOR DAMAGES RESULTING
FROM LOSS OF DATA, PROFITS, USE OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY THEREOF. This limitation of
the liability of National Instruments will apply regardless of the form of action, whether in contract or tort, including negligence. Any action against
National Instruments must be brought within one year after the cause of action accrues. National Instruments shall not be liable for any delay in
performance due to causes beyond its reasonable control. The warranty provided herein does not cover damages, defects, malfunctions, or service
failures caused by owner’s failure to follow the National Instruments installation, operation, or maintenance instructions; owner’s modification of the
product; owner’s abuse, misuse, or negligent acts; and power failure or surges, fire, flood, accident, actions of third parties, or other events outside
reasonable control.
Copyright
Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying,
recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of National
Instruments Corporation.
National Instruments respects the intellectual property of others, and we ask our users to do the same. NI software is protected by copyright and other
intellectual property laws. Where NI software may be used to reproduce software or other materials belonging to others, you may use NI software only
to reproduce materials that you may reproduce in accordance with the terms of any applicable license or other legal restriction.
Trademarks
LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National
Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks.
Other product and company names mentioned herein are trademarks or trade names of their respective companies.
Members of the National Instruments Alliance Partner Program are business entities independent from National Instruments and have no agency,
partnership, or joint-venture relationship with National Instruments.
Patents
For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software,
the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents.
WARNING REGARDING USE OF NATIONAL INSTRUMENTS PRODUCTS
(1) NATIONAL INSTRUMENTS PRODUCTS ARE NOT DESIGNED WITH COMPONENTS AND TESTING FOR A LEVEL OF
RELIABILITY SUITABLE FOR USE IN OR IN CONNECTION WITH SURGICAL IMPLANTS OR AS CRITICAL COMPONENTS IN
ANY LIFE SUPPORT SYSTEMS WHOSE FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO CAUSE SIGNIFICANT
INJURY TO A HUMAN.
(2) IN ANY APPLICATION, INCLUDING THE ABOVE, RELIABILITY OF OPERATION OF THE SOFTWARE PRODUCTS CAN BE
IMPAIRED BY ADVERSE FACTORS, INCLUDING BUT NOT LIMITED TO FLUCTUATIONS IN ELECTRICAL POWER SUPPLY,
COMPUTER HARDWARE MALFUNCTIONS, COMPUTER OPERATING SYSTEM SOFTWARE FITNESS, FITNESS OF COMPILERS
AND DEVELOPMENT SOFTWARE USED TO DEVELOP AN APPLICATION, INSTALLATION ERRORS, SOFTWARE AND HARDWARE
COMPATIBILITY PROBLEMS, MALFUNCTIONS OR FAILURES OF ELECTRONIC MONITORING OR CONTROL DEVICES,
TRANSIENT FAILURES OF ELECTRONIC SYSTEMS (HARDWARE AND/OR SOFTWARE), UNANTICIPATED USES OR MISUSES, OR
ERRORS ON THE PART OF THE USER OR APPLICATIONS DESIGNER (ADVERSE FACTORS SUCH AS THESE ARE HEREAFTER
COLLECTIVELY TERMED “SYSTEM FAILURES”). ANY APPLICATION WHERE A SYSTEM FAILURE WOULD CREATE A RISK OF
HARM TO PROPERTY OR PERSONS (INCLUDING THE RISK OF BODILY INJURY AND DEATH) SHOULD NOT BE RELIANT SOLELY
UPON ONE FORM OF ELECTRONIC SYSTEM DUE TO THE RISK OF SYSTEM FAILURE. TO AVOID DAMAGE, INJURY, OR DEATH,
THE USER OR APPLICATION DESIGNER MUST TAKE REASONABLY PRUDENT STEPS TO PROTECT AGAINST SYSTEM FAILURES,
INCLUDING BUT NOT LIMITED TO BACK-UP OR SHUT DOWN MECHANISMS. BECAUSE EACH END-USER SYSTEM IS
CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING PLATFORMS AND BECAUSE A USER OR APPLICATION
DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT
EVALUATED OR CONTEMPLATED BY NATIONAL INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY
RESPONSIBLE FOR VERIFYING AND VALIDATING THE SUITABILITY OF NATIONAL INSTRUMENTS PRODUCTS WHENEVER
NATIONAL INSTRUMENTS PRODUCTS ARE INCORPORATED IN A SYSTEM OR APPLICATION, INCLUDING, WITHOUT
LIMITATION, THE APPROPRIATE DESIGN, PROCESS AND SAFETY LEVEL OF SUCH SYSTEM OR APPLICATION.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for electromagnetic compatibility (EMC) as
stated in the product specifications. These requirements and limits are designed to provide reasonable protection against harmful
interference when the product is operated in its intended operational electromagnetic environment.
This product is intended for use in industrial locations. There is no guarantee that harmful interference will not occur in a
particular installation, when the product is connected to a test object, or if the product is used in residential areas. To minimize
the potential for the product to cause interference to radio and television reception or to experience unacceptable performance
degradation, install and use this product in strict accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your
authority to operate it under your local regulatory rules.
Caution To ensure the specified EMC performance, operate this product only with shielded cables and
accessories.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Conventions
The following conventions are used in this manual:
»The »symbol leads you through nested menu items and dialog box options
to a final action. The sequence Options»Settings»General directs you to
pull down the Options menu, select the Settings item, and select General
from the last dialog box.
This icon denotes a note, which alerts you to important information.
This icon denotes a caution, which advises you of precautions to take to
avoid injury, data loss, or a system crash. When this symbol is marked on a
product, refer to the Safety section of Appendix A, Specifications, for
information about precautions to take.
When symbol is marked on a product, it denotes a warning advising you to
take precautions to avoid electrical shock.
bold Bold text denotes items that you must select or click in the software, such
as menu items and dialog box options. Bold text also denotes parameter
names.
italic Italic text denotes variables, emphasis, a cross-reference, or an introduction
to a key concept. Italic text also denotes text that is a placeholder for a word
or value that you must supply.
monospace Text in this font denotes text or characters that you should enter from the
keyboard, sections of code, programming examples, and syntax examples.
This font is also used for the proper names of disk drives, paths, directories,
programs, subprograms, subroutines, device names, functions, operations,
variables, filenames, and extensions.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation vii TPC-2206/TPC-2212 User Manual
Contents
Chapter 1
General Information
Introduction....................................................................................................................1-1
I/O Ports.........................................................................................................................1-1
Cleaning .........................................................................................................................1-2
Chapter 2
System Setup
Important Safety Information ........................................................................................2-1
Setup ..............................................................................................................................2-2
Touchscreen Calibration..................................................................................2-4
Panel Mounting..............................................................................................................2-4
Chapter 3
Jumpers and Connectors
Jumper and Connector Functions ..................................................................................3-1
Jumper and Connector Locations ..................................................................................3-3
Appendix A
Specifications
Appendix B
Serial Port Settings
Appendix C
Features in Windows XP Embedded
Appendix D
Touchscreen Configuration
Appendix E
Technical Support and Professional Services
Index
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 1-1 TPC-2206/TPC-2212 User Manual
1
General Information
This chapter includes general information about the TPC-2206/TPC-2212
Human Machine Interface (HMI).
Introduction
The TPC-2206/TPC-2212 touch panel computer, an HMI based on an x86
platform, includes these key features:
•Powerful processing—The TPC-2206/TPC-2212 uses the Intel Atom
processor, specifically designed for embedded, industrial applications.
•Fanless—By using an advanced but low-power Intel Atom processor,
the TPC-2206/2212 does not require a fan for cooling.
•Robust communication—The TPC-2206/TPC-2212 is a powerful
I/O interface for easy communication with other devices. The I/O
interface includes serial ports, gigabit Ethernet, and USB 2.0 support.
•Wide operating temperature and isolation protection—The
TPC-2206/TPC-2212 provides a –20 to 60 °C operating temperature
range and complete isolation protection for the serial ports.
•Windows Embedded support—The TPC-2206/TPC-2212 supports
the latest embedded Windows operating systems from Microsoft,
including Windows XP Embedded (XPe).
I/O Ports
The TPC-2206/TPC-2212 includes the following ports:
• Two serial ports: RS232 (COM1) and RS422/485 (COM2)
• Two USB 2.0 ports compliant with USB 1.0 and 1.1
• Two RJ-45 Gigabit Ethernet ports
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 1 General Information
TPC-2206/TPC-2212 User Manual 1-2 ni.com

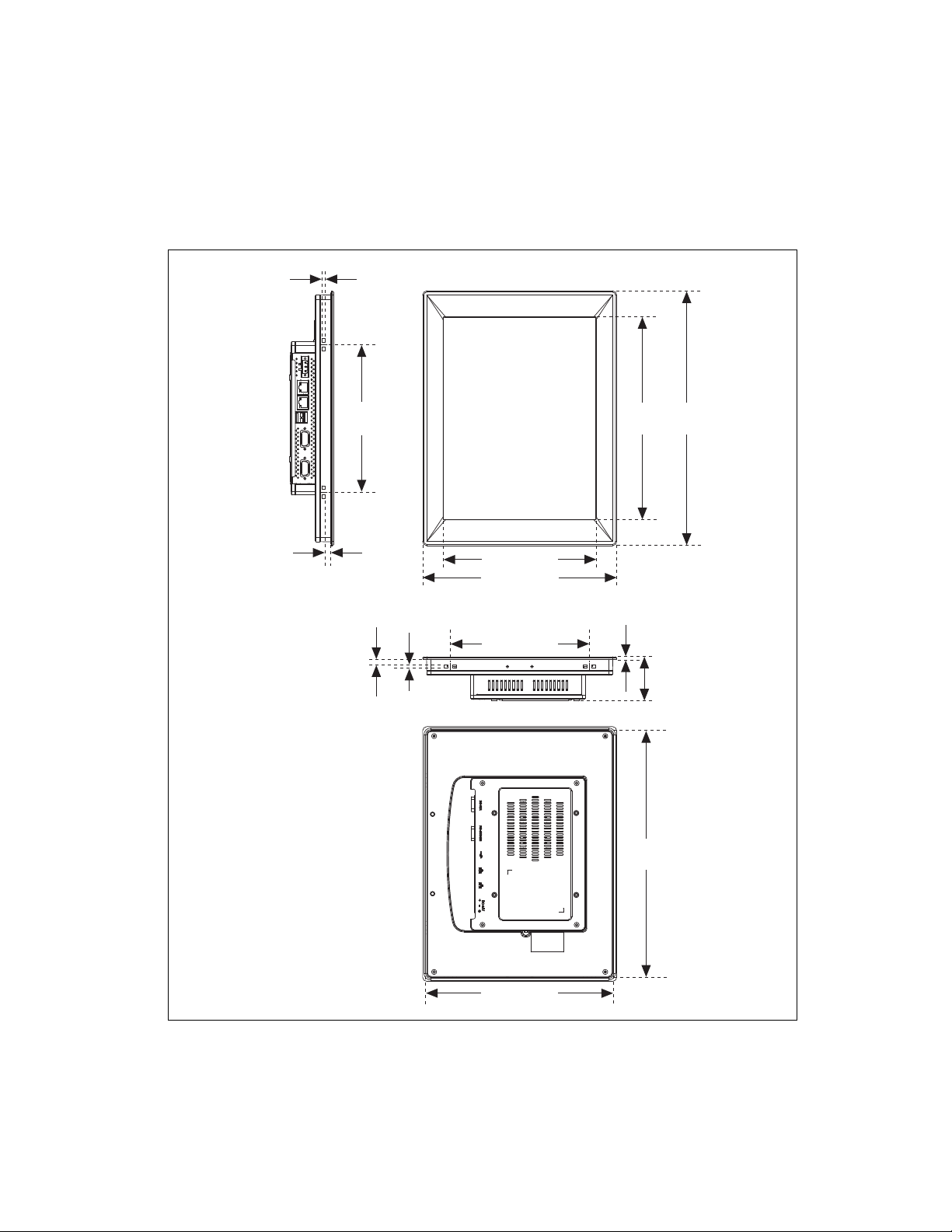

Figure 1-1 shows the I/O port arrangement.
Figure 1-1. I/O Port Arrangement
For more TPC-2206/TPC-2212 specifications, refer to Appendix A,
Specifications.
Cleaning
If you need to clean the unit, use a soft, nonmetallic brush. Make sure that
the unit is completely dry and free from contaminants before returning it to
service.
1LAN1
2LAN2
3USB
4 COM2 (RS422/485)
5 COM1 (RS232)
1 2 345
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 2-1 TPC-2206/TPC-2212 User Manual
2
System Setup
This chapter includes setup information for the TPC-2206/TPC-2212.
Important Safety Information
Before setting up the TPC-2206/TPC-2212, read these safety instructions
carefully.
Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
Keep this equipment away from excessive humidity.
Place this equipment on a reliable surface during installation. Dropping it
or letting it fall may cause damage.
The openings on the enclosure are for air convection and protect the
equipment from overheating. Do not cover the openings.
Make sure the power source voltage is correct before connecting the
equipment to the power outlet.
Position the power cord so that it cannot be stepped on. Do not place
anything over the power cord.
All cautions and warnings on the equipment should be noted.
If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
Never pour any liquid into an opening. This may cause fire or electrical
shock.
Never open the equipment. For safety reasons, only qualified service
personnel should open the equipment.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 2 System Setup
TPC-2206/TPC-2212 User Manual 2-2 ni.com
If one of the following situations arises, have service personnel check the
equipment:
• The power cord or plug is damaged.
• Liquid has penetrated into the equipment.
• The equipment has been exposed to moisture.
• The equipment does not work well, or you cannot get it to work
according to the user manual.
• The equipment has been dropped and damaged.
• The equipment has obvious signs of breakage.
Do not leave this equipment in an environment where the storage
temperature may go below –20 °C (–4 °F) or above 60 °C (140 °F). Doing
so could damage the equipment. The equipment should be in a controlled
environment.
Caution There is a danger of explosion if the battery is incorrectly replaced. Replace the
battery only with the same or equivalent type recommended by the manufacturer. Discard
used batteries according to the manufacturer’s instructions.
The sound pressure level at the operator’s position according to
IEC 704-1:1982 is no more than 70 dB (A).
Caution The protection this equipment provides may be impaired if it is used in a manner
not described in this manual.
Setup
Follow these steps to set up the TPC-2206/TPC-2212:
1. Unpack the TPC-2206/TPC-2212. Be sure your kit includes the
following items:
• The TPC-2206/TPC-2212 HMI
• Six panel mounting clamps (TPC-2206)
• Six panel mounting screws (TPC-2206)
• Eight panel mounting clamps (TPC-2212)
• Eight panel mounting screws (TPC-2212)
• One 3-pin power connector
• One HMI Resource CD
• One earth ground cable
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 2 System Setup
©National Instruments Corporation 2-3 TPC-2206/TPC-2212 User Manual
If any items are missing or damaged, contact National Instruments.
Caution Be sure system power is off before plugging in or pulling out the CompactFlash
card.
2. Verify that the CompactFlash card containing Windows Embedded or
another operating system is installed in the unit.
3. Connect the power connector to an 18–32 VDC power line. Be sure to
connect the positive, negative, and ground lines as shown in
Figure 2-1. The power lines can be from either a power adapter or
in-house power source.
Figure 2-1. Power Connector
4. Connect the power connector to the power receptor on the
TPC-2206/TPC-2212. The power receptor pin assignment is shown in
Figure 2-2.
Figure 2-2. Power Receptor and Pin Assignment
5. The system turns on immediately after you apply power.
+–GND
GND
–+
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 2 System Setup
TPC-2206/TPC-2212 User Manual 2-4 ni.com
Touchscreen Calibration
The TPC-2206/TPC-2212 touchscreen should be correctly calibrated and
ready to use when you power on the system. However, if the calibration is
not correct or you want to choose custom calibration options, refer to
Appendix D, Touchscreen Configuration.
Panel Mounting
Follow these steps to mount the TPC-2206/TPC-2212 in a panel:
1. Be sure the adhesive waterproof gasket on the front bezel is in position.
2. Install the TPC-2206/TPC-2212 in the panel opening. (Refer to
Appendix A, Specifications, for cutout dimensions.)
3. Hook the clamps included in the accessory pack to the holes around the
four sides of the bezel. Be sure to remove the protective inserts in the
panel mounting holes.
4. Insert the screws included in the accessory pack into the clamps. To
fasten the TPC-2206/TPC-2212 to the panel, tighten the screws so they
push against the mounting panel.
Note The mounting panel thickness should be less than 6 mm (0.236 in.).
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 3-1 TPC-2206/TPC-2212 User Manual
3
Jumpers and Connectors
This chapter describes the TPC-2206/TPC-2212 jumpers and connectors.
Jumper and Connector Functions
Table 3-1 lists the jumper and connector functions.
Table 3-1. Mainboard Connectors and Jumpers
Label Function Description
BH1 Battery RTC battery bracket
CN1 LAN2 Gigabit Ethernet: LAN2
CN2 LAN1 Gigabit Ethernet: LAN1
CN3 LCD Power LCD power connection
CN4 LCD Power LCD power voltage
CN5 LVD S LVDS video connection
CN6/CN7 CompactFlash CompactFlash bracket
CN8 USB2 Two USB type-A female
CN11 COM1 Serial port: COM1 RS232
CN12 COM2 Serial port: COM2 RS422/485
CN13 DC in DC power in connector
(5.08 mm, 3-pin housing)
CN16 CMOS CMOS clear select
CN17 IDE AT mode select
CN18 Touchscreen Touchscreen interface
FS1 Fuse Fuse bracket
SODIMM1 RAM DDR2 SODIMM bracket
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 3 Jumpers and Connectors
TPC-2206/TPC-2212 User Manual 3-2 ni.com
SW1 LCD Resolution LCD resolution select
SW2 LCD Function LCD controlled function
SW3 Touchscreen Touchscreen type
SW4 Termination Serial termination resistor
U2 CPU CPU
U4 SCH System controller hub
U12 BIOS BIOS chip
Table 3-1. Mainboard Connectors and Jumpers (Continued)
Label Function Description
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 3 Jumpers and Connectors
©National Instruments Corporation 3-3 TPC-2206/TPC-2212 User Manual
Jumper and Connector Locations
Figures 3-1 and 3-2 show the jumper and connector locations.
Figure 3-1. Main Board Jumpers and Connectors—Top Side
CN11 CN12
SW4
SW1
CN8
CN1 CN2
FS1
CN13
CN16 CN17
BH1
SODIMM1
SW3 CN18 CN15
CN9
CN5
CN3
U2
SW2
CN10
CN4
U4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 3 Jumpers and Connectors
TPC-2206/TPC-2212 User Manual 3-4 ni.com
Figure 3-2. Main Board Jumpers and Connectors—Bottom Side
CN6
CN7
SW4
U12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation A-1 TPC-2206/TPC-2212 User Manual
A
Specifications
This appendix lists the TPC-2012/TPC-2512 system specifications.
Physical
TPC-2206
Weight.................................................... 1.43 kg
Dimensions (W ×H ×D) ....................... 195 × 148 × 58 mm
(7.68 × 5.83 × 2.28 in.)
Cutout dimensions.................................. 189.1 × 142.1 mm (suggested)
(7.44 × 5.59 in.)
TPC-2212
Weight.................................................... 2.5 kg
Dimensions (W ×H ×D) ....................... 311 × 237 × 54 mm
(12.24 × 9.33 × 2.13 in.)
Cutout dimensions.................................. 302.5 × 228.5 mm (suggested)
(11.91 × 9.00 in.)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Appendix A Specifications
TPC-2206/TPC-2212 User Manual A-2 ni.com
Dimensions (TPC-2206)
6.00
[0.24]
86.10 [3.39]
114.70
[4.52]
148.00 [5.83]
195.00
[7.68]
132.00
[5.2]
28.10
[1.11]
6.00
[0.24]
70.50
[2.78]
6.00
[0.24]
58.00
[2.28]
188.10
[7.41]
141.10 [5.56]
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Appendix A Specifications
©National Instruments Corporation A-3 TPC-2206/TPC-2212 User Manual
Dimensions (TPC-2212)
4.00
[0.16]
6.50
[0.26]
180.00
[7.09]
311.00
[12.24]
247.20
[9.73]
186.30 [7.33]
237.00 [9.33]
170.00 [6.69]
6.50
[0.26]
3.50
[0.14]
54.00
[2.13]
4.00
[0.16]
301.50
[11.87]
227.50 [8.96]
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
