USER MANUAL
Exhaust air heat pump
NIBE F470

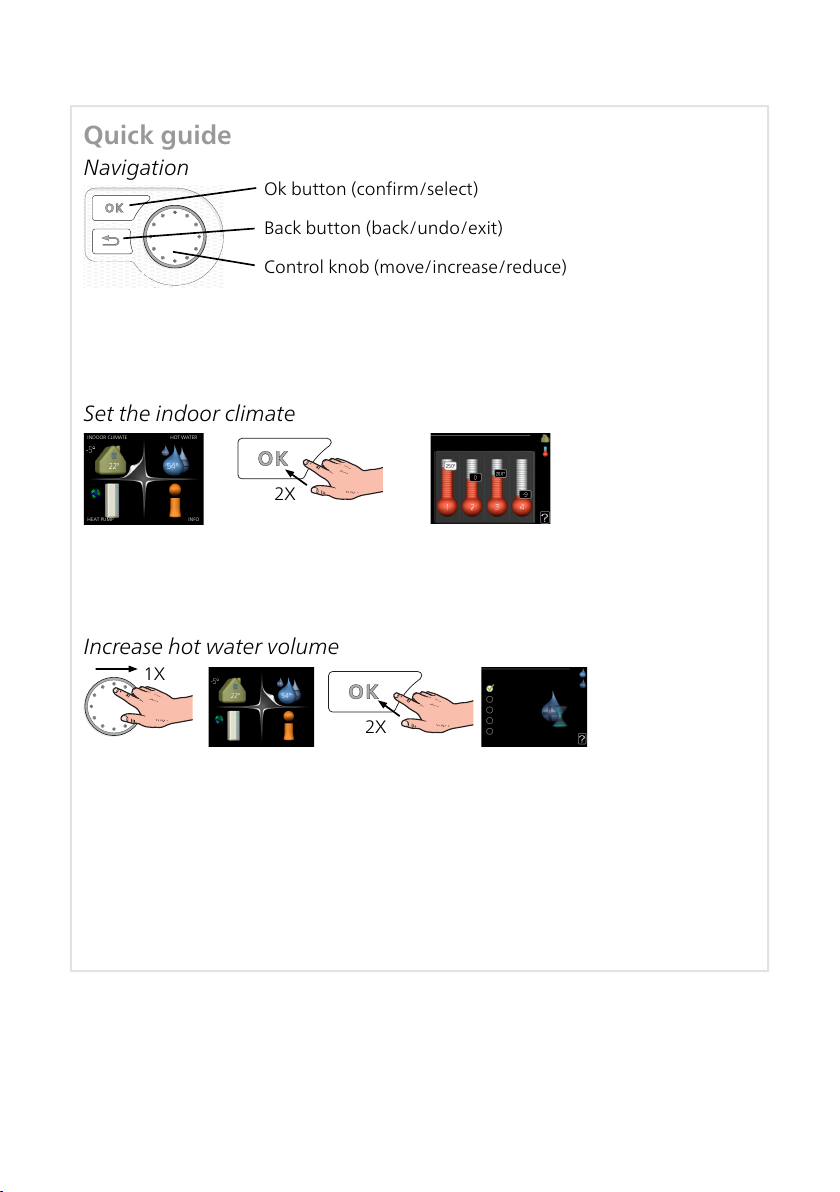

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 12.
How to scroll through menus and make different settings is described on
page 16.
Set the indoor climate
2X
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
The mode for setting the indoor temperature is accessed by pressing the OK
button twice, when in the start mode in the main menu. Read more about
the settings on page 32.
Increase hot water volume
2X
1X
To temporarily increase the amount of hot water, first turn the control knob
to mark menu 2 (water droplet) and then press the OK button twice. Read
more about the settings on page 46.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures that
can be taken before you need to contact your installer. See page 68 for in-
structions.

41 Important information
4Installation data
5Safety information
6Symbols
6Serial number
7F470 – An excellent choice
82 The heat pump – the heart of the house
9Heat pump function
11Contact with F470
21Maintenance of F470
313 F470 – at your service
31Set the indoor climate
45Set the hot water capacity
50Get information
54Adjust the heat pump
684 Disturbances in comfort
68Info menu
68Manage alarm
69Troubleshooting
745 Technical data
756 Glossary
80Item register
83Contact information
3Table of ContentsNIBE F470
Table of Contents

Installation data
F470Product
Serial number
Installation date
Installer
Accessories
✔
Extra shunt ECS
40/41
Docking kit DEH
40/DEH 41
Room unit RMU
40
Solar panels NIBE
PV
SetFact.
sett.
NameNo.
0temperature (curve offset)1.1
9heating curve (curve
slope)
1.9.1
20min. flow line temp.1.9.3
65%fan sp. exhaust air (nor-
mal)
5.1.5
45%fan sp. supply air (normal)5.1.6
Serial number must always be given
Certification that the installation is carried out according to instructions in the accompanying
installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE F470Chapter 1 | Important information4
1 Important information

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or in-
struction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2020.
Do not start F470 if there is a risk that the water in the
system has frozen.
Water may drip from the safety valve. A factory-fitted
overflow pipe runs from the safety valve to an overflow
cup. The overflow pipe is visible, its mouth is open and
not located close to electrical components. The safety
valve must be actuated regularly to remove dirt and to
check that it is not blocked.
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may replace
it to prevent any danger and damage.
5Chapter 1 | Important informationNIBE F470

Symbols
NOTE
This symbol indicates danger to person or machine .
Caution
This symbol indicates important information about what you
should observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Serial number
The serial number can be found at the bottom right of the front cover,
in the info menu (menu 3.1) and on the type plate.
Serial number
Caution
You need the product's (14 digit) serial number for servicing
and support.
NIBE F470Chapter 1 | Important information6

F470 – An excellent choice
F470 is a heat pump, which has been developed to supply your home
with inexpensive and environmentally friendly heating in the most effi-
cient manner.
Heat production is reliable and economical, thanks to an integrated hot
water heater, immersion heater, circulation pump and control system.
The heat pump can be connected to an optional low temperature heat
distribution system. e.g. radiators, convectors or underfloor heating. It
is also prepared for connection to several different products and accessor-
ies, e.g. extra water heater and climate systems with different temper-
atures.
F470 is equipped with a control computer for good comfort, good eco-
nomy and safe operation. Clear information about status, operation time
and all temperatures in the heat pump are shown on the large and easy
to read display. This means, for example, that external unit thermometers
are not necessary.
EXCELLENT PROPERTIES FOR F470:
•Integrated water heater
There is a water heater integrated in the heat pump, which is insulated
with environmentally friendly cellular plastic for minimal heat loss.
•Scheduling the indoor comfort and hot water
Heating and hot water as well as ventilation, can be scheduled for each
day of the week or for longer periods (vacation).
•Display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
•Simple troubleshooting
In the event of a fault, the heat pump display shows what happened
and the actions to be taken.
7Chapter 1 | Important informationNIBE F470

A
DF
C
E
H
I
J
G
B
Värmebärare
Köldmedium
Rumsluft
Uteluft
22 °C 0 °C
5 °C 0 °C
55 °C 45 °C
80 °C
Heating medium
Room air
Refrigerant
Evaporator
Condenser
Compressor
1
2
3
Expansion valve
Outdoor air
NIBE F470Chapter 2 | The heat pump – the heart of the house8
2 The heat pump – the heart of
the house

A
B
C
D
E
F
G
H
I
Heat pump function

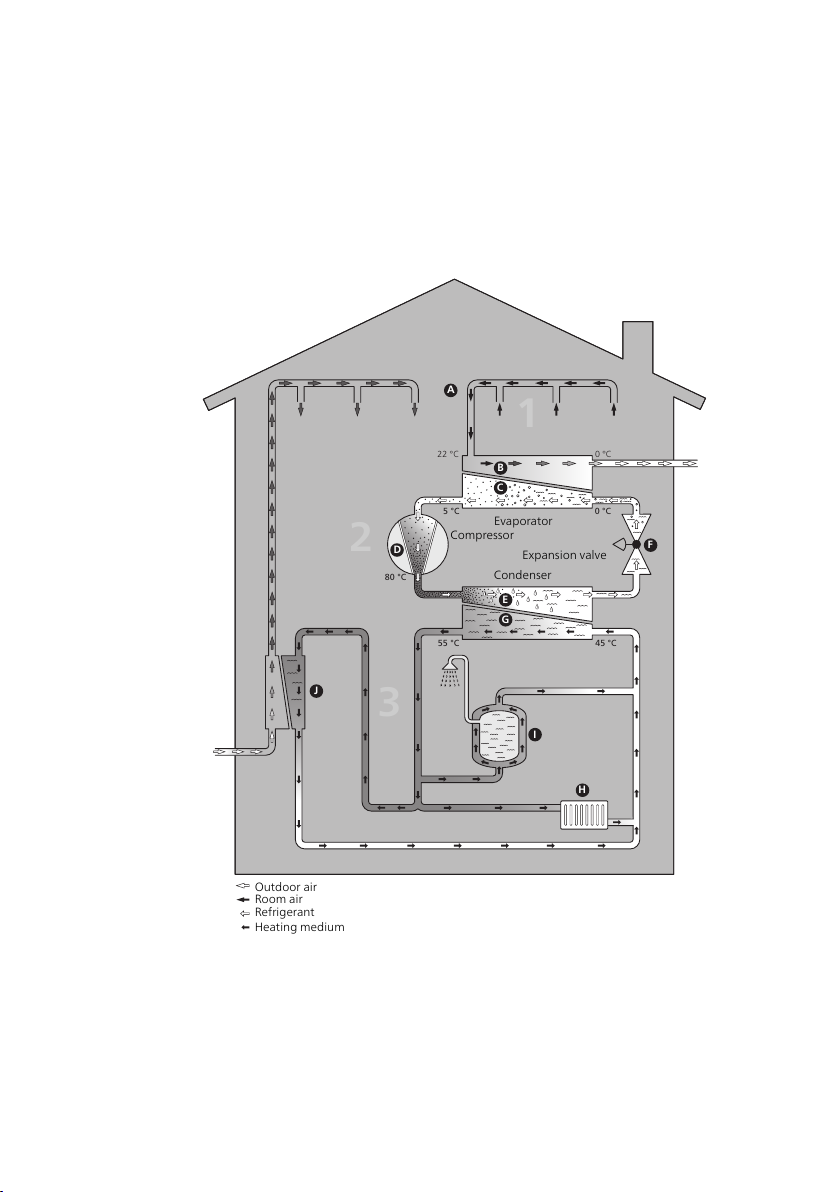

An exhaust air heat pump utilises the heat in the building’s ventilation
air to heat up the dwelling. The ventilation air’s energy is converted to
residential heating in three different circuits. From the outgoing ventilation
air (1), heating energy is recovered from the dwelling and transported to
the heat pump. The heat pump increases the recovered heat’s low
temperature to a high temperature in the refrigerant circuit (2). The heat
is distributed around the house in the heating medium circuit (3).
Ventilation air
The hot air is transferred from the rooms to the heat pump via the house ventilation
system.
The fan then routes the air to the heat pump’s evaporator. Here, the air releases the
heating energy and the air's temperature drops significantly. The cold air is then blown
out of the house.
Refrigerant circuit
A liquid, a refrigerant, circulates in a closed system in the heat pump which also passes
the evaporator. The refrigerant has a very low boiling point. In the evaporator the refri-
gerant receives the heat energy from the ventilation air and starts to boil.
The gas that is produced during boiling is routed into an electrically powered com-
pressor. When the gas is compressed, the pressure increases and the gas’s temper-
ature increases considerably, from approx. 5°C to approx. 80°C.
From the compressor, the gas is forced into a heat exchanger, condenser, where it
releases heat energy to the heat pump’s heating section, whereupon the gas is cooled
and condenses to liquid form again.
As the pressure is still high, the refrigerant can pass an expansion valve, where the
pressure drops so that the refrigerant returns to its original temperature. The refrigerant
has now completed a full cycle. It is routed to the evaporator again and the process
is repeated.
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved by the
climate system's water, heating medium, which is heated to 35 °C (supply temperat-
ure).
The hot water circulates in a closed system and is pumped out to the radiators/heating
coils of the house.
The heat pump’s integrated water heater is in the heating section. The heating medium
heats the hot water.
9Chapter 2 | The heat pump – the heart of the houseNIBE F470

Pre-heated supply air
The hot water also circulates to the heat pump’s supply air coil. The supply air coil
heats up the air that is blown out into the rooms that have supply air inlets.
J
The temperatures are only examples and may vary between different installations and
time of year.
NIBE F470Chapter 2 | The heat pump – the heart of the house10

Contact with F470
EXTERNAL INFORMATION
When the heat pump door is closed, information can be received via an
information window and a status lamp.
Information window
Status lamp
Information window
The information window shows part of the display that is on the display
unit (located behind the door to the heat pump). The information window
can display different type of information, e.g. temperatures, clock, etc.
You determine what is to be displayed in the information window. Your
own combination of information is entered using the display unit. This
information is specific to the information window and disappears when
the heat pump door is opened.
Instructions on how to set the information window can be found on page
62.
Status lamp
The status lamp indicates the status of the heat pump: continuous green
light during normal function, continuous yellow light during activated
emergency mode or continuous red light in the event of a deployed
alarm.
Alarm management is described on page 68.
11Chapter 2 | The heat pump – the heart of the houseNIBE F470

DISPLAY UNIT
A
B
C
D
E
F
Display
Status lamp
OK button
Back button
Control knob
Switch
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
F470 GUSB port
There is a display unit behind the heat pump door, which is used to
communicate with F470. Here you:
• switch on, switch off or set the heat pump in emergency mode.
• sets the indoor climate and hot water as well as adjusts the heat pump
to your needs.
• receive information about settings, status and events.
• see different types of alarms and receive instructions about how they
are to be rectified.
Display
Instructions, settings and operational information are shown on
the display. You can easily navigate between the different menus
and options to set the comfort or obtain the information you require.
A
Status lamp
The status lamp indicates the status of the heat pump. It:
• lights green during normal operation.
• lights yellow in emergency mode.
• lights red in the event of a deployed alarm.
B
NIBE F470Chapter 2 | The heat pump – the heart of the house12

OK button
The OK button is used to:
• confirm selections of sub menus/options/set values/page in the
start guide.
C
Back button
The back button is used to:
• go back to the previous menu.
• change a setting that has not been confirmed.
D
Control knob
The control knob can be turned to the right or left. You can:
• scroll in menus and between options.
• increase and decrease the values.
• change page in multiple page instructions (for example help text
and service info).
E
Switch
The switch assumes three positions:
•On ()
•Standby ( )
•Emergency mode ( )
Emergency mode must only be used in the event of a fault on the
heat pump. In this mode, the compressor and fans switch off and
the immersion heater engages. The heat pump display is not illu-
minated and the status lamp illuminates yellow.
The automatic heating control system is not operational, so
manual shunt operation is required (see page 26).
F
USB port
The USB port is hidden beneath the plastic badge with the product
name on it.
The USB port is used to update the software.
Visit nibeuplink.com and click the "Software" tab to download the
latest software for your installation.
G
13Chapter 2 | The heat pump – the heart of the houseNIBE F470

MENU SYSTEM
When the door to the heat pump is opened, the menu system’s four
main menus are shown in the display as well as certain basic information.
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
Indoor temperature - (if room sensors are installed)
Hot water temp.
Temporary lux (if activated)
Outdoor
temperature
Estimated amount of hot water
Information about
operation
INDOOR CLIMATE
Setting and scheduling the indoor climate. See page 32.
Menu 1
HOT WATER
Setting and scheduling hot water production. See page 46.
Menu 2
INFO
Display of temperature and other operating information and access to the alarm
log. See page 51.
Menu 3
HEAT PUMP
Setting time, date, language, display, operating mode etc. See page 55.
Menu 4
NIBE F470Chapter 2 | The heat pump – the heart of the house14

Symbols in the display
The following symbols can appear in the display during operation.
DescriptionSymbol
This symbol appears by the information sign if there is inform-
ation in menu 3.1 that you should note.
These two symbols indicate whether the compressor or ad-
dition is blocked in F470.
These can, for example, be blocked depending on which op-
erating mode is selected in menu 4.2, if blocking is scheduled
in menu 4.9.5 or if an alarm has occurred that blocks one of
them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if periodic increase or lux mode for the
hot water is activated.
This symbol indicates whether "holiday setting" is active in
4.7.
This symbol indicates whether F470 has contact with NIBE
Uplink.
This symbol indicates the actual speed of the fan if the speed
has changed from the normal setting.
This symbol is visible in installations with active solar accessor-
ies.
15Chapter 2 | The heat pump – the heart of the houseNIBE F470

INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
temperature
INDOOR CLIMATE 1
ventilation
scheduling
advanced
off
normal

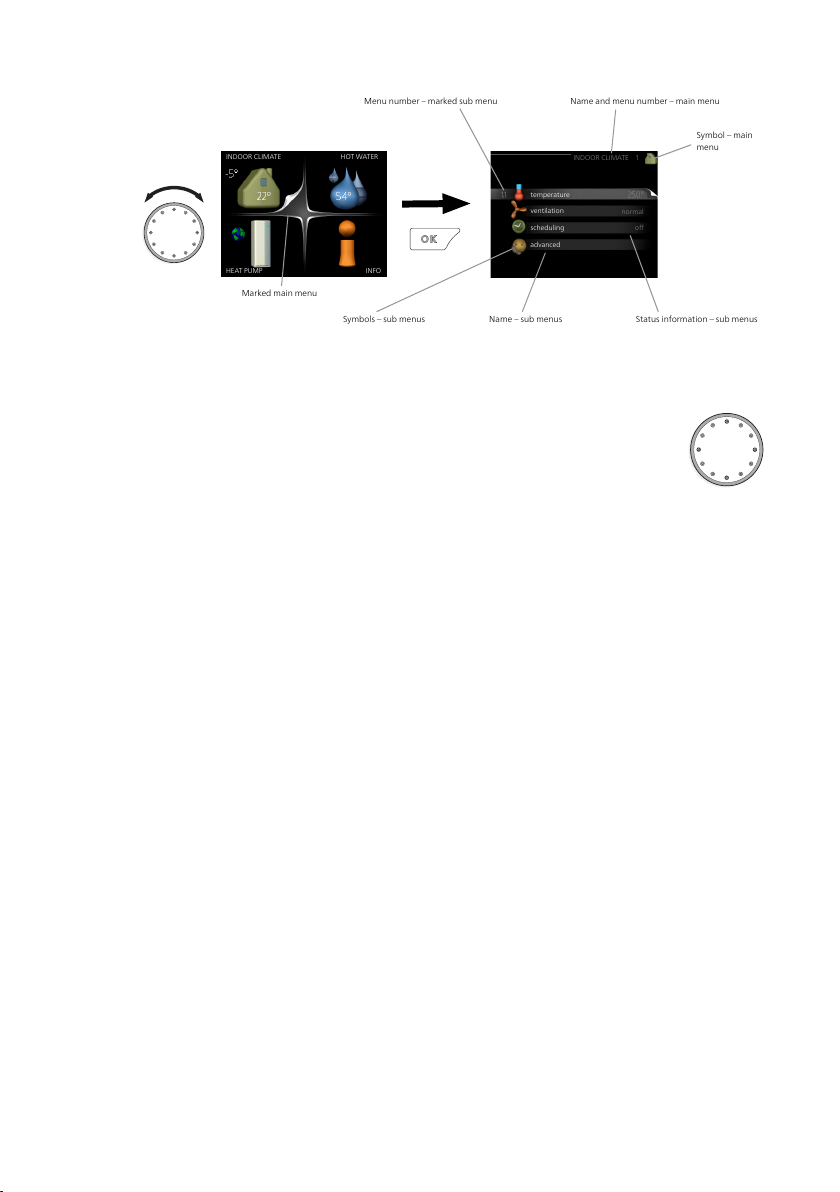

Marked main menu
Menu number – marked sub menu Name and menu number – main menu
Symbol – main
menu
Status information – sub menus
Name – sub menusSymbols – sub menus
Operation
To move the cursor, turn the control knob to the left or the
right. The marked position is white and/or has a turned up
tab.
Selecting menu
To advance in the menu system select a main menu by marking it and
then pressing the OK button. A new window then opens with sub menus.
Select one of the sub menus by marking it and then pressing the OK
button.
NIBE F470Chapter 2 | The heat pump – the heart of the house16

Selecting options
economy
comfort mode2.2
normal
luxury
Alternative
In an options menu the current selected option is indicated by a
green tick.
To select another option:
1. Mark the applicable option. One of the options is pre-selected
(white).
2. Press the OK button to confirm the selected option. The selec-
ted option has a green tick.
17Chapter 2 | The heat pump – the heart of the houseNIBE F470

Setting a value
time & date4.4
time
day
year
month
24 h
12 h
date
Values to be changed
To set a value:
1. Mark the value you want to set using the control knob.
2. Press the OK button. The background of the value becomes
green, which means that you have accessed the setting mode.
3. Turn the control knob to the right to increase the value and to
the left to reduce the value.
4. Press the OK button to confirm the value you have set. To
change and return to the original value, press the Back button.
NIBE F470Chapter 2 | The heat pump – the heart of the house18

Use the virtual keyboard

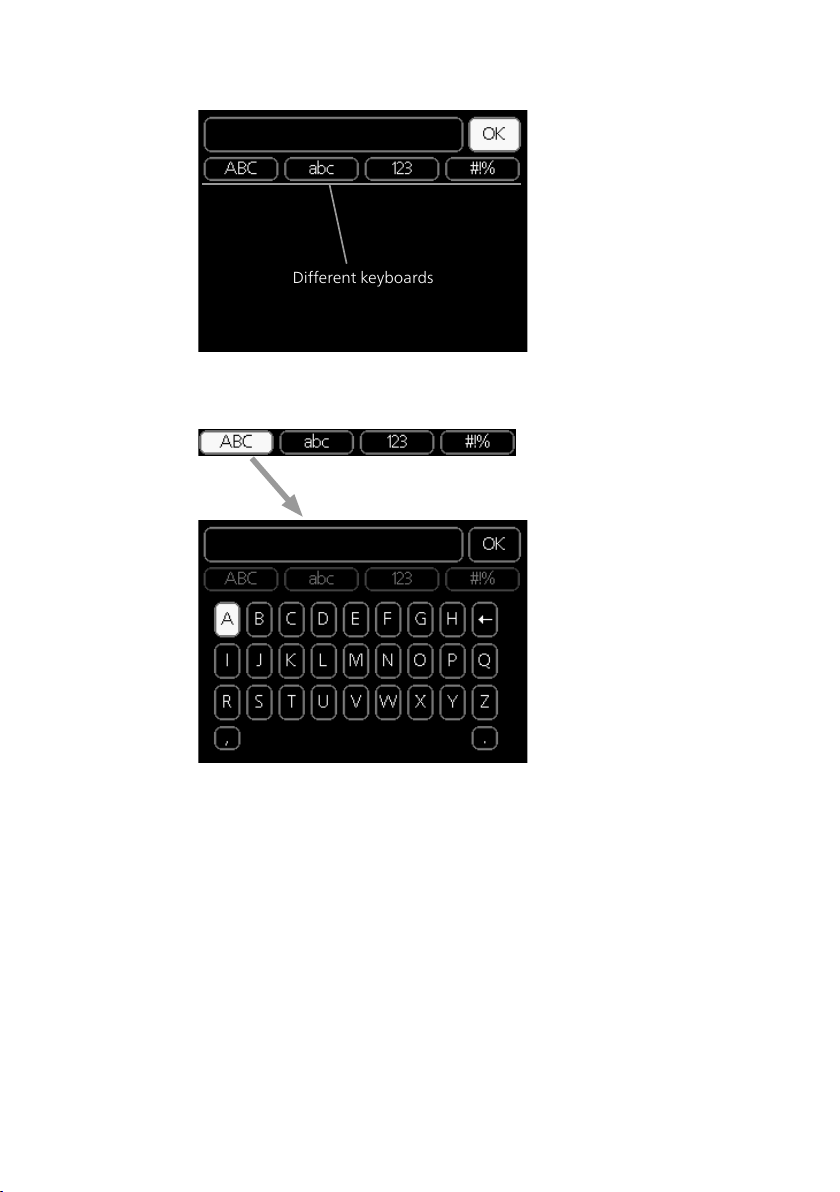

Different keyboards
In some menus where text may require entering, a virtual keyboard is
available.
Depending on the menu, you can gain access to different character sets
which you can select using the control knob. To change character table,
press the Back button. If a menu only has one character set the keyboard
is displayed directly.
When you have finished writing, mark "OK” and press the OK button.
19Chapter 2 | The heat pump – the heart of the houseNIBE F470

Scroll through the windows
A menu can consist of several windows. Turn the control knob to scroll
between the windows.

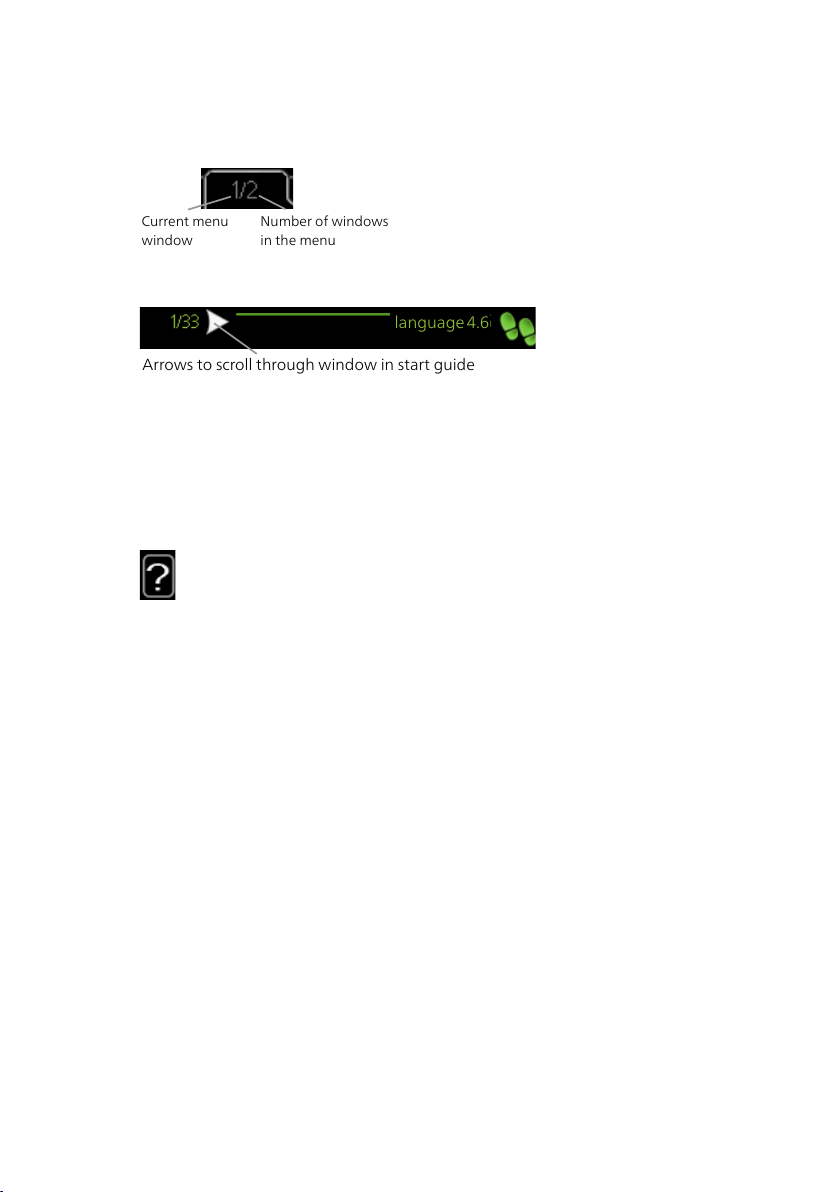

Current menu
window
Number of windows
in the menu
Scroll through the windows in the start guide
language4.6
If the start guide is left on this page it closes
automatically in
60 min
Arrows to scroll through window in start guide
1. Turn the control knob until one of the arrows in the top left corner
(at the page number) has been marked.
2. Press the OK button to skip between the steps in the start guide.
Help menu
In many menus there is a symbol that indicates that extra help is
available.
To access the help text:
1. Use the control knob to select the help symbol.
2. Press the OK button.
The help text often consists of several windows that you can scroll
between using the control knob.
NIBE F470Chapter 2 | The heat pump – the heart of the house20
