Nibe F2300 User manual

User manual
LEK
NIBE™ F2300
Air/water heat pump
UHB GB 1138-1
031761


Table of Contents
1 Important information 2
Installation data 2
Safety information 4
Safety precautions 5
Serial number 7
Contact information 8
F2300 - An excellent choice 10
2 The heat pump – the heart of the house 11
Heat pump function 11
Contact with F2300 13
Maintenance of F2300 14
3 Disturbances in comfort 19
Troubleshooting 19
4 Technical data 22
5 Glossary 23
Item register 27
1NIBE™ F2300Table of Contents |

1Important information
Installation data
F2300Product
Serial number
Installation date
Installer
Serial number must always be given
Certification that the installation is carried out according to instructions in
NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F2300Chapter 1 | Important information2

Accessories
✔
SetDefault
set-
tings
NameChan-
nel
1Communications ad-
dress
A1
4°CConnection diff. re-
turn temp.
A3
20 minStart interval com-
pressor
A4
0°CBalance temperatureA5
120 minTime delay addition
relay
A6
-20 °CStop temperatureA7
60/55Min. interval between
defrosting
A8
-3 °CStart defrostingA9
+20 °CStop defrostingA10
7 minLongest defrostingA11
3NIBE™ F2300Chapter 1 | Important information

Safety information
This appliance is designed for use in a home environment and not intended
to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. This in accordance to applicable parts of
the low-voltage directive 2006/95/EC, LVD. The appliance is also intended
for use by experts or trained users in shops, hotels, light industry, on farms
and in similar environments. This in accordance to applicable parts of the
machinery directive 2006/42/EC.
Children should be supervised to ensure that they do not play with the appli-
ance.
This is an original instruction manual. Translation is not allowed without ap-
proval from NIBE.
Rights to make any design or technical modifications are reserved.
©NIBE 2011.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should observe
when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
F2300 is CE marked and fulfils IP24.
The CE marking means that NIBE ensures that the product meets all regula-
tions that are placed on it based on relevant EU directives. The CE mark is
obligatory for most products sold in the EU, regardless where they are made.
IP24 means that the product is secure against penetration by objects with a
diameter larger than or equivalent to 12.5 mm and that the product is pro-
tected against drops from all directions.
NIBE™ F2300Chapter 1 | Important information4

Safety precautions
Caution
The installation must be carried out by a qualified installer.
If you install the system yourself, serious problems may occur, for example water leaks, re-
frigerant leaks, electric shocks, fire and personal injury, as a result of a system malfunction.
Use original accessories and the stated components for the installation.
If parts other than those stated by us are used, water leaks, electric shocks, fire and personal
injury may occur as the unit may not work properly.
Install the unit in a location with good support.
Unsuitable installation locations can cause the unit to fall and cause material damage and
personal injury. Installation without sufficient support can also cause vibrations and noise.
Ensure that the unit is stable when installed, so that it can withstand earthquakes
and strong winds.
Unsuitable installation locations can cause the unit to fall and cause material damage and
personal injury.
The electrical installation must be carried out by a qualified electrician and the
system must be connected as a separate circuit.
Power supply with insufficient capacity and incorrect function can cause electric shocks and
fire.
Do not perform any repairs yourself. Consult the dealer if the system requires repair.
Incorrectly performed repairs can cause water leakage, refrigerant leakage, electric shocks
or fire.
Consult the dealer or an expert regarding removal of the heat pump.
Incorrect installation can cause water leakage, refrigerant leaks, electric shocks or fire.
Switch off the power supply in the event of a service or inspection.
If the power supply is not shut off, there is a risk of electric shocks and damage due to the
rotating fan.
Do not run the unit with removed panels or protection.
Touching rotating equipment, hot surfaces or high voltage parts can cause personal injury
due to entrapment, burns or electric shocks.
Cut the power before starting electrical work.
Failure to cut the power can cause electric shocks, damage and incorrect function of the
equipment.
Care
Do not use the unit where water splashes may occur, for example in laundries.
The indoor section is not waterproof and electric shocks and fire can therefore occur.
Do not use the unit for specialist purposes such as for storing food, cooling precision
instruments, freeze-conservation of animals, plants or art.
This can damage the items.
Do not install the outdoor unit in the locations stated below.
- Locations where leakage of combustible gas can occur.
- Locations where carbon fibre, metal powder or other powder that can enter the air.
- Locations where substances that can affect the unit, for example, sulphide gas, chlorine,
acid or alkaline substances can occur.
- Locations with direct exposure to oil mist or steam.
- Vehicles and ships.
- Locations where machines that generate high frequency harmonics are used.
- Locations where cosmetic or special sprays are often used.
5NIBE™ F2300Chapter 1 | Important information

- Locations that can be subjected to direct salty atmospheres. In this case, the outdoor unit
must be protected against direct intakes of salty air.

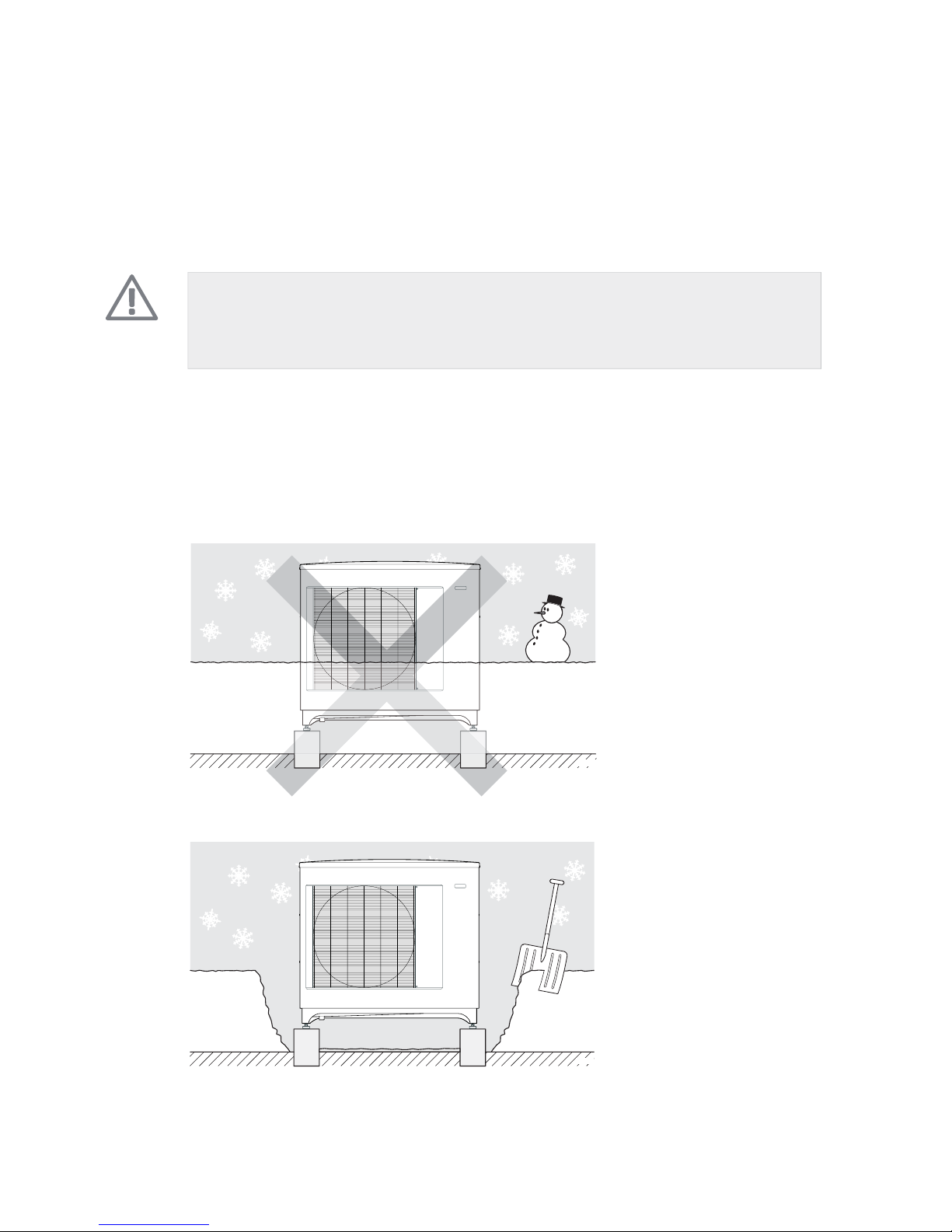

- Locations where large amounts of snow occur.
- Locations where the system is exposed to chimney smoke.
If the bottom frame of the outdoor section is corroded, or in any other way dam-
aged, due to long periods of operation, it must not be used.
Using an old and damaged frame can cause the unit to fall and cause personal injury.
Do not allow the drainage pipe to exit into channels where poisonous gases, con-
taining sulphides for example, can occur.
If the pipe exits into such a channel, any poisonous gases will flow into the room and seriously
affect the user's health and safety.
Insulate the unit's connection pipes so that the ambient air moisture does not
condense on them.
Insufficient insulation can cause condensation, which can lead to moisture damage on the
roof, floor, furniture and valuable personal property.
Do not install the outdoor unit in a location where insects and small animals can
inhabit.
Insects and small animals can enter the electronic parts and cause damage and fire. Instruct
the user to keep the surrounding equipment clean.
Dispose of any packaging material correctly.
Any remaining packaging material can cause personal injury as it may contain nails and
wood.
Do not touch any buttons with wet hands.
This can cause electric shocks.
Do not shut off the power supply immediately after operation has start.
Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown.
Do not control the system with the main switch.
This can cause fire or water leakage. In addition, the fan can start unexpectedly, which can
cause personal injury.
NIBE™ F2300Chapter 1 | Important information6

Serial number
The serial number can be found at the top left of the rear cover and on the
foot of the product.
6HULDO QXPEHU
Caution
Always give the product's serial number when reporting a fault.
7NIBE™ F2300Chapter 1 | Important information

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
vt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk,
0516 Oslo
NO
tems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
www.nibe.se
NIBE™ F2300Chapter 1 | Important information8

For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
9NIBE™ F2300Chapter 1 | Important information

F2300 - An excellent choice
F2300 is an air/water heat pump specially developed for the Nordic climate,
which utilises the outside air so there is no need for bore holes or coils in the
ground.
The heat pump is intended for connection to water borne heating systems
and can both heat hot water effectively at high outdoor temperatures and
give a high output to the heating system at low outdoor temperatures.
If the outdoor temperature drops to a level below the stop temperature all
heating must then occur with external additional heat.
Excellent properties for F2300:
႑Efficient scroll compressor
New efficient scroll compressor that operates at temperatures down to
-25°C.
႑Intelligent control
Integrated intelligent control for optimum control of the heat pump. At
a start signal from an NIBE indoor module or thermostat F2300 is started.
႑Fan
F2300 has an automatic 2-step capacity regulator for the fan.
႑Long service life
The material has been chosen for a long service life and is designed to
withstand the Nordic outdoor conditions.
႑Many possibilities
F2300 can also be used together with most electric boilers, oil boilers or
similar.
NIBE™ F2300Chapter 1 | Important information10

2The heat pump – the heart of
the house
Heat pump function

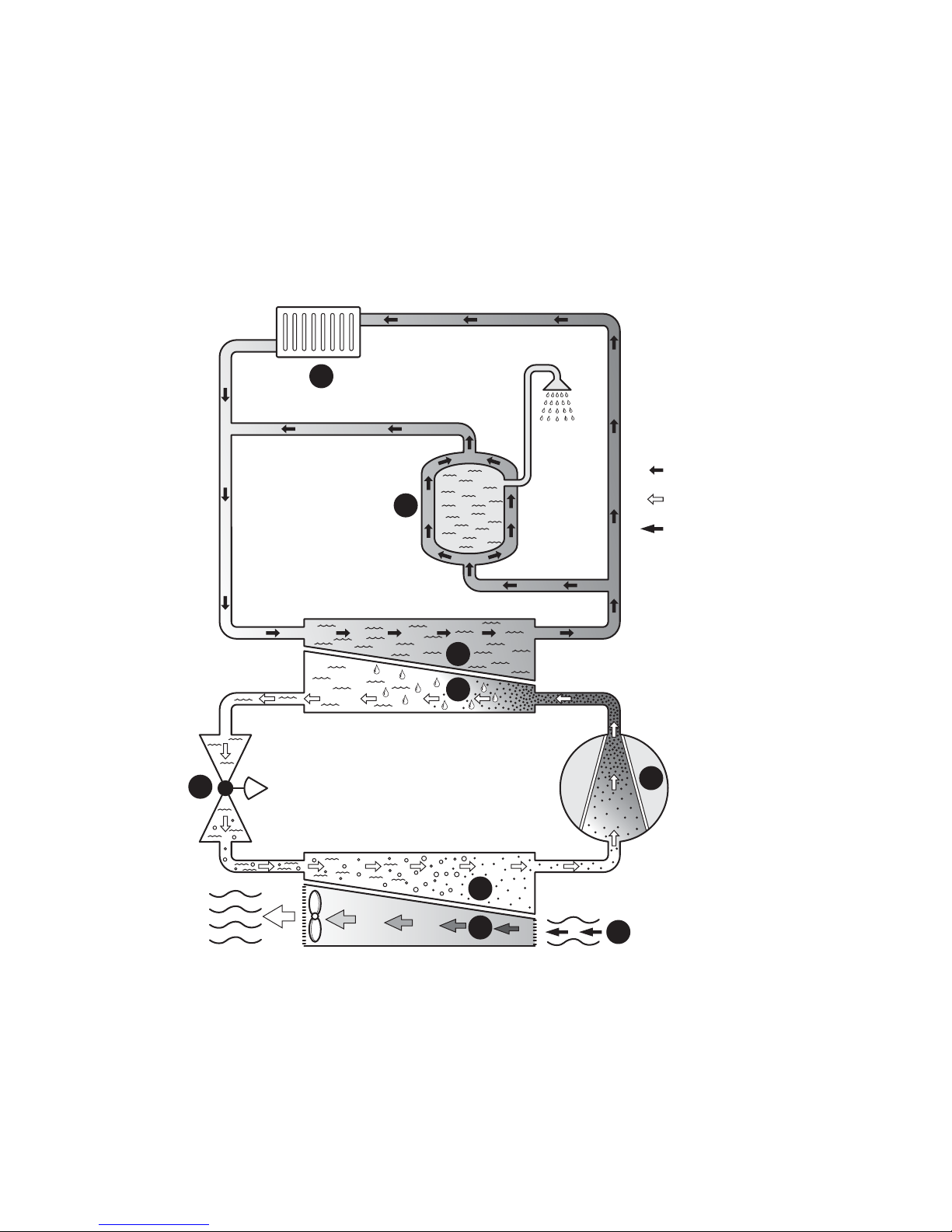

Förångare
Kondensor 80 °C
2 °C-3 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH
The temperatures are only examples and may vary between different installations and time
of year.
11NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

An air/water heat pump can use the outdoor air to heat a property. The
conversion of the outdoor air's energy to property heating occurs in three
different circuits. In the brine circuit, (1) , free heat energy is retrieved from
the surroundings and transported to the heat pump. In the refrigerant circuit,
(2) , the heat pump increases the retrieved heat's low temperature to a high
temperature. In the heating medium circuit, (3) , the heat is distributed around
the house.
Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air releases
the heating energy to the refrigerant and the air's temperature drops. The cold
air is then blown out of the heat pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant, which also
passes the evaporator. The refrigerant has a very low boiling point. In the evapor-
ator the refrigerant receives the heat energy from the outdoor air and starts to
boil.
C
The gas that is produced during boiling is routed into an electrically powered
compressor. When the gas is compressed, the pressure increases and the gas's
temperature increases considerably, from 5 °C to approx. 80°C.
D
From the compressor, gas is forced into a heat exchanger, condenser, where it
releases heat energy to the heating system in the house, whereupon the gas is
cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve, where
the pressure drops so that the refrigerant returns to its original temperature. The
refrigerant has now completed a full cycle. It is routed to the evaporator again
and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved by
the climate system's water, heating medium, which is heated to 55 °C (supply
temperature).
G
The heating medium circulates in a closed system and transports the heated wa-
ter's heating energy to the house water heater and radiators/heating coils.
H
The temperatures are only examples and may vary between different installations and time
of year.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house12

Contact with F2300
F2300 has an integrated control system that checks and monitors the heat
pump operation. At installation the installer makes the necessary settings of
the control system so that the heat pump will work optimally in your system.
The heat pump is controlled in different ways depending on what your system
looks like. If you have a NIBE indoor module heat pump operation can be
controlled from there. Refer to the relevant manual for further information.
13NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

Maintenance of F2300
Regular checks
When your heat pump is located outdoors some external maintenance is re-
quired.
NOTE
Insufficient oversight can cause serious damage to F2300 which is not covered
by the guarantee.
Checking grilles
Check that the inlet grille is not clogged by leaves, snow or anything else
regularly throughout the year.
Pay extra attention in event of high winds or snowfall that may cause the
grille to be blocked.
LEK
Prevent snow building up and covering the grille on F2300.
LEK
Keep free of snow and/or ice.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house14

Cleaning the outer casing
If necessary the outer casing can be cleaned using a damp cloth.
Care must be exercised so that the heat pump is not scratched when cleaning.
Avoid spraying water into the grilles or the sides so that water penetrates
into F2300. Prevent F2300 coming into contact with alkaline cleaning agents.
Condensation water trough
The trough and drain pipe may require cleaning from leaves or similar during
the year.
Cleaning
1. Use the safety switch to cut the incoming electrical supply.
2. Release the trough using the quick release catches on the left and right
front edges. Keep in position at the rear edge without stretching the
power cable.
3. Clean trough and drain.
4. Reinstall the trough using the removal method in reverse order (see point
2).
5. Switch on the safety switch again.
In event of long power cuts
In the event of prolonged power failures it is recommended that the part of
the heating system located outdoors is drained. Your installer has installed a
shut off and drain valve to facilitate this. Call and ask your installer if you are
unsure.
Saving tips
Your heat pump installation produces heat and/or hot water. This occurs via
the control settings you made.
Factors that affect the energy consumption are, for example, indoor temper-
ature, hot water consumption, the insulation level of the house and whether
the house has many large window surfaces. The position of the house, e.g.
wind exposure is also an affecting factor.
Also remember:
႑Open the thermostat valves completely (except those thermostats in the
rooms that are to be kept cooler for various reasons, e.g. bedrooms). The
thermostats slow the flow in the heating system, which the heat pump
wants to compensate with increased temperatures. It then works harder
and consumes more electrical energy.
15NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

႑Reduce or adjust the settings for heating in any external control systems.
Power consumption
jan feb mars april maj juni juli aug sep okt nov dec
0%
5%
10%
15%
20%
25%
7KH DLUZDWHU KHDW SXPSV HQHUJ\ GLVWULEXWLRQ VSUHDG DFURVV WKH \HDU
0RQWK
-DQ )HE 0DU $SULO 0D\ -XQH -XO\ $XJ 6HS 2FW 1RY 'HF
RI DQQXDO
FRQVXPSWLRQ
Increasing the indoor temperature one degree increases power consumption
by approx. 5%.
Domestic electricity
In the past it has been calculated that an average Swedish household has an
approximate annual consumption of 5000 kWh domestic electricity/year. In
today's society it is usually between 6000-12.000 kWh/year.
Approx-
imate
annual
con-
sump-
tion
(kWh)
Normal Output (W)Equipment
StandbyOperation
3802200Flat-screen (Operation: 5 h/day, Standby: 19
h/day)
901011Digital box (Operation: 5 h/day, Standby: 19
h/day)
45515DVD (Operation: 2 h/week)
672160TV games console (Operation: 6 h/week)
50140Radio/stereo (Operation: 3 h/day)
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house16

Approx-
imate
annual
con-
sump-
tion
(kWh)
Normal Output (W)Equipment
1202100Computer incl. screen (Operation: 3 h/day,
standby 21 h/day)
175-60Bulb (Operation 8 h/day)
55-20Spot light, Halogen (Operation 8 h/day)
165-100Cooler (Operation: 24 h/day)
380-120Freezer (Operation: 24 h/day)
365-1500Oven, hob (Operation: 40 min/day)
310-3000Oven (Operation: 2 h/week)
730-2000Dishwasher, cold water connection (Operation
1 time/day)
730-2000Washing machine (Operation: 1 time/day)
730-2000Tumble drier (Operation: 1 time/day)
100-1000Vacuum cleaner (Operation: 2 h/week)
50-400Engine block heater (Operation: 1 h/day, 4
months a year)
100-800Passenger compartment heater (Operation: 1
h/day, 4 months a year)
These values are approximate example values.
Example: A family with 2 children live in a house with 1 flat-screen TV, 1 di-
gital box, 1 DVD player, 1 TV games console, 2 computers, 3 stereos, 2 bulbs
in the WC, 2 bulbs in the bathroom, 4 bulbs in the kitchen, 3 bulbs outside,
a washing machine, tumble drier, fridge, freezer, oven, vacuum cleaner, en-
gine block heater = 6240 kWh domestic electricity/year.
Energy meter
Check the accommodation's energy meter regularly, preferably once a month.
This will indicate any changes in power consumption.
Newly built houses usually have twin energy meters, use the difference to
calculate your domestic electricity.
17NIBE™ F2300Chapter 2 | The heat pump – the heart of the house

New builds
Newly built houses undergo a drying out process for a year. The house can
then consume significantly more energy than it would thereafter. After 1-2
years the heating curve should be adjusted again, as well as the heating curve
offset and the building's thermostat valves, because the heating system, as
a rule, requires a lower temperature once the drying process is complete.
NIBE™ F2300Chapter 2 | The heat pump – the heart of the house18
Other manuals for F2300
4
Table of contents
Other Nibe Heat Pump manuals

Nibe
Nibe F110 User manual

Nibe
Nibe F1245 User guide

Nibe
Nibe CLIMATEMASTER TRANQUILITY 16 Series Owner's manual

Nibe
Nibe DRAZICE TJ 2 EHP 6 kW Specification sheet

Nibe
Nibe F750 User guide

Nibe
Nibe F470 User guide

Nibe
Nibe Fighter 2005 Original operating manual

Nibe
Nibe F1226 series Operating instructions

Nibe
Nibe F370 User manual

Nibe
Nibe F470 User manual
Popular Heat Pump manuals by other brands

Vaillant
Vaillant 0020180635 System Installation Instructions

d2itsu
d2itsu APD-9CRV2 user manual

Invest
Invest MSC-24/QD FP Service manual

OSO HOTWATER
OSO HOTWATER Optima OGC 300 installation manual

Heat Controller
Heat Controller Energy Knight B/A-HMC30AS Service manual

Dimplex
Dimplex LI 20TES Installation and operating instructions
