Nidec ECOTECH EZ Instruction Manual
For Non-SVRS Models
Programmable Pool Pump Motor/Control
WARNING
!
This Product Does NOT Provide
A Safety Vacuum Release System (SVRS).
INSTALLATION AND
MAINTENANCE MANUAL
Save this instruction manual for future reference.
315612_MNJ26_VAR SPD_nonSRVS.indd 1 7/19/11 8:01 AM
Save this Instruction Manual for future reference.
About the ECOTECH EZTM Motor/Control ................................ 3
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
General Installation Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Basic Motor/Control Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

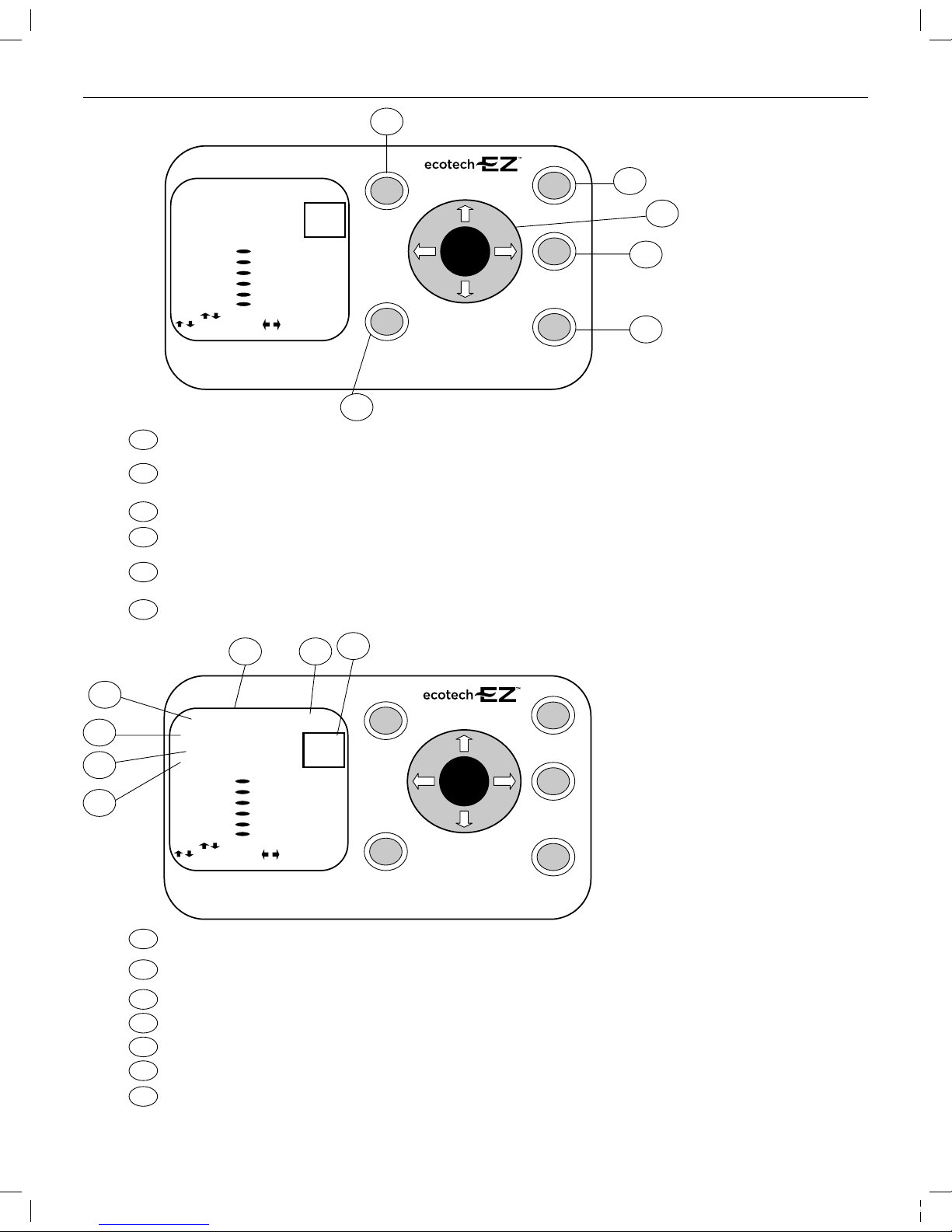

User Interface .................................................. 9–11
Programming Flow Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

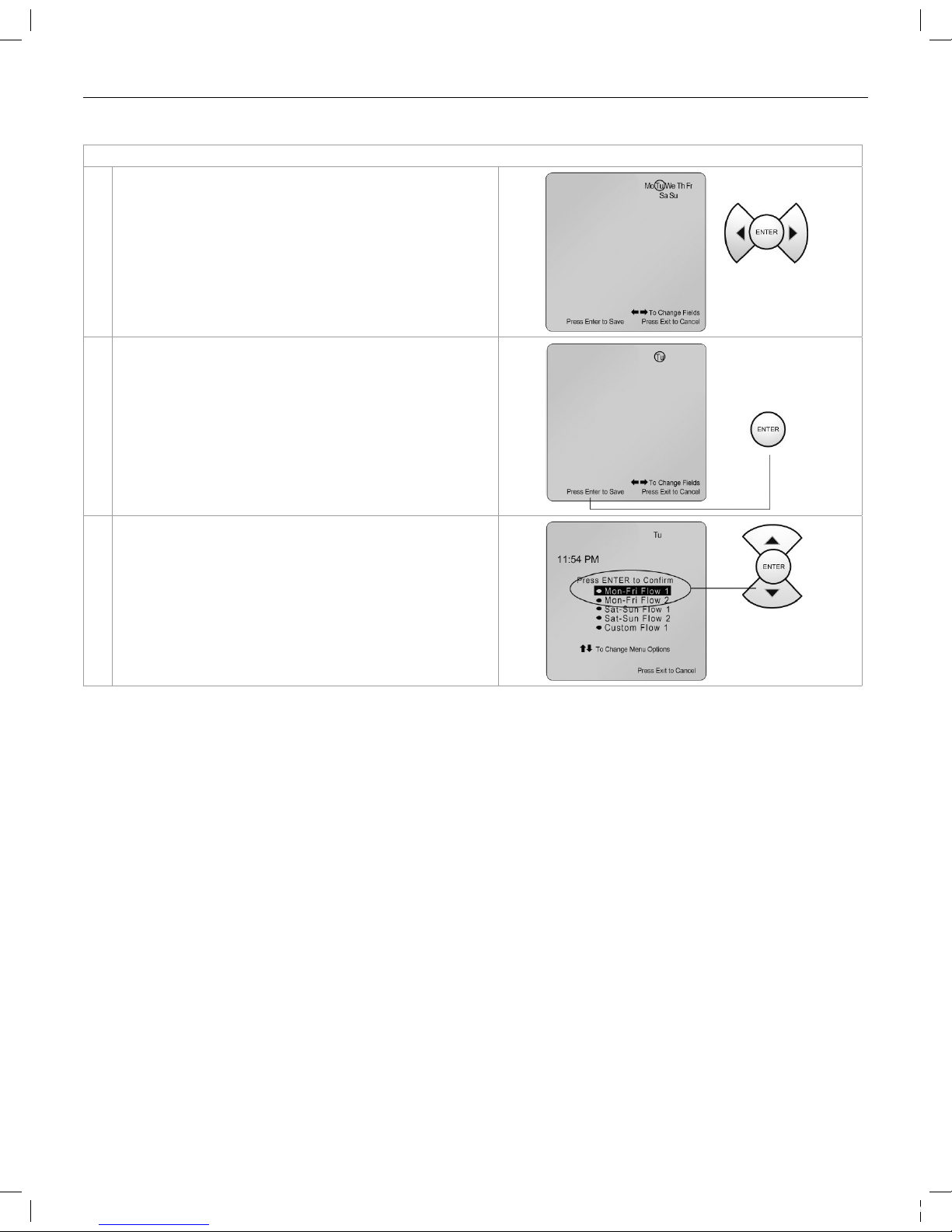

How to program your ECOTECH EZTM Motor/Control . . . . . . . . . . . . . . . . . . . 13–17
Starting & Stopping the unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Run the unit per the Program Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Prime the pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Run Hi Speed / Vacuum ............................................ 21

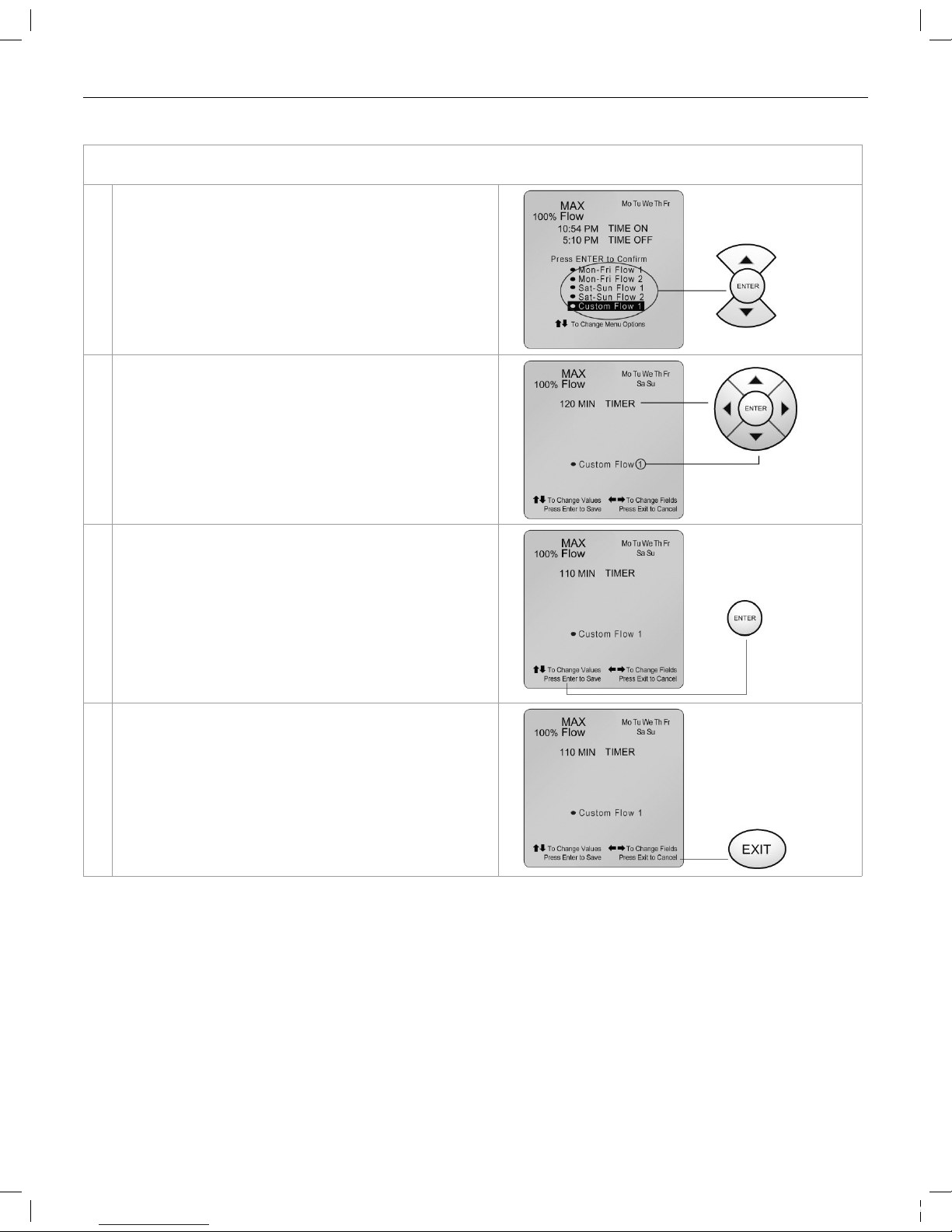

Run Custom Flow ................................................. 21
Locking the Keypad ............................................. 22–23
Run the unit with other equipment pad items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fault Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
General Troubleshooting ............................................ 25
How to Lower Utility Costs with the ECOTECH EZTM
Variable Speed Motor/Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recommended Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
For Technical Assistance or Questions related to your ECOTECH EZTM Motor/Control:
315612_MNJ26_VAR SPD_nonSRVS.indd 2 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
The ECOTECH EZTM motor/control is a high efciency pool
pump motor designed to be an easy drop-in replacement
for your existing pool pump motor. There is no need for
system control changes and this motor/control is designed
to be wired with minimal modications.
Designed with exclusive energy savings technologies,
ECOTECH EZTM motor/control can be easily programmed
to save signicant utility dollars! The brushless permanent
magnet motor, the control, and the user interface all work
together providing the efciency and ease-of-use benets
of an electronically controlled motor.
• High Efciency – 90% Plus Motor Efciency
• Speeds in 5% increments from 30% of Maximum Flow
to 100% of Maximum Flow
• Easy Drop-in Installation – No complex wiring
• Setup the motor/control to clean your pool with the press
of one button
• Ability to program up to four “Custom Flows” for your
pool’s specic needs; i.e., operating water features
• Brushless Permanent Magnet Motor
• Totally Enclosed Fan Cooled (TEFC)
motor construction
• Built-In programmable user interface
with a timer
• Potted, Environmentally Protected, Controller
• Meets California Title 20 legislation and other similar
legislation required in other states
• High efciency levels across the speed range
• Freeze sensor
• Designed for quiet operation
• One size ts most pump ratings
• Protection against corrosive environment
• Power Factor Corrected Input

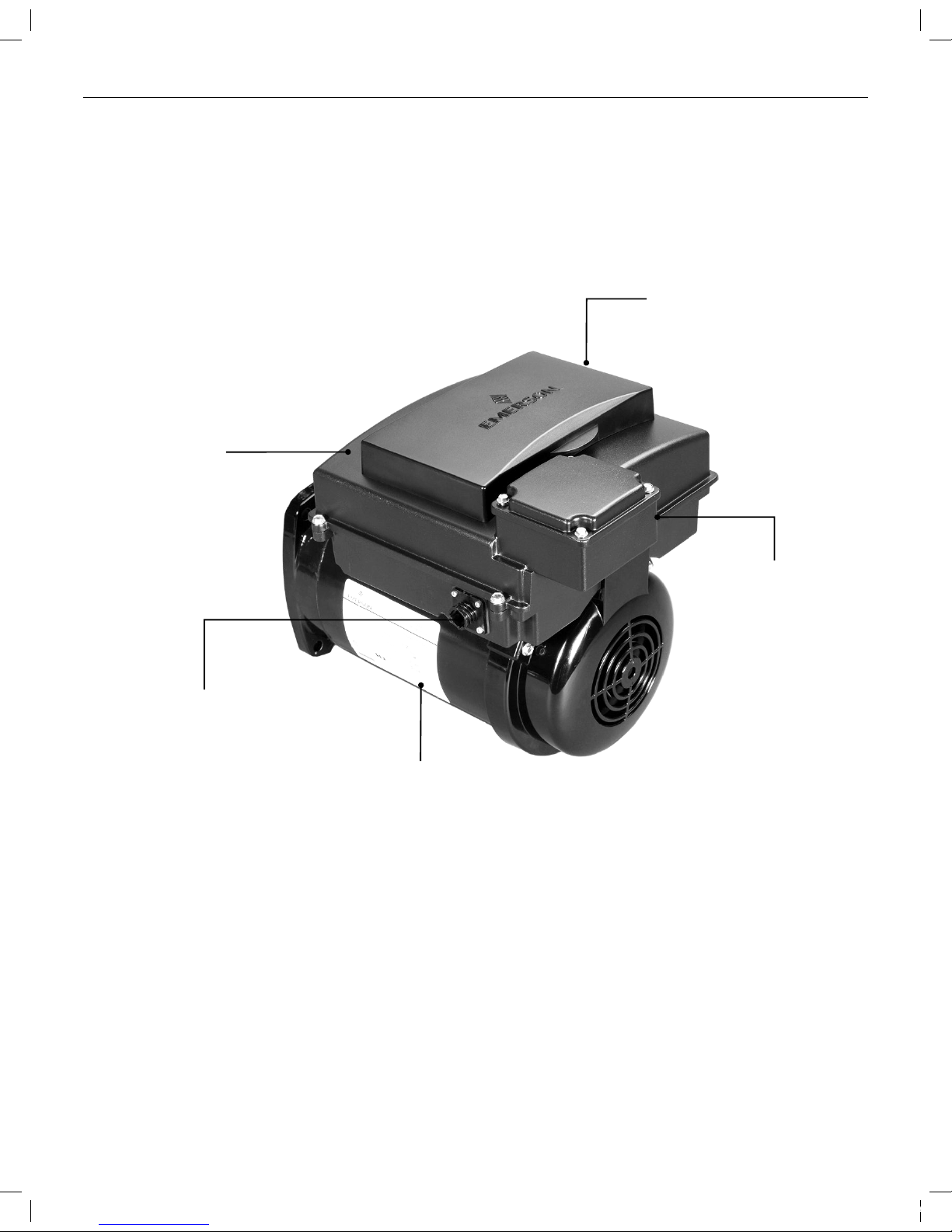

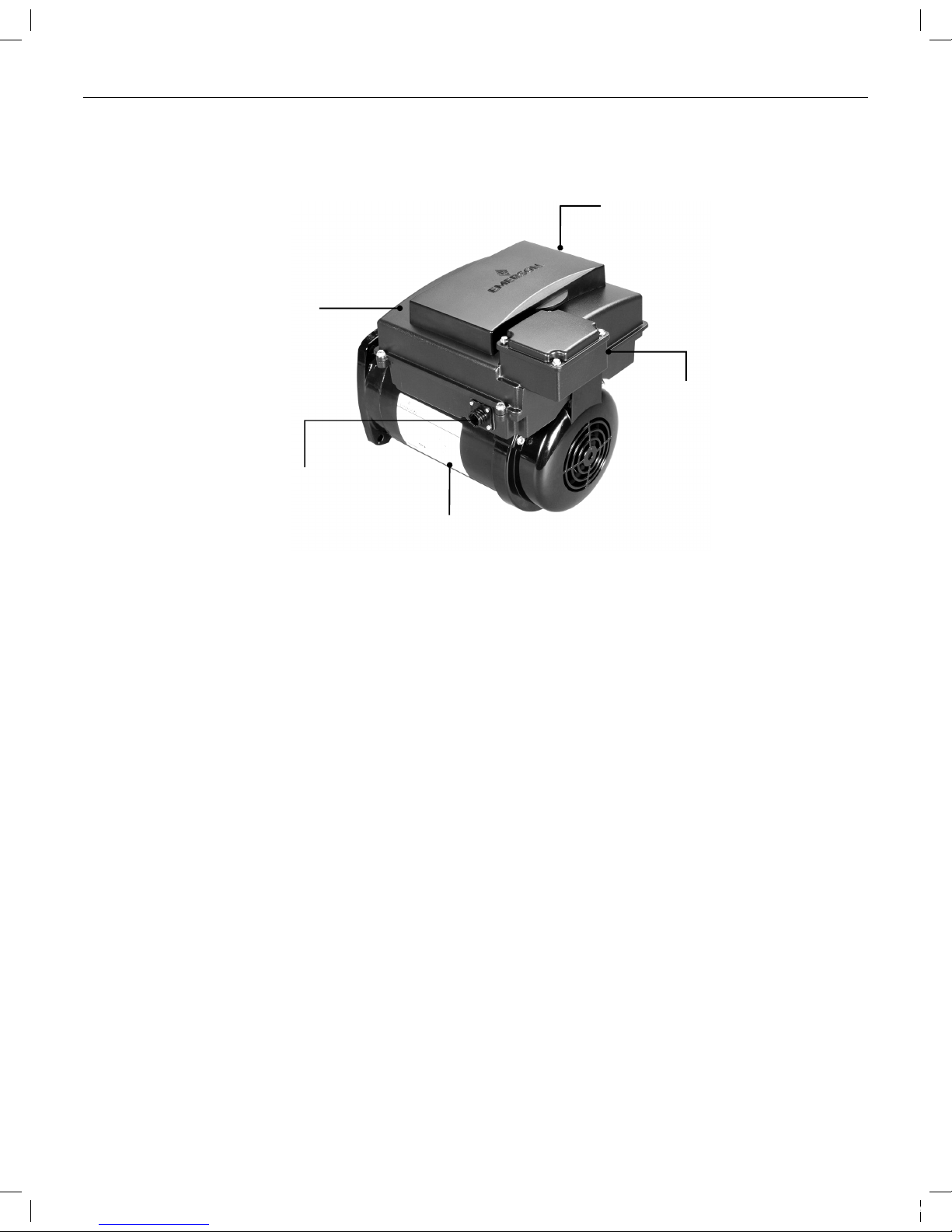

Control
User
Interface
Motor
Wiring/
Conduit
Box
RS-485
Connection Port
(on some models)
Part # M017842740000 REV. March 2, 2011
ECOTECH EZTM Variable Speed Motor/Control
The ECOTECH EZTM motor/control is a high efciency pool
pump motor designed to be an easy drop-in replacement
for your existing pool pump motor. There is no need for
system control changes and this motor/control is designed
to be wired with minimal modications.
Designed with exclusive energy savings technologies,
ECOTECH EZTM motor/control can be easily programmed
to save signicant utility dollars! The brushless permanent
magnet motor, the control, and the user interface all work
together providing the efciency and ease-of-use benets
of an electronically controlled motor.
• High Efciency – 90% Plus Motor Efciency
• Speeds in 5% increments from 30% of Maximum Flow
to 100% of Maximum Flow
• Easy Drop-in Installation – No complex wiring
• Setup the motor/control to clean your pool with the press
of one button
• Ability to program up to four “Custom Flows” for your
pool’s specic needs; i.e., operating water features
• Brushless Permanent Magnet Motor
• Totally Enclosed Fan Cooled (TEFC)
motor construction
• Built-In programmable user interface
with a timer
• Potted, Environmentally Protected, Controller
• Meets California Title 20 legislation and other similar
legislation required in other states
• High efciency levels across the speed range
• Freeze sensor
• Designed for quiet operation
• One size ts most pump ratings
• Protection against corrosive environment
• Power Factor Corrected Input
Control
User
Interface
Motor
Wiring/
Conduit
Box
RS-485
Connection Port
(on some models)
Save this Instruction Manual for future reference.
About the ECOTECH EZTM Motor/Control ................................ 3
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
General Installation Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Basic Motor/Control Operation ...................................... 7
User Interface .................................................. 9–11
Programming Flow Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to program your ECOTECH EZTM Motor/Control . . . . . . . . . . . . . . . . . . . 13–17
Starting & Stopping the unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Run the unit per the Program Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Prime the pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Run Hi Speed / Vacuum ............................................ 21
Run Custom Flow ................................................. 21
Locking the Keypad ............................................. 22–23
Run the unit with other equipment pad items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fault Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
General Troubleshooting ............................................ 25
How to Lower Utility Costs with the ECOTECH EZTM
Variable Speed Motor/Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recommended Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
For Technical Assistance or Questions related to your ECOTECH EZTM Motor/Control:
. .
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warnings. . . . . . . . . . .
8
315612_MNJ26_VAR SPD_nonSRVS.indd 3 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
WARNING
!
HIGH
VOLTAGE
DANGER
High voltage and
rotating parts could
cause serious or
fatal injury. Safe
installation, operation
and maintenance must be performed by qualied
personnel. Familiarization with and adherence to the
National Electric Code, NFPA (National Fire Protection
Association) standards and local codes is required.
It is important to observe safety precautions to protect
personnel from possible injury. Personnel should be
instructed for handling each of the following:
CAUTION
!
The motor shall only be used with the
supplied control.
CAUTION
!
The ECOTECH EZTM motor/control
user interface is intended for swimming pool pump
applications only.
NOTICE
!
When unpacking the unit, verify all
motor, control, and user interface components are not
damaged. Make sure there are no visible loose wires
in the wiring/conduit box. Be careful lifting the motor/
control from the box. Act with care and in accordance
with prescribed procedures in handling and lifting
this equipment. Inspect all components for damage.
Should there be damaged components, please return
the product to your place of purchase.
NOTICE
!
There is a small time delay before
the unit starts.
WARNING
!
The ECOTECH EZTM Motor/Control
is controlled for an automatic start. Starting is controlled
by your program schedule or via user input through the
user interface mounted on top of the motor.
WARNING
!
In the case of a motor/control trip
condition, the motor/control may restart without warning.
See the Fault Condition section for details, page 24.
WARNING
!
Avoid contact with energized circuits
or rotating parts.
HIGH
VOLTAGE
DANGER
WARNING
!
Always disconnect electrical power
at the fuse box or circuit breaker before handling
electrical connections. Double check to be sure
Power is OFF, and that it cannot be turned on while
you are working on the equipment.
WARNING
!
Make sure the unit is electrically
grounded and proper electrical installation wiring and
controls are used consistent with local and national electric
codes. Refer to “National Electrical Code Handbook” &
NFPA No. 70. Employ qualied electricians. Insulate all
connections carefully to prevent grounding or short
circuits. Reinstall all conduit and terminal box covers.
CAUTION
!
To connect power to the motor/control
unit, refer to the connection diagram on the nameplate.
AC line power is connected via the motor/control conduit
box terminal board only.
WARNING
!
Insulate all connections carefully to
prevent grounding or short circuits. Reinstall all conduit
and terminal box covers! Do not force connections into
the conduit
WARNING
!
A poor electrical connection can overheat
and cause terminal and/or terminal board failures.
Because of this possibility, wiring harness quick-connect
terminals should be regularly examined carefully for any
signs of physical deterioration or loose t to the terminals
on the motor/control terminal board. If there is evidence of
loose t or deterioration, quick-connect terminals should
be removed from the wiring harness and the harness
wires then connected directly to the motor/control terminal
board wiring terminals. Care shall be taken to ensure
connections are made to the proper terminals and that
adequate electrical clearances are maintained.
315612_MNJ26_VAR SPD_nonSRVS.indd 4 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
CAUTION
!
Voltage to the motor/control shall be
within plus or minus 10% of the nameplate voltage to
avoid overheating and loss of performance.
All aspects of the installation shall conform to
the applicable requirements of the NEC (National
Electrical Code), including Article 430 (Motor Circuits
and Controllers), as well as all local codes.
This motor/control should be powered from a
separate circuit of adequate capacity to maintain
sufcient voltage during starting and running
conditions. Wire size shall be adequate to minimize
voltage drop during starting and running. A qualied
or licensed electrician should be used to properly size
the motor/control supply circuit. Reference articles
310 and 400 of the NEC for further information on
wire sizing. A #8 AWG or larger conductor must
be wired to the motor/control ground/bonding lug.
Use #6 AWG in Canada. Wiring, including exible
cords, should be as short as possible to minimize
voltage drop. All electrical connections in this
system must be secure to prevent voltage drop
and localized heating. If AC power is supplied by
a GFCI circuit breaker, use a dedicated circuit that
has no other electrical loads. GFCI use shall be
in accordance with NEC and all other applicable
state,local and National electrical codes.
Permanent connection of “Hot” supply wires (power
wires that supply voltage) should be from a 2-pole
device (Circuit breaker, relay, timer, etc.) that open-
circuits all hot supply wires when the motor control
is “OFF”. Failure to use a 2-pole device will result
in voltage being present at the motor/control and
potential shock hazard.
All electrical connections should be made and
maintained by a qualied or licensed electrician.
WARNING
!
Although the ECOTECH EZTM motor/
control is a totally enclosed product, rare circumstances,
such as but not limited to; i.e., motor submersion due
to ood or high pressure water stream aimed directly at
motor, might allow water to inltrate the motor/control. If
this occurs, the unit shall be serviced by a qualied service
person before operating or applying power. Wet internal
components may cause a shock hazard
CAUTION
!
To avoid accidents, make sure equipment
is properly protected to prevent access by children or other
unauthorized personnel.
CAUTION
!
Make sure there are no unusual noises or
vibrations when the motor/control is running. If noise and
vibration are apparent, see the General Troubleshooting
issues on page 25.
WARNING
!
Direct-coupled installations, (such as
pool pump products), require a careful check of shaft
and coupling alignment. Position the motor/control for
proper alignment. Do not depend on a exible coupling
to compensate for misalignment. Do not strike the motor
shaft with a hammer or other tool as this may damage
the bearings.
WARNING
!
Provide proper safeguards for personnel
against rotating parts.
WARNING
!
Become familiar with the equipment and
read all instructions thoroughly before installing or working
on the equipment.
WARNING
!
The control on top of the motor should
NEVER be disassembled for any reason.
CAUTION
!
The User Interface should NEVER be
disassembled from the control for any reason.
NOTICE
!
The ECOTECH EZTM Motor/Control is
properly packaged for shipment and storage in a clean,
dry indoor area.
WARNING
!
Safety glasses should be worn to inspect
the equipment while it is running or while a mallet or
hammer is used, especially if cover plates are removed.
WARNING
!
315612_MNJ26_VAR SPD_nonSRVS.indd 5 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
WARNING
!
WARNING
!
The Association of Pool and Spa
Professionals (APSP) recommends the following to
keep your Pool, Spa, or Hot Tub Safe and Free from
Entrapment Risk:
Have your pool inspected by a licensed industry
professional during initial installation.
There is no backup for a broken, missing or
inadequate cover. Replace any broken, missing
or non- compliant covers with covers marked:
VGB2008,” “ASME/ANSI A112.19.8-2007,” or
covers showing the swimmer logo.
Pools or spas with a single main drain require
additional protection. Options include:
• Eliminating the drain or reversing the ow
• Adding a second, properly spaced outlet
• Installing an SVRS (Safety Vacuum Release System).
• Installing an automatic pump shut-off system
• Installing a suction- limiting vent system
• Adding a gravity drainage system
Please check with your individual municipality
to ensure proper compliance.
For additional information regarding the Virginia Graeme
Baker (VGB) Pool and Spa Safety Act, consult the
following web sites:
WARNING
!
This unit should not be serviced in the
eld. Do not disassemble or reconnect components in the
eld; use authorized factory service only.
WARNING
!
WARNING
!
Be careful when touching the exterior
of an operating motor/control! The motor/control may be
hot to the touch and cause injury. This condition is normal
for most motors when operated at rated load and voltage.
A properly functioning motor may be too hot to touch
and can cause injury.
Follow these instructions to prolong the life of your
swimming pool pump motor/control.
Protect against heat
• Shade the motor/control from the sun.
• Provide ample cross ventilation to Provide
sufcient cross ventilation
• Protect the motor/control from lint, etc., that
can clog the ventilation openings.
Protect against Dirt
• Keep motor/control and surrounding area clean.
• Avoid sweeping or stirring dust near the motor/
control while it is running.
• Avoid storing or spilling dry chemicals near the
motor/control.
Protect against Moisture
• Provide protection from rain, snow, etc.
• Do not wrap motor/control with plastic or other
air tight materials.
• Locate motor/control on a slight elevation so
water will not run or puddle nearby.
• Avoid splashing water on or near the motor/control.
• Repair leaky pipe joints or pump seals promptly.
315612_MNJ26_VAR SPD_nonSRVS.indd 6 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
Your ECOTECH EZTM Motor/Control has been functionally
tested for pool pump use before shipment. It is also
preprogrammed to be a drop-in replacement for a standard
single or two-speed pool pump motor with only minor
programming required. To operate the motor/control, the
installer must rst set the time of day and the day of the
week. Please see related informations of this manual for
more specic information.
Re-inspect the installation and make sure that guards
and other protective devices are securely in place. All
covers and gaskets must be re-installed prior to startup
to minimize the entry of dirt and moisture.
Blocked pump indicates there is an obstruction. Basic
startup instructions are under the lid of the user interface.
Detailed motor/control startup instructions begin on
page 9 of this manual. In addition to these motor
installation procedures, please follow all Startup &
Operation instructions in your pump manual.
The motor/control is designed to be operated on a 230
volt, 60 Hz nominal power supply. The suitable voltage
range is 207-253 volts under rated load conditions.
“Hot” power connections should only be connected to the
L1 and L2 terminals of the above pictured motor/control
conduit box connection area and supply ground (Green
or Green with Yellow insulated lead wire) to the ground
screw provided in this same connection area. Permanent
eld wiring should be from a 2-pole device. See Important
Safety Instructions Section, Items a through d (page 5)
If AC power is supplied by a GFCI circuit breaker, use a
properly sized dedicated circuit that has no other electrical
loads. Use of a GFCI circuit with electrical loads other than
the ECOTECH EZ motor/control could result in nuisance
tripping. See Important Safety Instructions Section for
more information.
Before performing any maintenance, disconnect the power
and allow the motor to come to a complete stop then wait
ve(5) minutes before servicing.
This motor has permanently lubricated bearings.
No further lubrication is recommended or required.
The motor/control is designed to operate at variable
speed over a range of 1035 to 3450 RPM (revolutions
per minute of the motor shaft). To make the product
more understandable to use in pool pump applications,
“FLOW” ( versus “SPEED” in RPM) terminology is used to
represent changes in pump water output in both the user
manual instructions and on the user interface display. A
motor operational speed of 1035 RPM displays as “30%
FLOW”, 1725 RPM displays as “50% FLOW”, and 3450
RPM displays as “100% FLOW”. The Actual “% FLOW”
rates will vary with the length of piping sections, use of
ttings (elbows, tees, etc.), lters, heaters, and other
components that affect system friction and efciency,
therefore, the “% FLOW” reading should only be used as
an estimate of the actual system operating ow rate. When
designing or calculating water turnover/exchange, the use
of a properly calibrated and sized ow gauge should be
used to determine actual operating ow rate (GPM) at the
various operational speeds of the motor/control.
315612_MNJ26_VAR SPD_nonSRVS.indd 7 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
Do not open the control enclosure. There is extremely
hazardous voltage inside. Do not service.
HIGH
VOLTAGE
DANGER
Code requirements vary from state to state. Install
equipment in accordance with the applicable codes,
local ordinances, and in accordance with the National
Electrical Code.
Always shut off the unit before performing
maintenance. Always disconnect electrical power
at the fuse box or circuit breaker before handling
electrical connections to be sure Power is OFF, and
that it cannot be turned on while you are working on
the equipment.
The ECOTECH EZTM Motor/Control is
programmed for an automatic start. Starting is
controlled by your program schedule or via user
input through the user interface mounted on top
of the motor.
There is a small time delay before the
unit starts.
Pump size and pump impeller size must match the
existing hydraulic system of the pool. The ECOTECH
EZTM motor/control has the capability to power pump
ratings up to 3.5 total or service factor horsepower
(SFHP/THP) at 3450 RPM (100% Max Flow).
This motor/control is intended to be used only above
ground. It is not a submersible pump motor/control.
315612_MNJ26_VAR SPD_nonSRVS.indd 8 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
1
2
5
3
4
6
1Run/Stop button. This button is used to activate or stop the unit operation. The button will illuminate when in Run mode.
This button does not disconnect power to the unit.
Press the Enter button to confirm and save your selections. Use the arrow keys for menu navigation purposes and to
change values. When the product is in the RUN mode, pressing the Up arrow increases the pump flow in 5% increments.
Pressing the down arrow decreases the flow in 5% increments
Press the Run MAX Flow/Vacuum button for cleaning, vacuuming, & extra skimming purposes.
Press the Run Custom Flow button for running water features or other special flow requirements. Custom flow
rates are set in the Program Menu
Press the Program Menu button to enter the Program Menu for setting time, day of week and for setting or reviewing the
current Program Schedule for Pump On and Off times along with flow rates. Custom Flow settings are also set in the Program Menu.
Press the Exit button to leave the Program Menu or to Escape the Program Menu without saving your data.
2
3
4
6
5
Sat-Sun Flow 1
Custom Flow 1
1:54 PM
To Change Fields
Program
Menu
Exit Run Custom
Flow
Run
MAX Flow /
Vacuum
RUN / STOP
ENTER
MAX
100% Flow
5:00 PM
120 MIN
Mo Tu We Th Fr
Sa Su
To Change Menu Options
Mon-Fri Flow 1
Mon-Fri Flow 2
Sat-Sun Flow 1
Sat-Sun Flow 2
Custom Flow 1
Vacuum Mode
Attention
Low Voltage
Blocked Pump
High Amps
Temp Trip
Press ENTER to Confirm
To Change Values
Press ENTER to Save Press Exit to Cancel
TIME ON
TIMER
TIME OFF
Call
For
Service
Variable Speed Pool Motor
The User Interface (UI) is your communication means for controlling the operation of your pump. This section describes
the ECOTECH EZTM Motor/Control operator controls and the LCD screen.
button. This button is used to activate or stop the unit operation. The button will illuminate when in Run mode.
This button does not disconnect power to the unit.
Press the button to conrm and save your selections. Use the arrow keys for menu navigation purposes and to
change values. When the product is in the RUN mode, pressing the Up arrow increases the pump ow in 5% increments.
Pressing the down arrow decreases the ow in 5% increments.
Press the button for cleaning, vacuuming, & extra skimming purposes.
Press the button for running water features or other special ow requirements.
Custom ow rates are set in the Program Menu.
Press the button to enter the Program Menu for setting time, day of week and for setting or reviewing
the current Program Schedule for Pump On and Off times along with ow rates. Custom Flow settings are also set in
the Program Menu.
Press the button to leave the Program Menu or to Escape the Program Menu without saving your data.
1
2
3
4
5
6
315612_MNJ26_VAR SPD_nonSRVS.indd 9 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
1
2
5
3
4
6
1Run/Stop button. This button is used to activate or stop the unit operation. The button will illuminate when in Run mode.
This button does not disconnect power to the unit.
Press the Enter button to confirm and save your selections. Use the arrow keys for menu navigation purposes and to
change values. When the product is in the RUN mode, pressing the Up arrow increases the pump flow in 5% increments.
Pressing the down arrow decreases the flow in 5% increments
Press the Run MAX Flow/Vacuum button for cleaning, vacuuming, & extra skimming purposes.
Press the Run Custom Flow button for running water features or other special flow requirements. Custom flow
rates are set in the Program Menu
Press the Program Menu button to enter the Program Menu for setting time, day of week and for setting or reviewing the
current Program Schedule for Pump On and Off times along with flow rates. Custom Flow settings are also set in the Program Menu.
Press the Exit button to leave the Program Menu or to Escape the Program Menu without saving your data.
2
3
4
6
5
Sat-Sun Flow 1
Custom Flow 1
1:54 PM
To Change Fields
Program
Menu
Exit Run Custom
Flow
Run
MAX Flow /
Vacuum
RUN / STOP
ENTER
MAX
100% Flow
5:00 PM
120 MIN
Mo Tu We Th Fr
Sa Su
To Change Menu Options
Mon-Fri Flow 1
Mon-Fri Flow 2
Sat-Sun Flow 1
Sat-Sun Flow 2
Custom Flow 1
Vacuum Mode
Attention
Low Voltage
Blocked Pump
High Amps
Temp Trip
Press ENTER to Confirm
To Change Values
Press ENTER to Save Press Exit to Cancel
TIME ON
TIMER
TIME OFF
Call
For
Service
Variable Speed Pool Motor
1
2
6
34
5
1This is the current flow or speed of the motor which powers the pump. The flow range is between 30% and 100% in
5% increments.
The word “MAX” appears only when the motor speed is running at Maximum Speed or 100% of Flow.
The MAX flashes when in Prime mode.
Day of the week display.
The Call for Service icon will light when an issue with the unitrequires professional service. If this icon illuminates,
please call your professional service representative.
The current Time of Day when in Run Mode or your Scheduled Time ON setting when in Program mode.
When in Program mode, this is the time the unit will turn off the scheduled program.
When in Program mode, this is the number of minutes the Custom Flow program will run. When running Custom Flow or
MAX Flow / Vacuum mode, this field displays the remaining time of your chosen function.
2
3
4
5
6
7
7
1:54 PM
To Change Fields
Program
Menu
Exit Run Custom
Flow
Run
MAX Flow /
Vacuum
RUN / STOP
ENTER
MAX
100% Flow
5:00 PM
120 MIN
Mo Tu We Th Fr
Sa Su
To Change Menu Options
Mon-Fri Flow 1
Mon-Fri Flow 2
Sat-Sun Flow 1
Sat-Sun Flow 2
Custom Flow 1
Vacuum Mode
Attention
Low Voltage
Blocked Pump
High Amps
Temp Trip
Press ENTER to Confirm
To Change Values
Press ENTER to Save Press Exit to Cancel
TIME ON
TIMER
TIME OFF
Call
For
Service
Variable Speed Pool Motor
button. This button is used to activate or stop the unit operation. The button will illuminate when in Run mode.
This button does not disconnect power to the unit.
Press the button to conrm and save your selections. Use the arrow keys for menu navigation purposes and to
change values. When the product is in the RUN mode, pressing the Up arrow increases the pump ow in 5% increments.
Pressing the down arrow decreases the ow in 5% increments.
Press the button for cleaning, vacuuming, & extra skimming purposes.
Press the button for running water features or other special ow requirements.
Custom ow rates are set in the Program Menu.
Press the button to enter the Program Menu for setting time, day of week and for setting or reviewing
the current Program Schedule for Pump On and Off times along with ow rates. Custom Flow settings are also set in
the Program Menu.
Press the button to leave the Program Menu or to Escape the Program Menu without saving your data.
1
2
3
4
5
6
This is the current ow or speed of the motor which powers the pump. The ow range is between 30%
and 100% in 5% increments.
The word “MAX” appears only when the motor speed is running at Maximum Speed or 100% of Flow.
The MAX ashes when in Prime mode.
Day of the week display.
The Call for Service icon will light when an issue with the unitrequires professional service. If this icon
illuminates, please call your professional service representative.
The current Time of Day when in Run Mode or your Scheduled Time ON setting when in Program mode.
When in Program mode, this is the time the unit will turn off the scheduled program.
When in Program mode, this is the number of minutes the Custom Flow program will run. When running
Custom Flow or MAX Flow/Vacuum mode, this eld displays the remaining time of your chosen function.
1
2
3
4
5
6
7
315612_MNJ26_VAR SPD_nonSRVS.indd 10 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
1:54 PM
To Change Fields
Program
Menu
Exit Run Custom
Flow
Run
MAX Flow /
Vacuum
RUN / STOP
ENTER
MAX
100% Flow
5:00 PM
120 MIN
Mo Tu We Th Fr
Sa Su
To Change Menu Options
Mon-Fri Flow 1
Mon-Fri Flow 2
Sat-Sun Flow 1
Sat-Sun Flow 2
Custom Flow 1
Vacuum Mode
Attention
Low Voltage
Blocked Pump
High Amps
Temp Trip
Press ENTER to Confirm
To Change Values
Press ENTER to Save Press Exit to Cancel
TIME ON
TIMER
TIME OFF
Call
For
Service
1
2
3
4
1The “Press ENTER to Confirm” icon illuminates when the unit requests you to confirm your selection.
The Attentionsection displays important operating information regarding your unit. Detailed information on these items can be found in
The Fault section of this manual – Pages 24-25.
• Low Voltage indicates insufficient voltage is getting to the motor.
• Blocked pump indicates there is an obstruction which does not allow the pump to properly operate.
• High Amps is an indication of some type of overloaded condition.
• Temp Trip indicates an overheat condition. If you are unsure how to resolve any of these issues, please call your pool professional.
Directions for operation.These directions will illuminate based upon your location in the Program menu. “Press Exit to Cancel” is an indicator
to press the Exit button to leave the program menu or to press the Exit button as an Escape key should an error occur while programming.
These are your program menu selection options.
Mon-Fri Flow 1 is the first On, Off and Flow percentage setting for Monday through Friday operation.
Mon-Fri Flow 2 is a second On, Off, and Flow percentage available for Monday-Friday operation.
Should you require different setting for weekend operation, Sat-Sun Flow settings are also available.
Four Custom Flow settings are also available should special settings be required for water features, backwash, or party mode
operation. Vacuum Mode is not programmable.
2
3
4
Variable Speed Pool Motor
The “” icon illuminates when the unit requests you to conrm your selection.
The section displays important operating information regarding your unit. Detailed information on these items
can be found in the Fault section of this manual – Pages 24-25.
• indicates insufcient voltage is getting to the motor.
• indicates there is an obstruction which does not allow the pump to properly operate.
• is an indication of some type of overloaded condition.
• indicates an overheat condition. If you are unsure how to resolve any of these issues,
please call your pool professional.
Directions for operation. These directions will illuminate based upon your location in the Program menu. “”
is an indicator to press the button to leave the program menu or to press the button as an Escape key should an error
occur while programming.
These are your program menu selection options.
is the rst On, Off and Flow percentage setting for Monday through Friday operation.
is a second On, Off, and Flow percentage available for Monday-Friday operation.
Should you require different setting for weekend operation, settings are also available.
Four settings are also available should special settings be required for water features, backwash,
or party mode operation. is not programmable.
1
2
3
4
315612_MNJ26_VAR SPD_nonSRVS.indd 11 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
Each Menu Option has its own programming procedure. See Pages 13-17.
Pre ss ing the “Program Menu” b utto n w ill
en te r th e M enu O p tions le ve l. P re ssin g
wh ile in “P ro gra m M enu ” will h a ve no e ffec t.
C lo ck M on-F ri
Flo w 1
M on-F ri
Flo w 2
S a t-S u n
Flo w 1
S a t-S u n
Flo w 2
C ustom
Flo w 1 -4
Press “E N TE R ” to
ac c ess C lo c k S et
Functio n s
Press “E N TE R ” to
ac c ess M o n -F ri 1
Functions
Press “E N TE R ” to
ac c ess M o n -F ri 2
Functions
Press “E N TE R ” to
ac c ess Sat-S u n 1
Functio n s
Press “E N TE R ” to
ac c ess S at-S u n 2
Functio n s
Press “E N TE R ” to
ac c ess Custom
Flow F u nction s
arro ws a re u sed to m o ve
between Menu Options
O N LY th e follow ing se g m e nts Illum in ate:
-” T o C h a nge V alues”
-” T o C hange F ield s”
- blink H our digit of C lock
- “P ress E nte r to S av e ”
- “P ress E xit to C ancel”
E a c h digit p lus A or P “blin k s” in seq uence
as the buttons are presse d
P ressing “E N T E R ” sav es the C lock
setting and ex its C lock S et m ode.
T h e M E N U option increm e nts to “D a y of
the W eek” se t m ode.
Clock Set Functions (press “ENTER”)
M E N U n a m e a n d cu rsor “blin k”
wh e n yo u can a cce ss th at m o d e
D ays of
the w e ek
Press “E N TE R ” to
ac c ess D ay of th e
W eek S etting
P ro gra m
M enu E xit
Pre ss ing the “Exit” butto n w ill
re tu rn th e u nit to R un m ode
E a c h digit p lus A or P w hile “blinking”
can be change d w ith the button s
E xit
P ressing “Exit” a t any tim e exits C lo c k S et m ode
and increm ents M E N U option to “D ay of the
W ee k” settin g m ode. T im e settin g is N O T sav ed.
Eac h M E N U op tio n has its o wn program m ing pro ced ure . S e e P ag e s 1 3 -1 7.
Menu Options -- Level 1
Function Setting -- Level 2
315612_MNJ26_VAR SPD_nonSRVS.indd 12 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
1. Press the Program Menu. You are now in the Menu
Options mode. The clock is ashing. Press ENTER.
You are now in the Function Setting Mode. The hour
digit(s) will be ashing.
2. Use the (up arrow), (down arrow), (left arrow),
(right arrow) to set the time and am/pm.
3. After you have set the correct time, press ENTER to
save the time and return to the Menu Options mode.
The Days of the Week will be ashing. If you want to
change or set the day of the week, press the ENTER
button and refer to Section B. If the correct day is
already set, proceed to step 4 below.
4. Press Exit to return to the run mode then press the
RUN/STOP button to run the stored program. The
button will be illuminated when the program is running.
Please note: In the PROGRAM menu, if no button is pressed within 30 seconds, the unit will EXIT and return to the RUN mode.
315612_MNJ26_VAR SPD_nonSRVS.indd 13 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
1. Use the (right arrow) and (left arrow) to move through
the days of the week.
2. To save the day you have chosen, press Enter. You are
now back to the Menu Options mode and the Mon-Fri
Flow 1 icon will be ashing. If you would like to change
or set the Mon-Fri Flow 1 program, press ENTER and
refer to Section C below. If not, proceed to # 3 below.
3. Press Exit to run the stored program. Ensure the RUN/
STOP button is lit to run the program.
315612_MNJ26_VAR SPD_nonSRVS.indd 14 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
1. Use (up arrow) and (down arrow) to set the desired
% ow setting.
2. Press the (right arrow). Use the instructions for Setting
the Clock to set the Time On and Time Off on this screen.
3. Use the (left arrow) and (right arrow) to move through
the time and ow setting process. Use (up arrow) and
(down arrow) to increase or decrease Time and Flow.
4. Press Enter when you are nished setting the desired
Flow 1 Rate and Times of operation. If you would like
to set a 2nd ow rate and time for Mon-Fri operation,
press ENTER and refer to Section D. If not, proceed
to # 5 below.
5. Press exit to run stored program. Ensure the RUN/STOP
button is lit to run the program.
315612_MNJ26_VAR SPD_nonSRVS.indd 15 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
NOTE: Flow 1 settings take precedence over Flow 2 settings if Start Times are the same.)
1. Use (up arrow) and (down arrow) to set the desired
ow %.
2. Press the (right arrow). Use the instructions for Setting the
Clock to set the Time On and Time Off on this screen.
3. Use the (left arrow) and (right arrow) to move through the
time and ow setting process. Use (up arrow) and (down
arrow) to increase or decrease Time and Flow.
4. Press Enter when you are nished setting the desired
Flow 2 rate and times of operation. If you would like
to set ow rates for Sat-Sun, press ENTER. Follow the
directions for Mon-Fri Flow 1 & 2 programming to set
Sat-Sun programming. If not, proceed to # 5 below.
5. Press Exit to run the stored program. Ensure the RUN/
STOP button is lit to run the program.
NOTE: In the PROGRAM menu, if no button is pressed within 30 seconds, the unit will EXIT and return to the RUN mode.
315612_MNJ26_VAR SPD_nonSRVS.indd 16 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
(NOTE: There can be up to 4 separate Custom Flow settings. All will be programmed as follows)
1. Use (up arrow) and (down arrow) to move through
the four ow settings.
2. Use the (left arrow) and (right arrow) to move through
the time and ow setting process. Use (up arrow) and
(down arrow) to increase or decrease Time and Flow.
% Flow Range: 30 – 100%
Timer Range: 10-249 minutes
(Holding down the “Up” or “Down” arrows while setting
the timer, will change the value rapidly)
3. After you have set the Custom Flows 1 through 4, press
Enter to save. You are now returned to the Clock Set
Programming if needed.
4. Press Exit to run the stored program. Ensure the RUN/
STOP button is lit to run the program.
315612_MNJ26_VAR SPD_nonSRVS.indd 17 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
This section describes additional operations and features.
Control
User
Interface
Motor
Wiring/
Conduit
Box
RS-485
Connection Port
(on some models)
18
Part # M017842740000 REV. March 2, 2011
ECOTECH EZTM Variable Speed Motor/Control
Part # M017842740000 REV. March 2, 2011
19ECOTECH EZTM Variable Speed Motor/Control
ECOTECH EZTM Motor/Control Operation Continued:
This section describes additional operations and features.
Control
User
Interface
Motor
Wiring/
Conduit
Box
RS-485
Connection Port
(on some models)

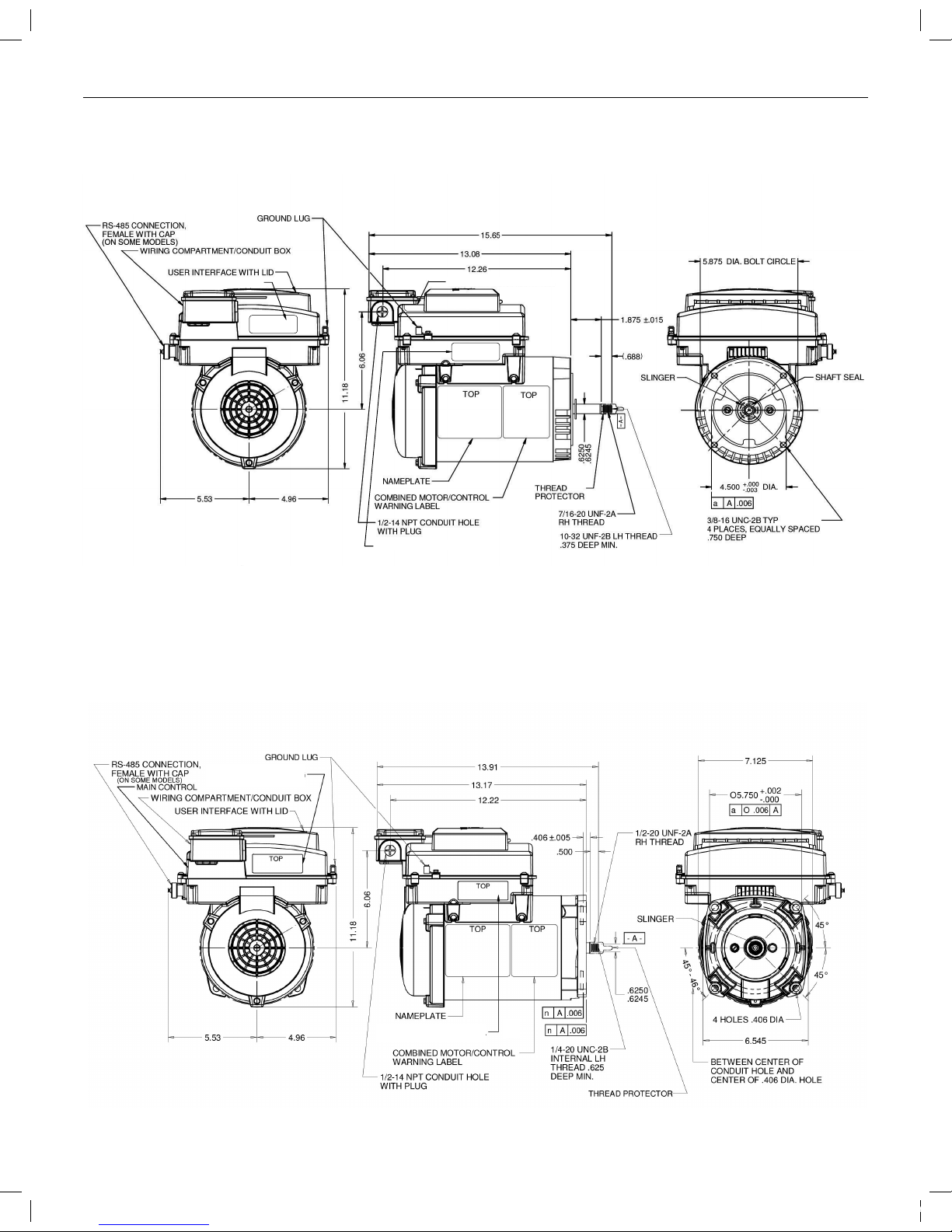

56J Mounting
TOP
TOP
WARNING LABEL
WARNING LABEL
WARNING LABEL
Square Flange Mounting
WARNING LABEL
WARNING LABEL
315612_MNJ26_VAR SPD_nonSRVS.indd 18 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
TOP
TOP
WARNING LABEL
WARNING LABEL
WARNING LABEL
WARNING LABEL
WARNING LABEL
315612_MNJ26_VAR SPD_nonSRVS.indd 19 7/19/11 8:01 AM
Part # M017879450000 REV. July 1, 2011
ECOTECH EZTM Variable Speed Motor/Control
If the button is illuminated, the motor is in the
RUN mode. If the Clock is set and the time of day and day
of week corresponds to a scheduled Program On time,
the motor will automatically ramp up to speed within a
few seconds. Be aware the unit will start in Prime mode
running at full speed for four minutes. After the priming
period has expired, the pump will operate at the ow
percent demanded by the operating mode which caused
the pump to start. When the unit is in Prime mode, the
word “MAX” will ash above the percentage ow indicator.
Pressing the button followed by the
button will start the pump in the current Custom Flow
1 setting. To start the pump in the Custom Flow # 2 setting,
press twice before pressing ;
Press the button three (3) times then
press to Run Custom Flow 3 and Press the
button Four (4) times then press the
button to start the pump in the Run Custom Flow 4 mode.
Press the RUN/STOP button to stop the pump.
The button will no longer be illuminated.
The button must be illuminated. The
motor/control will turn on and off automatically at the
programmed start and stop times and it will operate at
the programmed ow rates. The LCD screen will display
the current operating ow rate in percentage of maximum
format, the current time of day, the current day of the
week, and the current or next Program Schedule that
will run. The Program Schedule may be overridden by
pressing the button or by pressing
the button.
The user interface includes two programmable % Flow
time periods for weekdays, Monday through Friday, and
two programmable % Flow steps for weekends, Saturday
and Sunday. These are the times at which the motor/
control will turn on and operate at the programmed
percentage ow until the time scheduled for Time Off.
Mon – Fri Flow 1: 7:30AM Time On and 4:00PM Time Off
running at 50% Flow
Mon – Fri Flow 2: 4:00PM Time On and 6:00PM Time Off
running at 70% Flow
Sat –Sun Flow 1: 7:30AM Time On and 4:00PM Time Off
running at 50% Flow
Sat – Sun Flow 2: 4:00PM Time On and 6:00PM Time Off
running at 70% Flow
Mon – Fri Flow 1: 7:30AM Time On and 8:00PM Time Off
running at 40% Flow
Mon – Fri Flow 2: 4:00PM Time On and 6:00PM Time Off
running at 70% Flow
Sat –Sun Flow 1: 7:30AM Time On and 8:00PM Time Off
running at 45% Flow
Sat – Sun Flow 2: 4:00PM Time On and 6:00PM Time Off
running at 75% Flow
During the weekdays, the pump will run at 40% ow from
7:30AM until 4:00PM then run at 70% ow from 4:00PM to
6:00PM. At 6:00PM, the pump will revert back to the 40%
Flow rate until 8:00PM. The same logic also applies to the
above weekend program schedule. This feature could be
used to save energy dollars by running the pump longer
hours at slower ow rates while allowing for higher ow
operation during cleaning or high trafc periods.
NOTICE
!
Please follow all instructions from the
pump manufacturer’s product manual regarding the pump
priming operation.
Every time the pump starts from an Off condition (0%
Flow), to ensure the pump is properly primed, the pump
will ramp to full speed (100% Flow) for four minutes.
When this occurs, the MAX icon will be ashing above
the percentage ow indicator. After the priming time has
expired, the pump will operate at the ow percent that is
shown in the display. If it is less than 100%, the MAX icon
will turn off.
315612_MNJ26_VAR SPD_nonSRVS.indd 20 7/19/11 8:01 AM
Table of contents
Other Nidec Swimming Pool Pump manuals
Popular Swimming Pool Pump manuals by other brands
Speck
Speck 95-VIII Brochure & specs
Evolution
Evolution Evoflow Storm Eco-V Installation and operation manual
Waterway
Waterway SVL56 owner's manual
STA-RITE
STA-RITE Supermax Installation and user guide
Pentair Pool Products
Pentair Pool Products Pump Waterfall Operation and service manual
Madimack
Madimack invermac inverFLOW INVFLO300 installation manual
BSVILLAGE
BSVILLAGE INVERPAC TURBO Manual book
Bestway
Bestway 58230 owner's manual
T.I.P.
T.I.P. SPP 400 FT operating instructions
Shott
Shott WP14000 Customer's manual
Pentair Pool Products
Pentair Pool Products Two Speed Pool and SPA Pump Energy Master Installation & service manual
atecpool
atecpool ATECF11 Installation Guide and User Manaul
