Nikon NIKKOR Z 24-70mm f/2.8 S User manual

Pour votre sécurité
AAVERTISSEMENT
• Ne démontez pas ou ne modifiez pas ce produit.
Ne touchez pas les composants internes qui sont exposés suite à une chute
ou à un autre accident.
• Si vous observez des anomalies provenant du produit comme de la fumée,
de la chaleur ou des odeurs inhabituelles, débranchez immédiatement la
source d’alimentation de l’appareil photo.
• Gardez votre matériel au sec.
Ne le manipulez pas avec les mains mouillées.
• N’utilisez pas ce produit en présence de poussières ou de gaz inflammables
comme du propane, de l’essence ou des aérosols.
• N’observez pas directement le soleil ou autre source lumineuse puissante à
travers l’objectif ou l’appareil photo.
• Conservez ce produit hors de portée des enfants.
• Ne manipulez pas le matériel à mains nues dans des lieux exposés à des
températures extrêmement basses ou élevées.
AATTENTION
• Ne pointez pas l’objectif en direction du soleil ou d’autres sources très lumineuses.
• Ne laissez pas le produit exposé à des températures excessivement chaudes
pendant une période prolongée, comme dans une voiture fermée ou en plein soleil.
• Ne transportez pas les appareils photo ou les objectifs si des trépieds ou
accessoires similaires sont fixés.
Avis pour les clients au Canada
Utilisation de l’objectif
Descriptif de l’objectif : noms et fonctions
●
Fixation et retrait
Écran d’informations sur l’objectif
Options de l’écran
Fixation et retrait du parasoleil
Lorsque l’objectif est fixé
En
User’s Manual
Fr
Manuel d’utilisation
Es
Manual del usuario
NIKKOR Z 24-70mm f/2.8 S
Précautions d’utilisation
Entretien de l’objectif
Accessoires
Accessoires fournis
Accessoires compatibles
Caractéristiques
Monture
Focale
Ouverture maximale
Construction optique
Angle de champ
Échelle des focales
Système de mise au point
Distance minimale de
mise au point
Rapport de
reproduction maximal
Lamelles de diaphragme
Plage des ouvertures
Diamètre de xation
pour ltre
Dimensions
Poids
Printed in Japan
SB9A01(30)
7MMA2030-01
En
User’s Manual
Before using this product, please read these instructions carefully. You will also need to
consult the camera manual.
• This lens is intended exclusively for use with mirrorless cameras featuring a Nikon Z mount.
For Your Safety
For Your Safety
To prevent damage to property or injury to yourself or to others, read“For Your Safety”
in its entirety before using this product.
Keep these safety instructions where all those who use this product will read them.
AWARNING: Failure to observe the precautions marked with this icon could
result in death or severe injury.
ACAUTION: Failure to observe the precautions marked with this icon could
result in injury or property damage.
A
A
WARNING
WARNING
•
•
Do not disassemble or modify this product.
Do not disassemble or modify this product.
Do not touch internal parts that become exposed as the result of a fall or
Do not touch internal parts that become exposed as the result of a fall or
other accident.
other accident.
Failure to observe these precautions could result in electric shock or other injury.
•
•
Should you notice any abnormalities such as the product producing smoke, heat, or
Should you notice any abnormalities such as the product producing smoke, heat, or
unusual odors, immediately disconnect the camera power source.
unusual odors, immediately disconnect the camera power source.
Continued operation could result in fire, burns or other injury.
•
•
Keep dry.
Keep dry.
Do not handle with wet hands.
Do not handle with wet hands.
Failure to observe these precautions could result in fire or electric shock.
•
•
Do not use this product in the presence of flammable dust or gas such as
Do not use this product in the presence of flammable dust or gas such as
propane, gasoline or aerosols.
propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fire.
•
•
Do not directly view the sun or other bright light source through the lens
Do not directly view the sun or other bright light source through the lens
or camera.
or camera.
Failure to observe this precaution could result in visual impairment.
•
•
Keep this product out of reach of children.
Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product malfunction. In
addition, note that small parts constitute a choking hazard. Should a child swallow any
part of this product, seek immediate medical attention.
•
•
Do not handle with bare hands in locations exposed to extremely high or
Do not handle with bare hands in locations exposed to extremely high or
low temperatures.
low temperatures.
Failure to observe this precaution could result in burns or frostbite.
A
A
CAUTION
CAUTION
•
•
Do not leave the lens pointed at the sun or other strong light sources.
Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens is a source of fire and damage to the product’s internal parts.
•
•
Do not leave the product where it will be exposed to extremely high
Do not leave the product where it will be exposed to extremely high
temperatures, for an extended period such as in an enclosed automobile
temperatures, for an extended period such as in an enclosed automobile
or in direct sunlight.
or in direct sunlight.
Failure to observe this precaution could result in fire or product malfunction.
•
•
Do not transport cameras or lenses with tripods or similar accessories
Do not transport cameras or lenses with tripods or similar accessories
attached.
attached.
Failure to observe this precaution could result in injury or product malfunction.
Notices for Customers in the U.S.A.
Notices for Customers in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Federal Communications Commission (FCC) Radio Frequency Interference
Federal Communications Commission (FCC) Radio Frequency Interference
Statement
Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
CAUTIONS
CAUTIONS
Modications
The FCC requires the user to be notified that any changes or modifications made to
this device that are not expressly approved by Nikon Corporation may void the user’s
authority to operate the equipment.
Nikon Inc., 1300 Walt Whitman Road,
Melville, New York 11747-3064, U.S.A.
Tel.: [phone]
Notice for Customers in Canada
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Using the Lens
Using the Lens
Parts of the Lens: Names and Functions
Parts of the Lens: Names and Functions

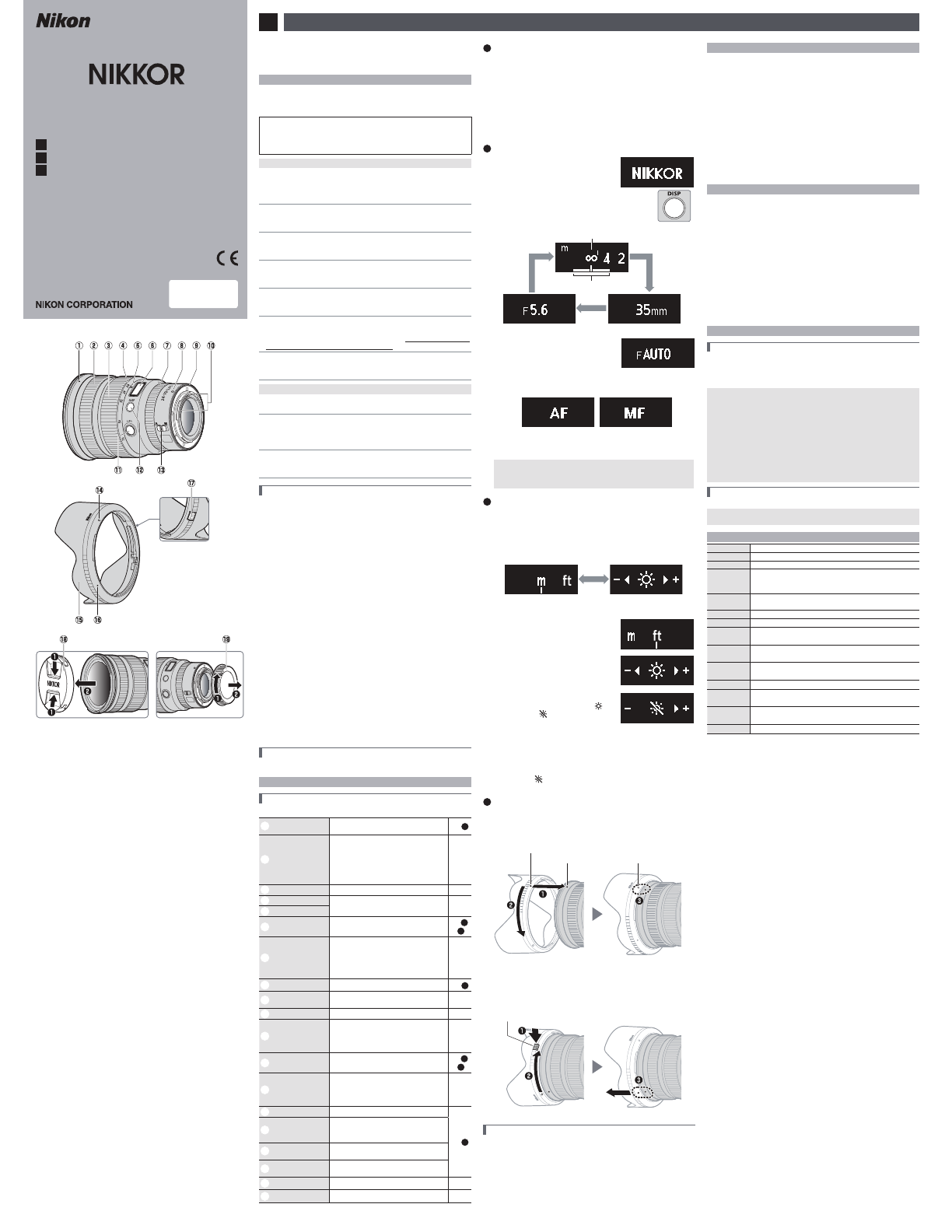

Refer to the diagram on the left edge of this sheet.
qLens hood mounting
mark Use when attaching the lens hood. See D
wFocus ring
Use for manual focus. When focusing using
autofocus, you can adjust focus manually by
rotating the ring while the shutter-release but-
ton is pressed halfway; after focusing, press
the shutter-release button the rest of the way
down to shoot.
—
eZoom ring Rotate to zoom in or out. —
rFocal length scale Determine the approximate focal length when
zooming the lens in or out. —
tFocal length mark
yLens info panel View focus distance, depth of field, and other
information.
See B,
C
uControl ring
Rotate to adjust a setting such as Aperture or
Exposure compensation assigned using the cam-
era. For more information, see the description
of Custom control assignment in the camera
manual.
—
iLens mounting mark Use when mounting the lens on the camera. See A
oRubber lens-mount
gasket ——
!0 CPU contacts Used to transfer data to and from the camera. —
!1 L-Fn button
Press to perform a function assigned using the
camera. For more information, see the descrip-
tion of Custom control assignment in the camera
manual.
—
!2 Display button Save settings or choose the information shown
in the lens info panel.
See B,
C
!3 Focus-mode switch
Choose Afor autofocus, Mfor manual focus.
Note that regardless of the setting chosen, fo-
cus must be adjusted manually when manual
focus mode is selected using camera controls.
—
!4 Lens hood lock mark Use when attaching the lens hood.
See D
!5 Lens hood
Lens hoods block stray light that would other-
wise cause flare or ghosting.They also serve to
protect the lens.
●
!6 Lens hood alignment
mark Use when attaching the lens hood.
!7 Hood release Use when removing the lens hood.
!8 Front lens cap ——
!9 Rear lens cap ——
A
Attachment and Removal
Attachment and Removal
Attaching the Lens
z
Turn the camera o, remove the body cap, and detach the rear lens cap.
xPosition the lens on the camera body, keeping the mounting mark
on the lens aligned with the mounting mark on the camera body,
and then rotate the lens counterclockwise until it clicks into place.
Removing the Lens
zTurn the camera o.
x
Press and hold the lens release button while turning the lens clockwise.
B
The Lens Info Panel
The Lens Info Panel
The lens Info panel lights when the lens is at-
tached to a camera and the camera is on.
Press the display button to cycle the display as shown:
Display button
Depth of eld
Aperture* Focal length
Focus distance
* Aperture is displayed only when the camera is
in mode Aor M. The display for other modes is
shown in the illustration.
• The focus mode (AF or MF) is briefly displayed when chosen using the focus-
mode switch.
• The panel turns off automatically when the camera standby timer expires or if
no lens operations are performed for about 10 seconds. Press the display button
to reactivate the display.
A The Lens Info Panel
The focus distance, depth of eld, and other information displayed in the lens Info panel are approxima-
tions only.
C
Panel Options
Panel Options
Follow the steps below to choose the units for focus distance from meters (m) or
feet (ft) or adjust the brightness of the lens Info panel.
zPress and hold the display button to view settings.
• Unit or brightness selection options will be displayed. The currently select-
ed item will flash.
• Press the display button to toggle between displays.
Units Brightness
xChoose a setting using the lens control ring.
Units
-Rotate the control ring to choose from me-
ters (m) or feet (ft).
Brightness
-Rotate the control ring in the “+” (brighter)
or“−” (darker) direction.
-Choose from 6 levels of brightness.
-To turn the lens info panel off, rotate the
ring in the “−” direction until the icon
changes to .
• Press the display button to save changes and toggle the display.
• If no operations are performed using lens controls for about 5 seconds,
panel options will clear from the display and changes will be canceled.
cPress and hold the display button to return to the lens information dis-
play.
• Choosing for brightness turns the lens info panel off.To turn the display
on again, press and hold the display button.
D
Attaching and Removing the Lens Hood
Attaching and Removing the Lens Hood
Attaching the Lens Hood
Align the lens hood mounting mark with the lens hood alignment mark (q) and
then rotate the hood (w) until the mounting mark is aligned with the lens hood
lock mark (e).
Lens hood lock mark
Lens hood alignment mark
Lens hood mounting mark
When attaching or removing the hood, hold it near the lens hood alignment mark (●)
and avoid gripping the front of the hood too tightly. The hood can be reversed and
mounted on the lens when not in use.
Removing the Lens Hood
Keeping the hood release pressed (q), rotate the hood in the direction shown
(w) and remove it from the lens (e).
Hood release
The same procedure can be used when the hood is reversed.
When the Lens Is Attached
When the Lens Is Attached
The focus position may change if you turn the camera off and then on again after
focusing. Refocus before shooting. If you have focused on a pre-selected location while
waiting for your subject to appear, we recommend that you do not turn the camera off
until the picture is taken.
Precautions for Use
Precautions for Use
• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immediately and take
the lens to a Nikon-authorized service center for repair.
• Replace the front and rear lens caps when the lens is not in use.
• To protect the interior of the lens, store it out of direct sunlight.
• Do not leave the lens in humid locations or in locations in which it may be exposed to
moisture. Rusting of the internal mechanism can cause irreparable damage.
• Do not leave the lens next to open flames or in other extremely hot locations. Ex-
treme heat could damage or warp exterior parts made from reinforced plastic.
• Rapid changes in temperature may cause damaging condensation inside and outside
the lens. Before taking the lens from a warm to a cold environment or vice versa, place
it in a bag or plastic case to slow the change in temperature.
• We recommend that you place the lens in its case to protect it from scratches during
transport.
Lens Care
Lens Care
• Removing dust is normally sufficient to clean the glass surfaces of the lens.
• The fluorine-coated front and rear lens elements can be cleaned as described below.
-Smudges, fingerprints, and other oily stains can be removed using a soft, clean cot-
ton cloth or lens cleaning tissue; clean from the center outwards using a circular
motion.
-To remove stubborn stains, wipe gently using a soft cloth lightly dampened with a
small amount of distilled water, ethanol, or lens cleaner.
-Any drop-shaped marks left from this process on the water- and oil-repellent sur-
face can subsequently be removed with a dry cloth.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Neutral Color (NC) filters (available separately) and the like can be used to protect the
front lens element.
• If the lens will not be used for an extended period, store it in a cool, dry location to
prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor
moth balls.
Accessories
Accessories
Supplied Accessories
Supplied Accessories
• LC-82B 82 mm snap-on Front Lens Cap
• LF-N1 Rear Lens Cap
• HB-87 Bayonet Hood
• CL-C2 Lens Case
DUsing the Lens Case
• The case is intended to protect the lens from scratches, not from falls or other physical shocks.
• The case is not water resistant.
• The material used in the case may fade, bleed, stretch, shrink, or change color when rubbed or wet.
• Remove dust with a soft brush.
• Water and stains can be removed from the surface with a soft, dry cloth. Do not use alcohol, benzene, thinner,
or other volatile chemicals.
• Do not store in locations exposed to direct sunlight or high temperatures or humidity.
• Do not use the case to clean the monitor or lens elements.
• Be careful that the lens does not fall from the case during transport.
Material: Polyester
Compatible Accessories
Compatible Accessories
82 mm screw-on filters
DFilters
Use only one lter at a time. Remove the lens hood before attaching lters or rotating circular polarizing lters.
Specications
Specications
Mount
Mount Nikon Z mount
Focal length
Focal length 24 – 70 mm
Maximum aperture
Maximum aperture f/2.8
Lens construction
Lens construction 17 elements in 15 groups (including 2 ED elements, 4 aspherical elements,
elements with Nano Crystal and ARNEO coats, and uorine-coated front and rear lens
elements)
Angle of view
Angle of view • FX format: 84°–34°20c
• DX format: 61°–22°50c
Focal length scale
Focal length scale Graduated in millimeters (24, 28, 35, 50, 70)
Focusing system
Focusing system Internal focusing system
Minimum focus
Minimum focus
distance
distance 0.38 m (1.25 ft) from focal plane at all zoom positions
Maximum repro-
Maximum repro-
duction ratio
duction ratio Approx. 0.22×
Diaphragm
Diaphragm
blades
blades 9 (rounded diaphragm opening)
Aperture range
Aperture range f/2.8 – 22
Filter-attachment
Filter-attachment
size
size 82 mm (P = 0.75 mm)
Dimensions
Dimensions Approx. 89 mm/3.6 in. maximum diameter × 126 mm/5 in.
(distance from camera lens mount ange)
Weight
Weight Approx. 805 g (1 lb 12.4 oz)
Nikon reserves the right to change the appearance, specifications, and performance of this
product at any time and without prior notice.
Nikon
■
■
■
NIKKOR
NIKON CORPORATION
CE:
■
L__ ______ _
•
. •
•
•
•
•
•
•
•
•
IW@•jil
[Q]
r llll 1
- -- -
--
- -- ,au
*
*
-
MAI

Nikon
Serial No . Model
20 2 Z 24 8 S
Nikon Inc. Lens ONE YEAR USA LIMITED WARRANTY + Nikon Inc. Lens 4 YEARS USA
EXTENDED SERVICE COVERAGE (ESC) for a total of FIVE YEARS OF PROTECTION
( Va li d in t he Con t in ental Unite d States, A laska, H awaii, Puerto Rico and U.S. Virgin Islands)
-----------------,
To activate your ESC you must register your ESC online with Nikon Inc. within ten days from the date of the original retail purchase of this
NIKKOR Lens . Failure to register your ESC within such ten day period inval i dates your ESC. To register online :
http://www . nikonusa . com / register.
YOU MUST PRESENT THIS FORM TOGETHER WITH PROOF OF PURCHASE AND PROOF OF PURCHASE DATE (Bill OF SALE ) TO OBTAIN WARRANTY SERVICE .
This Nikon product 1s warranted by Nikon Inc. to be free from defects in materia and workmanship for a period of five (5) years from the date of purchase .
During this period if this product is found to be defective in materi al or workman ship, Nikon Inc . will at its option, either service or replace
this product wi thout charg e, subject to the following limitations and ex cl us ion s:
1 This warranty extends to the original consumer purchaser onl~ and is not assignable or transferable.
2. This warranty shall not apply to any product which has been subJected to misuse, alteration, abuse, negligence or accident or has had its serial number altered or
removed.
3. This warranty shal not apply to any defects or damage directly or indirectly caused by the use of unauthorized replacement parts and/or service performed by
unauthorized personnel.
4. This warranty shal not apply to any batteries.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES , EXPRESSED OR IMPLIED , INCLUDING BUT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE PROVIDED HOWEVER , THAT IF THE DISCLAIMER OF IMPLIED WARRANTIES IS
INEFFECTIVE UNDER APPLICABLE LAW , THE DURATION OF ANY IMPLIED WARRANTIES ARISING BY OPERATION OF LAW SHALL BE LIMITED
TO FIVE ( 5) YEARS FROM THE DATE OF PURCHASE OR SUCH LONGER PERIOD AS MAY BE REQUIRED BY APPLICABLE LAW . UNDER NO
CIRCUMSTANCES SHALL NIKON INC. BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL , SPECIAL , DIRECT, INDIRECT , EXEMPLARY OR PUNITIVE
DAMAGES RELATING TO OR ARISING OUT OF ANY BREACH OF THIS WARRANTY OR ANY OTHER CLAIM REGARDING THIS PRODUCT , INCLUDING
BUT NOT LIMITED TO CLAIMS OF NEGLIGENCE , STRICT LIABILITY OR BREACH OF CONTRACT.
SOME STATES DO NOT ALLOW (A) LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR (B ) THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU . THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE .
In order to obtain performance of the warranty obligations, the original co 1sume· purchaser must return this warranty document and this Nikon product together
with proof of purchase and proof of purchase date (bill of sale) either in person or addressed to service facility authorized by Nikon to perform warranty service for
this Nikon product. The original consumer purchaser rn retur1inq this Nikon product must prepay all shipping and insvance costs to the service facility.
For Service information , including Nikon s ervice locations , pleas e visit www.nikonusa.com / service or call 800-NIKONUS (800-645-6687) toll free .
THIS WARRANTY FORM MAY NOT BE REPRODUCED OR COPIED AND SHALL BE VALID ONLY WITH PRODUCTS SOLD BY NIKON INC.
Pr i nt ed in Japan 7YU35102- 01

Nikon
Re ta in this International Warranty w ith p roof of pur ch ase (bill of sa l e) for your r ec ords
Nikon Cor~. LENS ONE YEAR WORLDWIDE LIMITED WARRANTY
(Excluding the Continental United States, Alaska, Hawaii , Puerto Rico, and U.S. Virgin Islands)
Welcome to the worldwide family of Nikon owners .
Your Nikon equipment has been manufactured to the highest quality standards by NIKON CORPORATION, Tokyo, Japan. This
limited warranty entitles the original consumer purchaser to international warranty protection in accordance with these terms
and conditions. It affords the original consumer purchaser warranty protection outside the Continental United States, Alaska,
Hawaii, Puerto Rico and the U.S. Virgin Islands. Such warranty coverage is supplemental to and not in lieu of the United States
Nikon Inc. Lens One Year USA Limited Warranty which is received by the original consumer purchaser with the Nikon product.
The Nikon product except for batteries is warranted by NIKON CORPORATION, Tokyo, Japan to be free from defects in materials
or workmanship for a period of one (1)year from the date of pu r chase. To find an international Nikon Service Facility
see: http://imaging.nikon.com/products/imaging/worldwide/index.htm. During this period any one of the international service
facilities will service without charge any parts or assembly of parts found to be defective in materials or workmanship, subject
to the following limitations and exclusions:
1. This warranty extends to the original consumer purchaser only and is not assignable or transferable.
2. This warranty shall not extend to any product which has been subject to misuse, alteration, abuse, negligence, accident or
unauthorized repair or has had its serial number altered or removed.
The above warranty is expressly in lieu of all other warranties expressed or implied including but not limited
to any implied warranty of merchantability or fitness for particular purpose, except to the extent prohibited
by applicable law, in which event the duration of any implied warranty shall be limited to one (1) year from
the date of purchase or such longer period as may be required by applicable law. Under no circumstances
shall Nikon be liable for consequential, indirect, special, direct, exemplary, punitive or incidental damages
arising out of or related to any breach of this warranty or any other claim regarding this product, including
but not limited to, claims of negligence, strict liability or breach of contract.
Some jurisdictions, such as states or provinces, do not allow (a) limitations on how long an implied warranty
lasts or (b) the exclusion or limitation of incidental or consequential damages so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other
rights which vary from jurisdiction to jurisdiction.
In order to obtain international service, the original consumer purchaser should return the Nikon product, either in person or
addressed to the Warranty Department of any authorized service facility listed on the above website, together with proof of
purchase and proof of purchase date (bill of sale) and this warranty. The original consumer purchaser in returning this product
must prepay all shipping and insurance costs to the service facil i ty.
