Thank you for your purchase of an AF-S DX Micro NIKKOR
40mm f/2.8G lens. Before using this product, please carefully
read both these instructions and the camera manual.
Note: DX lenses are for use only with DX-format digital single-lens reflex
cameras such as the D7000 or D300 series.
The angle of view of a lens on
a DX-format camera is equivalent to that of a lens with a focal length
about 1.5 × longer mounted on a 35 mm format camera.

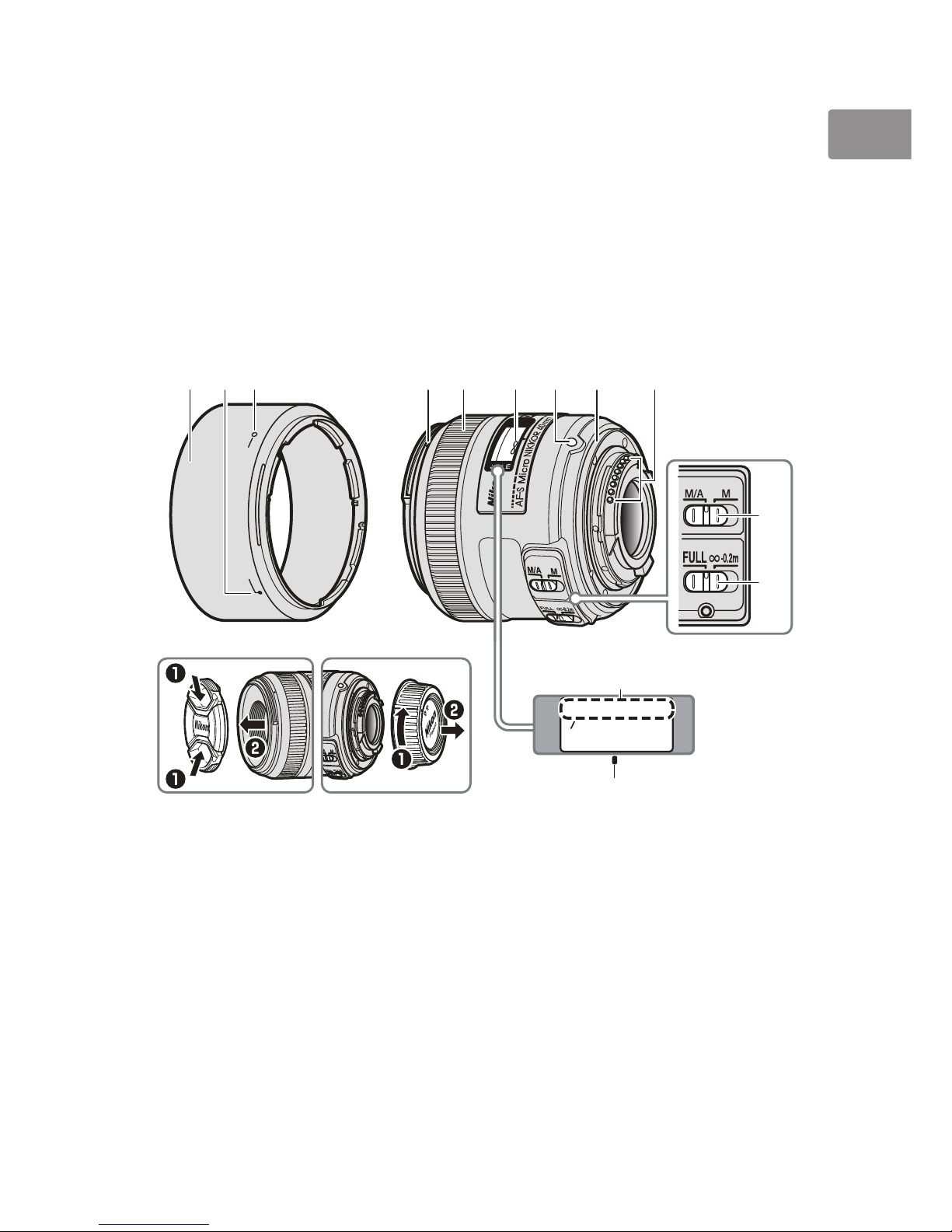

■Parts of the Lens
1:
ft
m
10
0.4
1
12
3
0.2
8”
2
7”
!2
!3
we r t y iuo
!0
!1
q
q
Lens hood ........................................ 17
w
Lens hood alignment mark .... 17
eLens hood lock mark................. 17
r
Lens hood mounting mark.... 17
tFocus ring......................................... 15
yFocus distance indicator
uLens mounting mark................. 14
i
Rubber lens-mount gasket....18
oCPU contacts..................................18
!0 Focus-mode switch....................15
!1 Focus limit switch........................15
!2 Reproduction ratio
indicator.......................................16
!3 Focus distance mark ..................16

14
Jp
En
De
Fr
Es
Sv
Ru
Nl
Pt
Pb
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
Id
■Attaching and Removing the Lens
Attaching the Lens
Removing the Lens
■Focus
Supported focus modes are shown in the following table (for
information on camera focus modes, see the camera manual).
zTurn the camera off and remove the camera body cap.
xRemove the rear lens cap.
cAttach the lens.
Keeping the lens mounting mark aligned with the
mounting mark on the camera body, position the lens in
the camera’s bayonet mount and then rotate the lens
counter-clockwise until it clicks into place with the lens
mounting mark at the top.
zTurn the camera off.
xRemove the lens.
To remove the lens, press the lens release button while
turning the lens clockwise.
Camera
focus mode
Lens focus mode
M/A M
AF Autofocus with manual
override
Manual focus with electronic
rangefinder
MF Manual focus with electronic rangefinder

15
Jp
En
De
Fr
Es
Sv
Ru
Nl
Pt
Pb
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
Id
M/A (Autofocus with Manual Override)
To focus using autofocus with manual override (M/A):
The Focus Limit Switch
This switch determines the focus distance limits for autofocus.
■Aperture
Aperture is adjusted using camera controls. If the camera is in
exposure mode A or M, aperture will automatically be
adjusted by up to 1.2 stops to maintain the same effective
f-number at different focus distances.
■Depth of Field
If the camera offers depth-of-field preview (stop down), depth
of field can also be previewed in the viewfinder.
zSlide the lens focus-mode switch to M/A.
xFocus.
If desired, autofocus can be over-ridden by rotating the
lens focus ring while the shutter-release button is pressed
halfway (or, if the camera is equipped with an AF-ON
button, while the AF-ON button is pressed).
To refocus
using autofocus, press the shutter-release button halfway
or press the AF-ON button again.
FULL: Select this option for subjects that may be
closer than 0.2 m (0.7 ft).
∞–0.2 m: If your subject will always be at
distance of at least 0.2 m (0.7 ft), select this
option for faster focusing.

16
Jp
En
De
Fr
Es
Sv
Ru
Nl
Pt
Pb
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
Id
■Reproduction Ratio
The reproduction ratio is the ratio of the apparent size of an
object to its true size.
If, for example, the image on the image
sensor is one-third of actual size, the reproduction ratio is 1 : 3.
If desired, the reproduction ratio can be selected using the
reproduction ratio indicator.
Example: Using the Reproduction Ratio Indicator
To shoot at a reproduction ratio of 1 : 3, select manual focus
and rotate the focus ring until the focus distance mark aligns
with the number “3” in the reproduction ratio indicator, then
move the camera forward or back until the subject is in focus.
■Close ups and Reproduction Work
To prevent blur caused by camera shake, mount the camera
on a tripod and use a cable release or remote cord.
Close ups
are generally associated with extremely shallow field depths;
for greater depths of field, stop down the lens, choose longer
exposure times, and position the camera so that the focal
plane is parallel to the portion of the subject you wish to
photograph.
When using a lens hood, be careful that the
hood does not touch the subject.
■Exposure Factor
The lens f-number indicates the brightness of the subject at a
focus distance of infinity; higher reproduction ratios result in
reduced subject brightness.
The actual brightness is referred
to as the “effective f-number”, and the amount that exposure
compensation has to be raised to account for the loss in
brightness as the “exposure factor”.

17
Jp
En
De
Fr
Es
Sv
Ru
Nl
Pt
Pb
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
Id

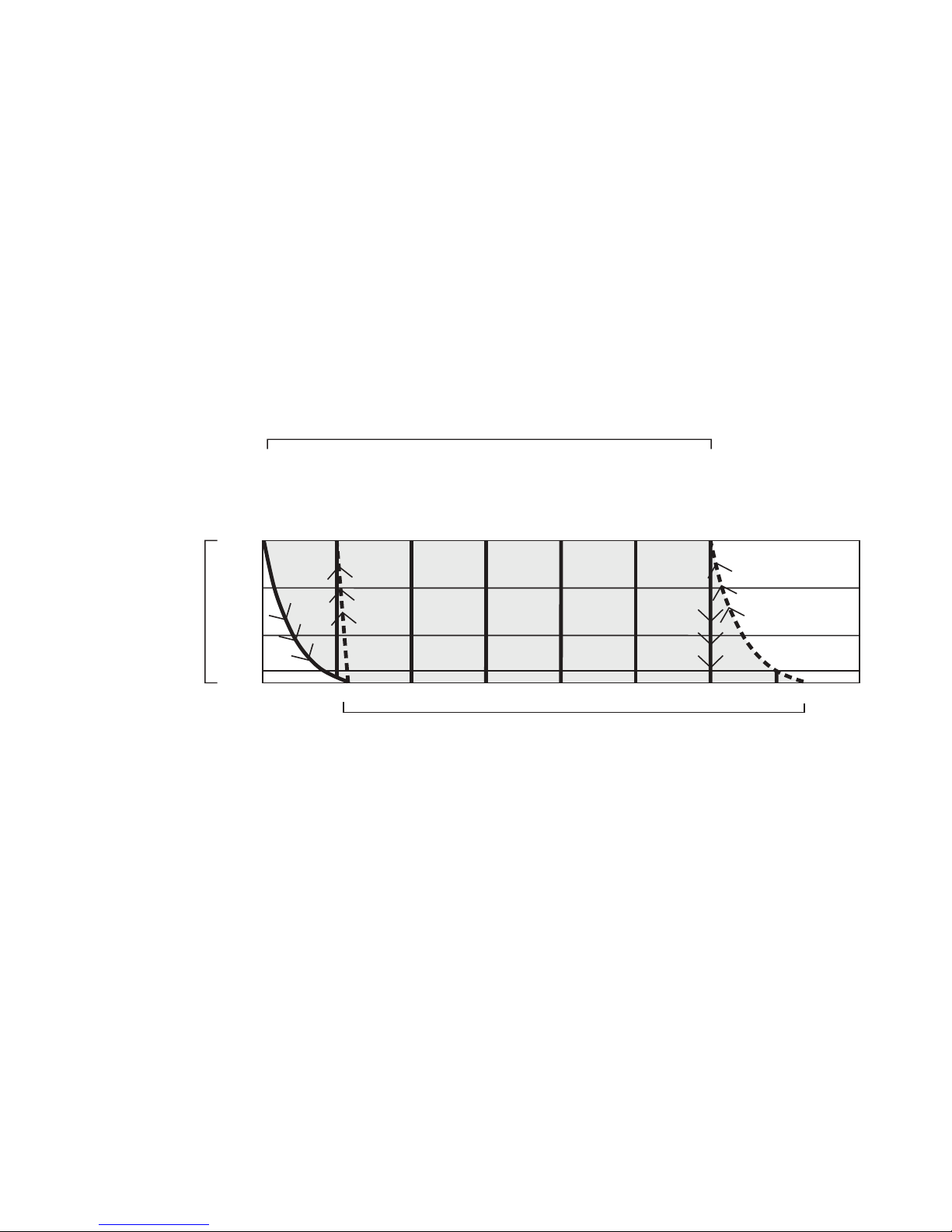

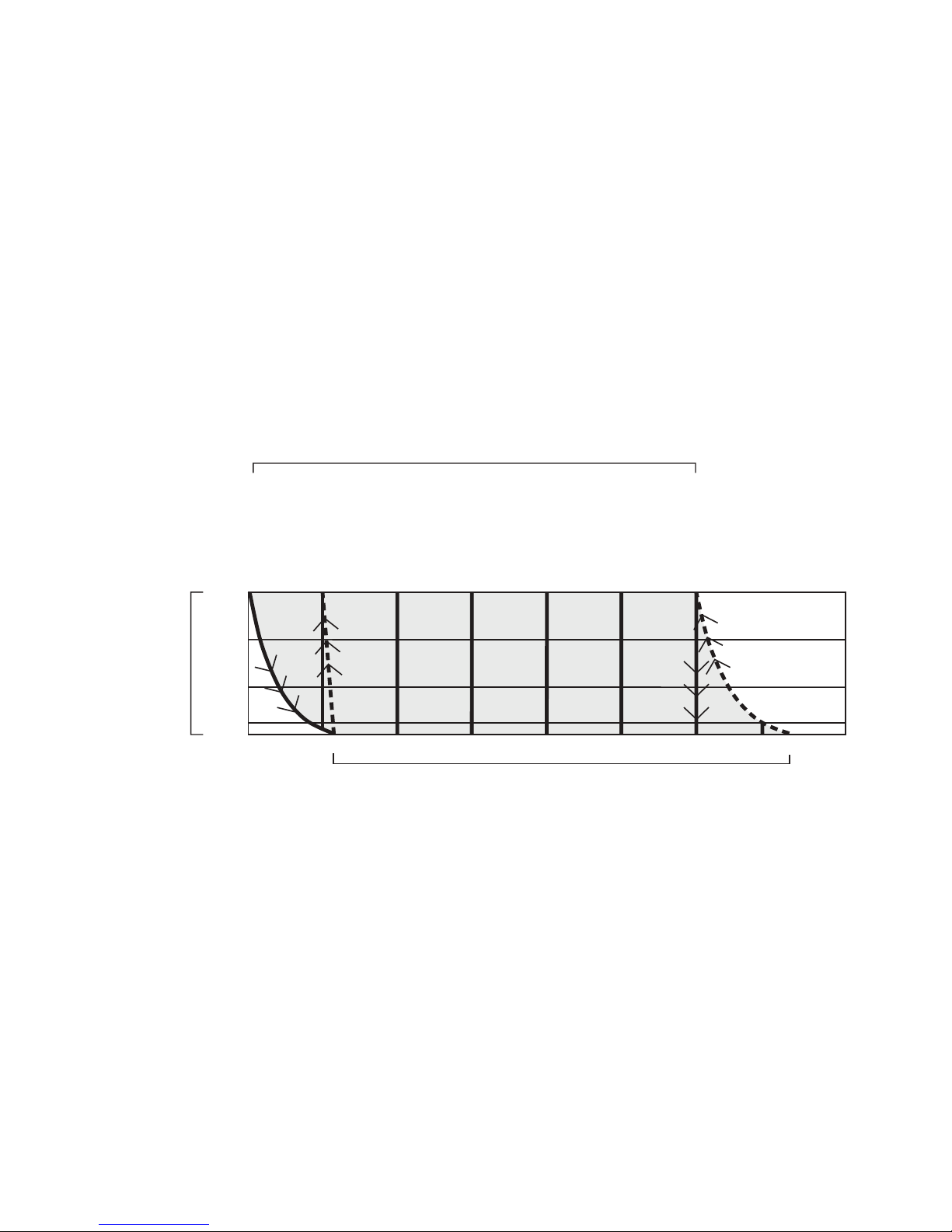

■Changes to the Effective f-number
With this lens, the higher the reproduction ratio (the shorter
the focus distance), the darker the image that falls on the
image sensor and the higher the effective f-number (see the
figure on page 162).
The camera automatically compensates
for this effect when metering exposure or adjusting flash
output using TTL flash control, and shows the adjusted value
for aperture in the control panel and viewfinder displays.
■Built-in Flash Units
When using the built-in flash on cameras equipped with a
built-in flash unit, shoot at ranges of 0.6 m (2 ft) or more and
remove the lens hood to prevent vignetting (shadows created
where the end of the lens obscures the built-in flash).
■The Lens Hood
The lens hoods protect the lens and block stray light that
would otherwise cause flare or ghosting.
When attaching or removing the hood, hold it near the
symbol on its base and avoid gripping it too tightly.
Vignetting may occur if the hood is not correctly attached.
The hood can be reversed and mounted on the lens when not
in use. When the hood is reversed, it can be attached and
removed by rotating it while holding it near the lock mark (
— { ).
Align the lens hood lock mark (—{) with the
lens hood mounting mark (●) on the lens
(e).

18
Jp
En
De
Fr
Es
Sv
Ru
Nl
Pt
Pb
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
Id
■Lens Care
• Do not pick up or hold the lens or camera using only the lens
hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease
use immediately and take the lens to a Nikon-authorized
service center for repair.
• Use a blower to remove dust and lint from the lens surfaces.
To remove smudges and fingerprints, apply a small amount
of ethanol or lens cleaner to a soft, clean cotton cloth or lens-
cleaning tissue and clean from the center outwards using a
circular motion, taking care not to leave smears or touch the
glass with your fingers.
• Never use organic solvents such as paint thinner or benzene
to clean the lens.
• The lens hood or NC filters can be used to protect the front
lens element.
• Attach the front and rear caps before placing the lens in its
flexible pouch.
• If the lens will not be used for an extended period, store it in
a cool, dry location to prevent mold and rust.
Do not store in
direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry.
Rusting of the internal mechanism can
cause irreparable damage.
• Leaving the lens in extremely hot locations could damage or
warp parts made from reinforced plastic.
■Supplied Accessories
• 52 mm snap-on Front Lens Cap LC-52
• Rear Lens Cap LF-4
• Bayonet Hood HB-61
• Flexible Lens Pouch CL-0915

19
Jp
En
De
Fr
Es
Sv
Ru
Nl
Pt
Pb
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
Id
■Compatible Accessories
• 52 mm screw-on filters
■Specifications
Nikon reserves the right to change the specifications of the hardware
described in this manual at any time and without prior notice.
Type Type G AF-S DX Micro NIKKOR lens with built-in
CPU and F mount
Focal length 40 mm
Maximum aperture f/2.8
Lens construction 9 elements in 7 groups
Angle of view 38° 50 ′
Reproduction ratio
indicator
∞to 1 : 1
Distance information Output to camera
Focusing Autofocus controlled by Silent Wave Motor with
separate focus ring for manual focus
Focus distance indicator 0.163 m to infinity (∞)
Minimum focus distance 0.163 m/0.53 ft (1 : 1)
Diaphragm blades 7 (rounded diaphragm opening)
Diaphragm Fully automatic
Aperture range f/2.8 to f/22
Metering Full aperture
Focus limit switch Two positions: FULL (∞– 0.163 m) and ∞– 0.2 m
Filter-attachment size 52 mm (P=0.75 mm)
Dimensions Approx. 68.5 mm diameter × 64.5 mm (distance from
camera lens mount flange)
Weight Approx. 235 g/8.3 oz

162
Jp
En
De
Fr
Es
Sv
Ru
Nl
It
Cz
Sk
Ro
Ua
Ck
Ch
Kr
撮影距離∞時に設定できる範囲
Aperture range when lens is set to innity
Blendenbereich, wenn das Objektiv auf Unendlich eingestellt ist
Plage des ouvertures lorsque l’objectif est réglé sur l’inni
Intervalo de diafragma cuando el objetivo está ajustado en innito
Bländarintervall närobjektivet ärinställt på oändlighet
Диапазон диафрагмы, если объектив настроен на значение до бесконечности
至近
Minimum focus distance
Naheinstellgrenze
Distance minimale de mise au point
Distancia mínima de enfoque
Minsta fokusavstånd
Минимальное расстояние фокусировки
撮影距離至近時に設定できる範囲※
Aperture range at minimum focus distance*
Blendenbereich bei Naheinstellgrenze*
Plage des ouvertures à la distance minimale de mise au point*
Intervalo de diafragma ala distancia mínima de enfoque*
Bländarintervall vid minsta fokusavstånd*
Диапазон диафрагмы при минимальном расстоянии фокусировки*
撮影距離
Focus distance
Entfernungseinstellung
Distance de mise au point
Distancia de enfoque
Fokusavstånd
Расстояние фокусировки
開放
Maximum aperture
Größte Blende
Ouverture maximale
Diafragma máximo
Största bländare
Максимальная диафрагма
1段
1stop
1Blendenstufe
1diaphragme
1abertura
1steg
1ступень
2段
2stops
2Blendenstufen
2diaphragmes
2aberturas
2steg
2ступени
3段
3stops
3Blendenstufen
3diaphragmes
3aberturas
3steg
3ступени
4段
4stops
4Blendenstufen
4diaphragmes
4aberturas
4steg
4ступени
5段
5stops
5Blendenstufen
5diaphragmes
5aberturas
5steg
5ступеней
6段
6stops
6Blendenstufen
6diaphragmes
6aberturas
6steg
6ступеней
∞
0.2m
(0.66 ft.)
0.4m
(1.31 ft.)
0.17m
(0.56 ft.)
f/4f/2.8f/5.6f/8 f/11 f/16 f/22
(f/4.2) (f/36)(f/32)
