Nilfisk-Advance BRX 700 Series User manual

2/03 revised 3/06 Form Number 56041541
A-English
B-Deutsch
C-Français
D-Nederlands
AquaRide™SE / AquaRide SE AXP
BRX 700 series
Advance MODELS 56314009, 56316515(AXP™)
Nilfisk MODELS 56314019, 56316516(EDS™)
Instructions For Use
Bedienungsanleitung
Mode d' emploi
Gebruiksaanwijzing

A-2 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-2 / ENGLISH
TABLE OF CONTENTS
page
Introduction........................................................................................... A-2
Cautions and Warnings ........................................................................ A-3
Know Your Machine.............................................................................. A-4
Control Panel........................................................................................ A-5
Prepare the Machine for Use
Description of the Battery Condition Indicators .................................... A-6
Install the Batteries............................................................................... A-6
Filling the Solution Tank........................................................................ A-7
Pre-Spraying the Carpet....................................................................... A-7
Plan for Cleaning.................................................................................. A-7
Detergent (AXP™/EDS™) System Preparation & Use ........................A-8-9
Operating the Machine ....................................................................... A-10
Using Attachments.............................................................................. A-10
After Use............................................................................................. A-11
Maintenance Schedule....................................................................... A-11
Vacuum Shoe Maintenance................................................................ A-11
Spray Nozzle Maintenance................................................................. A-11
Lubricating the Machine ..................................................................... A-11
Cleaning the Vacuum Motor Filters .................................................... A-11
Power Brush Maintenance ................................................................. A-11
Removing the Brushes ....................................................................... A-12
Removing the Vacuum Shoes ............................................................ A-12
Charging the Batteries........................................................................ A-12
Check the Battery Electrolyte Level.................................................... A-12
Troubleshooting.................................................................................. A-13
Technical Specifications ..................................................................... A-14
INTRODUCTION
This manual will help you get the most from your Nilfisk-Advance Rider Extractor. Read it thoroughly before operating the machine.
Note: Bold numbers in parentheses indicate an item illustrated on pages A-4 – A-5.
This product is intended for commercial use only.
PARTS AND SERVICE
Repairs, when required, should be performed by your Authorized Nilfisk-Advance Service Center, who employs factory trained service personnel, and
maintains an inventory of Nilfisk-Advance original replacement parts and accessories.
Call the NILFISK-ADVANCE DEALER named below for repair parts or service. Please specify the Model and Serial Number when discussing your machine.
(Dealer, affix service sticker here.)
NAME PLATE
The Model Number and Serial Number of your machine are shown on the Nameplate on the machine. This information is needed when ordering repair parts
for the machine. Use the space below to note the Model Number and Serial Number of your machine for future reference.
MODEL NUMBER ______________________________________________
SERIAL NUMBER ______________________________________________
UNCRATE THE MACHINE
When the machine is delivered, carefully inspect the shipping packaging and the machine for damage. If damage is evident, save the shipping carton (if
applicable) so that it can be inspected. Contact the Nilfisk-Advance Customer Service Department immediately to file a freight damage claim. Refer to the
unpacking instruction sheet included with the machine to remove the machine from the pallet.
revised 3/06

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - A-3
ENGLISH / A-3
CAUTIONS AND WARNINGS
SYMBOLS
Nilfisk-Advance uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and
take the necessary steps to protect personnel and property.
DANGER !
Is used to warn of immediate hazards that will cause severe personal injury or death.
WARNING !
Is used to call attention to a situation that could cause severe personal injury.
CAUTION !
Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property.
Read all instructions before using.
GENERAL SAFETY INSTRUCTIONS
Specific Cautions and Warnings are included to warn you of potential danger of machine damage or bodily harm.
WARNING !
•This machine shall be used only by properly trained and authorized persons.
•While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. Clean
only while ascending (driving up) the ramp.
•Keep sparks, flame and smoking materials away from batteries. Explosive gases are vented during normal operation.
•Charging the batteries produces highly explosive hydrogen gas. Charge batteries only in well-ventilated areas, away from
open flame. Do not smoke while charging the batteries.
•Remove all jewelry when working near electrical components.
•Turn the key switch off (O) and disconnect the batteries before servicing electrical components.
•Never work under a machine without safety blocks or stands to support the machine.
•Do not dispense flammable cleaning agents, operate the machine on or near these agents, or operate in areas where
flammable liquids exist.
•Do not clean this machine with a pressure washer.
CAUTION !
•This machine is not approved for use on public paths or roads.
•This machine is not suitable for picking up hazardous dust.
•When operating this machine, ensure that third parties, particularly children, are not endangered.
•Before performing any service function, carefully read all instructions pertaining to that function.
•Do not leave the machine unattended without first turning the key switch off (O), removing the key and applying the parking
brake.
•Turn the key switch off (O) before changing the brushes, and before opening any access panels.
•Take precautions to prevent hair, jewelry, or loose clothing from becoming caught in moving parts.
•Use caution when moving this machine in below freezing temperature conditions. Any water in the solution, recovery or
detergent tanks or in the hose lines could freeze, causing damage to valves and fittings. Flush with windshield washer fluid.
•The batteries must be removed from the machine before the machine is scrapped. The disposal of the batteries should be
safely done in accordance with your local environmental regulations.
SAVE THESE INSTRUCTIONS

A-4 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-4 / ENGLISH
1
2
3
4
5
6
810
11
12
9
13
14
15
16
17
18
20
21
22
23
19
7
24
25

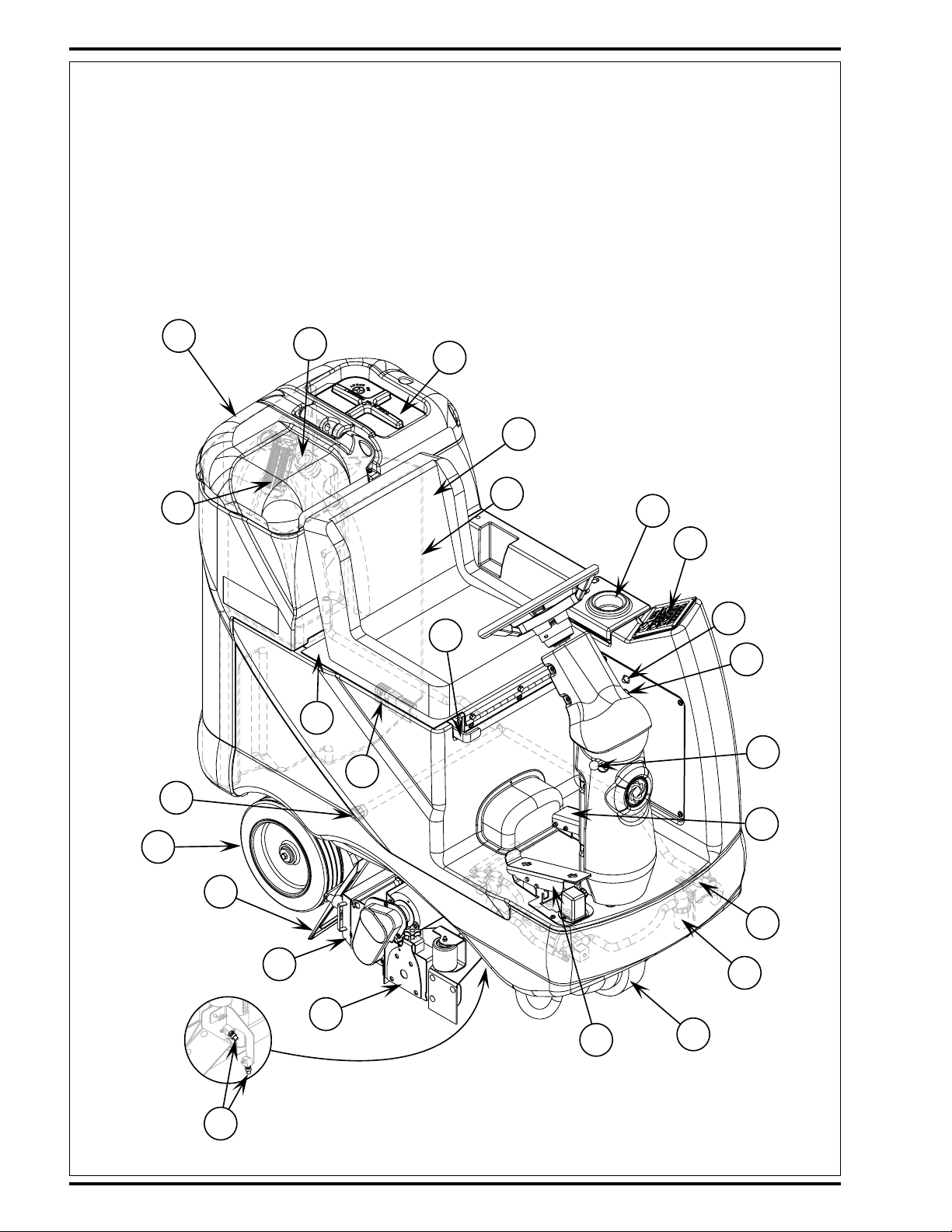

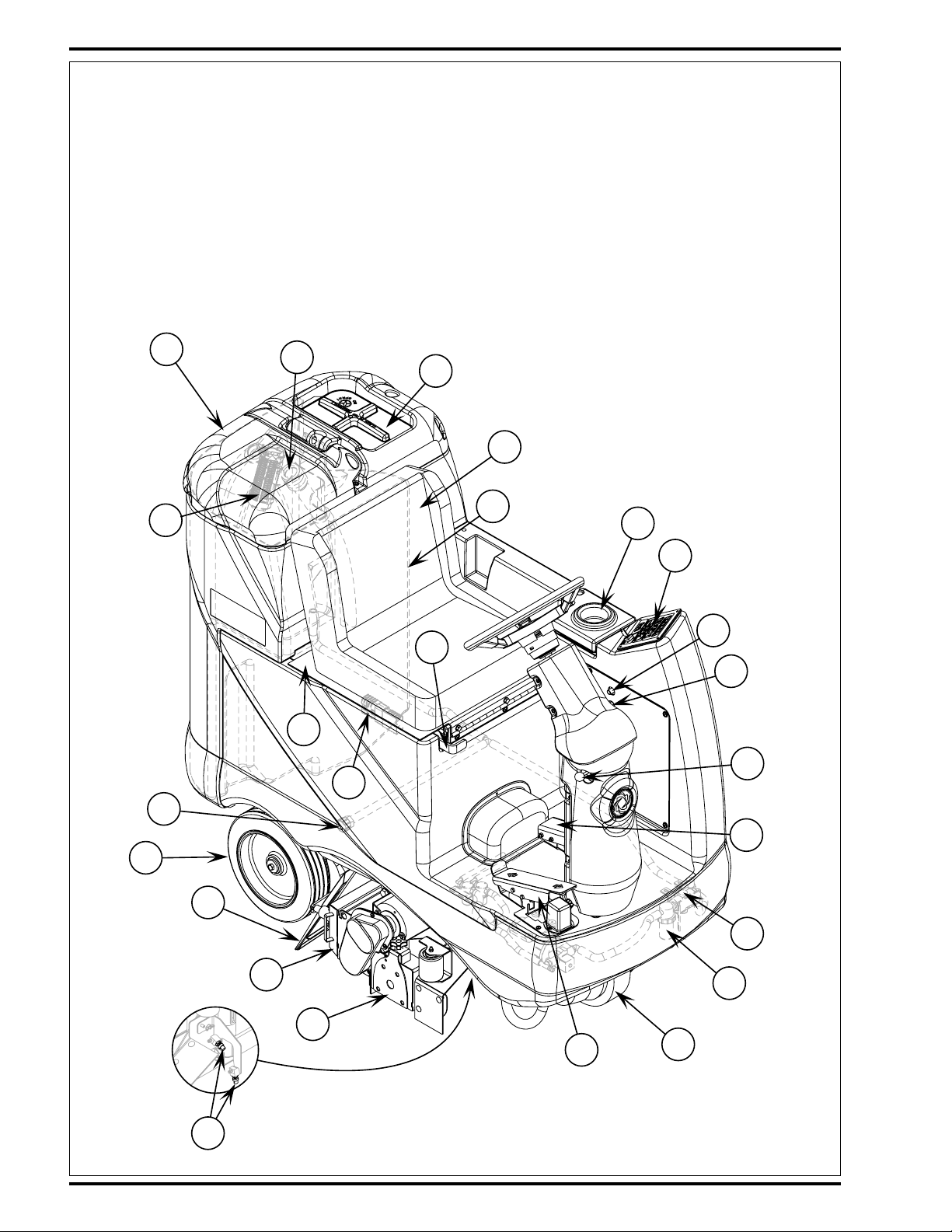

KNOW YOUR MACHINE
1 Recovery Tank Cover
2 Solution Tank Fill Cover
3 Operator’s Seat
4 Solution Tank Drain Hose
5 Steering Wheel Tilt Adjust Knob
6 Brake Pedal / Parking Brake
7 Solution Spray Jets
8 Drive Pedal, Directional/Speed
9 Vacuum Shoes
10 Drive and Steer Wheel
11 Wheel Drive Circuit Breaker
12 Control Circuit Circuit Breaker
13 Emergency Stop Switch / Battery Disconnect
14 Brush Deck
15 Rear Wheel
16 Battery Compartment (under seat)
17 Recovery Bladder Shutoff Float
18 Vacuum Motor Filter Housing
19 Recovery Bladder
20 Solution Filter
21 Recovery Bladder Drain Hose (rear of machine)
22 Machine Battery Connector
23 Control Panel
24 Debris Hopper
25 Solution Control Valve

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - A-5
ENGLISH / A-5

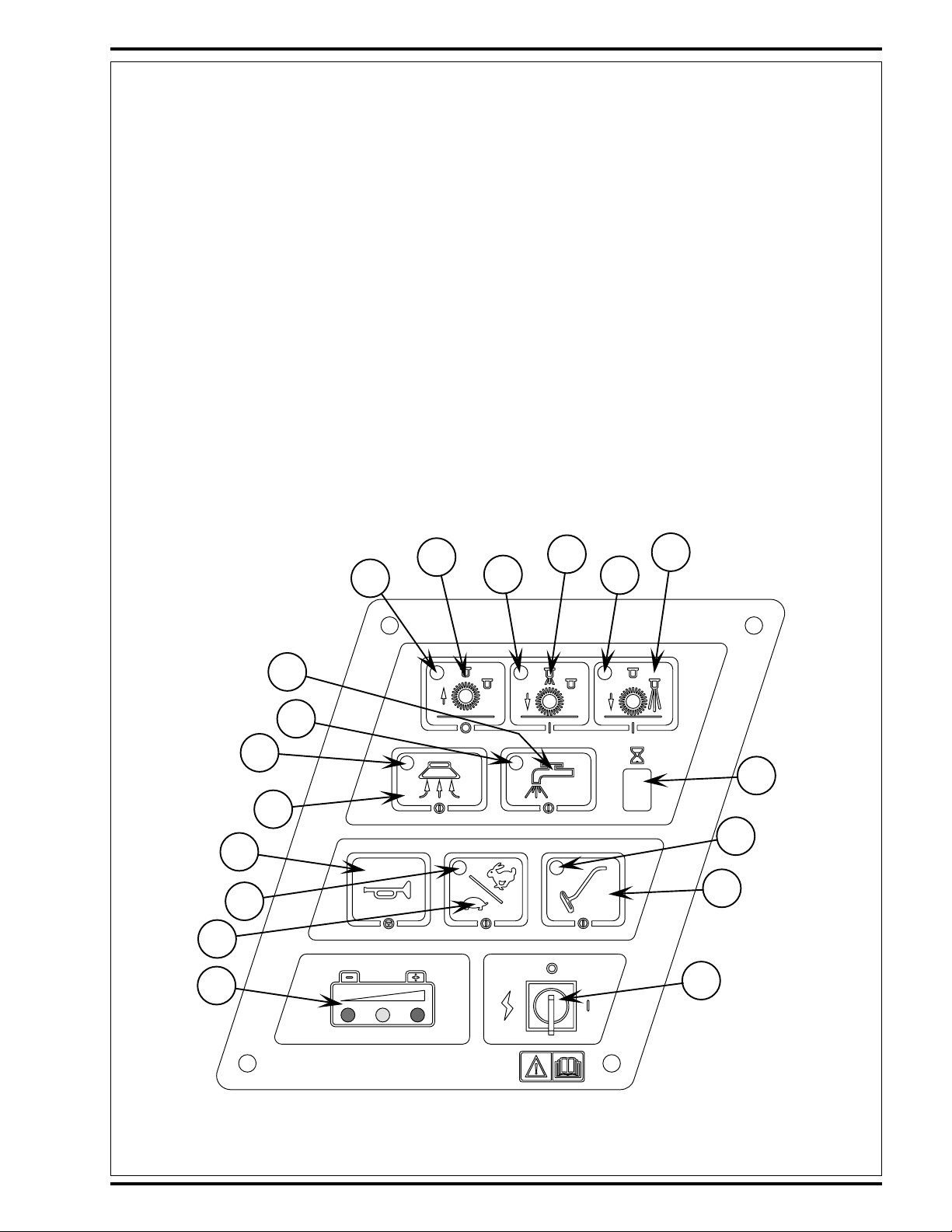

CONTROL PANEL
A Scrub OFF Indicator
B Scrub OFF Switch
C Maintenance Mode Indicator
D Maintenance Mode Switch
E Restoration Mode Indicator
F Restoration Mode Switch
G Hourmeter Display
H Accessory Vacuum Indicator
I Accessory Vacuum ON / OFF Switch
J Key Switch / Main Power
K Battery Condition Indicator
L Speed Select Switch (extract / transport)
M Speed Select Indicator
N Horn Switch
O Vacuum Switch
P Vacuum System Indicator
Q Solution System Indicator
R Solution Switch
ABCDE
F
G
H
I
J
K
L
M
N
O
P
Q
R

A-6 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-6 / ENGLISH
DESCRIPTION OF THE BATTERY CONDITION INDICATORS
The battery condition indicators give a relative indication of the state of charge of the battery pack. A fully charged battery pack will measure above 37.6 volts
with no load applied (2.09 volts per cell). The AquaRide™SE / BRX 700 is equipped with a low voltage cutout feature that will turn the scrub system off when
the batteries are discharged to their minimum level. There are two different cutout levels to accommodate different battery types. See the service manual for
details. The voltage levels for the various indications are as follows (the voltages shown represent the voltage under load):
INDICATOR VOLTAGE LEVELS FOR STANDARD CUTOUT LEVEL (AS SHIPPED)
Green indicator = full charge down to 34.00 volts
Green & Yellow indicator 33.99 volts down to 33.00 volts
Yellow indicator = 32.99 volts down to 32.00 volts
Yellow & Red indicator = 31.99 volts down to 31.50 volts
Red indicator = 31.49 volts down to 31.00 volts
Flashing Red indicator = less than 31.00 volts – scrub system will shut down.
INDICATOR VOLTAGE LEVELS FOR ALTERNATE CUTOUT LEVEL
Green indicator = full charge down to 34.50 volts
Green & Yellow indicator 34.49 volts down to 34.00 volts
Yellow indicator = 33.99 volts down to 33.50 volts
Yellow & Red indicator = 33.49 volts down to 33.00 volts
Red indicator = 32.99 volts down to 32.5 volts
Flashing Red indicator = less than 32.5 volts – scrub system will shut down.
NOTE: Refer to service manual for selection of alternate cutout level.
NOTE: Once the low voltage cutout level has been reached (flashing red indicator) the batteries must be FULLY recharged (37.6 volts) to reset the battery
condition indicator. The scrub system will not function until the indicator has been reset.
INSTALL THE BATTERIES
WARNING !
Use extreme caution when working with batteries. Sulfuric acid in batteries can cause severe injury if allowed to contact the skin
or eyes. Explosive hydrogen gas is vented from inside the batteries through openings in the battery caps. This gas can be ignited
by any electrical arc, spark or flame.
When Servicing Batteries...
* Remove all jewelry.
* Do not smoke.
* Wear safety glasses, a rubber apron and rubber gloves.
* Work in a well-ventilated area.
* Do not allow tools to touch more than one battery terminal at a time.
CAUTION !
Electrical components in this machine can be severely damaged if the batteries are not installed and connected properly.
Batteries should be installed by Nilfisk-Advance or by a qualified electrician.
1Turn the Key Switch (J) off (O) and remove the key. Then swing open the Battery Compartment Cover (16).
2Using (2) people and an appropriate lifting strap, carefully lift the batteries into the compartment tray exactly as shown. Use decal 56015168 battery
cable layout.

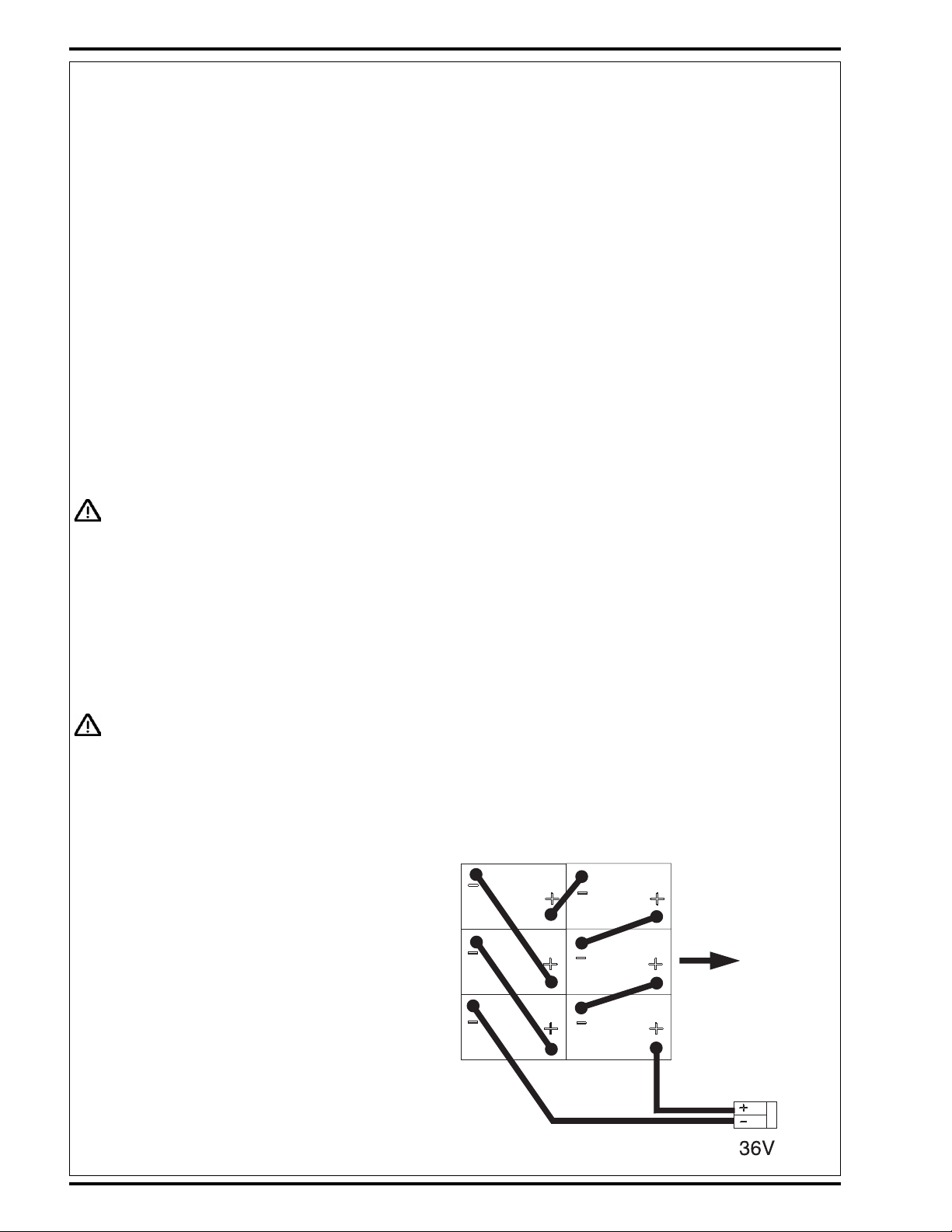

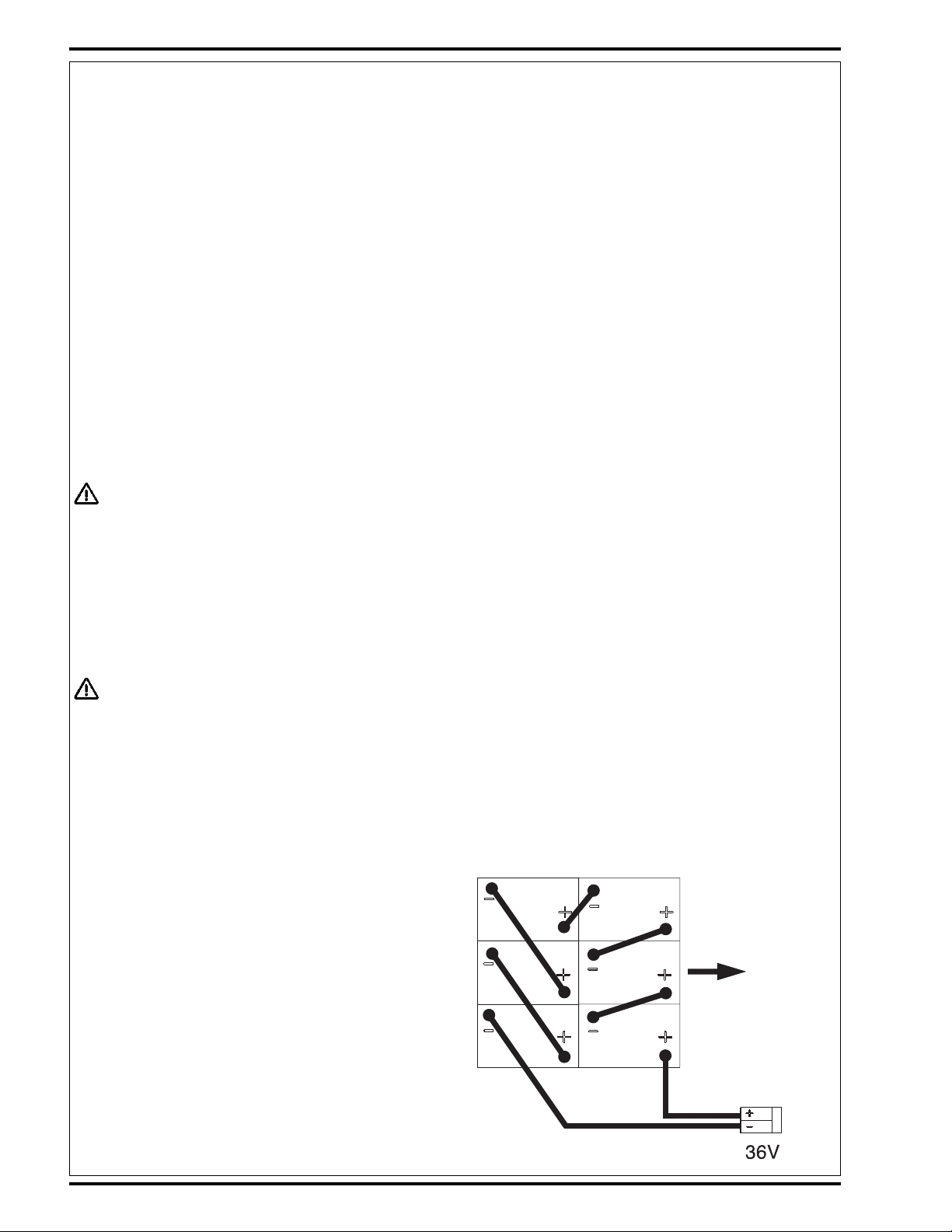

3See Figure 1. Install battery cables as shown and tighten the nuts on the battery terminals.
4Install the battery boots and secure tightly to the battery cables with the supplied tie straps.
5Connect the battery pack connector to the machine connector (22) and close the battery compartment cover.
FRONT
VORN
FACE
VOORZIJDE
FIGURE 1

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - A-7
ENGLISH / A-7
FILLING THE SOLUTION TANK
1Open the Solution Tank Fill Cover (2).
2Read the dilution instructions on the chemical container. Then figure the proper amount of chemical to mix with 40 gallons (151 liters) of water.
3Pour the proper amount of chemical into the solution tank and fill the tank with warm water to 7.62cm (3 inches) from the top of the tank opening.
4Close the Solution Tank Fill Cover (2).
NOTE: If your machine was factory equipped with a chemical system you DO NOT mix chemical in the solution tank.
CAUTION!
Use low-sudsing, liquid detergents designed for carpet extraction. Water temperature should not exceed 130 degrees
Fahrenheit (54.4 degrees Celsius).
BEFORE USING THE AQUARIDE™SE / BRX 700
Thorough vacuuming of the carpet to be cleaned is not necessary before using the AquaRide™SE or BRX 700 automatic extractors, due to the on-board
sweeping broom and debris hopper.
PRE-SPRAYING THE CARPET
Pre-spray spots and heavy traffic areas before extracting. Use a hand-held bottle sprayer or a pressurized “Hudson” type sprayer. Mix the pre-spray
according to the chemical manufacturer’s directions.
PLAN FOR CLEANING
Before you begin extracting, look at the area to be cleaned and plan your work. Divide the space into sections. Overlap each pass 2 inches (5 cm).

A-8 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-8 / ENGLISH

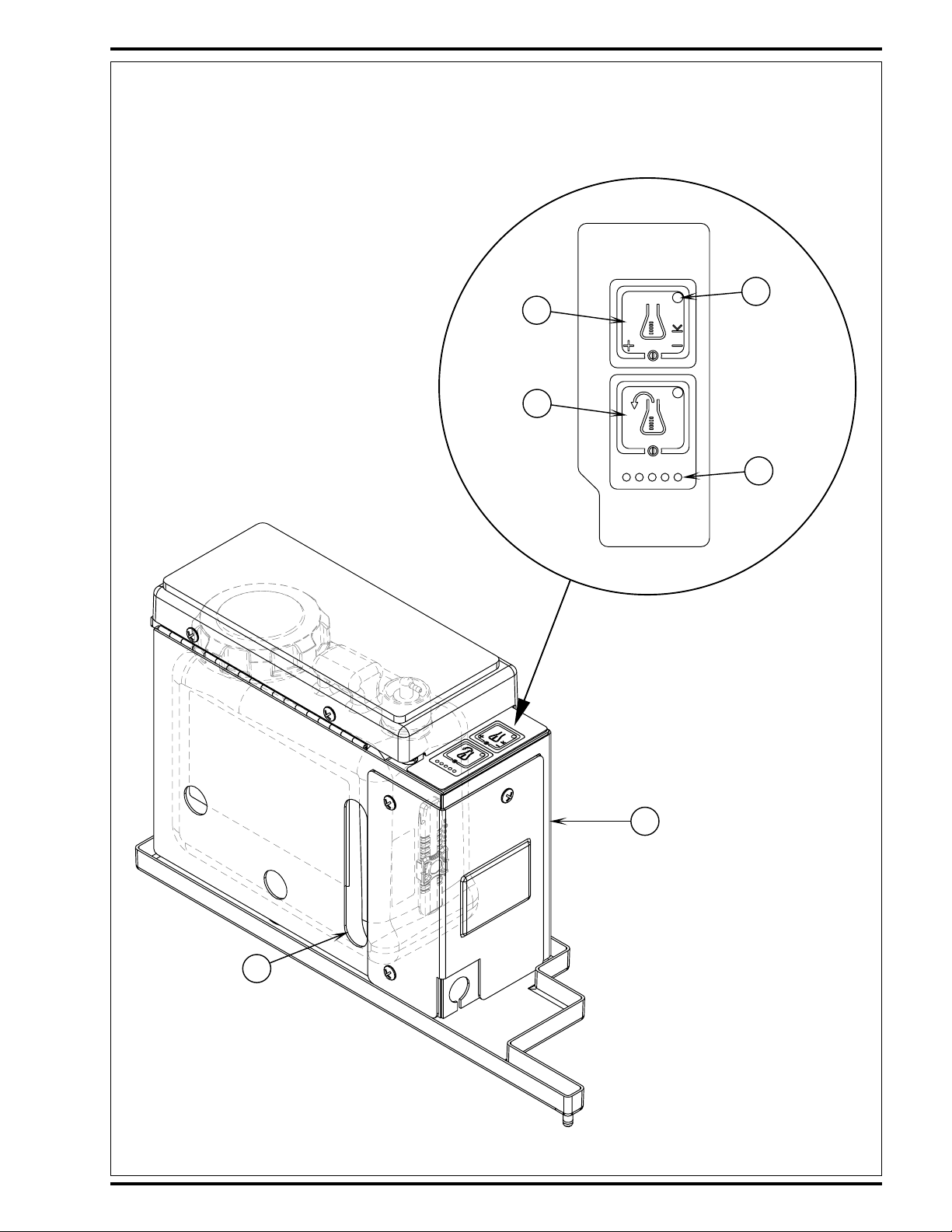

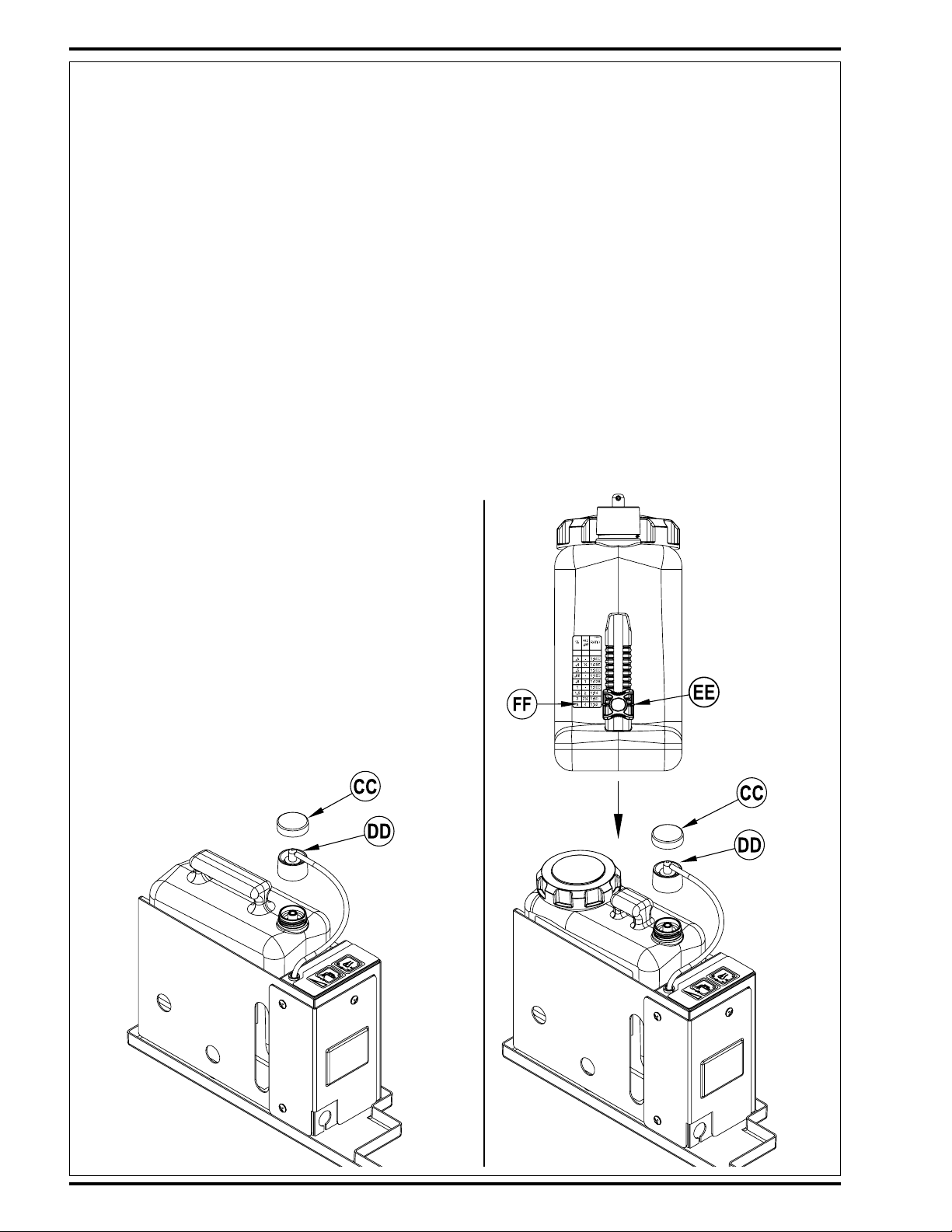

DETERGENT (AXP/EDS) SYSTEM PREPARATION AND USE
COMMON INSTRUCTIONS:
The system should be purged of previous detergent when switching to a different detergent.
SERVICE NOTE: Move machine over floor drain before purging because a small amount
of detergent will be dispensed in the process.
To Purge When Changing Chemicals:
1 Disconnect and remove the detergent cartridge.
2 Turn the Key Switch (J) ON. Press and hold the Purge Switch (T) down for at least 3
seconds, then press and hold the Solution Switch (R) (on the main machine’s control
panel) for the duration of the purge cycle. Holding the solution switch is necessary
to open the solution valve and prevent the purged detergent from flowing back into
the solution tank. NOTE: Once activated the Purge Indicator (U) will begin to scroll
a flashing light from left to right and will automatically shut off after 10 seconds.
Normally one purge cycle is adequate to purge the system.
To Purge Weekly:
1 Disconnect and remove the detergent cartridge. Install and connect a Cartridge filled
with clean water.
2 Turn the Key Switch (J) ON. Press and hold the Purge Switch (T) down for at least 3
seconds, then press and hold the Solution Switch (R) (on the main machine’s control
panel) for the duration of the purge cycle. Holding the solution switch is necessary
to open the solution valve and prevent the purged detergent from flowing back into
the solution tank. NOTE: Once activated the Purge Indicator (U) will begin to scroll
a flashing light from left to right and will automatically shut off after 10 seconds.
Normally one purge cycle is adequate to purge the system.
The Detergent Box (AA) has a Detergent Level Viewing Slot (BB) for keeping track of
how much detergent is remaining in the cartridge. When the detergent level is nearing the
bottom of this slot it is time to refill or replace the cartridge.
General Use:
The detergent injection system is activated when the Key Switch (J) is turned on but no
detergent is dispensed until the scrub system is activated and the Drive Pedal (8) pushed
forward. The solution flow rate is determined by the use of “Maintenance” or “Restoration”
mode. The solution flow rate can be changed by pressing the Maintenance Extract Mode
Switch (D) for reduced flow or the Restoration Extract Mode Switch (F) for increased flow.
The detergent flow rate increases or decreases with the solution flow rate but the detergent
ratio remains the same. During scrubbing, the detergent system can be turned off at any
time by pressing the Detergent ON/OFF Switch (S) to allow scrubbing with water only.
SERVICE NOTE: Follow the “To Purge Weekly” instructions above if the machine is going
to be stored for an extended period of time or if you plan to discontinue use of the detergent
injection system.
DISPOSABLE CARTRIDGE SPECIFIC INSTRUCTIONS:
Remove the Cap (CC) and place the cartridge in the detergent box. Install the Dry Break
Cap (DD) as shown.
NON-DISPOSABLE CARTRIDGE SPECIFIC INSTRUCTIONS:
Fill the detergent cartridge with a maximum of 1.25 gallons (4.73 Liters) of
detergent. SERVICE NOTE: Remove the detergent cartridge from the detergent
box prior to filling to avoid spilling detergent on the machine.
It is recommended that a separate cartridge be used for each detergent you plan
to use. The detergent cartridges have a white decal on them so you can write
the detergent name on each cartridge to avoid mixing them up. The detergent
cartridge has a Magnetic Slider (EE) on one end that needs to be set to the proper
dilution ratio according to the dilution instructions on the manufacturer’s bottle.
Slide the Magnet Slider (EE) to the appropriate location on Detergent Dilution
Ratio Decal (FF). When installing a new cartridge, remove the Cap (CC) and
place the cartridge in the detergent box. Install the Dry Break Cap (DD) as shown.
revised 3/06

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - A-9
ENGLISH / A-9
DETERGENT (AXP/EDS) SYSTEM PREPARATION AND USE
S
T
AA
BB
U
V
revised 3/06

A-10 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-10 / ENGLISH
OPERATING THE MACHINE
WARNING!
Be sure you understand the operator controls and their functions.
While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. Clean only
while ascending (driving up) the ramp.
To Extract...
Follow the instructions in preparing the machine for use section of this manual.
1 While seated on the machine, adjust the steering wheel to a comfortable operating position using the adjustment knob (5).
2 Turn the Master Key Switch (J) ON (I). This will display the control panel indicator lights, reference the Battery Condition Indicator (K) and Hour Meter
(G).
3 Release the Parking Brake (6). To transport the machine to the work area, apply even pressure with your foot on the front of the Drive Pedal (8) to go
forward or the rear of the pedal for reverse. Vary the pressure on the foot pedal to obtain the desired speed.
4 Press either the Maintenance Mode Switch (D) or the Restoration Mode Switch (F) to activate the scrub system. Note: refer to the “Functional
Description of Control Switches” section for a more detailed explanation of these and other control panel functions.
NOTE (AXP/EDS Models): The Detergent system is activated by default when the Key Switch (J) is turned ON (I). The Detergent ON/OFF Indicator
(V) is lit when the detergent system is activated. The Detergent system can be turned OFF by pressing the Detergent ON/OFF Switch (S). When the
system is activated detergent flows whenever solution flows.
5 When either the Maintenance Mode Switch (D) or the Restoration Mode Switch (F) is selected, the brush deck and vacuum shoes are automatically
lowered to the floor. The machine’s scrub brush rotation and solution system flow starts when the Drive Pedal (8) is activated. NOTE: When operating
the machine in reverse, solution will not be dispensed. The brush deck can be programmed to raise in reverse, have a qualified service technician refer
to the service manual to perform this function.
6 Begin cleaning by driving the machine forward in a straight line at a normal walking speed and overlap each path by 2-3 inches (50-75 mm). Turn the
Solution Switch (R) OFF prior to turns to ensure complete extraction of solution from carpet. Adjust when necessary the machine speed according to
the condition of the carpet.
If there is little or no fluid entering the recovery bladder, the solution tank may be empty. Refill the solution tank with water and the proper ratio of
cleaning chemical.
7 The recovery bladder has an automatic float shut-off to prevent solution from entering the vacuum system when the recovery bladder is full. When the
float shut-off is activated, the control system will shut down the scrub, vacuum, solution and detergent (AXP/EDS models) systems. The Hourmeter
Display (G) will display “FULL”. To clear the display, press the Scrub OFF Switch (B), Maintenance Mode Switch (D) or the Restoration Mode Switch
(F). When the float closes, the recovery bladder must be emptied. The machine will not pick up water with the float closed. NOTE: If the control
repeatedly gives a full indication when the tank is not full, the automatic shut-off feature can be disabled, have a qualified service technician refer to the
service manual to perform this function.
8 When the operator wants to stop cleaning or the recovery bladder is full, press the Scrub OFF Switch (B). This will automatically stop the scrub
brushes and solution fl
ow and the brush deck will raise to the up position. NOTE: The vacuum system will be turned off after a 10 second delay this is
to allow any remaining water in the pick up hose to be brought into the recovery bladder.
9 Drive the machine to a designated waste water “DISPOSAL SITE” and empty the recovery bladder. To empty, pull the Drain Hose (21) from its rear
storage area, then remove the plug (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled flow of waste water). Refill
the solution tank and continue cleaning.
USING ATTACHMENTS
Steps to follow in fitting the machine with optional attachments for detail or upholstery cleaning.
1 Disconnect the recovery hose connection at the Y-fitting, which goes to the vacuum shoes. Connect the coupler and hose from suitable wet pick-up
tools to the recovery hose.
2 Attach the solution connection to the accessory port, located at the rear of the machine on the chassis. (An optional Wand Caddy Kit is available from
Nilfisk-Advance).
3 Turn the Master Key Switch (J) ON, next press the Accessory Vacuum Switch (I). The vacuum motor will run continuously until the switch is pressed
again to turn it OFF. NOTE: If the control repeatedly gives a full indication when the tank is not full, the automatic shut-off feature can be disabled, have
a qualified service technician perform this function.
revised 3/06

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - A-11
ENGLISH / A-11
AFTER USE
1 When finished cleaning, press the Scrub Off Switch (B), this will automatically raise, retract and stop all the machine systems (brush, vacuum &
solution). Then drive the machine to a service area for daily maintenance and review of other needed service up-keep.
2 To empty the solution tank, remove the Solution Drain Hose (4) from its storage clamp. Direct the hose to a designated “DISPOSAL SITE” and remove
the plug. Rinse the tank with clean water.
3 To empty the recovery bladder, pull the Recovery Bladder Drain Hose (21) from its storage area. Direct the hose to a designated “DISPOSAL SITE”
and remove the plug (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled flow of waste water). Rinse the Waste
water Bladder (19) with clean water.
4 Remove the Brushes, rinse with warm water and remove any built-up string, hair or carpet fibers.
5 Disconnect the Recovery Hose from the Recovery Tank and flush with warm water to wash any debris out of the Recovery Hose / Vacuum Shoe
Assembly.
6 Remove the debris hopper and clean thoroughly. Remove from left or right side of machine by lifting hopper up and tilting it forward then pull out.
7 Check the maintenance schedule below and perform any required maintenance before storage.
MAINTENANCE SCHEDULE
MAINTENANCE ITEM Daily Weekly Monthly Yearly
Charge Batteries •
Check/Clean Tanks & Hoses •
Check/Clean/ Power Brushes •
Check/Clean Vacuum Shoes •
Check/Clean Vacuum Shut-Off Float •
Check/Clean the vacuum motor foam filter(s) •
Empty Debris Hopper •
Clean Spray Nozzles •
Check Each Battery Cell(s) Water Level •
Inspect Brush Deck Skirts •
Inspect and clean Solution Filter •
Check Foot/ Parking Brake for Wear & Adjustment •
Purge the Detergent Injection System (AXP/EDS models only) •
Lubrication - Grease Fittings •
* Check Carbon Brushes •
* Have Nilfisk-Advance check the vacuum motor carbon motor brushes once a year or after 300 operating hours. The brush and drive motor carbon brushes
check every 350 hours or once a year.
NOTE: Refer to the Service Manual for more detail on maintenance and service repairs.
8 Store the machine indoors in a clean dry place. Keep from freezing. Leave the tanks open to air them out.
9 Turn the Master Key Switch (J) OFF (O) and remove the key.
VACUUM SHOE MAINTENANCE
Check the vacuum shoes daily, they can be removed to aid in cleaning, see “Removing the Vacuum Shoes”. Remove any built-up string, hair or carpet
fibers.
SPRAY NOZZLE MAINTENANCE
Remove the spray nozzles once a week. Soak the nozzles overnight in a vinegar and water solution to remove chemical deposits.
LUBRICATING THE MACHINE
Once a month, pump a small amount of grease into each grease fitting on the machine until grease seeps out around the bearings.
Grease fitting locations are:
• Steering Wheel Shaft Universal joint
Once a month, apply light machine oil to lubricate the:
• Steering Chain
• General Pivot Points For the Brush Deck Linkage
CLEANING THE VACUUM MOTOR FILTERS
Clean the vacuum motor filters daily with compressed air. For extremely dirty filters, wash with warm, soapy water and rinse thoroughly with clean water.
Allow the filters to dry completely before re-installing in the machine. MAINTENANCE NOTE: Keep a second set of filters on hand to use while first set is
drying.
POWER BRUSH MAINTENANCE
Check the brushes daily. Remove any built-up string, hair or carpet fibers. Check the bristle length. Have a service technician change the brushes when the
brush bristles are worn to 1/2 inch (12.7 mm).
revised 3/06

A-12 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-12 / ENGLISH

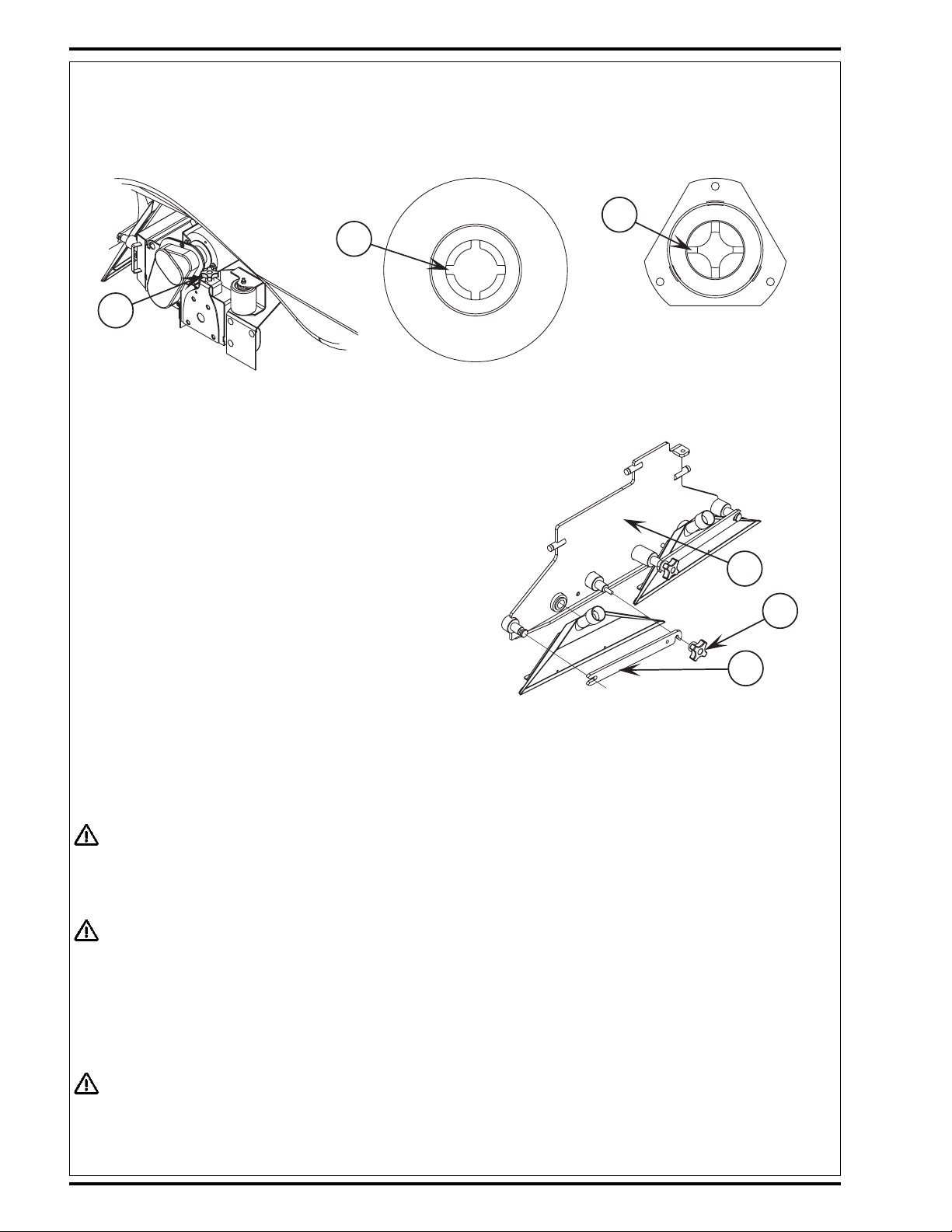

REMOVING THE BRUSHES
1Turn the Master Key Switch (J) OFF.
2Loosen the Black Knob (A) on top of the idler assembly and remove the idler assembly. Slide the brush out of the brush deck housing.
3To reinstall, slide the brush into the housing, lift slightly, push and turn until it seats. NOTE: Make sure Slots (B) in end of Brush line up with and seat
firmly on Lugs (C) on the Drive End Assembly. Re-install the idler assembly and tighten Black Knob (A).
REMOVING THE VACUUM SHOES
1Turn the Master Key Switch (J) OFF.
2Loosen the Black Knob (D) on the back of the scrub deck. Lift the
Bar (E) up and remove. Slide the vac shoe out of the shoe support
weldment (F). Procedure is the same for both vac shoes.
3Reinstallation is reverse of removal.
5Check the fluid level in all battery cells after charging the batteries. Add distilled water, if necessary, to bring the fluid level up to the bottom of the filler
tubes.
WARNING !
Do not fill the batteries before charging.
Only charge batteries in a well-ventilated area.
Do not smoke while servicing the batteries.
CAUTION !
To avoid damage to floor surfaces, always wipe water and acid from the top of the batteries after charging.
CHECKING THE BATTERY ELECTROLYTE LEVEL
Check the electrolyte level of the batteries at least once a week.
After charging the batteries, remove the vent caps and check the electrolyte level in each battery cell. Use distilled water to fill the batteries to the bottom of
the filler tube.
Do not over-fill the batteries!
CAUTION !
Acid can spill onto the floor if the batteries are overfilled.
Tighten the vent caps. If there is acid on the batteries, wash the tops of the batteries with a solution of baking soda and water (2 tablespoons of baking soda
to 1 quart of water).
CHARGING THE BATTERIES
Charge the batteries each time the machine is used, or whenever the
Battery Condition Meter (K) is showing a yellow, red or flashing red
indicator light(s).
To Charge the Batteries...
1Depress the Battery Disconnect (13).
2Open the Battery Compartment Cover (16) to provide proper
ventilation.
3Push the connector from the charger into the Battery Connector (22).
4Follow the instructions on the battery charger.
F
E
D
View from left rear of machine
Ansicht der Maschine von links hinten
Vue arrière gauche de la machine
Zicht linker achterkant van machine
Right Side of Machine
Rechte Seite der Maschine
Côté droit de la machine
Rechter kant van machine
B
C
End View of Brush
Endansicht der Bürste
Vue latérale de la rosse
Eindaanzicht van orstel
End View of Drive End Assem ly
Endansicht der Antrie seinheit
Vue latérale du dispositif d'entraînement
Eindaanzicht van aandrijfuiteinde
A

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - A-13
ENGLISH / A-13
GENERAL MACHINE TROUBLESHOOTING
Problem Possible Cause Remedy
Poor water pick-up Recovery bladder full Empty recovery bladder
Recovery bladder drain hose leak Secure drain hose cap or replace
Recovery tank cover gasket leak Replace gasket / Seat cover properly
Debris caught in vacuum shoes Clean vacuum shoes
Vacuum hose clogged Remove debris
Foam filter cover not seated Seat cover properly
Poor extracting performance Worn brushes Rotate or replace brushes
Wrong cleaning chemical Consult Nilfisk-Advance
Moving machine too fast Slow down
Inadequate solution flow Solution tank empty Fill solution tank
or no solution
Solution lines, valves, filter, or spray jets clogged Flush lines and clean solution filter & spray jets
Solution control valve is in closed position Place control valve handle in open position
Solution solenoid valves Clean or replace valves
Machine does not run Emergency stop switch tripped Reconnect battery connectors
Operator seat safety switch Check for open circuit and replace
Main system controller Check for error fault codes
(see service manual)
Tripped 10 Amp circuit breaker Check for electrical short circuit & reset
No FWD/REV wheel drive Drive system speed controller Check for error fault codes
(see service manual)
Tripped 45 Amp circuit breaker Check for drive motor overload
Emergency stop switch tripped Reconnect battery connectors
Vacuum shuts off and display Plugged vacuum hose(s) Clear debris
shows “FULL” when
recovery bladder is not full Vacuuming large amounts of water Slow down or disable auto shut-off feature
at a high travel speed (see service manual)
Poor Sweeping Performance Debris Hopper Full Empty and clean hopper
Brushes worn Replace brushes
Bristles have taken a set Rotate brushes
No Detergent Flow Empty detergent cartridge Fill detergent cartridge
(AXP/EDS models only)
Plugged or kinked detergent flow line Purge system, straighten lines to remove any kinks
Dry seal cap on detergent cartridge not sealed Reseat dry seal cap
Detergent ratio slider magnet missing Replace slider
Detergent pump wiring disconnected Connect or reconnect wiring
or backwards
revised 3/06

A-14 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series
A-14 / ENGLISH
TECHNICAL SPECIFICATIONS (as installed and tested on the unit)
Model AquaRide™SE, AquaRide™SE AXP, BRX 700, BRX 700 EDS
Model No. 56314009, 56316515, 56314019, 56316516
Current A 65
Voltage, Batteries V 36V
Battery Capacity Ah 238
Protection Grade IPX3
Sound Pressure Level (IEC 60704-1) dB(A)/20μPa 73
Gross Weight lbs / kg 1570 / 712
Vibrations at the Hand Controls (ISO 5349-1) m/s2<2.5m/s2
Vibrations at the Seat (EN 1032) m/s2<0.5m/s2
Gradeability
Transport 14% (8°)
Cleaning 10% (6°)
revised 3/06

B-2 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP/ BRX 700 series
B-2 / DEUTSCH
INHALTSÜBERSICHT
Seite
Einleitung.............................................................................................. B-2
Sicherheits- und Warnhinweise............................................................B-3
Machen Sie sich mit Ihrer Maschine vertraut ....................................... B-4
Bedienfeld............................................................................................. B-5
Vorbereitung der Maschine zum Einsatz
Beschreibung der Batterieanzeigeleuchten.......................................... B-6
Einbau der Batterien............................................................................. B-6
Füllen des Reinigungslösungstanks..................................................... B-7
Besprühen des Teppichs vor der Reinigung ........................................ B-7
Planung des Reinigungsvorgangs........................................................ B-7
(AXP™/EDS™) System .......................................................................B-8-9
Bedienung der Maschine.................................................................... B-10
Benutzung von Zubehörteilen ............................................................ B-10
Nach dem Einsatz .............................................................................. B-11
Wartungsplan ..................................................................................... B-11
Wartung des Saugtrichters................................................................. B-11
Wartung der Spraydüse...................................................................... B-11
Schmieren der Maschine.................................................................... B-11
Reinigung der Saugmotorfilter............................................................ B-11
Wartung der Power-Bürste................................................................. B-11
Entfernen der Bürste(n)...................................................................... B-12
Entfernen der Saugtrichter ................................................................. B-12
Laden der Batterien............................................................................ B-12
Überprüfen des Batterieflüssigkeitsstandes ....................................... B-12
Fehlerbehebung ................................................................................. B-13
Technische Daten............................................................................... B-14
EINLEITUNG
Dieses Handbuch wird Ihnen dabei behilflich sein, Ihre Maschine Nilfisk-Advance AquaRide™SE / BRX 700 optimal zu nutzen. Lesen Sie es vor
Inbetriebnahme der Maschine sorgfältig durch.
Hinweis: Fettgedruckte Zahlen in Klammern weisen auf ein auf den Seiten B4-B5 dargestelltes Teil hin.
Dieses Produkt ist ausschließlich für den gewerblichen Einsatz bestimmt.
BAUTEILE UND SERVICE
Eventuell erforderliche Reparaturen sollten von Ihrem autorisierten Nilfisk-Advance-Servicezentrum vorgenommen werden. Dort stehen im Werk
ausgebildete Fachkräfte und Nilfisk-Advance-Originalteile zur Verfügung.
Wenden Sie sich wegen Ersatzteilen bzw. Servicearbeiten an den unten angeführten NILFISK-ADVANCE-HÄNDLER. Geben Sie dabei das Modell und die
Seriennummer Ihrer Maschine an.
(Händler: Bitte hier Aufkleber anbringen.)
TYPENSCHILD
Die Modellnummer und die Seriennummer Ihrer Maschine sind dem Typenschild an der Maschine zu entnehmen. Diese Angaben sind bei der Bestellung von Ersatzteilen für die
Maschine erforderlich. Tragen Sie nachfolgend die Modellnummer und die Seriennummer Ihrer Maschine ein, um später darauf Bezug nehmen zu können.
MODELLNUMMER
SERIENNUMMER
AUSPACKEN DER MASCHINE
Wenn die Maschine geliefert wird, prüfen Sie sorgsam den Versandkarton und die Maschine auf Beschädigungen. Wenn Sie eine Beschädigung sehen,
bewahren Sie den Versandkarton zur Inspektion auf. Kontaktieren Sie die Nilfisk-Advance Kundendienstabteilung sofort, um eine Frachtbeschädigung zu
melden.
Nachdem Sie den Karton entfernt haben, schneiden Sie die Plastikriemen durch und nehmen Sie die Holzblöcke neben den Rädern heraus. Rollen Sie die
Maschine mittels einer Rampe von der Palette auf den Boden.
revised 3/06

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - B-3
DEUTSCH / B-3
SICHERHEITS- UND WARNHINWEISE
SYMBOLE
Nilfisk-Advance verwendet die untenstehenden Symbole, um auf eventuelle Gefahrensituationen hinzuweisen. Bitte lesen Sie
diese Informationen jederzeit sorgfältig durch, und treffen Sie die erforderlichen Maßnahmen, um Personen- und Sachschäden
zu vermeiden.
GEFAHR !
Dieses Symbol warnt vor der unmittelbaren Gefahr schwerer Verletzungen mit möglicher Todesfolge.
WARNHINWEIS !
Macht auf eine Situation aufmerksam, in der ein hohes Verletzungsrisiko besteht.
VORSICHT !
Macht auf eine Situation aufmerksam, in der ein Risiko leichter Verletzungen sowie die Gefahr von Sachschäden besteht.
Lesen Sie alle Anweisungen vor Inbetriebnahme der Maschine sorgfältig durch.
ALLGEMEINE SICHERHEITSANWEISUNGEN
Durch diese spezifischen Vorsichts- und Warnhinweise werden Sie auf Situationen hingewiesen, in denen die Gefahr von
Personen- bzw. Sachschäden besteht.
WARNHINWEIS!
•Diese Maschine darf lediglich von hinreichend ausgebildeten und autorisierten Personen betrieben werden.
•Wenn sich die gefüllte Maschine auf Rampen oder Steigungen befindet, sind plötzliche Stopps zu vermeiden. Vermeiden Sie plötzliches,
scharfes Wenden. Abwärtsfahrten sind nur mit niedriger Geschwindigkeit zulässig. Auf Rampen darf lediglich beim Aufwärtsfahren
gereinigt werden.
•Halten Sie Funken, offenes Feuer und Rauch entwickelnde Stoffe von den Batterien fern. Während des Normalbetriebs werden
explosive Gase freigesetzt.
•Beim Laden der Batterien entsteht hochexplosiver gasförmiger Wasserstoff. Laden Sie die Batterien nur in gut belüfteten Bereichen, weit
entfernt von offenem Feuer. Beim Aufladen der Batterien ist das Rauchen verboten.
•Tragen Sie keinen Schmuck, wenn Sie in der Nähe von elektrischen Komponenten arbeiten.
•Schalten Sie den Schlüsselschalter aus (stellen Sie ihn auf O), und klemmen Sie die Batterien ab, bevor Sie an den elektrischen
Komponenten Wartungsarbeiten ausführen.
•Arbeiten Sie niemals unter einer Maschine, ohne diese mit Sicherheitskeilen oder Stützböcken zu sichern.
•Verwenden Sie keine entflammbaren Reinigungslösungen, nehmen Sie die Maschine nicht über oder in der Nähe solcher Stoffe in
Betrieb, und benutzen Sie die Maschine nicht in Bereichen, in denen brennbare Flüssigkeiten gelagert werden.
•Reinigen Sie diese Maschine nicht mit einem Druckreiniger.
VORSICHT!
•Diese Maschine ist nicht zum Einsatz auf öffentlichen Wegen und Straßen zugelassen.
•Diese Maschine ist nicht zur Beseitigung gesundheitsgefährdender Stäube geeignet.
•Sorgen Sie beim Einsatz dieser Maschine dafür, dass andere Personen, insbesondere Kinder, nicht gefährdet werden.
•Lesen Sie vor Wartungsarbeiten alle diesbezüglichen Anweisungen sorgfältig durch.
•Lassen Sie die Maschine nicht unbeaufsichtigt stehen, ohne vorher den Schlüsselschalter auszuschalten (O), den Schlüssel abzuziehen
und die Feststellbremse zu aktivieren.
•Schalten Sie vor dem Wechseln der Bürste und dem Öffnen der Verkleidung den Schlüsselschalter aus (stellen Sie ihn auf O).
•Treffen Sie geeignete Maßnahmen, um zu verhindern, dass sich Ihre Haare, Schmuckgegenstände oder lose Kleidungsstücke in
beweglichen Teilen der Maschine verfangen.
•Beim Betrieb dieser Maschine bei Temperaturen unter dem Gefrierpunkt ist besondere Vorsicht geboten. Jegliches Wasser im
Lösungsmitteltank bzw. im Auffangbehälter oder in den Schlauchleitungen könnte gefrieren, wodurch Ventile und Verschraubungen
beschädigt werden können. Mit Flüssigkeit für Scheibenwaschanlagen durchspülen.
•Vor der Verschrottung der Maschine müssen Sie die Batterien ausbauen. Batterien müssen entsprechend den geltenden
Umweltvorschriften entsorgt werden.
BEWAHREN SIE DIESE ANLEITUNG AUF.

B-4 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP/ BRX 700 series
B-4 / DEUTSCH
MACHEN SIE SICH MIT IHRER MASCHINE VERTRAUT
1 Deckel des Auffangbehälters
2 Abdeckung des Einfüllstutzens für den Reinigungslösungstank
3 Fahrersitz
4 Ablassschlauch des Reinigungslösungstanks
5 Knopf zur Lenksäulenverstellung
6 Bremspedal / Feststellbremse
7 Spraydüsen für die Reinigungslösung
8 Fahrpedal Richtung/Geschwindigkeit
9 Saugtrichter
10 Antriebs- und Lenkrad
11 Automatsicherung - Radantrieb
12 Automatsicherung - Steuerung
13 Notaus-Taster / Batterie-Trennschalter
14 Bürstengehäuse
15 Hinterrad
16 Batteriefach (unter dem Fahrersitz)
17 Schwimmerschalter des Auffangbehälters
18 Filtergehäuse des Saugmotors
19 Auffangbehälter
20 Filter der Reinigungslösung
21 Ablassschlauch des Auffangbehälters (Rückseite der Maschine)
22 Batterieanschluss
23 Bedienfeld
24 Schmutzbehälter
25 Ventil der Reinigungslösung
1
2
3
4
5
6
810
11
12
9
13
14
15
16
17
18
20
21
22
23
19
7
24
25

FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP / BRX 700 series - B-5
DEUTSCH / B-5
BEDIENFELD
A Leuchtanzeige Scheuern AUS
B Schalter Scheuern AUS
C Anzeige Schnellreinigungsmodus
D Taster Schnellreinigungsmodus
E Anzeige Tiefenreinigungsmodus
F Taster Tiefenreinigungsmodus
G Anzeige Bestriebsstundenzähler
H Anzeige Saugsystemzubehör
I Schalter Saugsystemzubehör EIN / AUS
J Schlüsselschalter / Hauptstrom
K Batterieanzeige
L Schalter Geschwindigkeitswahl (Absaugen / Transport)
M Anzeige Geschwindigkeitswahl
N Taste für die Hupe
O Saugschalter
P Anzeige Saugsystem
Q Anzeige Reinigungssystem
R Schalter für die Reinigungslösung
ABCDE
F
G
H
I
J
K
L
M
N
O
P
Q
R

B-6 - FORM NO. 56041541 - AquaRide™SE, AquaRide™SE AXP/ BRX 700 series
B-6 / DEUTSCH
BESCHREIBUNG DER BATTERIEANZEIGELEUCHTEN
Mit Hilfe der Batterie-Anzeigelampen lässt sich der Ladezustand der Batterien feststellen. Eine voll aufgeladene Batterie ohne angelegte Last hat eine
Klemmenspannung von 37,6 Volt (2,09 Volt pro Batteriezelle). Das Modell AquaRide™SE / BRX 700 ist mit einer Unterspannungsabschaltung ausgerüstet,
die das Scheuersystem abschaltet, wenn die Batterien voll entladen sind. Die Abschaltspannung kann je nach dem verwendeten Batterietyp in zwei Stufen
eingestellt werden. Details finden Sie im Servicehandbuch. Die Spannungsstufen für die verschiedenen Anzeigen sind (die angegebenen Spannungen
entsprechen der Spannung unter Last):
SPANNUNGSANZEIGESTUFEN FÜR DIE STANDARDABSCHALTUNG (EINSTELLUNG BEI AUSLIEFERUNG)
Grüne Anzeige = vollständig geladen bis 34,00 Volt
Grüne und gelbe Anzeige = 33,99 Volt bis 33,00 Volt
Gelbe Anzeige = 32,99 Volt bis 32,00 Volt
Gelbe und rote Anzeige = 31,99 Volt bis 31,50 Volt
Rote Anzeige = 31,49 Volt bis 31,00 Volt
Blinkende rote Anzeige = weniger als 31,00 Volt – das Scheuersystem wird abgeschaltet.
SPANNUNGSANZEIGESTUFEN FÜR DIE ALTERNATIVE ABSCHALTUNG
Grüne Anzeige = vollständig geladen bis 34,50 Volt
Grüne und gelbe Anzeige = 34,49 Volt bis 34,00 Volt
Gelbe Anzeige = 33,99 Volt bis 33,50 Volt
Gelbe und rote Anzeige = 33,49 Volt bis 33,00 Volt
Rote Anzeige = 32,99 Volt bis 32,5 Volt
Blinkende rote Anzeige = weniger als 32,5 Volt – das Scheuersystem wird abgeschaltet.
HINWEIS: Anweisungen zur Umschaltung auf die Alternativeinteilung finden Sie in der Wartungsanleitung.
HINWEIS: Sobald die untere Abschaltspannung erreicht ist (rote Anzeige blinkt), müssen die Batterien VOLL (bis auf 37,6 Volt) aufgeladen werden, sonst
wird die Batterie-Anzeige nicht zurückgesetzt. Das Scheuersystem funktioniert erst, wenn die Anzeige zurückgesetzt wurde.
EINBAU DER BATTERIEN
WARNHINWEIS!
Bei der Arbeit an Batterien ist äußerste Vorsicht geboten. Die Schwefelsäure in den Batterien kann bei Berührung der Haut oder
der Augen erhebliche Verletzungen verursachen. Explosiver, gasförmiger Wasserstoff wird aus dem Inneren der Batterien durch
Öffnungen in den Batteriekappen abgegeben. Dieses Gas kann sich durch einen elektrischen Lichtbogen, einen Funken oder
eine offene Flamme entzünden.
Treffen Sie vor bzw. bei der Arbeit an den Batterien folgende Sicherheitsvorkehrungen:
* Entfernen Sie jeglichen Schmuck.
* Rauchen Sie nicht.
* Tragen Sie Schutzbrillen, eine Gummischürze und Gummihandschuhe.
* Arbeiten Sie in einem gut belüfteten Bereich.
* Lassen Sie nicht zu, dass ein Werkzeug mehr als eine Batterieklemme berührt.
ACHTUNG!
An den elektrischen Komponenten dieser Maschine können erhebliche Schäden entstehen, wenn die Batterien nicht
ordnungsgemäß eingebaut und angeschlossen werden. Die Einbau der Batterien sollte von Nilfisk-Advance oder einem
qualifizierten Elektriker vorgenommen werden.
FRONT
VORN
FACE
VOORZIJDE
ABB. 1
1Drehen Sie den Schlüsselschalter auf (J) OFF (O), und entfernen
Sie den Schlüssel. Daraufhin klappen Sie die Abdeckung des
Batteriefaches (16) auf.
2Mit Hilfe von (2) Personen und einem passenden Hubriemen heben
Sie die Batterien vorsichtig genau wie abgebildet in das Batteriefach.
Benutzen Sie das Abziehbild 56015168 für den Batteriekabelplan.
3Siehe Abb. 1.Klemmen Sie die Batteriekabel wie abgebildet an, und
ziehen Sie die Muttern an den Batterieklemmen fest.
4Installieren Sie die Batteriemanschetten, und befestigen Sie diese mit
den mitgelieferten Bändern sorgfältig an den Batteriekabeln.
5Schließen Sie den Anschluss des Batteriesatzes am Anschluss
der Maschine (22) an, und schließen Sie die Abdeckung des
Batteriefaches.
