Nilfisk-ALTO DELTABOOSTER User manual

1
Original Instructions
7309021 d (09.2014)
Operating
instructions
DELTABOOSTER
A translation of the original instructions into Danish, German, French, Dutch,
Portuguese, Italian and Russian can be found on http://www.nilfisk-alto.com

2
Original Instructions
Contents
1 Product description .......................................................4
1.1 Model survey and main functions......................................................................... 6
1.2 Selection of system.............................................................................................. 8
1.3 Technical data ...................................................................................................... 9
1.3.0 Switchboard.......................................................................................... 10
1.3.1 Water tank ............................................................................................ 10
1.3.2 C3K pumps........................................................................................... 10
1.3.3 Dimensions, weight and total performance for systems ....................... 11

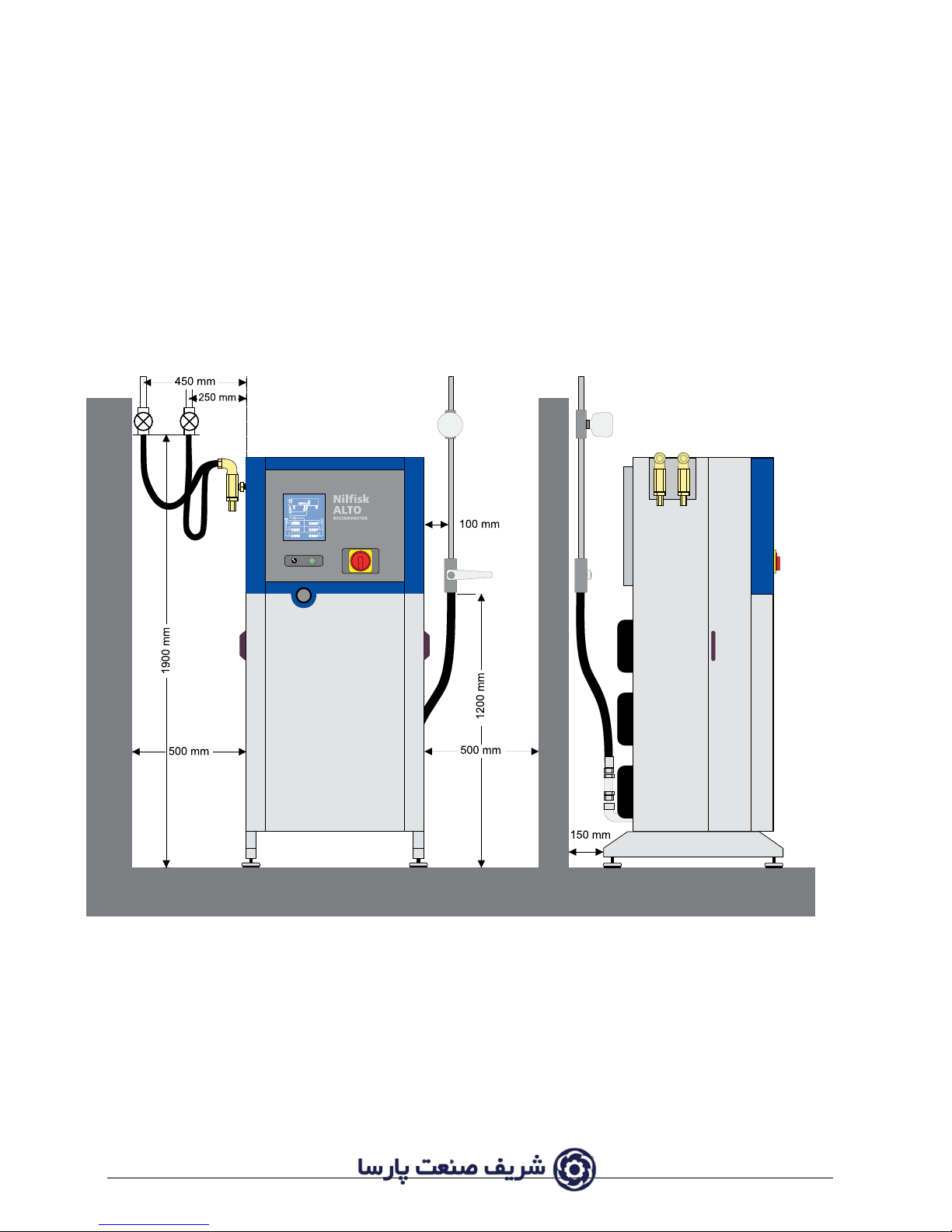

1.4 Location: surroundings -frost, safety and service margins................................. 12
1.5 Installation requirements for water connection................................................... 13

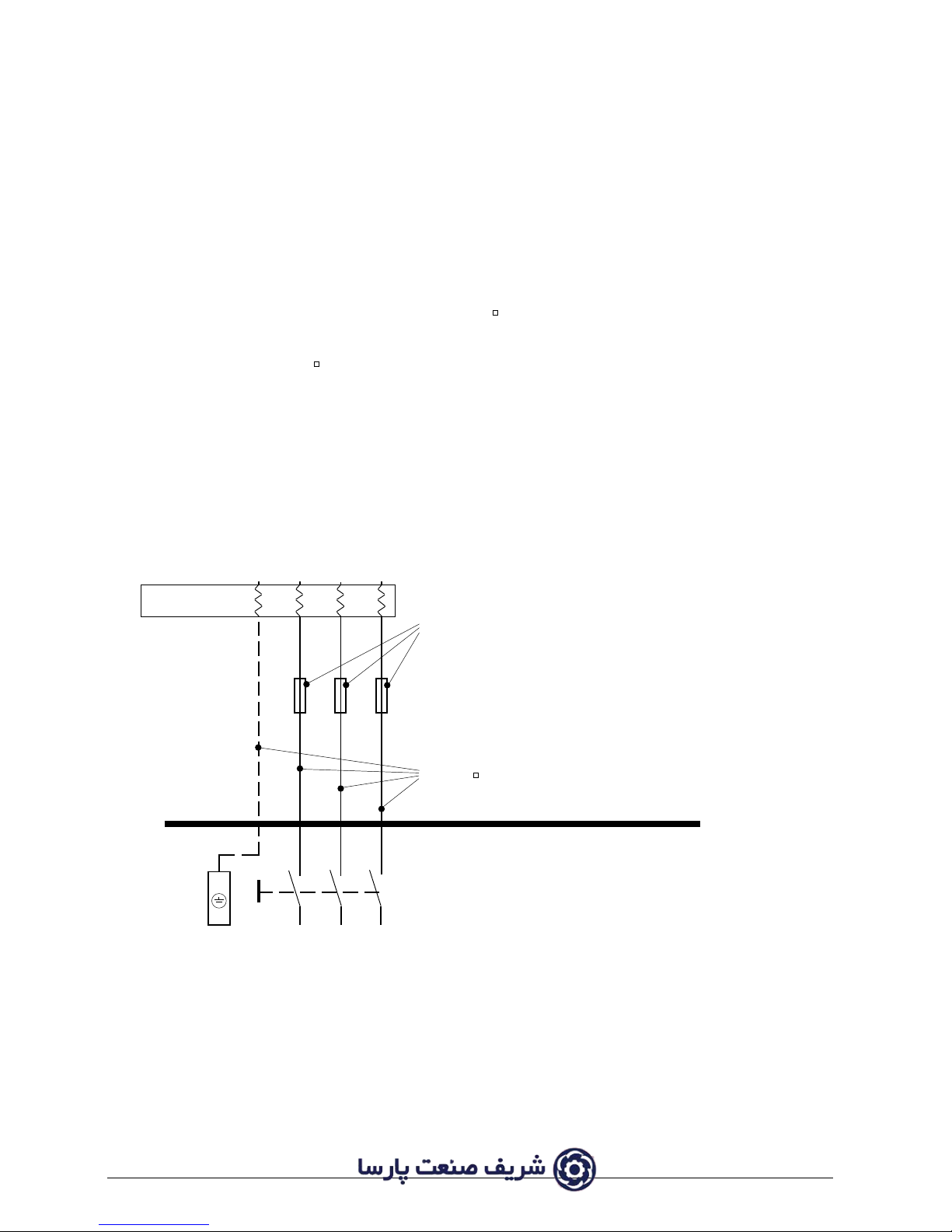

1.6 Installation requirements for mains power connection ....................................... 14
1.7 Pipe system........................................................................................................ 15
1.7.1 Location of pipe lines/general instructions............................................ 15
1.7.2 Types of pipes, standards ..................................................................... 15

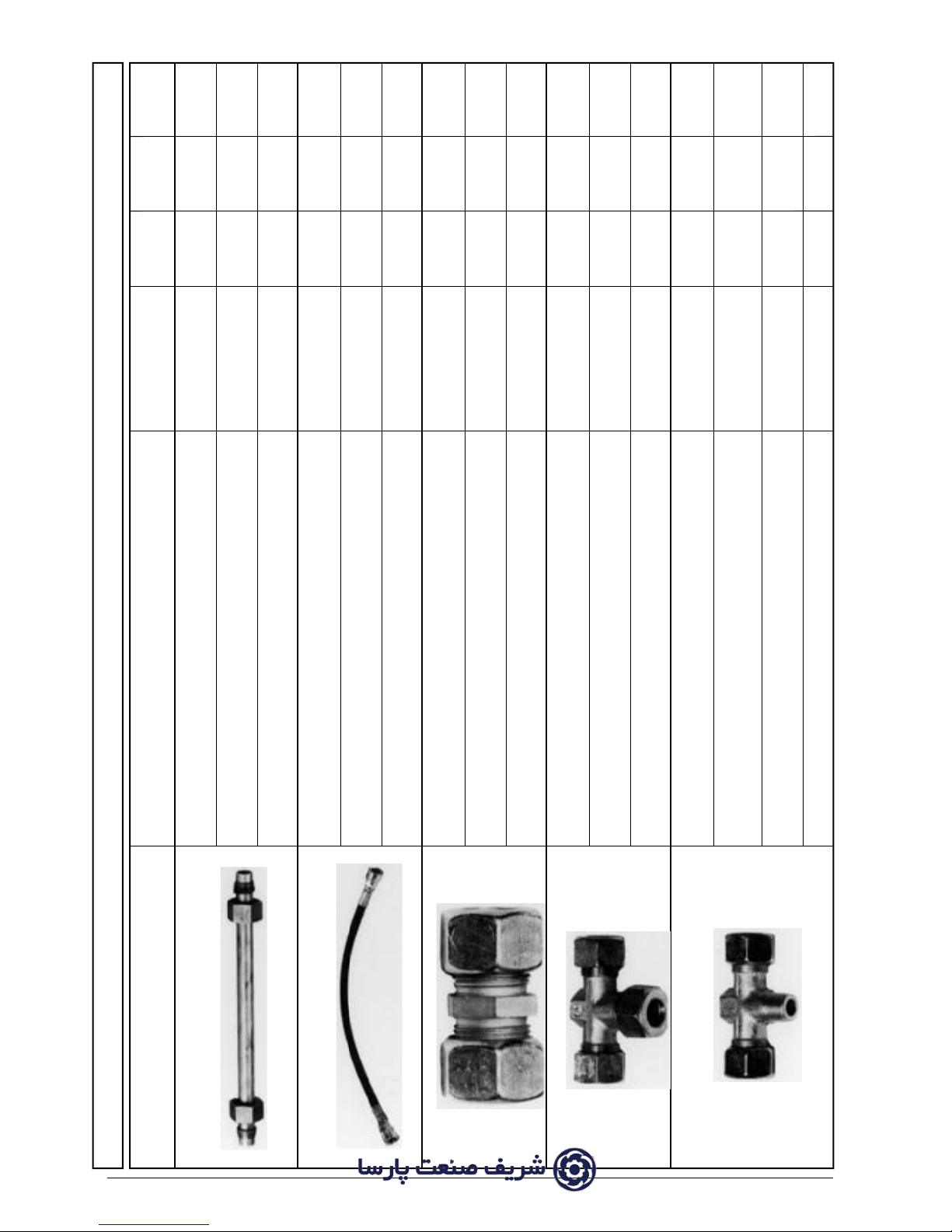

1.7.3 Fittings, standards ................................................................................ 16
1.7.4 Dimensioning of pipe systems, pressure drop graph............................ 21
1.7.5 Examples.............................................................................................. 23
1.7.6 Mounting requirements and hints ......................................................... 26
1.8 Outlet points and accessories............................................................................ 29
1.9 Spray lance system............................................................................................ 31
2 Instructions for assembly...................................................32
2.1 Location of the DELTABOOSTER ...................................................................... 32
2.2 Mounting base and tip over safety device .......................................................... 33
2.3 Connection of inlet water.................................................................................... 34
2.3.1 Control of filter in water tank................................................................. 34
2.4 Connection of power between the DELTABOOSTER and the supply network
(Settings on the plant, see section 3.5).............................................................. 35
2.5 Starting up / running in....................................................................................... 36
2.5.1 Oil control.............................................................................................. 36
2.5.2 Start...................................................................................................... 36
2.5.3 Venting of pumps.................................................................................. 36
2.5.4 Venting of pipe system.......................................................................... 37
2.5.5 Adjustment of line pressure .................................................................. 37
DELTABOOSTER
manual

3
Original Instructions
3 How to use the DELTABOOSTER...................................... 38
3.1 Safety .............................................................................................................. 38
3.2 Model survey...................................................................................................... 39
3.3 Functional diagram............................................................................................. 40
3.4 Instrument panel ................................................................................................ 41
3.4.1 Main / emergency switch ...................................................................... 41
3.4.2 Control switch / starting switch and stopping switch............................. 41
3.4.3 Control panel ........................................................................................ 42
3.5 Setting and reading of DELTABOOSTER........................................................... 43
3.5.1 Setting of water temperature ................................................................ 44
3.5.2 Connection and disconnection of C3K pumps...................................... 45
3.5.3 Reading of hour meters ........................................................................ 46
3.6 Starting up / operation........................................................................................ 47
3.7 Multipressure spray lance system...................................................................... 49
3.8 Operation after starting up - outlet points and equipment.................................. 50
3.8.1 High-pressure cock with Multipressure spray lance, Outlet point A...... 50
3.8.2 Outlet point with foam injector and foam lance, Outlet point B ............. 51
3.8.3 Outlet point with detergent trolley and foam lance, Outlet point D........ 52
3.8.4 General guidelines for the dosage of detergents.................................. 52
3.9 Maintenance....................................................................................................... 53
3.9.1 Service intervals .................................................................................. 53
3.9.2 Pump oil................................................................................................ 53
3.9.3 Water filter ............................................................................................ 53
3.9.4 Couplings.............................................................................................. 53
3.10 Trouble-shooting and correction......................................................................... 54
CE Declaration ............................................................................................................. 55
NOTE
Users are urgently requested to study section
“3.1 Safety” before operating the system.
Only instructed staff should operate the
system.
DELTABOOSTER
manual

4
Original Instructions
1. Product Description
Layout of system
The DELTABOOSTER is a flexible pump station capable of supplying several simultaneous
users with pressurized cold / hot water through a pipeline. The DELTABOOSTER has been
pre-adjusted for a certain line pressure which is also the maximum working pressure.
For the DELTABOOSTER a system of nine different spray lances has been developed. From
a diagram the user can choose the lance giving the exact pressure and water volume required
for his cleaning job.
As standard the DELTABOOSTER system is available with capacities from 2 - 6 users and
pre-adjusted at a line pressure of 160 bar (other pressures are available according to wishes
of the customer).
A plant with a capacity for 3 users can be upgraded to 4, 5, or 6 users at any time, and more
DELTABOOSTER plants can be connected up on the same pipeline.
With the DELTABOOSTER users no longer have to bother about the pros and cons of high
or low pressure. From now on all choices are united in one system, and the solution with the
optimal effect on the job to be done may always be found.
In more technical terms the plant operates in the following way:
Water from a COLD and a HOT connecting valve is mixed in a water tank of the type A airgap.
From here water of the required temperature is drawn into the high pressure pumps of the
DELTABOOSTER which pressurize the water and supply it to a pipeline.
When one or more outlet points are being used, the number of pumps required to maintain the
pressure will automatically start up.
When the cleaning stops successively, one of the excess pumps will cease operation each 15
sec. If all cleaning is stopped then controls will ensure that the requisite pressure for re-starting
is maintained. If a leakage is caused to the pipe system then the pump station will be totally
switched off after some 2 minutes. In the case of an internal hose leakage in the system, faulty
water supplies, excess temperature of inlet water, excess motor temperature or excess power
consumption the system will be switched off.
When starting and stopping the individual pumps, controls will ensure an even distribution of
operation time on the pumps by switching between all the pumps in the system.

5
Original Instructions

6
Original Instructions

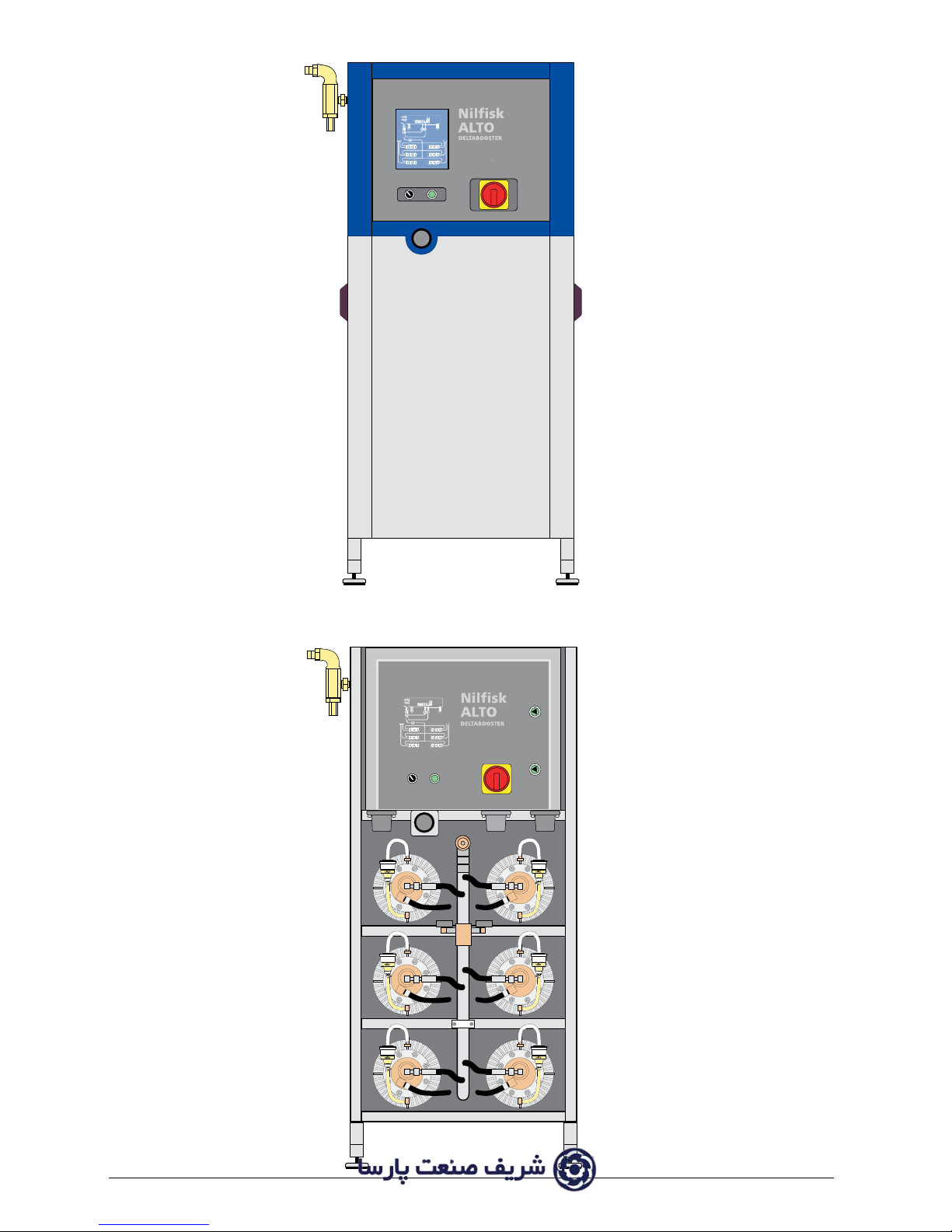

1.1 Model survey and main functions
The DELTABOOSTER comprises 4 different modules:
1. A switchboard
2. A water tank
3. KEW Technology C3K pumps
4. Cabinet / frame
The DELTABOOSTER is made of stainless materials through and through.
DELTABOOSTER switchboard
The switchboard comprises:
- main (emergency) switch, to which the supply cable is connected
- control switch 24V AC
- push-button switch for starting up
- maximum current breaker (short circuit and overload) for each pump
- contactors for connection of 3 or 6 pumps.
The switchboard also incorporates an electronic control that monitors the operation of the
system; i.e. a) selection at any time of required pump capacity; b) even distribution of load on
individual pumps; c) mixing of desired temperature of water drawn from a cold water and a
hot water supply and d) the indication of status/fault on a control panel.
It also incorporates hour meters to show hours of operation of each individual pump.
The switchboard has been prepared for
connection of 6-pumps: (4, 5, and 6 pump plants)
or for connection of 3-pumps: (2 and 3 pump plants)
The switchboard which on delivery controls 3 pumps may later be expanded to control
6-pumps.
The DELTABOOSTER is available for the following voltages:
3 x 230V 50 and 60 Hz + earth (PE)
3 x 346-400V, 50 and 60 Hz + earth (PE)
3 x 415-440V, 50 and 60 Hz + earth (PE)

7
Original Instructions
Water tank
The water tank of the DELTABOOSTER has been constructed in accordance with BS 6281 part
1 (type A air gap). As standard the water tank is mounted for water connection in the left side
(seen from in front). The water connection can be moved to the right side by a Nilfisk-ALTO
service technician. (Water tank can be turned 180 degrees in the frame).
The water tank of the DELTABOOSTER incorporates the following:
- two solenoid valves for water inlet, cold and hot water respectively
- various control valves
- temperature sensor and level switches in the float tank
- overflow
- connection of up to 6 pumps
- filters in in-lets

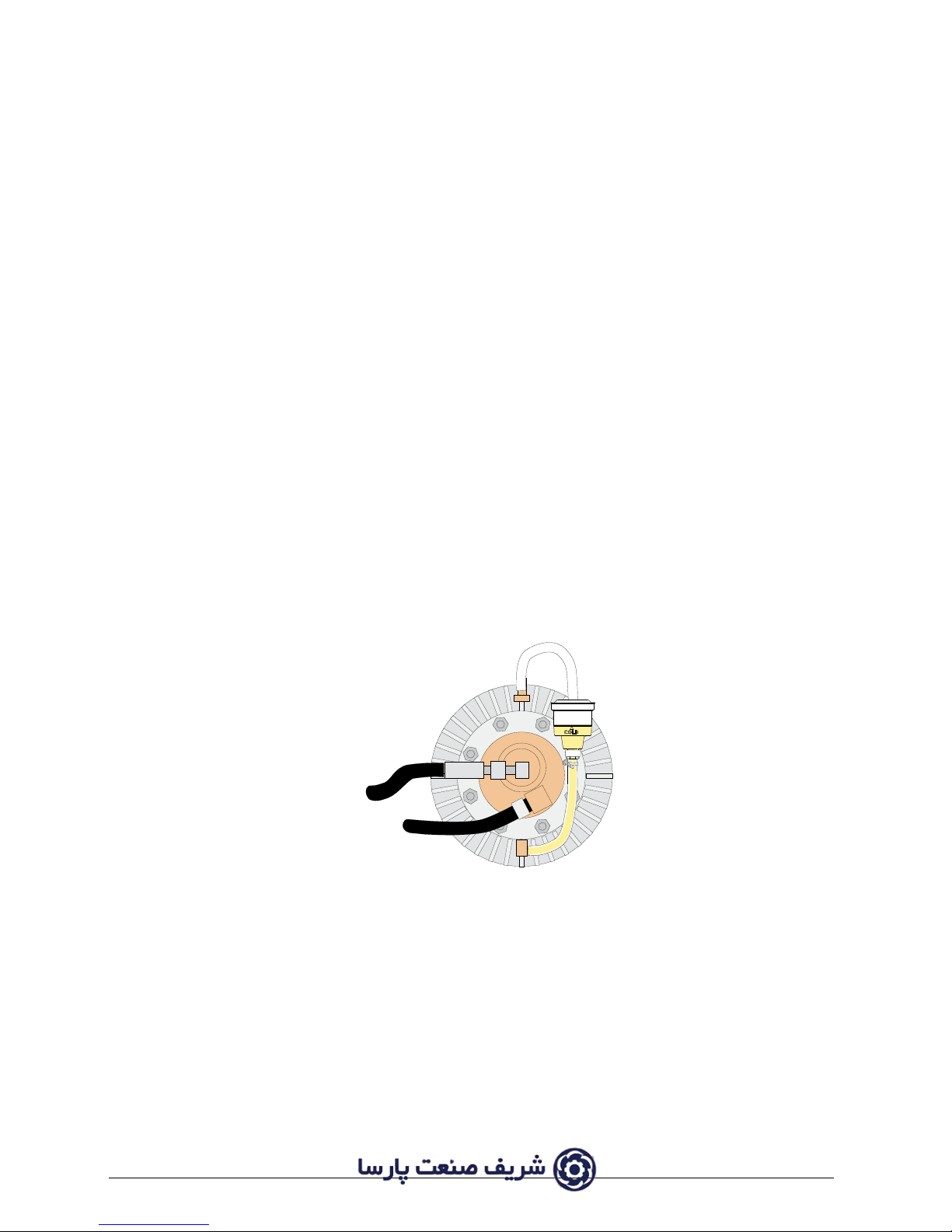

C3K pumps
The C3K pumps are designed for the very demanding environments in which they are used.Their
durability has been achieved by the use of ceramic pistons *)and valves of stainless steel.
Each of the pumps are connected by individual non-return valves to a central manifold. Thus it
is ensured that a defective pump will not cause a malfunction or an unintentional by-pass situ-
ation.
*)The Cin the pump designation C3K stands for "Ceramic".

8
Original Instructions
1.2 Selection of system
The great degree of flexibility, an important characteristic of the DELTABOOSTER, means that
each individual customer may select the system which suits his cleaning needs.
The following solutions are offered:
NUMBER OF PUMPS
Choose from 2 to 6 pumps depending on the capacity required at the same time. In other words,
the number of pumps should be decided on the basis of the number of places that are to use
the system at one and the same time.
LINE PRESSURE
The line pressure is the maximum working pressure for the individual user and is of importance
to the dimensioning of the pipeline, of course.
As a standard the system is adjusted to a line pressure of either 120 bar or 160 bar, but it may
be adjusted to a line pressure within the area 90 to 160 bar. This adjustment should only be
done by a specialized Nilfisk-ALTO customer engineer.
SELECTION OF SPRAY LANCE
For each of the line pressures (120 and 160 bar) there are nine different spray lances developed
especially for the DELTABOOSTER. Each of the nine spray lances represents a combination
of pressure and water volume. Users may therefore always select the job-right combination of
pressure and water volume.

9
Original Instructions
1.3 Technical data
Identification of model
The model identification appears from the identification plate on the cabinet.
The model plate provides the following data:
1. Model
2. Nilfisk-ALTO No.
3. Nozzle
4. Pump pressure
5. Max. pressure
6. Water volume
7. Max. temperature of inlet water
8. Voltage / frequency / nominal input
9. Power consumption
10. Approval
11. Serial number / Production week and year
3
4
11
9
8
5
2
10
1
7
6
DELTABOOSTER
xxx xxx - xxx xxx/xx/200x
xxxx
P bar/MPa xxx/xxx
Pmax bar/MPa xxx/xx
Q l/min xx
Tin max °C xx
I nom. Amp xx
XXX-XXXV/Xph/XXHz/XX kW IP X5
107330xxx
Made in Denmark

10
Original Instructions
1.3.0 Control system
Classifica-
Country Model Electric Data Power Max. tion of
absorption capacity tightness
B,E,I, DELTABOOSTER-3P 230V 3~+ EARTH, 50Hz 6,7-20,4kW 3x6,7kW IP55
N 20,6-63 A
DELTABOOSTER-6P 230V 3~+ EARTH, 50Hz 6,7-40,5kW 6x6,7kW IP55
20,6-125 A
DK,S,N, DELTABOOSTER-3P 400V 3~+ EARTH, 50Hz 6,7-20,4kW 3x6,7kW IP55
SF,D,B, 12-36,7 A
NL,A,E,
CH,I,GR
DELTABOOSTER-6P 400V 3~+ EARTH, 50Hz 6,7-40,5kW 6x6,7kW IP55
12-72,7 A
GB,AUS, DELTABOOSTER-3P 415-440V 3~+ EARTH, 6,7-20,4kW 3x6,7kW IP55
SGP,U, 50/60Hz
USA,SKB 10,7-32,7 A
DELTABOOSTER-6P 415-440V 3~+ EARTH, 6,7-40,5kW 6x6,7kW IP55
50/60Hz
10,7-64,8 A
1.3.1 Water tank
Tank capacity l 80
Water inlet C + H 1"
Fittings stainless steel
Control current max. V 24V AC
1.3.2 C3K pump
Cleaning power kW 4.4
Water volume l/min 17
Electric motor, power consumption kW 6.7
Current consumption 3x400V/230V A 12/20,6
Classification of tightness - IP45
Ceramic pistons, stainless steel valves, and oil level control system with special gaskets in pumps.

11
Original Instructions
1.3.3 Dimensions, weight and total performance per system
1 - water inlet for hot water
2 - water inlet for cold water
3 - water outlet, ∅22 mm
No. of pumps 2 3 4 5 6
Model 44C3 44C3 44C3 44C3 44C3
Cleaning power kW 8,8 13,2 17,6 22,0 26,4
Pressure bar 160 160 160 160 160
Water volume l/min 34 51 68 85 102
Current cons. A 21,41) 32,11) 42,81) 53,51) 64,21)
/243) /363) /483) /603) /723)
Dimensions:
A mm 780 780 780 780 780
B mm 790 790 790 790 790
C mm 1800 1800 1800 1800 1800
Weight
4) kg 250 300 350 400 450
1) 415-440V, 3~, 50/60Hz 2) 230V, 3~, 50Hz 3) 400V, 3~, 50Hz
4) Ready for service
41,22) /61,82) /82,42) /1032) /123,62)
c
ab
3
2 1

12
Original Instructions
1.4 Location of the DELTABOOSTER
The DELTABOOSTER is fitted with vibration absorbing rubber supports, so it may be placed
straight on an even surface (see section 2.2).
The plant must be placed in frost-free premises where the maximum temperature does not
exceed 40°C.
LOCATION SKETCH
(dimensions in millimetres)

13
Original Instructions
1.5 Installation requirements for water connection
The water tank is fitted with two water inlets, one for cold water (BLUE marking) and one for hot
water (RED marking).This allows the operator to control the temperature of the water being used.
If no temperature control is desired both water inlets may be attached to the cold pipeline.
At least 1 cold water inlet (8-12°C) should always be connected and the hot inlet water should
never exceed 85°C.
Each pipeline should be capable of supplying the system with at least the water volume that
answers to the capacity of the system ( no. of pumps - l/min, cf. 1.3.3) and at min. 2 bar. The
water pressure must not exceed 10 bar. If water is being drawn from the lines at other points,
the line capacity should be equally bigger.
In order to achieve optimal temperature control the shut-off valves on both the hot and the cold
pipeline should be adjusted so that the water volume of each line comes as close to the required
water volume as possible.
Water should be connected at the inlet sockets with two 1" flexible hose connections (included
in the MK-Mountig Kit).The two water inlet hoses are 1 m long and fitted with a 1" external taper
pipe thread. Shut-off valves should be fitted right next to the connections on the supply lines, but
no extra non-return valve is required as the system is fitted with an airgap type water tank.
If the water holds running sand or other impurities external filters should be fitted in addition to
the internal filters.
The high-pressure connection to the pipe system should be by means of the 3/4" high-pressure
hose supplied with the system. The hose is fitted with an Ø22 plain branch for connecting to
cutting ring hose connection.
Capacity diagram
0
50
100
150
200
250
300
350
0,3 0,4 0,5 0,6 0,7 0,8 0,9 1 1,5
Differential pressure of solenoid valve measured in bar
Liter/Min
EVSI 18 (Cold)
EVSI 20 (Hot)
Parallel
Max capacity ( 6-pumps)
Max capacity ( 3-pumps)

14
Original Instructions
PE
L1 L2 L3PE
max 125 A
max 35
SUPPLY NETWORK
DELTABOOSTER control system
Ground fault
circuit interrupter
1.6 Installation requirements for mains power connection
The power system of the DELTABOOSTER is designed in conformity with the common Euro-
pean standard:
EN 60204-1 (October 1992): Electrical equipment of machines, Part 1: General requirements.
Powershouldbe connected througha flexible rubbercableholding copper conductorsfor3 phases
and earth (PE).The minimum dimensions of the cable are determined by the power consumption
of the current system (cf. data sheet), but common to all systems is the following:
Max pre-fuse: 125 A
Max core section of cable: 35 mm
In consideration of a future extension of the plant we recommend you to use a cable with a min.
core section of cable of 25 mm.
Earth wire protection is required and the connection of the DELTABOOSTER to the mains power
supply MUST be carried out by an authorized electrician in conformity with local regulations.
To ensure maximum protection of persons, the installation should be protected by a Residual
Current Device (RCD).

15
Original Instructions
1.7 Pipe system
1.7.1 Location of pipelines/general instructions
- The pump stationand outlet points should be placed so that thelines become as short as
possible.
- The line should be arranged with as few bends as possible.
- Sometimes it may pay to split the line close to the pump station so the lengths conducting
large volumes of water become as short as possible. A centre location of the pump station
in relation to the outlet points would also lead to smaller pipe dimensions.
- Pipe lines should be placed on walls of tile or concrete, otherwise great care should be taken
(reinforcement plates etc.)
- Pipe lines should be placed so that damage is prevented (collision, frost, extreme attacks of
corrosion, etc.)
- Pipe lines shouldbe fitted in a visual location everywhere or sothat theymayeasily be
inspected. Lines should not be incorporated in walls or floors. When leading through walls
be careful not to enclosed. (Special lead-in bushes are available)
- The outlet points should be placed as close to the operation point as possible and so that a
hose length preferably of 20 m is used.
1.7.2 Types of pipes - standards
Seamless pipes of precision steel are used for the pipe system according to DIN 2391/C of St.
35.4 material quality, normalized, bright annealed and electro galvanized or welded steel pipes,
stainless, calibrated and glowed according to DIN 2463 - 1.401 d3-- (DIN 17457 cl. 1).
Alternatively, seamless pipes of precision steel indimensions according to DIN2391 and stainless
material quality e.g. Werkstoff no. 1.4301, 1.4436 or 1.4571. Comparable qualities to Swedish
standards are SIS 2333 or SIS 2343.
Pipe dimensions:
The following sizes are used with electro galvanized precision steel pipes:
- ∅15x2
- ∅22x2.5
- ∅30x4
The following sizes are used with stainless precision steel pipes:
- ∅15x1.5
- ∅22x2
- ∅30x3
In connection with branches close to the pump station it should be possible to avoid the ∅30
dimension for most 44C3 systems. For 160 bar systems fittings with a permissible working pres-
sure of min. ND 160 bar are to be used.
Please note that the pipe dimension ∅30 according to DIN 2353 is used together with a stronger
type of fitting (S-series) and pipe systems with this dimension therefore become more expensive
than e.g. an ∅22 line - particularly in multi-pump systems.

16
Original Instructions
Rørledningskomponenter - Piping Components - Rohrleitungskomponenten - Elements De Tuyauterie
BETEGNELSE BEZEICHNUNG
DESCRIPTION DESIGNATION DIMENSION G R Cu
Rør Rohr G Ø15 x 2 mm X X X
Pipe Tuyau R Ø15 x 1,5 mm
Rør Rohr G Ø22 x 2,5 mm X X
Pipe Tuyau R Ø22 x 2,0 mm
Rør Rohr G Ø30 x 4,0 mm X *
Pipe Tuyau R Ø30 x 3,0 mm
Tilslutningsslange Anschlußschlauch
3/4” X X
Connecting hose Tuyau de raccordement
Rørsamler Verschraubung
Ø15 X X
Pipe coupling Raccord
Rørsamler Verschraubung
Ø22 X X *
Pipe coupling Raccord
Rørsamler Verschraubung
Ø30 X *
Pipe coupling Raccord
T-stykke T-Stück Ø15 x Ø15 x Ø15 X X *
T-Connection Raccord en Té
T-stykke T-Stück Ø22 x Ø22 x Ø22 X X
T-Connection Raccord en Té
T-stykke T-Stück Ø30 x Ø30 x Ø30 X *
T-Connection Raccord en Té
T-Stykke T-Stück Ø15 x 3/8RG x Ø15 X
T-Connection Raccord en Té
*) Lagerføres ikke Not in stock (Ask for Nicht vorrätig (Fragen Sie bitte N’est pas en stock (Le délai de
(leveringstid oplyses ) time of delivery) nach Lieferzeit) livraison peut étre communique)
1.7.3 Fittings, standards - 1

17
Original Instructions
Rørledningskomponenter - Piping Components - Rohrleitungskomponenten - Elements De Tuyauterie
BETEGNELSE BEZEICHNUNG
DESCRIPTION DESIGNATION DIMENSION G R Cu
Vinkel Winkel
Ø15 x Ø15 X X *
Elbow Coude
Vinkel Winkel
Ø22 x Ø22 X X
Elbow Coude
Vinkel Winkel
Ø30 x Ø30 X *
Elbow Coude
Stilbar L-forskruning Verschraubung Ø15 X X
Adj. Elbow coupl. Raccord reg.
Stilbar L-forskruning Verschraubung Ø22 X X
Adj. Elbow coupl. Raccord reg.
Vinkel Winkel
Ø15 x 3/8” RG X
Elbow Coude
Vinkel Winkel
Ø22 x Ø15 X
Elbow Coude
Vægbeslag f. rørholder Wandbeschlag Ø15 X X
Bracket f. pipe hangs Fixation mural
Vægbeslag f. rørholder Wandbeschlag Ø22 X X
Bracket f. pipe hangs Fixation murale
Vægbeslag f. rørholder Wandbeschlag Ø30 X X
Bracket f. pipe hangs Fixation murale
*) Lagerføres ikke Not in stock (Ask for Nicht vorrätig (Fragen Sie bitte N’est pas en stock (Le délai de
(leveringstid oplyses ) time of delivery) nach Lieferzeit) livraison peut étre communique)
1.7.3 Fittings, standards - 2

18
Original Instructions
1.7.3 Fittings, standards - 3
Rørledningskomponenter - Piping Components - Rohrleitungskomponenten - Elements De Tuyauterie
BETEGNELSE BEZEICHNUNG
DESCRIPTION DESIGNATION DIMENSION G R Cu
T-stykke T-Stück Ø22 x Ø15 x Ø22 X X
T-Connection Raccord en Té
T-Stykke T-Stück Ø30 x Ø30 X X
T-Connection Raccord en Té
Justerbar T-forskruning T-Verschraubung Ø15 X
T-coupling adj. Raccord en Té reg.
Ligereducering Ubergangsrohr Ø22 x Ø15 X X
Straight coupling Reduction droite
Ligereducering Ubergangsrohr Ø30 x Ø15 X X
Straight coupling Reduction droite
Ligereducering Ubergangsrohr Ø30 x Ø22 X X
Straight coupling Reduction droite
Skærering Schniedring
Ø15 X X
Cutting ring Anneau
Skærering Schniedring
Ø22 X X
Cutting ring Anneau
Skærering Schniedring
Ø30 X X
Cutting ring Anneau
Omløber Überwurfmutter
Ø15 X X
Union nut Ecrou
Omløber Überwurfmutter
Ø22 X X
Union cut Ecrou
Omløber Überwurfmutter
Ø30 X X
Union nut Ecrou
*) Lagerføres ikke Not in stock (Ask for Nicht vorrätig (Fragen Sie bitte N’est pas en stock (Le délai de
(leveringstid oplyses ) time of delivery) nach Lieferzeit) livraison peut étre communique

19
Original Instructions
1.7.3 Fittings, standards - 4
Rørledningskomponenter - Piping Components - Rohrleitungskomponenten - Elements De Tuyauterie
BETEGNELSE BEZEICHNUNG
DESCRIPTION DESIGNATION DIMENSION G R Cu
Rørhol der Rohrhalterung Ø15 X X
Pipe holder Support tuyau
Rørhol der Rohrhalterung Ø22 X X
Pipe holder Support tuyau
Rørholder Rohrhalterung
Ø30 X X
Pipe holder Support tuyau
Slange f. temp. kompens. Schlauch - Tempkomp. ½” Ø15/Ø22 X X
Hose temp. compensated Tuyau temp. compenser
Slange f. temp. kompens. Schlauch - Tempkomp. 3/4” Ø22/Ø30 X X
Hose temp. compensated Tuyau temp. compenser
Tætningsskive Dichtungsscheibe
3/8RG Ø17 mm X X
Tightening washer Rondelle d’etancheite
Stiknippel Schnellkupplungsnip.
3/8RG X X
Quick coupling Raccord rapide male
Murgennemføring Durchführung Ø15 X
Lead-in bush Réalisable
Murgennemføring Durchführung Ø22 X
Lead-in bush Réalisable
Murgennemføring Durchführung Ø30 X
Lead-in bush Réalisable
*) Lagerføres ikke Not in stock (Ask for Nicht vorrätig (Fragen Sie bitte N’est pas en stock (Le délai de
(leveringstid oplyses ) time of delivery) nach Lieferzeit) livraison peut étre communique)

20
Original Instructions
1.7.3 Fittings, standards - 5
Rørledningskomponenter - Piping Components - Rohrleitungskomponenten - Elements De Tuyauterie
BETEGNELSE BEZEICHNUNG
DESCRIPTION DESIGNATION DIMENSION G R Cu
Roset f. murgennemføring Röllchenplat. f. Durch Ø15 X
Pipe enclose Enkysté de tuyau
Roset f. murgennemføring Röllchenplat. f. Durch Ø22 X
Pipe enclose Enkysté de tuyau
Roset f. murgennemføring Röllchenplat. f. Durch Ø30 X
Pipe enclose Enkysté de tuyau
Støttebeslag f. tappested Stützenbeschlag 2 mm X
Supportingfitting f. tap Support
Brystnippel Doppelnippel Ø15 x 3/8RG X X
Hexagon nipple Raccord
Hydroballhane Hochdruck Kugelhahn 3/8RG X X
High pressure ball valve Robinet haute press.
Hydroballhane Hochdruck Kugelhahn Ø22 X X
High pressure ball valve Robinet haute press.
Hydroballhane Hochdruck Kugelhahn Ø30 X X
High pressure ball valve Robinet haute press.
GEl-galvaniseret Galv.
Galv. Galv.
RRustfri-syrefast Rustfrei
Corrosion proof Inoxydable
Cu Kobber Kupfer
Copper Cuivre
*) Lagerføres ikke Not in stock (Ask for Nicht vorrätig (Fragen Sie bitte N’est pas en stock (Le délai de
(leveringstid oplyses ) time of delivery) nach Lieferzeit) livraison peut étre communique)
