NITEforce SMS User manual

User Manual
SMS Trap Alarm
© Copyright 2022
Follow the attached instructions when using the device. Please read it carefully before use.
If necessary, ask your dealer for more information.
1. INSERT AA alkaline batteries (sold separately) 2. INSERT SILICA GER DEHUMIDIFIER
Insert good quality AA alkaline batteries (4pcs 1.5V AA), note polarisation (+/-)
3. INSERT SIM CARD (NO PIN) 4. ATTACH ANTENNA
SMS Trap Alarm supports mini SIM card size. Take OFF PIN code request from SIM card before inserting it to unit.
The device sends messages as text messages, so the subscription must support sending text messages.
PrePaid subscriptions also work.

2
THE DEVICE IS NOW READY FOR START-UP AND PROGRAMMING
When the device has 4 alkaline batteries (1.5V), SIM card (PIN code query removed), antenna and Silica Gel dehumidifiers,
you can turn it on with the OFF/ON power switch. In the ON position, the device is activated and the LED lights up:
The red LED light is ON for about 3 minutes, after which it turns off and the device is activated
ADD MASTER USER NUMBER - ADD TIME - ADD DAILY REPORT
When the device is used for the first time, a few text message commands must be sent to it from your mobile phone (master
user number) to update the most important basic functions such as the master number, time and daily report.
When the device's power switch has been moved to the ON position, send the following text messages to the phone
number of the SIM card inside the device. The device acknowledges back with the following text messages:
1) ADD MASTER USER NUMBER
Send following text message to the device with your mobile phone: #100#1234#
The device sends back the following acknowledgment text message (Add +358xxxxxxxxx is your number)
2) ADD TIME
Send following text message to the device with your mobile phone: #110##
The device sends back the following acknowledgment text message
3) ADD DAILY REPORT
Send following text message to the device with your mobile phone: #105##
The device sends back the following acknowledgment text message

3
The device now automatically sends a daily report that arrives daily at approx. 15:00 (15:00,00 - 15:00,15). From there you
can see the most important information about the status of the device, which tells about its normal active operation (Battery
= Batteries, CSQ = Field strength). Below is an example of the received daily report:
THE DEVICE IS NOW PROGRAMMED AND READY FOR USE!

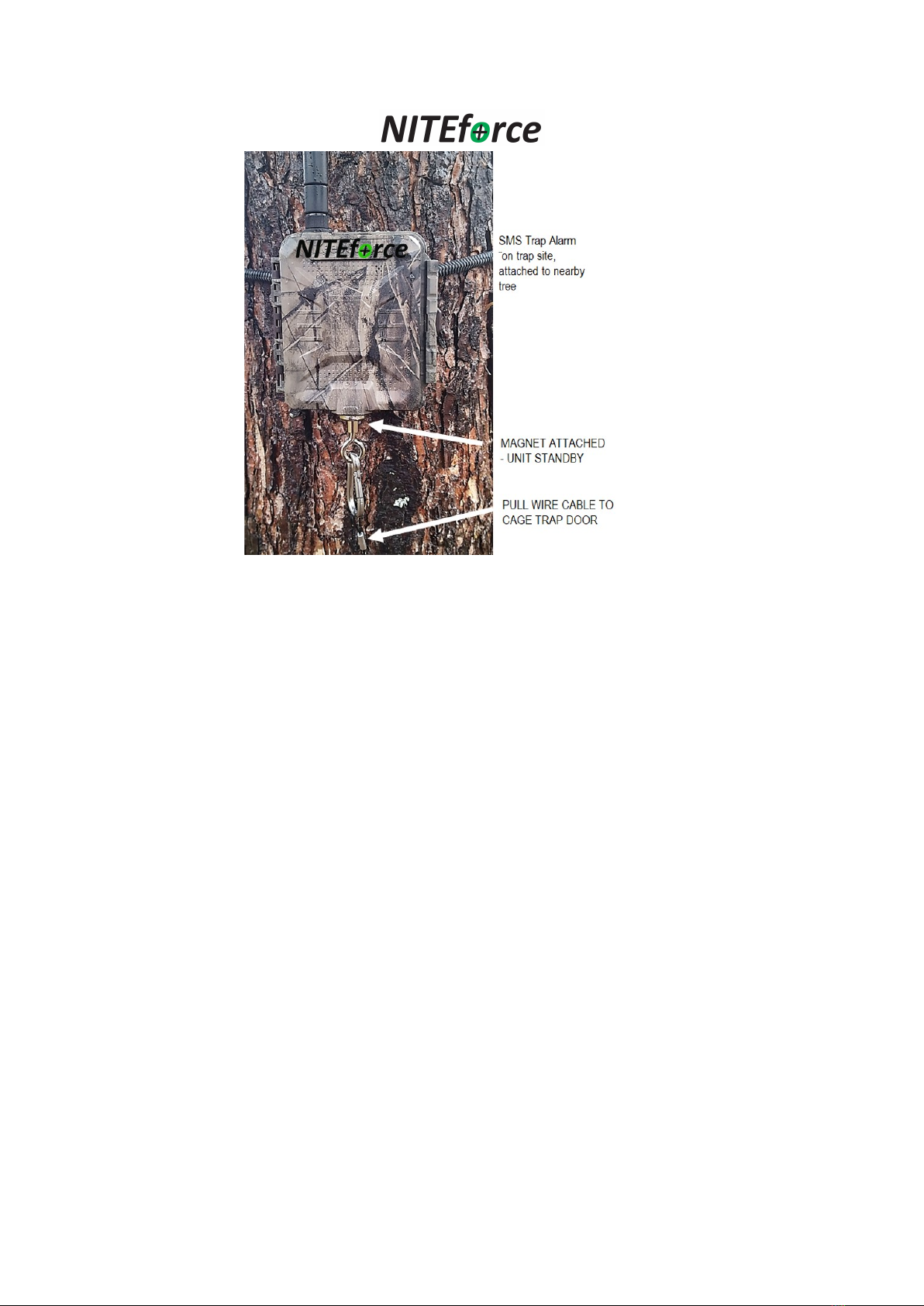

USING THE DEVICE AS A TRAP ALARM
The device is designed to be used as a trap alarm with different types of traps and cages. When the trap alarm is set, the
pull wire of the trap alarm is attached to for example the trap door. When the trap door closes, it uses a pull wire to pull the
magnet out from under the trap alarm. This triggers the alarm. You will receive the following alarm text message (ALARM!)
to your mobile phone (master number):
The alarm can be acknowledged remotely with the following text message command: #107##
or by going to the trap site and attaching the magnet again to the underside of the device.
 Device with send back alarm cancellation text msg: (Alarm canceled!)

4
NOTE
You can save the phone number of SMS Trap Alarm in the memory of your mobile phone. Naming and saving the number
is useful if you use more than one trap alarm devices. You can easily see immediately based on the name which trap is
alarming at which location when "Alarm!" an alert text message arrives.
You can "sensitize" the magnet pull force trigger based on your cage trap door closing force. For example by adding 1mm
thick weatherproof tape between the magnet and the device, you can sensitize the pull force matching your cage door
closing force. The magnet detachment sensitivity can be adjusted to suit the tensile strength of the own trap. Avoid
sensitizing too much, for example storm wind can detach the magnet and cause a "false alarm".
ADDITIONAL TEXT MESSAGES
Device reset (factory default) text message that returns the device back to factory settings:
 Send following text message to the device with your mobile phone: #998##
Delete phone number text message that deletes the phone number:
 Send following text message to the device with your mobile phone: #101#1234567890#
NOTIFICATIONS
* Winter use: possible freezing of AA batteries > USE high-quality AA 1.5V alkaline batteries
* Recommended operating temperature: -25°C … +50°C
* If the batteries are installed incorrectly, the device will not work or it may short circuit
* Do not leave batteries inside the device during storage due to the risk of battery leakage
* Weatherproof design IP67 (no immersion in liquid)
* It is recommended to use weather protection on the device, e.g. in winter and autumn rains. They extend the service life
* The rubber seal on the lid should be serviced once a year and wiped with silicone (spray silicone spray on a cloth and
spread it evenly on the lid seal)
* The warranty does not cover defects caused by operating errors caused by the user
* The device has a 1 year (12 month) warranty for manufacturing and material defects

5
1 YEAR WARRANTY
This product is warranted to be free from defects in material and workmanship for 1 year from the original date of purchase
when purchased through an authorized dealer. NITEforce will, at its option, repair or replace your product with the same or
comparable model, free of charge (shipping charges may apply) for a period of (1) one year from the original date of
purchase in the event of a defect in materials or workmanship occurring with normal use. This warranty only extends to the
original retail purchaser. Purchase receipt or other proof of date of original purchase is required before warranty
performance. The warranty on any replacement product provided under this warranty shall be for the unexpired portion of
the warranty period applicable to the original product. This warranty extends solely to failures due to defects in materials or
workmanship occurring during normal use. It does not cover normal wear of the product.
This warranty is void if:
1. The unit has been used incorrect, opened, dropped or punctured
2. The unit has been immersed in water or other liquids, allowed to be filled with dirt or dust or physically misused
3. The 1year warranty period has expired
4. If the product fails to function properly as a result of accident, misuse, abuse, neglect, mishandling, misapplication, non-
compatible batteries, faulty installation, setup, adjustments, improper maintenance, alteration, maladjustment of controls,
modification, power surges, service by anyone other than NITEforce or NITEforce authorized service center or acts beyond
the manufacturer's control.
PRODUCT REPAIR
Repairs for damages not covered by the warranty will be subject to a charge. Please contact nearest NITEforce sales
agency shop to discuss repair options not covered under warranty.
WARRANTY WARNING
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Declaration of Conformity to Directive 1999/5/EC
CE Caution: Hereby the manufacturer declares that this NITEforce SMS Trap Alarm is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A copy of the DOC, Declaration of Conformity to
Directive 1999/5/EC, may be obtained thru the local distributor.
