Nitto Kohki AMB-0307 User manual

Due to continuous product development/improvement the specifications and configurations in
this document are subject to change without prior notice.
Manufactured by :
NITTO KOHKI Co., Ltd.
2-9-4, Nakaikegami, Ohta-ku,
Tokyo, 146-8555, Japan
Tel
: (81)-3-3755-1111
Fax : [phone]
E-mail : [email protected]
URL : www.nitto-kohki.co.jp
PNEUMATIC CHAMFERING TOOL
Please read this manual carefully before you attempt to use
your tool so that you may use it properly and safely.
MINI BEVELER
Model AMB-0307, AMBL-0307
PROFESSIONAL TOOL
Keep the manual handy – so you can use it whenever necessary.
Original Instructions
Specifications
Model AMB-0307 AMBL-0307
Maximum Operating Pressure 0.6 MPa
Air Consumption (No Load) 0.9 m3/min 0.9 m3/min
Rated Speed (No load) 14,000 min-1 14,000 min-1
Chamfering Capacity Stainless Steel 0〜3C,2R,3R,4R
Mild Steel 0〜7C,2R,3R,4R
Chamfer Angle 15〜45°
Mass (Weight) 2.9 kg 2.9 kg
Sound Pressure Level 87 dB (A) 87 dB (A)
Sound Power Level 98 dB (A) 98 dB (A)
Vibration Level 1.0 m/s21.0 m/s2
Thread Size of Air Inlet Rc3/8 Rc3/8
AMB-0307 AMBL-0307

1
The following Safety notations are used throughout the manual to highlight safety precautions for the user and for
the tool.
WARNING: Indicates a potentially hazardous situation which, if not avoided by following the
instructions given, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided by following the
instructions given, could result in injury or material damage.
Please note, however, that failure to observe safety precautions under the “ Caution” category could result in a
serious occurrence depending on the situation: please observe all safety precautions in the manual.
Caution: Important precautions for tool setup, operation and maintenance.
Thank you very much for your purchase of this
Nitto Kohki products.
Before using your tool, please read this manual
carefully so that you may use it properly to get
the most out of it.
Please keep the manual handy - so you can
use it whenever necessary.
・English : Please ask your dealer or
distributor for instruction manual
in local language(s).
・German : Bitte fragen Sie lhren Händler
nach eine Betriebsanleitung in
Landessprache.
・French : S'il vous plait, veuillez demandez
á votre foumisseur de manuel
instruction en langue locale.
・Spanish : Por favor, cantacte con su
distribuidor para el manual de
instrucciones en español.
・Portuguese : Por favor pessa ao seo agente
ou distribuidor o manual de
instrucces ih linguagen local.
・Italian : Per Manuale Istruzioni in lingua
locale Vi preghiamo di rivolgervi
al rivenditore o distributore.
・Dutch : Vraag uw handelaar
om een nederladstalige
gebruiksaanwijzing.
・Swedish : Be er lokala Åtreförsäljare eller
distributör om manualer pá
svenska.
・Danish : Venligst henvend Dem til den
danske distributør for instructions
manualer.
・Polish : Prosze pytac swojego dealera
lub dystrybutora o instrukcje
obslugi w jezyku localnym.
・中文 :請向當地供應商或経銷商詢問中
文使用説明書
CONTENTS page
IMPORTANT SAFETY INSTRUCTIONS ……………………2
GENERAL: TOOLS …………………………………………… 2
GENERAL: PNEUMATIC TOOLS …………………………3
INSTRUCTIONS FOR THIS TOOL …………………………4
1. USAGE ……………………………………………………4
2. CHECK THE CONTENTS OF THE PACKAGE ……… 4

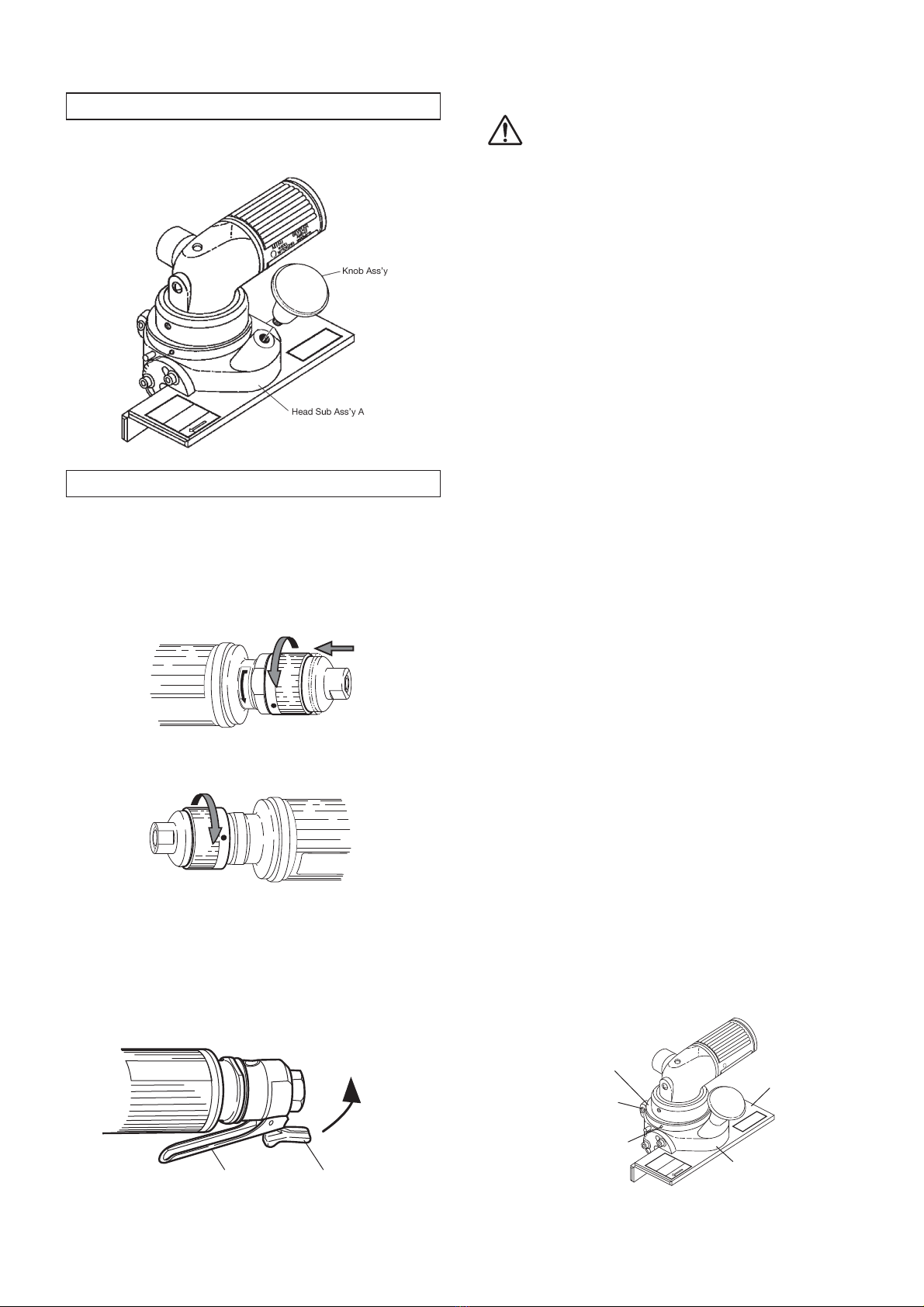

3. NAME OF PARTS ……………………………………… 4
4. AIR SUPPLY ……………………………………………… 4
5. PREPARATION ……………………………………………5

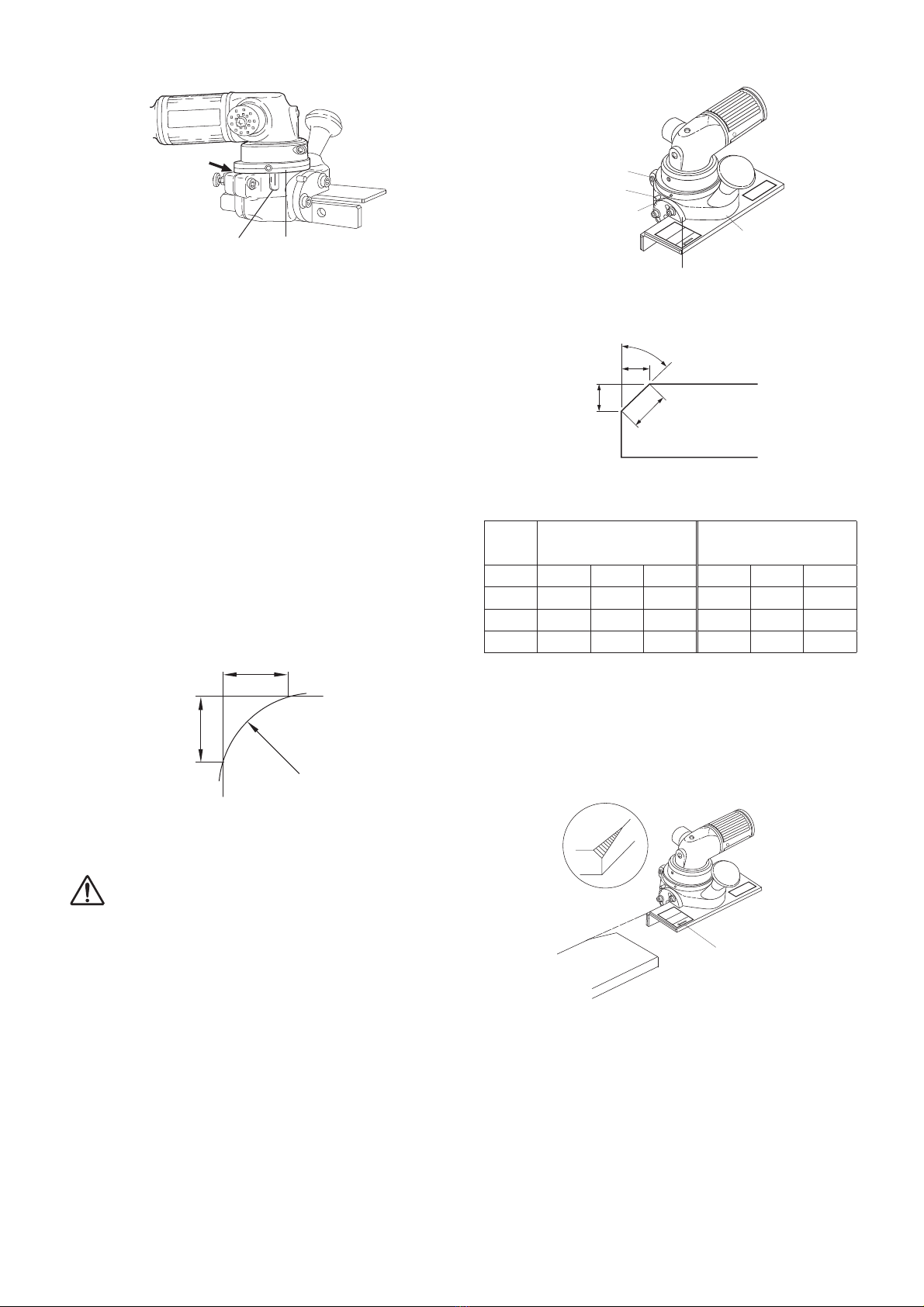

6. HOW TO OPERATE THE TOOL ………………………5

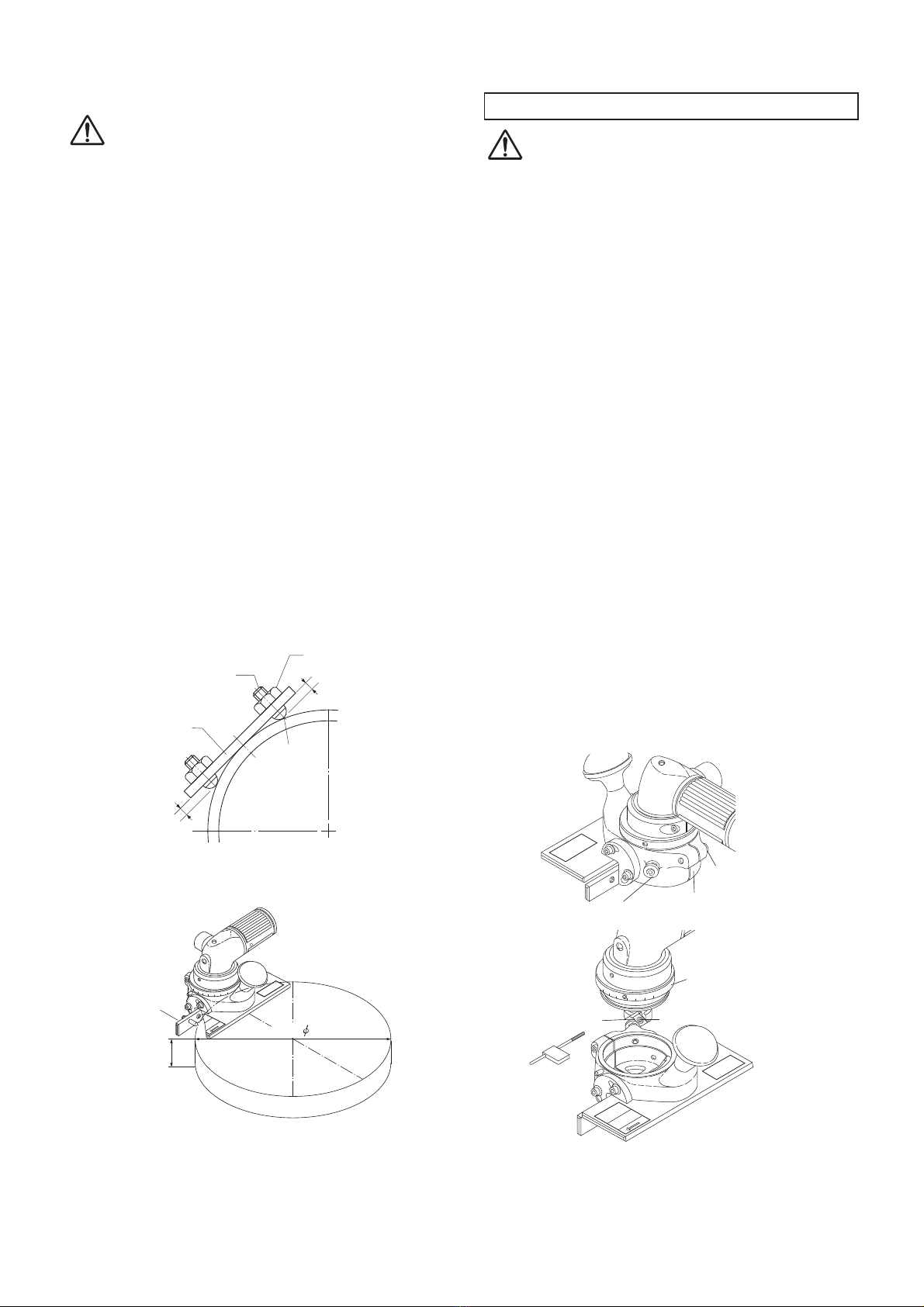

7. HOW TO REPLACE INDEXABLE INSERT ……………8
8. CONDITION FOR USE …………………………………9
9. THREAD SIZE OF HOSE FITTING ……………………9
10. STORAGE …………………………………………………9
11. ORDERING SERVICE PARTS ………………………… 9
12. OPTIONAL PARTS ………………………………………9

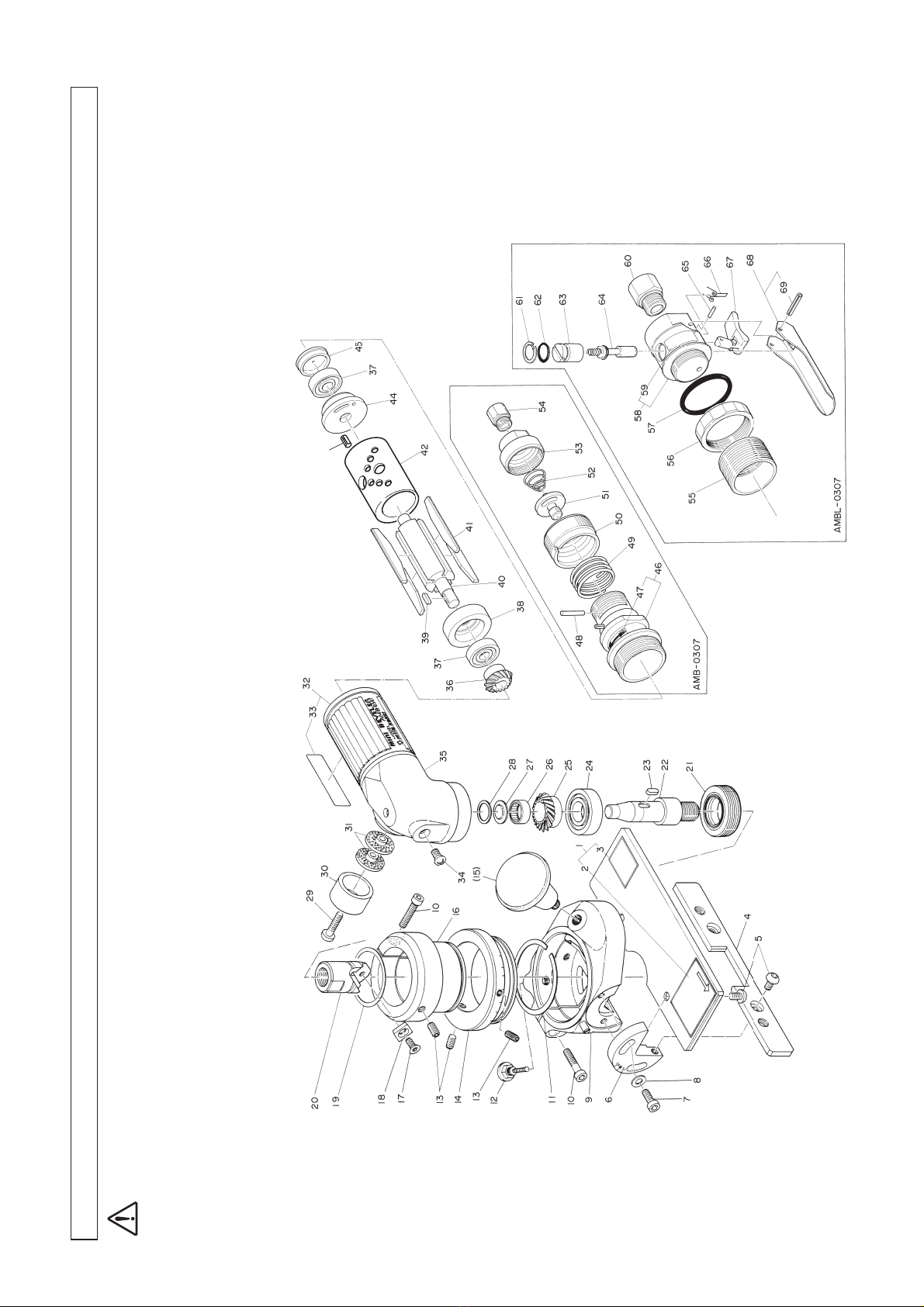

13. EXPLODED DIAGRAM : AMB-0307, AMBL-0307 … 10
PICTOGRAM
Warning: It might be dangerous to operate the tool if
the instructions supplied are not followed.
Using this tool improperly could result in serious injury.
Read the instruction manual before use.
Always wear suitable eye protection.
Always wear suitable hearing protection.
Always wear respiratory protective equipment (PPE).
Always wear protective gloves for protection of hands
from Vibration and Shock.

2
IMPORTANT SAFETY
INSTRUCTIONS
When using the tool, please observe the safety
precautions below to prevent possible accident or
injury.
GENERAL: TOOLS
WARNING
TO OPERATORS
●Wear proper clothing for the type of work being
done.
Take care so that clothing, ties, hair, etc. will not
become entangled with the moving parts. If items
become entangled it will cause the operator to be
pulled towards the tool and lead to possible cause of
accident or injury.
●Always wear suitable eye protection.
Remember, regular glasses are not safety glasses.
The lenses are only shock resistant, which will not
give you sufficient eye protection you may need in
your working environment.
●Always wear suitable hearing protection.
●Wear respiratory protective equipment (PPE).
Wear respiratory protective equipment (PPE) when
working in an environment where dust particles are
generated in operation.
●Always wear suitable protective gloves.
●Avoid working posture that is too stressful.
Always ensure a firm footing and well balanced
posture.
●Do not operate the tool if you are too tired.
●Never touch any moving parts of the tool when
running.
ABOUT WORK AREA
●Keep the work area clean.
Cluttered work areas (e.g. workbench) invite
accidents.
●Carefully select the work area.
Do not expose tool to rain.
Do not use tool in a wet or soaked area.
See that the work area is adequately illuminated.
●Never work near inflammable liquid or in a
potentially explosive atmosphere.
●Keep children away from the work area.
Keep children and unauthorized people away from
the work area to avoid accident or injury.
BEFORE OPERATION
●Inspect tool before use.
Before using, check that screws are securely
tightened, that any protective cover or guard is
securely in place, other parts are free from damage
and that the tool runs as it should.
Check that moving parts are properly adjusted for
positioning and tightened, that parts are free from
damage and properly mounted, and that all other
parts are in good condition for normal operation.
Should you find any damage to the protective
cover or other part, replace it in accordance with
the Operation Manual. If there are no instructions
in the Manual, please contact the sales agent
through which you have purchased your tool or an
authorized dealer near you for repair.
Likewise, if a switch failure occurs, contact sales
agent through which you have purchased your tool
or an authorized dealer near you for repair. .
Do not use the tool if it does not start or stop with
the start/stop switch.
●Securely mount cutter
An improperly mounted cutter may fly out, causing
possible damage to the tool or injury to the operator.
●Always remove spanner, wrench, etc., once
adjustment has been made with them.
●Use a tool appropriate for the application.
Avoid heavy-duty application that is beyond the
capacity of tool.
●Do not use the tool for purposes other than what
it is designed for.
●Do not abuse tool.
Use tool in accordance with the specifications: you’ll
get the most out of it while ensuring safety.
●Securely fasten workpiece in place.
Use a vice or clamp to securely fasten the workpiece
in place. It is much safer this way than holding it in
your hand, allowing you to operate the tool with both
hands.
ABOUT HANDLING
●How to store tool.
When the tool is not used, store it in a dry area and
out of reach of children.
●How to carry tool.
Do not touch the start switch while the tool is being
carried.
●Do not leave the tool unattended while it is running.
Turn off the start switch and disconnect the tool from
power source. Do not leave the work area until the
tool comes to a complete stop.

3
MAINTENANCE/SERVICE
●Do not take apart or modify tool.
Disassembly or modification carried out without
the supervision of a qualified or authorized service
engineer could result in an accident or injury.
●Inspect cutting tool and accessories, etc.
Always check to see that cutting tool and
accessories, etc. are in good operating condition
without damage or deterioration before you mount
them on the tool. Should you find any damage to
an accessory or part, please contact sales agent
through which you have purchased your tool or an
authorized dealer near you for repair.
●Check parts for damage.
When you have found damage to accessory or other
part, carefully check the damaged part to determine
the extent of influence it has upon the functions
of the tool – that is, determine whether it can still
perform its normal functions.
Check to see that the linkage of the moving parts
is OK, that all parts are OK without damage,
that they are properly mounted, and that the tool
functions normally. Should you find any damage
to an accessory or part that may hamper proper
functioning of the tool, please contact sales agent
through which you have purchased your tool or an
authorized dealer near you for repair.
●Have your tool repaired at an authorized Nitto
Service Center.
For repair or parts replacement, please contact the
sales agent through which you have purchased your
tool or an authorized dealer near you.
●Use only Nitto genuine parts.
Use of improper parts may result in serious accident.
To obtain a Nitto genuine part, consult this Manual
or contact the sales agent from which you have
purchased your tool directly.
●Do not detach label or nameplate from tool.
When a label/nameplate gets damaged, worn or
becomes missing, contact the sales agent through
which you have purchased your tool or Nitto Kohki
Co. Ltd, directly for a replacement.
DISPOSAL
●When a tool is taken permanently out of service, it
is advised that the tool is disassembled, degreased
and parts separated by material and recycled locally
in the appropriate manner.
GENERAL: PNEUMATIC
TOOLS
WARNING
●Use appropriate air pressure.
Excessively high air pressure will increase the tool
number of revolutions or strokes causing not only
potential premature failure/breakage but could also
lead to an unexpected accident or injury.
●Connect tool to air supply line.
There are various types of pipes running in a factory
in addition to the pneumatic line (such as oxygen,
nitrogen, gas and water). For this reason, always
ensure that you are connecting to the pneumatic
line.
●Start tool properly.
Turn the start switch OFF before connecting to the
air supply line.
●Always disconnect the tool from the air supply
line before putting on/taking off any accessory
and prior to carrying out any maintenance work.
●Avoid exposure to exhaust air.
Pneumatic tool exhaust air contains oil and
contaminated moisture. Make sure the exhaust air is
not directed towards your face or anyone else within
the work area.
●Keep tool off electricity.
This pneumatic tool is not electrically insulated. To
avoid a potential electric shock do not use where
there is a possibility of coming into contact with live
electricity.
CAUTION
●Handle tool carefully.
Abusive use of tool could invite failure or accident.
Do not throw, drop or shock the tool.
●Handle connecting hose carefully.
Do not carry the tool by the connecting hose.
Do not pull the connecting hose to disconnect.

4
INSTRUCTIONS FOR
THIS TOOL
About Your Tool
WARNING
●Always turn off the air supply and supply hose
beforehand whenever replacing Indexable Insert.
●To replace the Indexable Insert after using, do
not touch with bare hands as the Indexable
Insert and holder are heated at high temperature.
●Use our original Indexable Inserts.
●Do not use the worn or damaged Indexable Insert.
1. USAGE
This tool is for chamfering workpieces with a
Indexable Insert.
2. CHECK THE CONTENTS OF THE PACKAGE
Check the contents and make sure that the tool
does not have any damage which may have
occurred during transportation. The contents should
correspond to the list as follows. In case of damage/
missing parts, please contact the sales agent from
whom you purchased the tool.
AMB-0307
Package Contents Qty Check
MINI BEVELER 1
Knob 1
Hex. Socket Screw Key 4 1
Indexable Insert with Hole 12.7 1
Hex. Socket Screw Key 3 1
Hex. Nut M8 2
Hex. Socket Set Screw 8×25 Special 2
Spanner T-15F 1
Bushing R3/8×NPT3/8 1
Instruction Manual 1
Caution for Use 1
AMBL-0307
Package Contents Qty Check
MINI BEVELER 1
Knob 1
Hex. Socket Screw Key 4 1
Indexable Insert with Hole 12.7 1
Hex. Socket Screw Key 3 1
Hex. Nut M8 2
Hex. Socket Set Screw 8×25 Special 2
Spanner T-15F 1
Bushing R3/8×NPT3/8 1
Instruction Manual 1
Declaration of Conformity 1
Caution for Use 1
3. NAME OF PARTS
4. AIR SUPPLY
4-1. Air Pressure
Adjust air pressure with the air regulator to the
appropriate level for the pneumatic tool used.
Air pressure that is too low will stop the tool from
operating at full capacity.
Air pressure that is too high may cause damage to
the tool.
4-2. Air Line (Fig.1)
Use a 9.5 mm (3/8”) I. D. connecting hose between
the compressor and the tool.
Drained water, etc., if flown into the tool, could
cause tool failure. Install an air filter between the
compressor and the tool.
Air Regulator Oiler
Air Filter
Compressor
Lubrication
Tool 9.5mm (3/8”) I.D.
Hose
Cupla
Fig. 1
4-3. Lubrication
Install an oiler between the compressor and the tool.
Use the machine oil ISO VG-10. Failure to lubricate
as required may result in damage to the tool. Use of
oil that is too thick will reduce the performance of the
tool.

5
5. PREPARATION
5-1. Attaching The Knob Ass’y
Screw the Knob Ass’y in the Head Sub Ass’y A.
6. HOW TO OPERATE THE TOOL
6-1. Start and Stop
AMB-0307
To start, pushing the Valve Ring forward and turn it
counterclockwise (Fig. 2).
To stop, turn the Valve Ring to "OFF" position (Fig. 3).
O
N
O
N
①
②
Fig. 2
OFF
Fig. 3
AMBL-0307
To start, release the lock lever and grasp the throttle
lever.
To stop, release the throttle lever.
Release
LockLever
ThrottleLever
Fig. 4
6-2. How To Adjust Chamfering Levels
WARNING
Be sure to remove the air hose from the tool
beforehand whenever adjusting chamfering levels.
The max. chamfering capacity:
Stainless Steel .......................... 3C
Mild Steel ...................................7C
(1) Loosen the Hex. Socket Head Cap Screw ①of the
Head ④(Fig. 5).
(2) Turn the Head ④to match the Guide line of Head
④with the scale of Eccentric Ring③(Fig. 5, Fig. 6).
●
The level guide is only for reference. If accurate
chamfering is required, set the tool at a chamfering
level about 0.5 smaller than the desired one. Try a
test cut. Then adjust the tool for accurate chamfering.
In the case of Mild Steel.
You can select chamfering levels from 0 to 7C freely.
The maximum chamfering capacity for one-cut is
4C. For 4C to 7C, chamfer a workpiece twice or
three times.
(Ex. 7C: 4C →5.5C →7C Total 3 times)
In the case of Stainless Steel.
You can select chamfering levels from 0 to 3C freely.
Chamfer the desired volume at a time without
dividing the chamfering jog to several times
●
If the Head ④is in difficult position to work with
loosen the Hex. Socket Set Screw ②of Eccentric
Ring ③to adjust the Head ④in a proper position.
After adjustment, tighten the Hex. Socket Set Screw
②firmly to prevent becoming loose during operation
(Fig. 5).
(3) Firmly install the Head on the end of Eccentric
Ring without making any clearance and tighten the
Hex. Socket Head Cap Screw ①(Fig. 5).
AMB-07
MODEL
NITTOKOHKI
MADEINJAPAN
Head④
EccentricRing③
Hex.SocketHead
CapScrew①
Hex.SocketHead
SetScrew②
PlateA⑤
Fig. 5

6
Scale
Donotmakeany
clearance
GuideLine
Fig. 6
6-3. Adjustment of Radius Chamfering in Amount
(1) Fix a radius chamfering Indexable Inserts.
(2) Loosen the Hex. Socket Head Cap Screw ①of the
Head ④(Fig. 5).
(3) Turning the Head,match the scale of the Eccentric
Ring with the guide line according to the size of the
radius chamfering Indexable Inserts.
(4) Set the Head ④to the edge of Eccentric Ring ③
without clearance(Fig. 5).
(5) Conduct a test cutting.Readjust the Hex.Socket
Head Cap Screw of the Head,so that sizes A and B
become identical.
A
R
B
Fig. 7
6-4. How To Adjust Chamfering Angle
WARNING
Be sure to remove the air hose from the tool
beforehand whenever adjusting chamfering angle.
(1) Loosen the Hex. Socket Head Cap Screws ①(4
pcs)on both ends on the Plate Guide ⑤of Head
④.(Fig.8)
(2) Move the Plate Guide ⑤so that the scale of
desired angle can align to the Guide Pin ③.
(3) Tighten the Hex. Socket Head Cap Screws ①.
●
The tool has the limit of chamfering width which
depends on a chamfering angle. (Fig. 9, Fig. 10)
BEVELER
AMB-07
MODEL
NITTOKOHKI
MADEINJAPAN
MINI
Head④
GuidePin③
SocketHead
CapScrew①
Scale②
PlateGuide⑤
Fig. 8
A
α
C
B
Fig. 9
Chamfering
Angle
Stainless Steel (mm) Mild Steel (mm)
αABCABC
45° 3 3 4.2 7 7 9.9
30° 2.2 3.8 4.4 4 7 8.1
15° 1 3.8 3.9 2.2 8 8.3
Fig. 10
6-5. Before Cutting
(1) When you start to work from the corner as shown
in Fig. 11, cut off the corner first with grinder etc. ,
then start.
B
E
VEL
E
R
AMB-07
MODEL
NITTOKOHKI
MADEINJAPAN
MINI
DirectionA
Corner
Fig. 11
(2) Before start chamfering, make sure that the Valve
is set on and the Indexable Insert is rotating. Then,
apply the tool to the workpieces.
The Indexable Inserts may be damaged if the
Valve is set on after Indexable Inserts are pressed
on the workpieces or they may also be damaged if
they are pressed to the workpieces abruptly.

7
6-6. Feeding Speed
Be sure you should avoid quick feeding or heavy
shock. Please refer to Fig. 12.
Stainless Steel 3cm/sec
Mild Steel 2cm/sec
Fig. 12
6-7. When Exhaust Freezes
When you continuously chamfer more than 1m,
the number of the rotation of the tool sometimes
becomes fewer because of frozen exhaust. Since
the fewer number of rotation leads to the damage
of the Indexable Inserts, machine the workpiece of
more than 1m as shown in Fig. 13. If it shows the
sign of frozen exhaust, put away the rotating tool
from the workpiece for the period of 3 seconds. The
rotation will return to the original.
Fig. 13
6-8. How To Operation
WARNING
●Always turn off the air supply and disconnect
the air supply hose.
●The workpieces should be fixed as mach as
while working possible.
(1) Select the chamfering level.
(2) Make sure that the Valve is set at "OFF" position
and connect the air hose to the tool.
(3) Hold the Housing up. Start the tool.
(4) Hold the Housing and Knob firmly. Apply the tool
on to the workpiece along with the direction A
(shown on the Plate A ) carefully.
●
In case of chamfering stainless steel, chamfer deep
to the desired chamfering level by one span of
operation. Repeat of chamfering marks the life of
Indexable Insert shorter.
6-9. Radius Chamfering
●
By using radius chamfering Indexable Inserts, radius
chamfering job can be done.
●
Radius cutting Indexable Insert is an optional
accessory.
(1) Select the radius chamfering.
(2) Make sure that the Valve is set at "OFF" position
and connect the air hose to the tool.
(3) Hold the Housing up. Start the tool.
(4) Hold the Housing and Knob firmly. Apply the tool
on to the workpiece along with the direction A
(shown on the Plate A) carefully.
※On Tangential Line Cutting
●
Because of the constructional reason, it is possible
to make a radius tangential line cutting on the
side facing the Plate B by adjusting the Head, but
impossible on the upper side facing the Plate A. For
making a radius tangential line cutting on the upper
side,conduct in a following manner.
①
Place the tool on workpiece with Plate A on upper
surface of workpiece and Plate B on side surface,
as indicated in Fig.14. Then, turn the Eccentric
Ring to adjust the Indexable Inserts to cut properly
side surface, and conduct the first cut (see Fig.15).
②
Next, placing Plate A on side surface and Plate B
on upper surface, conduct the second cut.
③
In this case, slight seam may be left in center of
chamfered surface (Fig.16).
1
4
1
5
1
6
13
1
7
12111
0
0
3
5
4
5
1
SideSurface
PlateB
PlateA
UpperSurface
Fig. 14
UppeSurface
Surface
Side
Tangential
Line
Firstcut
R
UppeSurface
Surface
Side
Tangential
Line
Tangential
Line
Secondcut
R
R
Fig. 15 Fig. 16

8
6-10. How To Chamfer Outer Diameter
WARNING
Be sure to remove the air hose beforehand
whenever the accessories are attached or
removed.
The tool can be used on the workpieces at the
minimum diameter of 300mm by adjusting dimension
A of both Hex. Socket Set Screws (8×25 special) ①
in either direction. (Fig. 17)
Remember that this operation requires the workpieces
of at least 12mm length. (Fig. 18)
(1) In the case of constant R (Circle), install two Hex.
Socket Set Screws (8×25 special) ①on plate B
and tighten with Hex. Nuts. Make sure that the
dimension A of the left and the right screws are
equal.
(2) In the case of variable R (Oval), remove one of the
two Hex. Socket Set Screws (8×25 special) ①.
●
Remember that chamfering level changes depending
on the radii in this case.
Hex.SocketSetScrew
8×25special①
Hex.NutM8①
A
A
BallShape
PlateB
Fig. 17
B
EVELE
R
AMB-07
MODEL
NITTOKOHKI
MADEINJAPAN
MINI
PlateB
Min.12
Min. 300
Fig. 18
7. HOW TO REPLACE INDEXABLE INSERT
WARNING
●Always turn off the air supply and disconnect
the air supply hose.
●Bear in mind that Indexable Insert and holder are
much heated right after the operation.
(1) Loosen the Hex. Socket Head Cap Screw ①of the
Head ②(Fig. 19).
(2) While pulling the Stopper ③remove the Head ②.
(3) Unscrew the Indexable Insert Set Screw ⑤with
the Spanner ④and remove the Indexable Insert.
(4) Install a new Indexable Insert (or changing the side
of Indexable Insert) paying attention to its shape.
(5) While keep pulling the Stopper ③, install the Head
②on the body.
(6) Firmly install the Head ②on the end of Eccentric
Ring ⑦without making any clearance and tighten
the Hex. Socket Head Cap Screw ①.
●
Spanner T-15D (TQ01683) is available as optional
accessory so that the Indexable Insert Set Screw ⑤
can be removed efficiently.
MINIBEVERER
AMB-07
MODEL
NITTOKOHKI
MADEINJAPAN
Stopper③
Hex.SocketHead
CapScrew①
Head②
IndexableInsertSetScrew⑤
Spanner④
IndexableInsert
EccentricRing⑦
Fig. 19

9
8. CONDITION FOR USE
Burn-out chips suggest that either the feed speed is
too slow or the Indexable Insert has worn-out. Change
the cutting conditions or check the conditions of the
Indexable Insert.
9. THREAD SIZE OF HOSE FITTING
The product comes with a metal fitting with Rc (metric)
thread. Connect the Bushing R thread x NPT thread
included as standard accessories, if you would like to
have American NPT thread instead.
10. STORAGE
CAUTION
When tool is not used, store it out of reach of
children.
Avoid storing the tool in a location subject to high
humidity. If the tool is left as it is used, residual
moisture on the inside can cause rusting. Before
storing, and after operation, oil the tool at the air inlet
with machine oil ISO VG-10 and run it for a short time.
11. ORDERING SERVICE PARTS
●
For further operational and handling information or
for replacement of parts and components, contact
the company from whom you purchased the tool or
an authorized dealer.
●
In ordering parts and components give each part
number, part name and quantity required.
●
Use only NITTO genuine parts.
12. OPTIONAL PARTS
Part No. Description Qty
TB01159 Indexable Insert with Hole 12.7 10 pcs
TB01791 Indexable Insert 12.7 sq. R2 10 pcs
TB01651 Indexable Insert 12.7 sq. R3 10 pcs
TB01790 Indexable Insert 12.7 sq. R4 10 pcs
TQ01683 Spanner T-15D 1 pc.
TB02539 Attachment for Small Dia. Pipe ※ 1 set
※ For Steel Pipe Out. Dia. 80mm – 200mm

10
13. EXPLODED DIAGRAM : AMB-0307, AMBL-0307
WARNING
This diagram is for your reference only. Do not attempt to service or repair the Tool. Do not take the Tool apart. Contact an authorized Nitto dealer for all service and repair of the Tool. Improper service and repair can cause accidents and severe injuries. Never attempt to modify the Tool. Never attempt service or repair the Tool yourself.
43

11
The part numbers with ( ) are included in the Ass’y parts written above them. AMB-0307 PARTS LIST
No. Part No. Description Qty Price
1 TB01274 Plate A Ass'y 1set 2 (TP16975) Label A(warning) 1 3 (TQ01684) Label B(chamfering level) 1 4 TQ00210 Plate B 1 5 TQ00211 Hex. Socket Head Screw 5×84 6 TP18065 Plate Guide 2 7 TP02862 Hex.Socket Head Cap Screw
5×15 4
8 TP02152 Plain Washer 4 9 TA9A895 Head Sub Ass'y A 1set
10 TP08013 Hex. Socket Head Cap Screw
5×25 2
11 TP18056 Concentric Snap Ring 1
12 TA9A583 Stopper Ass'y 1set 13 TP04827 Hex. Socket Set Screw
with Flat Point 6×10 3
14 TP18055 Eccentric Ring 1 16 TQ00142 Aux. Ring 1 17 TQ01629 Indexable Insert Set Screw
4×71
18 TB01159 Indexable Insert with Hole 12.7
(10pcs./Set) 1set
19
TQ00139 TQ00140 TQ00141 TQ00298
Spacer 38.5×43.8×0.05 (for adjustment) Spacer 38.5×43.8×0.1 (for adjustment) Spacer 38.5×43.8×0.2 (for adjustment) Spacer 38.5×43.8×0.3 (for adjustment)
20 TQ01630 Holder 1 21 TA98634 Bearing Set Screw Ass'y 1set 22 TQ00954 Spindle 1 23 TP00502 Sunk Key 4×4×9.5 1 24 TP01609 Ball Bearing 6202ZZ 1 25 TP14036 Gear 1 26 TQ00955 Needle Roller Bearing
TA1010Z 1
27 TP10100 Bearing Cover 1 28 TP10826 Packing 1 29 LP08450 Pan Head Screw 5×25 1 30 TP14041 Exhaust Cover 1 31 TP14040 Silencer Plate 2
No. Part No. Description Qty Price
32 TB01273 Grip Tube Ass'y 1set 33 (TQ12843) Label Warning 1 34 TP06715 Countersunk Flat Head
Screw 5×81
35 TQ00144 Housing 1 36 TP14030 Pinion 1 37 TP10133 Ball Bearing 609ZZ 2 38 TP14034 End Plate B 1 39 TP10130 Sunk Key 3×3×10 1 40 TP14033 Rotor 1 41 TA9A294 Blade Ass'y(4 pcs.) 1set 42 TP14031 Cylinder 1 43 TP04061 Spring Pin 3×61 44 TP10137 End Plate A 1 45 TP15131 Cap 1 46 TA98314 Valve Holder Sub Ass'y A 1set 47 (TP13542) Label Switch 1 48 TP00547 Valve Pin 3×20 1 49 TP13541 Spring 1.2×29.4×25 1 50 TP13540 Valve Ring 1 51 TA98988 Feed Valve Ass'y 1set 52 TP00520 Valve Spring 1 53 TP11797 Connection 1 54 TP00857 Bushing M16×R1/4 1
AMBL-0307 PARTS LIST
No. Part No. Description Qty Price
32 TB08740 Grip Tube Ass'y 1set 33 (TQ12794) Label Warning 1 55 TP17446 Adapter 1 56 TP17452 Lock Ring 1 57 TP17445 O-ring S-35.5 1 58 TB08741 Valve Body Ass'y 1set 59 (TQ12611) Label CE Mark 1 60 TQ02349 Bushing M16×PT3/8 1
61 TP03473 Retaining Ring C-14 1 62 TP11992 O-ring KS-9 1 63 TP04394 Adjust Valve 1 64 TA96334 Throttle Valve Ass'y 1set 65 TP09434 Spring Pin 2×12 1 66 TP14340 Torsion Coil Spring 1 67 TP14339 Lock Lever 1 68 TA96253 Throttle Lever Ass'y 1set 69 (TP01921) Spring Pin 3×18 1
Accessories
No. Part No. Description Qty Price
15 TA93017 Knob Ass'y 1set
TP01939 Hex.Socket Screw Key 4 1
Indexable Insert with Hole 12.7 1
TP04696 Hex.Socket Screw Key 3 1 TP08584 Hex.Nut M8 2 TP17133 Hex.Socket Set Screw
8×25 Special 2
TP18071 Spanner T-15F 1 TP02236 Bushing R1/4×NPT1/4
(AMB-0307) 1
TQ02350 Bushing R3/8×NPT3/8
(AMBL-0307) 1
TQ12795 Instruction Manual 1 TQ12796 Declaration of Conformity
(AMBL-0307) 1

عOverseas Affiliates / Offices
NITTO KOHKI U.S.A ., Inc.
4
525 Turnberry Drive, Hanover Park, IL 60133, U.S.A
T
el: (1)-630-924-9323 Fax:[phone]
http://www.nittokohki.com/index.html
NITTO KOHKI EUROPE Co., Ltd.
Unit 21, Empire Centre, Imperial Way,
W
atford Hertfordshire, WD24 4TS, United Kingdom
T
el: (44)-01923-239668 Fax:[phone]
http://www.nitto.co.uk/
NITTO KOHKI DEUTSCHLAND GmbH
Lerchenstr. 47, D-71144 Steinenbronn, Germany
T
el: (49)-7157-22436 Fax:[phone]
http://www.nitto-kohki.de/
NITTO KOHKI AUSTRALIA Pty. Ltd.
77 Brandl Street, Eight Mile Plains QLD 4113,
A
ustralia
T
el: (61)-7-3340-4600 Fax:[phone]
http://www.nitto-australia.com.au/
NITTO KOHKI Co., Ltd. Singapore Branch
10 Ubi Crescent #01-62, Ubi Techpark Lobby D,
Singapore 408564
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.co.jp/e/nksb/
NITTO KOHKI Co., Ltd. Shanghai Representative Office
#1117 Ruijing Building, Maoming South Road,
Shanghai 200020 China
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.cn/
NITTO KOHKI Co., Ltd. Shenzhen Representative Office
#0726 International Culture Building, 3039, Shennan
Zhong Rd., FutianDistrict, Shenzhen, 518003 China
Tel: [phone] Fax:[phone]
http://www.nitto-kohki.cn/
NITTO KOHKI Co., Ltd. Bangkok Representative Office
38Q, House Convent Bldg, 7th Floor, Unit 7A,
Convent Rd, Silom, Bangkok,10500 Thailand
Tel: (66)- 2 -632-0307 Fax:[phone]
http://www.nittobkk.com/eng_index.htm
EC DECLARATION OF CONFORMITY
We hereby declare that the following our product conforms with the essential health and safety requirements of
EEC Directives.
Product䋺PNEUMATIC CHAMFERING TOOL
Model䋺MINI BEVELER㩷㩷: AMBL-0307
Serial No䋺X
X X X X X
Consecutive numbers (00001䌾99999)
Christian era’s last digit (0䌾9)
Manufacturer䋺NITTO KOHKI Co., Ltd.
2-9-4, Nakaikegami, Ohta-ku, Tokyo, 146-8555, Japan
Authorised Compiler in the Community䋺
Masatoshi Ogue
President
NITTO KOHKI EUROPE Co., Ltd.
Unit21, Empire Centre, Imperial Way, Watford Hertfordshire, WD24 4TS, UK
Tel:[phone] Fax:[phone]
Directive䋺98/37/EC and 2006/42/EC Machinery Directive
The above product has been evaluated for conformity with above directives using the following European standards.
The technical construction file (TCF) for this product is retained at the above manufacturer’s location.
Machinery Directive䋺EN ISO12100-1:2003, EN ISO12100-2:2003,
EN ISO14121-1:2007, EN792-11:2000+A1:2008, others
Sound Pressure/Power Level䋺EN ISO15744:2008, EN ISO4871:1996
Vibration Level䋺EN28662-1:1992, EN ISO8662-10:1998
Name䋺K.Kishi
Title: GENERAL MANAGER MACHINE TOOLS DIV.
Being the responsible person appointed and employed the manufacturer.
Printed in JAPAN TQ12795-0
